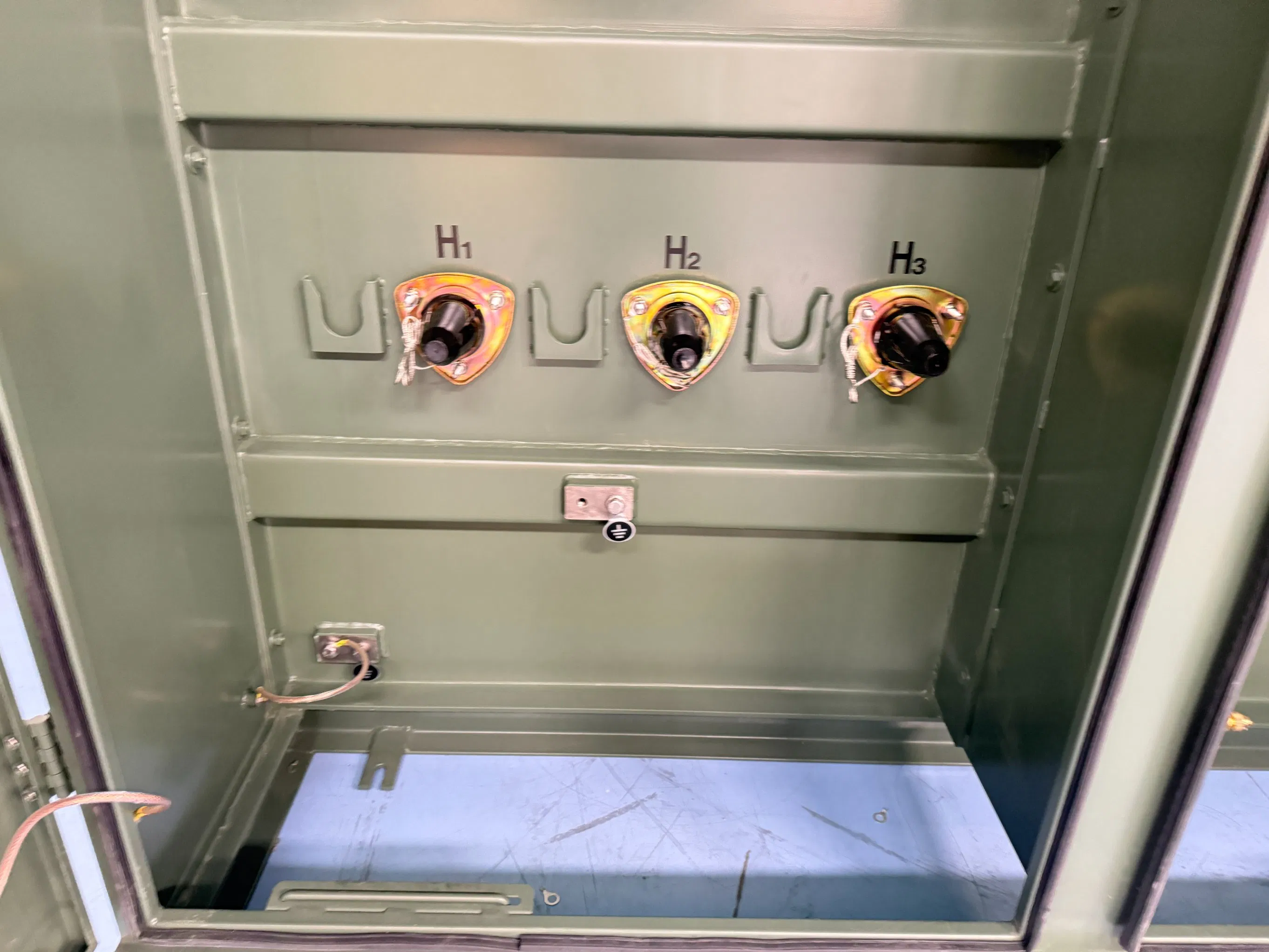

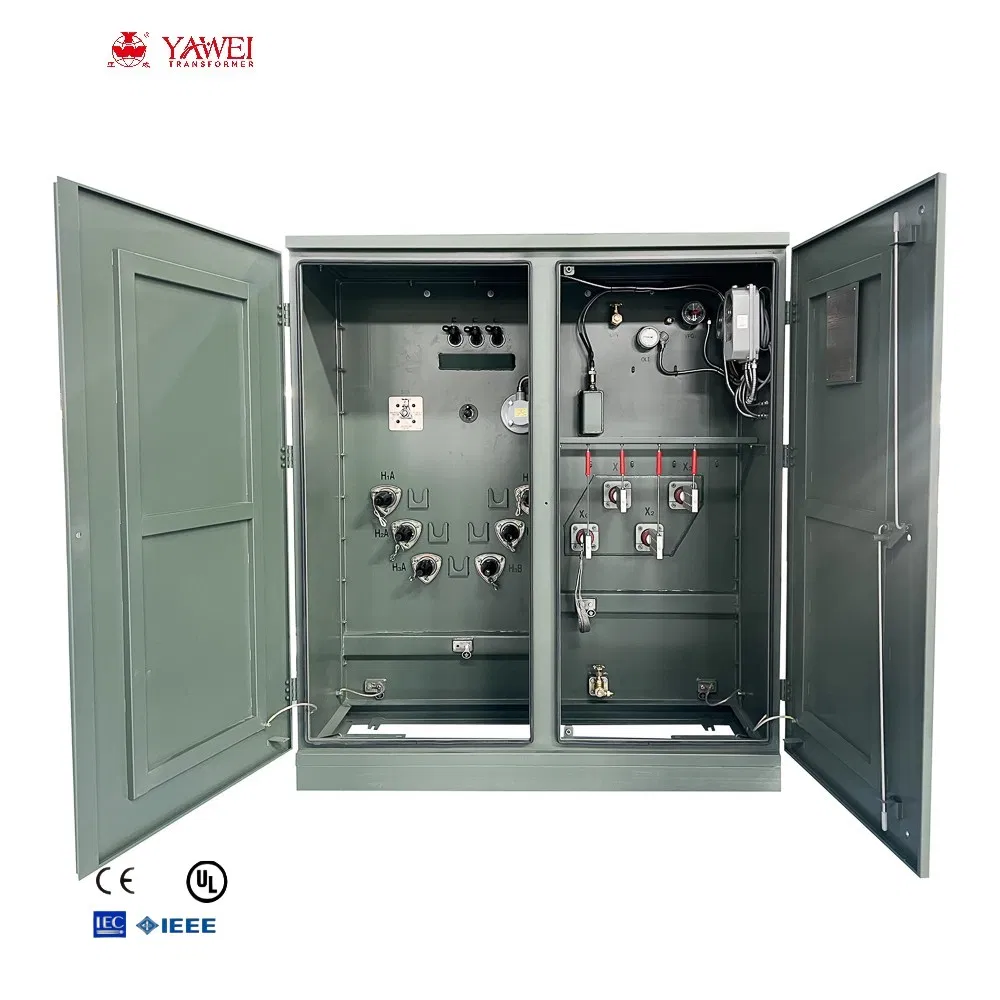

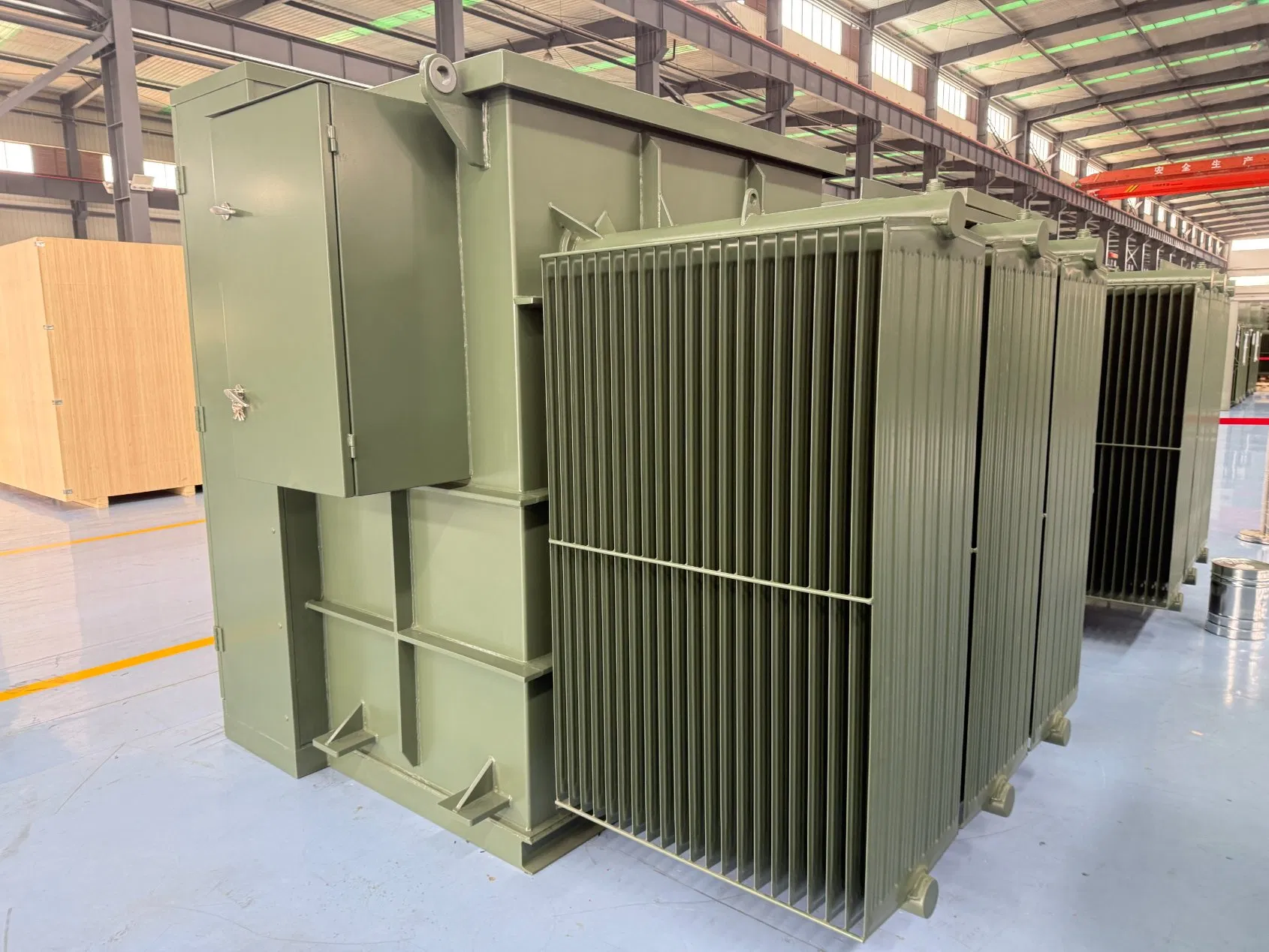

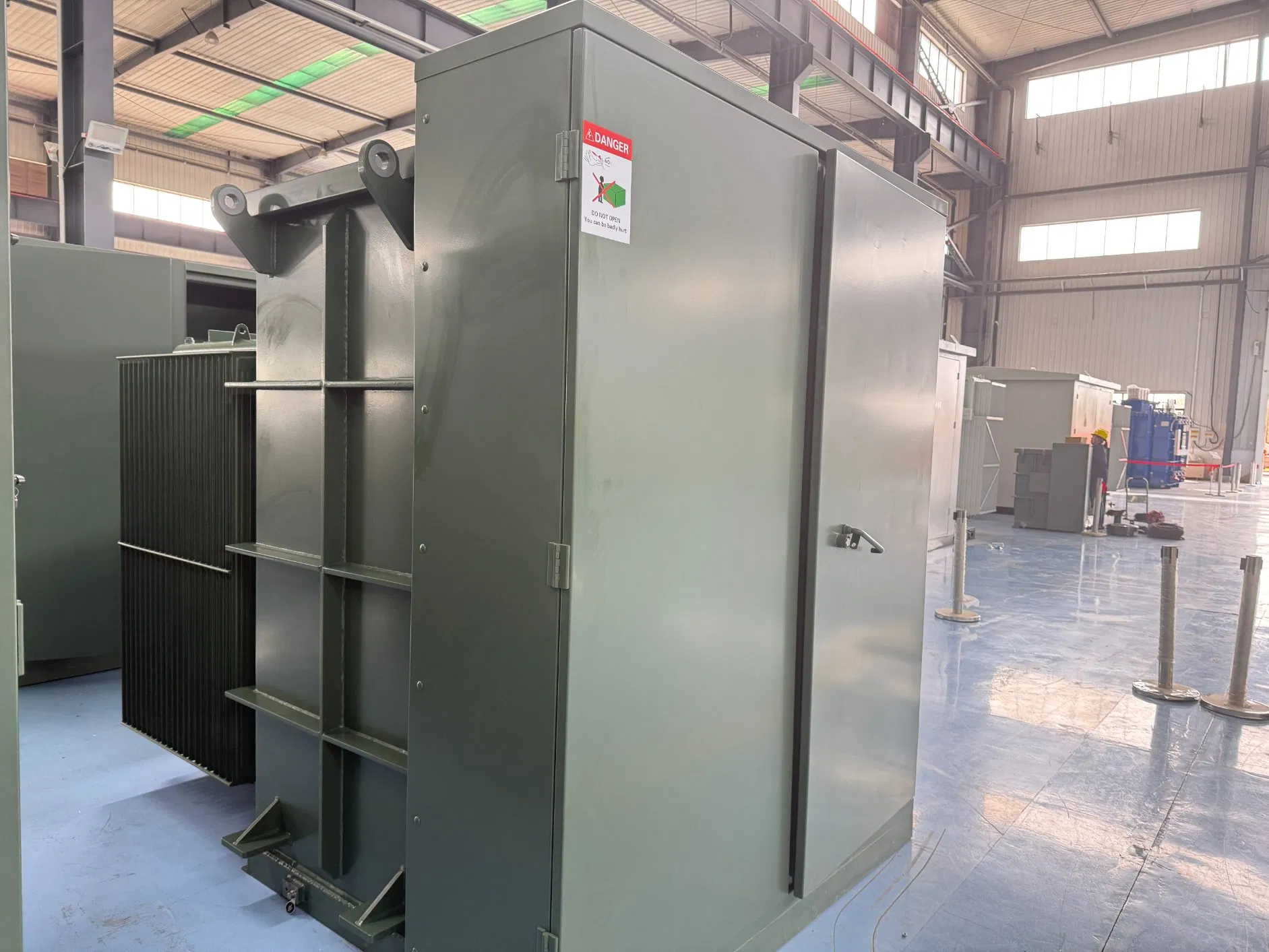

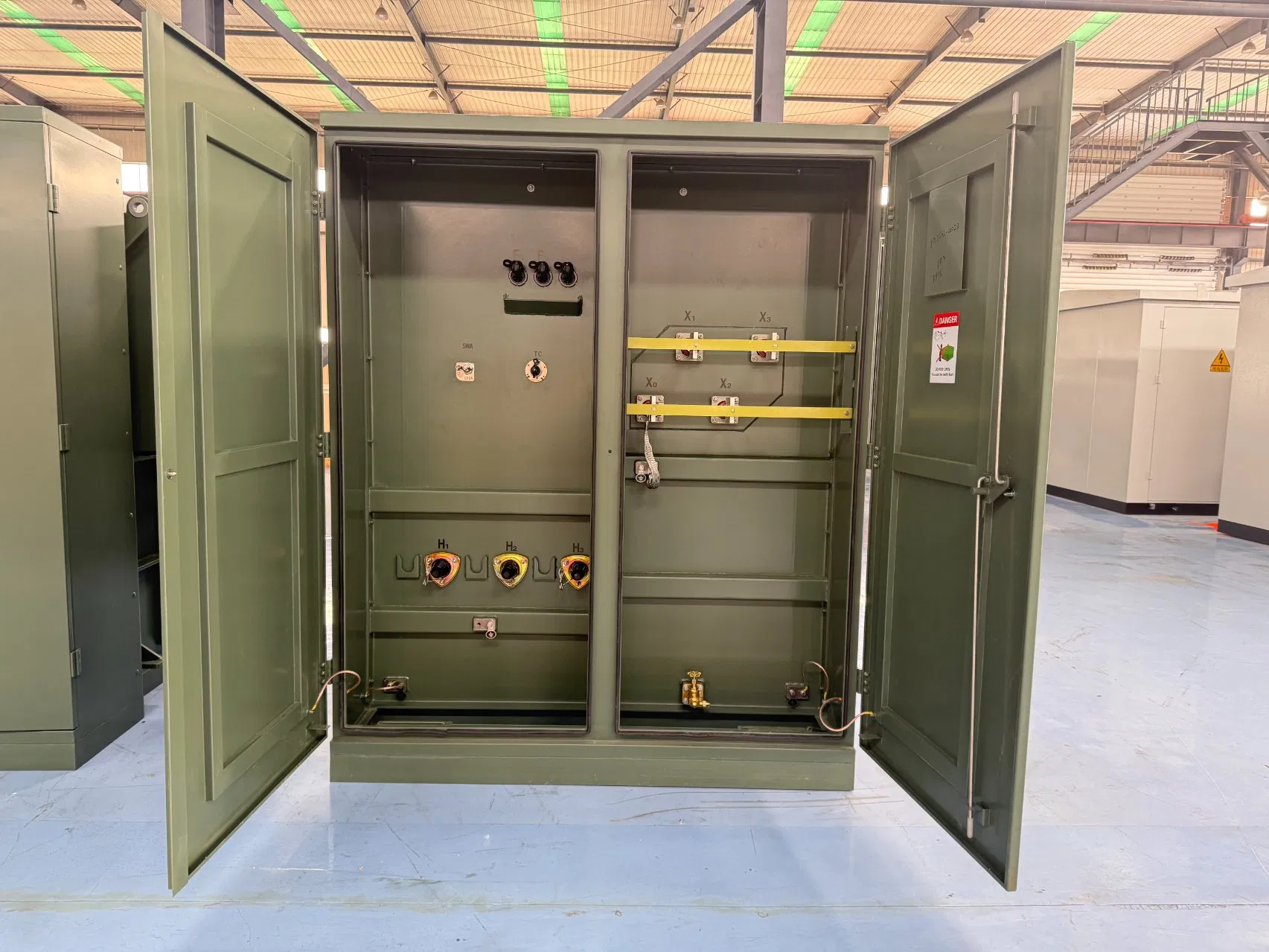

Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer
Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer
Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer
Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer
Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer
1 / 5
Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer
Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer
Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer
Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer
Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer

Yawei 150kVA Dual Voltage Three Phase Pad Mounted Transformer

Customization: Available
Application: Power
Phase: Three
Send Inquiry

Product Description

Technical Overview
Model NO.
ZGS11-13
Core
Core-type Transformer
Cooling Method
Oil-immersed Type
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, CCC
Usage
Power/Distribution Transformer
Rated Capacity
1600kVA
Winding Material
Copper / Aluminum
Warranty
24 Months
Frequency
50Hz/60Hz
Packaging & Delivery
Package Size
2000cm * 2000cm * 2000cm
Gross Weight
1000.00kg
Transport Package
Wooden Case
Origin
China
Product Description

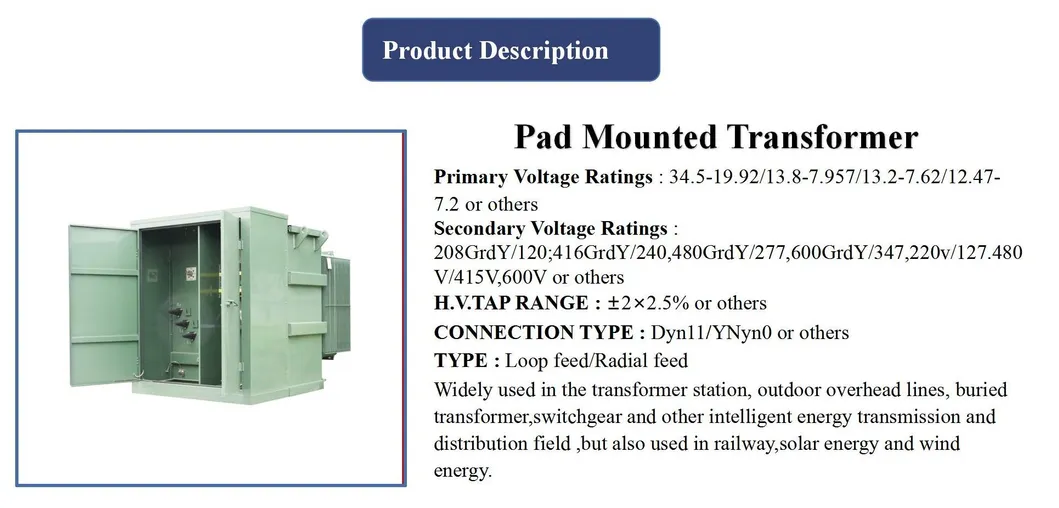

Combined Transformer Overview

The ZGS11 series combined transformer is a revolutionary power distribution solution. Engineered with a compact volume and optimized structure, it is specifically designed for load center city grids. This innovative equipment significantly reduces energy consumption while enhancing the overall quality and reliability of power supply.

Currently, these products are widely deployed across residential communities, public utility zones, and industrial mining sites, proving their versatility in diverse distribution environments.

Key Product Features
⚡
Safety First: Fully sealed and insulated structure guarantees maximum personnel security during operation.
🔄
Dual Application: Highly versatile design suitable for both ring network and terminal systems.
📉
High Efficiency: Features low loss, low noise levels, and superior electrical performance.
🌡️
Thermal Control: Maintains low operating temperatures with exceptional overload capabilities.
Pad Mounted Transformer Specifications
Rated Power (KVA) High Voltage (KV) Low Voltage (V) No-load Loss (W) On-load Loss (W)
75KVA34.5KV / 13.8KV / 12.47KV or customized240V / 480V / 600V1801250
150KVA2802200
300KVA4803650
500KVA6805100
1000KVA115010300
2000KVA216020645
3750KVA412537875
Visual Presentation

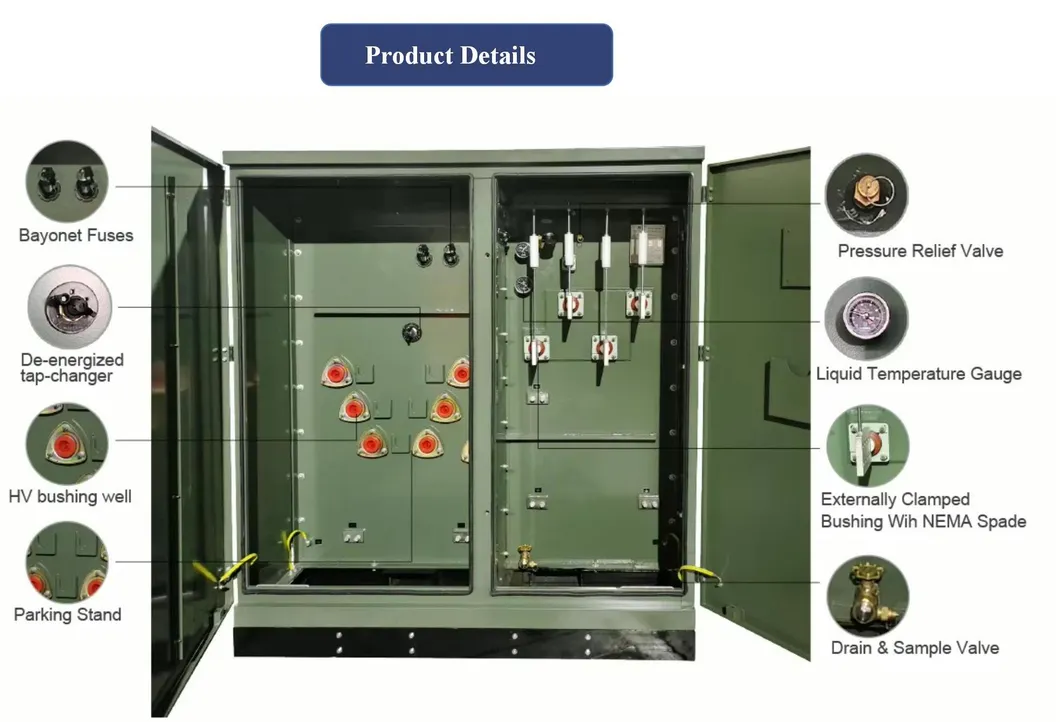

Transformer Detail 1 Transformer Detail 2
Transformer Setup Transformer Installation
Production & Quality Control

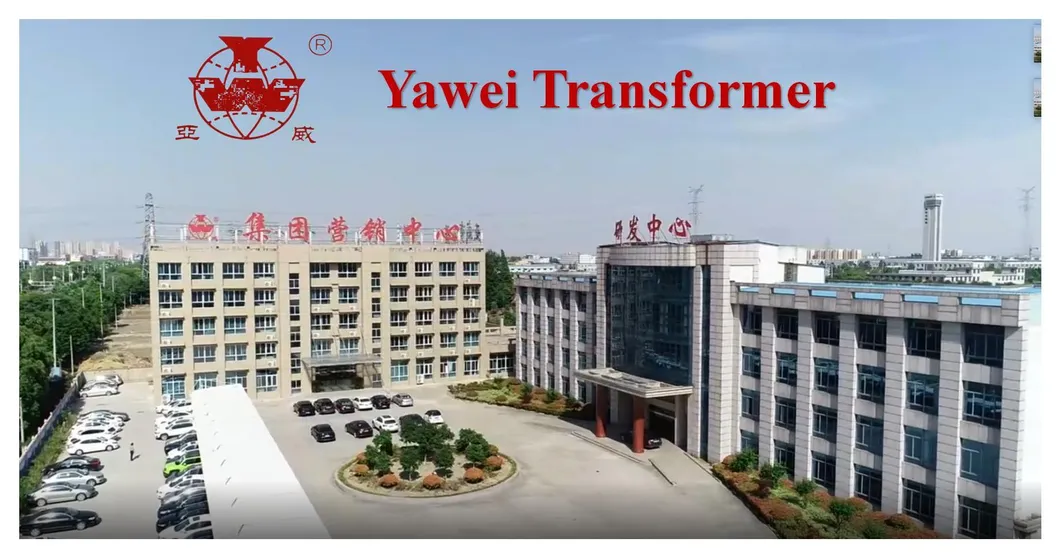

Production Facility 1 Production Facility 2 Production Facility 3
Quality Testing 1 Quality Testing 2
Equipment Display 1 Equipment Display 2
Frequently Asked Questions
What are the primary applications for the ZGS11 combined transformer?
It is primarily used in urban power grids, residential communities, industrial mining sites, and public spaces where compact and efficient power distribution is required.
How does the "fully sealed" structure benefit the user?
The fully sealed and insulated design prevents accidental contact with live parts, ensuring maximum safety for maintenance personnel and the public, while protecting the core from environmental contaminants.
Can this transformer be used in ring networks?
Yes, the ZGS11 series is designed to be highly flexible and can be used in both ring network systems and terminal distribution systems.
What is the standard warranty period for these transformers?
The standard warranty period is 24 months, ensuring long-term reliability and support for your infrastructure.
What cooling methods are employed?
These units utilize Oil-immersed cooling (ONAN/KNAN), which provides efficient heat dissipation and stable operation even under load.
What materials are used for the transformer windings?
Depending on the specific requirements and model, we use high-quality Copper or Aluminum winding materials to ensure optimal conductivity and performance.
