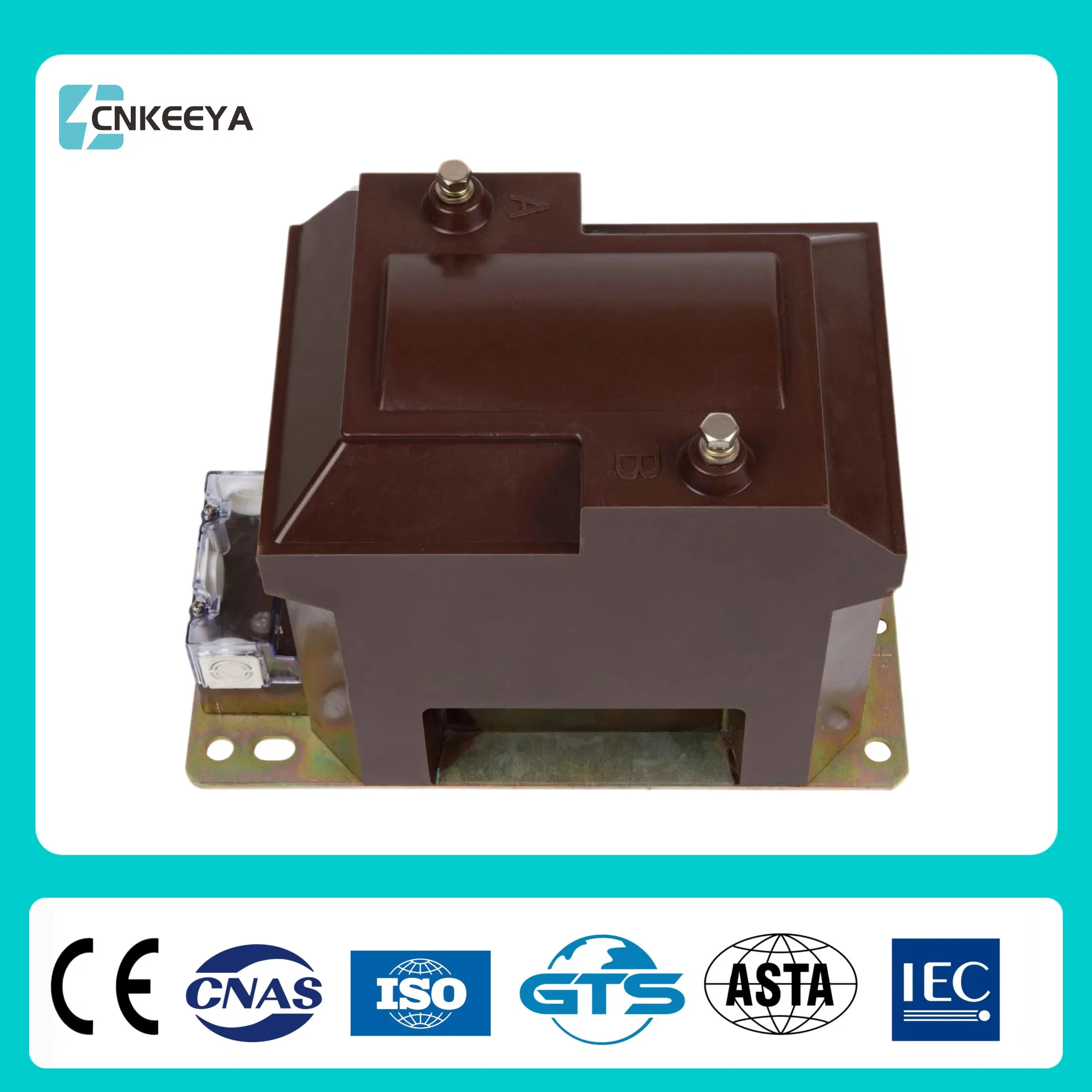

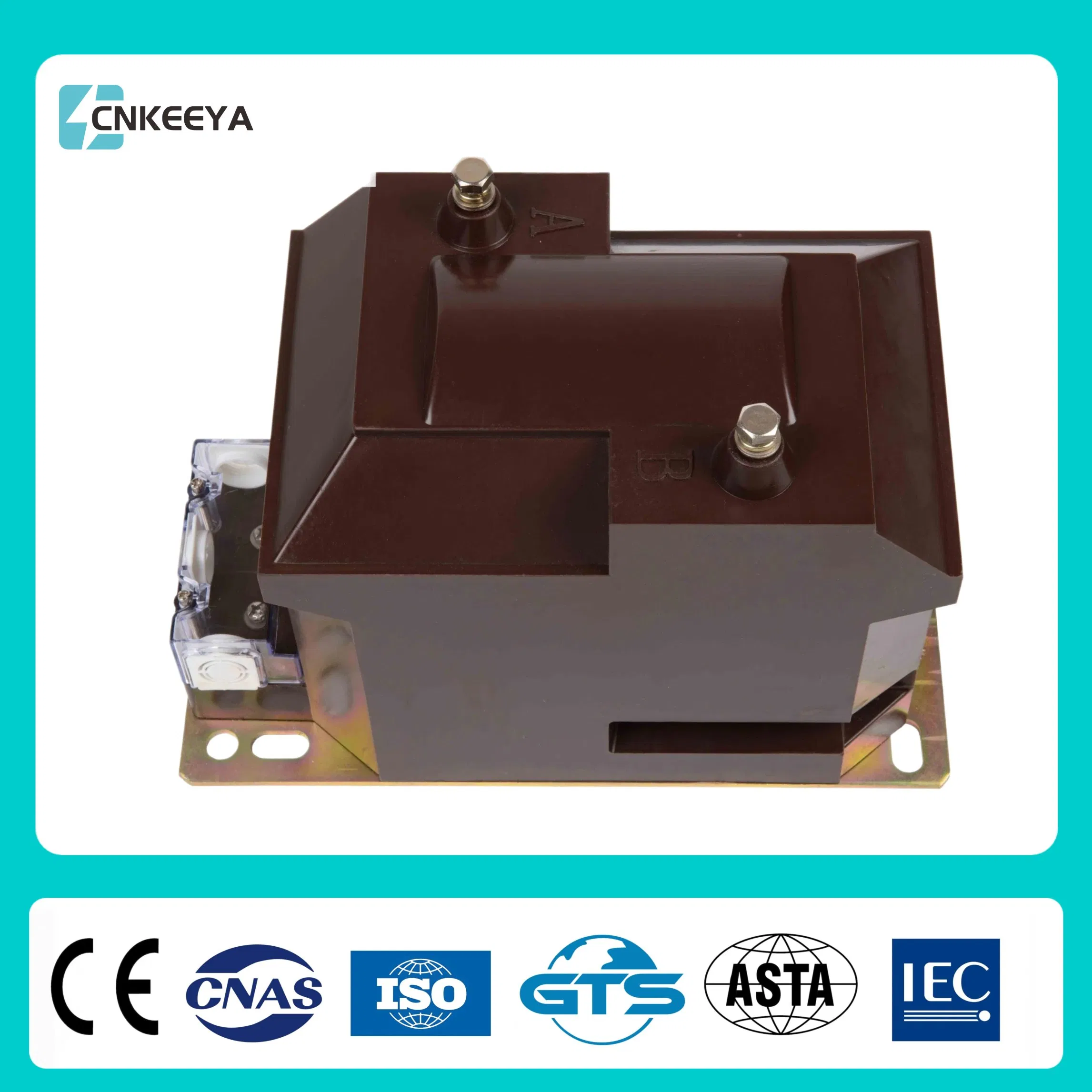

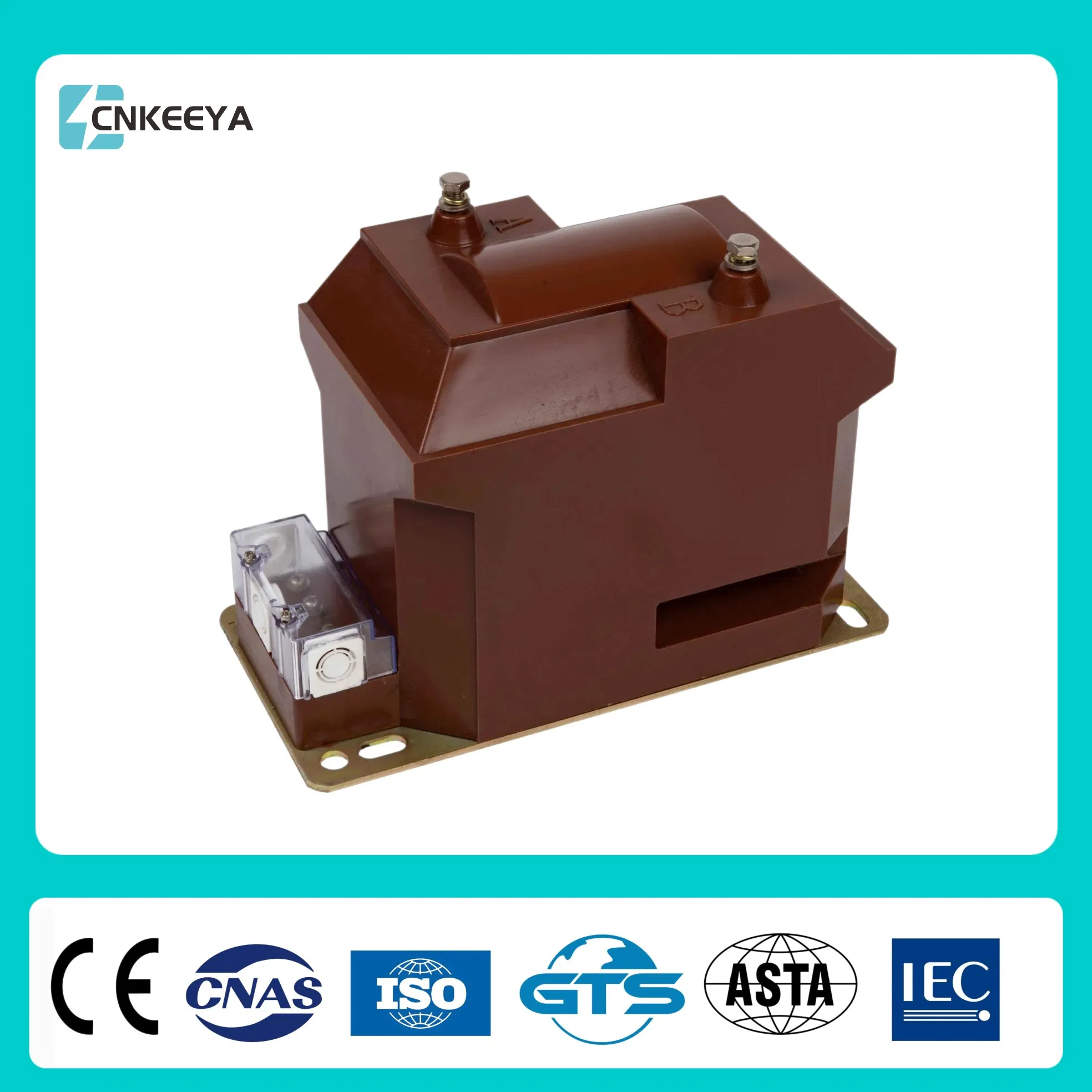

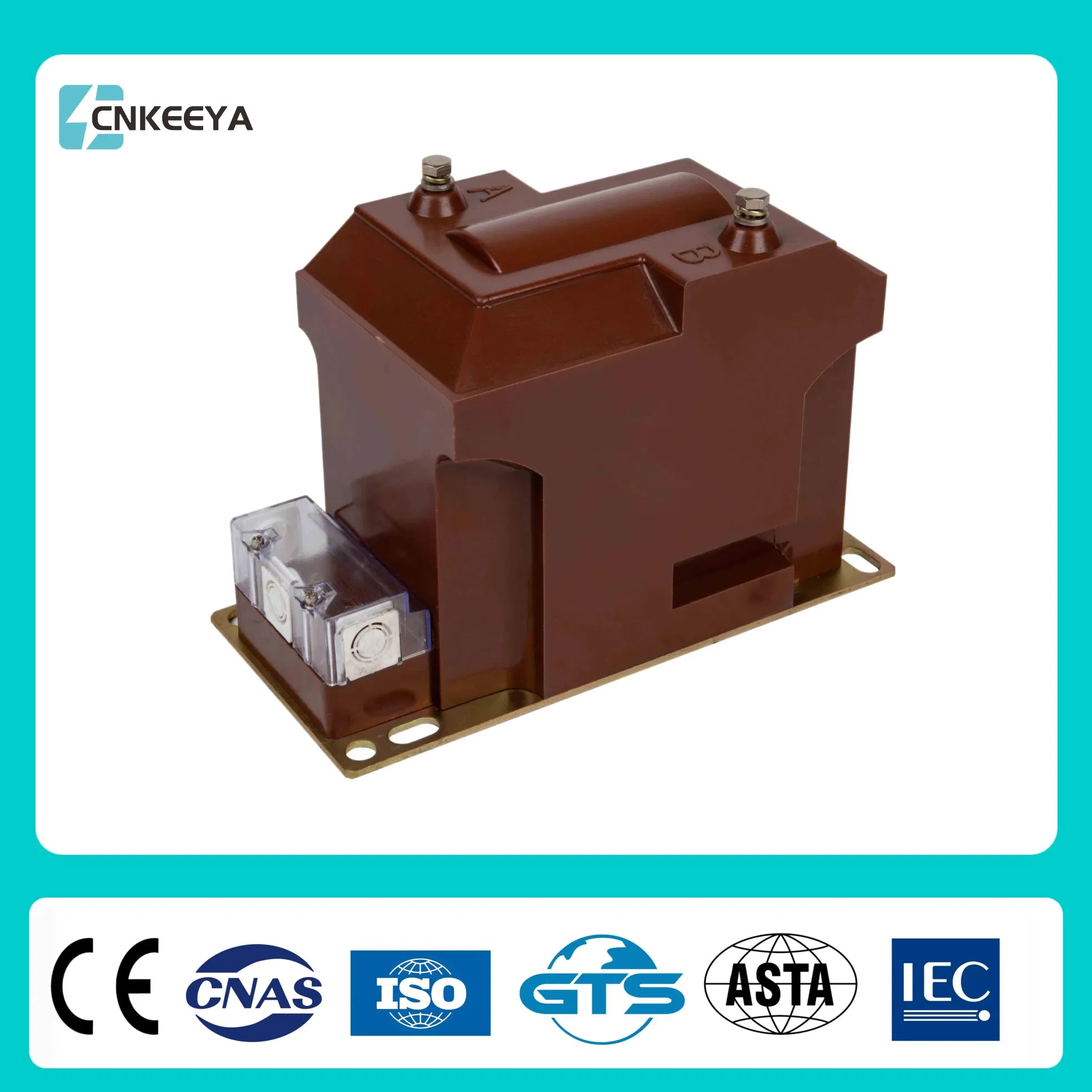

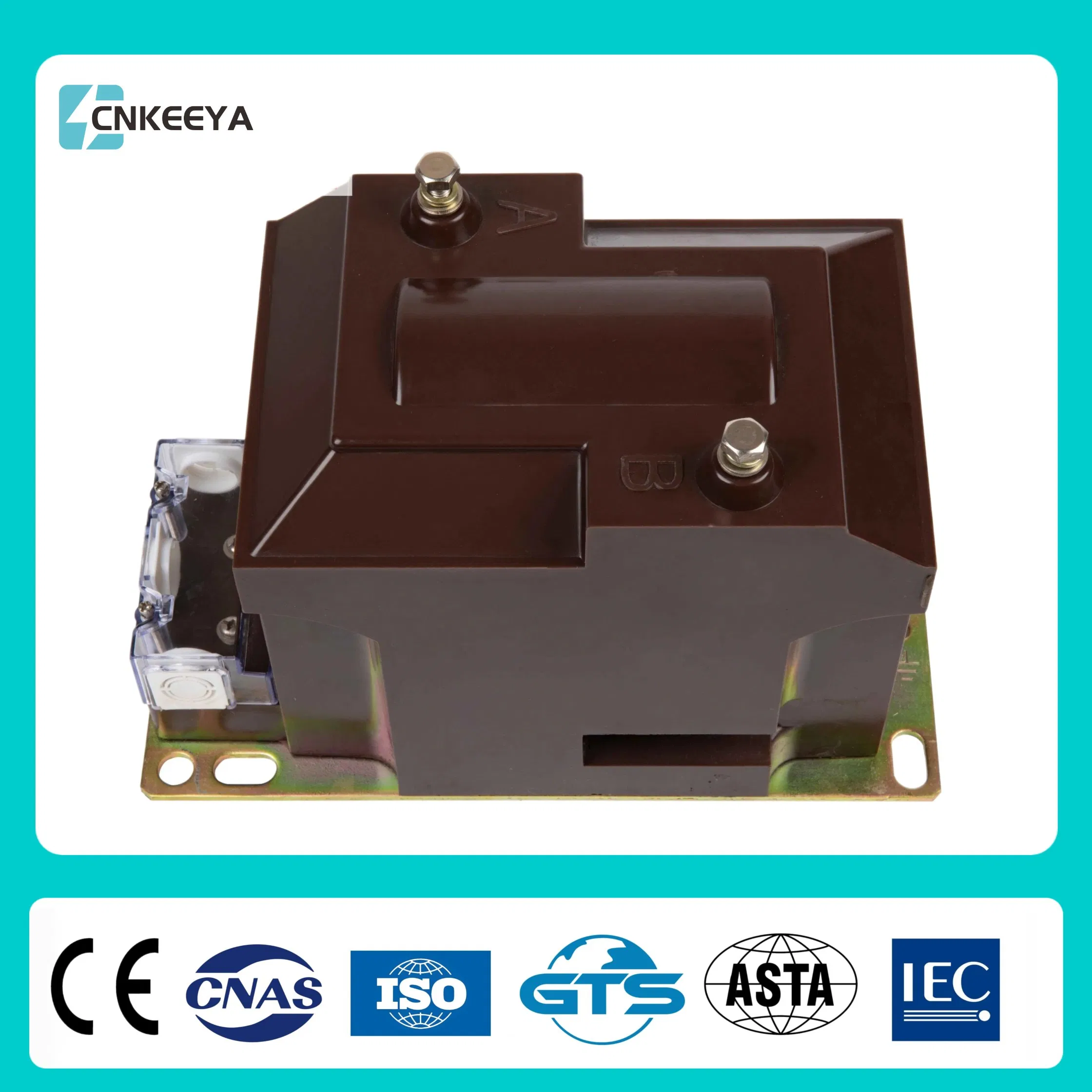

Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv
Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv
Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv
Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv
Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv
1 / 5
Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv
Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv
Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv
Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv
Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv

Cnkeeya PT 20kv Indoor Voltage Transformer Instrument Jdz11-20, Ratio 20/0.1kv

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Phase:Single
Operation Condition:Indoor
Usage:Protection
Winding Form:Single Layer & Tightly Wound Type
Insulating Medium:Epoxy Resin
Installation:Strut Type
Magnetic Circuit:Single Stage Type
Principle:Electromagnetic Type
Transport Package:Wooden Case
Origin:China
HS Code:8504311000
Production Capacity:5000PCS/Month

Product Description

JDZ10-10 and JDZX10-10 voltage transformers are designed for rated frequencies of 50Hz or 60Hz. They are primarily used for energy metering, voltage monitoring, and relay protection within 10kV power systems.

Operating Conditions:

  • Installation location: Indoor.
  • Environmental temperature: Maximum +40 ºC; Minimum -5 ºC.
  • Altitude: Not exceeding 1000m.
  • Atmospheric conditions: No serious pollution in the atmosphere.

This pillar-type structure is crafted from epoxy resin fully enclosed casting. It is highly resistant to pollution and moisture, making it suitable for tropical regions. These transformers are low-maintenance, requiring only periodic cleaning of surface contaminants. The compact, lightweight design allows for installation in any direction. The secondary outlet terminal includes a secure wiring terminal box for enhanced safety.

Detailed Photos

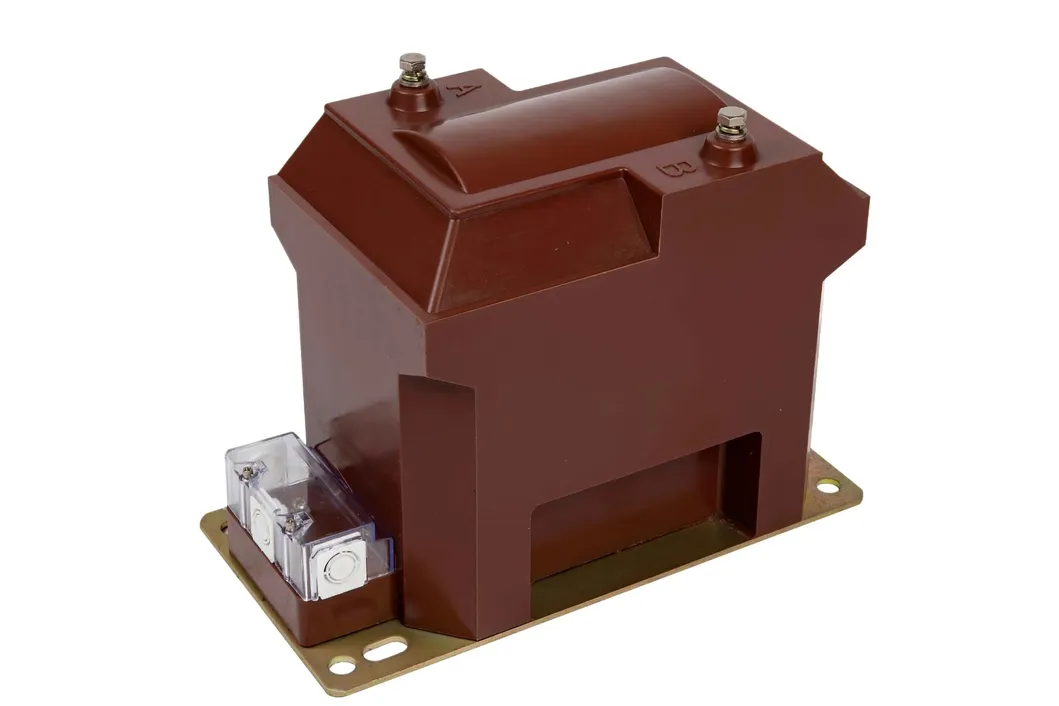

Voltage Transformer Photo 1

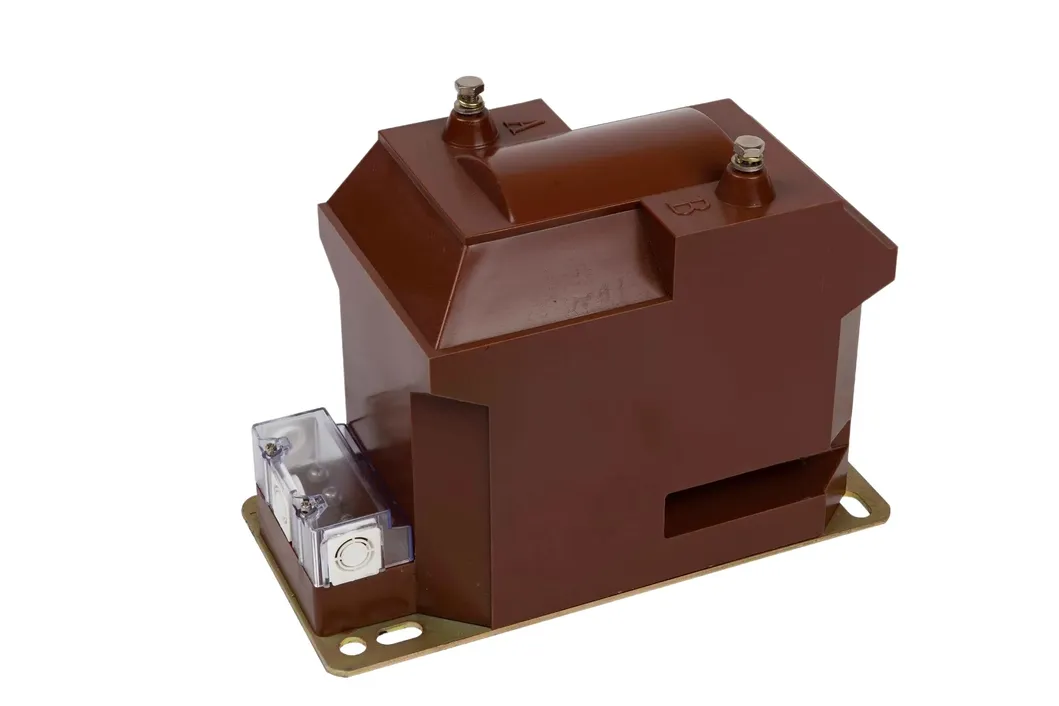

Voltage Transformer Photo 2

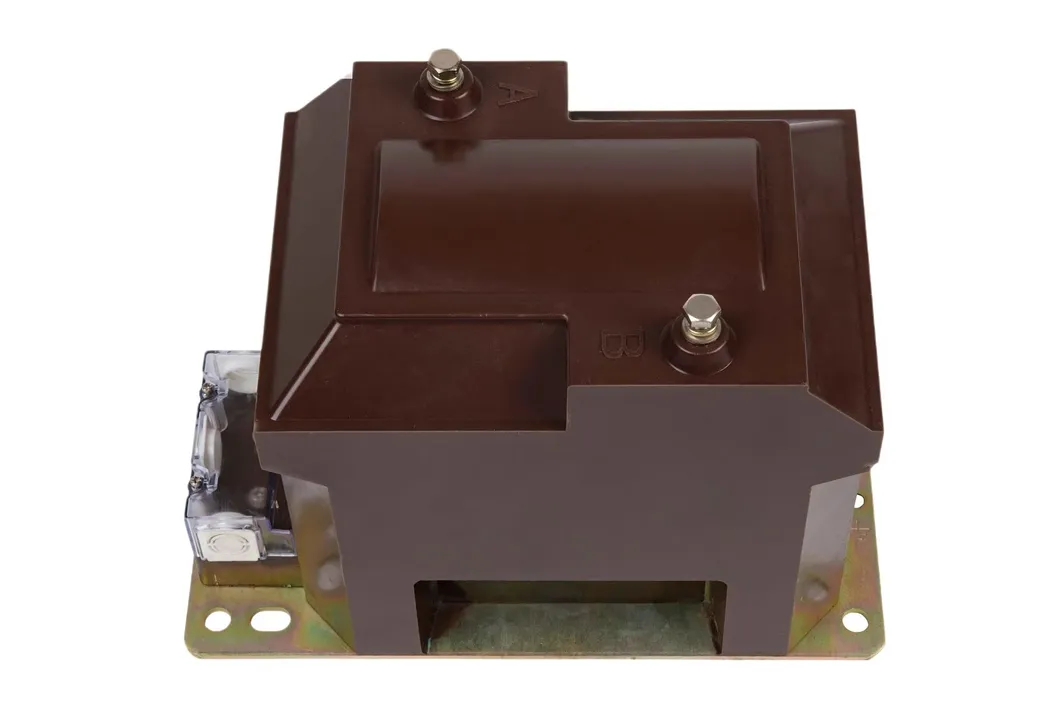

Voltage Transformer Photo 3

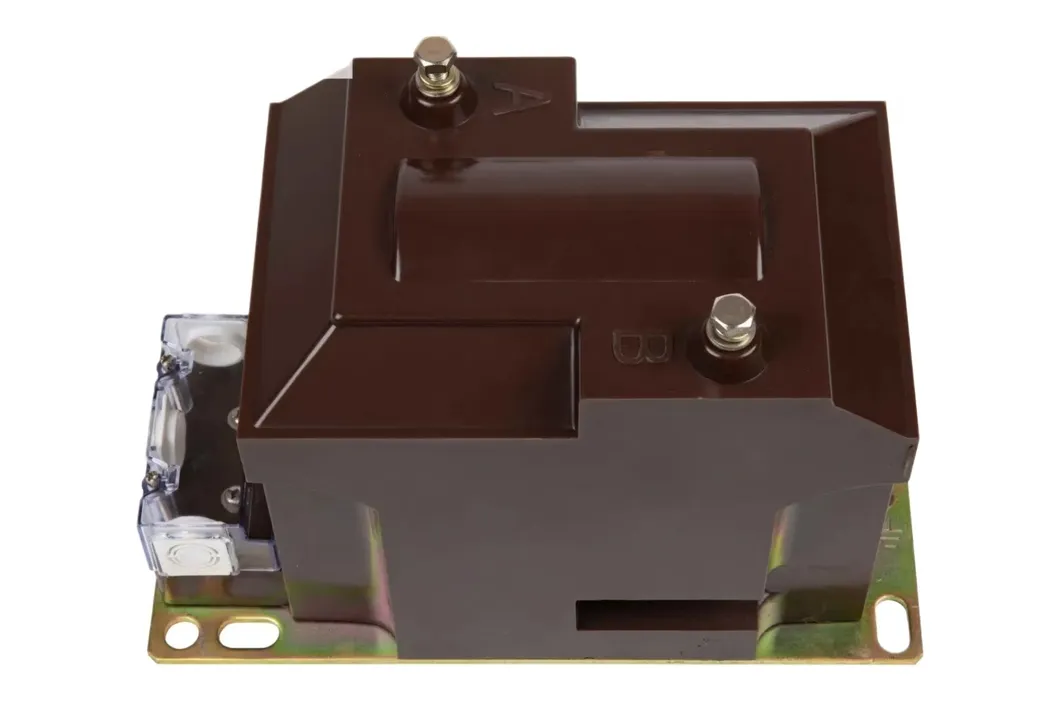

Voltage Transformer Photo 4

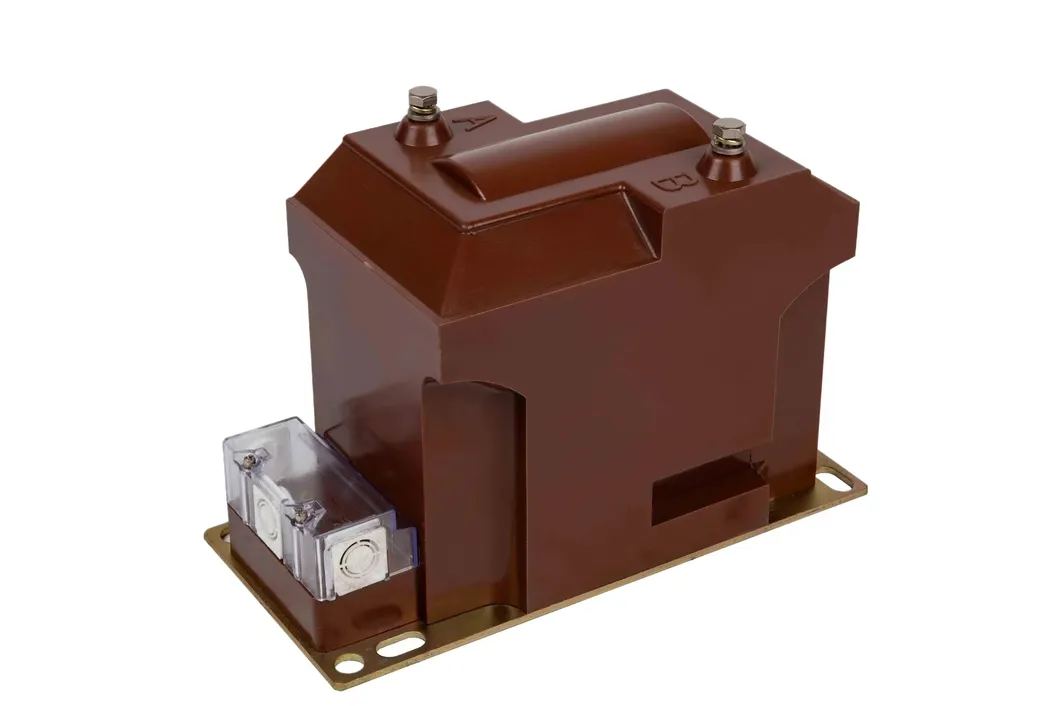

Voltage Transformer Photo 5

Product Parameters

Product Model Rated Primary Voltage Rated Secondary Voltage Rated Output (0.2 class) Rated Output (0.5 class) Ultimate Output Insulation Level
JDZ10-10 10kV 100V 15VA 30VA 200VA 12/42/75kV

Production Display

Production Process 1

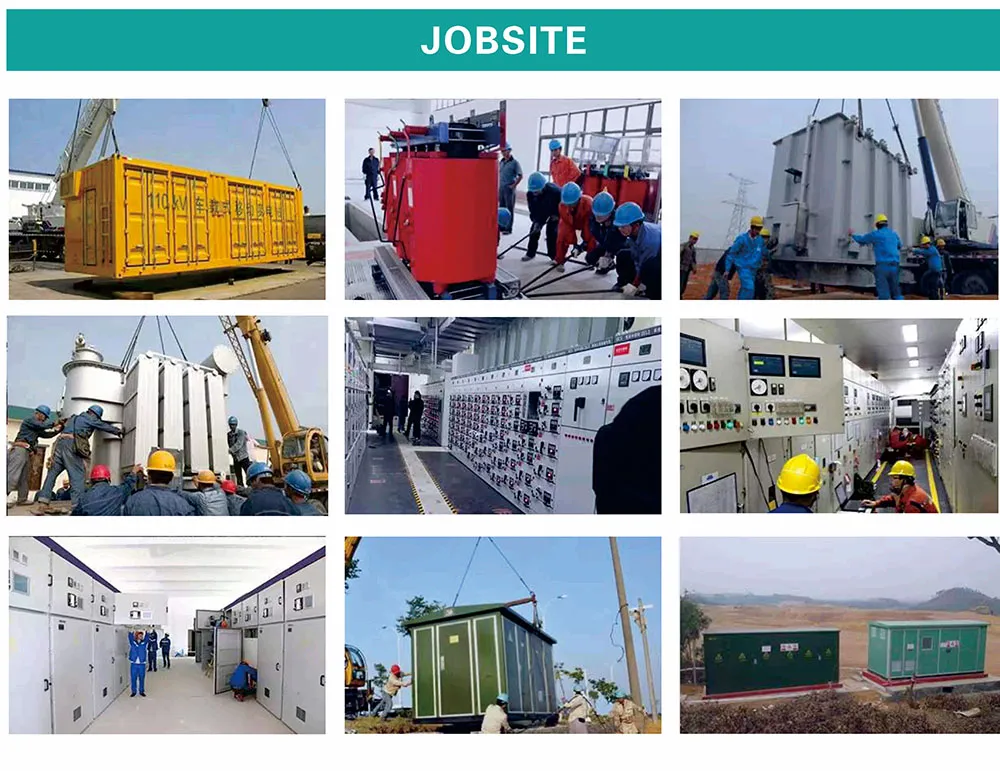

Production Process 2
Production Process 3
Production Process 4
Production Process 5

Frequently Asked Questions

What is the primary application of JDZ10-10 transformers?
They are mainly used for voltage monitoring, energy metering, and relay protection in 10kV indoor power systems.
What are the advantages of epoxy resin casting?
The fully enclosed epoxy resin casting provides excellent insulation, moisture resistance, and pollution resistance, making it suitable even for tropical climates.
Is regular maintenance required for these units?
No special maintenance is required. Users only need to regularly clean the surface of any contaminants to ensure optimal performance.
What is the maximum installation altitude?
The standard design is suitable for altitudes not exceeding 1000 meters above sea level.
Can the transformer be installed horizontally?
Yes, the compact and lightweight pillar-type design allows for installation in any position and direction.
What is the rated frequency for this model?
These transformers are compatible with both 50Hz and 60Hz power system frequencies.
