More Than 15 Years Of Experience In Supplying State Grid And Southern Power Grid.
Get factory pricing. Request a quote now.
Professional supplier of integrated power transmission and distribution equipment.
Bring your project concept to life in just a few days. Our experienced engineers are ready to support your project. We are a seasoned manufacturer of both high- and low-voltage power system products.

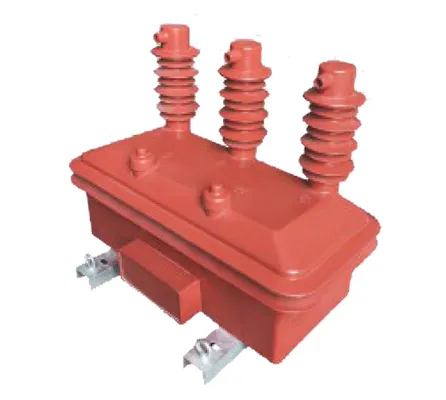

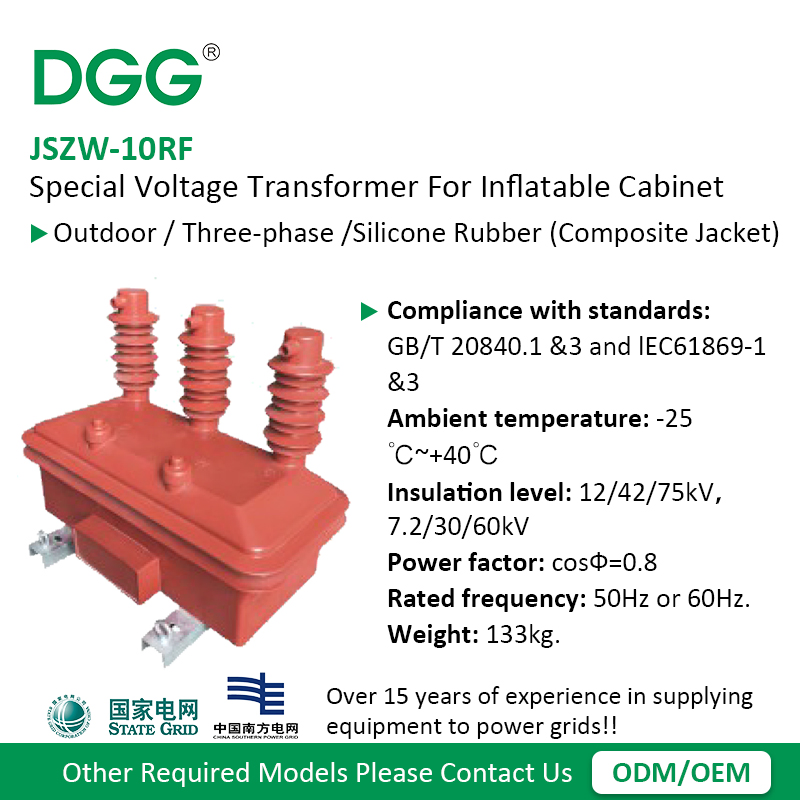

Compliance with standards: GB/T 20840.1 & 3 and IEC61869-1 & 3
Insulation level: 12/42/75kV, 7.2/30/60kV
Rated frequency: 50Hz or 60Hz | Weight: 133kg
| Rated Voltage Ratio (kV) | Accuracy Class | Rated Output (VA) | Limit Output (VA) |
|---|---|---|---|
| 6/√3 / 0.1/√3 / 0.22/√3 / 0.1 | 0.5 / 3 / 3P | 30 / 300 / 30 | 500 |
| 10/√3 / 0.1/√3 / 0.22/√3 / 0.1 | 0.5 / 3 / 3P | 30 / 300 / 30 | 500 |
*Note: Parameters beyond the scope of the above table can be determined after consultation.
