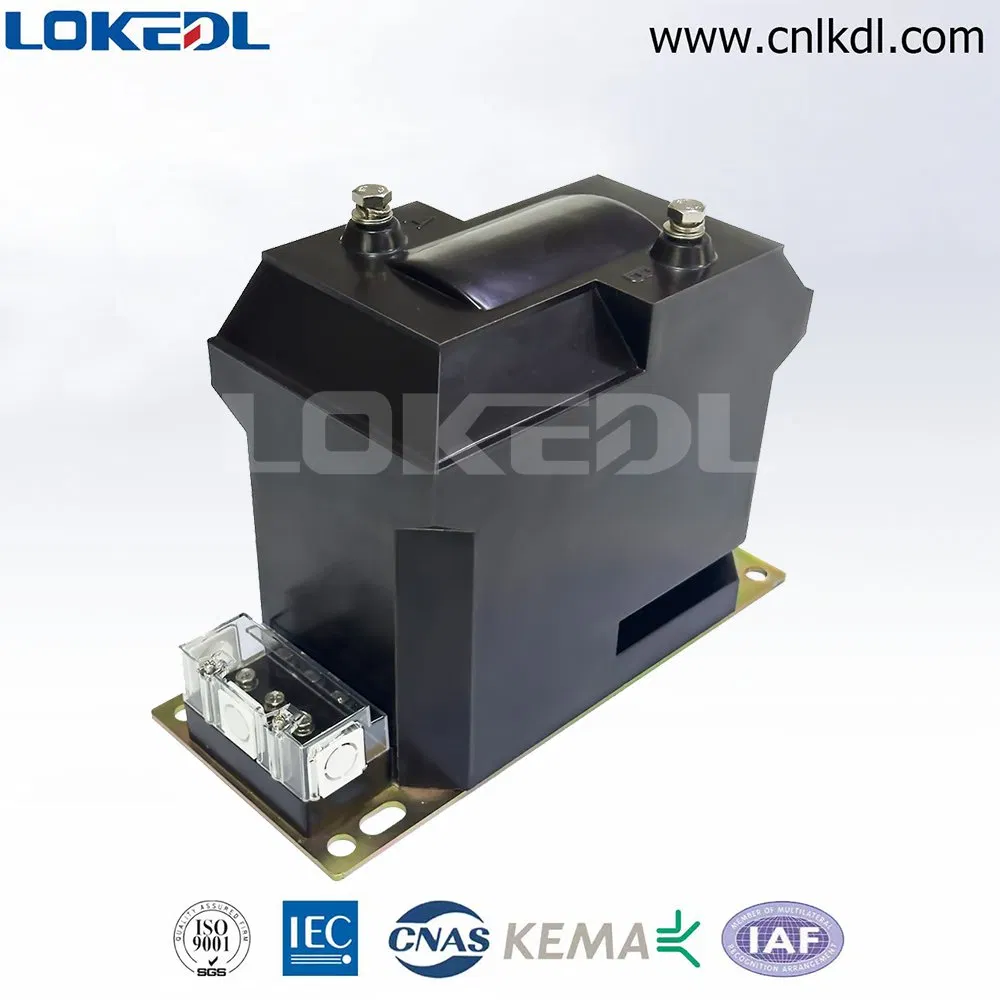

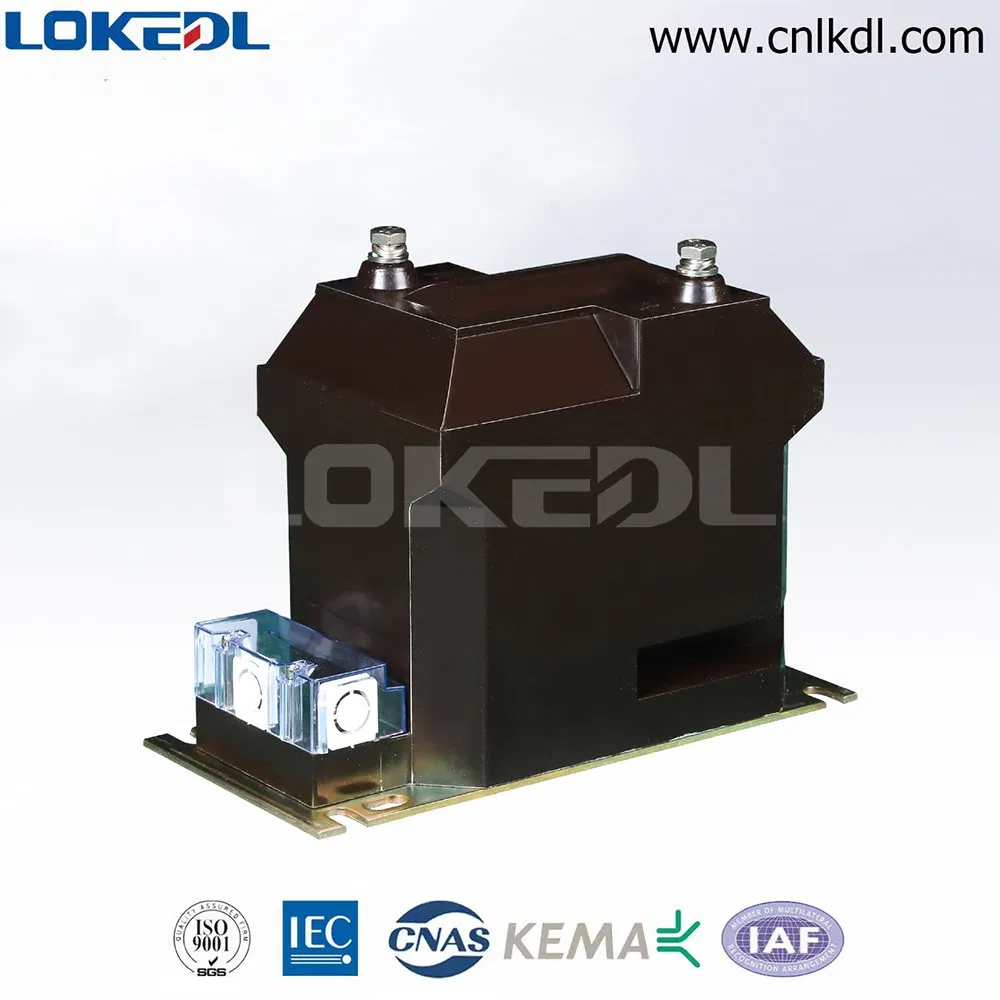

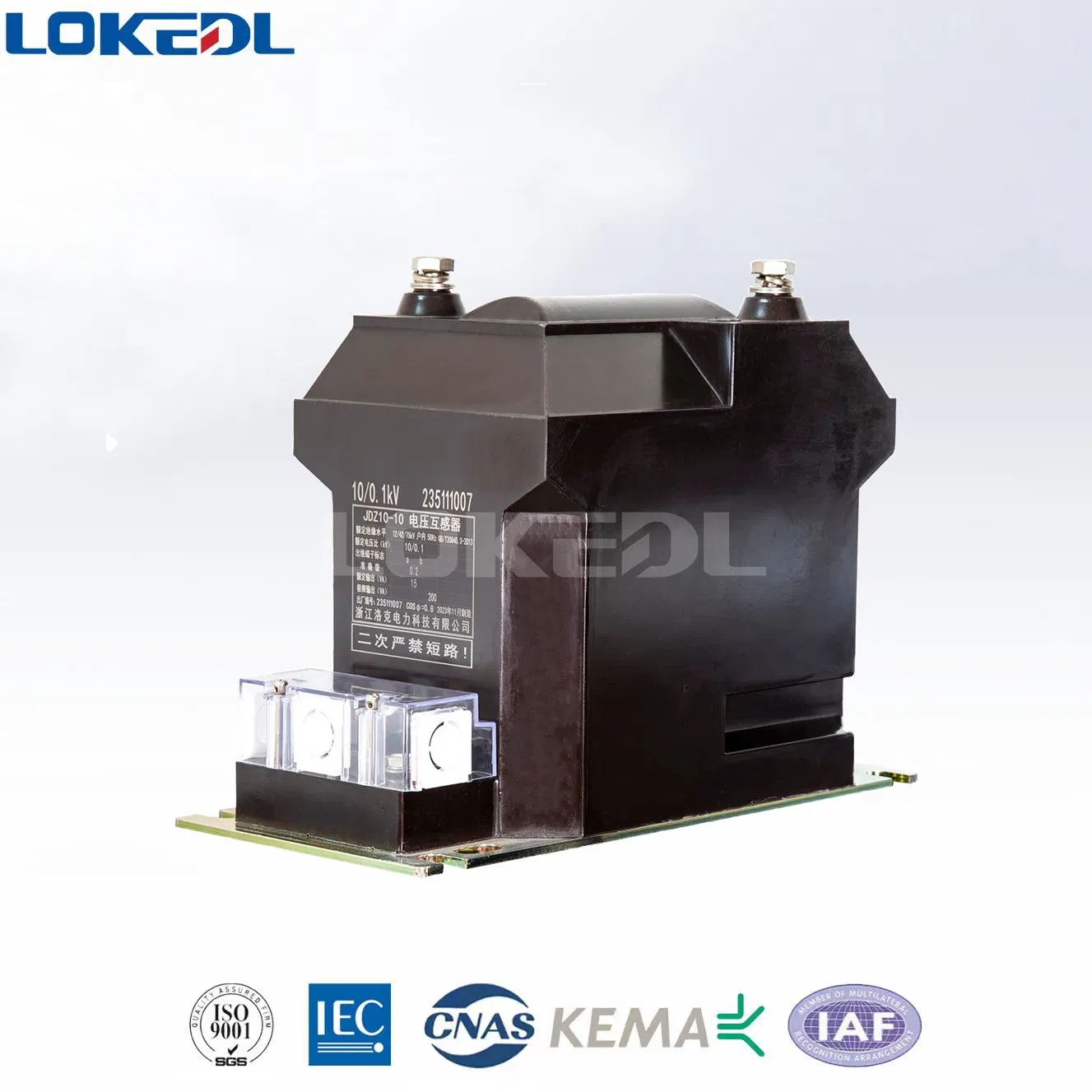

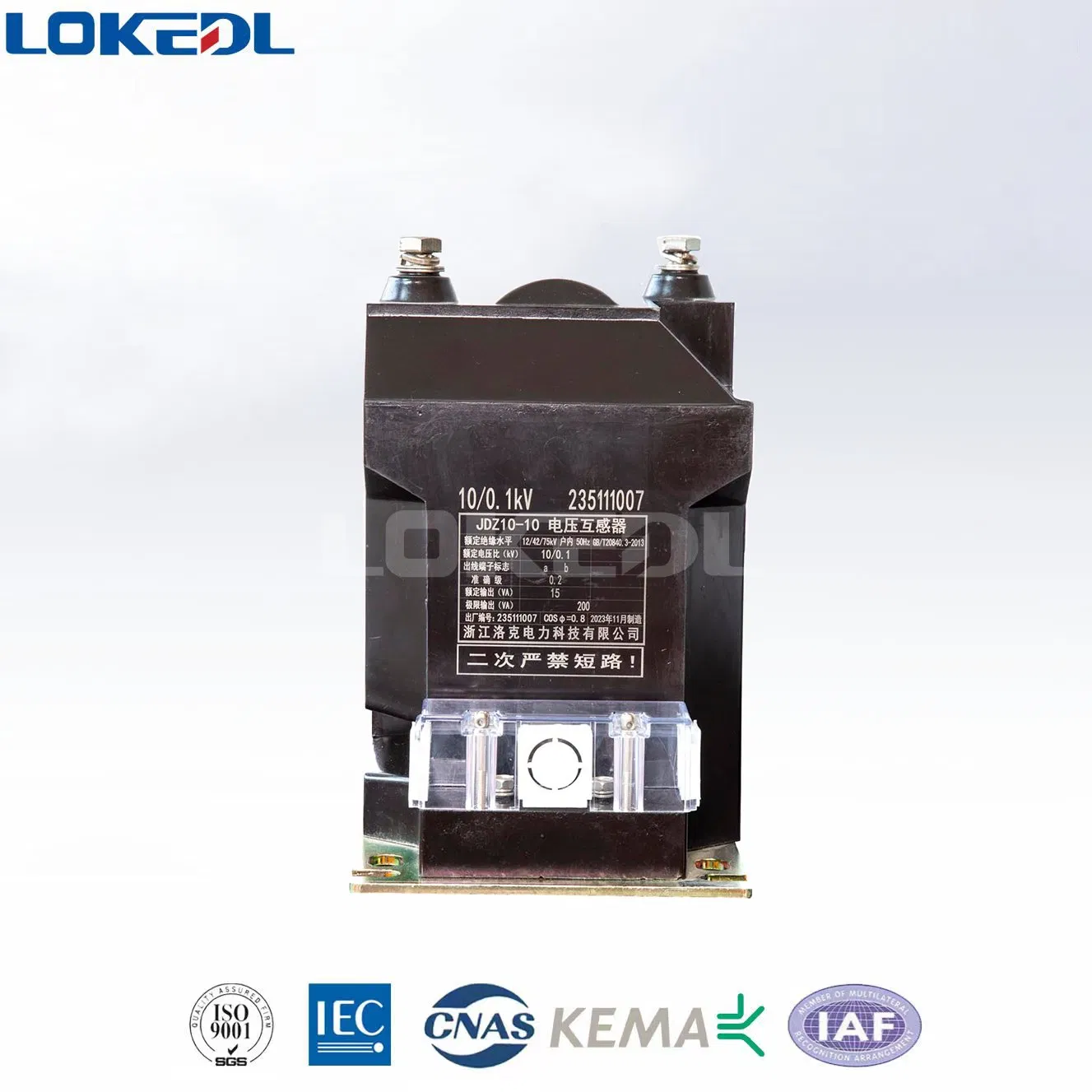

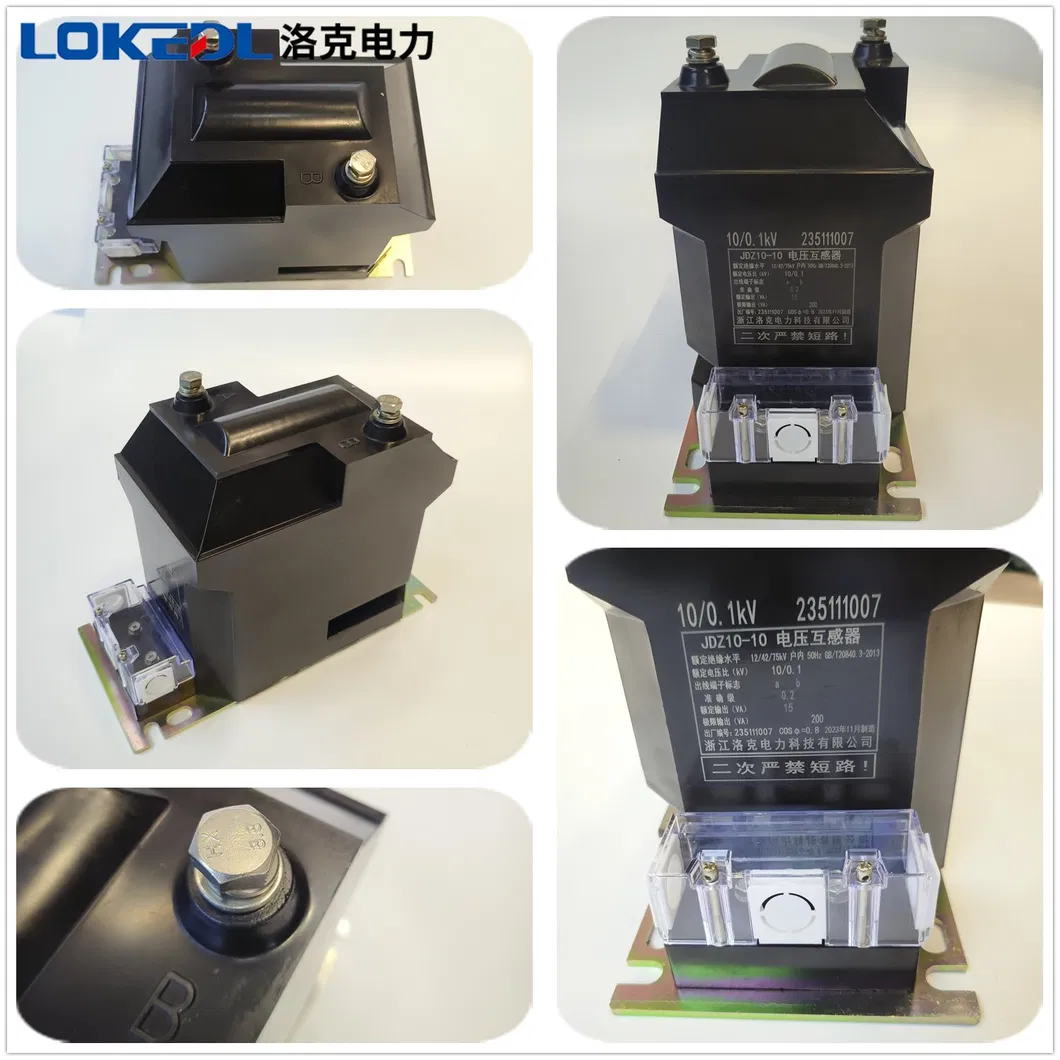

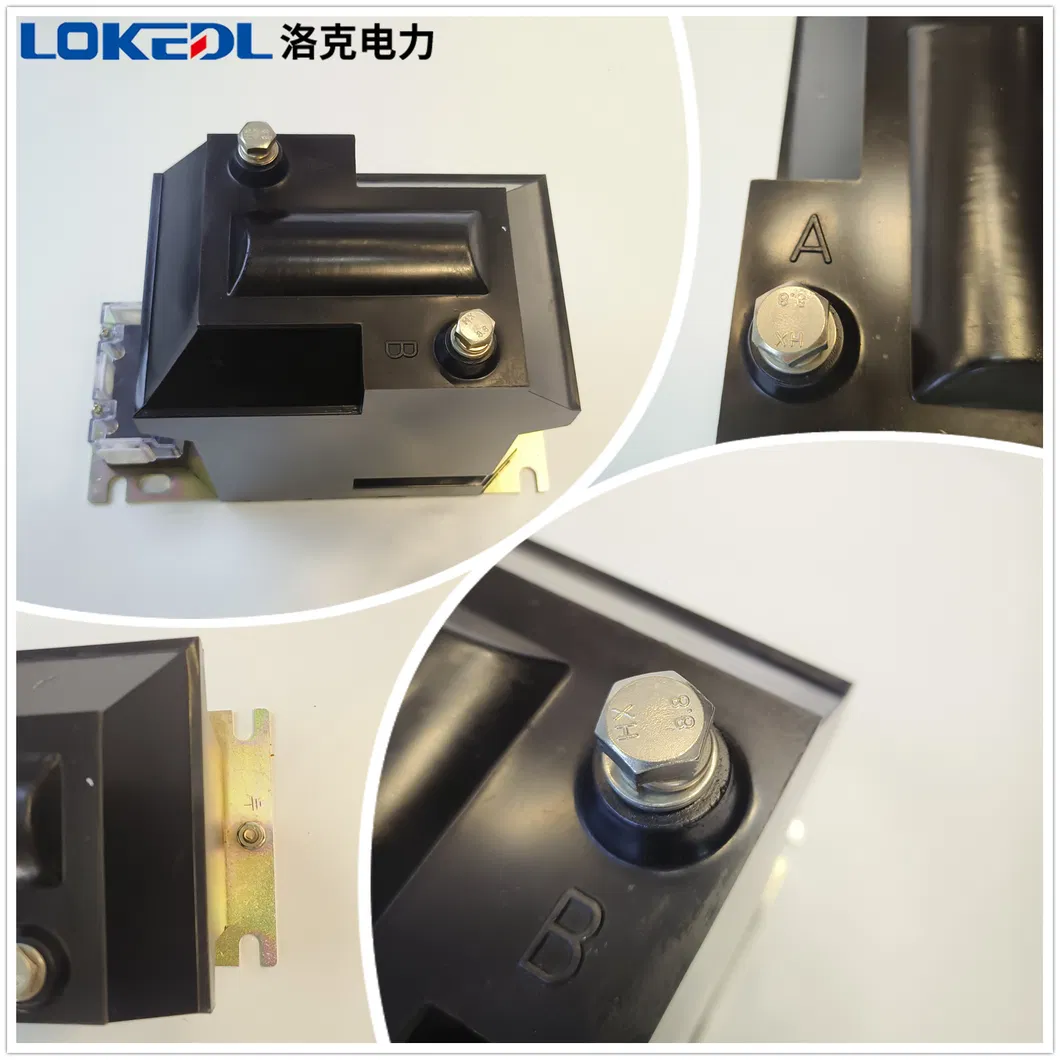

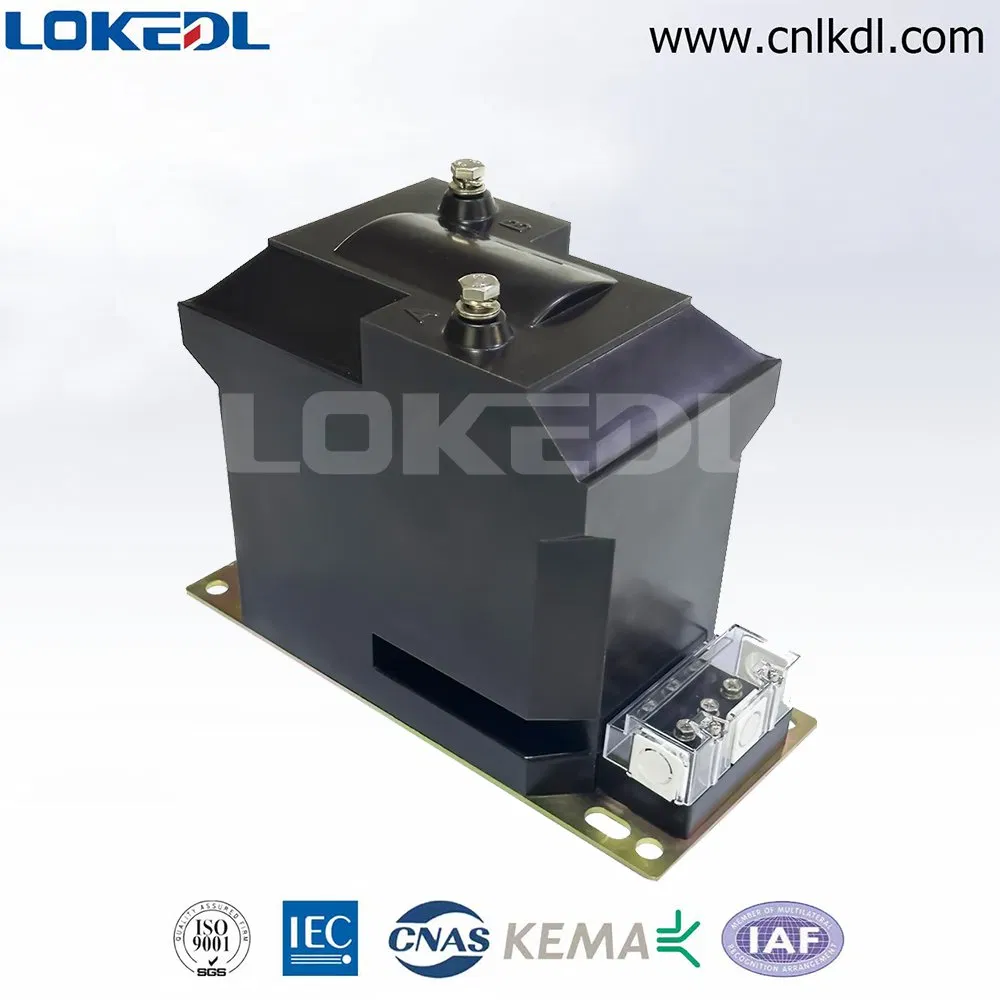

The JDZ10-3,6,10 Type Voltage Transformer is an indoor, single-phase, epoxy resin cast insulated device. It is specifically designed for power measurement, current monitoring, and relay protection in power systems with a rated frequency of 50Hz or 60Hz and rated voltages ranging from 3kV to 10kV.

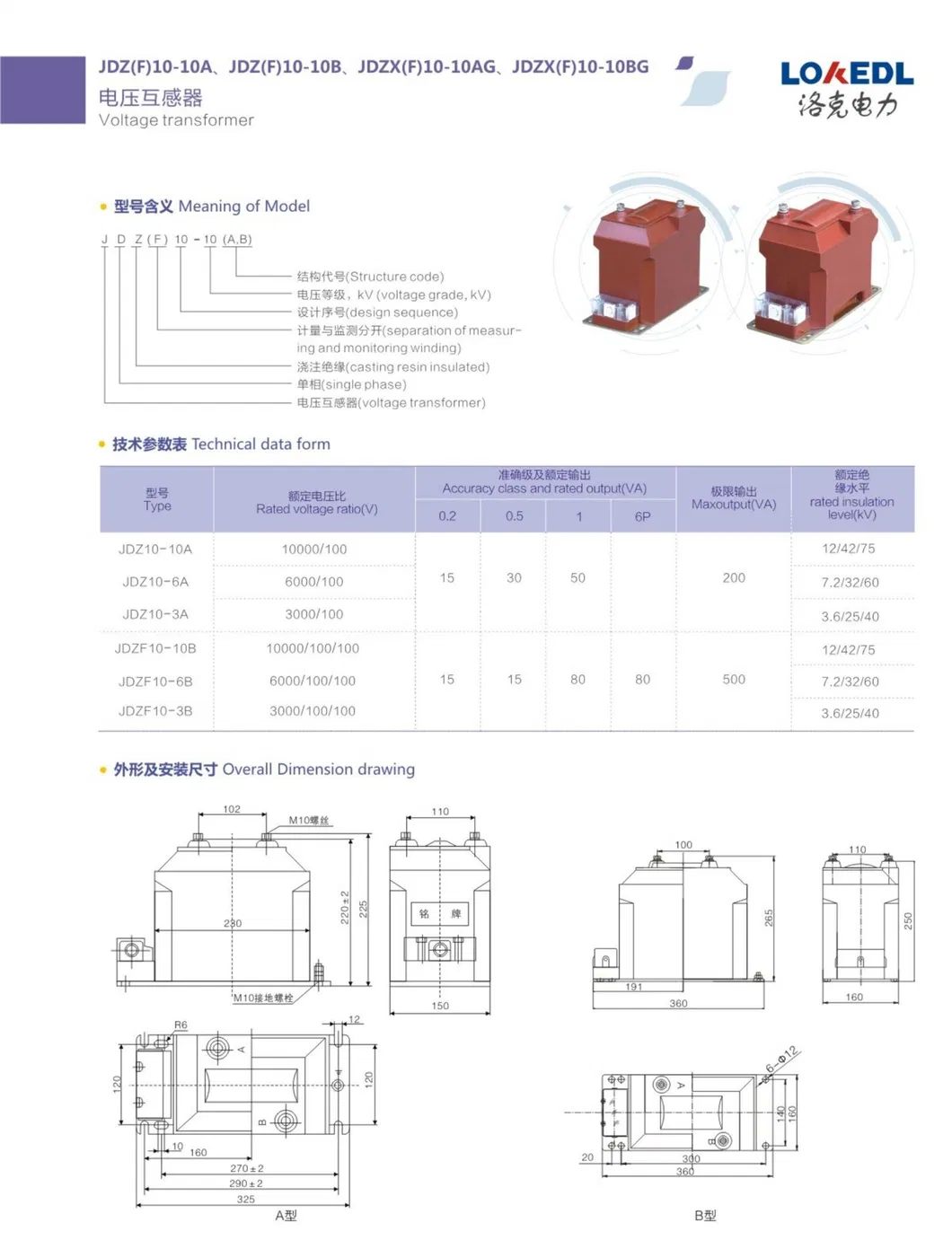

| Model | Rated Voltage Ratio (kV) | Accuracy Class | Rated Output (VA) | Ultimate Output (VA) | Insulation Level (kV) |
|---|---|---|---|---|---|
| JDZ10-3 | 3/0.1 | 0.2 | 15 | 200 | 3.6/25/40 |
| 0.5 | 30 | ||||
| JDZ10-6 | 6/0.1 | 0.2 | 15 | 200 | 7.2/32/60 |
| 0.5 | 30 | ||||
| JDZ10-10 | 10/0.1 | 0.2 | 15 | 200 | 12/42/75 |
| 0.5 | 30 |
This series of Potential Transformers (PT) is a post-type design, hermetically sealed with epoxy resin. It features high anti-pollution and anti-damp capabilities, making it suitable for tropical areas. It requires minimal maintenance beyond periodic surface cleaning. The secondary terminal is protected by a terminal box with multiple outlet holes for flexible wiring.
