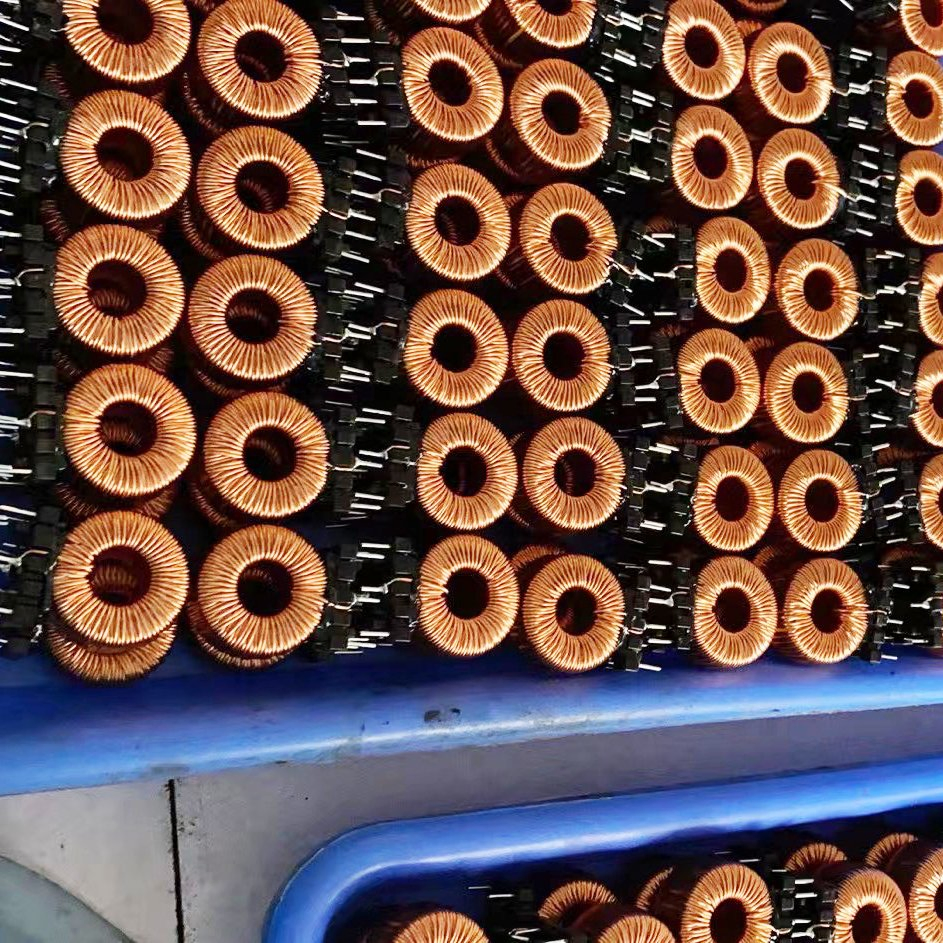

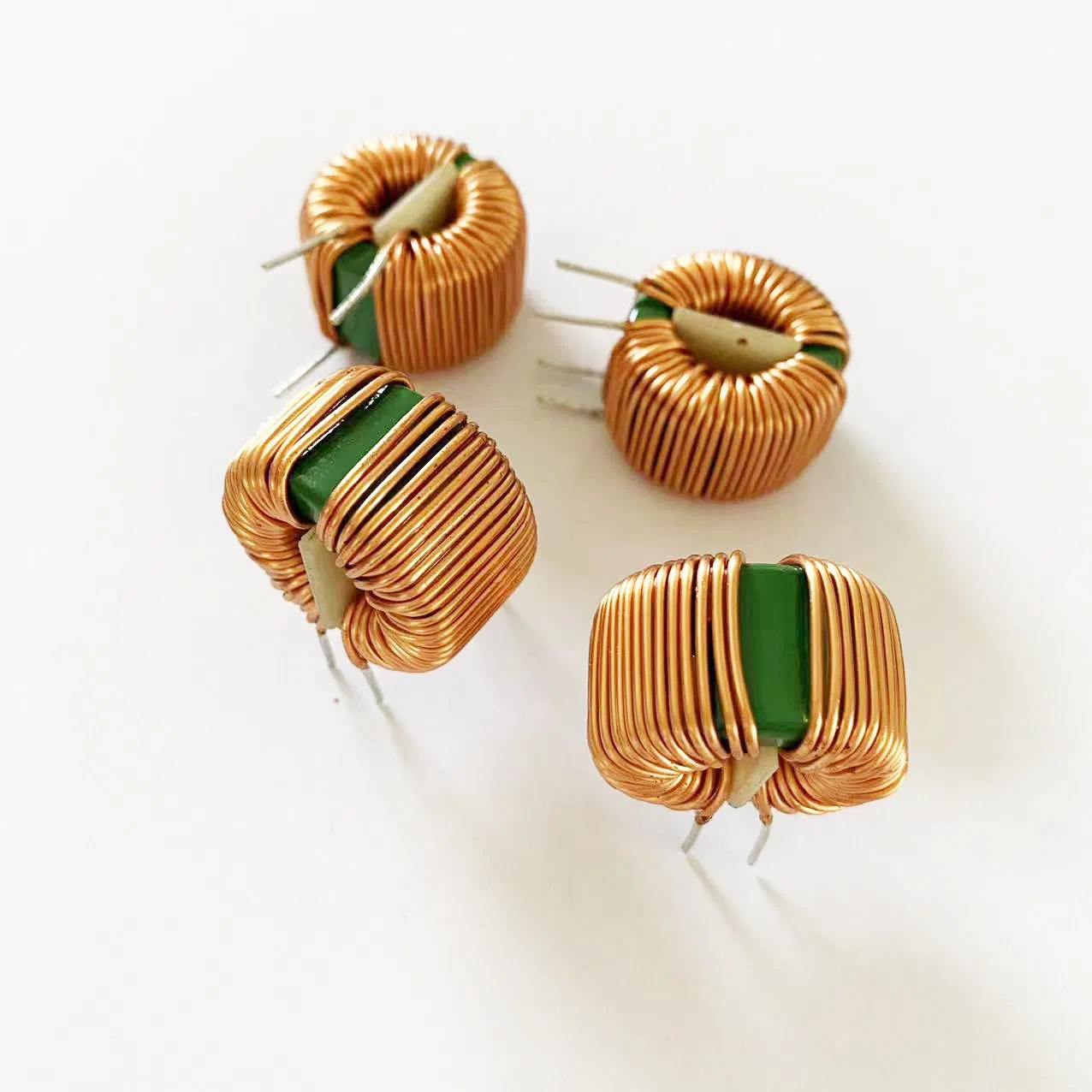

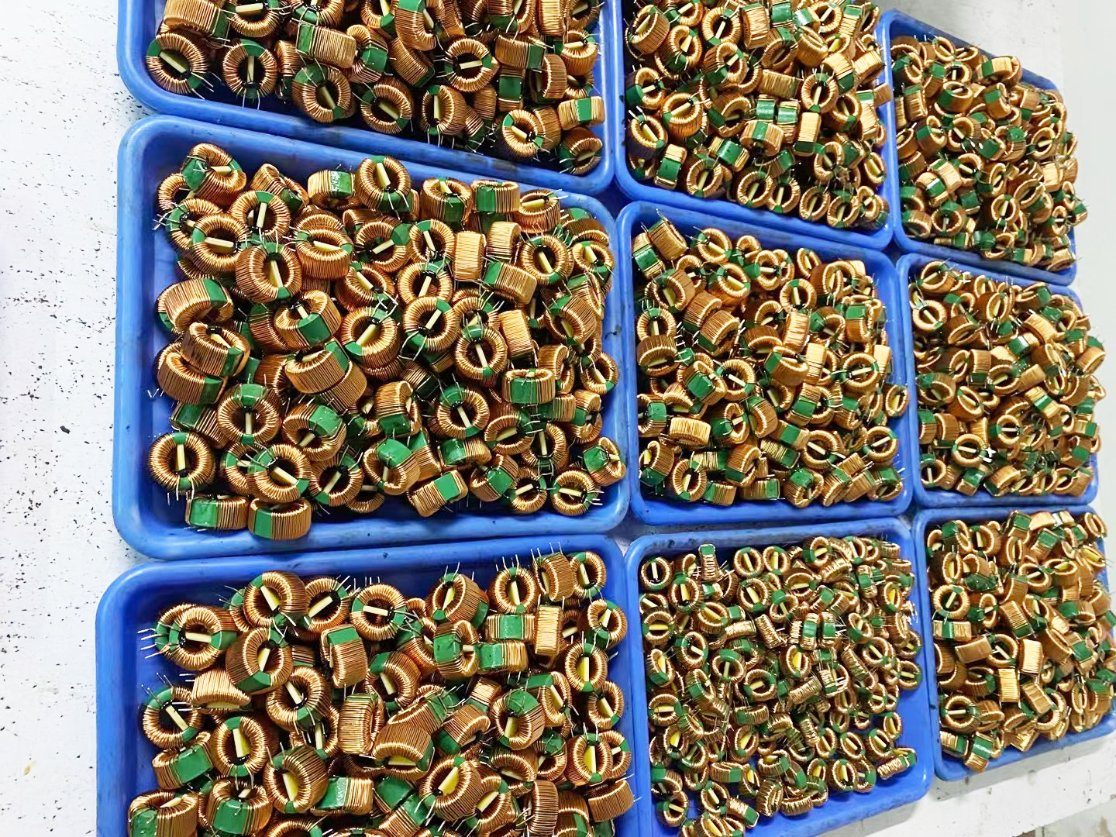

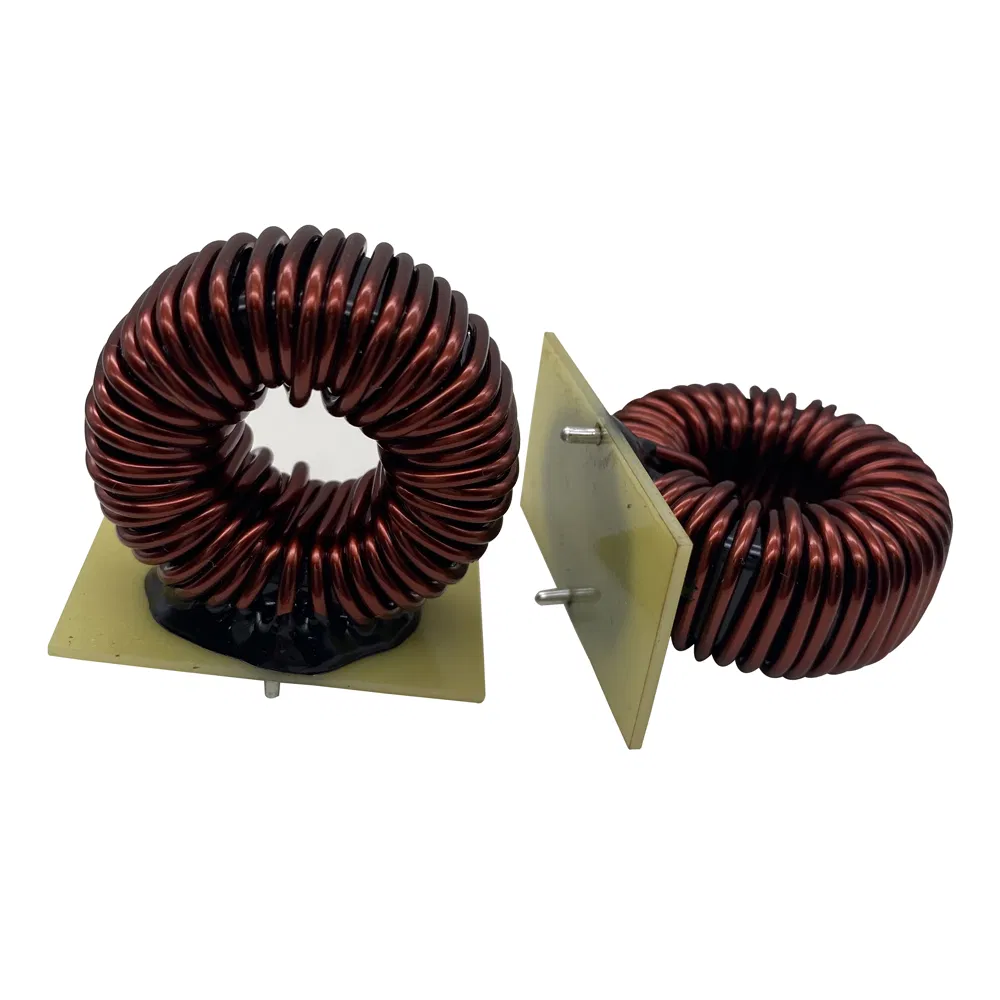

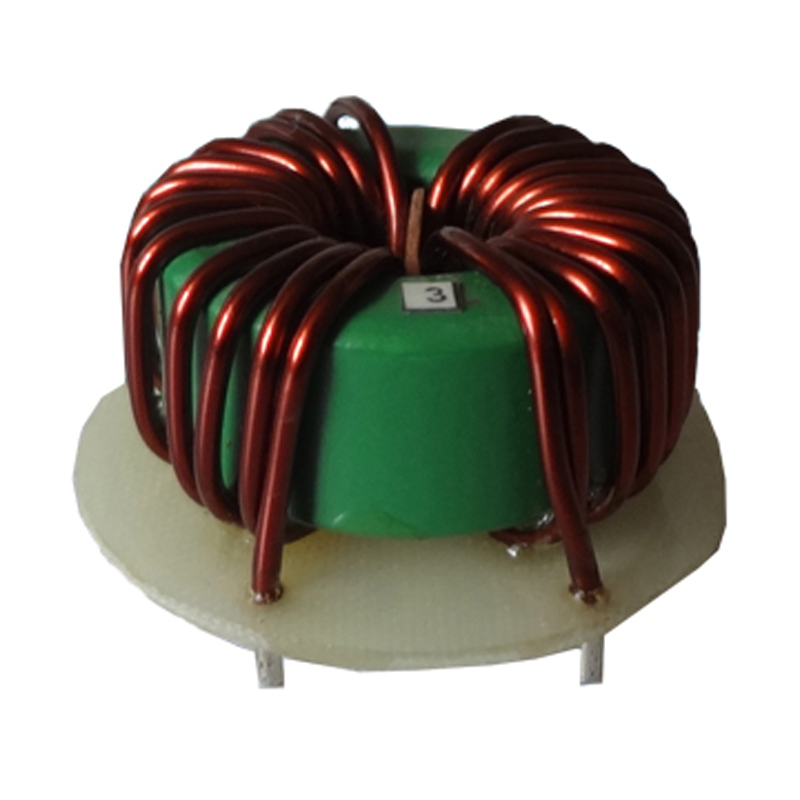

Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer
Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer
Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer
Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer
Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer
1 / 5
Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer
Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer
Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer
Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer
Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer

Toroidal Inductor Magnetic Core Copper Wire Toroidal Transformer

Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio, UPS
Phase: Single
Send Inquiry

Product Description

i

Basic Specifications

Model NO.:OKDT015
Core:Core-type Transformer
Cooling Method:Dry-type Transformer
Winding Type:Auto-transformer
Certification:ISO9001, CCC, CE
Usage:Single-phase, Rectifier, Power
Frequency:Low Frequency
Shape of Core:Toroidal / Ring
Efficiency:High Efficiency 98%
Voltage:12V / 15V / 24V / 220V / 230V / 240V
Characteristic:Waterproof Transformer
HS Code:8504319000
P

Product Presentation

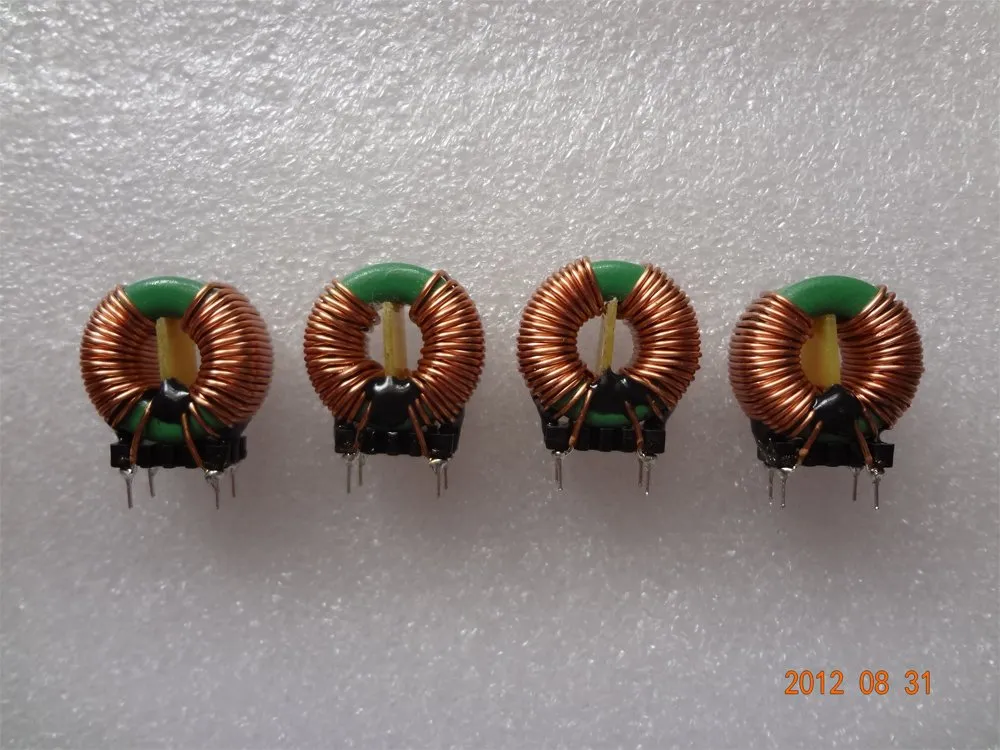

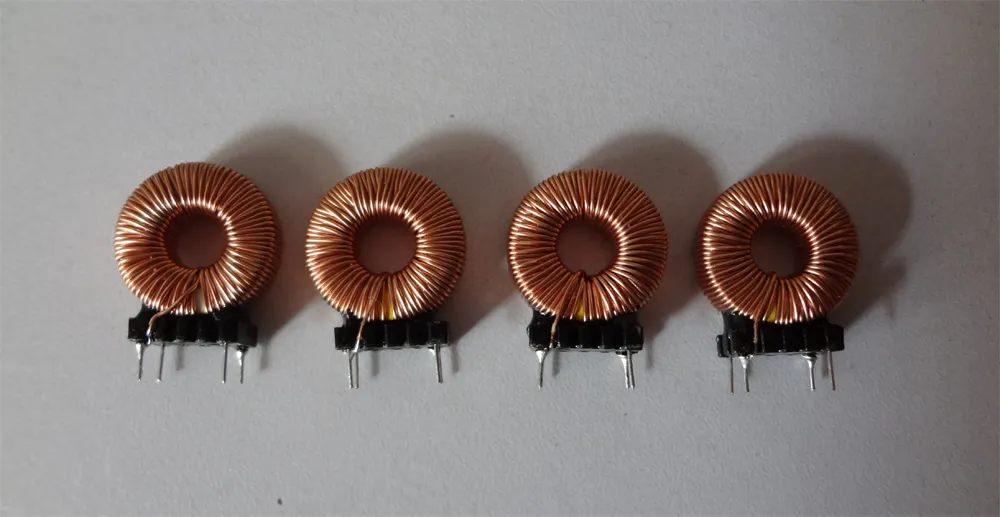

Toroidal Inductor Core Toroidal Transformer Copper Wire

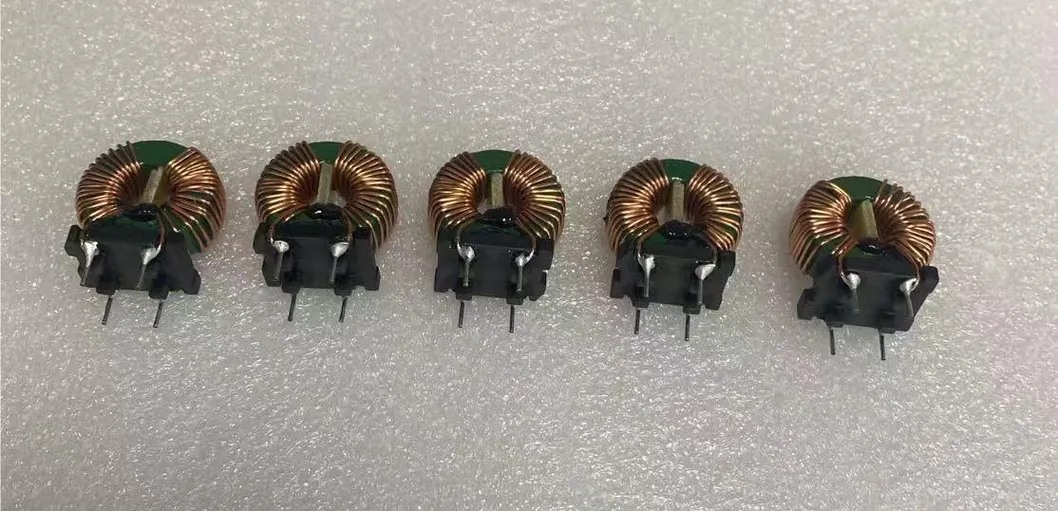

Transformer Details
T

Technical Parameters

Items Specifications
ComponentsCore, Bobbin, Copper wire; Basing; Shielding case
Core MaterialsNiZn/ MnZn/ Iron / Amorphous magnetic
Wire MaterialsEnameled copper wire-UEW/PEW
Mounting typeSurface mount; Through hole; Wire leading
Working Frequency1KHz-100MHz
Inductance Range1uH-1H
Working Temp-20ºC to +105ºC
Testing ItemsTurns Ratio, Inductance, DC resistance, Safety test, Hi-POT
L

Logistics & Production

Package Size:42.00cm * 32.00cm * 19.00cm
Gross Weight:15.000kg
Lead Time:Around 25 days
Capacity:300,000 PCS/Month

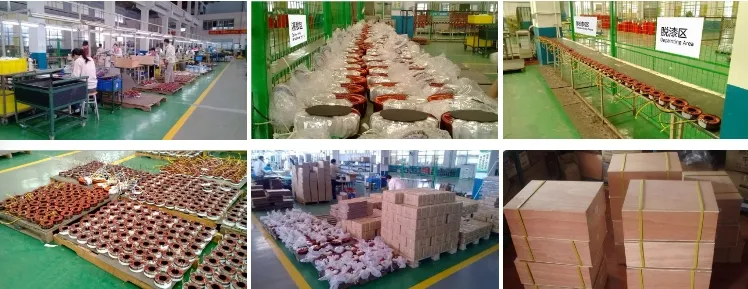

Production Line Packaging Details
★

Why Choose Our Solutions

  • ✔ Over 20 years of expertise in transformer and inductor manufacturing.
  • ✔ Scientific management and strict quality control systems.
  • ✔ Certified by ISO9001, ISO14001, and ISO45001.
  • ✔ Full compliance with RoHS and UL standards.
  • ✔ Highly automated production lines for consistent quality.
  • ✔ Competitive pricing with dedicated online after-service.

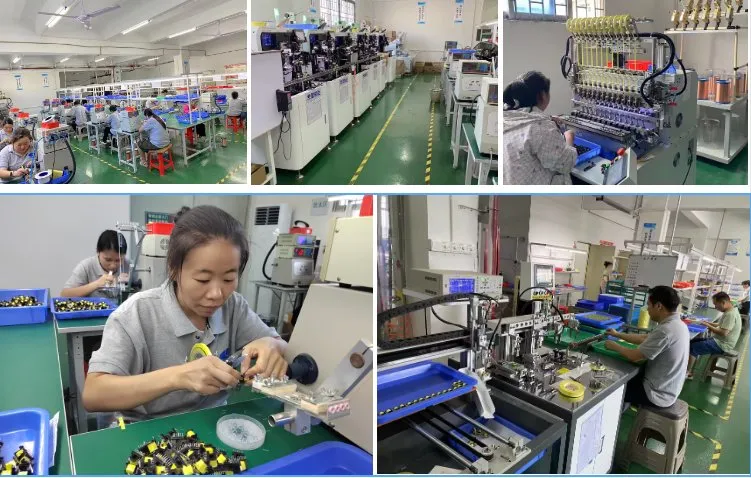

Quality Control Testing Equipment
?

Frequently Asked Questions

Q1: Are you a professional manufacturer?
Yes, we have over 20 years of experience in manufacturing high-quality transformers and inductors.
Q2: What is your Minimum Order Quantity (MOQ)?
Usually, our MOQ is 1,000 pieces, but this can vary depending on the specific product requirements.
Q3: Can I request a sample before placing a bulk order?
Yes, sample orders are welcome. Please contact our team to discuss your specific technical needs.
Q4: What is the typical lead time for production?
Sample lead time is usually 3-6 working days, while mass production typically takes 15-30 working days depending on quantity.
Q5: Do you provide customized product design?
Absolutely. we specialize in custom designs tailored to meet our customers' unique technical specifications.
Q6: Are OEM and ODM projects accepted?
Yes, we fully support OEM and ODM projects and can print your designated logo or brand on the labels.
