Low Toroidal Power Transformer Voltage Converter Single Phase AC
Low Toroidal Power Transformer Voltage Converter Single Phase AC
Low Toroidal Power Transformer Voltage Converter Single Phase AC
Low Toroidal Power Transformer Voltage Converter Single Phase AC
Low Toroidal Power Transformer Voltage Converter Single Phase AC
1 / 5
Low Toroidal Power Transformer Voltage Converter Single Phase AC
Low Toroidal Power Transformer Voltage Converter Single Phase AC
Low Toroidal Power Transformer Voltage Converter Single Phase AC
Low Toroidal Power Transformer Voltage Converter Single Phase AC
Low Toroidal Power Transformer Voltage Converter Single Phase AC

Low Toroidal Power Transformer Voltage Converter Single Phase AC

Customization: Available
Application: Power
Phase: Single
Send Inquiry

Product Description

Basic Specifications
Model NO.
BOD
Core
Core-type Transformer
Cooling Method
Nature Cooling
Winding Type
Two-winding Transformer
Certification
ISO9001, CE
Usage
Single-phase Transformer, Rectifier, Power, Audio
Shape of Core
Ring / Toroidal
Output Voltage
36/24/12V (Customized)
Capacity
0.1-10kVA
Material
All Copper
Frequency
50Hz/60Hz
Input Voltage
380/220/110V
Product Overview

This toroidal single-phase AC transformer utilizes a high-flux silicon steel core paired with 100% pure copper windings to deliver efficient and stable power conversion. Designed for high performance, it offers low noise, minimal temperature rise, and low energy loss. It is an ideal solution for audio equipment, industrial control systems, power adapters, and experimental instruments.

Key Advantages
⚡ High Efficiency

Low magnetic loss and high energy conversion rate for reduced energy waste.

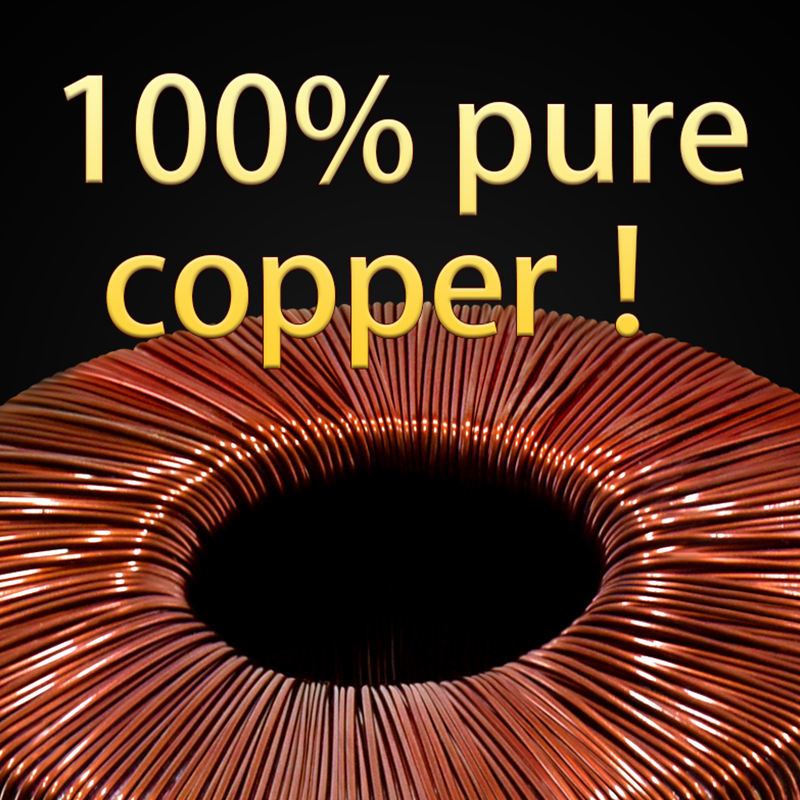

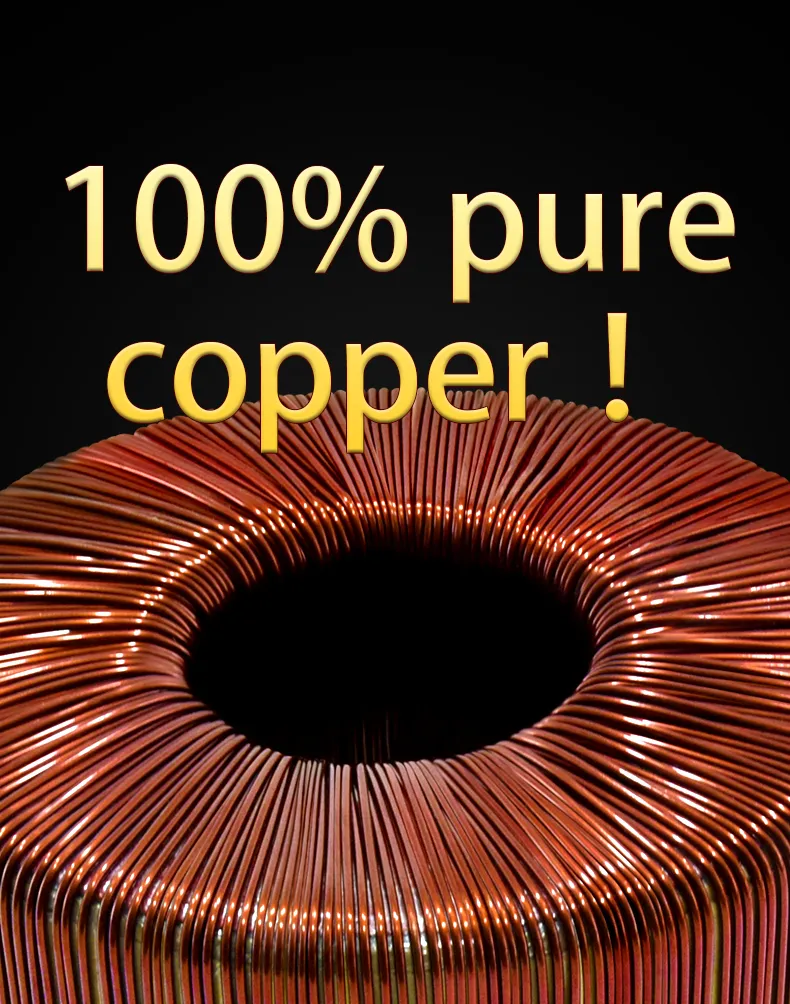

🏆 100% Pure Copper

Strong conductivity and high temperature resistance for extended service life.

🔇 Low Interference

Ring design reduces electromagnetic leakage and improves equipment stability.

🛠️ Compact Design

Small size facilitates easy embedded or cabinet installation.

Application Scope
  • Audio Equipment: Stable power for high-end amplifiers and audio systems.
  • Industrial Automation: Control equipment, motor drives, and power conversion.
  • Medical Instruments: Ensures safe operation of sensitive laboratory and medical devices.
  • Power Adapters: Convenient for various embedded equipment installations.

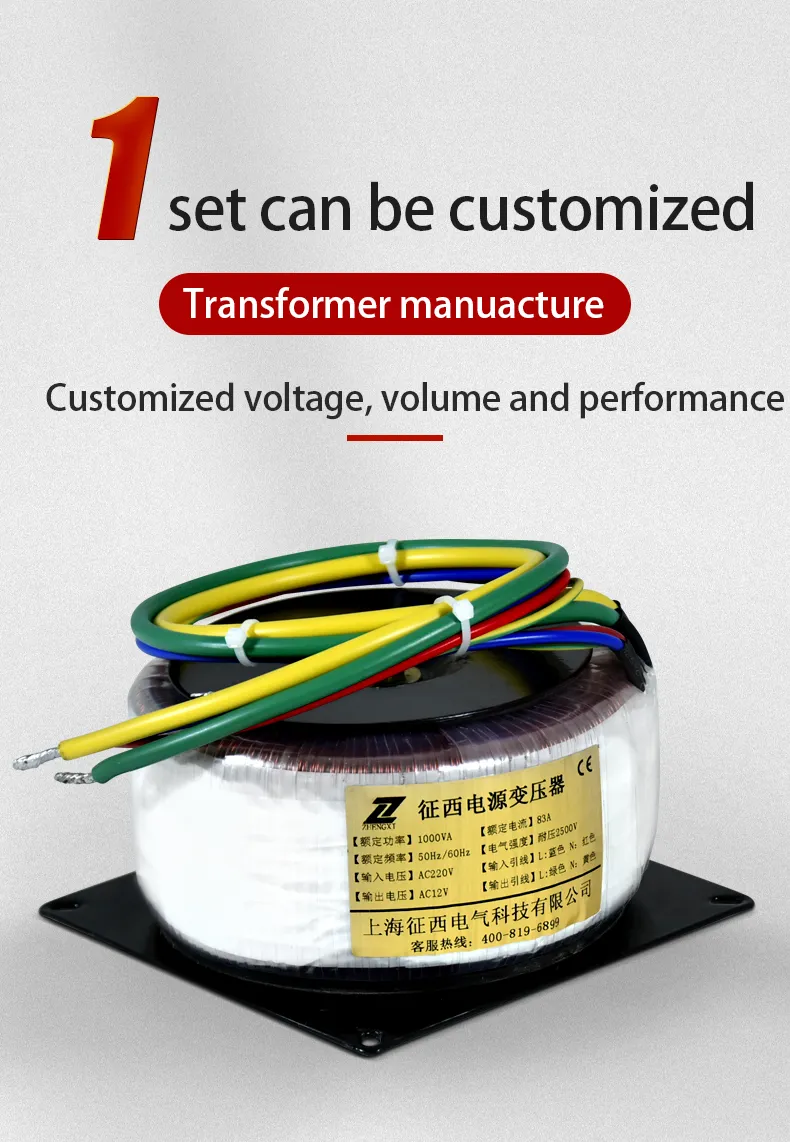

Toroidal Transformer 1
Toroidal Transformer 2
Toroidal Transformer 3

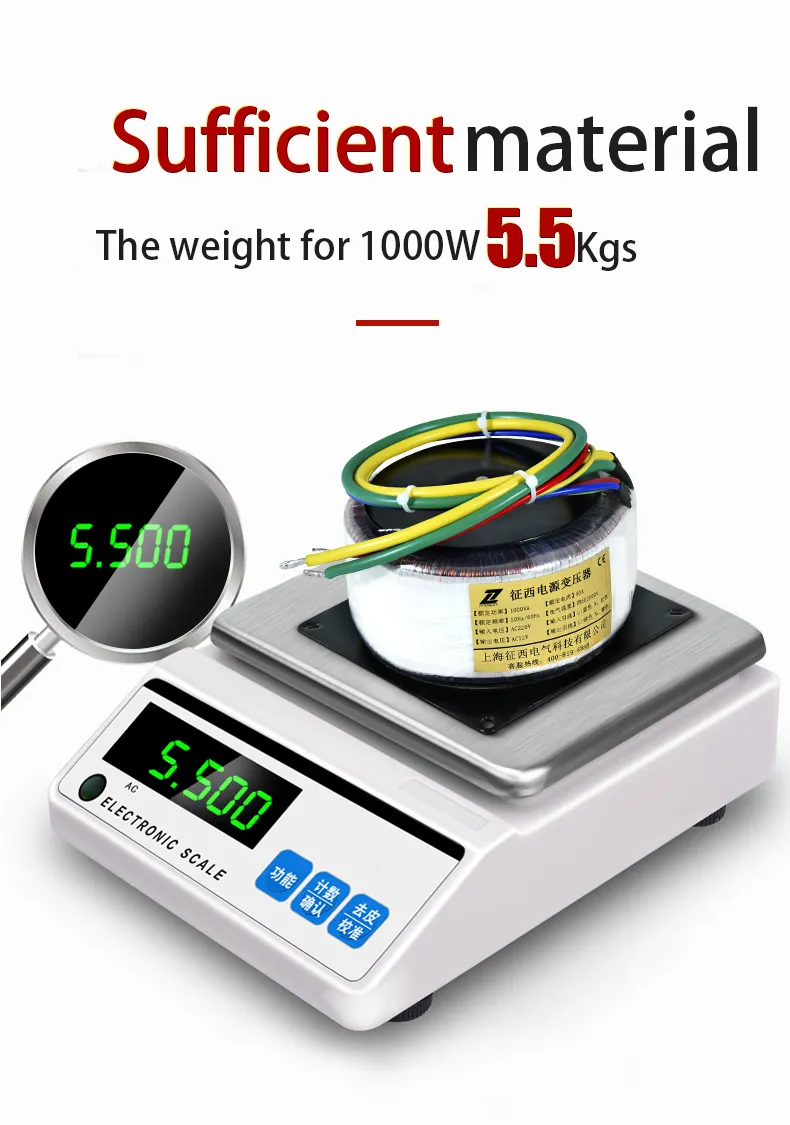

Toroidal Transformer 4
Toroidal Transformer 5

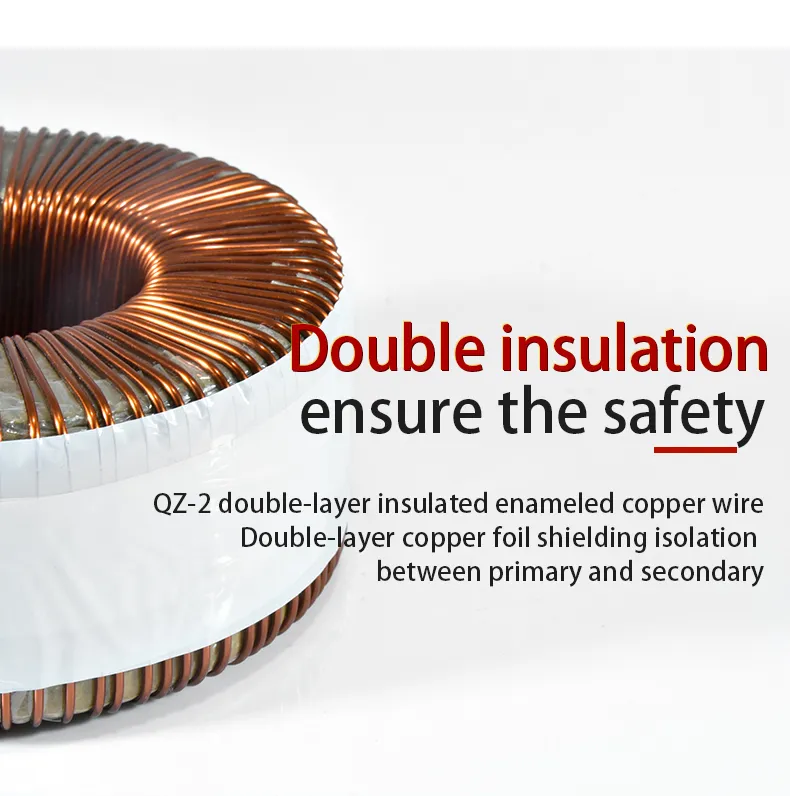

Toroidal Transformer 6

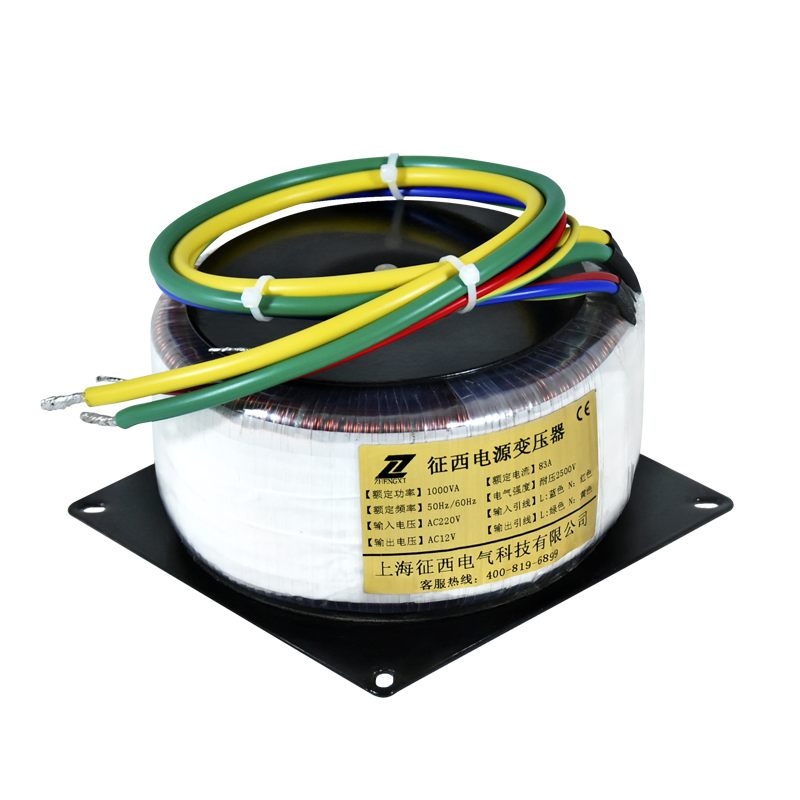

Technical Parameters
Parameter Specification Parameter Specification
Description Toroidal Transformer Rated Current 83A

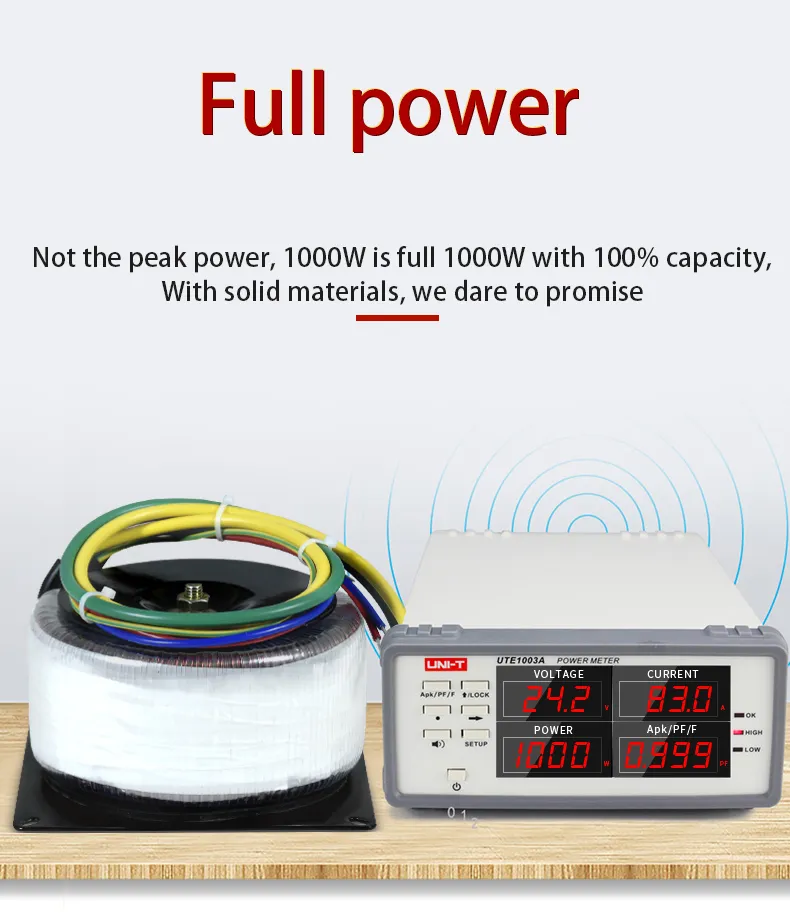

Power 1000VA Electric Strength 2500V (Withstand)
Frequency 50Hz/60Hz Input Wire L: Blue / N: Red
Input Voltage AC 220V Output Wire L: Green / N: Yellow

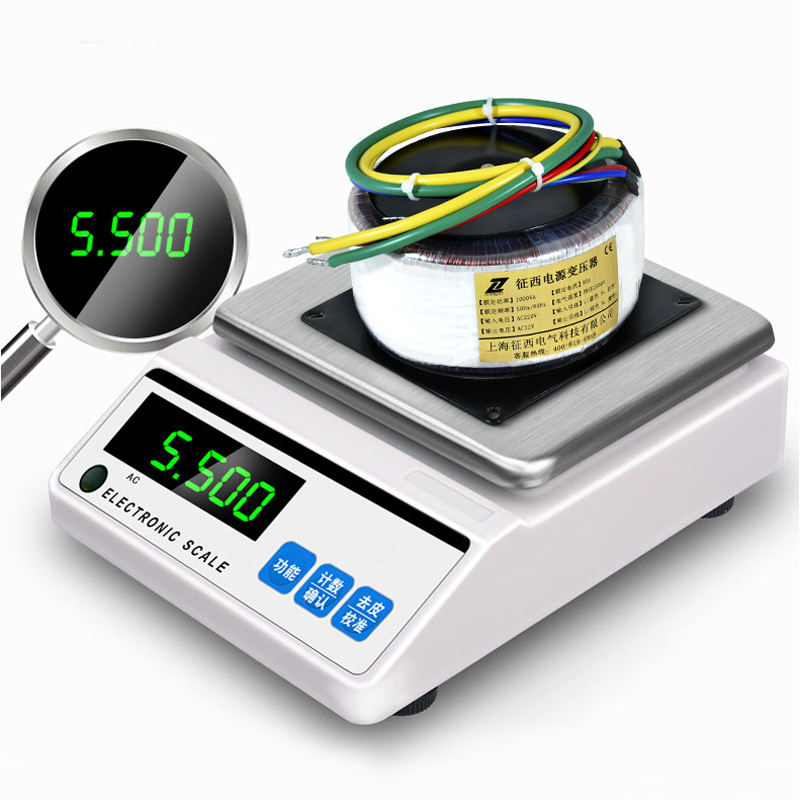

Output Voltage AC 12V Weight 7.05 Kgs

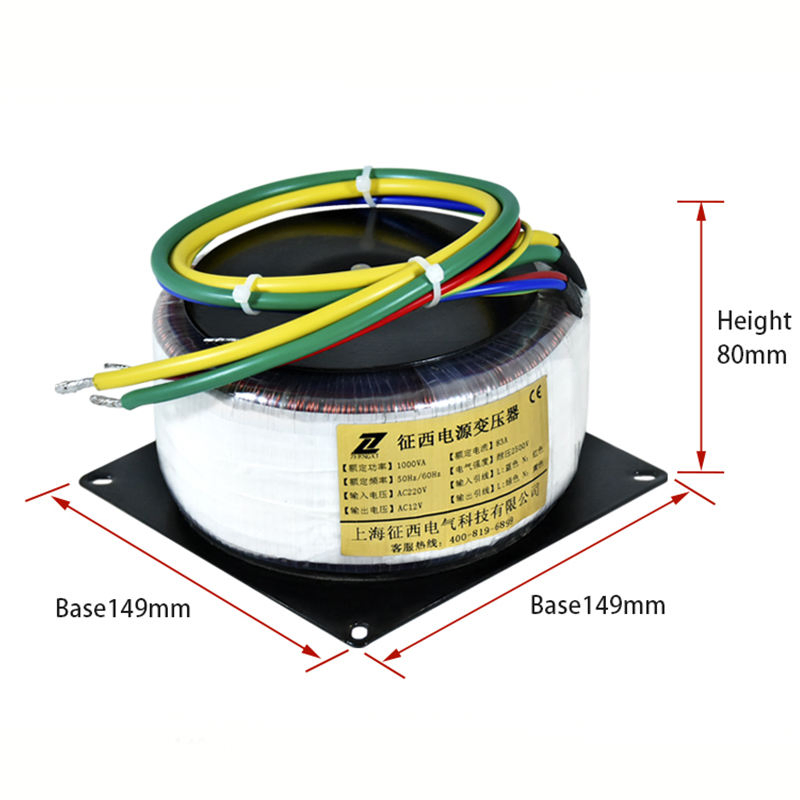

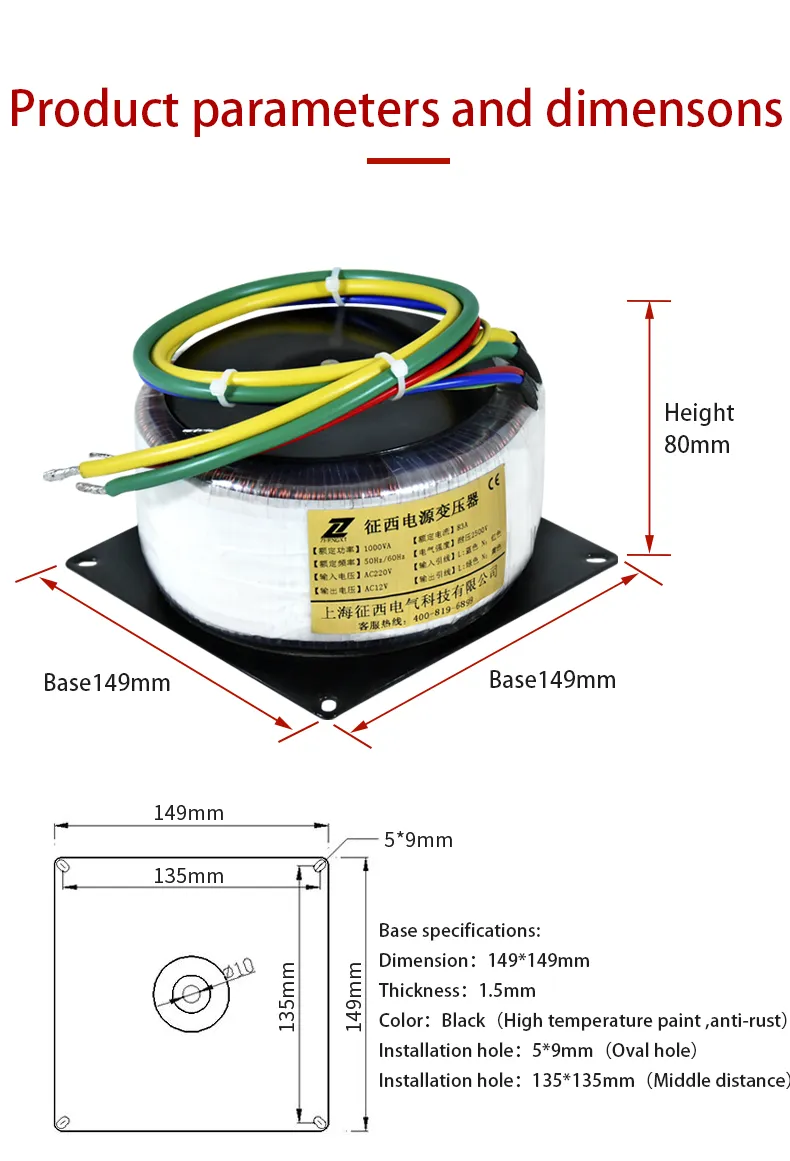

Power (VA) Height (mm) Diameter (mm) Weight (Kgs)
150551074.1
250671075.6
500681348.5
10007514514.1
20009018522.5

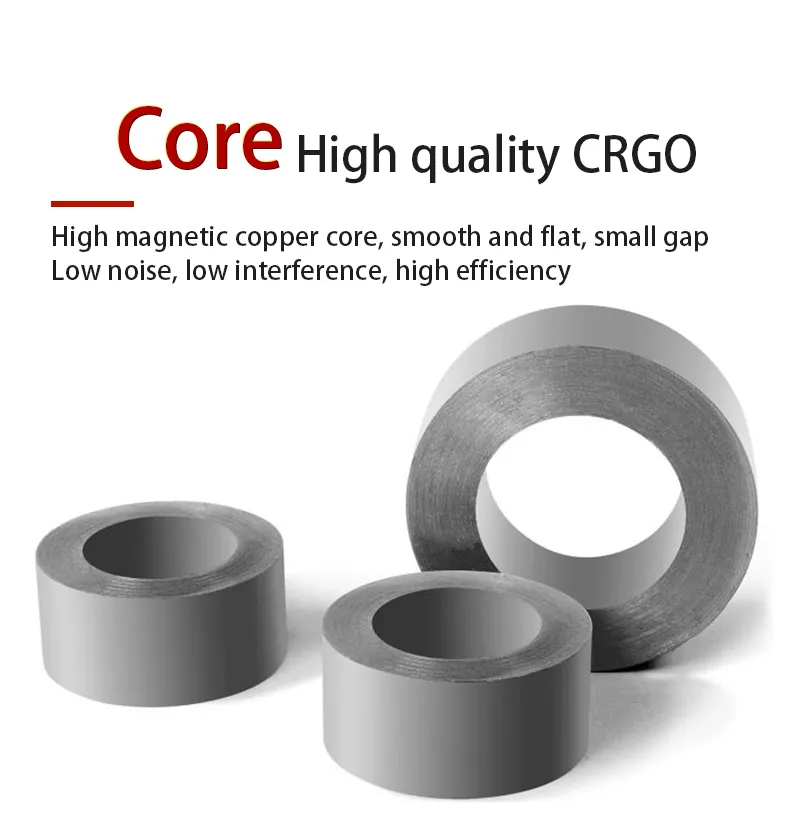

Transformer Details
Internal Structure

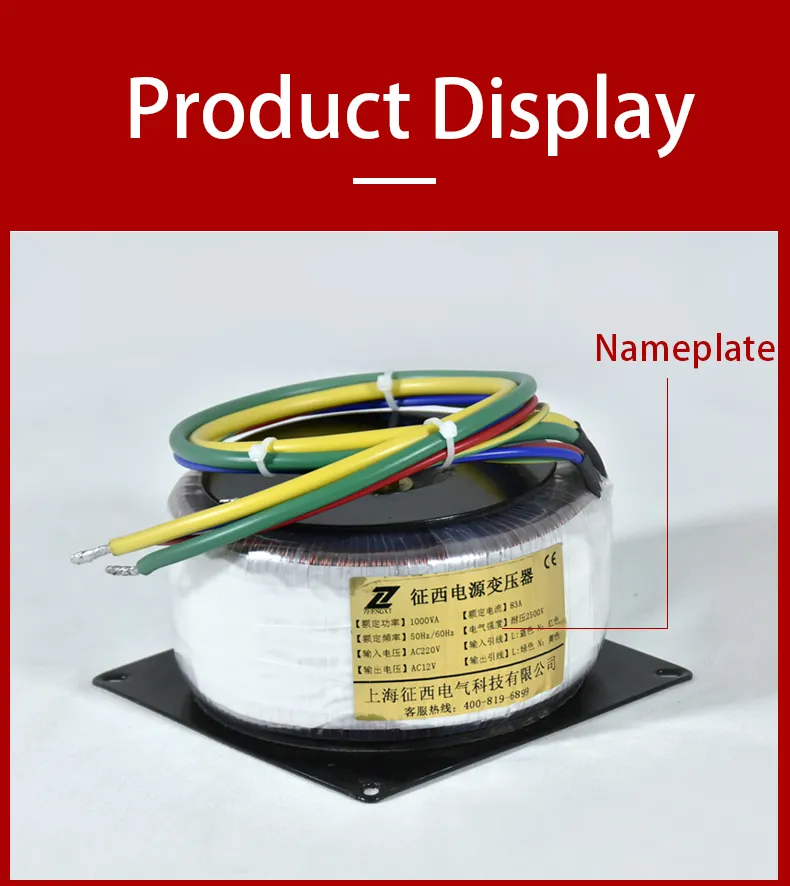

Production Line
Production Process

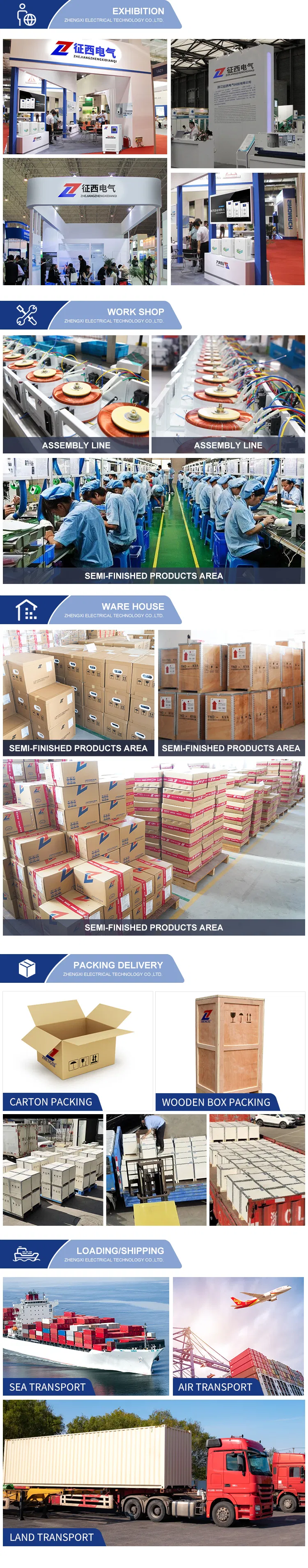

Certifications
Frequently Asked Questions
What are the available payment terms?
We generally accept TT with a 30% deposit and the remaining 70% balance against the copy of the BL.
How long is the typical delivery time?
Production usually takes between 7 to 20 days. Samples are typically ready within one week.
What packaging standards do you use?
For smaller capacities, we use color boxes as inner packaging and cartons for delivery. For larger units, robust wooden cases are used for maximum protection.
What materials are used in the transformer construction?
We offer both 100% copper windings and copper-aluminum options depending on your requirements. Pure copper provides a longer lifespan and superior efficiency.
Do you provide origin certificates?
Yes, we can prepare documents for the foreign affairs office or other relevant authorities to apply for Form A or C/O certificates.
What certifications do your products hold?
Our products and processes are certified under CE, ISO9001, PCT, and SGS standards, including multiple design and technical patents.
