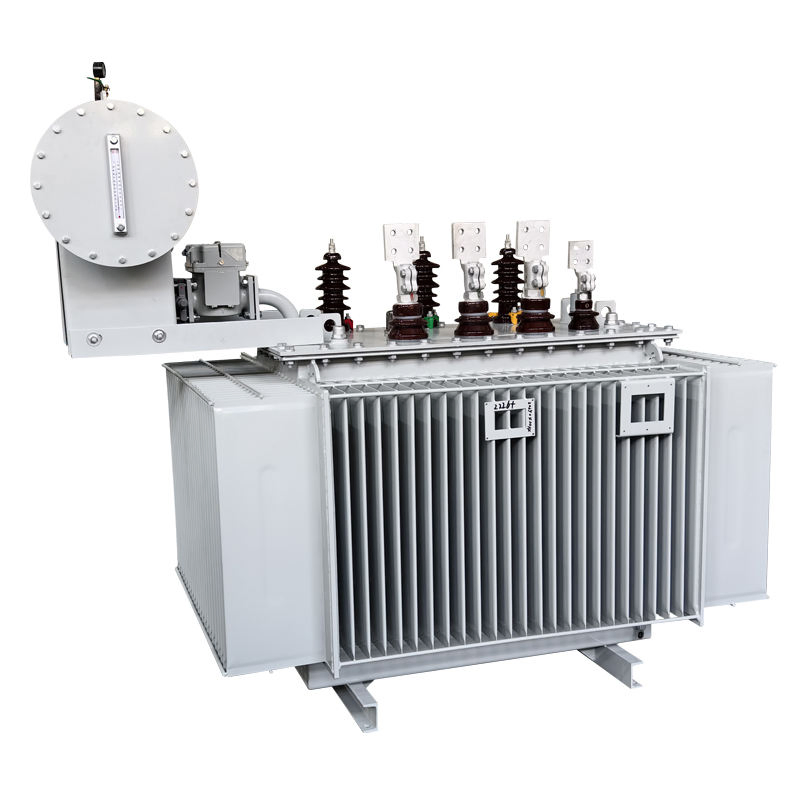

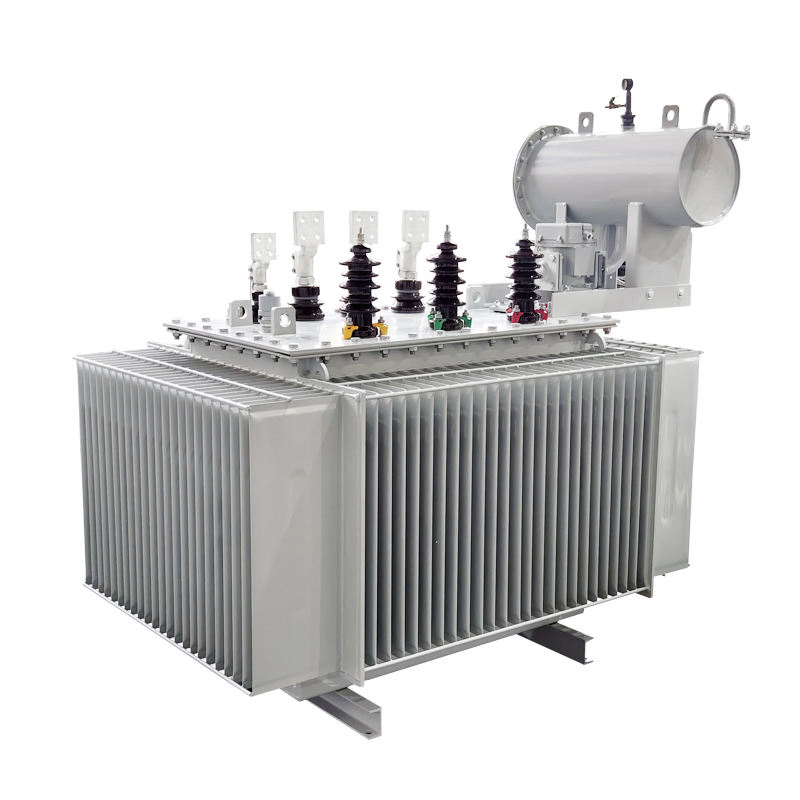

Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)
Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)
Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)
Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)
Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)
1 / 5
Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)
Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)
Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)
Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)
Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)

Low Loss Toroidal Transformer, Oil Immersed Type (Transformador de 50 kVA)

Customization: Available
Application: Power, Electronic, Voltage Transformation
Phase: Three-Phase
Send Inquiry

Product Description

Basic Info.

Model NO.
SZ11
Core
Amorphous Alloy Transformer
Cooling Method
Onan
Winding Type
Two-winding Transformer
Frequency Characteristics
Power Frequency
Shape of Core
EI
Coil Number
3
Coil Structure
Oval
Frequency
50 Hz / 60 Hz
Input Voltage
35 Kv, 11 Kv, 10 Kv, 33kv, 20kv
Output Voltage
110V, 220V, 380V, 400V, 415V, 440V
Transport Package
Wood Box

Packaging & Delivery

Package Size
1610.00cm * 1110.00cm * 1305.00cm
Package Gross Weight
4655.000kg

Product Description

Low Loss Toroidal Transformer Product Info Header
  • Fully sealed and maintenance-free: Corrugated tank design eliminates the need for an oil conservator, isolating the transformer from air and moisture.
  • High energy efficiency: Meets GB 20052-2024 Level 1 energy efficiency standards, with no-load and load losses reduced by over 30% and 20% respectively.
  • Robust and durable: Special fastening and impact-resistant structural design, suitable for long-distance transportation and harsh environments.
  • Strong short-circuit resistance: Balanced winding ampere-turn distribution and high mechanical strength.

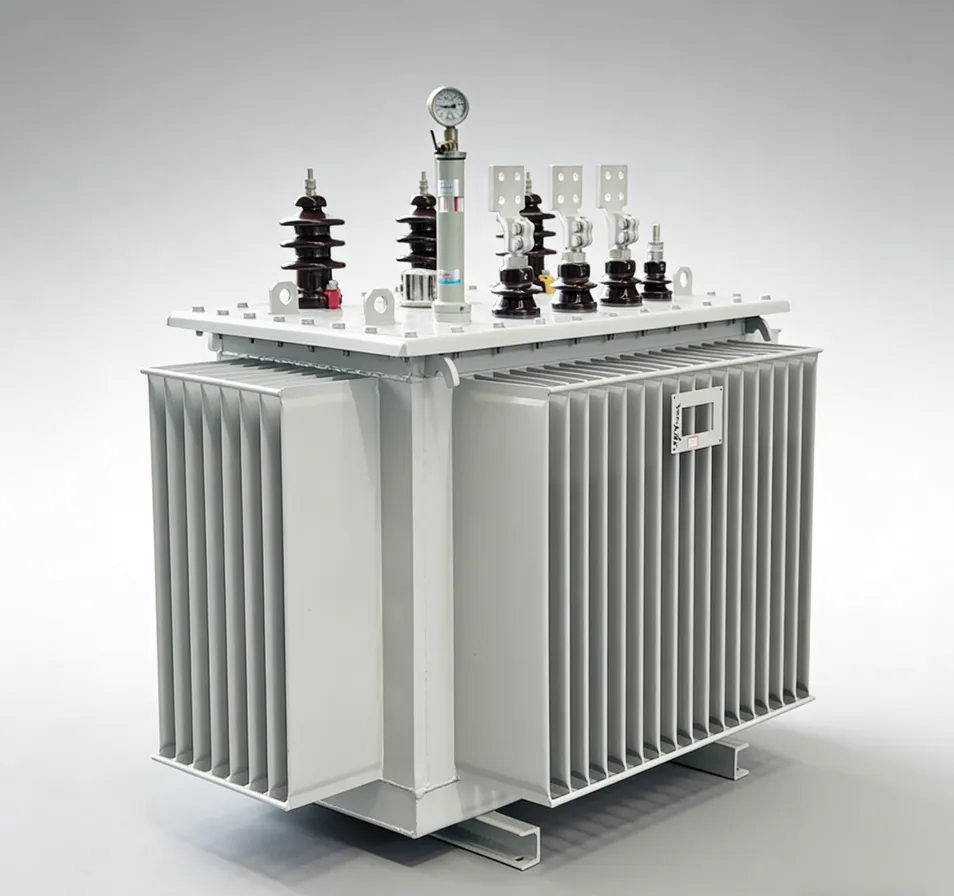

Transformer Details

Technical Specifications

Rated Capacity10000kVA
Connection Group LabelYd11
No-load Loss7.70kW
Load Loss (at 75℃)47.7kW
No-load Current0.55%
Impedance Voltage5.5%
Overall Dimensions2850×2880×3265mm
Number of PhasesThree-phase
Cooling MethodOil-immersed
CertificationISO9001

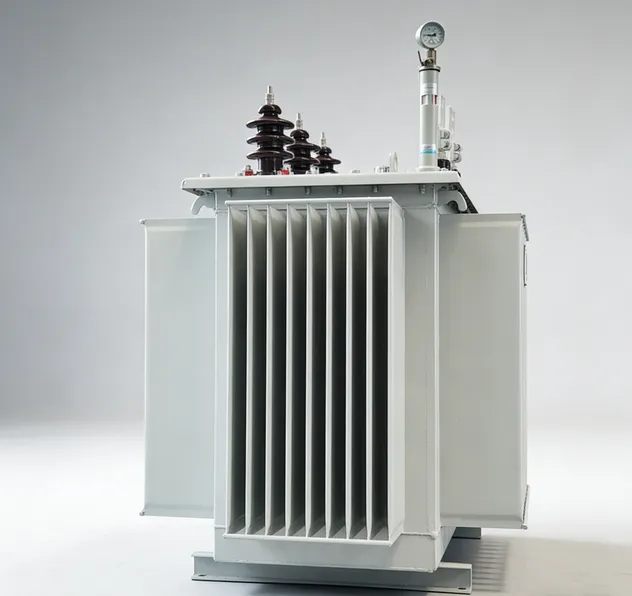

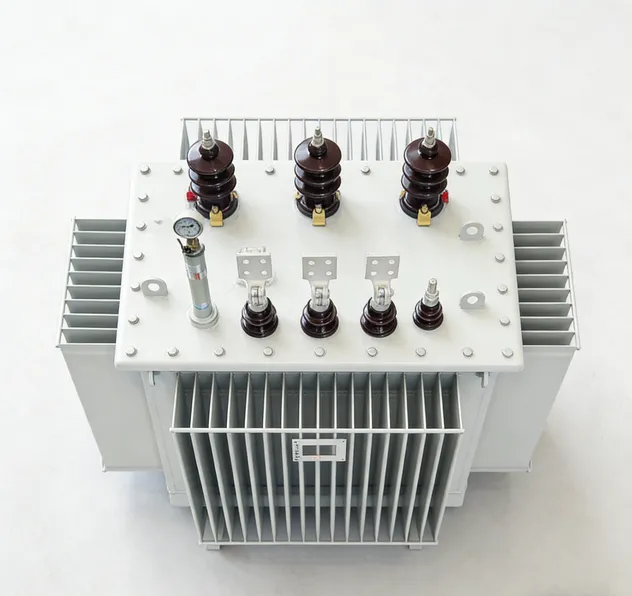

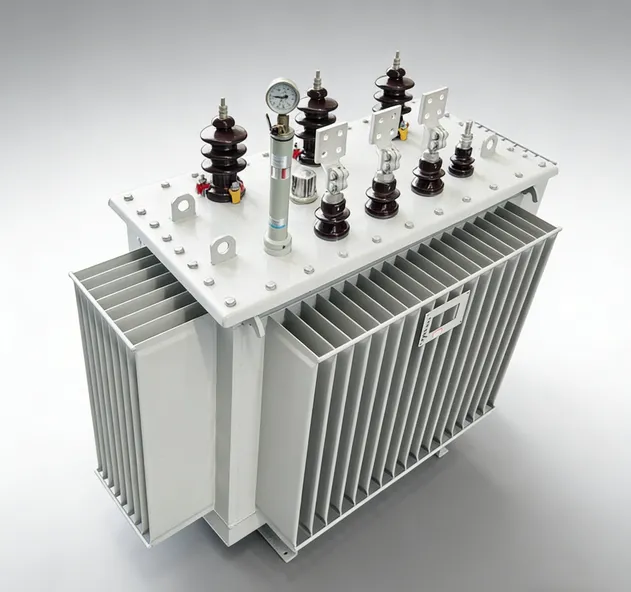

Gallery 1 Gallery 2 Gallery 3

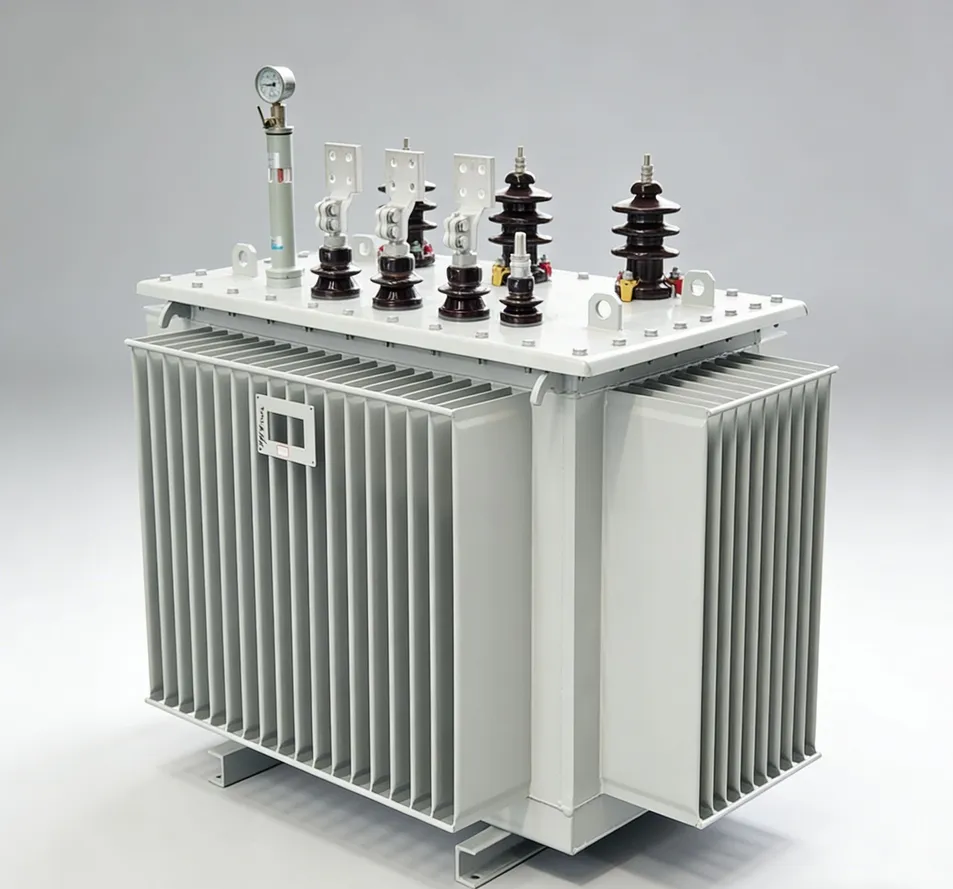

Stable Transformation

Reliable Performance

Standard 10kV/0.4kV transformation with optional Dyn11 connection group to suppress harmonics. Vacuum drying and oil filling processes ensure a design life exceeding 20 years. Suitable for indoor and outdoor use, high humidity, and high pollution environments.

Broad Applications

Designed for urban and rural power grid transformation, industrial and mining enterprises, petrochemicals, metallurgy, and new energy support such as wind and solar power plants.

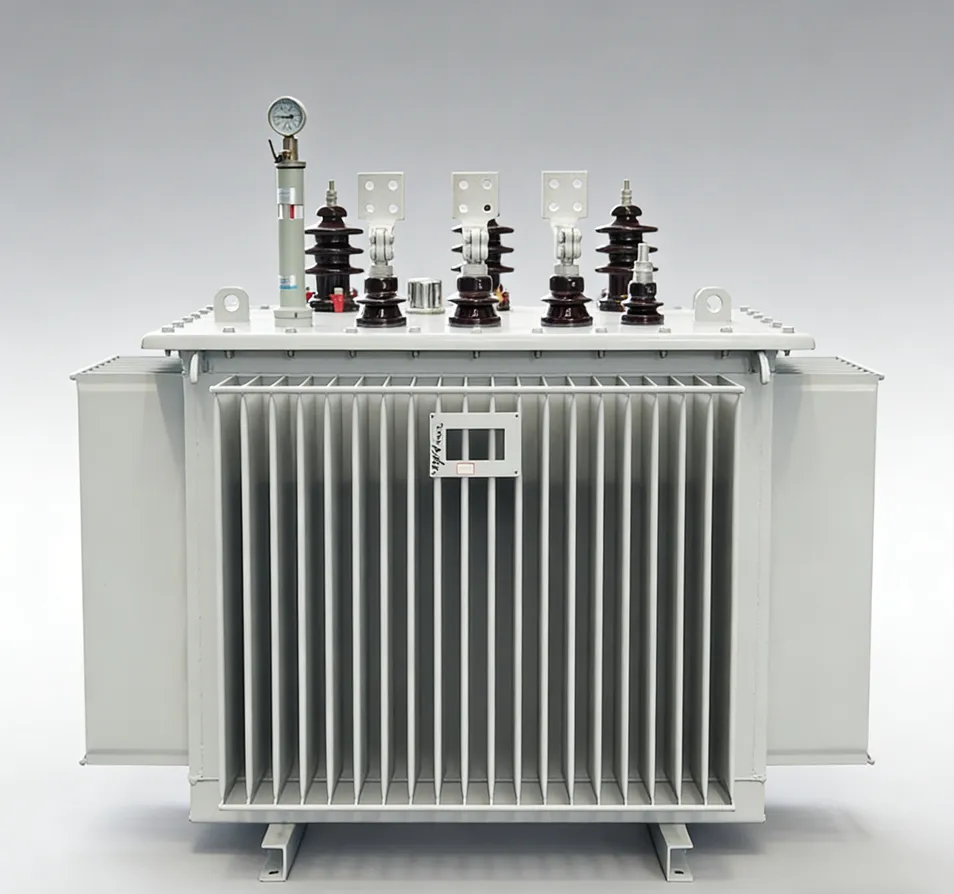

Industrial Application
Production View

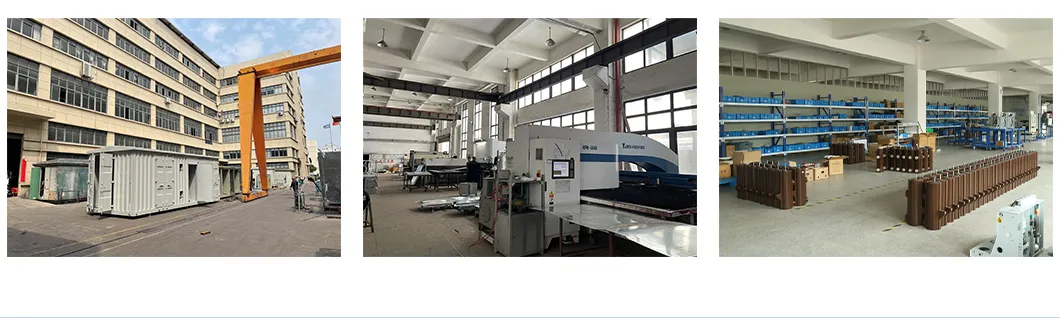

Feature 1 Feature 2 Feature 3

Frequently Asked Questions

Does it support OEM/ODM customization?
Yes, we support customized services, including parameter adjustments for power, size, input/output voltage, protection level (IP level), and specific working environments.
Can you provide technical document support?
Yes, English manuals, product certificates, test reports, and wiring diagrams are provided with the goods to assist with import customs clearance.
How can I contact you for technical issues?
We provide 24-hour English technical response via email, WhatsApp, or online meetings. Engineers can be arranged for on-site support if necessary.
What is the expected service life of these transformers?
With advanced vacuum drying and oil filling processes, our transformers are designed for a service life exceeding 20 years.
What energy standards do these products meet?
Our products strictly adhere to mainstream standards such as GB/T 1094 and GB/T 6451, ensuring high efficiency and low losses.
What is the typical delivery timeframe?
Standardized production ensures reliable delivery typically within 12 to 30 days depending on the customization requirements.
