Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer
Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer
Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer
Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer
Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer
1 / 5
Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer
Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer
Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer
Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer
Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer

Dgg Outdoor Low/High Voltage Split Core Zero Sequence Ring Type Current Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
LXK80~240
Phase
Single
Operation Condition
Indoor
Usage
Protection, Measurement
Winding Form
Single Layer & Tightly Wound Type
Insulating Medium
Epoxy Resin
Installation
Extension Type
Magnetic Circuit Structure
Single Stage Type
Voltage Transformation
Electromagnetic Type
Rated Frequency
50Hz or 60Hz
Power Factor
Cosφ=0.8(Lag)
Ambient Temperature
-5℃~+40℃
Rated Secondary Current
5A or 1A
Production Capacity
100000PCS/Year
Packaging & Delivery
Package Size
21.00cm * 15.00cm * 25.00cm
Package Gross Weight
10.000kg
Transport Package
Export Box
Product Overview
Current Transformer Banner
🛡️ 11kV-123kV Integrated Power Transmission & Distribution Equipment

More Than 15 Years Of Experience In Supplying State Grid And Southern Power Grid. Get factory pricing and professional support for your project concepts.

Product Image 1
Product Image 2

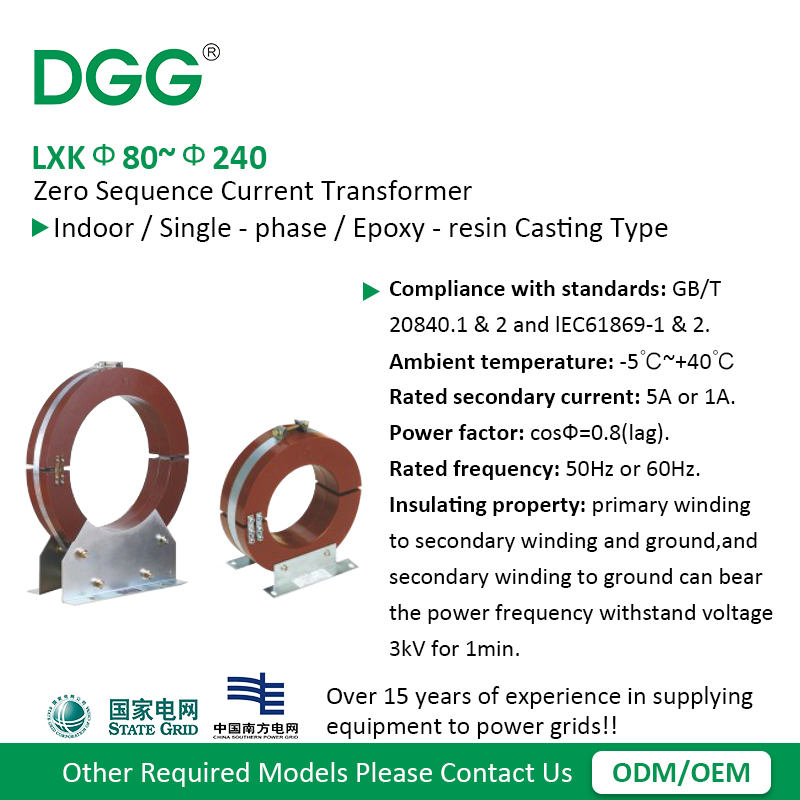

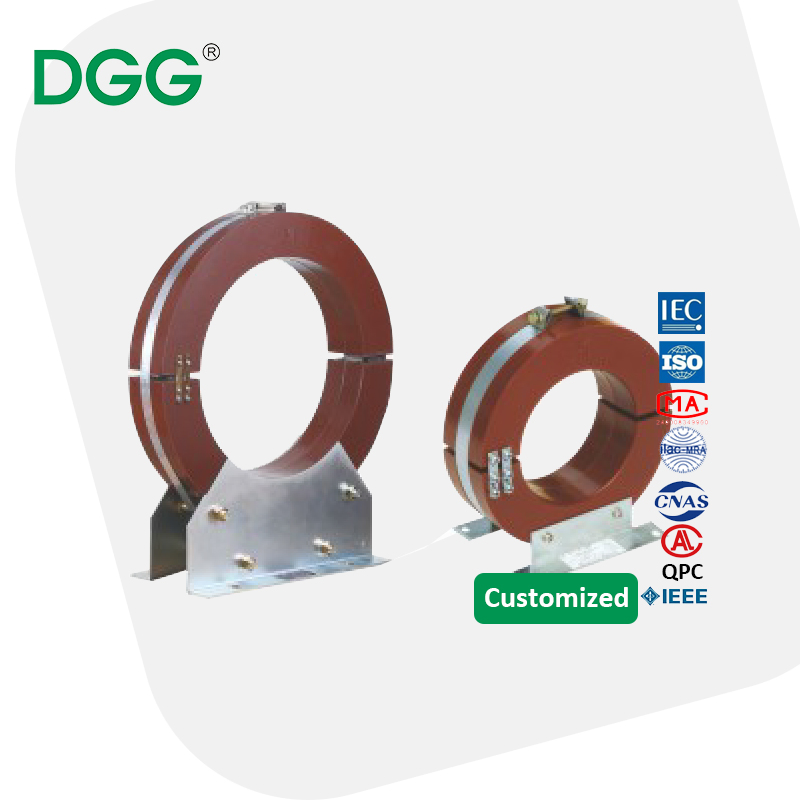

LXKФ80~Ф240 Zero Sequence Current Transformer

Indoor / Single-phase / Epoxy-resin Casting Type. Compliance with standards: GB/T 20840.1 & 2 and IEC61869-1 & 2.

Technical Parameters
Rated current ratio(A) Accuracy class Rated output (VA)
60-75/110P52.5
100/13.75
150/110P102.5
200/1-300/13.75
400/1-600/15
100/510P52.5
150-200/510P102.5
300/5-400/53.75
500/55
600/55

* Note: Custom parameters available upon consultation.

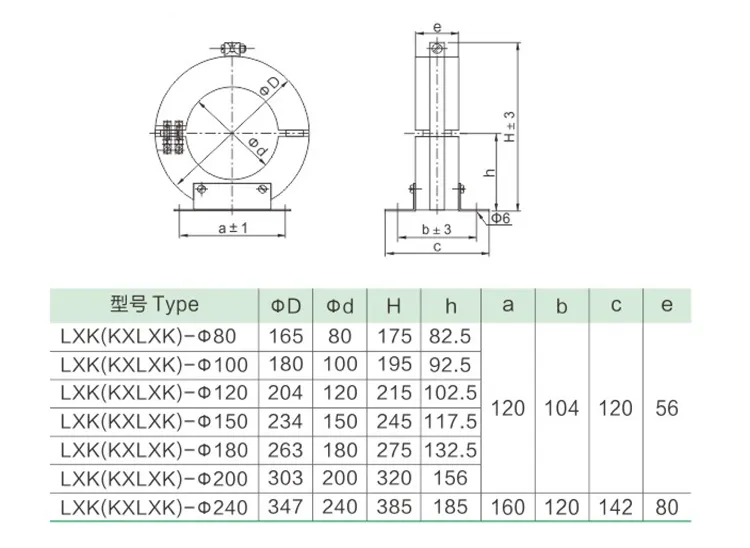

Outline & Installation Dimensions
Dimensions
Product Range
Why Choose Our Solutions
Certification
Production
  • Strong Support: Over 50 experienced engineers providing viable design solutions.
  • Production Capacity: Four production bases (40,000 sqm) with annual output exceeding 500 million.
  • Quality Assurance: Independent laboratories with IEC, KEMA, CNAS, and CSIT certificates.
  • Cost-Effective: Direct sales from production facilities ensuring significant savings.
Get Project Support Easily
1
Tell Us Your Needs

Provide drawings, reference pictures, and specific requirements.

2
Receive Solutions

Get a customized solution and specific quotation within 24 hours.

3
Mass Production

Production begins upon approval, followed by arranged shipment.

❓ Frequently Asked Questions
What voltage range do your products cover?
Our products cover medium and high voltage levels from 11kV to 123kV, depending on the product type.
Do you provide IEC type test reports?
Yes, selected products can be supplied with complete IEC type test reports ensuring safety and reliability.
Do you support OEM or ODM services?
Yes, we offer comprehensive OEM and ODM services based on your technical drawings and project requirements.
What applications are your products used for?
Our products are widely used in power grids, substations, industrial plants, and infrastructure projects.
How are the products packaged for export?
Products are packed with suitable protective materials in export-standard cartons, wooden cases, or pallets.
Do you provide technical support?
Yes, full technical support is available throughout the project lifecycle, from design to after-sales.
