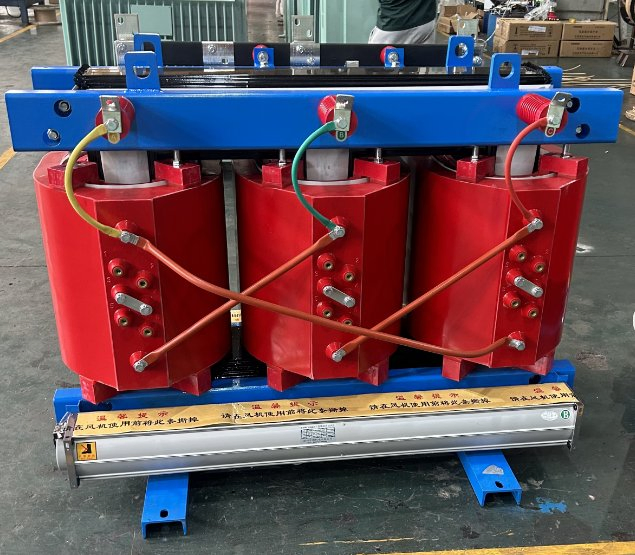

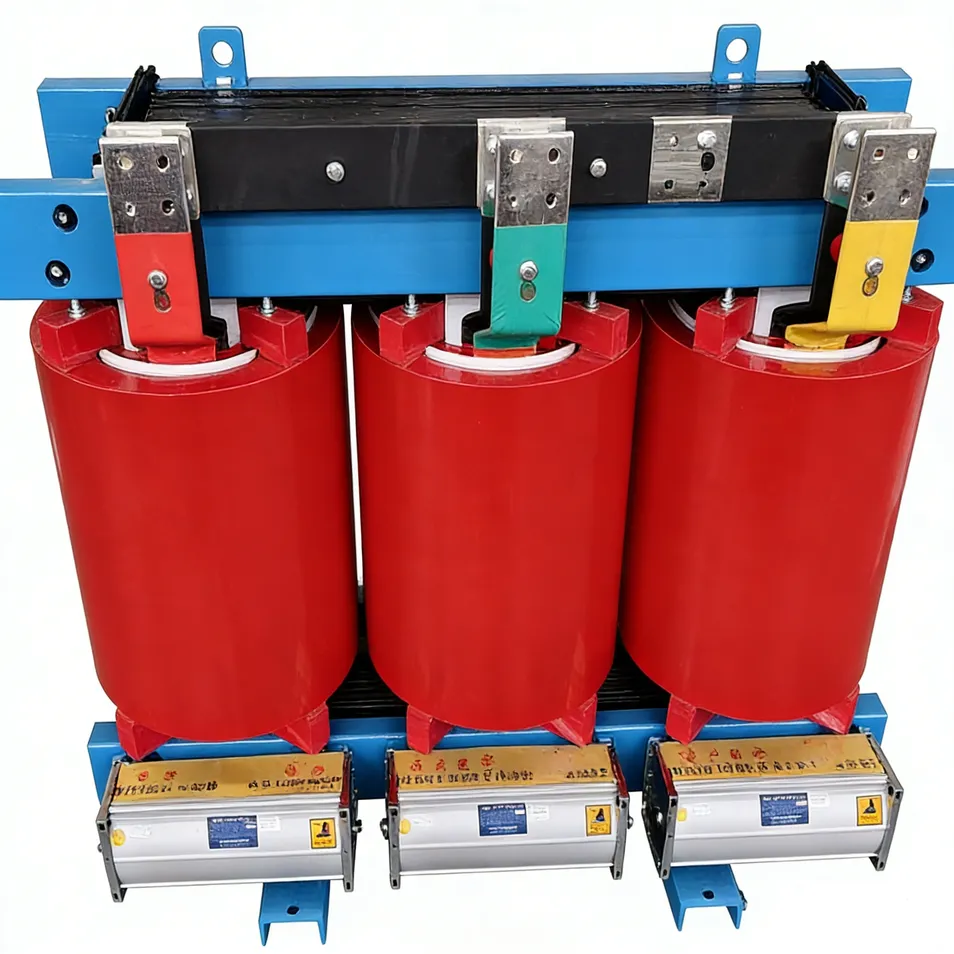

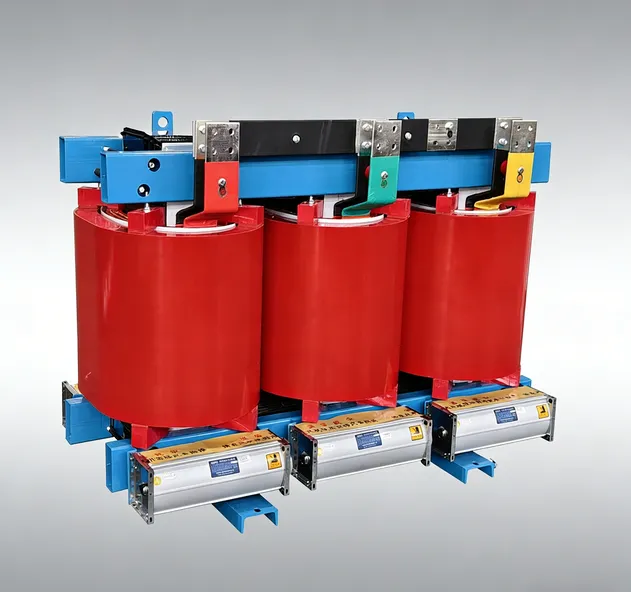

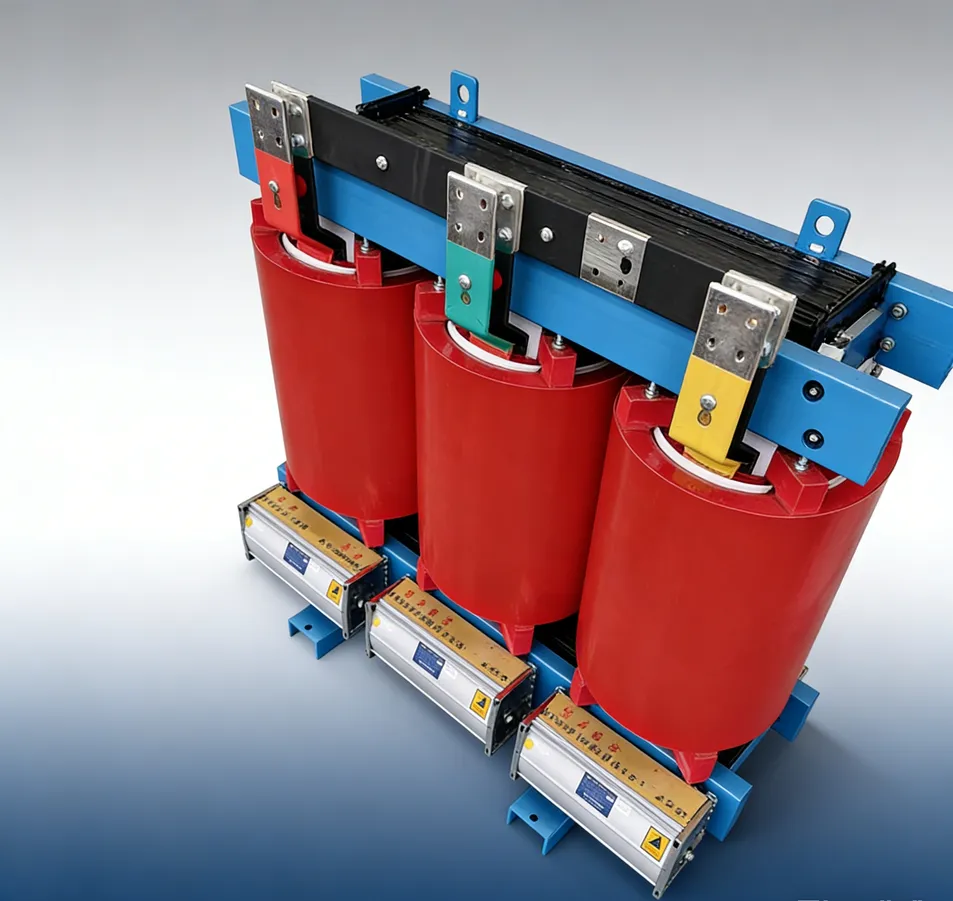

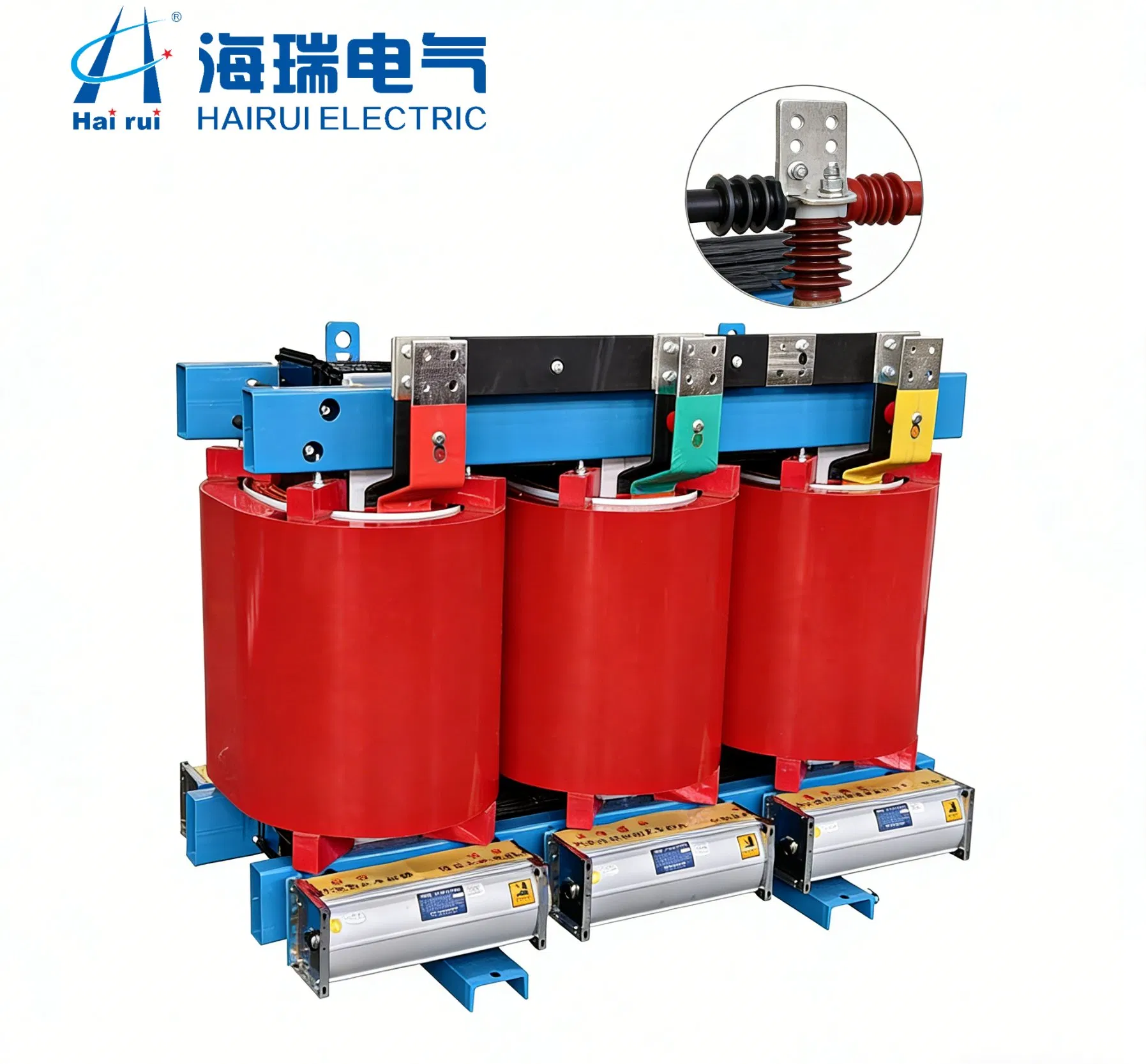

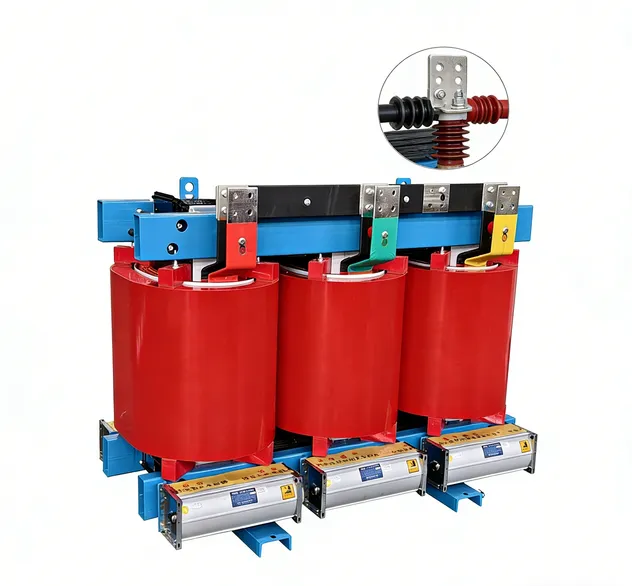

| Model NO. | SCB10 |
| Core | Core-type Transformer |
| Cooling Method | Dry-type Transformer |
| Winding Type | Separated Winding Transformer |
| Certification | ISO9001-2000, ISO9001 |
| Usage | Power Transformer, Distribution Transformer |
| Frequency Characteristics | Power Frequency |
| Shape of Core | Ring |
| Rated Capacity | 0——10000kVA |
| Service Voltage | 0-35kVA |
| Connection Group | Dyn11 or Yyn0 |
| High-Voltage Tap Range | ±5% or ±2×2.5% |
| Rated Frequency | 50Hz/60Hz |
| Package Size | 1610.00cm * 1110.00cm * 1305.00cm |
| Package Gross Weight | 4655.000kg |
| Rated High Voltage | 10(11, 10.5, 6.6, 6, 3)kV |
| Rated Low Voltage | 0.4kV |
| Connection Group | Dyn11 or Yyn0 |
| High-voltage Tap Range | ±5% or ±2×2.5% |
| Insulation Level | L175AC35L/L10AC5 |
| Rated Frequency | 50Hz |
| Number of Phases | Three-phase |
Yes, we support comprehensive customization including power adjustments, dimensions, input/output voltage, IP protection levels, and specialized environments like explosion-proof or high-temperature areas.
All products are accompanied by English manuals, product certificates, factory test reports, and wiring diagrams to assist with installation and customs clearance.
Absolutely. The vacuum-cast epoxy resin core provides excellent moisture resistance, allowing for operation in up to 100% humidity without the need for pre-drying after a shutdown.
Due to the robust integral casting and high-quality materials, the expected lifespan is up to 30 years. The dry-type design is virtually maintenance-free, significantly reducing operating costs.
Yes. When equipped with forced air cooling (AF mode), the transformer can increase its output capacity by up to 50% to manage emergency load requirements.
Technical support is available 24/7 in English via email or digital meetings. We provide troubleshooting guidance, and for critical projects, engineering support can be coordinated.
