Tanaka Electric
Tanaka Electric

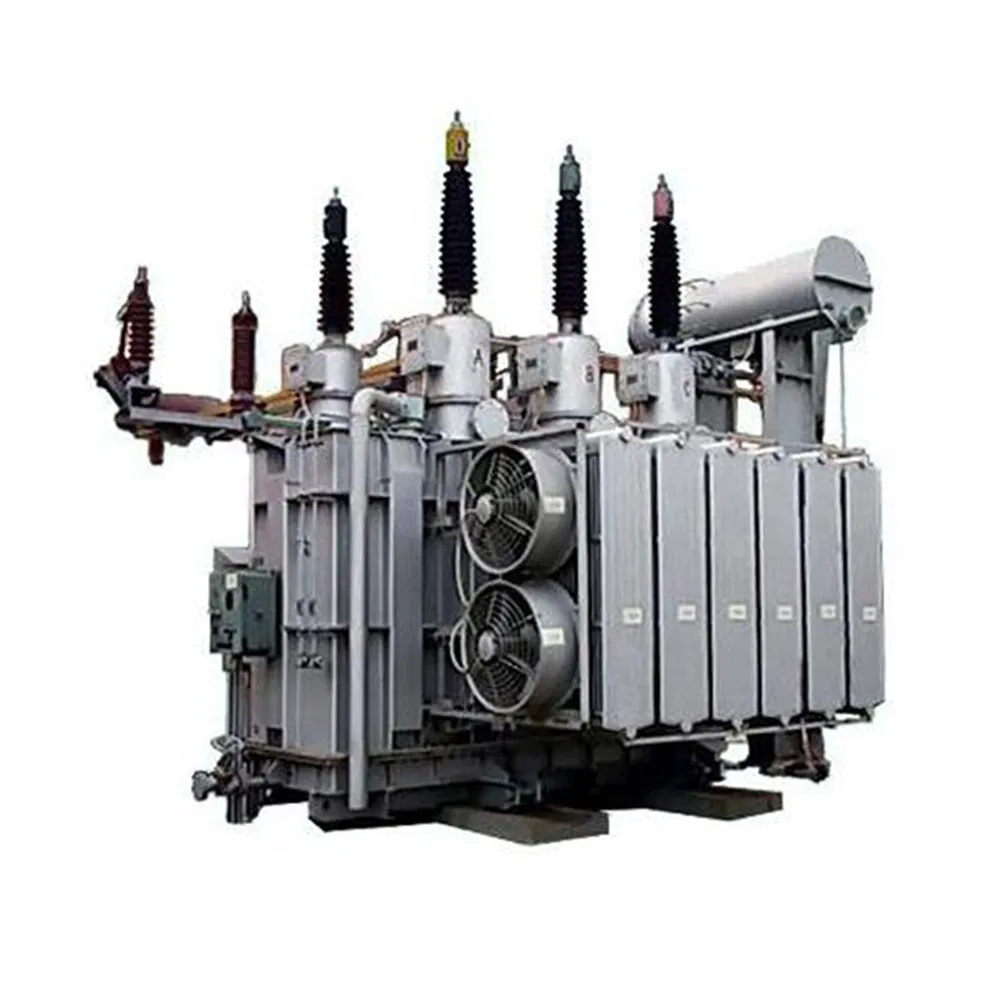

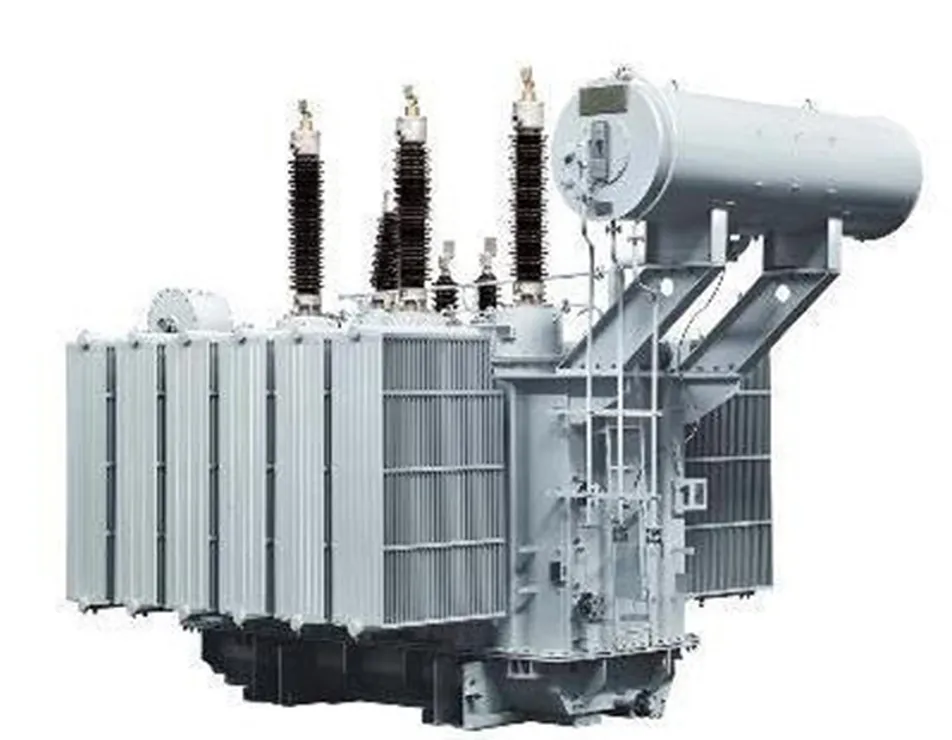

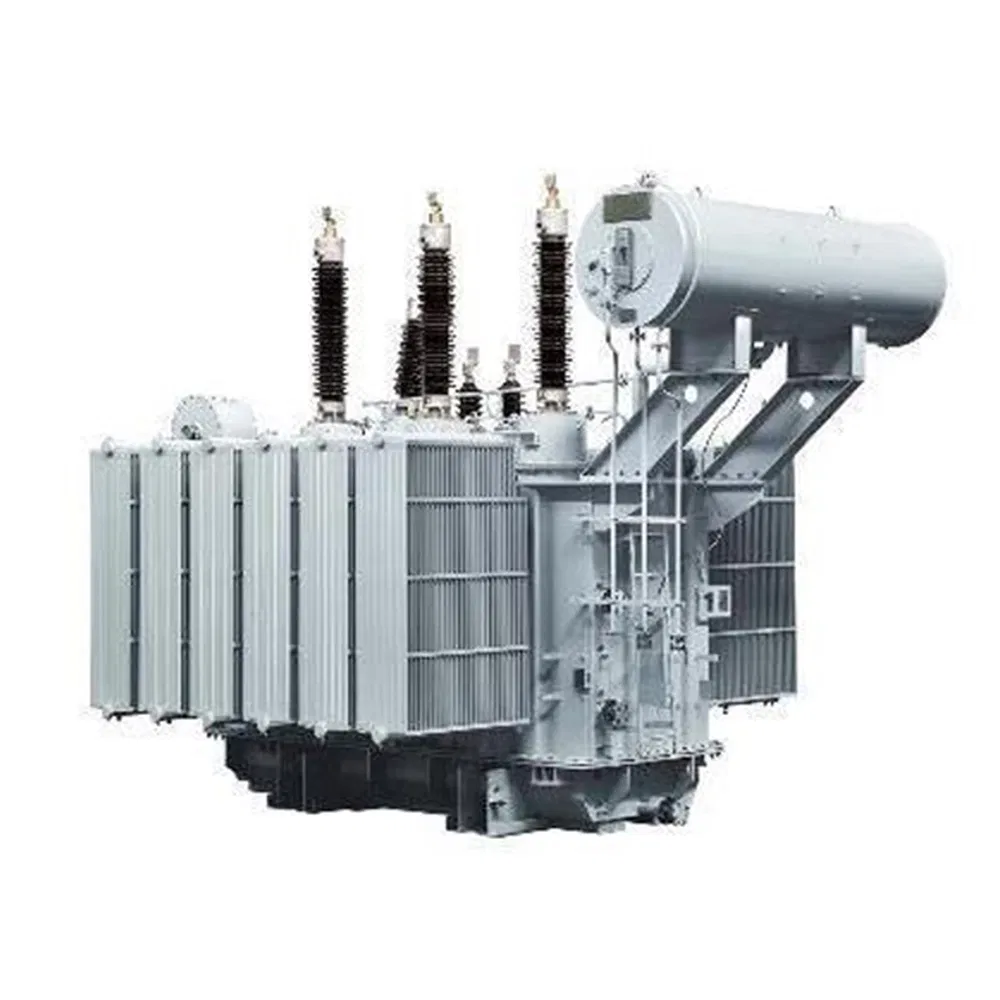

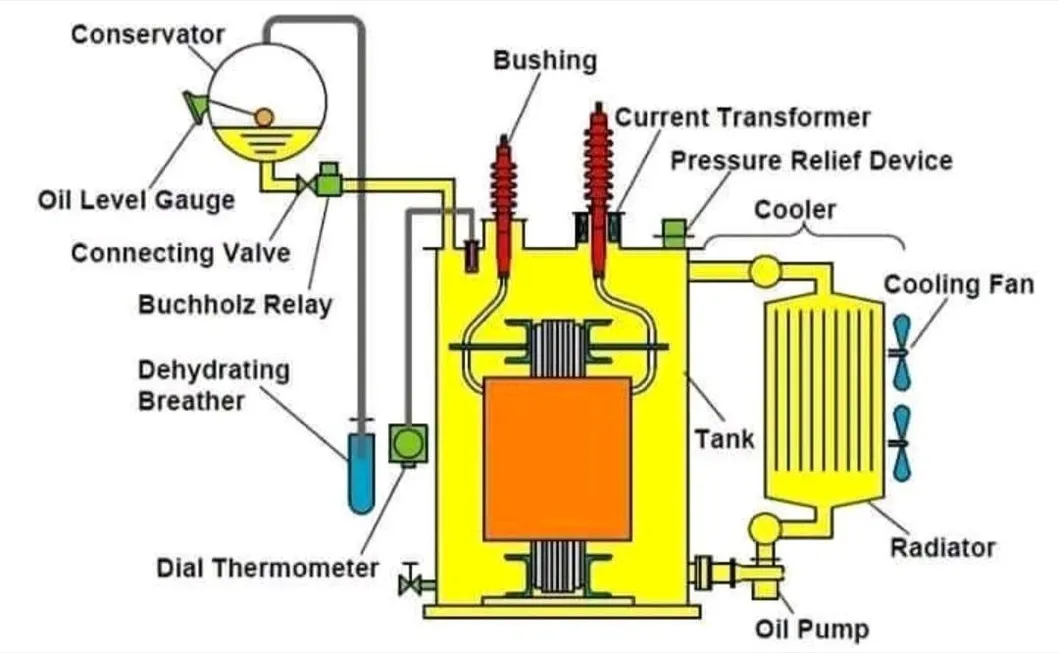

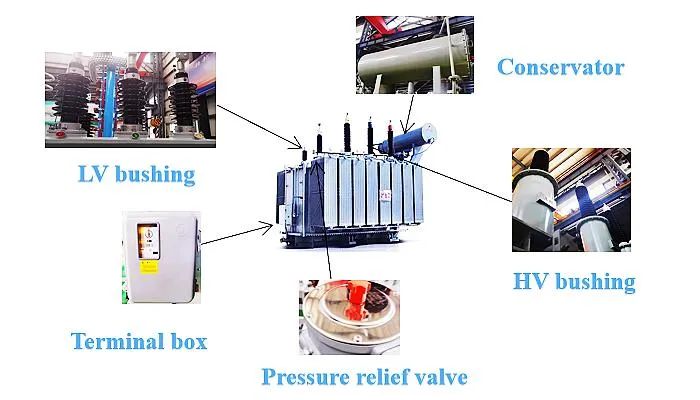

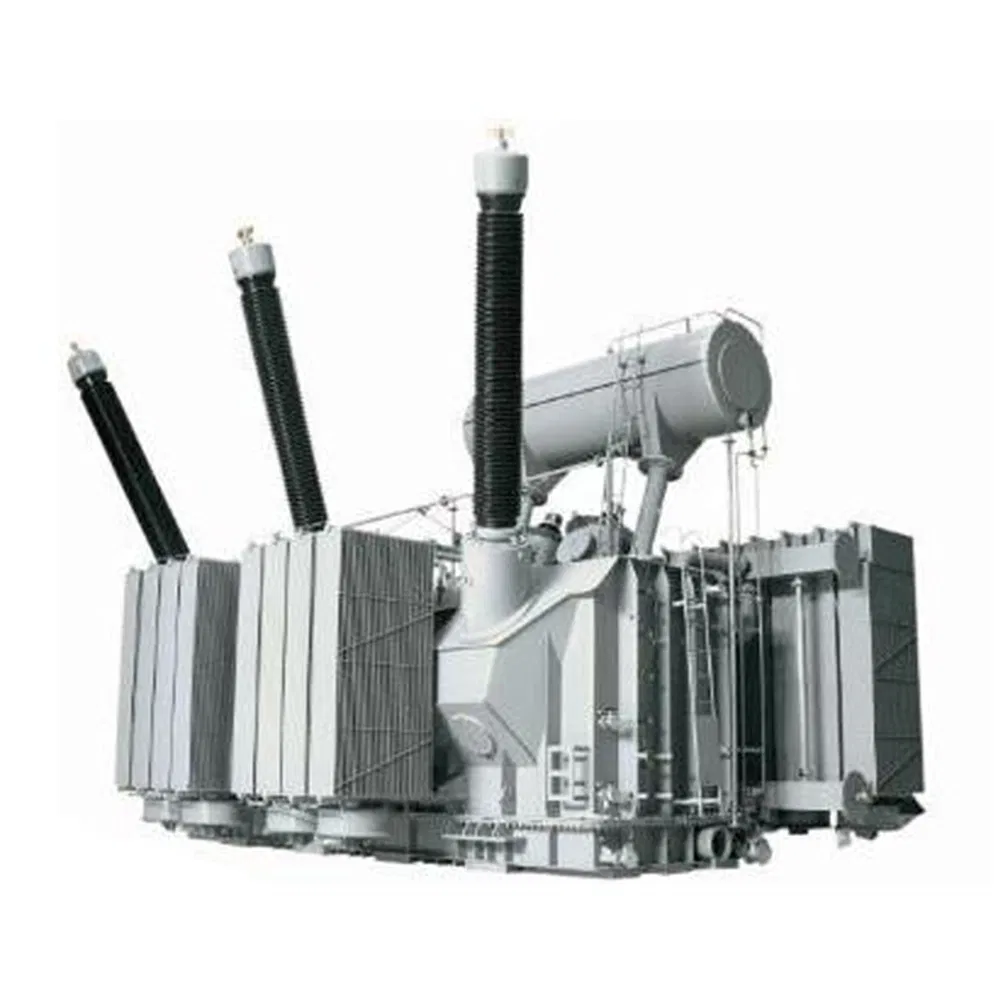

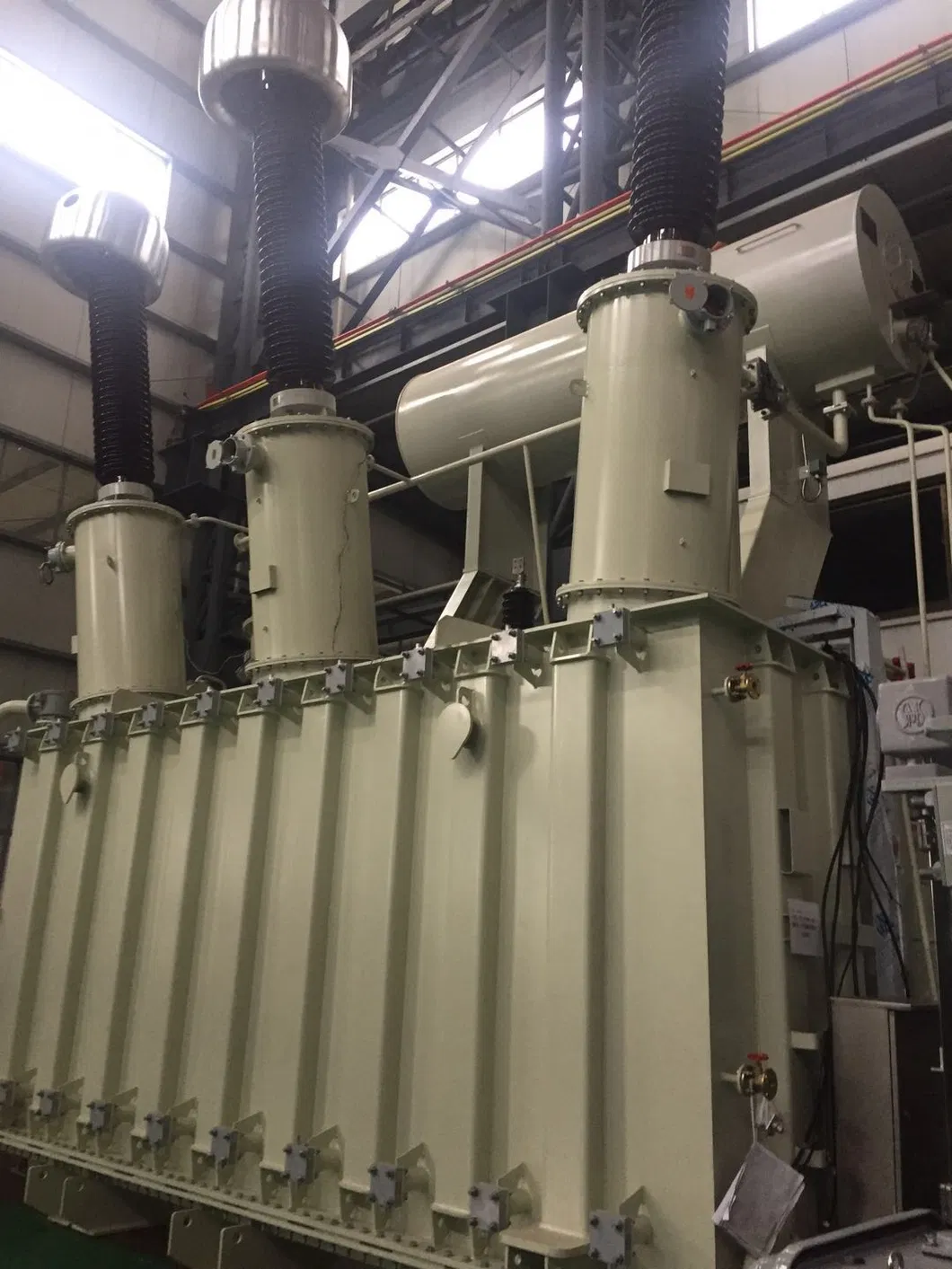

High pressure transformer utilizing advanced analysis software and specialized calculation procedures. To ensure peak performance, every component including the core, coil, machine body, lead wire, and oil tank is meticulously designed and tested.
Our products have passed short-circuit bearing capacity tests and all routine type tests by National Quality Supervision and Inspection Centers. They offer stability, economy, reliability, and environmental protection, suitable for power plants, substations, and large industrial enterprises.
| Rated Power (kva) | High Voltage (kv) | H.V. Tap Range | Low Voltage (kv) | Connection Symbol | No-load Loss (kw) | On-load Loss (kw) | No-load Current (%) |
|---|---|---|---|---|---|---|---|
| 6300 | 63 / 66 / 69 110 / 132 138 / 220 | ±8 x 1.25% | 6.3 / 6.6 10.5 / 11 33 / 69 | YNd11 YNyn0 | 9.4 | 34 | 0.63 |
| 10000 | 13.1 | 47.6 | 0.75 | ||||
| 20000 | 21.8 | 84.2 | 0.49 | ||||
| 40000 | 36.2 | 140.3 | 0.39 | ||||
| 120000 | 85 | 328 | 0.46 | ||||
| 240000 | 144 | 539 | 0.4 |

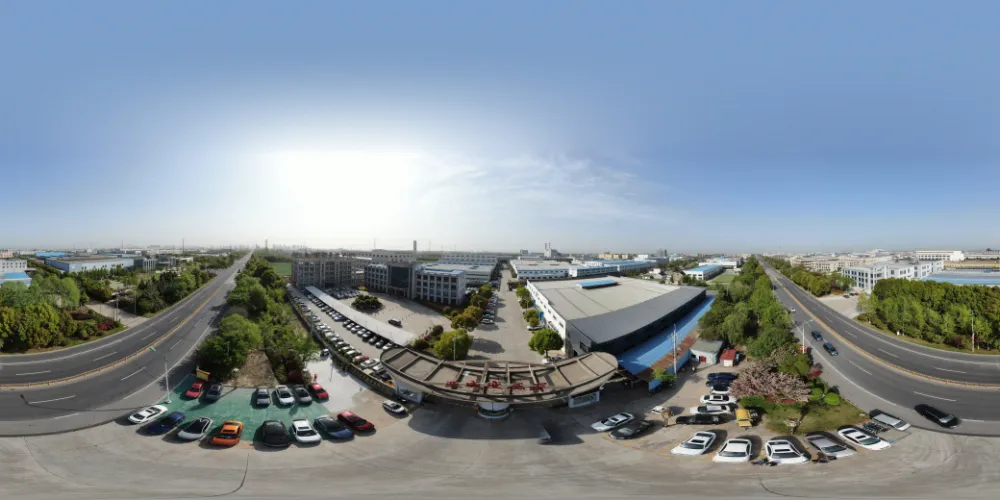

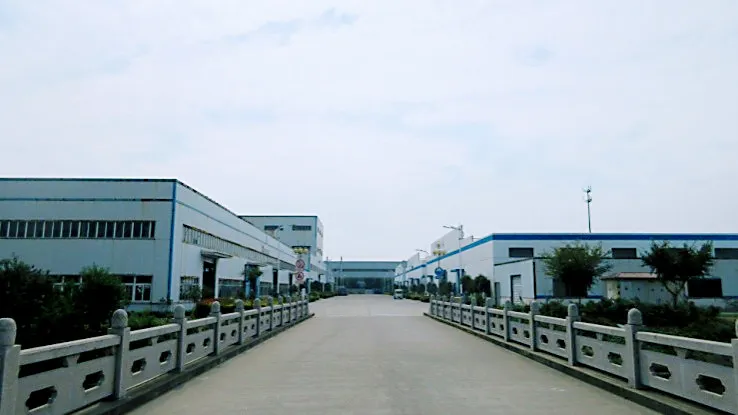

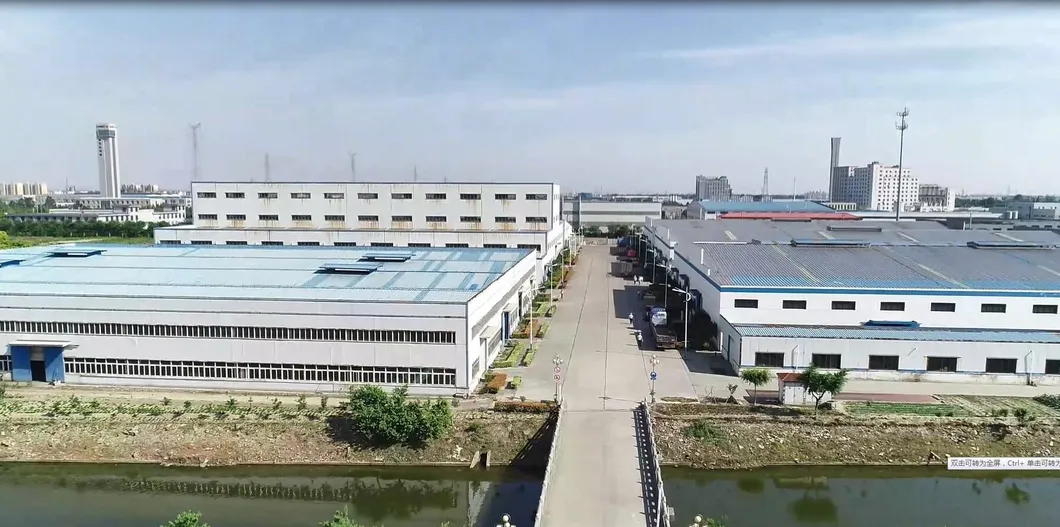

Our group boasts over 50 engineering and technical personnel among a workforce of more than 1000 employees. Covering an area of 240,000 square meters, we are a leading enterprise in the transformer industry, recognized as a national high-tech enterprise with multiple quality and environmental certifications.

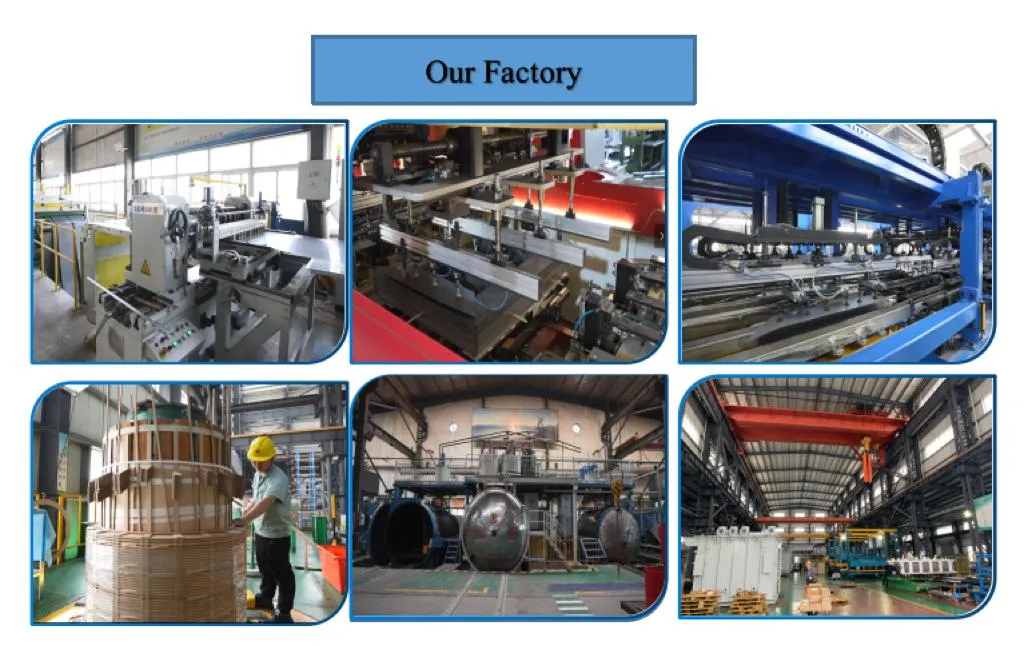

We possess strong production capacity and an efficient marketing team. Our product range includes 110KV, 220KV large ultra-high voltage transformers, dry-type transformers, oil-immersed transformers, and various special transformers like furnace and rectifier types. All products have passed rigorous routine and special tests by national inspection centers.
