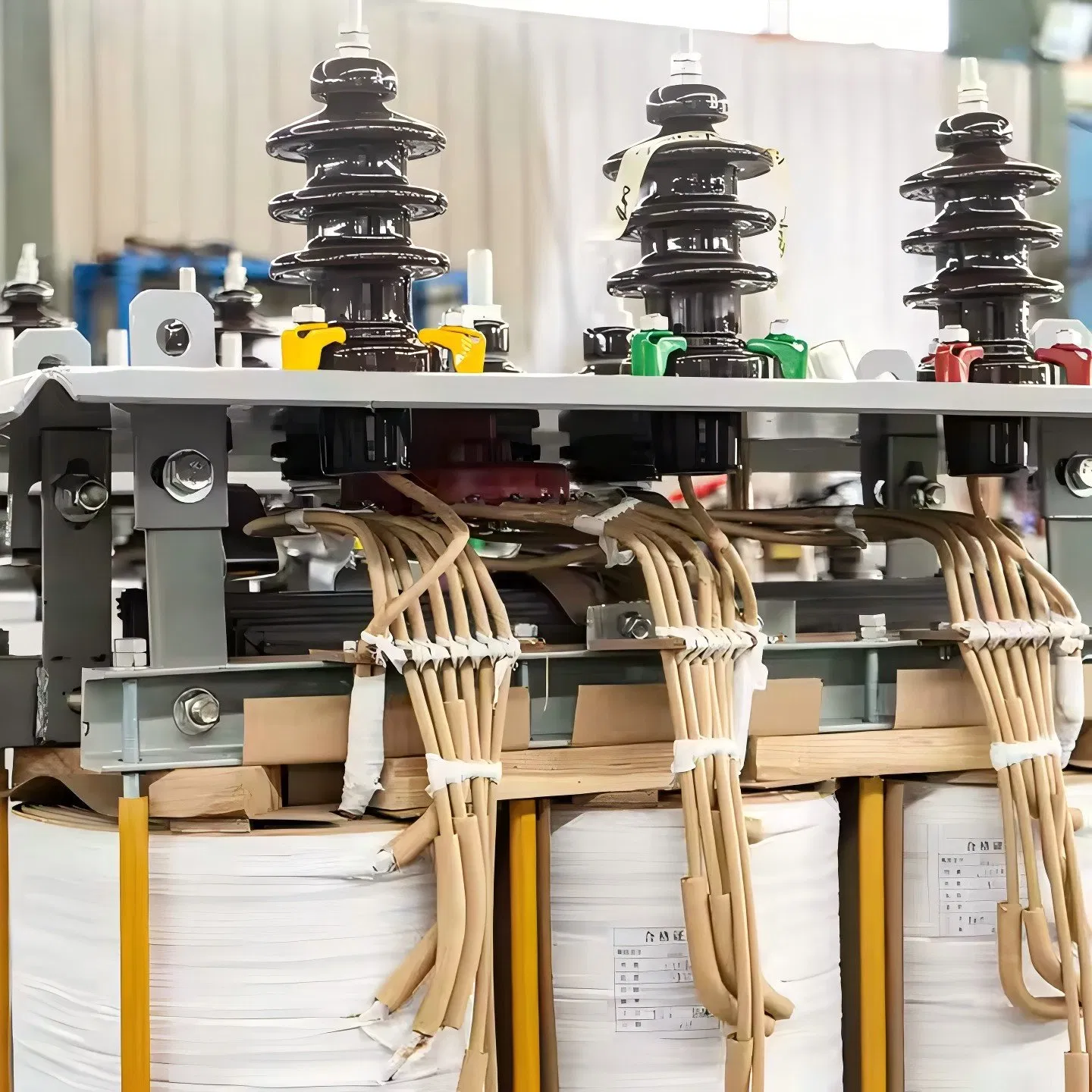

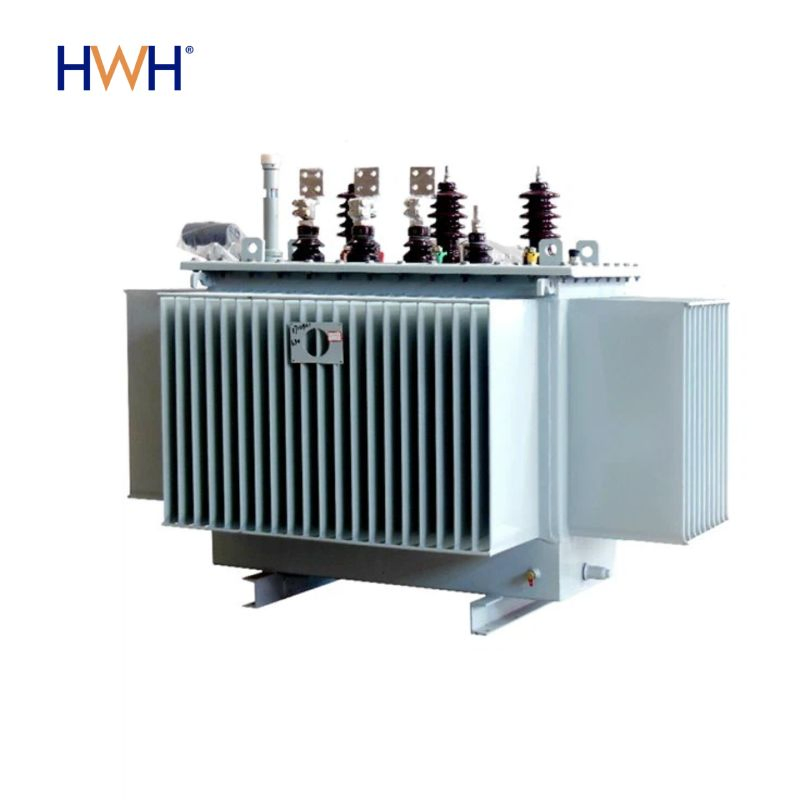

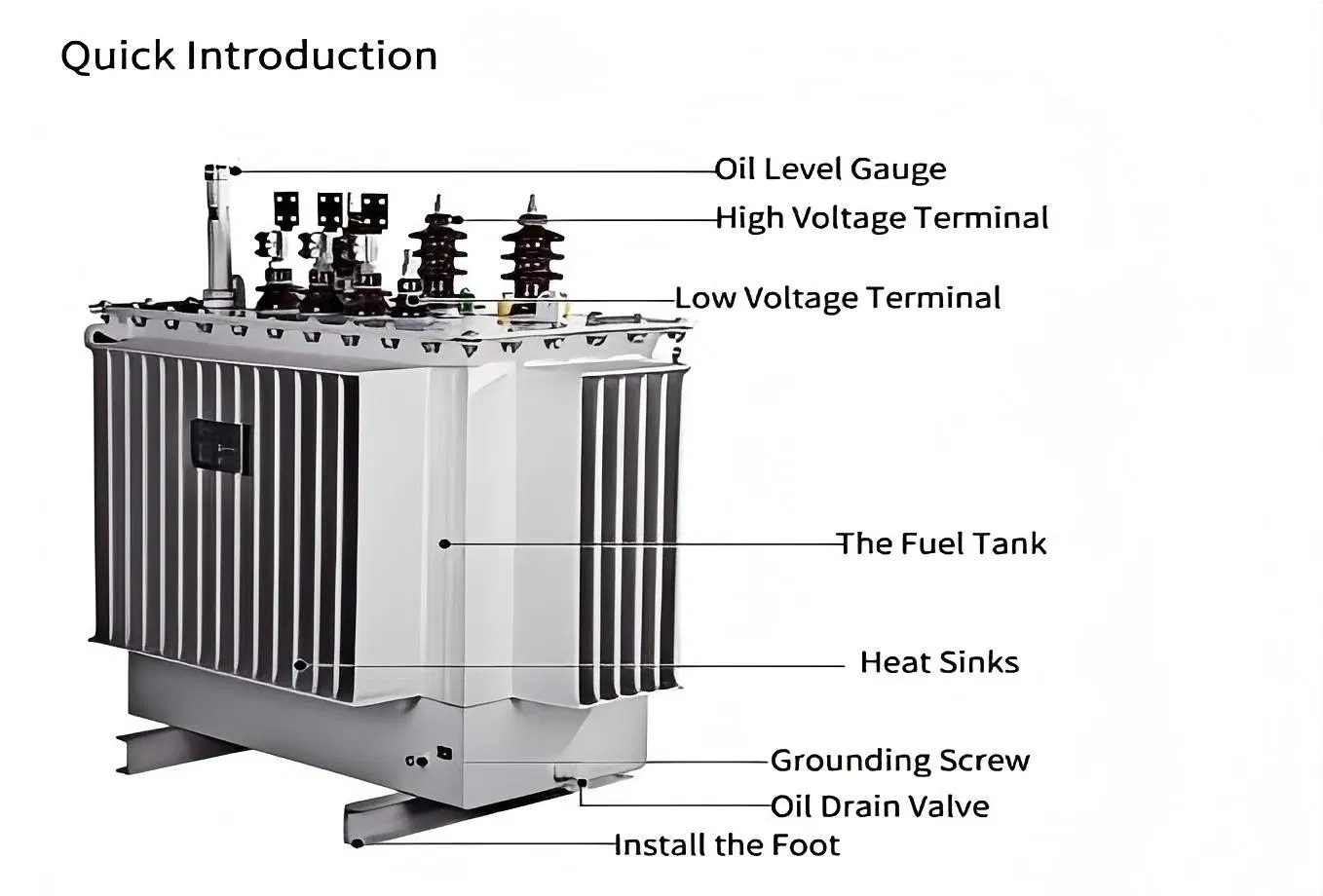

Oil Immersed 3 Phase Transformer

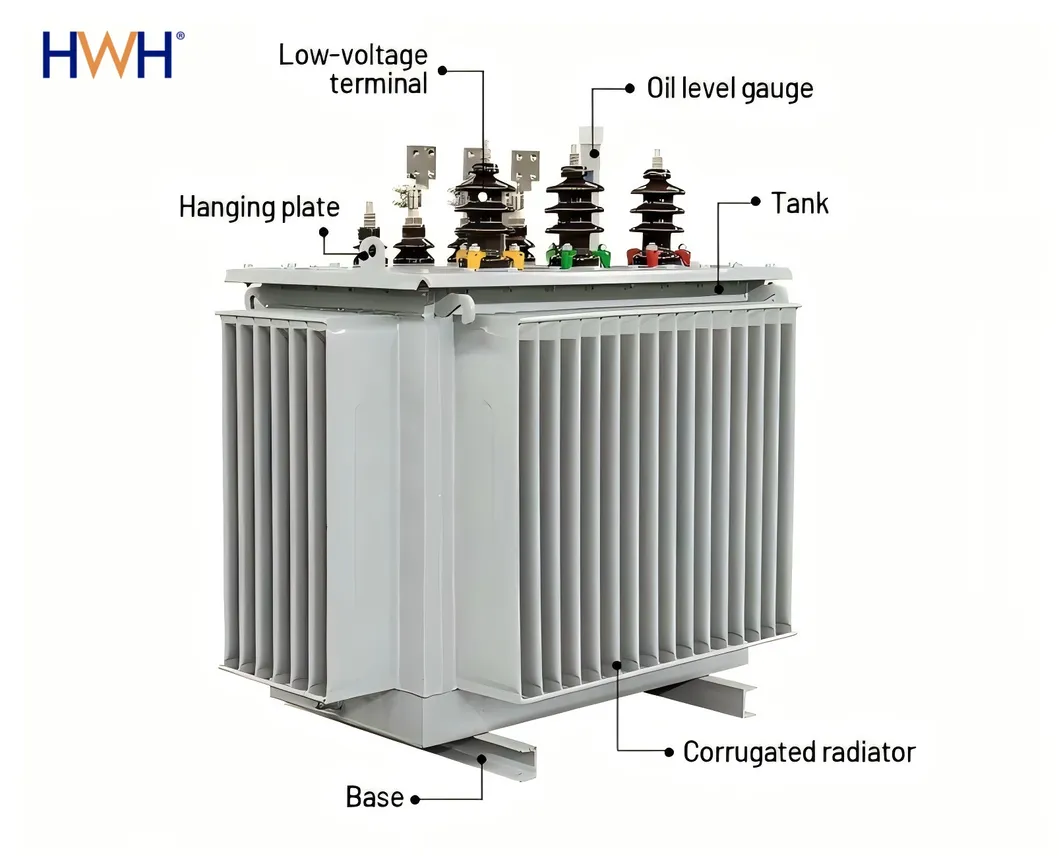

The fully sealed oil immersed power transformer adopts the fully oil-filled sealed type. The corrugated tank shell is a permanently sealed tank with its elasticity adapting to the expansion of oil, can adapt to a variety of outdoor harsh environments, which has been widely used in various power distribution equipment.
Technical requirements for ordering:
| Model Number | Capacity (kVA) | Voltage Combination (kV) | No-load Loss (W) | Load Loss (W) | Impedance (%) | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| High Tension | Tapping Range | Low Pressure | L | W | H | |||||
| S11-M-30 | 30 | 6/10/11 | ±5% | 0.4 | 90 | 600 | 4 | 740 | 665 | 875 |
| S11-M-50 | 50 | 6/10/11 | ±5% | 0.4 | 120 | 870 | 4 | 770 | 675 | 965 |
| S11-M-100 | 100 | 6/10/11 | ±5% | 0.4 | 200 | 1500 | 4 | 850 | 715 | 1055 |
| S11-M-200 | 200 | 6/10/11 | ±5% | 0.4 | 340 | 2600 | 4 | 1245 | 790 | 1195 |
| S11-M-500 | 500 | 6/10/11 | ±5% | 0.4 | 680 | 5100 | 4 | 1490 | 960 | 1405 |
• High ambient temperature: +40ºC
• Low ambient temperature: -25ºC
• Altitude: <1000m
• Monthly average relative humidity: 90% (20ºC)
• Installation location: Chemical plants, factories, remote locations and harsh environments.
The company specializes in power equipment, focusing on the production, sale, and research of power transformers, substations, high- and low-voltage switchgear and other related electrical equipment. We hold certifications including ISO 9001, CE, 3C, TUV, and the Green Power Certificate Trading Voucher.
Our team consists of over 200 professionals, including senior engineers and technical workers, offering more than 50 product series and over 600 specifications. With an annual production capacity exceeding 5,000 units, the company holds numerous national patents and software copyrights.
