| Model NO. | S11-M-400kVA |
| Core | Core-type Transformer |
| Cooling Method | Oil-immersed Type Transformer |
| Winding Type | Two-winding Transformer |
| Certification | ISO9001-2000 |
| Usage | Power Transformer, Distribution Transformer |
| Frequency Characteristics | Power Frequency |
| Shape of Core | Ring |
| Transformer Type | S11 Oil-Immersed Transformer |
| Core Material | Copper / Aluminium |
| Vector Group | Dyn11/Yyn0 |
| Standard | IEC/GB |
| Package Size | 2100.00cm * 1400.00cm * 1250.00cm |
| Package Gross Weight | 350.000kg |
| Transport Package | Wooden Case |

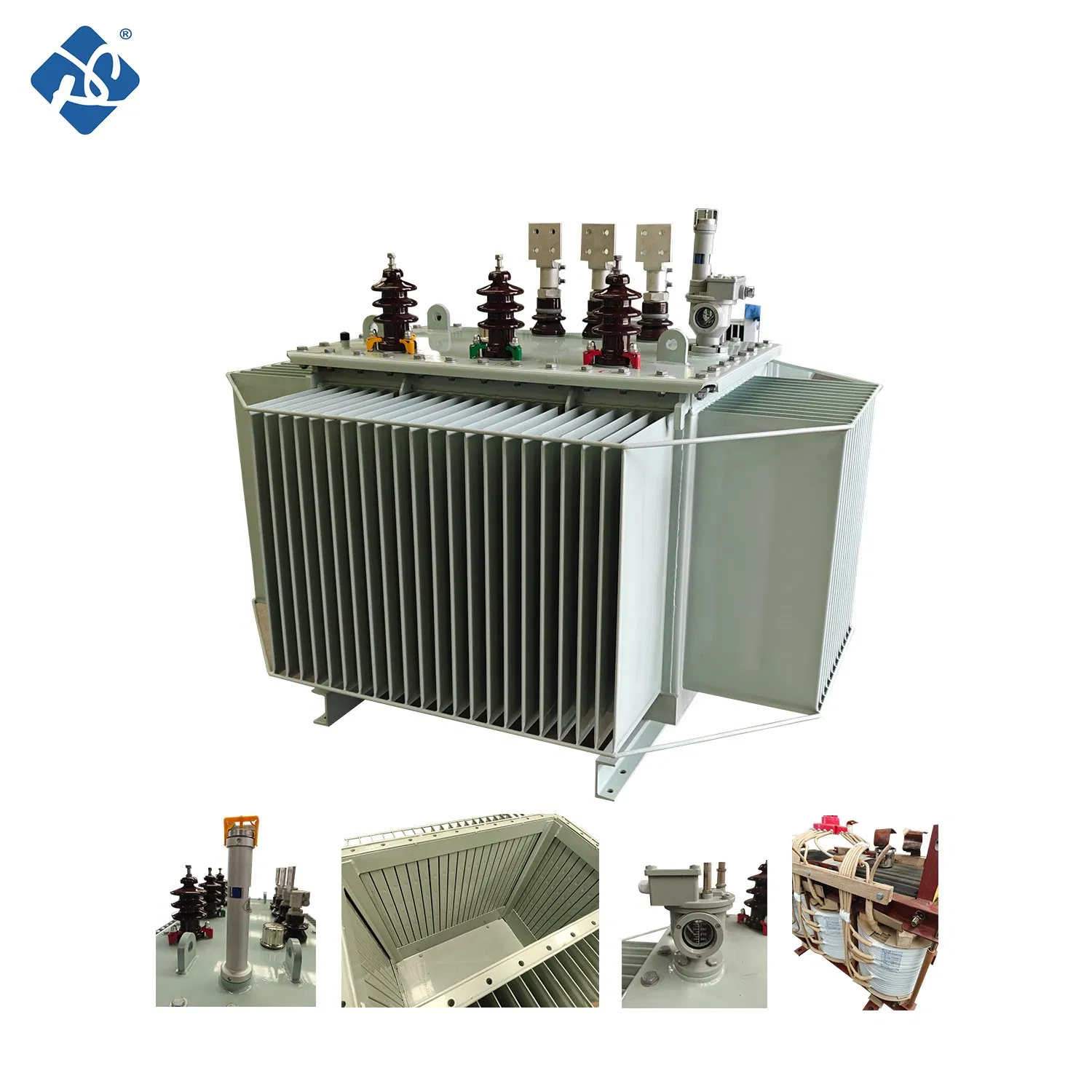

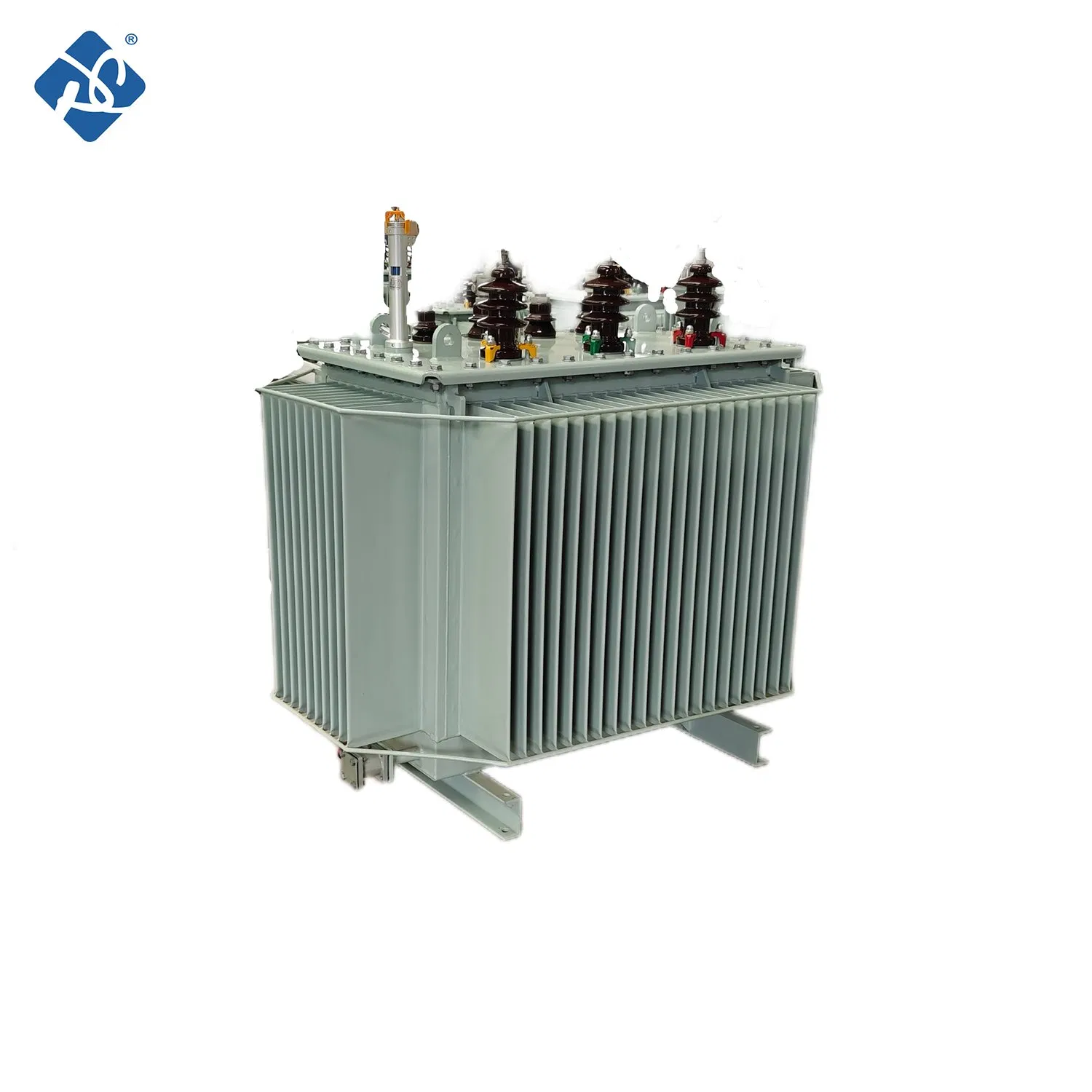

10/0.4 Kv S11 400 kVA Three Phase Oil Immersed Aluminum Copper Power Electrical Distribution Transmission Transformer

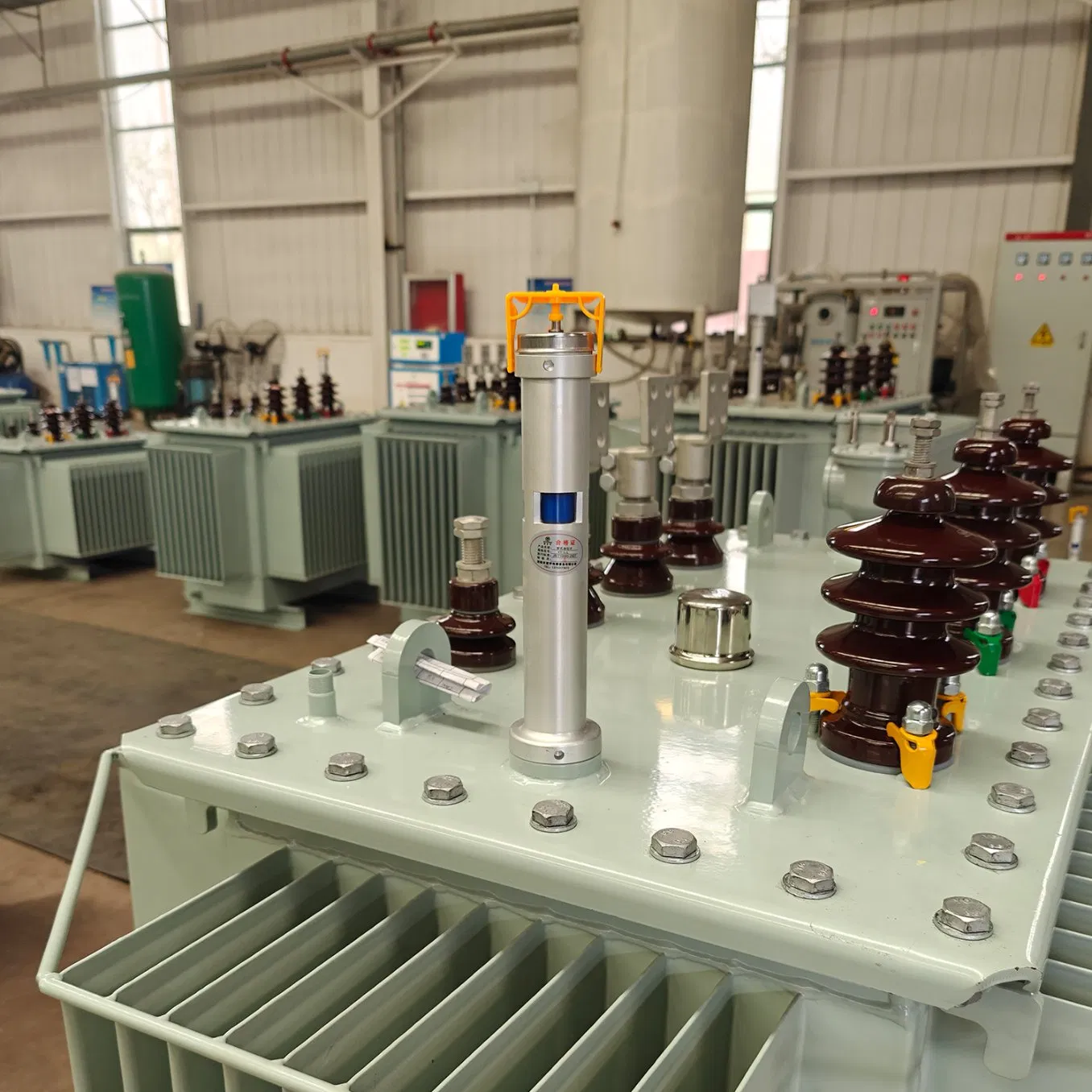

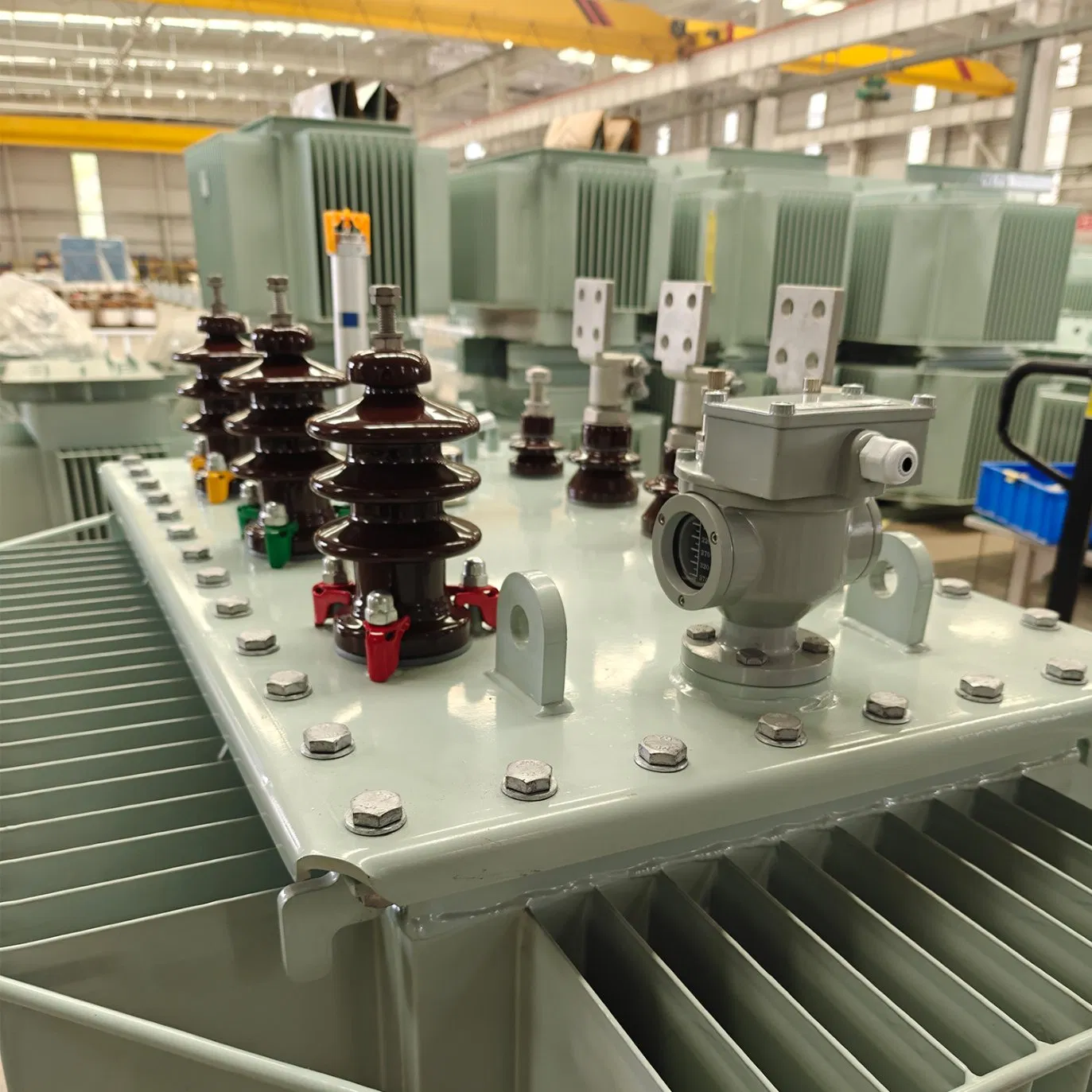

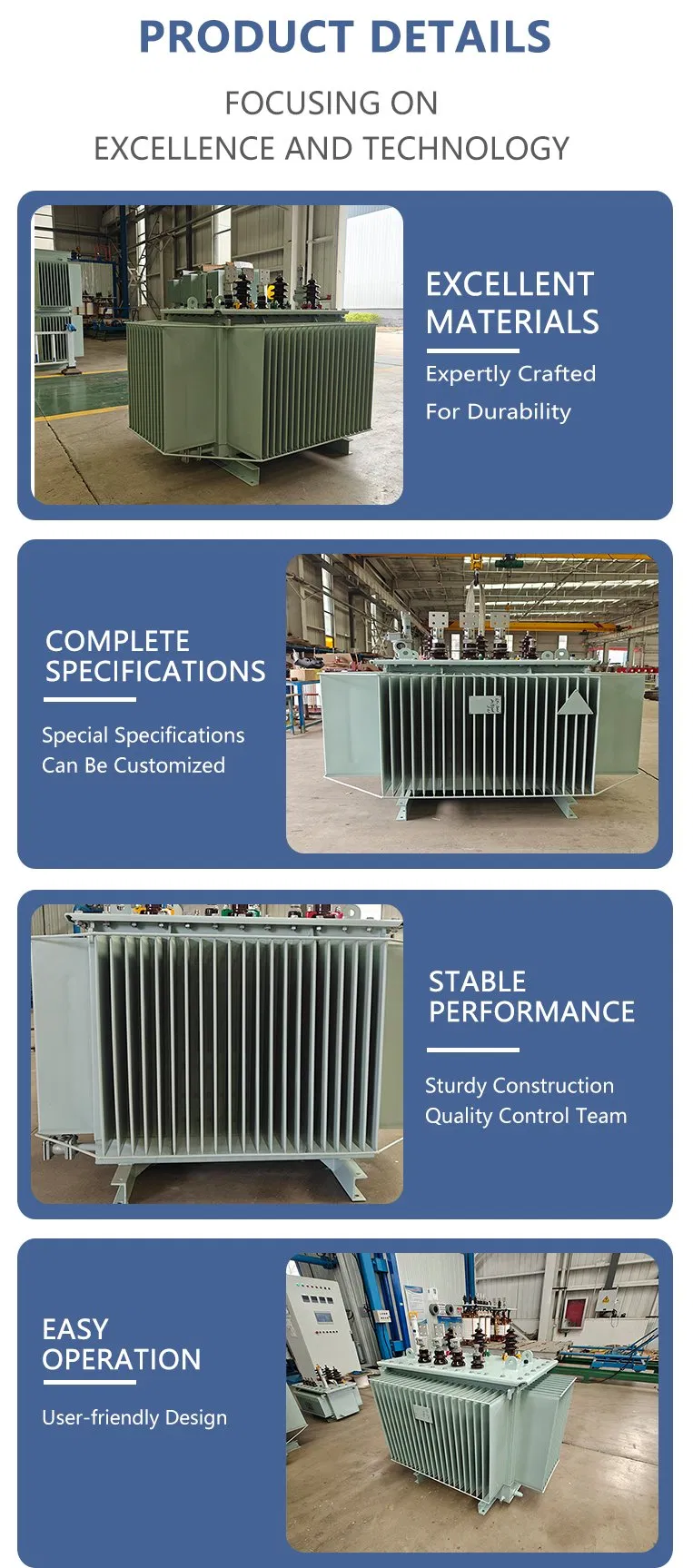

Our fully sealed Oil-immersed Power Transformer boasts low loss, low noise, and high efficiency, resulting in significant energy savings and reduced pollution. Unlike ordinary oil-immersed transformers, the fully sealed transformer eliminates the need for an oil conservator, with oil volume changes automatically adjusted and compensated for by the elasticity of the corrugated sheet of the corrugated oil tank. The transformer is isolated from the air to prevent and slow down oil and insulation aging, enhancing operational reliability and avoiding maintenance during normal operation.

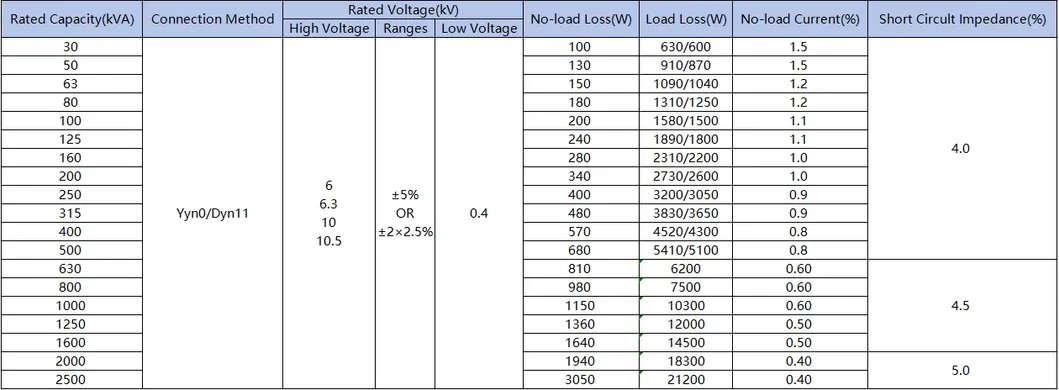

| Number of Phase | Three Phase |
| Winding Type | Two Winding |
| Rated Capacity | 50kVA |
| High Voltage | 10/11kV |
| Low Voltage | 0.4kV |
| Tapping Range | ±2x2.5% |
| Impedance Voltage | 4% |
| Load Loss | 0.63/0.6kW |
| No-load Loss | 0.1kW |
| No-load Current | 1.0% |
| Frequency | 50/60Hz |
| Connection Group | Yyn0/Dyn11 |
| Cooling Method | ONAN |
| Coil Material | Aluminum/Copper |
* The rated voltage can be customized according to customer requirements.

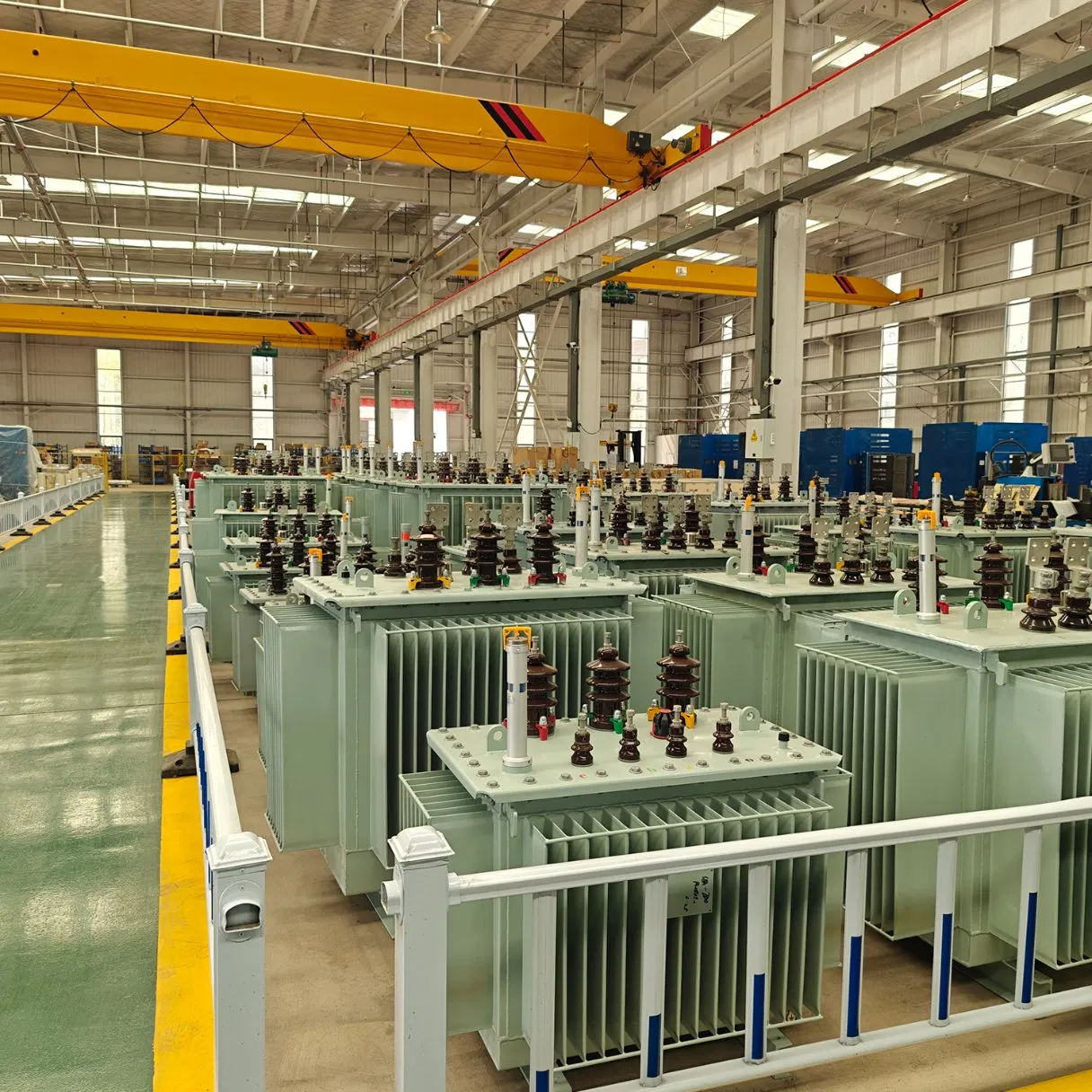

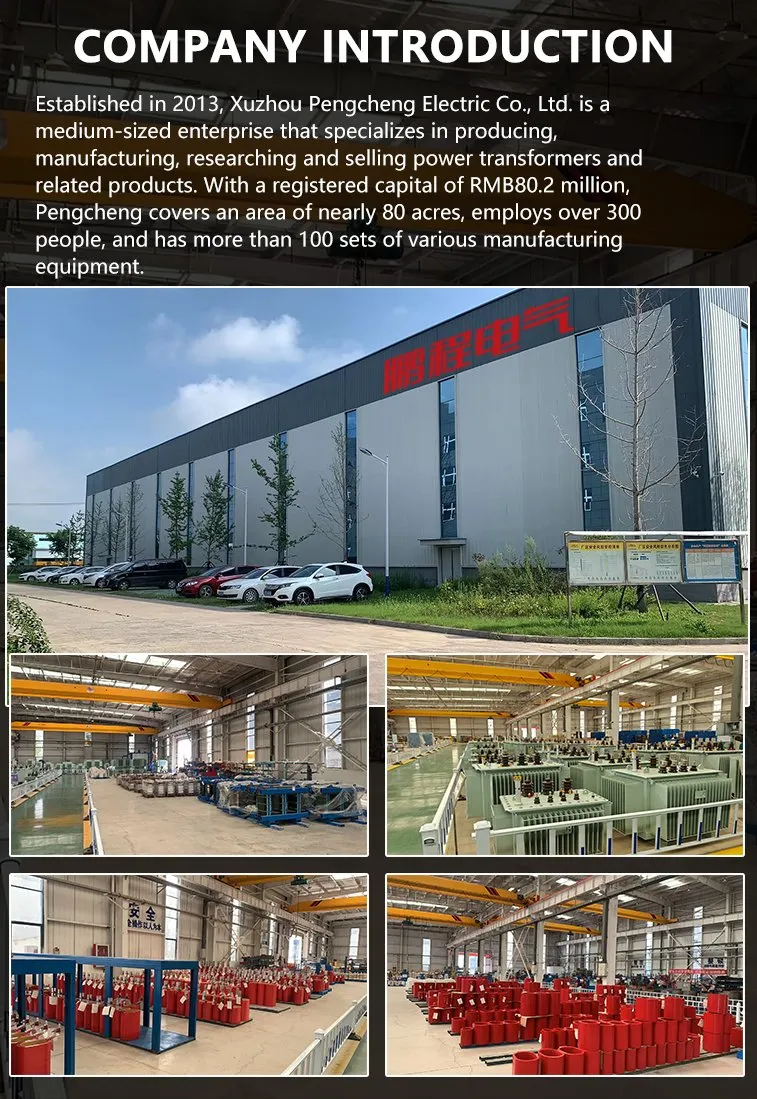

Established in 2013, our enterprise is a medium-sized company that specializes in producing, manufacturing, researching and selling power transformers and related products. With a registered capital of RMB80.2 million, our facility covers an area of nearly 80 acres, employs over 300 people, and has more than 100 sets of various manufacturing equipment.
