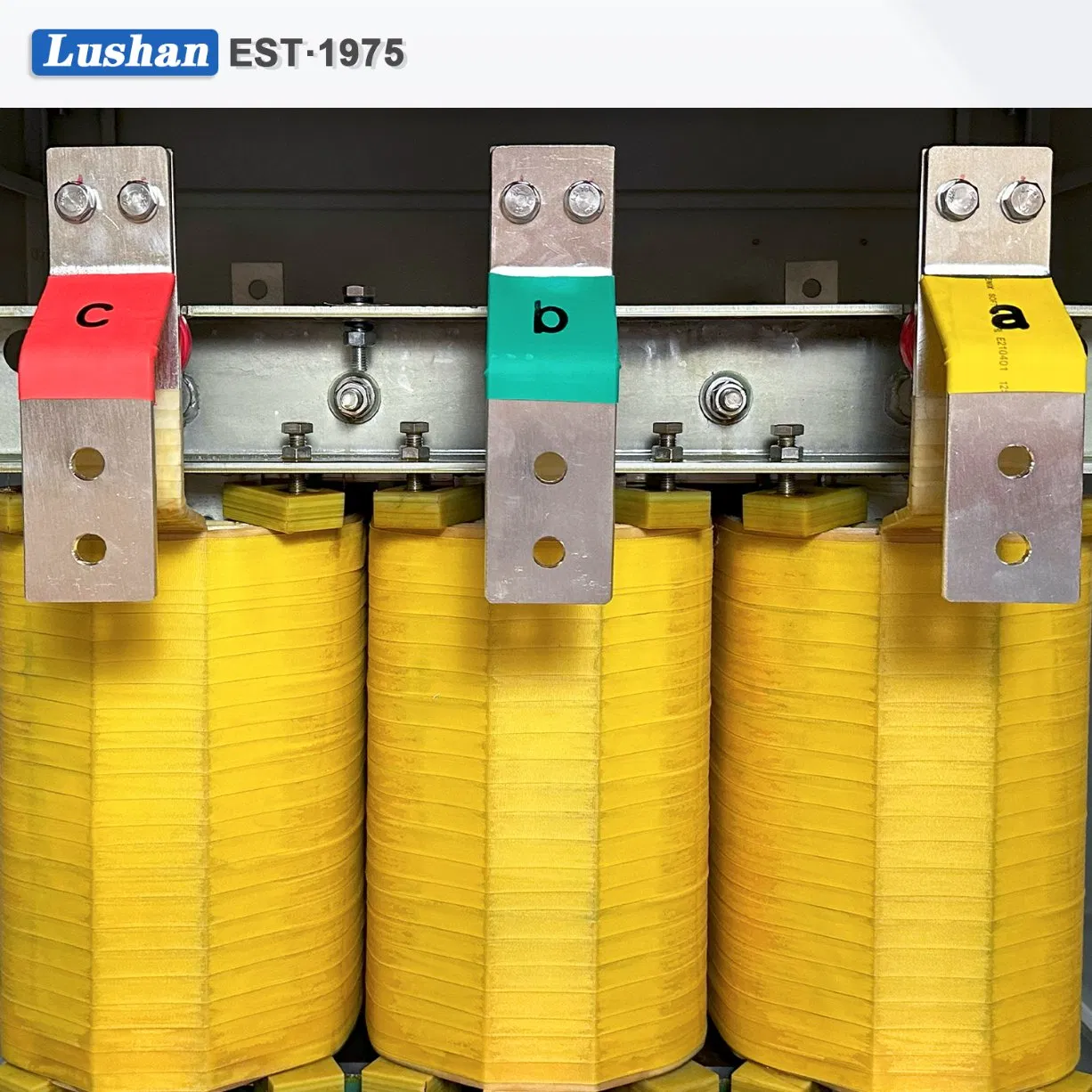

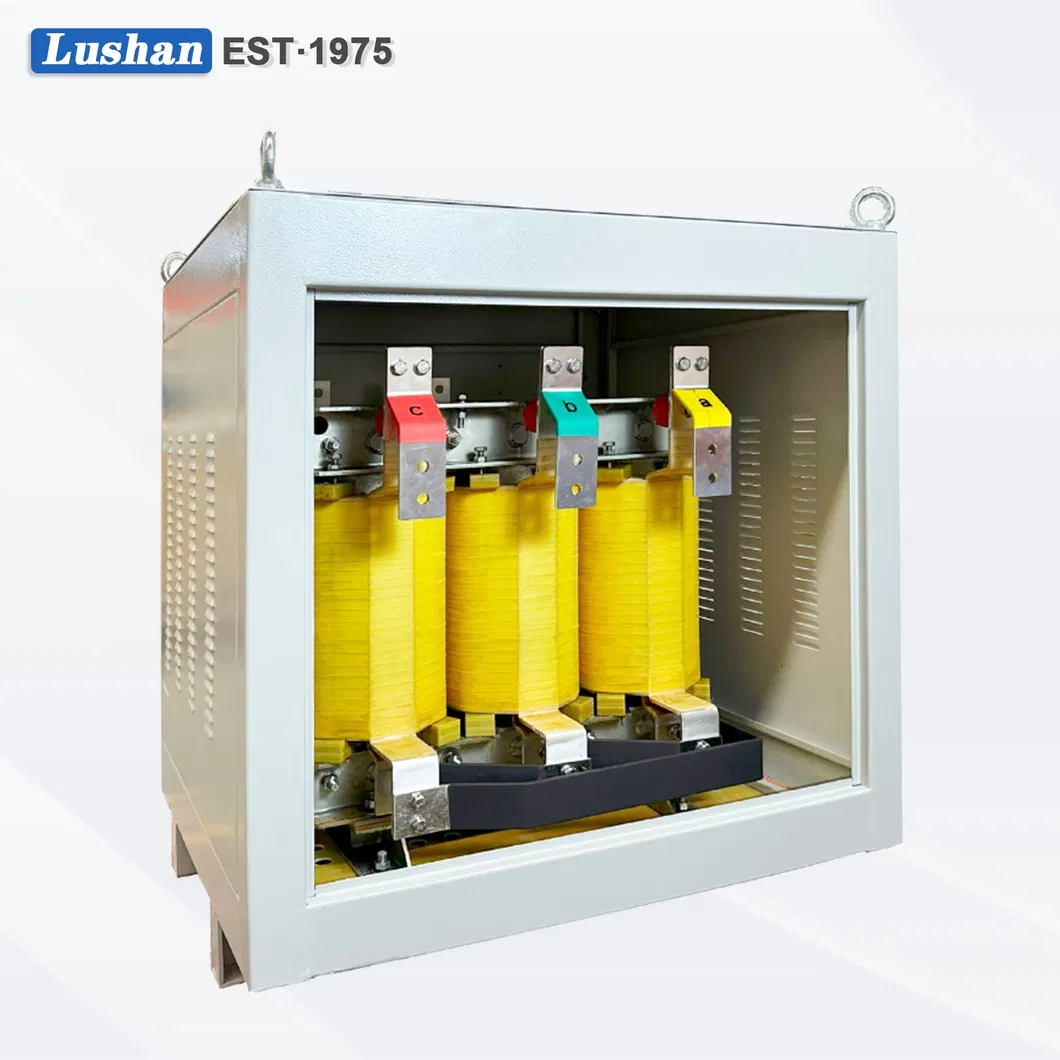

| Model NO. | SG-81kVA 0.38kV-4kV | Type | Three-Phase Dry-Type Transformer |
| Capacity | 81kVA | Core | Core-type Transformer |
| Primary Voltage | 0.38kv | Secondary Voltage | 4kv |
| Work Efficiency | ≥95% | Insulation Class | H/F |
| Cooling Method | AN (Air Natural) | Winding Materials | Copper |
| Certification | ISO9001, CE, TUV, PSE | Frequency | Power Frequency |
| Package Size | 750.00cm * 510.00cm * 700.00cm |
| Package Gross Weight | 500.000kg |
| Transport Package | Wooden Pallet/Wooden Case |
Vacuum Sintering Transformer Performance
The vacuum sintering transformer excels in power conversion and transmission, particularly under low voltage and high current conditions, delivering exceptional performance.
The use of high magnetic permeability silicon steel sheets and copper wire windings reduces losses, achieving a conversion efficiency of 95%. This improves energy utilization and lowers operating costs.
It precisely regulates current in low voltage, high current circuits, stabilizing the power supply to sensitive electronic equipment, thereby improving operational accuracy.
Vacuum impregnated varnish enhances insulation and dust protection. Combined with an effective heat dissipation design, it controls temperature rise, ensuring stable operation.
| Capacity Range | 50VA ~ 2500kVA | Working Efficiency | ≥95% |
| Rated Voltage | <10kV | Temperature Rise | ≤125K (H) / <100K (F) |
| Rated Frequency | 50~60Hz | Impedance | Customized |
| Sound Level | ≤75dB | Insulation Resistance | >100MΩ |
Established in 1975, we are a manufacturer specializing in the production and development of transformers and reactors, integrating advanced domestic and international technologies.
Our expertise includes single-phase and three-phase isolation transformers, reactors, medium and high-frequency products, and specialized transformers for rail transit, wind power, and photovoltaic projects. With over fifty years of experience, we have accumulated rich technical expertise across various application fields.
We strictly adhere to ISO 9001:2015 standards, with products certified by CE, TUV, and PSE. Our technical capabilities are among the leaders in the industry, focused on delivering high-tech solutions and modernization.
