Customization: Available
Application: Power
Phase: Three
Send Inquiry

Product Description

Overview & Basic Info
Model NO.
S11-M-315/10
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001, CCC, CE
Usage
Combined, Power, Distribution Transformer
Frequency
50/60Hz
Shape of Core
Ring
Standard
IEC 60076
Coil Material
Aluminum/Copper
Rated Capacity
315kVA
Rated Voltage
6/10/11/0.4kv
Product Description

Oil immersed transformer use oil as the main insulation medium and rely on oil as the cooling medium. It adopts a sealed structure to completely isolate the transformer oil from the surrounding air, making the operation of the transformer safer, more reliable, and easier to maintain.

🚀 Key Features

  • High-voltage and low-voltage windings generally adopt a cylindrical structure for balanced ampere turns distribution.
  • The coil and core undergo vacuum drying; transformer oil is filtered and injected via a vacuum process.
  • Corrugated plates in the oil tank compensate for volume changes caused by temperature fluctuations.

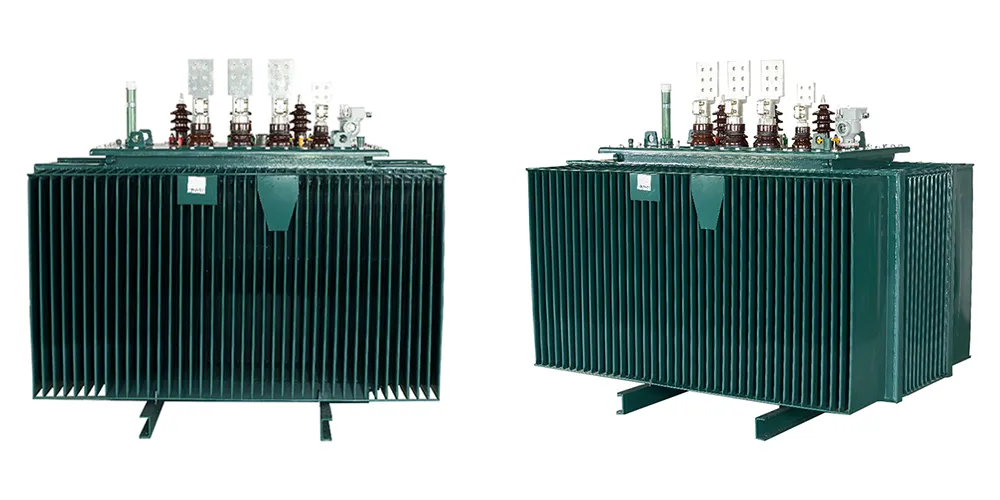

Transformer Description
Our Advantages
  • Optimized Dissipation: Spiral coil with longitudinal oil duct ensures excellent heat dissipation and high mechanical strength.
  • Low Loss Core: Stacked structure with high magnetic conductivity silicon steel sheets reduces no-load loss and current.
  • Superior Insulation: Materials with high heat resistance withstand overvoltage and overcurrent during operation.
  • Enhanced Protection: Low viscosity oil with good heat transfer effectively protects the core and winding from aging.
  • Durable Construction: Corrugated oil tanks are treated with deoiling, rust removal, and three-proof paint for high durability.

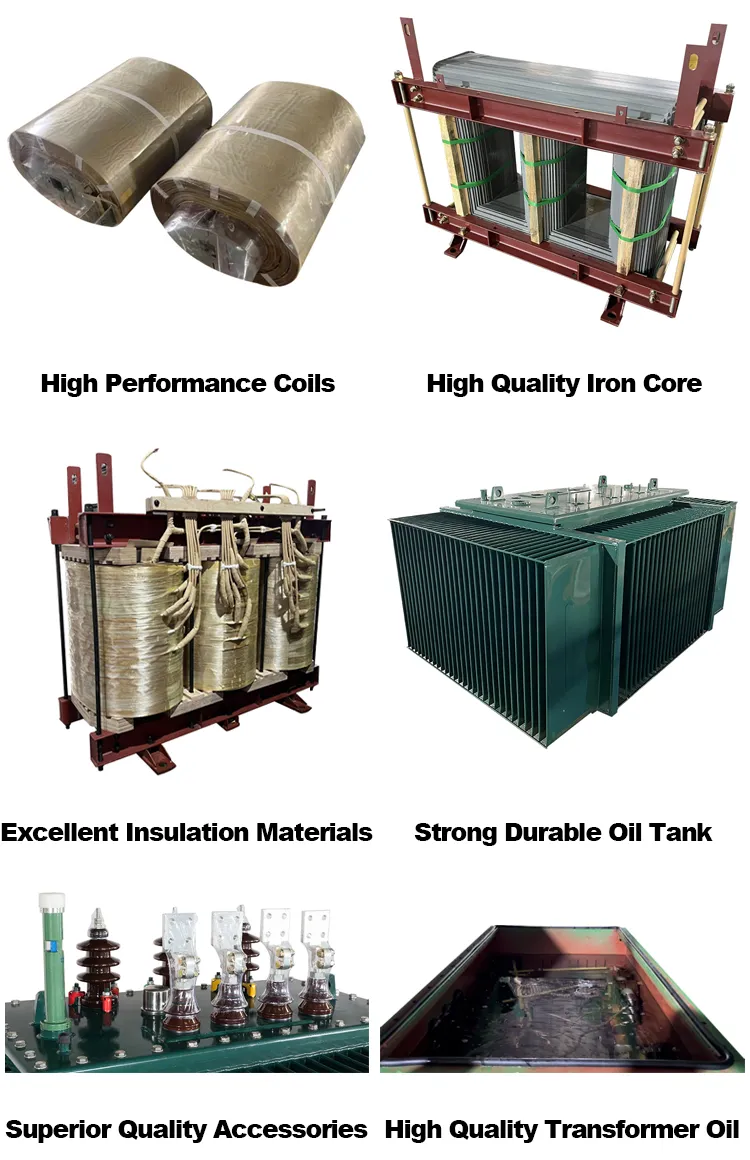

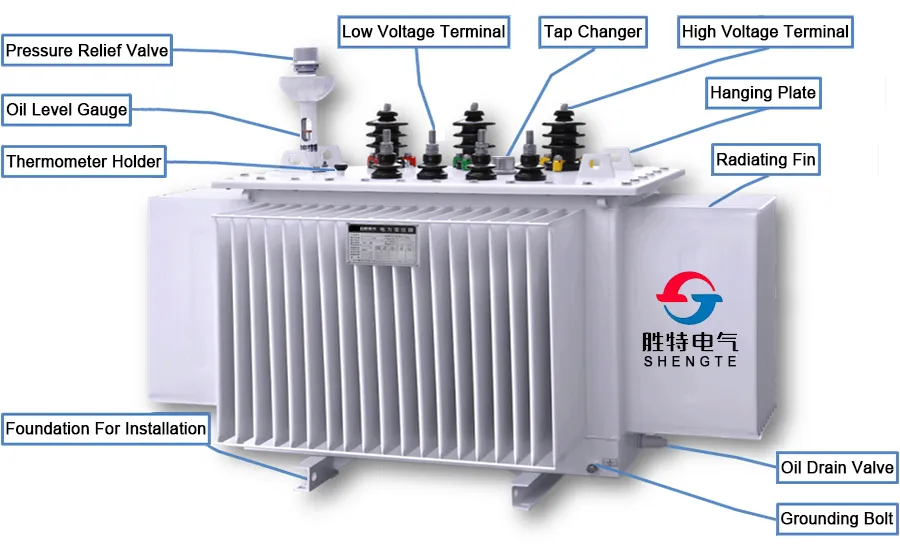

Transformer Detail 1
Transformer Detail 2
Technical Parameters

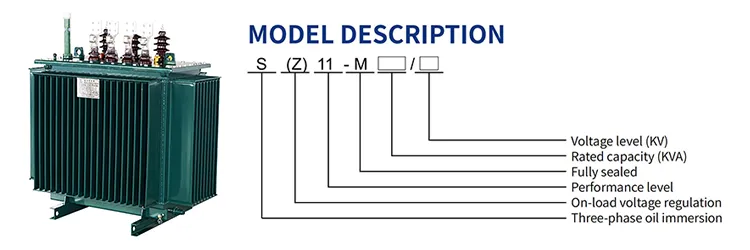

Parameters Header
Model Rated Capacity (KVA) Rated Voltage (KV) Connection No-load Loss (W) Load Loss (W) No-load Current (%)
High Voltage Range Low Voltage
S11-M-30306, 6.3, 10, 10.5, 11±5% or ±2×2.5%0.4Yyn0/Dyn11100630/6001.5
S11-M-100100Yyn0/Dyn112001580/15001.1
S11-M-315315Yyn0/Dyn114803830/36500.9
S11-M-630630Yyn0/Dyn1181062000.6
S11-M-10001000Yyn0/Dyn111150103000.6
S11-M-20002000Yyn0/Dyn111940183000.4
S11-M-31503150Yyn0/Dyn112730243000.4

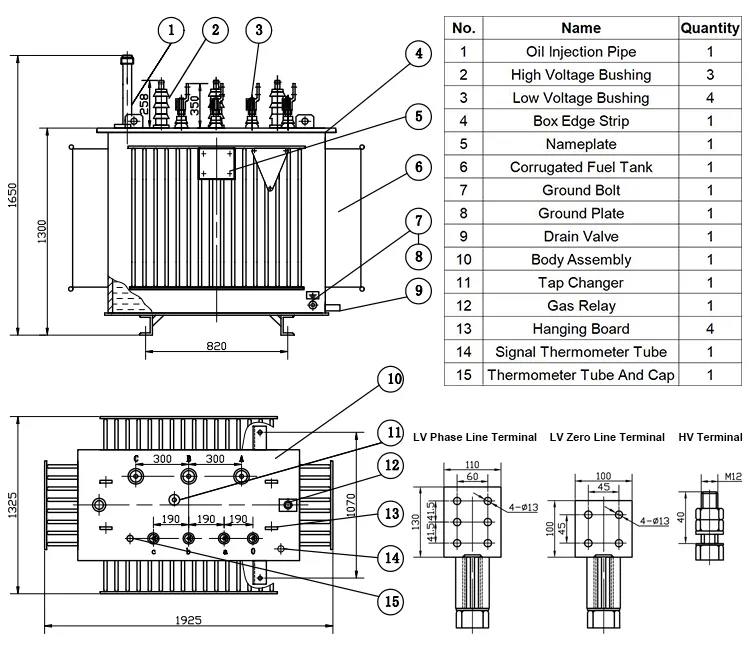

Parameter Chart
Production Process

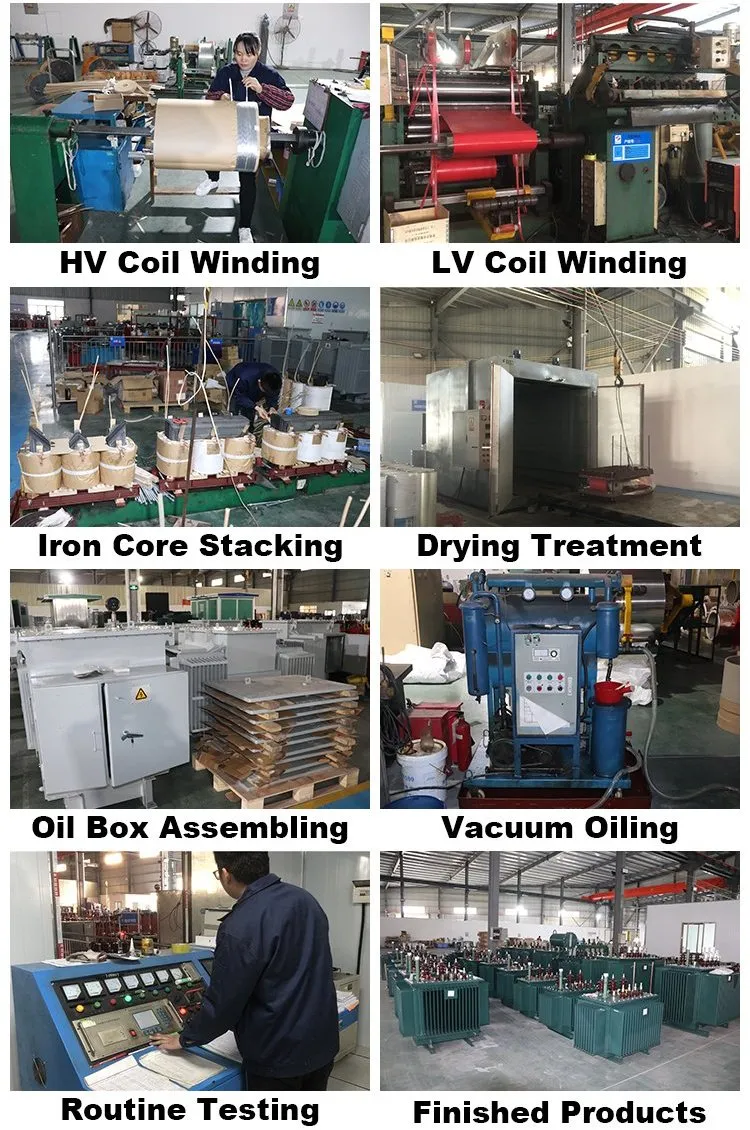

Production Process
Company Profile

Based in China, we are a distinguished transformer manufacturer known for reliability and exceptional after-sales service. With over a decade of experience, we've provided high-quality, cost-efficient transformers for governmental and private sector projects worldwide. Our facility spans 10,000 square meters and is equipped with cutting-edge production and testing equipment. Certified by ISO9001, CE, and holding IEC certificates, we are dedicated to international quality standards.

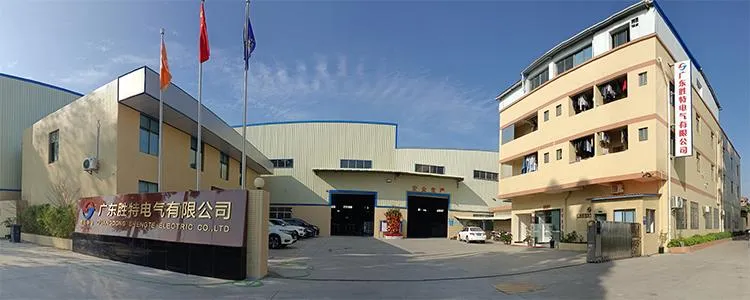

Facility 1

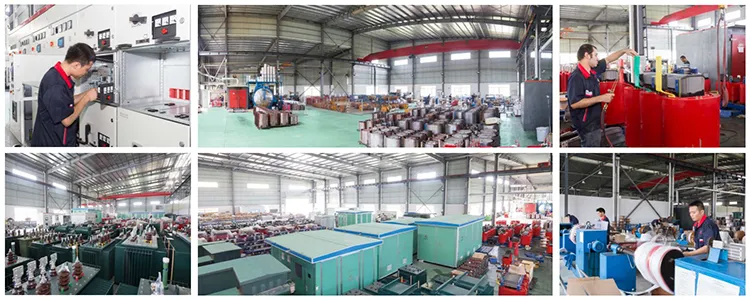

Facility 2
Certifications & Projects

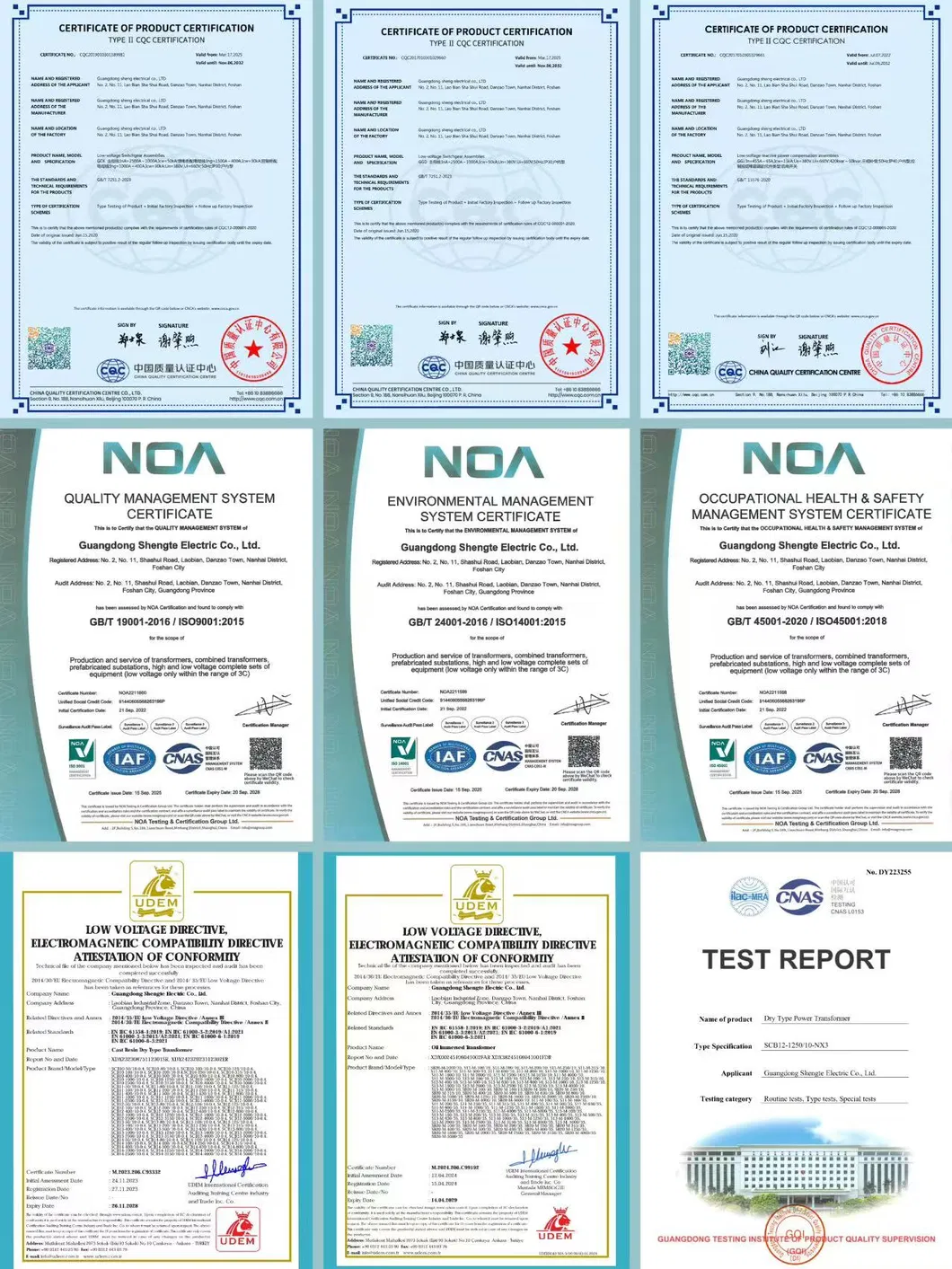

Certification

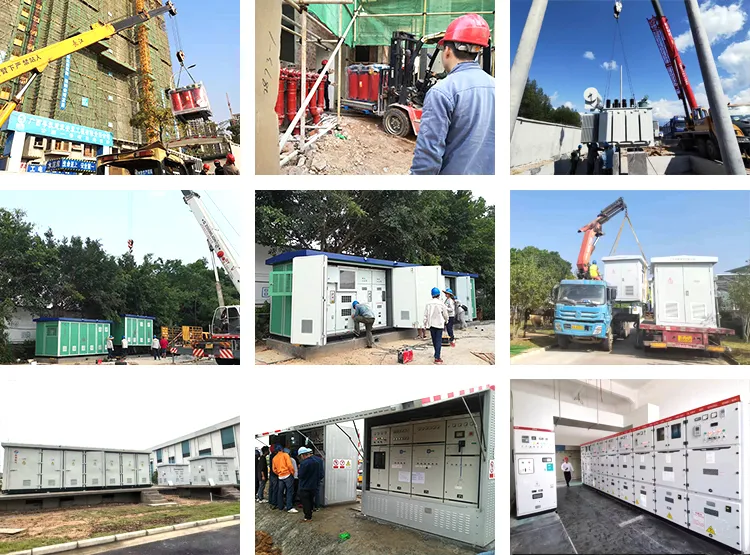

Project Case 1
Project Case 2
Exhibition & Shipping
Exhibition
Packaging
Frequently Asked Questions
Q1: Are you a manufacturer or trading company? A1: Our factory covers an area of over 10,000m², producing more than 2,000 transformers annually.
Q2: How long have you been in the electric industry? A2: We have over 10 years of experience with an in-house R&D department featuring 15 engineering technicians.
Q3: How long is the warranty period? A3: The standard warranty period is 1 year.
Q4: Do you provide OEM and ODM services? A4: Yes, we accept customer logos and provide full OEM and ODM customization.
Q5: What is your typical delivery time? A5: Generally, it is 20-30 days, depending on the specific order quantity.
Q6: What are your payment terms? A6: We accept T/T, Western Union, PayPal, and other standard payment methods.
