Single-Phase Pole Mounted Transformer
Single-Phase Pole Mounted Transformer
Single-Phase Pole Mounted Transformer
Single-Phase Pole Mounted Transformer
Single-Phase Pole Mounted Transformer
1 / 5
Single-Phase Pole Mounted Transformer
Single-Phase Pole Mounted Transformer
Single-Phase Pole Mounted Transformer
Single-Phase Pole Mounted Transformer
Single-Phase Pole Mounted Transformer

Single-Phase Pole Mounted Transformer

Customization: Available
Application: Power, Electronic, Instrument
Phase: Single
Send Inquiry

Product Description

Product Overview
Model NO.
Single-phase Pole
Core
Core-type Transformer
Cooling Method
Oil-immersed Type
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC
Capacity
25 kVA - 500kVA
Frequency
Low Frequency
Winding Material
Copper / Aluminum
Cooling Way
ONAN
Production
5000 Sets/Year
Key Features
  • ◈
    Meets or exceeds ANSI, IEC, GB, and SANS Standards.
  • ◈
    Safe Handling, Installation, and Operation.
  • ◈
    Attractive, modern appearance with a reasonable structure.
  • ◈
    Fully-sealed design for higher system reliability.
  • ◈
    High security and reliability in operation.
  • ◈
    High capacity of overload and efficiency.
  • ◈
    Robust construction with excellent short circuit and thermal withstand capabilities.
  • ◈
    Reduced no-load losses and reduced load losses for maximum efficiency.

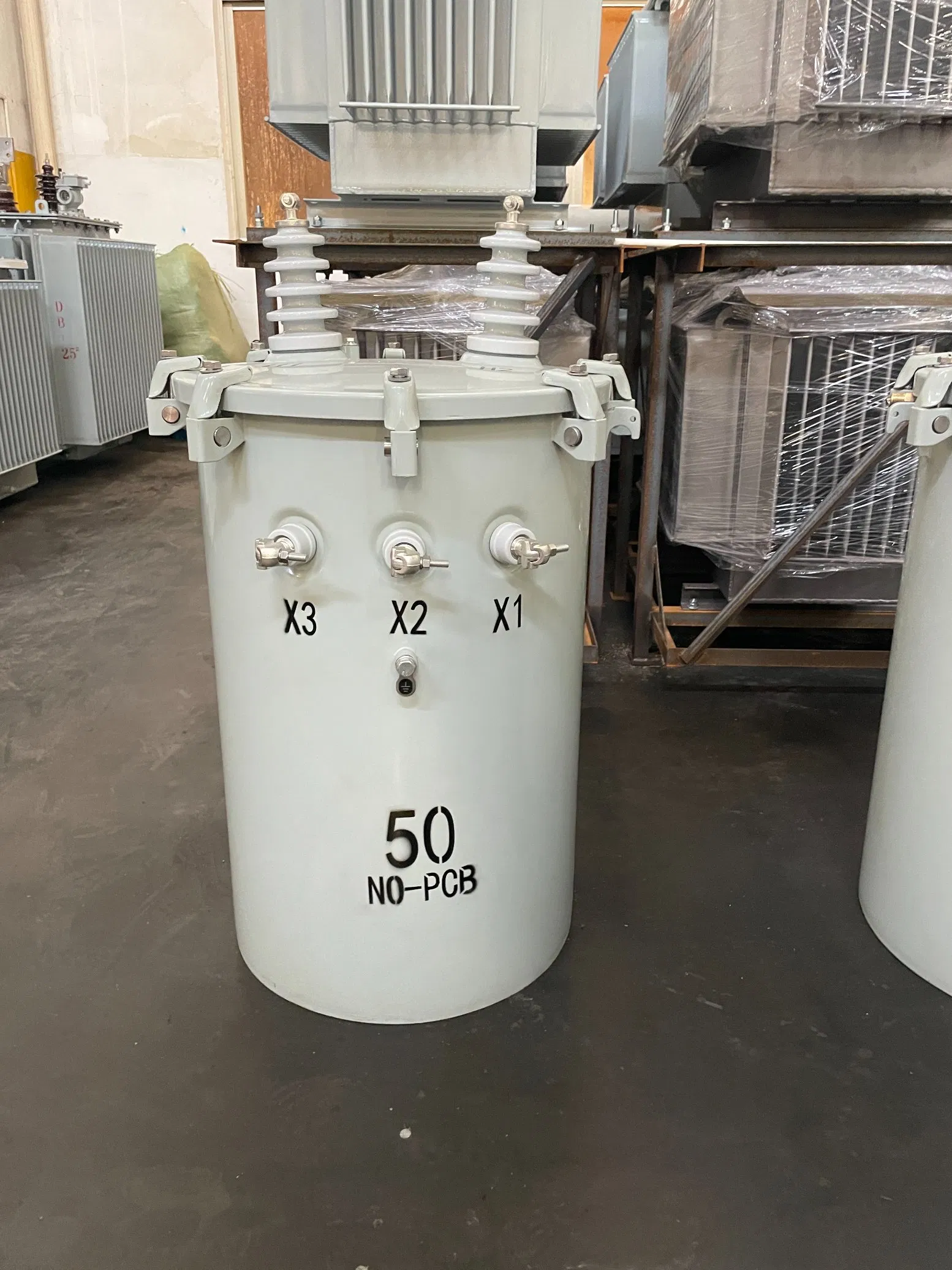

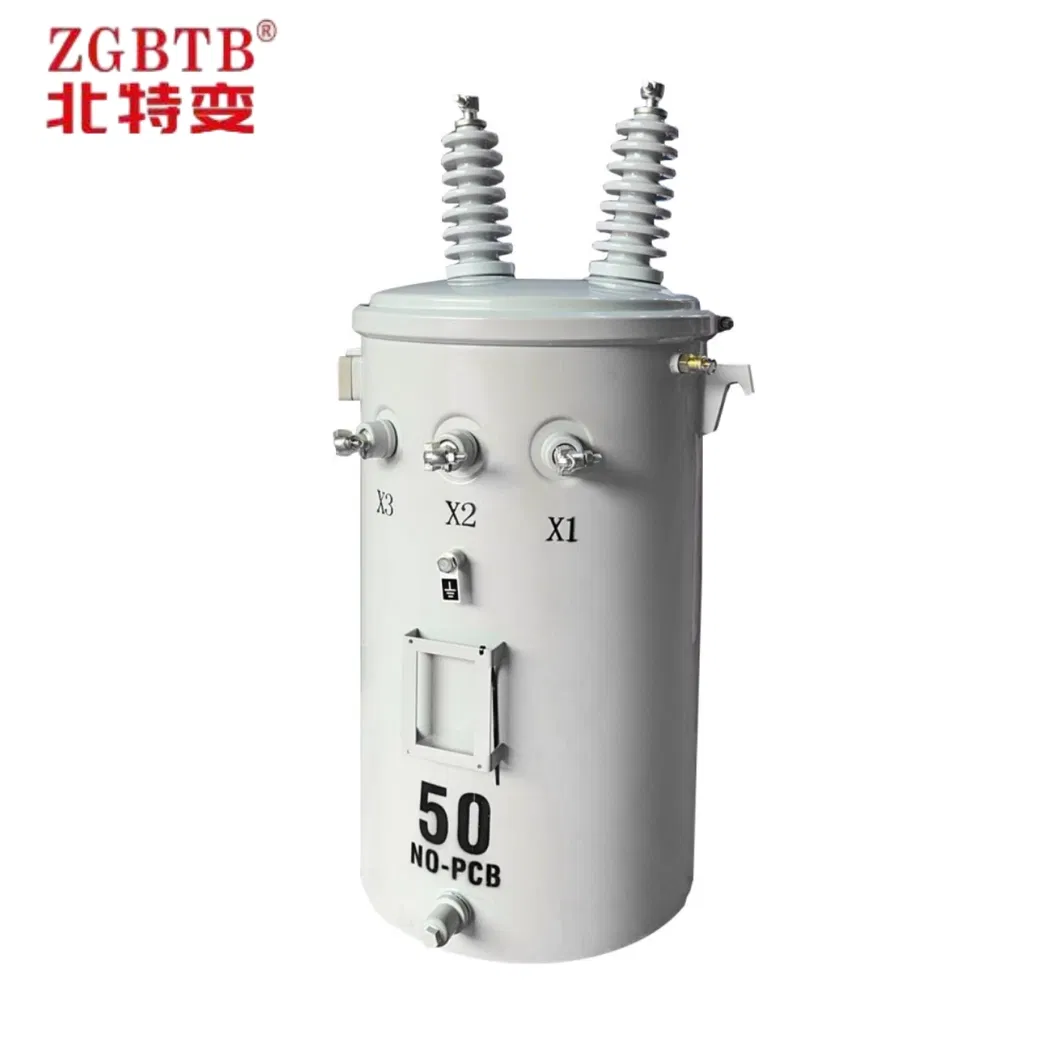

Single-Phase Pole Mounted Transformer Product View

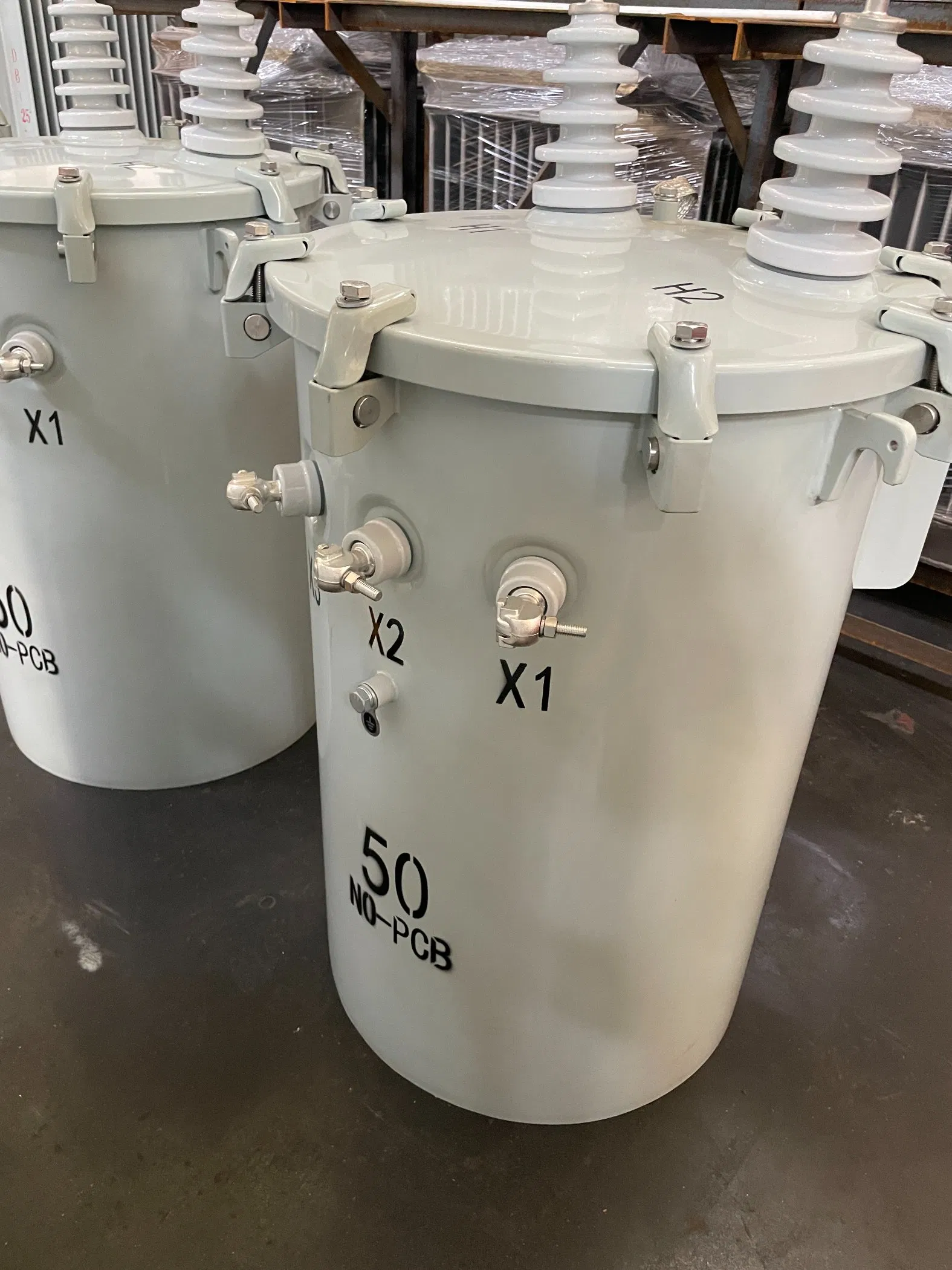

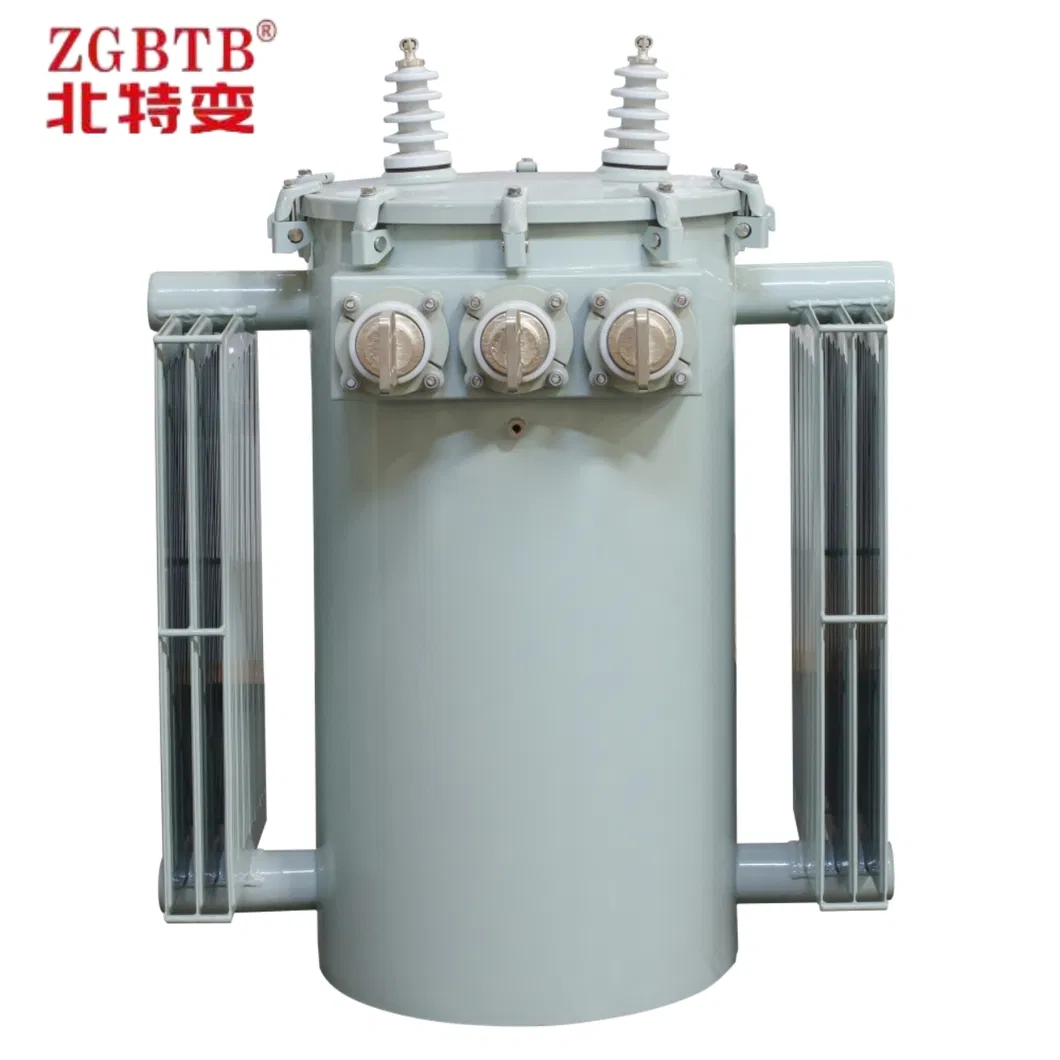

Single-Phase Pole Mounted Transformer Side View
1 Product Description Single-Phase Pole Mounted Transformer
2 Application This revolutionary Single-Phase Pole Mounted Transformer is a fully sealed unit designed for modern energy distribution. It eliminates the traditional oil storage cabinet, enhancing cohesion and integrity. The elastic oil tank adjusts to temperature and load fluctuations, ensuring impeccable performance.
3 Certificates GB/T 24001-2016 / ISO 14001:2015; GB/T 45001-2020 / ISO 45001:2018; GB/T 19001-2016 / ISO 9001:2015
Production Facility
Factory Workshop 1

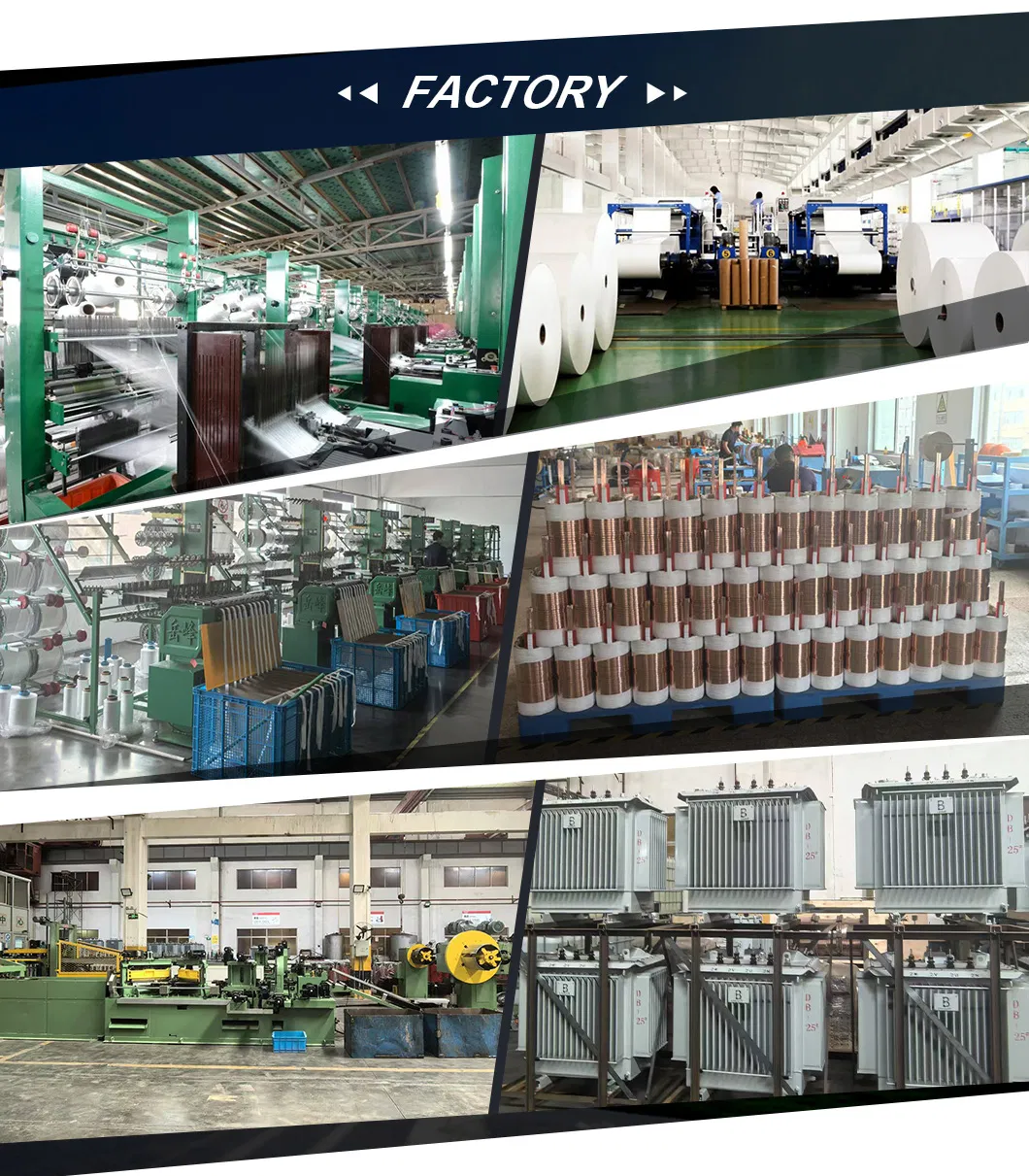

Factory Workshop 2
Professional Certifications
Certification Document 1
Certification Document 2
Frequently Asked Questions
What are the primary advantages of a pole-mounted transformer?
Pole-mounted transformers save ground space, are less accessible to the general public (enhancing safety), and provide efficient power distribution for residential and rural areas.
Why is a "fully-sealed" design important?
A fully-sealed design prevents contact between the transformer oil and the outside air. This prevents oxidation and moisture absorption, significantly extending the service life and reducing maintenance requirements.
What capacity range do you offer for single-phase units?
Our standard capacity ranges from 25 kVA up to 500 kVA, catering to various distribution needs.
What winding materials are available?
We offer both high-quality Copper and Aluminum winding options, allowing customers to choose based on their specific weight, cost, and conductivity requirements.
Do these transformers comply with international standards?
Yes, our transformers meet or exceed multiple international standards including ANSI, IEC, and various national GB standards, ensuring global compatibility and reliability.
How does the transformer handle thermal expansion?
The corrugated tank or elastic radiator fins allow for the expansion and contraction of the oil due to temperature changes, maintaining a sealed environment without the need for an external conservator tank.
