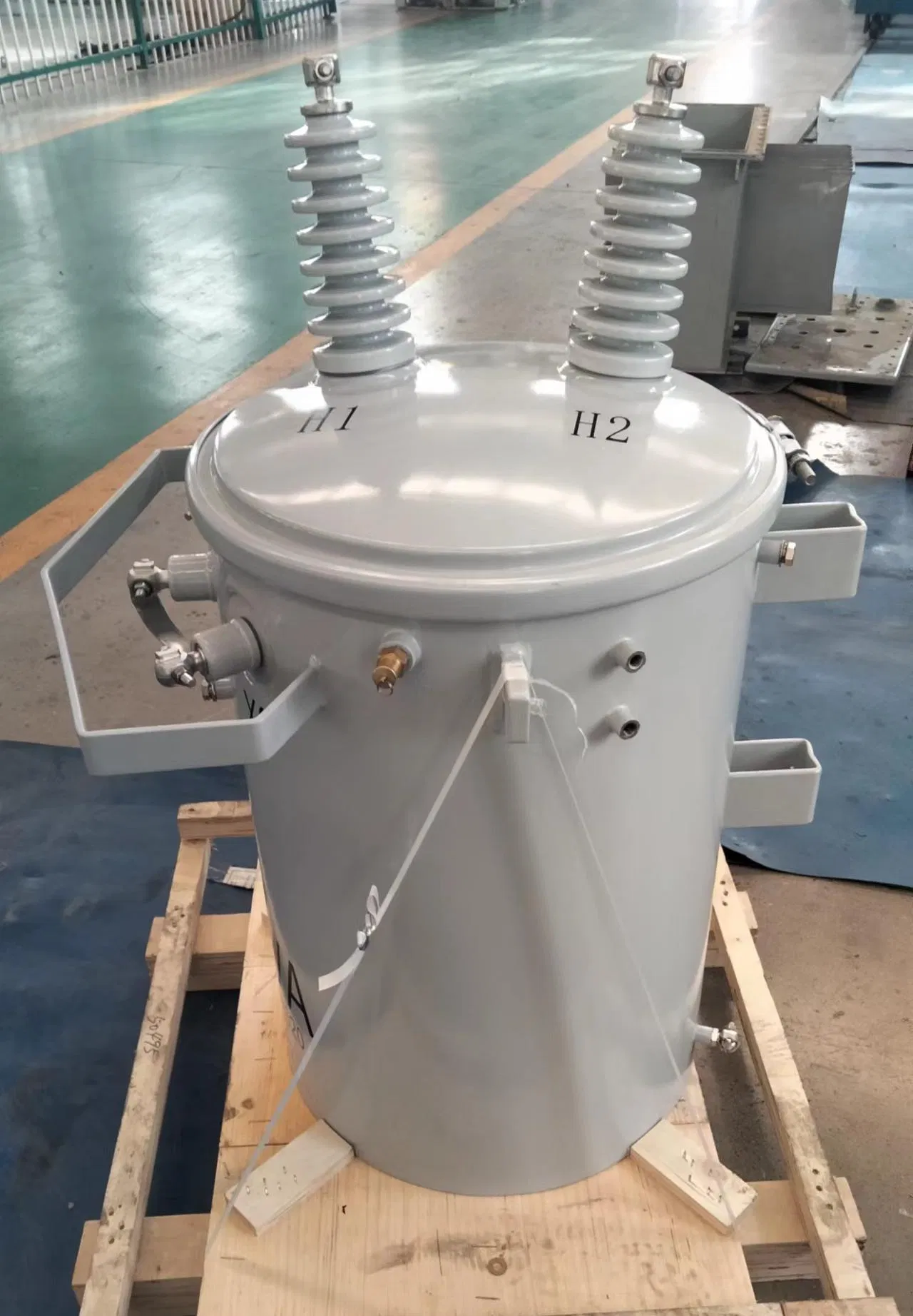

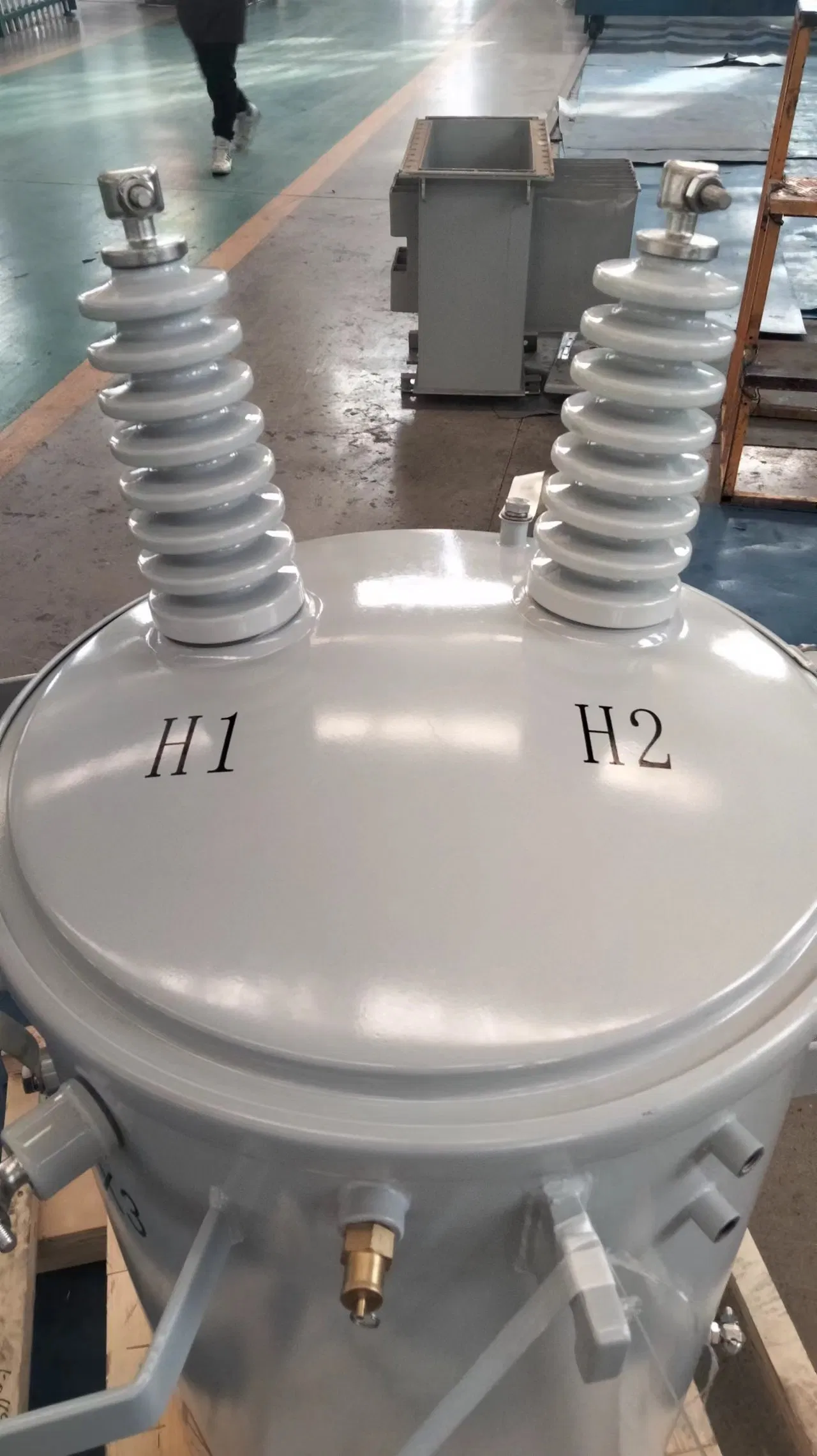

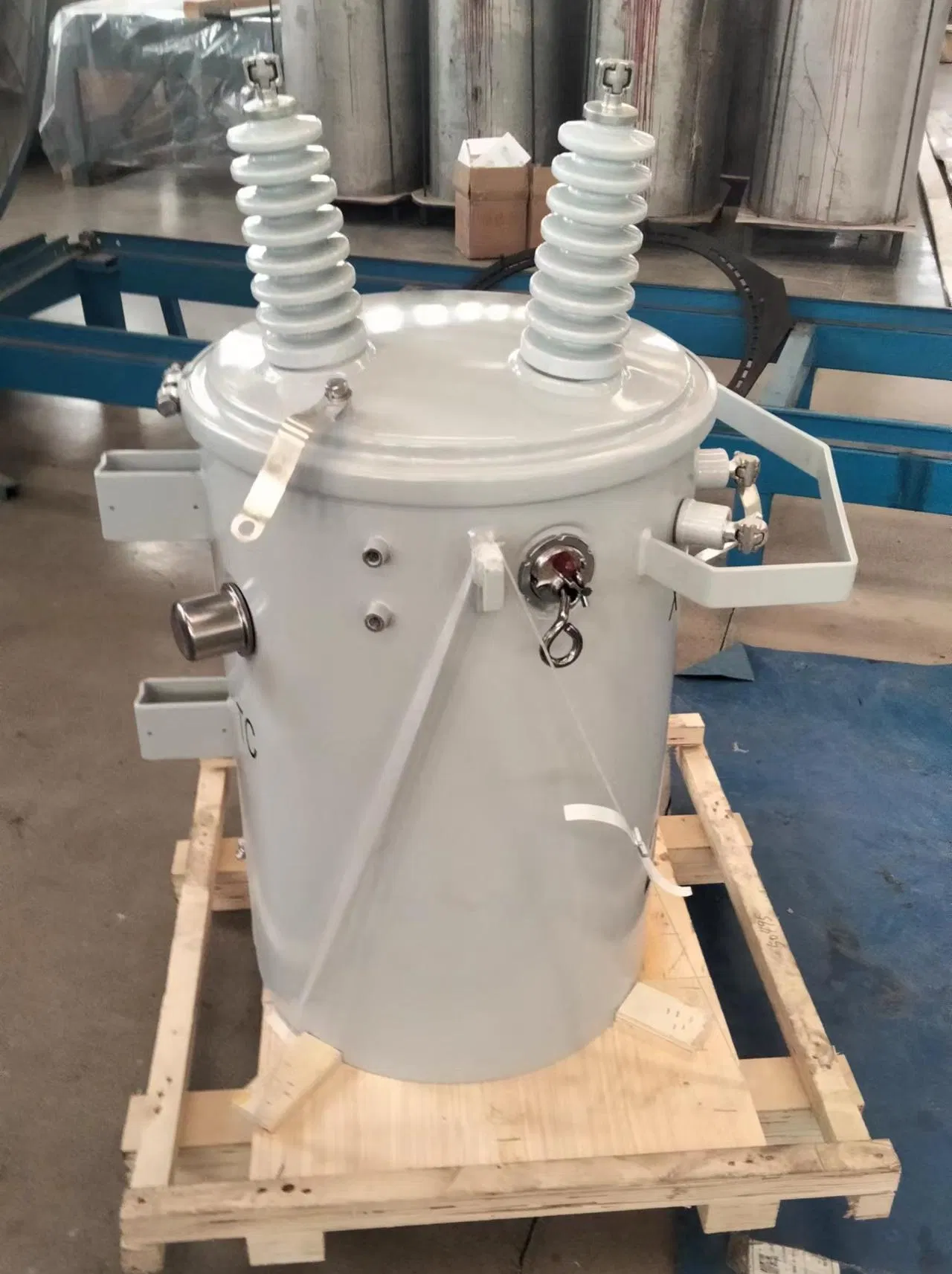

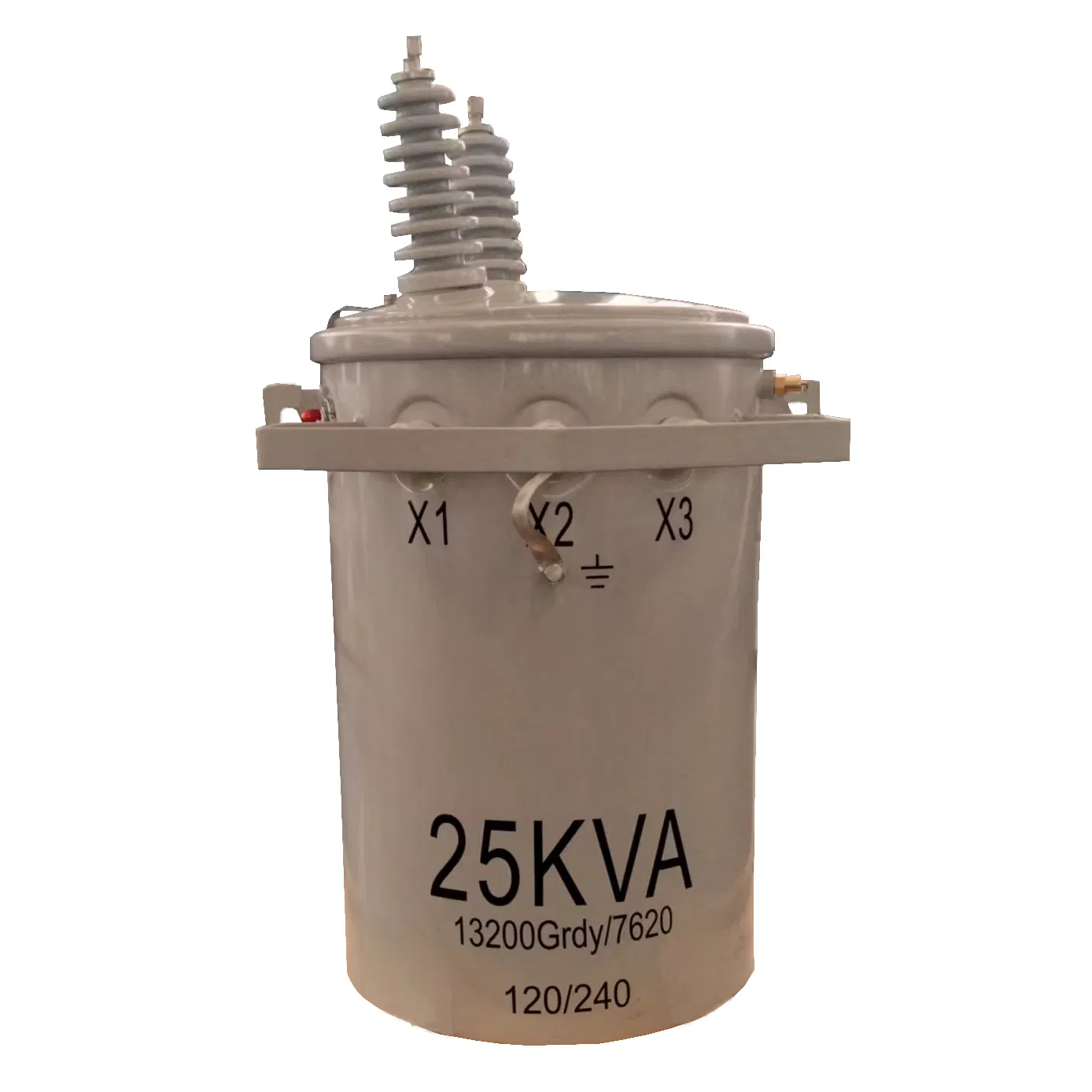

Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer
Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer
Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer
Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer
Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer
1 / 5
Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer
Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer
Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer
Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer
Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer

Single Phase 5kVA-160kVA 13.2kv/7620V-120/240V Oil-Immersed Distribution Pole Mounted Overhead Type Transformer

Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier
Phase: Single
Send Inquiry

Product Description

📋 Basic Information
Model NO.
D11/D13 5KVA 10 0.22-0.24
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC
Usage
Single-phase Transformer, Rectifier, Power Distribution
Frequency
Power Frequency
Capacity
5kVA
Voltage Ratio
10kv / 0.23kv
Impedance
3.5%
Off-Load Loss
24W
On-Load Loss
130W
Weight
135kg
Package
Wooden Box
Single Phase Oil-Immersed Distribution Pole Mounted Overhead Type Transformer Banner
💡 Product Description
⚡
When the power supply radius of the distribution transformer is too large and load density is small, installing a single-phase distribution transformer can effectively shorten the radius of low-voltage power supply and solve terminal voltage issues.
⚡
When the load of a three-phase distribution transformer is too heavy, installing a single-phase distribution transformer on appropriate branch lines can transfer the load and solve capacity increase requirements.
⚡
In residential areas without three-phase power users, single-phase transformers reduce the supply radius and minimize energy losses.
⚡
Ideal for locations with low load density and wide distribution, providing a cost-effective investment for remote power points.
⚡
Constructed with high-quality silicon steel sheets; no-load loss and current performance exceed relevant national standards.

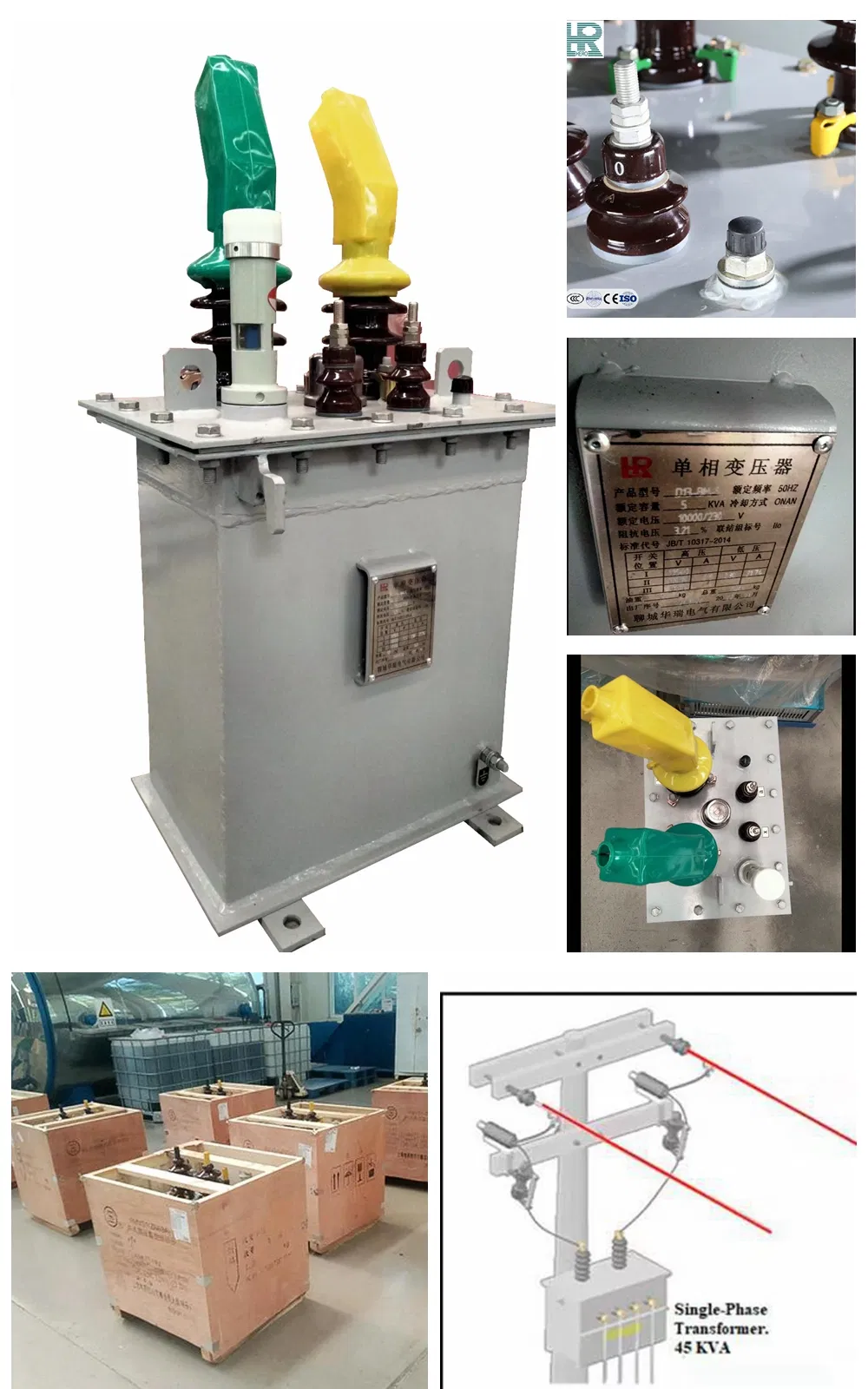

Single Phase Transformer Detail
Transformer Structure Drawing
📊 Technical Specifications
Rated Capacity
5KVA
Voltage Ratio
10kV / 0.23kV
Impedance
3.5%
No Load Loss
24W
Load Loss
130W
No Load Current
1.1%
Dimensions
420*390*870 mm
Total Weight
135kg
📸 Product Series Display

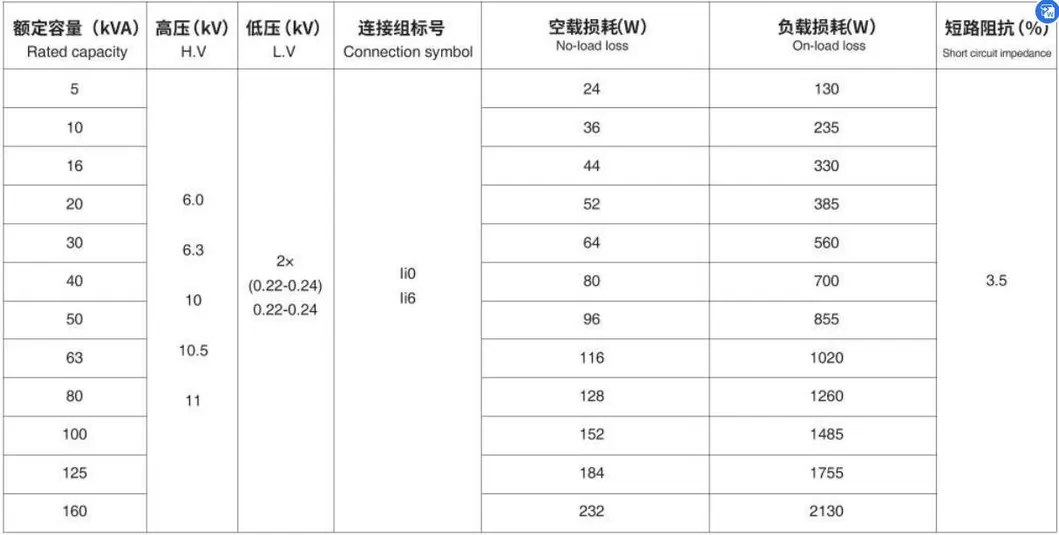

D13 Single Phase Oil Immersed Transformer Series Table
Transformer Side View
Transformer Component Detail
Pole Mounted Overhead Type Transformer
Distribution Transformer View
Oil-Immersed Transformer
❓ Frequently Asked Questions
Q1: How long is the warranty period for this transformer?
The warranty is 18 months from the sale date. We provide free replacement parts or accessories for any component issues within the warranty period upon receiving photo documentation of the damage.
Q2: Do you offer customized branding or OEM services?
Yes, we provide comprehensive OEM and ODM services to meet specific customer requirements and logo applications.
Q3: What are the accepted payment terms for orders?
We accept various payment methods including T/T, L/C, Western Union, and PayPal to facilitate smooth transactions.
Q4: What is the typical lead time for delivery?
Generally, the delivery time is between 20-30 days, depending on the specific order quantity and configuration requirements.
Q5: What standard is used for product packaging?
We use export-standard wooden boxes or specialized packaging tailored to customer requirements to ensure safe transit.
Q6: Do you provide technical support for installation?
Yes, we offer professional technical support and guidance to ensure the correct installation and operation of our equipment.
