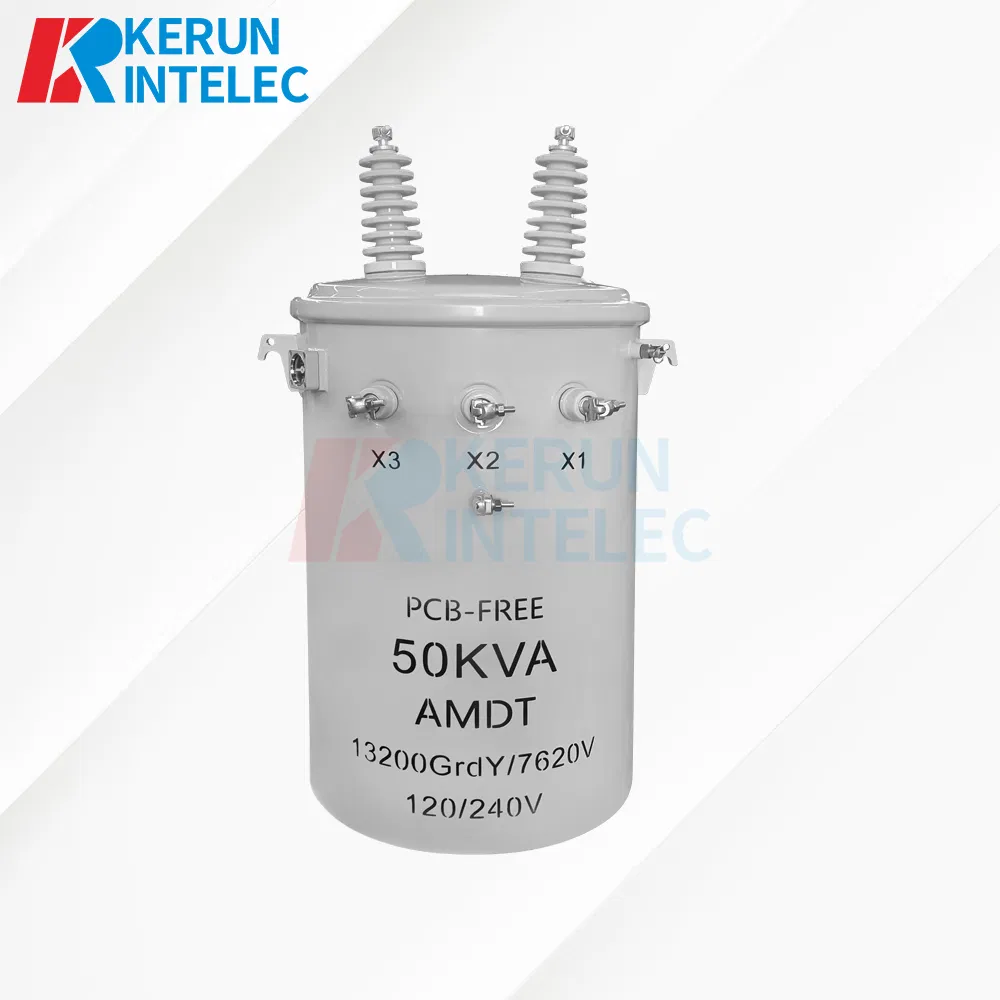

6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer
6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer
6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer
6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer
6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer
1 / 5
6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer
6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer
6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer
6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer
6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer

6kv-34.5kv/120V-600V 5kVA-500kVA Power Csp Transformer Single Phase Pole Mounted Distribution Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Technical Specifications

Model NO.:Conventional Type/CSP Type
Core:Amorphous Alloy Transformer
Cooling Method:Oil-immersed Type Transformer
Winding Type:Two-winding Transformer
Certification:ISO9001, CCC, ANSI, UL
Usage:Single-phase Distribution Transformer
Rated H.V.:Up to 34.5kV
Rated L.V.:120V/240V/480V/347V/600V
Rated Power:Up to 333 kVA
Core Material:Silicon Steel/Amorphous Alloy

Single Phase Pole Mounted Distribution Transformer

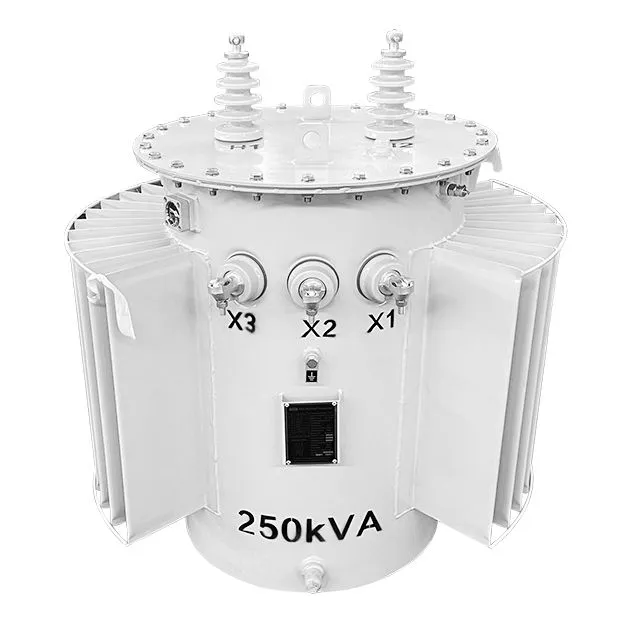

Pole Mounted Transformer

Technical Description

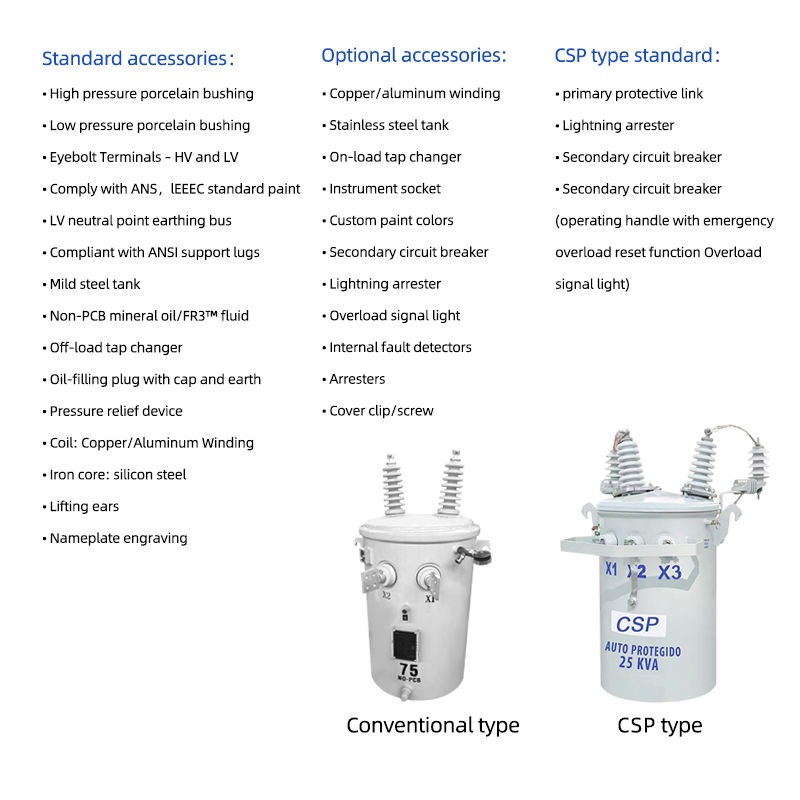

  • Type: Conventional type/CSP type
  • Rated power: up to 333 kVA
  • Primary voltage: up to 34.5 kV
  • Secondary voltages: up to 500 V
  • Standards: IEEE/ANSI/IEC/DOE compliance

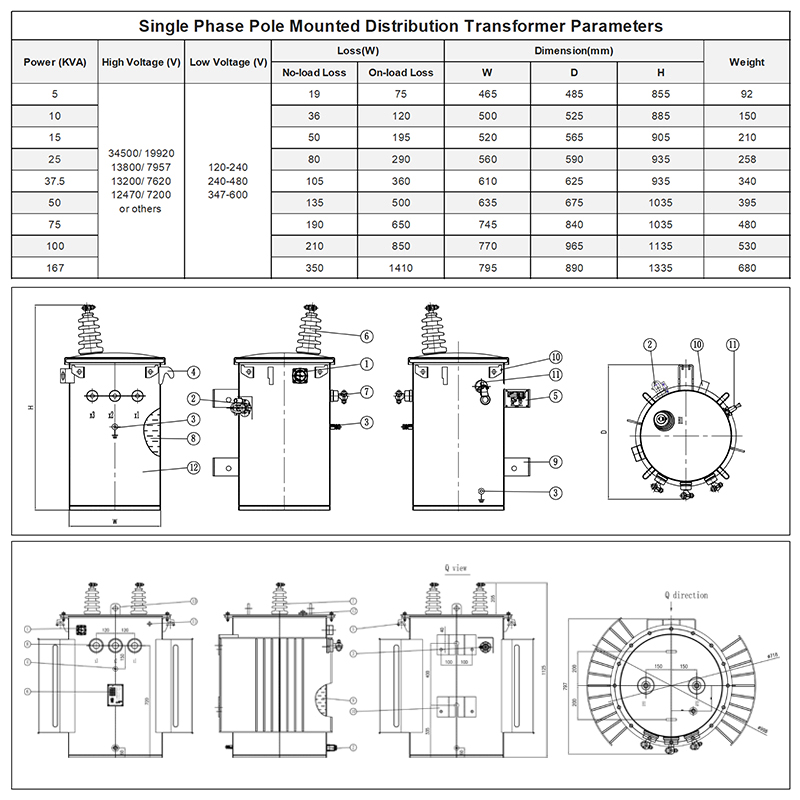

Performance Parameters

Power (kVA) High Voltage (V) Low Voltage (V) Loss (W) Dimension (mm) Weight (kg)
No-load On-load W D H
534500/19920
13800/7957
12470/7200		120-240
240-480
347-600		197546548585592
1550195520565905210
2580290560590935258
501355006356751035395
100VariousVarious2108507709651135530
167VariousVarious35014107958901335680

Key Advantages

  • Focus factory concept ensuring high level of consistency in design and manufacture.
  • Common design platform providing best-in-class repeatability and performance.
  • Rigorous manufacturing and quality processes to meet stringent international requirements.

Main Applications

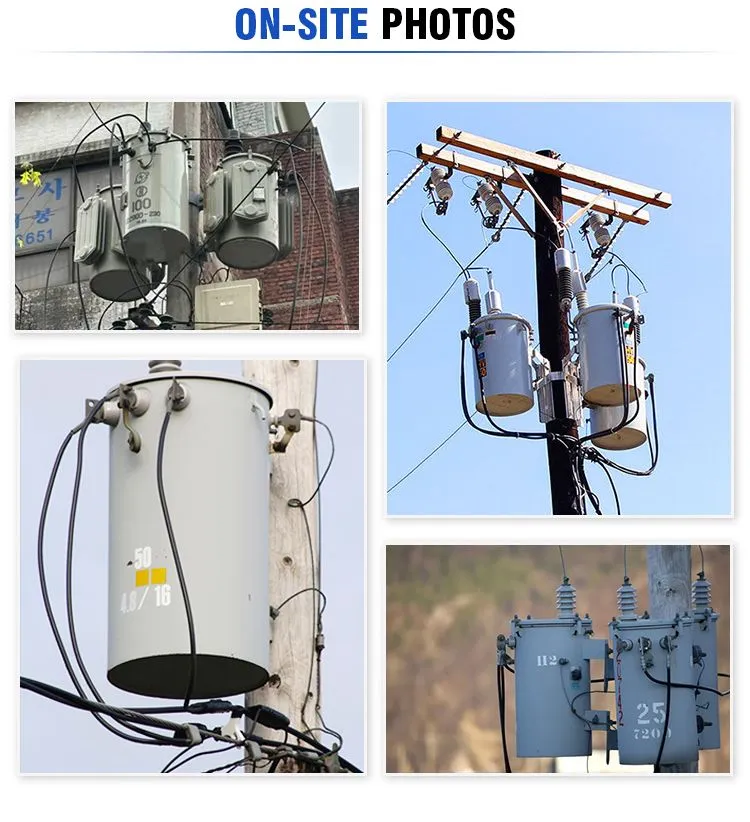

Our pole-mounted single phase distribution transformers are designed for overhead installation, typically servicing:

  • Urban and rural residential power distribution.
  • Commercial lighting and small business loads.
  • Light industrial applications.
  • CSP versions available for enhanced network protection and overload management.

Product Gallery

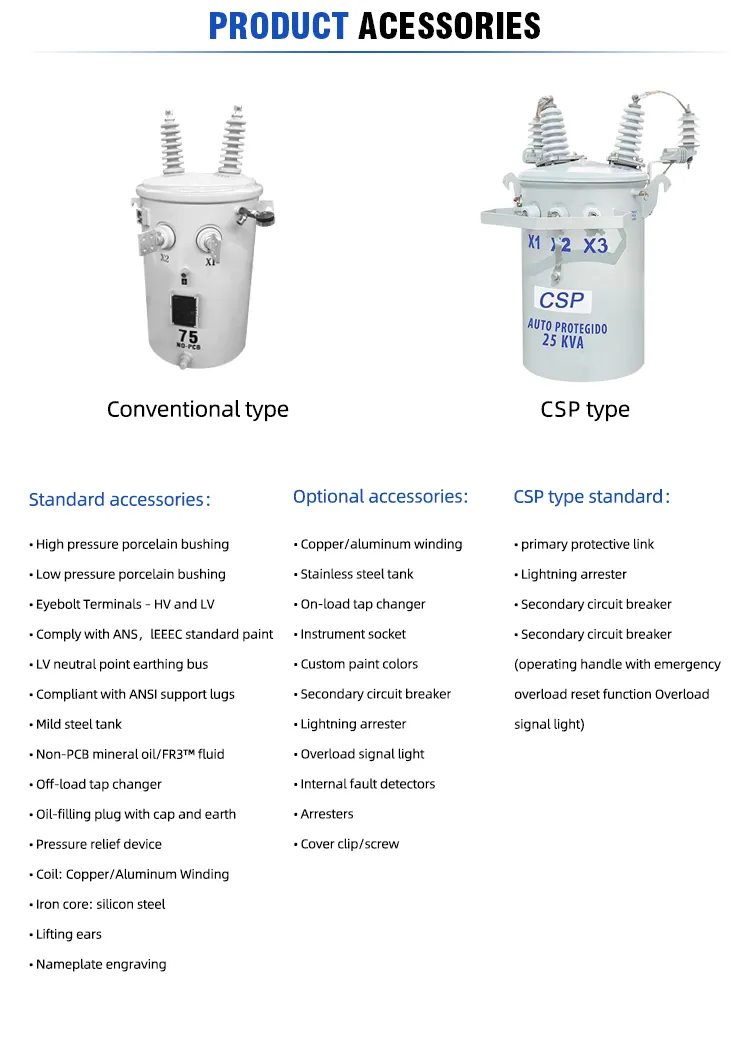

Transformer Detail 1

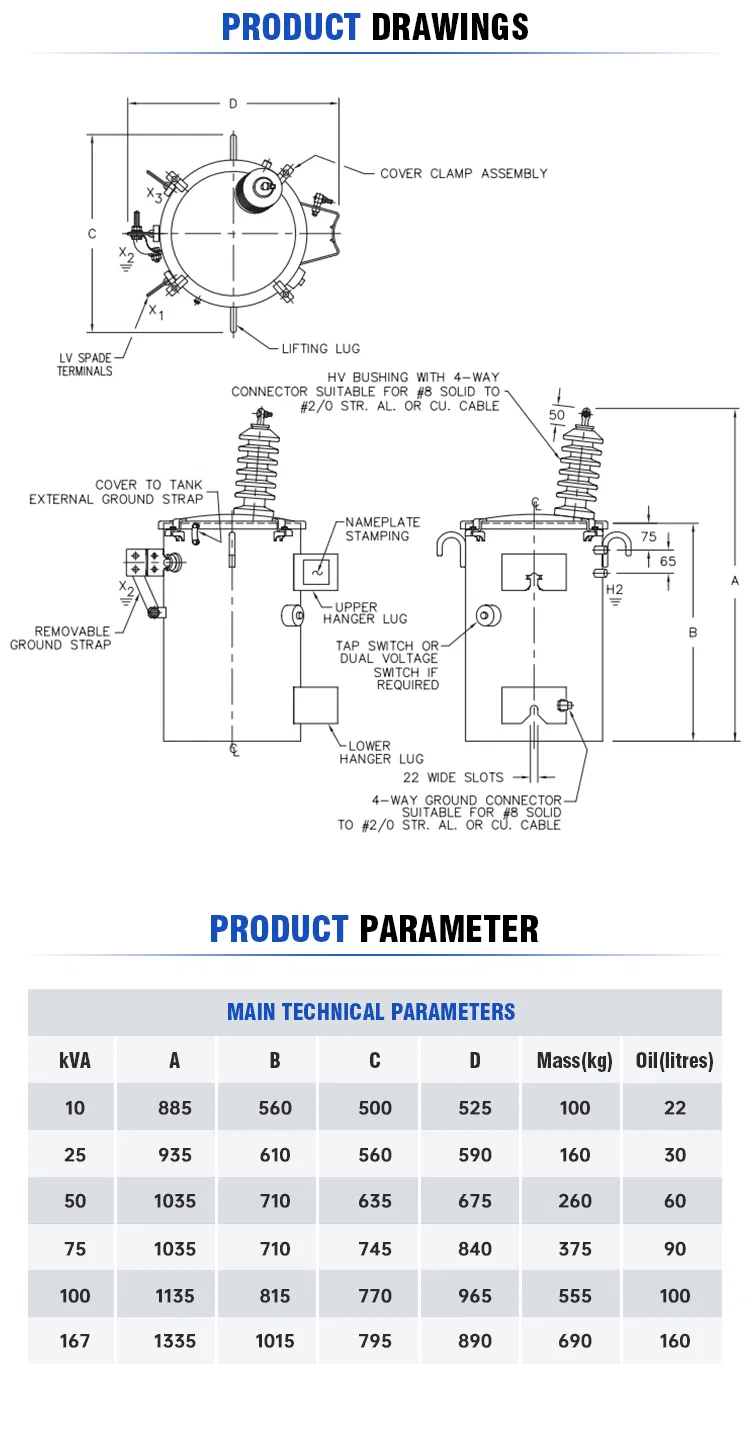

Transformer Detail 2
Transformer Detail 3
Transformer Detail 4
Transformer Detail 5

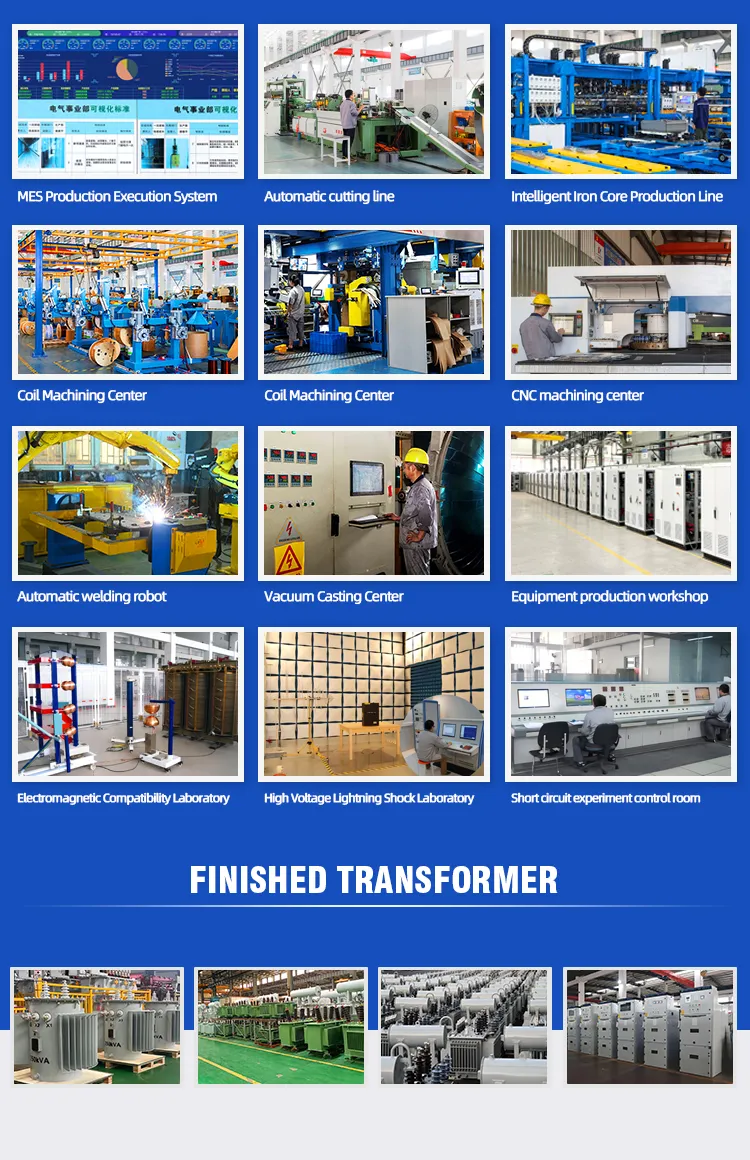

Transformer Detail 6

Frequently Asked Questions

Q: What types of pole-mounted transformers do you offer?
A: We provide both Conventional type and Continuously Self-Protected (CSP) type transformers with power ratings up to 333 kVA.
Q: What international standards do your products comply with?
A: Our transformers meet IEEE, ANSI, IEC, and DOE standards, and are certified by ISO9001, CCC, and UL.
Q: What is the typical lead time for production?
A: Production and shipping are generally completed within 20 days after the plan is finalized, depending on the order quantity.
Q: Can the packaging be customized for international shipping?
A: Yes, we offer standard wooden pallets, wooden frames, and wooden boxes, all of which can be customized to your requirements.
Q: What are the main cooling methods used?
A: These are oil-immersed type transformers, utilizing high-quality oil for efficient cooling and insulation.
Q: Do you support OEM and ODM services?
A: Yes, we are a professional manufacturer with over 20 years of experience supporting both OEM and ODM requirements.
