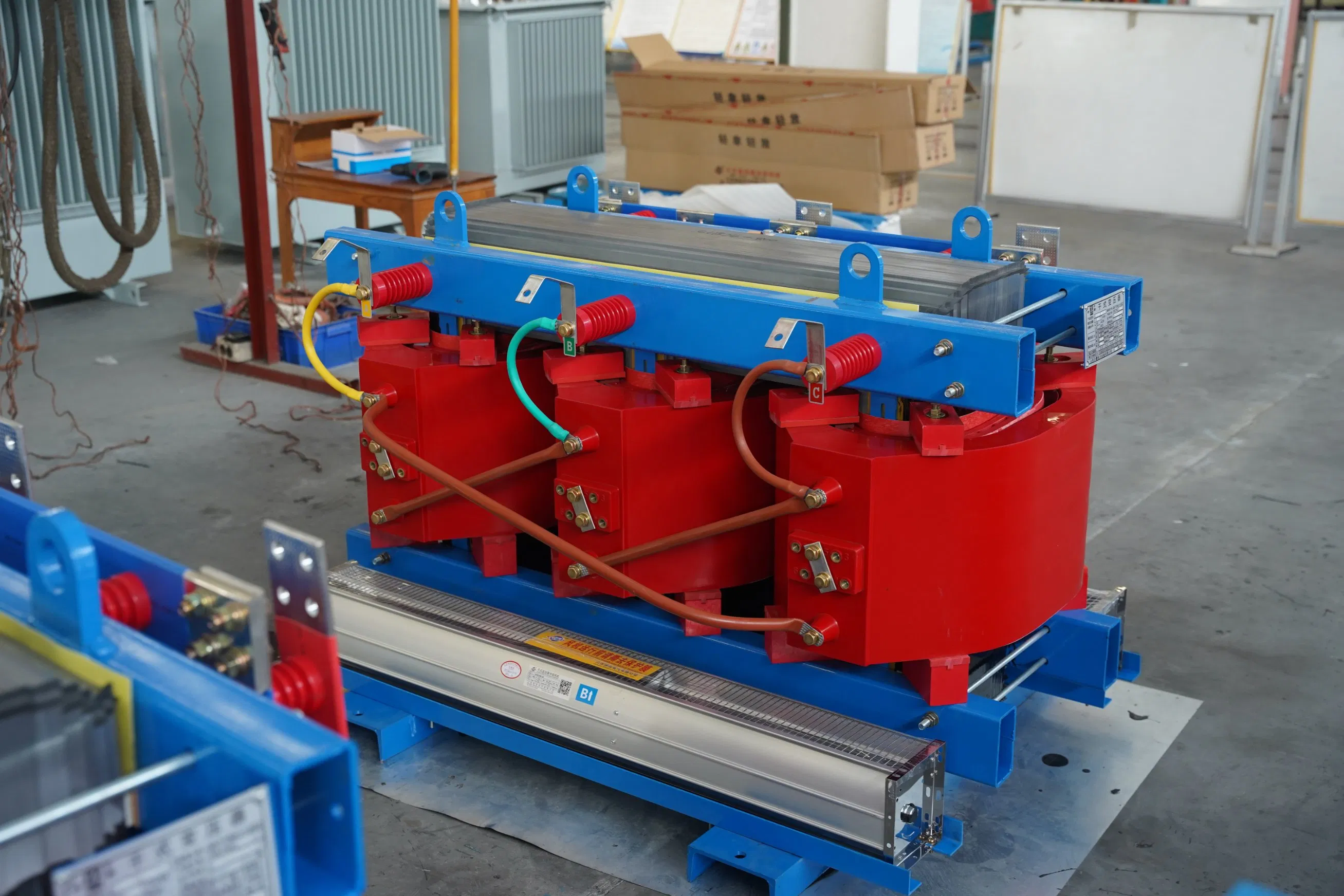

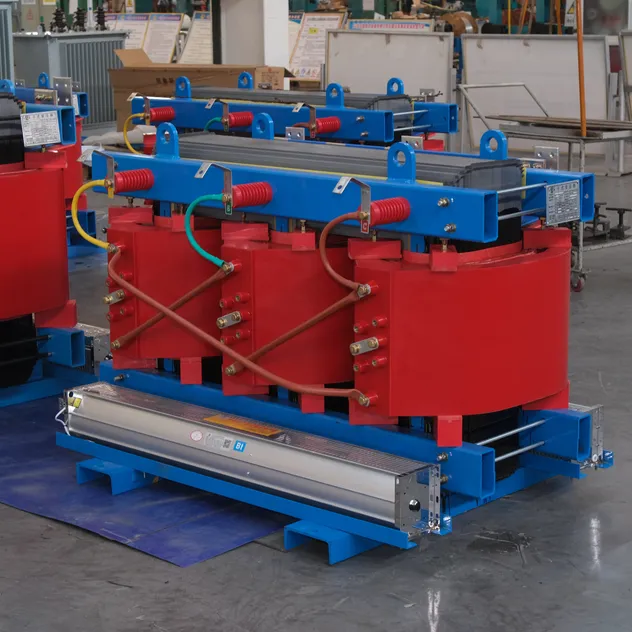

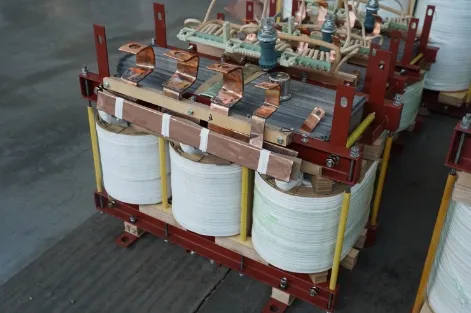

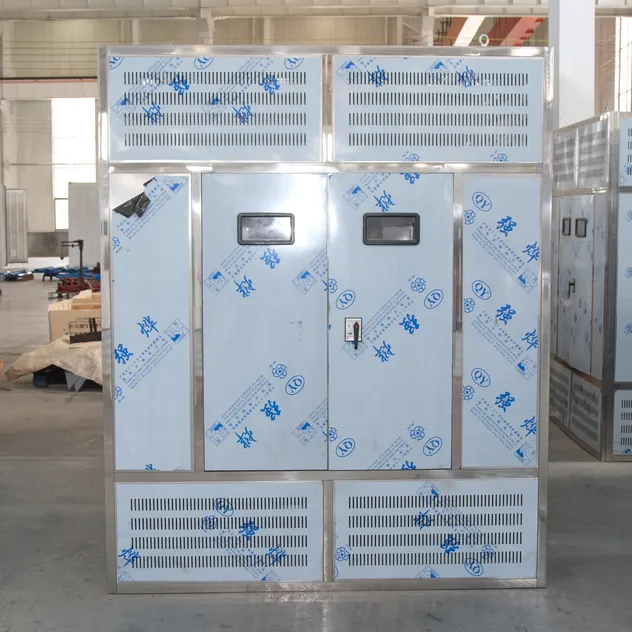

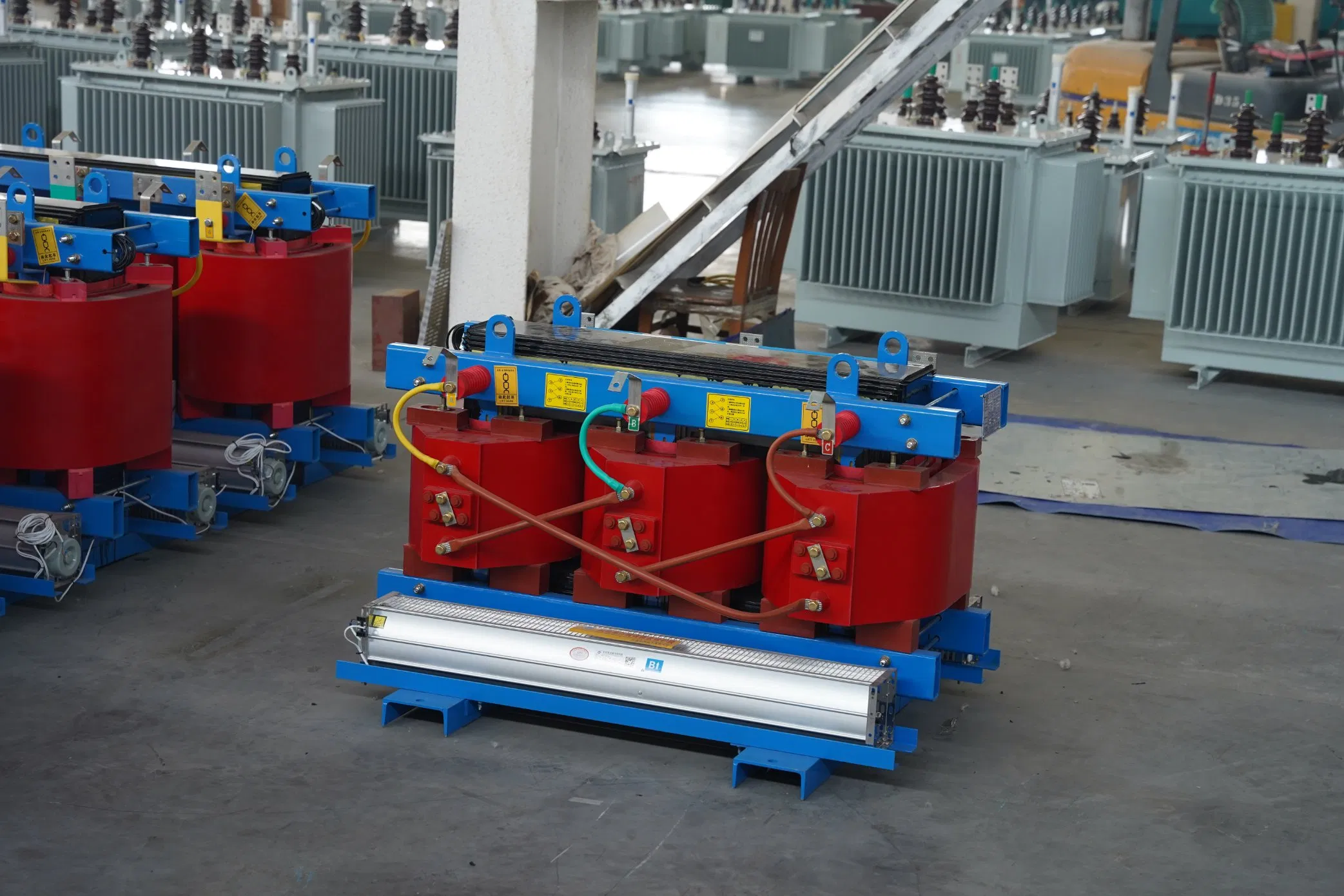

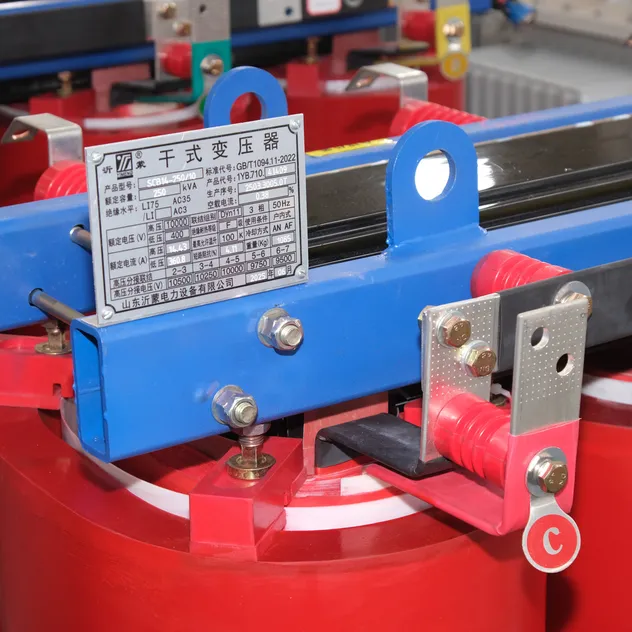

Dry-type Transformer: The epoxy cast dry-type transformers include SC (B) 10, SC (B) 11, SC (B) 12, SC (B) 13, SCB14, and SCB18 series. These products operate reliably and reach advanced technical levels. Customizable solutions are available with aluminum alloy or stainless steel casings (Protection levels: IP00, IP20, IP23).
1. Safe, fireproof, zero pollution.
2. Convenient installation and low maintenance cost.
3. Excellent moisture-proof performance (100% humidity).
4. Low loss, low noise, and strong heat dissipation.
5. Integrated safety protection and temperature control.
Widely applicable to high-rise buildings, airports, stations, docks, power plants, and substations. Ideal for environments requiring high fire prevention.
Ambient Temperature: -25℃ to 40℃.
Altitude: <1000m (Customizable).
Pollution-free environment with good ventilation and no severe vibration.
Epoxy resin insulation breakdown field strength of 18~22kV/mm. Insulation grade F (Max 155℃).
Chemically stable, flame-retardant, and self-extinguishing material prevents secondary disasters.
Equipped with air ducts for heat dissipation. Forced air cooling allows for short-term overloads.

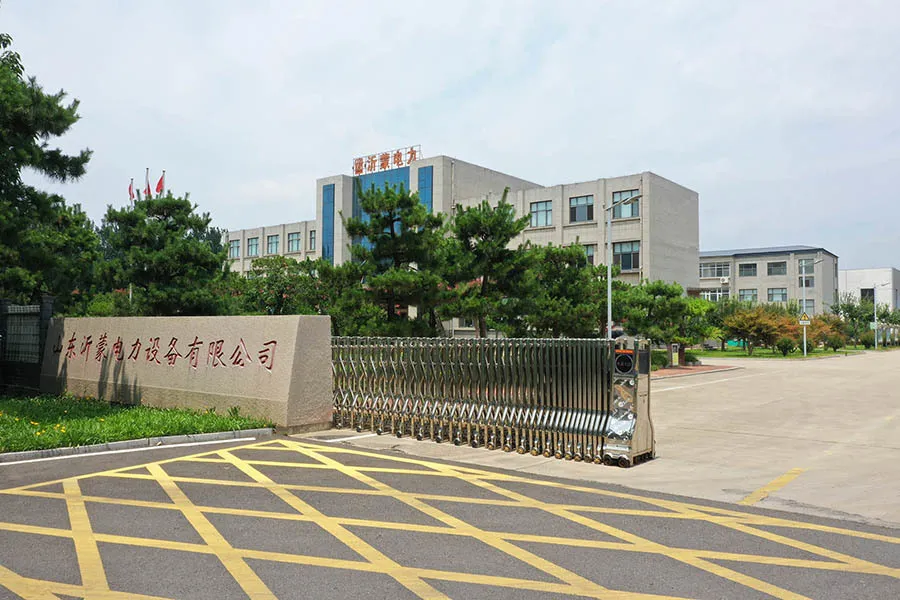

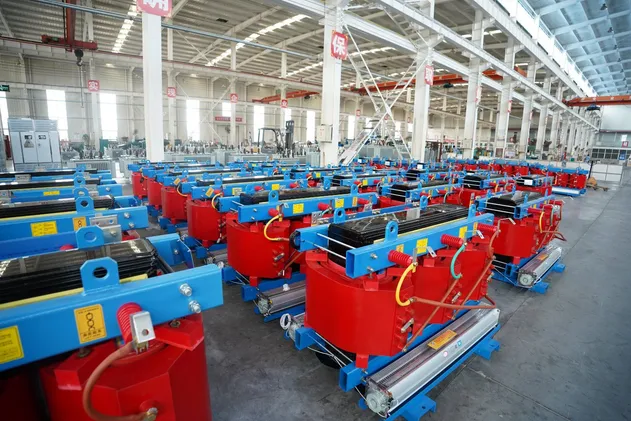

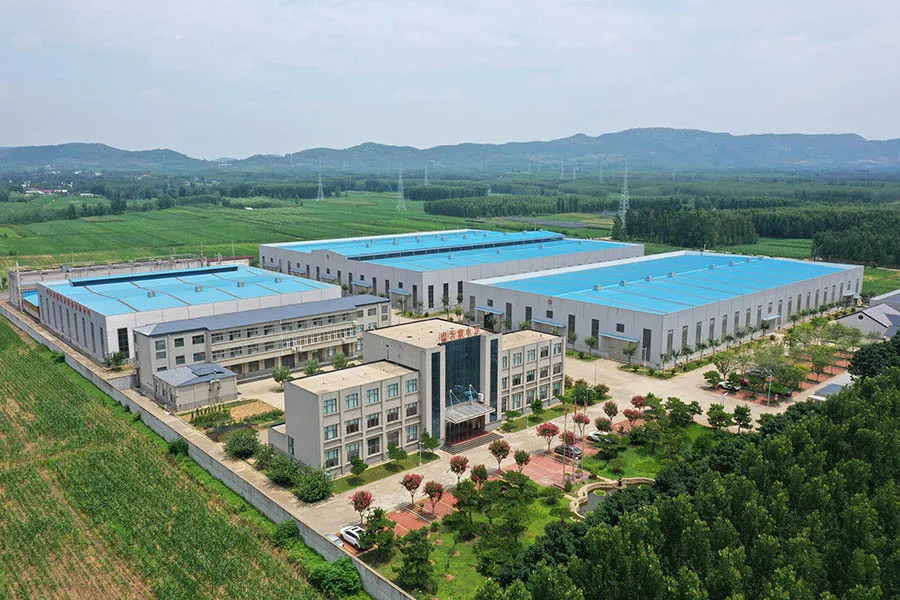

Our production covers over 100 acres with decades of professional experience. We focus on energy-saving power transformers (up to 20000KVA, 10KV/35KV), prefabricated substations, and high/low voltage switchgear (KYN28, XGN, GGD, etc.).
