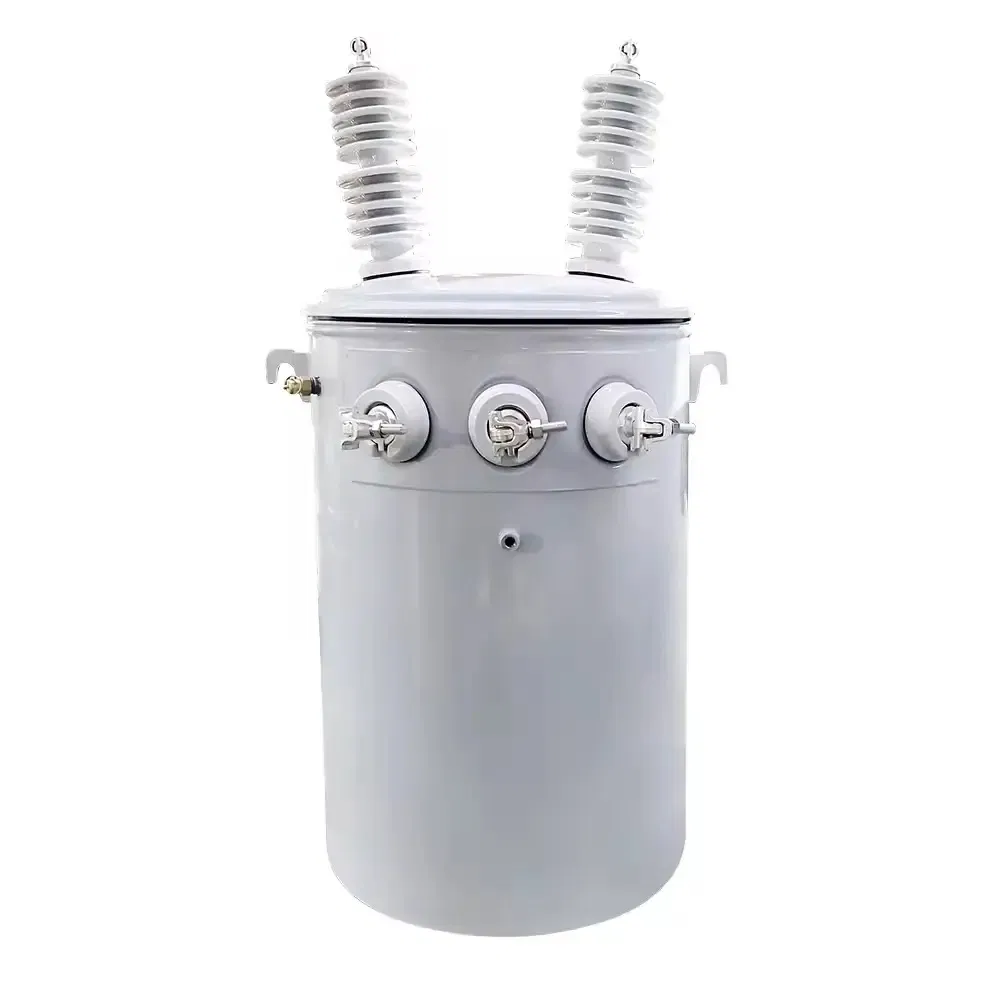

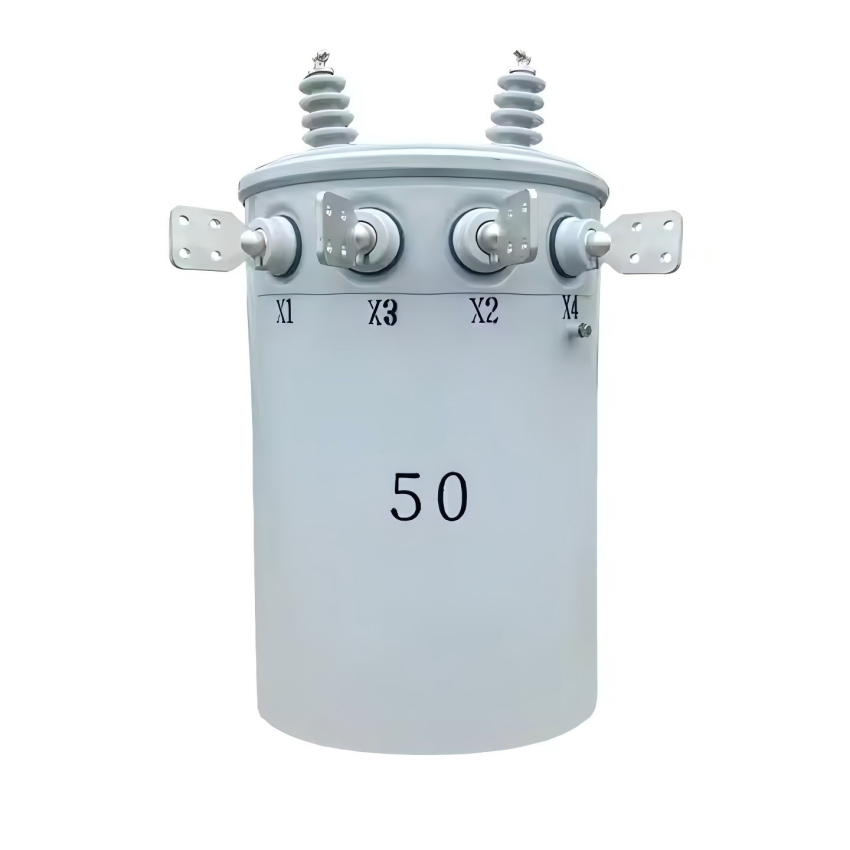

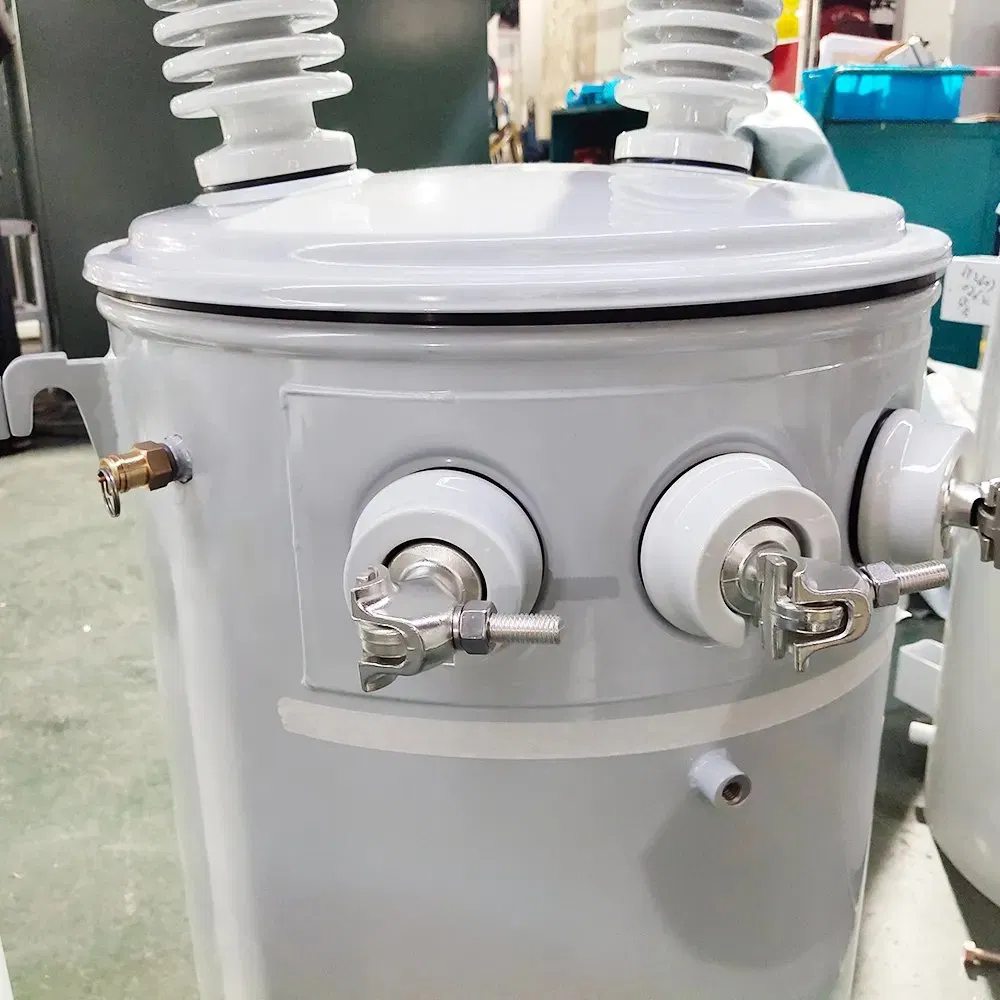

D series high-efficiency, low-loss single-phase transformer is suitable for agricultural production, lighting & power consumption in rural power grid and remote mountainous areas. It can also be used for urban power grid transformation, providing excellent energy-saving effects. The transformer can be installed directly on the platform or on a wire pole.
The combination of low voltage of the transformer is 2 * 0.23kv. Its low voltage current is only half compared to ordinary single-phase transformers. The biggest advantage is that line loss is only 1/4 (P=I²R) compared to standard systems, which is a significant benefit for international users.
| Rated capacity (kVA) | High voltage (kV) | Tap range | Low voltage (kV) | No-load loss (w) | Load loss (75ºC) (W) | No-load current (%) |
|---|---|---|---|---|---|---|
| 10 | 6, 6.3, 6.6, 10, 10.5, 11 | ±2*2.5, ±5 | 2*(0.22-0.24) | 36 | 212 | 1.1 |
| 20 | 52 | 346 | 0.9 | |||
| 40 | 80 | 630 | 0.8 | |||
| 63 | 116 | 918 | 0.6 | |||
| 100 | 152 | 1340 | 0.6 | |||
| 160 | 232 | 1920 | 0.5 |
