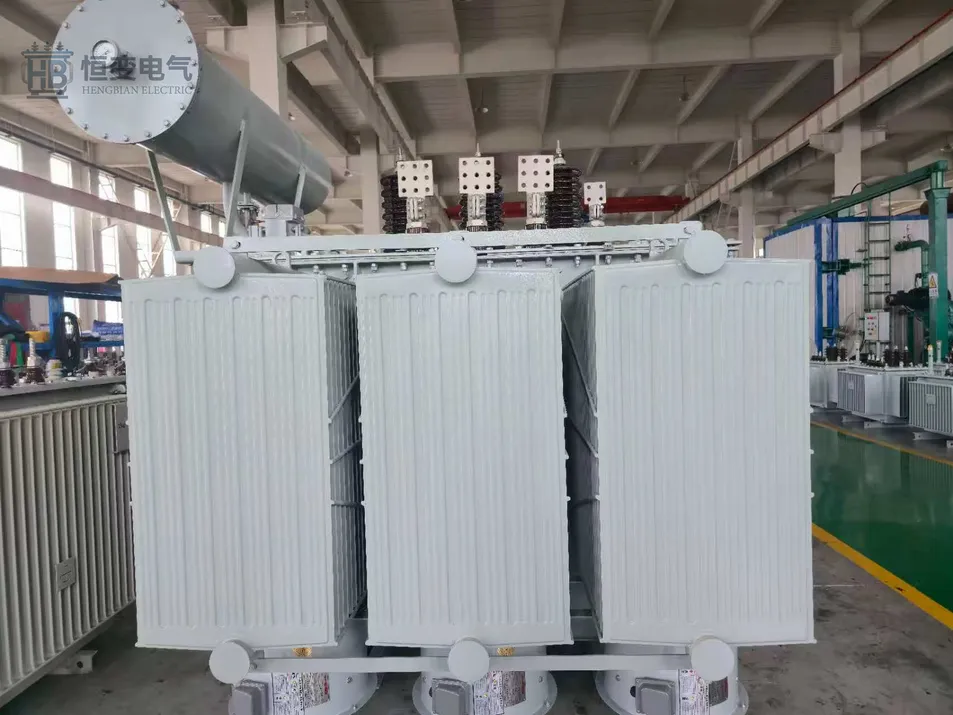

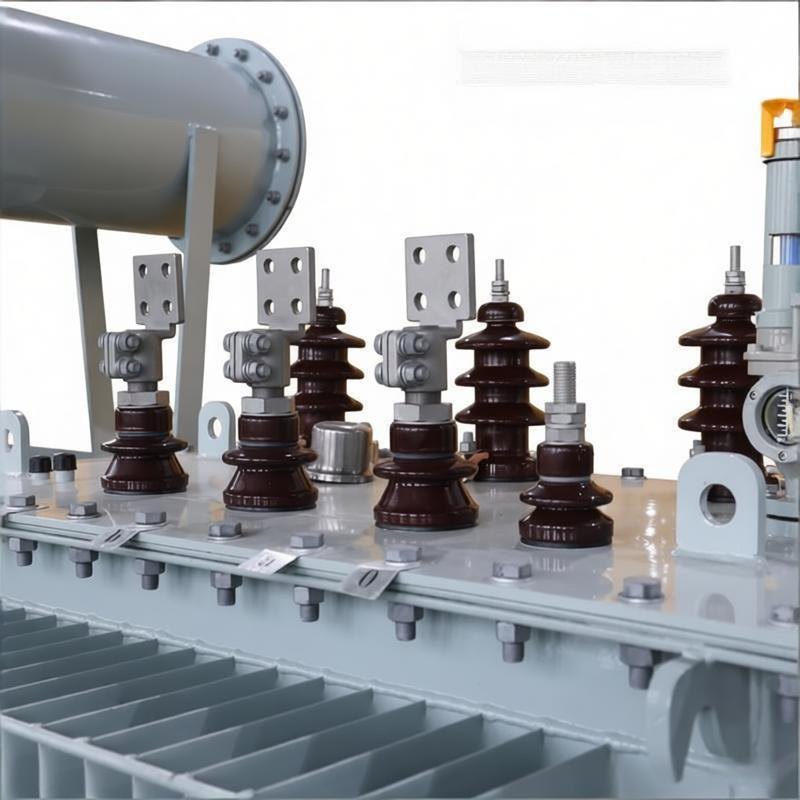

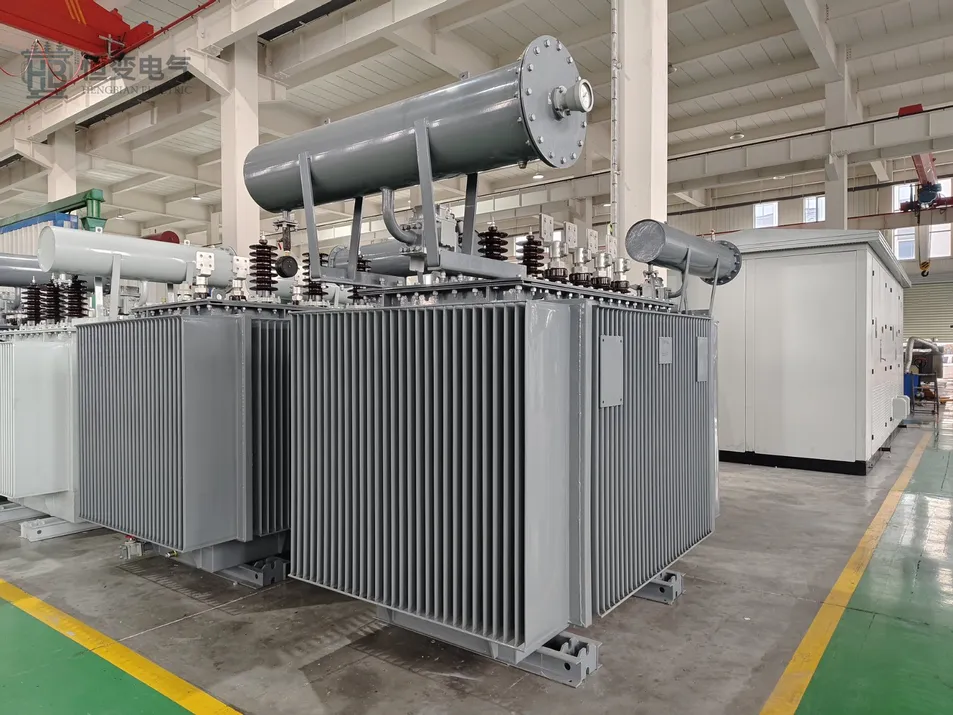

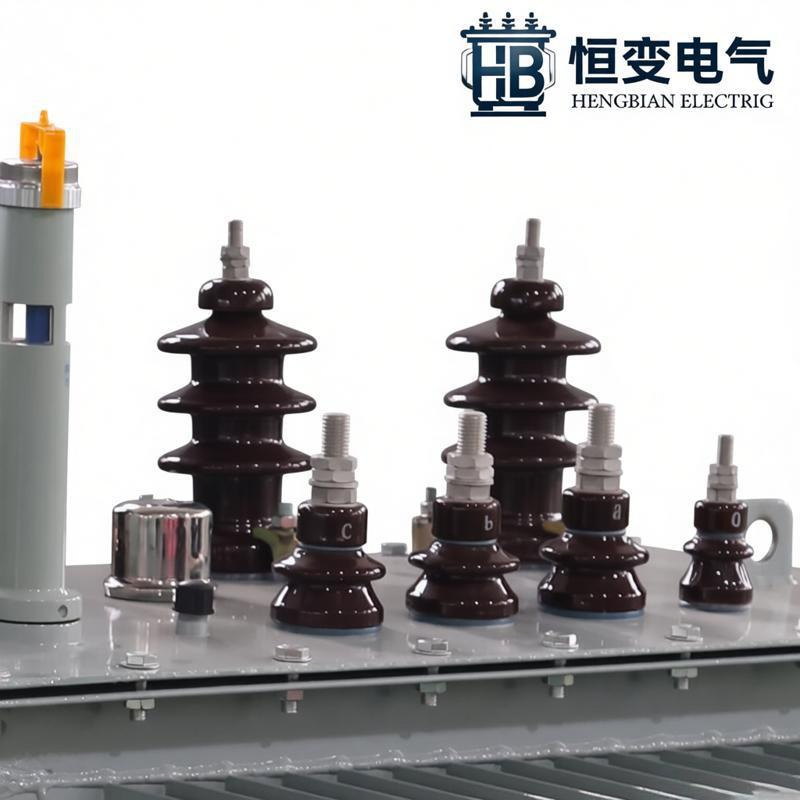

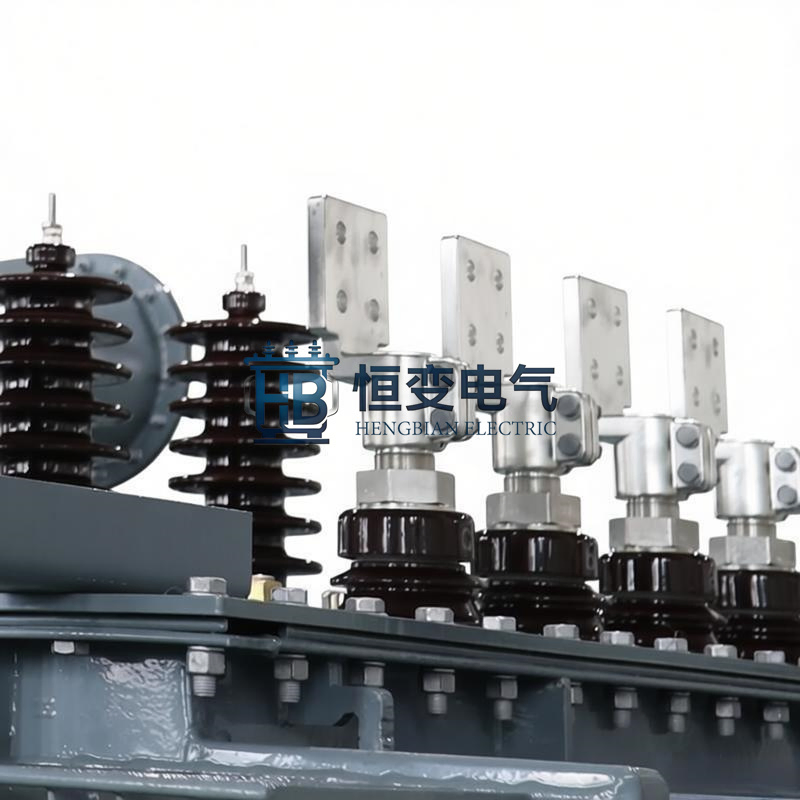

35kV S11/SZ11 Series Oil-Immersed Power Transformers
These series feature an optimized core and winding structure using high-grade cold-rolled silicon steel and oxygen-free copper windings, reducing no-load and load losses by over 25% compared to standard models.

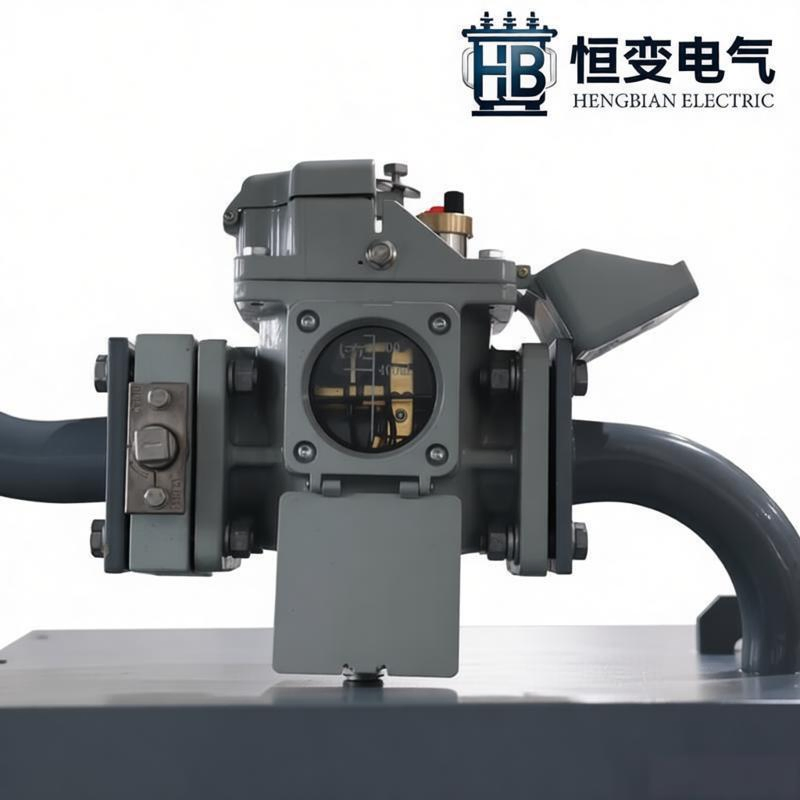

Advanced Construction:
The laminated iron core is manufactured from high-quality grain-oriented silicon steel, minimizing core vibration and no-load losses. Reinforced internal supports prevent buckling deformation under electromagnetic stress, significantly improving short-circuit withstand capability.
Primary Applications:
| Rated Capacity (KVA) | Rated Voltage (KV) | Connection Symbol | Short-circuit Impedance (%) | No-Load Losses (W) | Load Losses (W) | Dimensions (LxWxH, mm) | |
|---|---|---|---|---|---|---|---|
| HV | LV | ||||||
| 2000 | 35 / 38.5 | 6.3 / 10.5 | Yd11 | 6.5 | 2.31 | 19.24 | 3150x2110x2810 |
| 3150 | Yd11 | 7.0 | 3.24 | 24.70 | 3200x2320x2820 | ||
| 5000 | Yd11 | 7.0 | 4.64 | 34.20 | 3500x2540x3200 | ||
| 10000 | Ynd11 | 7.5 | 9.28 | 48.05 | 4250x3400x3500 | ||
| 20000 | Ynd11 | 8.0 | 15.57 | 82.79 | 4750x3800x4200 | ||
* Note: Dimensions are for reference. Please request official drawings during ordering.
Our facility is a professional manufacturer of power equipment, specializing in the development and production of oil-immersed power transformers, dry-type transformers, and complete sets of high/low voltage electrical equipment. The products are widely used in power grids, metallurgy, chemical industries, aerospace, and new energy fields.
