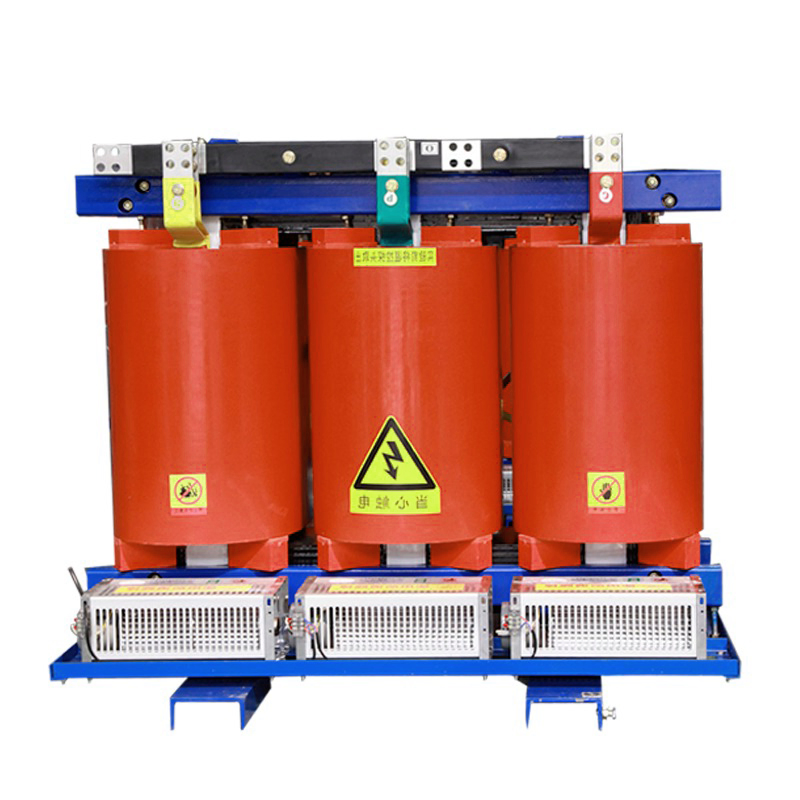

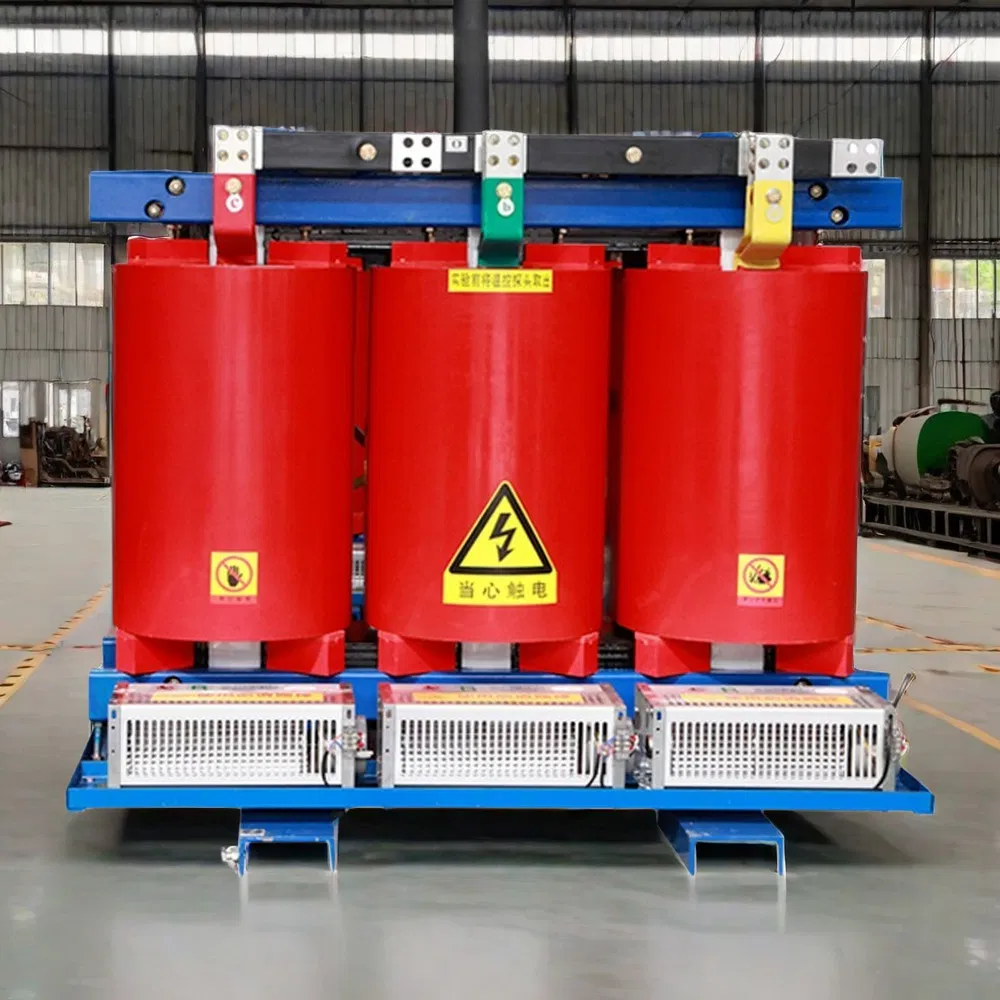

250kva 1000kva 1250kva 2000kva 2500kva Cast Resin Three Phase Distribution Electric Dry Type Power Transmission Transformer
| Rated Capacity (KVA) | Voltage combination (KV) | No-load current (%) | Load loss (W) | No-load loss (W) | Impedance (%) | ||
|---|---|---|---|---|---|---|---|
| H.V. | Tap Range | L.V. | |||||
| 30 | 10 / 6.3 / 6 | ±5% ±2×2.5% | 0.4 | 2.00 | 710 | 150 | 4.0 |
| 100 | 1.50 | 1570 | 320 | 4.0 | |||
| 400 | 1.00 | 3990 | 785 | 4.0 | |||
| 630 | 0.85 | 5880 | 1070 | 4.0/6.0 | |||
| 1000 | 0.85 | 8130 | 1410 | 6.0 | |||
| 2500 | 0.70 | 17170 | 2880 | 6.0 | |||

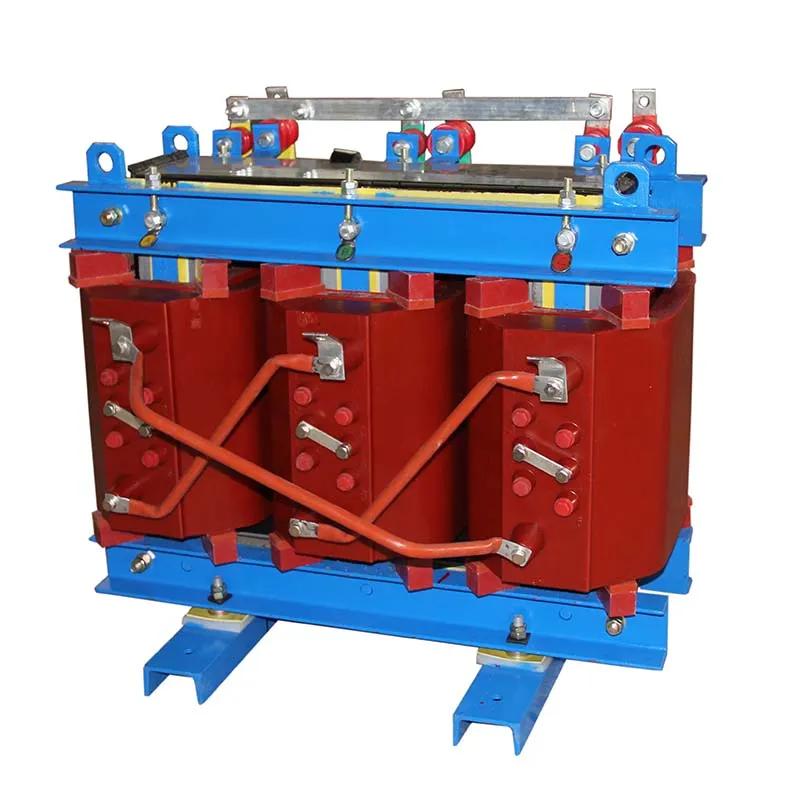

Dry-type transformers are high-performance electrical equipment using advanced insulation technology. They do not require oil immersion, making them safe and environmentally friendly. Widely used in high-rise buildings, commercial centers, hospitals, and factories, they efficiently convert and distribute electrical energy for modern power systems.

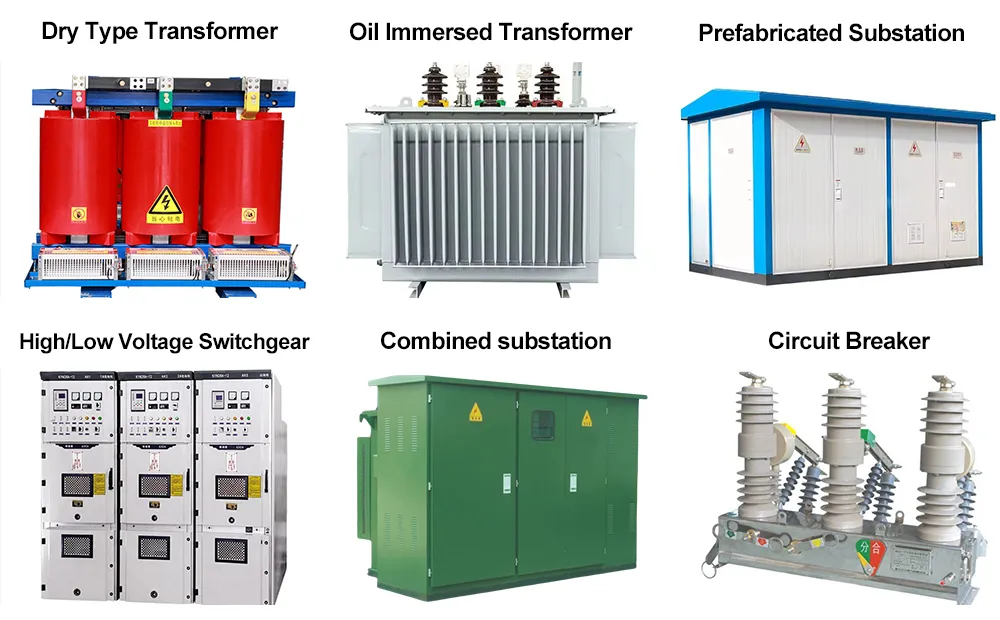

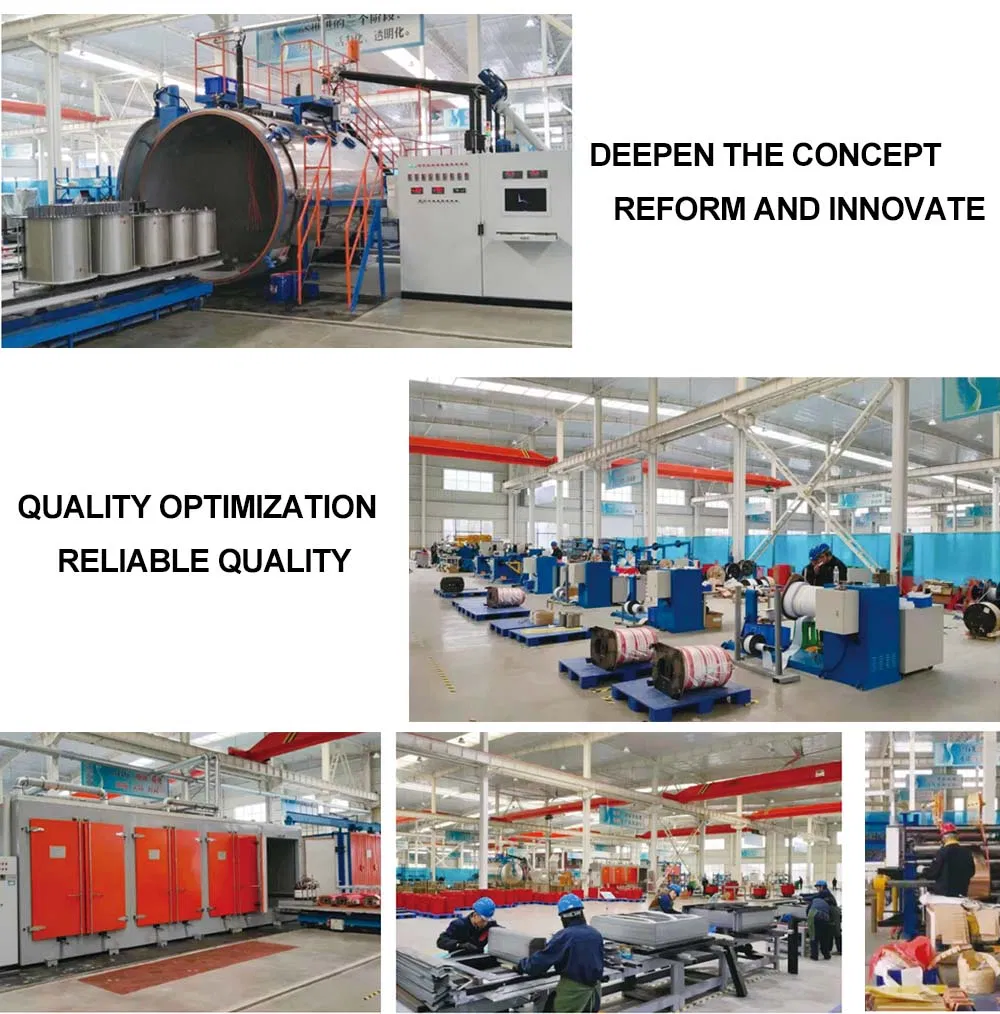

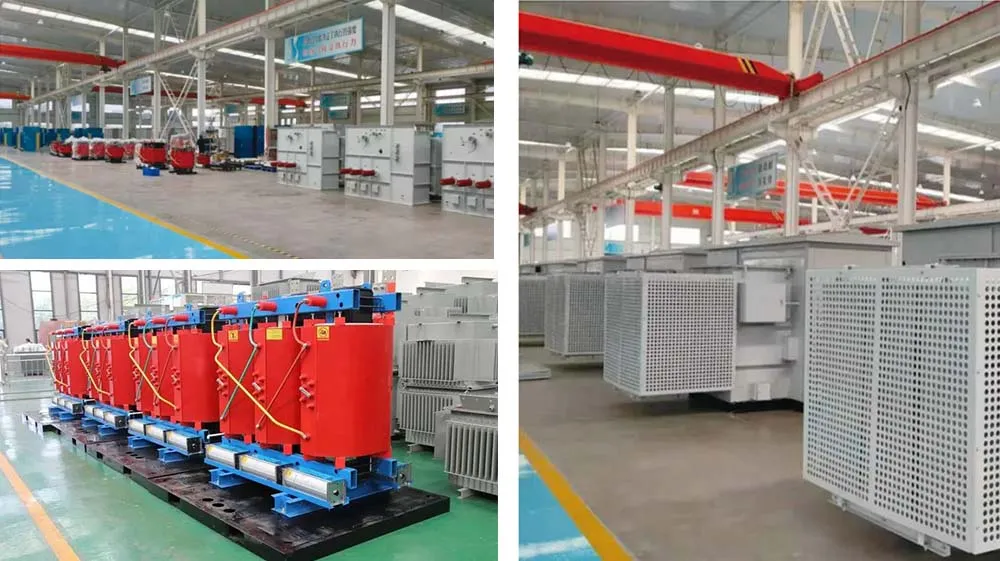

An intelligent technology enterprise engaged in R&D manufacturing and sales of power transformers, high and low voltage switch cabinets, box-type substations, and supporting products. The facility covers nearly 100,000 square meters with advanced testing equipment and ISO9000 quality certification standards.
We insist on the meticulousness and excellence of every detail, striving to realize standardized and systematic management of product quality. Through extensive technical exchanges and cooperation, we develop high-reliability, maintenance-free, and energy-saving power transmission equipment.
