The product is equipped with a perfect temperature protection control system to provide a reliable guarantee for safe operation. High quality and operational reliability have reached international advanced levels.

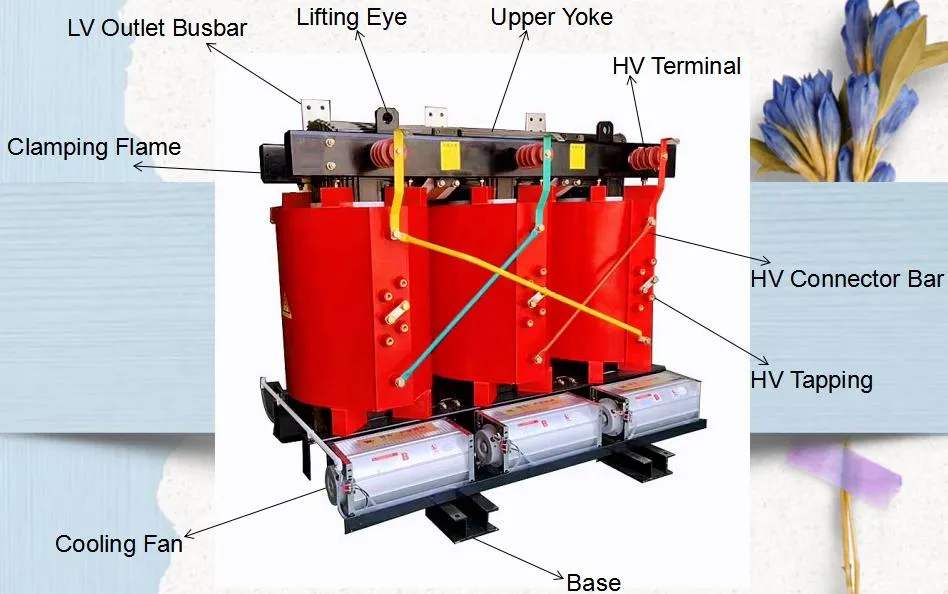

Box Coil: Our winding ends are potted with resin, curing and forming a moisture-proof and antifouling barrier. Foil type coils solve low voltage, large current short-circuit stress, and cooling efficiency issues.
Temperature Control: Utilizing BWDK series temperature sensor signal thermometers, it automatically detects and displays working temperatures of each phase with alarm and trip functions.

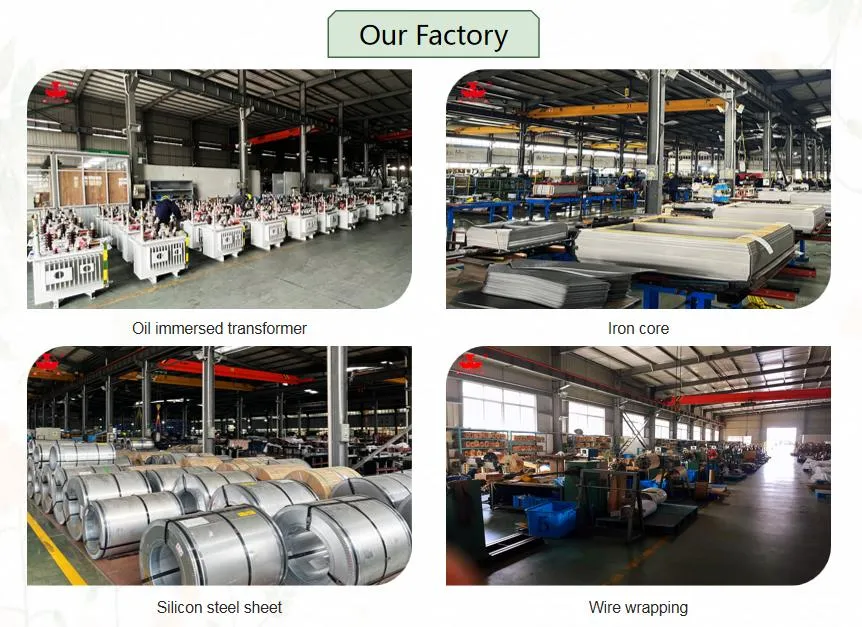

Our group maintains a strong engineering force with over 50 technical personnel and 1,000 employees, covering an area of 240,000 square meters. We specialize in medium to large-scale transformer production with annual sales reaching 2.5 billion yuan. We have earned honors as a high-tech enterprise and recognized for quality management and environmental protection.
Our production range includes 110KV and 220KV ultra-high voltage transformers, as well as various dry-type, oil-immersed, and amorphous alloy transformers. All products pass rigorous tests by National Quality Supervision centers and are certified under ISO9001:2015. Our reach extends globally to markets in Australia, New Zealand, India, Vietnam, and beyond.
| Type | Rated Capacity (kVA) | High Voltage (kV) | Low Voltage (kV) | Vector Group | No-load Loss (W) | Short Circuit Impedance (%) | Size (L*H*W mm) |
|---|---|---|---|---|---|---|---|
| SC(B)11-30/10 | 30 | 6/10/11 | 0.4 | Dyn11/Yyn0 | 180 | 4 | 800*660*940 |
| SC(B)11-100/10 | 100 | 6/10/11 | 0.4 | Dyn11/Yyn0 | 350 | 4 | 900*720*1060 |
| SC(B)11-400/10 | 400 | 6/10/11 | 0.4 | Dyn11/Yyn0 | 780 | 4 | 1500*860*1270 |
| SC(B)11-800/10 | 800 | 6/10/11 | 0.4 | Dyn11/Yyn0 | 1240 | 6 | 1660*950*1460 |
| SC(B)11-1600/10 | 1600 | 6/10/11 | 0.4 | Dyn11/Yyn0 | 1710 | 6 | 1870*1100*1700 |
| SC(B)11-2500/10 | 2500 | 6/10/11 | 0.4 | Dyn11/Yyn0 | 2650 | 6 | 2090*1260*1930 |

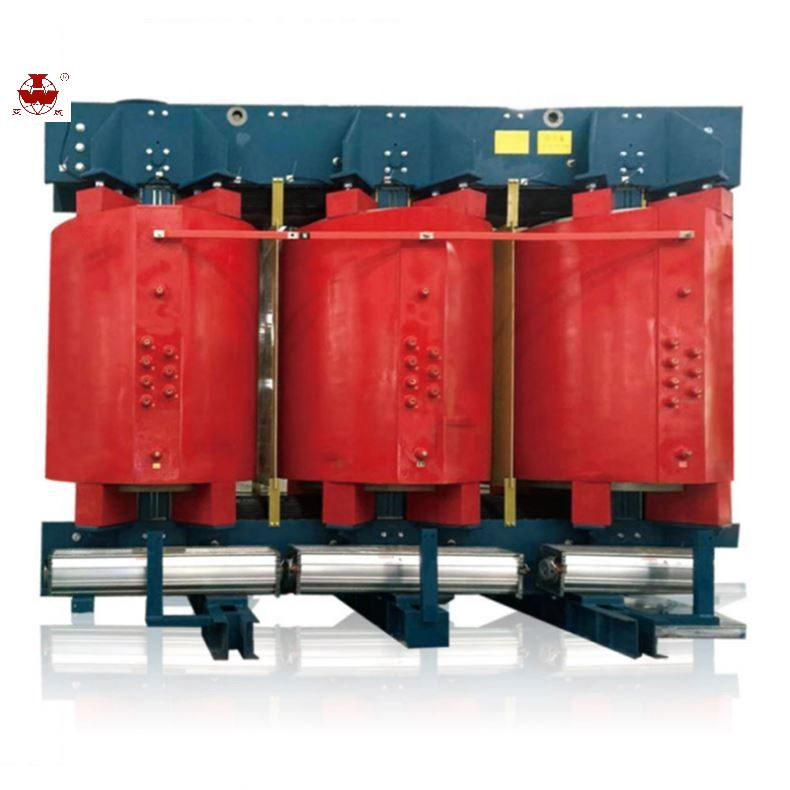

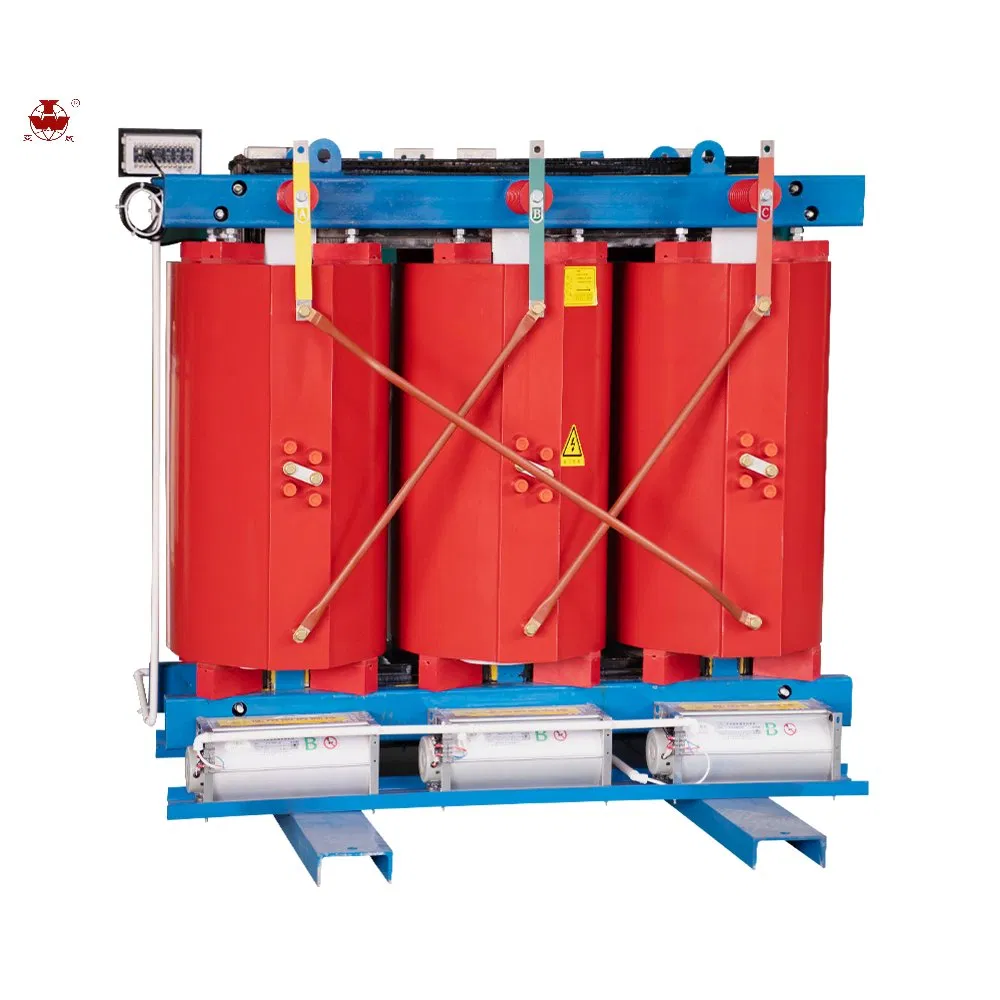

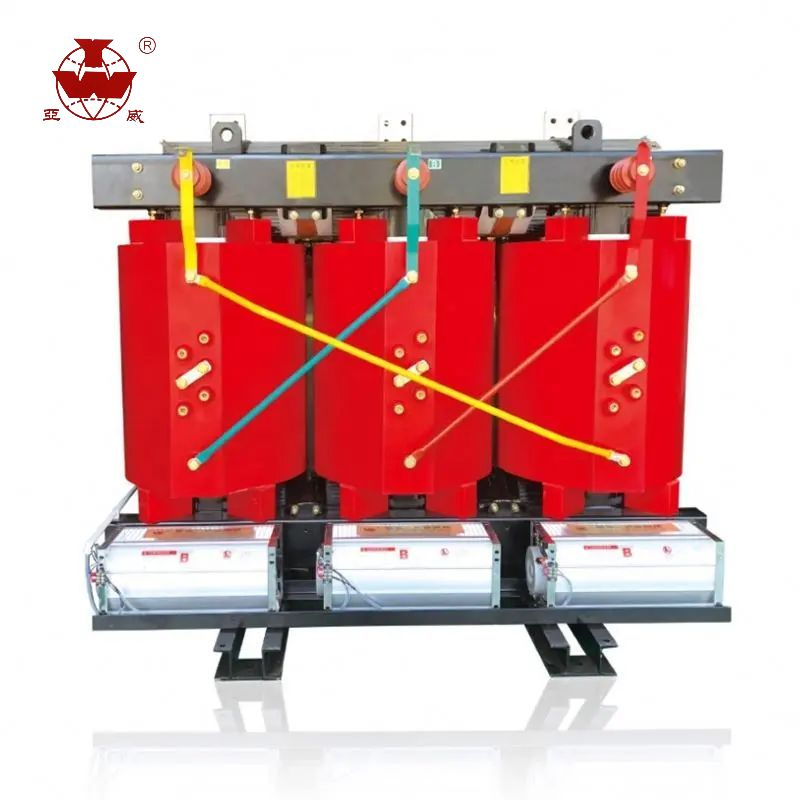

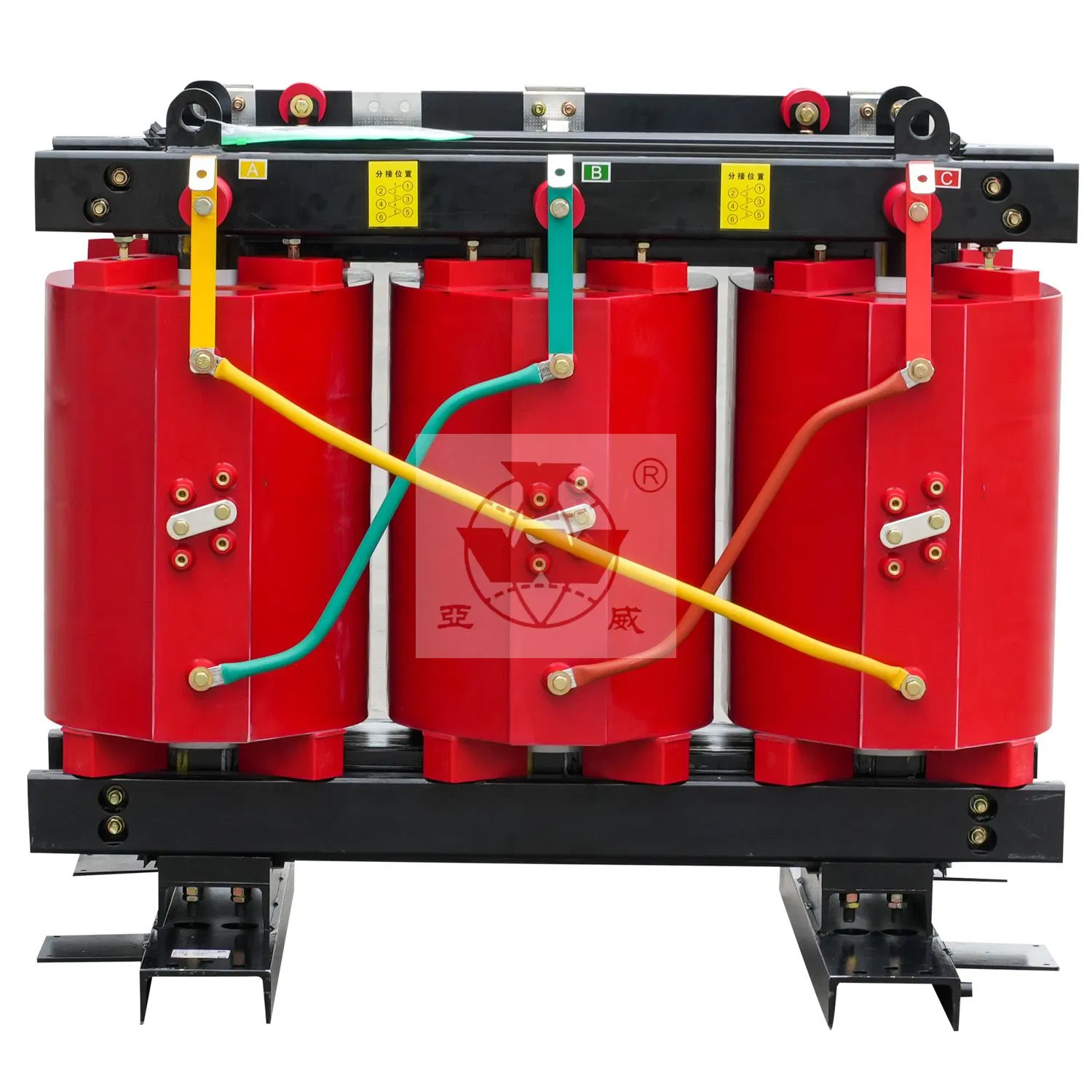

The SCB11 features epoxy resin insulation, foil-type coils for moisture protection, and advanced temperature control sensors for high operational safety and reliability.
Our transformers are certified under ISO9001, ISO14001, CE, CCC, and meet international standards such as IEC, ANSI, KEMA, and GOST.
We provide a 2-year warranty on our power transformers and maintain a dedicated after-sales service team to assist with technical queries and maintenance.
Yes, we support a wide range of input voltages from 400V up to 220kV and output voltages ranging from 110V to 35kV depending on the specific model and requirements.
Quality is ensured through pre-production sample validation and a rigorous final inspection of every unit before it leaves the factory.
Our catalog includes Oil-immersed Power Transformers (110kV-220kV), Dry-type Transformers, Distribution Transformers, Pad-mounted Transformers, and special application transformers like mining and furnace types.
