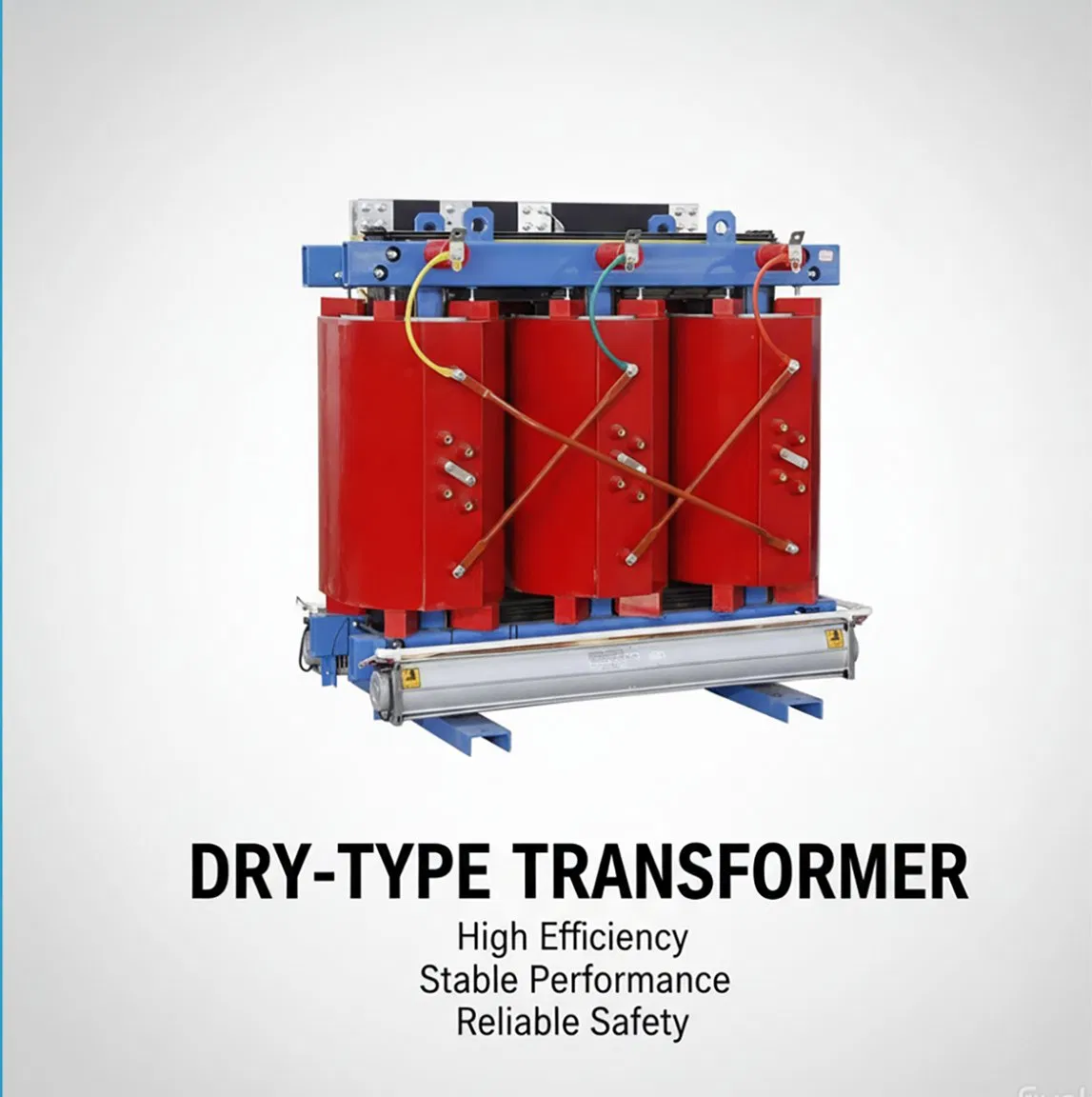

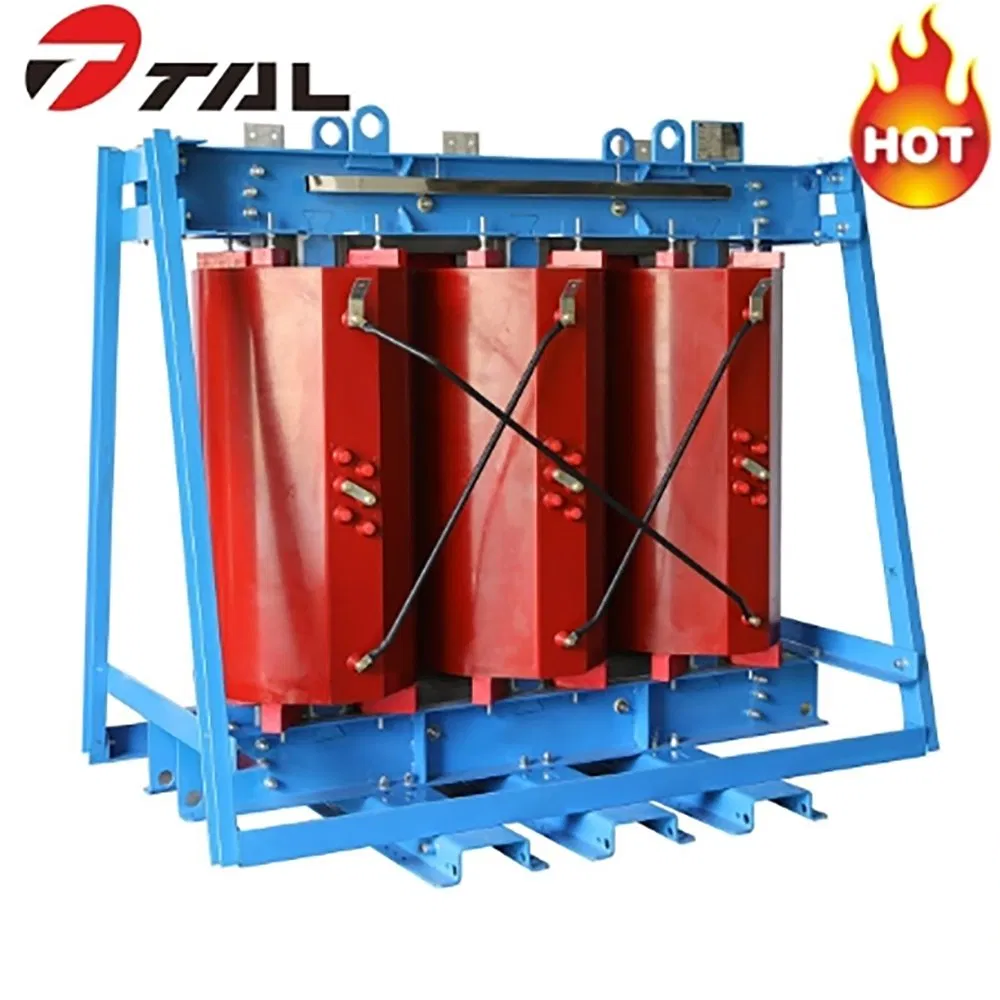

2500kVA High Efficiency Electric Dry Type Distribution Transformer for Power Distribution

1 / 5

2500kVA High Efficiency Electric Dry Type Distribution Transformer for Power Distribution

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.:

SCB11

Core:

Core-type Transformer

Cooling Method:

AN or AF

Winding Type:

Two-winding Transformer

Certification:

ISO9001-2000, ISO9001, CCC

Usage:

Rectifier, Combined, Power, Distribution Transformer

Frequency:

50Hz/60Hz

Rated Capacity:

30~2500kVA

Voltage Range:

6~35kv / 0.4kv

Vector Group:

Dyn11, Yyn0

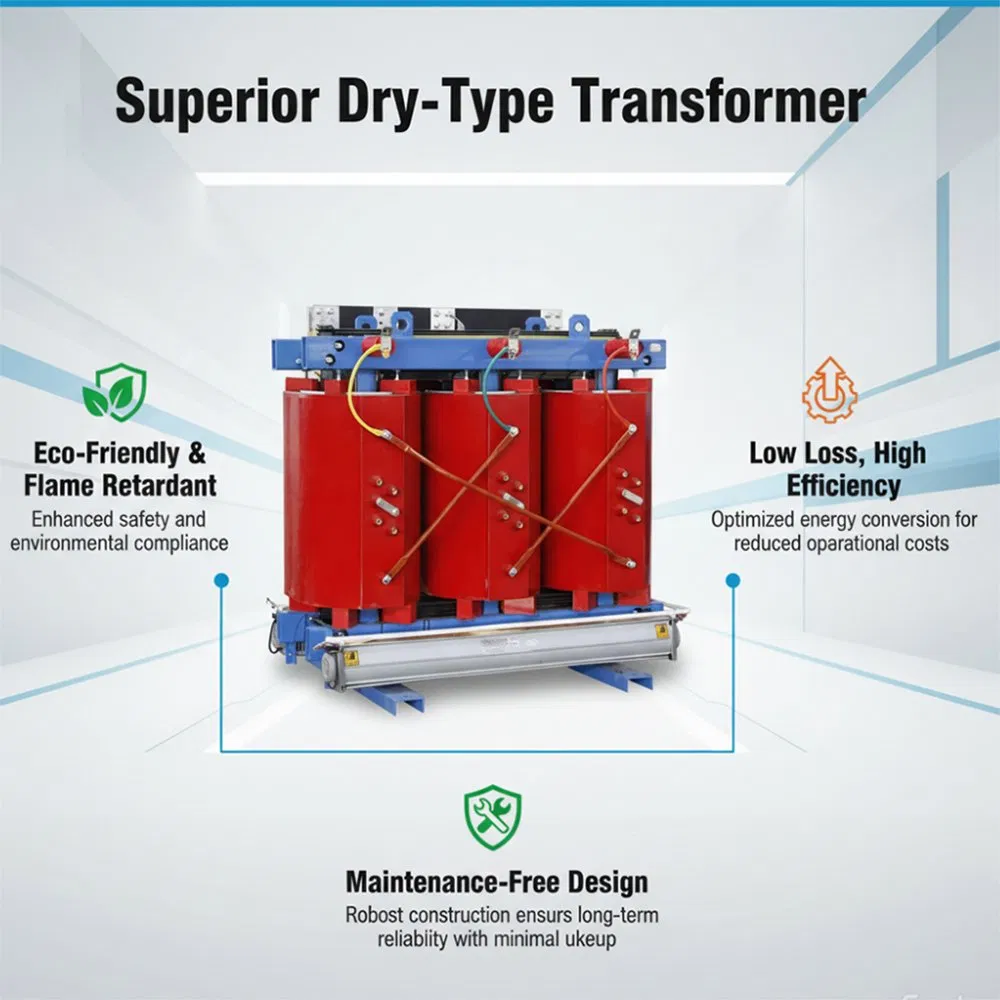

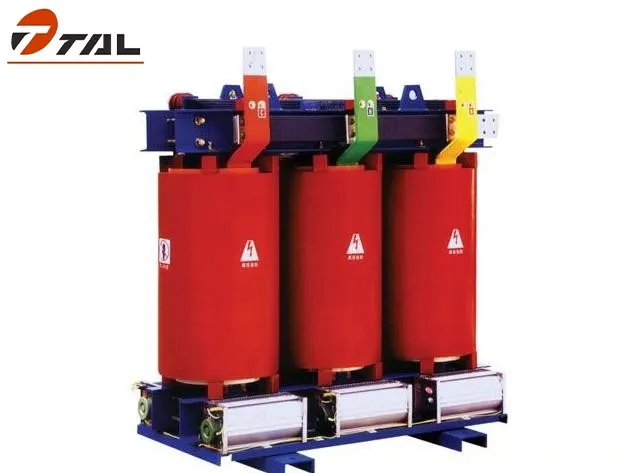

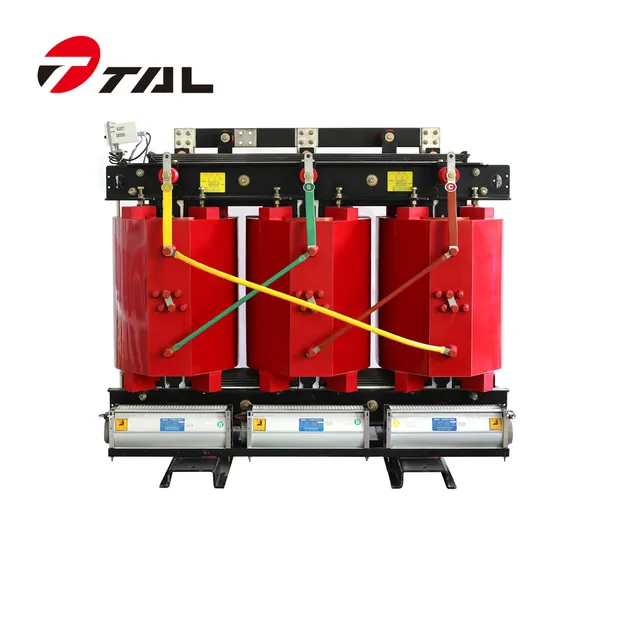

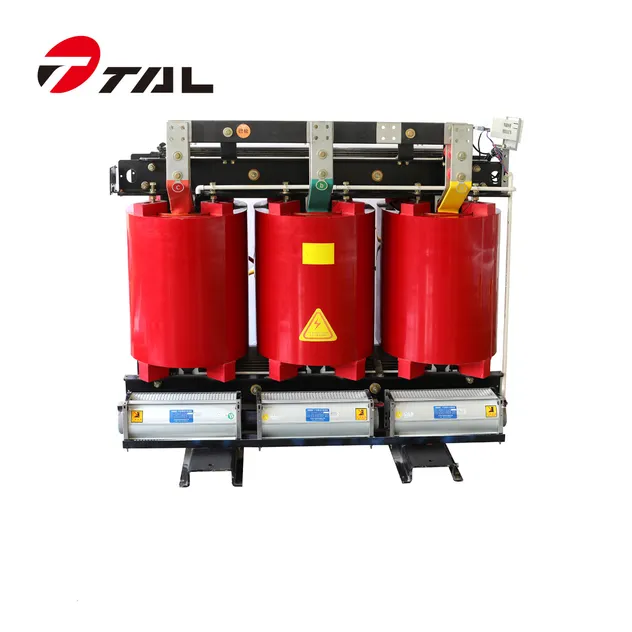

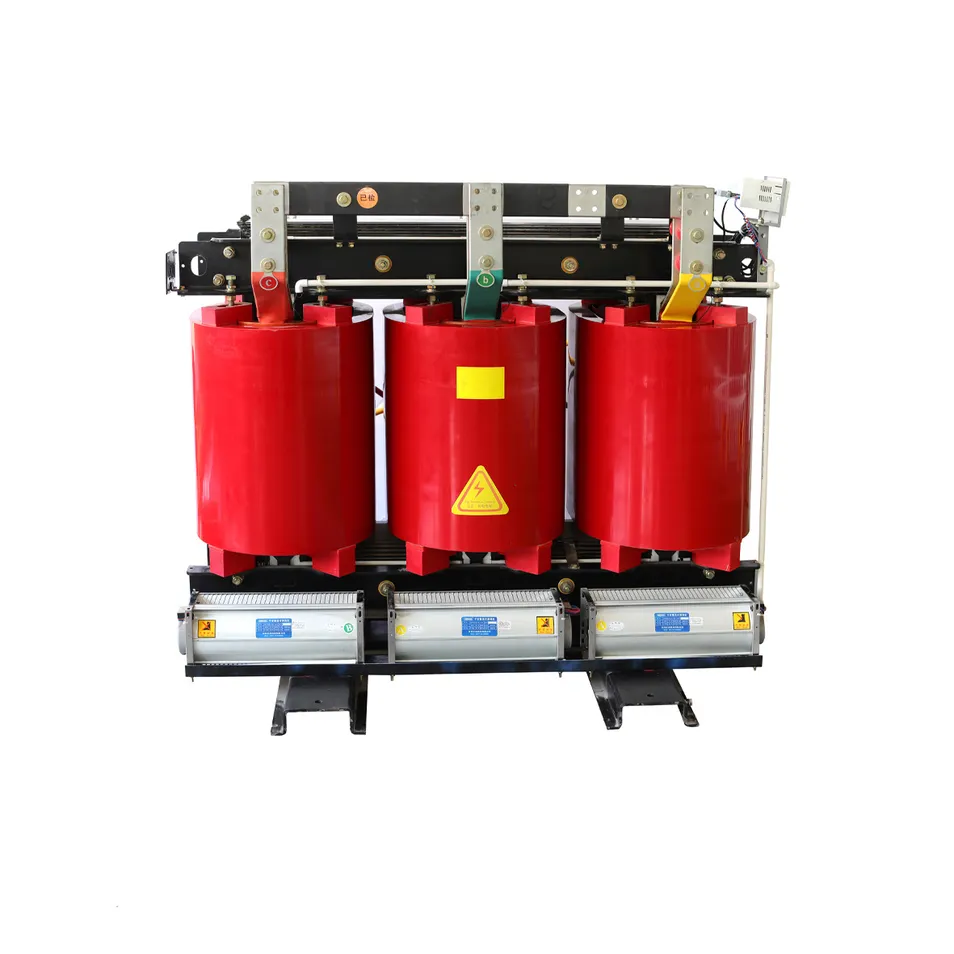

Cast Resin Dry Type Transformer

Cast Resin Dry Type Distribution Transformers are engineered for reliable performance in industrial and power distribution applications. Available in capacities from 630kVA to 3150kVA, these three-phase units feature cast resin insulation for superior fire resistance, low maintenance, and suitability for indoor or high-altitude installations. Designed to meet international standards, they deliver stable power conversion for factories, data centers, and commercial buildings.

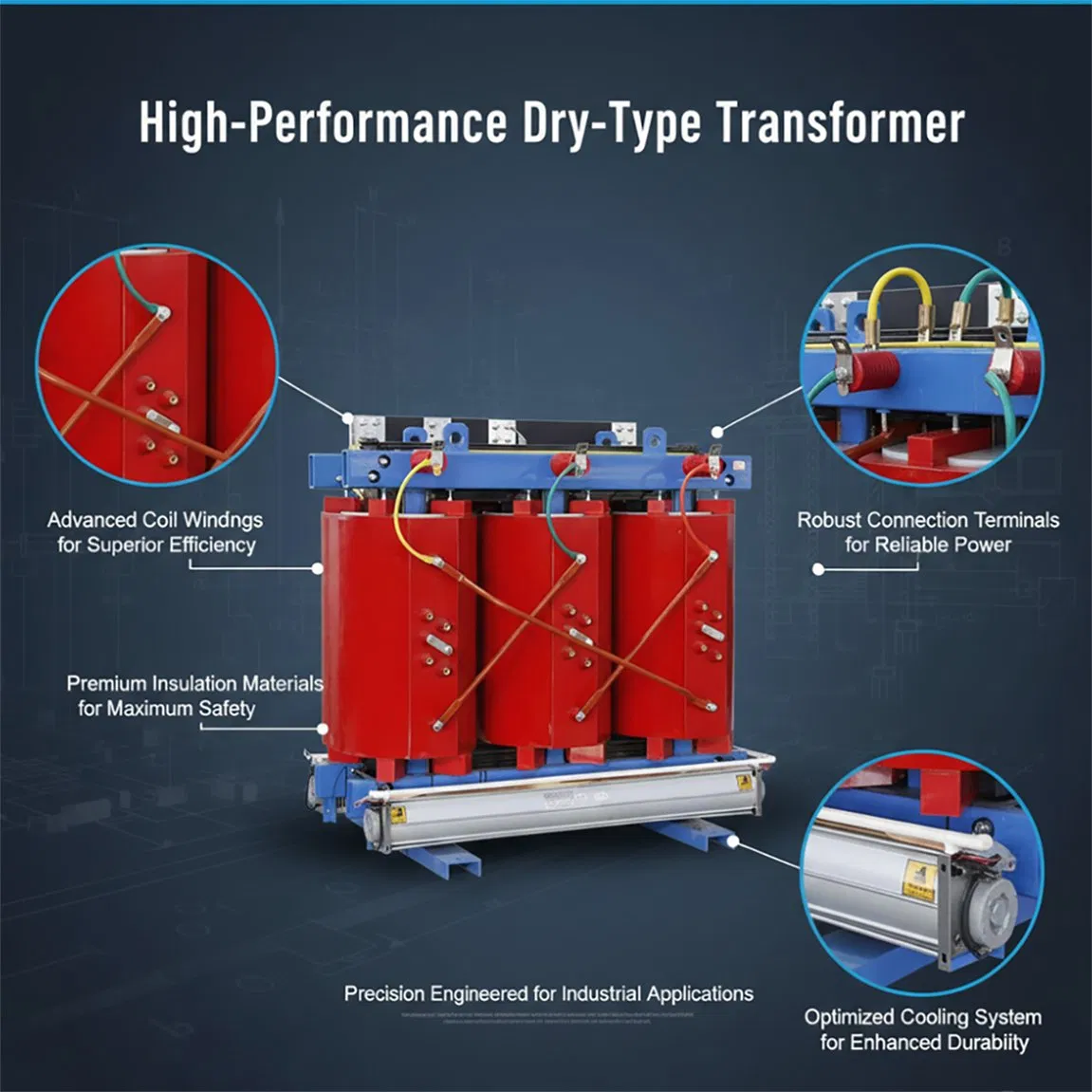

Technical Features & Components

Advanced Insulation System

Epoxy resin dry-type transformers are designed for indoor installation. Their cooling methods include natural air cooling (AN) and forced air cooling (AF). With forced air cooling, output capacity can increase by up to 50%, making it suitable for intermittent overload operation or emergency requirements.

High-Temperature Resistant Coil

Advanced materials enable resistance up to 150 °C. The high-quality insulation offers superior electrical properties and longevity even in tough environmental conditions.

High-Permeability Core

The core uses low-loss design and high-permeability materials to reduce excitation current and noise. Excellent thermal stability allows for wide-temperature operation with high mechanical strength.

Cross Flow Cooling Fan

Installed adjacent to the windings, these fans direct air across a wide heat-dissipation area, accelerating air movement and preventing component overheating for stable long-term operation.

Key Advantages

Safe, fireproof, and pollution-free for direct use in load centers.

High mechanical strength and strong short-circuit resistance.

Low loss, low noise, and maintenance-free design.

Excellent heat dissipation with strong overload capacity.

Moisture-proof performance adapted for high-humidity environments.

Intelligent signal temperature control system for 3-phase winding monitoring.

Technical Specification

(Parameters can be customized according to specific local demand!)

Capacity (kVA)	HV (kV)	Tap Range	LV (kV)	Group	No-load Loss (W)	Load Loss 120°C (W)	No-load Current (%)
100	20/22/24	±2x2.5%	0.4	Dyn11	540	1990	1.8
315	20/22/24	±2x2.5%	0.4	Dyn11	970	4080	1.3
630	20/22/24	±2x2.5%	0.4	Dyn11	1530	6840	1.0
1000	20/22/24	±2x2.5%	0.4	Dyn11	2070	9780	0.85
1600	20/22/24	±2x2.5%	0.4	Dyn11	2790	13800	0.85
2500	20/22/24	±2x2.5%	0.4	Dyn11	3870	19300	0.7

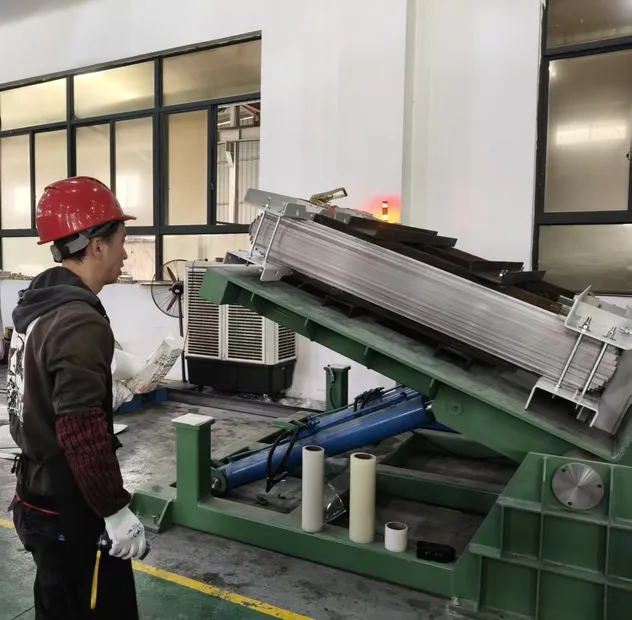

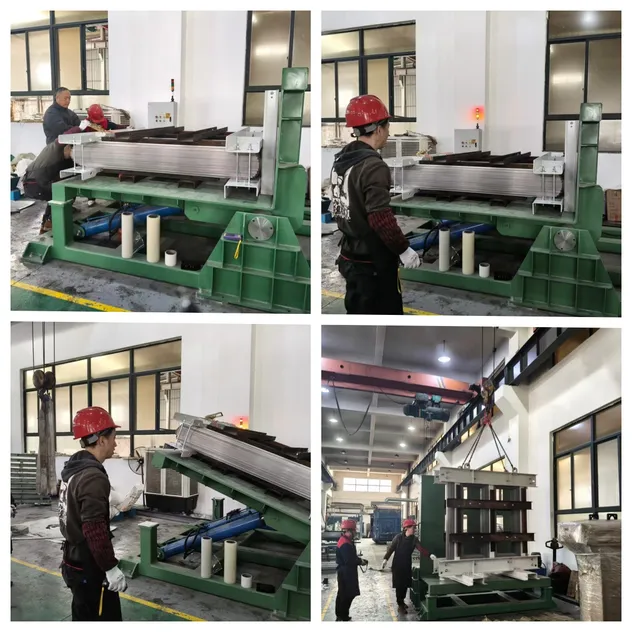

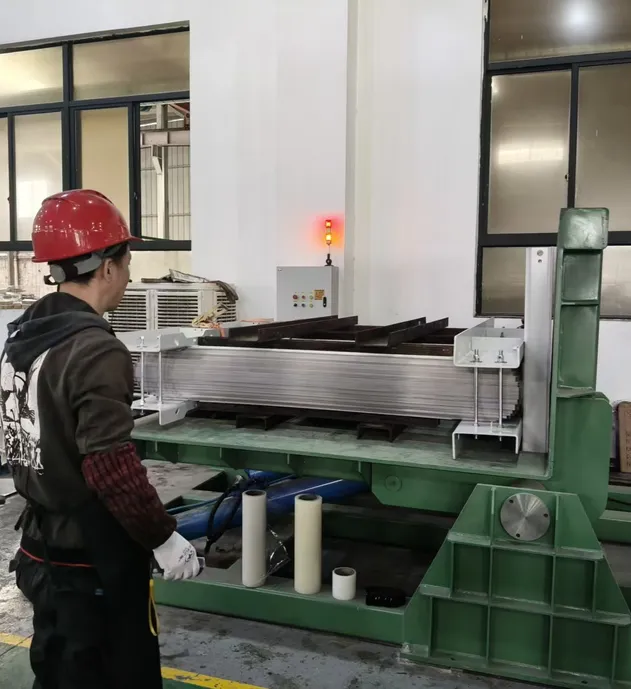

Workshop & Quality Control

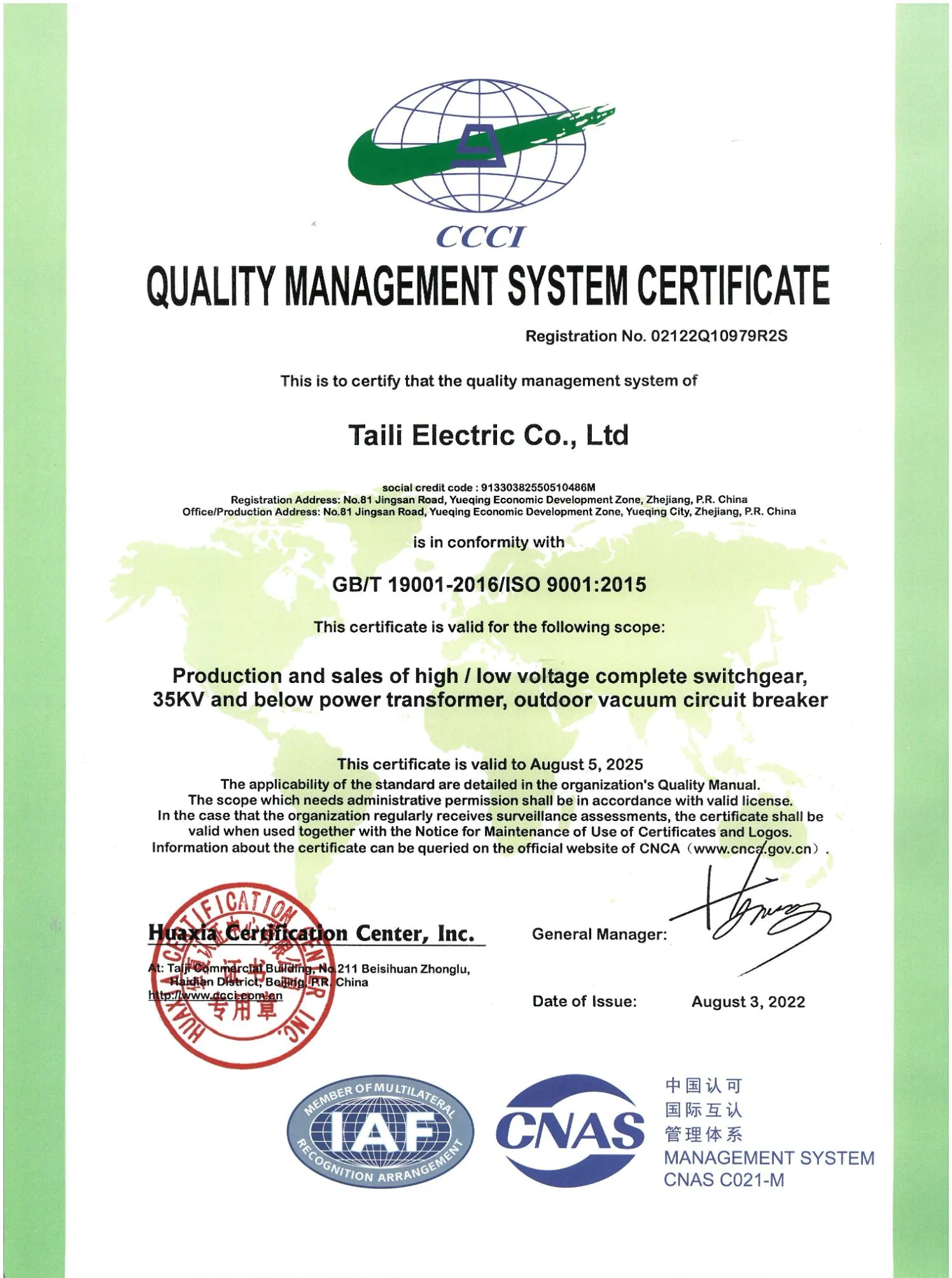

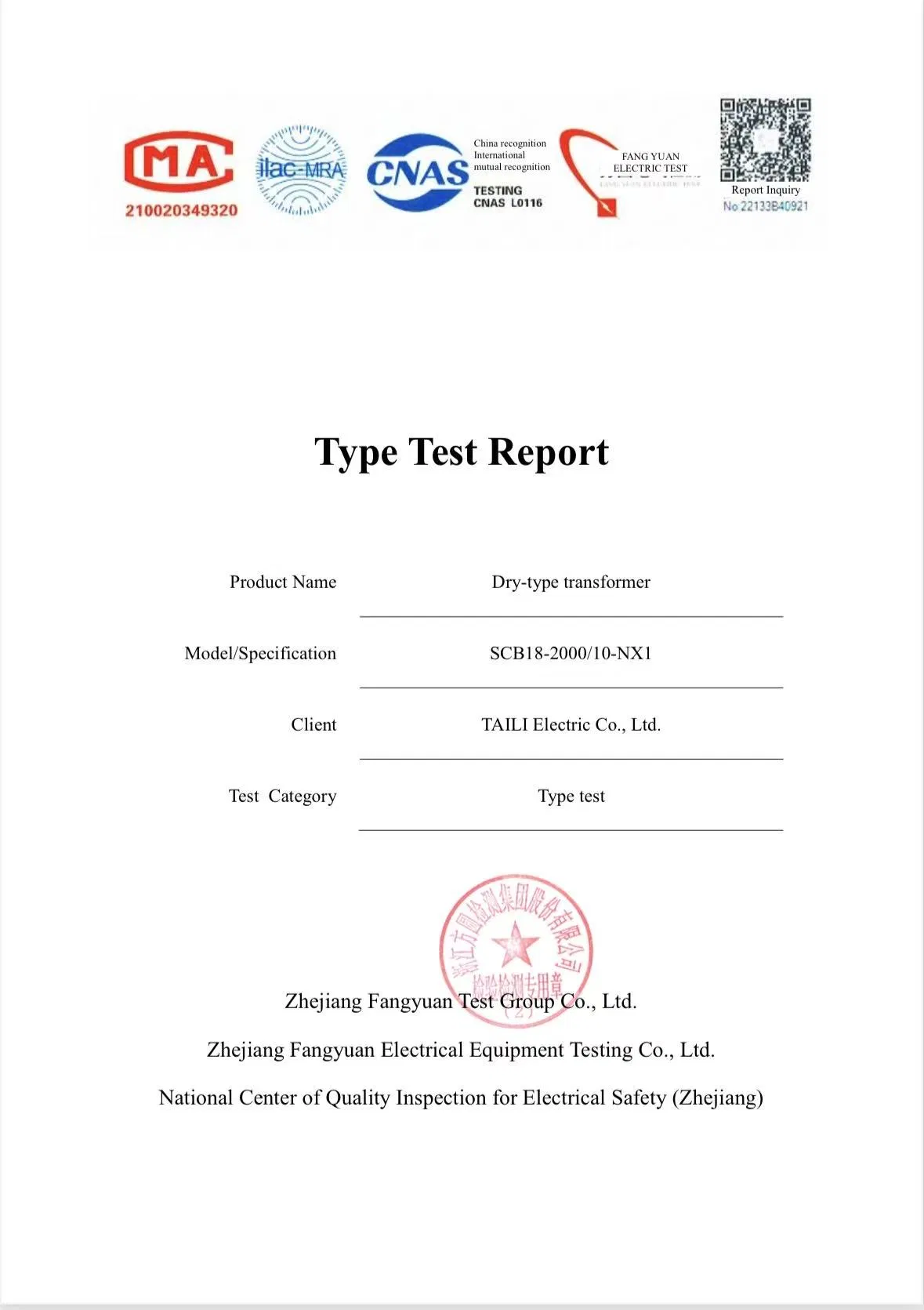

International Certifications

Manufacturing Excellence

With over 35 years of expertise in the power transmission and distribution equipment industry, we specialize in a comprehensive range of products including dry-type transformers, oil-immersed transformers, and compact substations. Our solutions are deployed across power grids, railways, mining, and residential sectors worldwide.

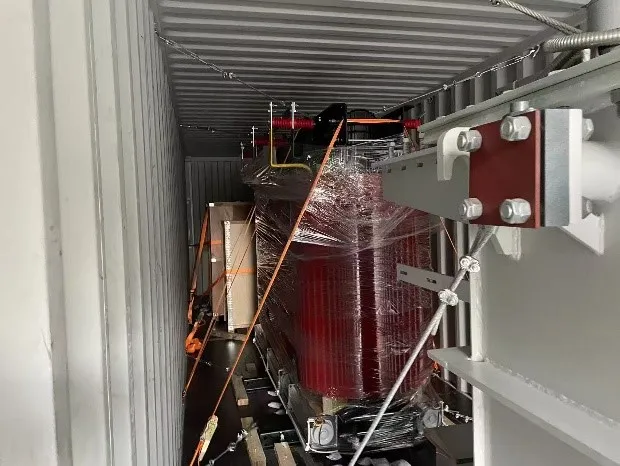

Packaging & Shipping

Standard: Strong plywood cases for maximum protection during transit.

Delivery Time: Usually 15 - 20 days depending on order volume.

Warranty: 12 - 24 months quality guarantee from date of delivery.

Frequently Asked Questions

Q1: Are you a manufacturer or trading company?

We are a dedicated manufacturer specialized in designing and producing customized transformers, switchgears, and power substations according to international standards.

Q2: How do you handle quality control?

All products undergo 100% checking and testing before delivery. We provide inspection videos or reports to customers to ensure full transparency and compliance.

Q3: How soon can I get a quotation?

Standard inquiries are quoted within 1 hour. For customized projects requiring special technical designs, we provide detailed specifications and pricing within 12 hours.

Q4: What is the warranty period for your products?

We offer a 2-3 year quality warranty on our products, provided they are installed and operated under correct conditions.

Q5: Do your products have international certificates?

Yes, our products carry CE, 3C, and CQC certificates. We can also assist in applying for other specific certificates required for your local market.

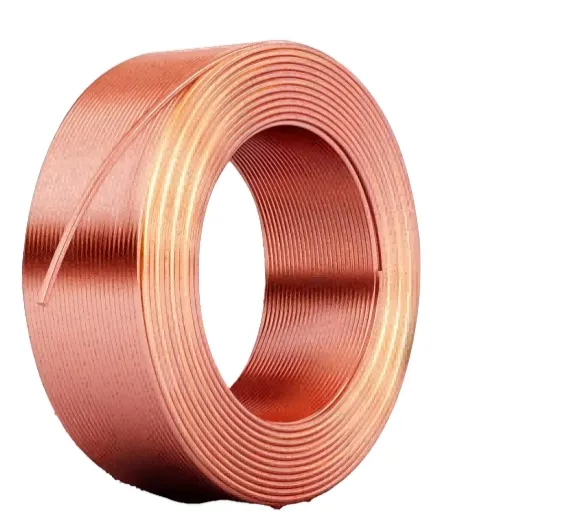

Q6: What materials are used in your transformers?

We offer both copper and aluminum winding options. Copper provides better long-term efficiency and durability, while aluminum offers a more cost-effective solution.
