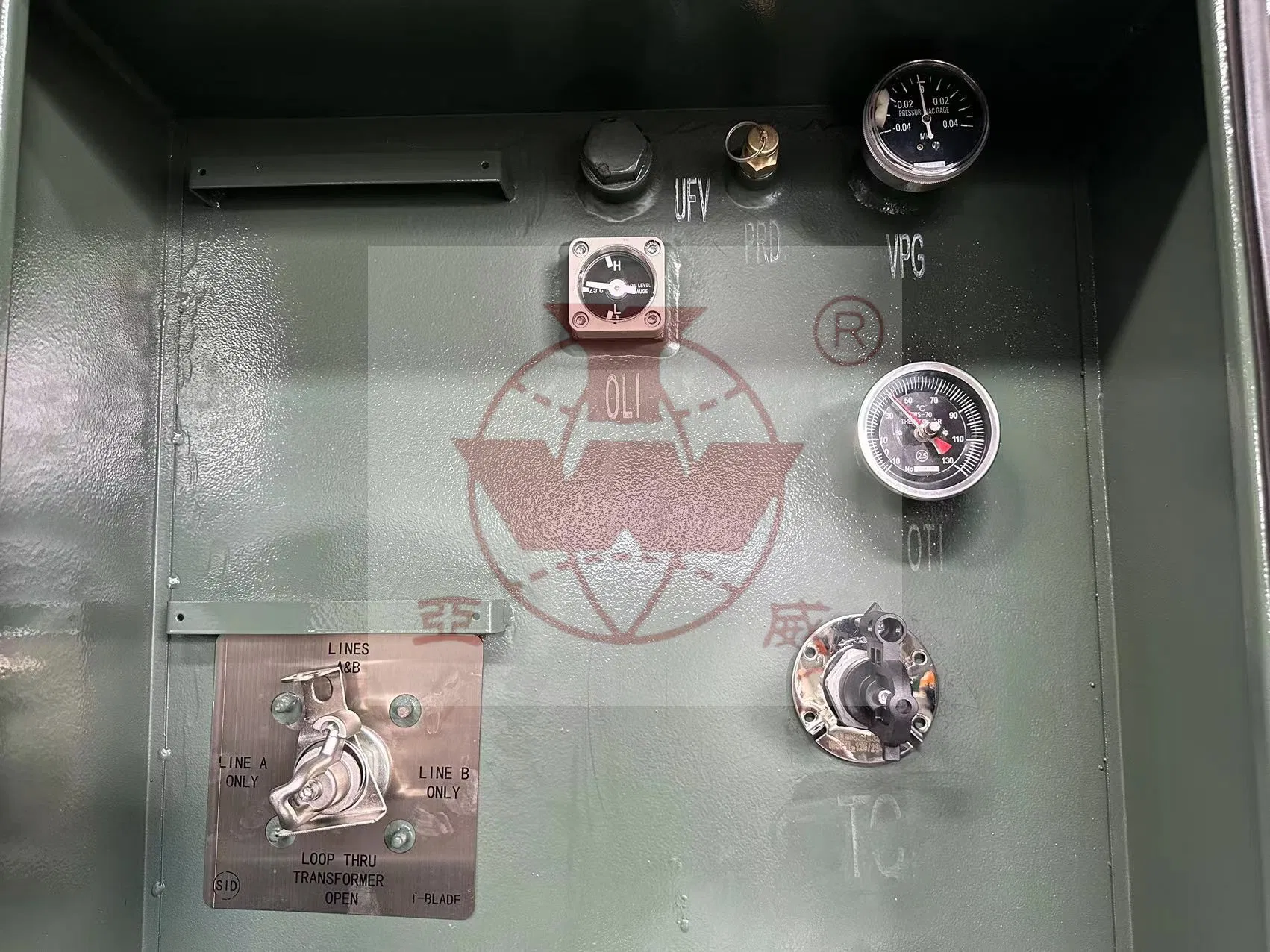

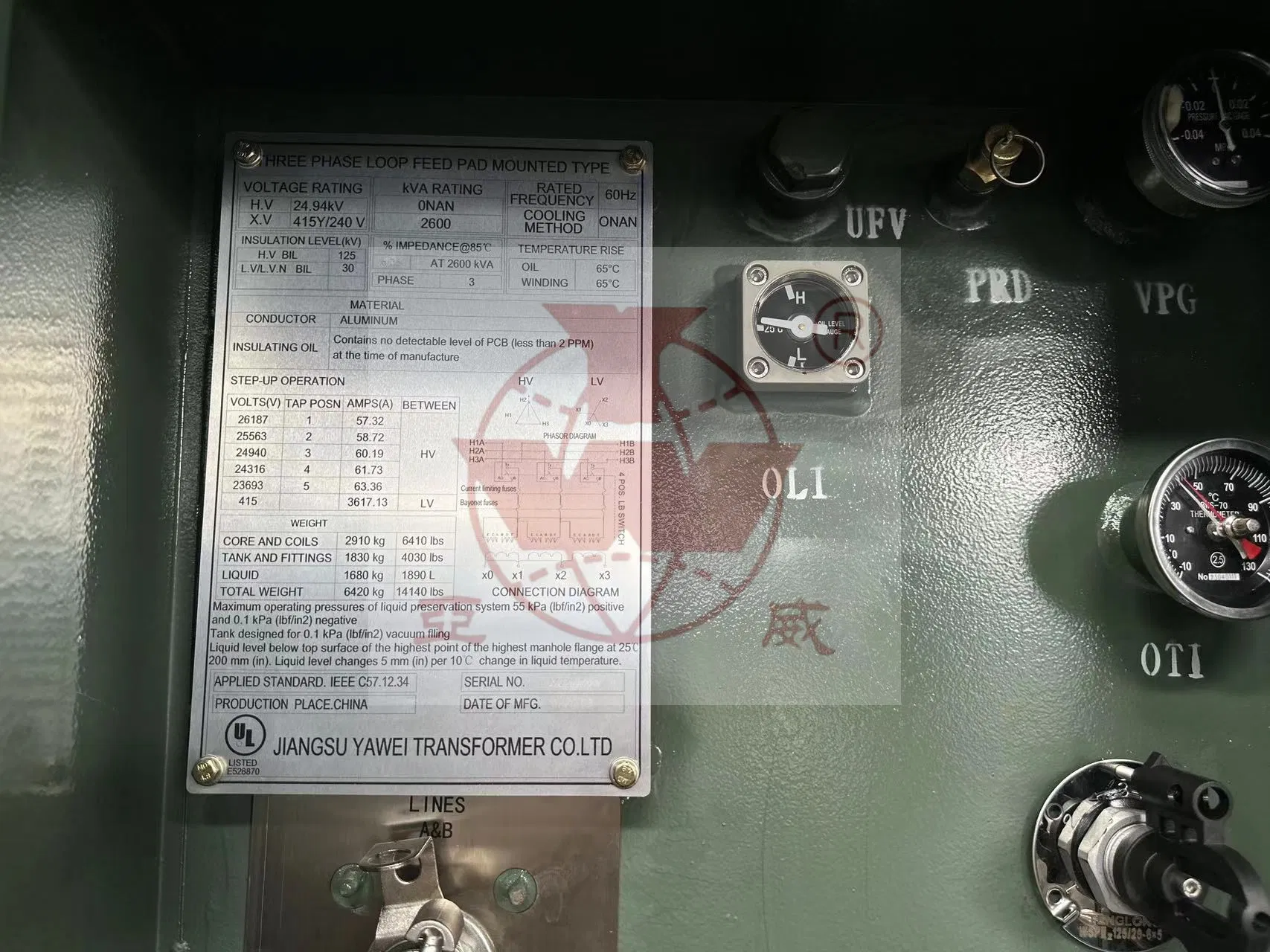

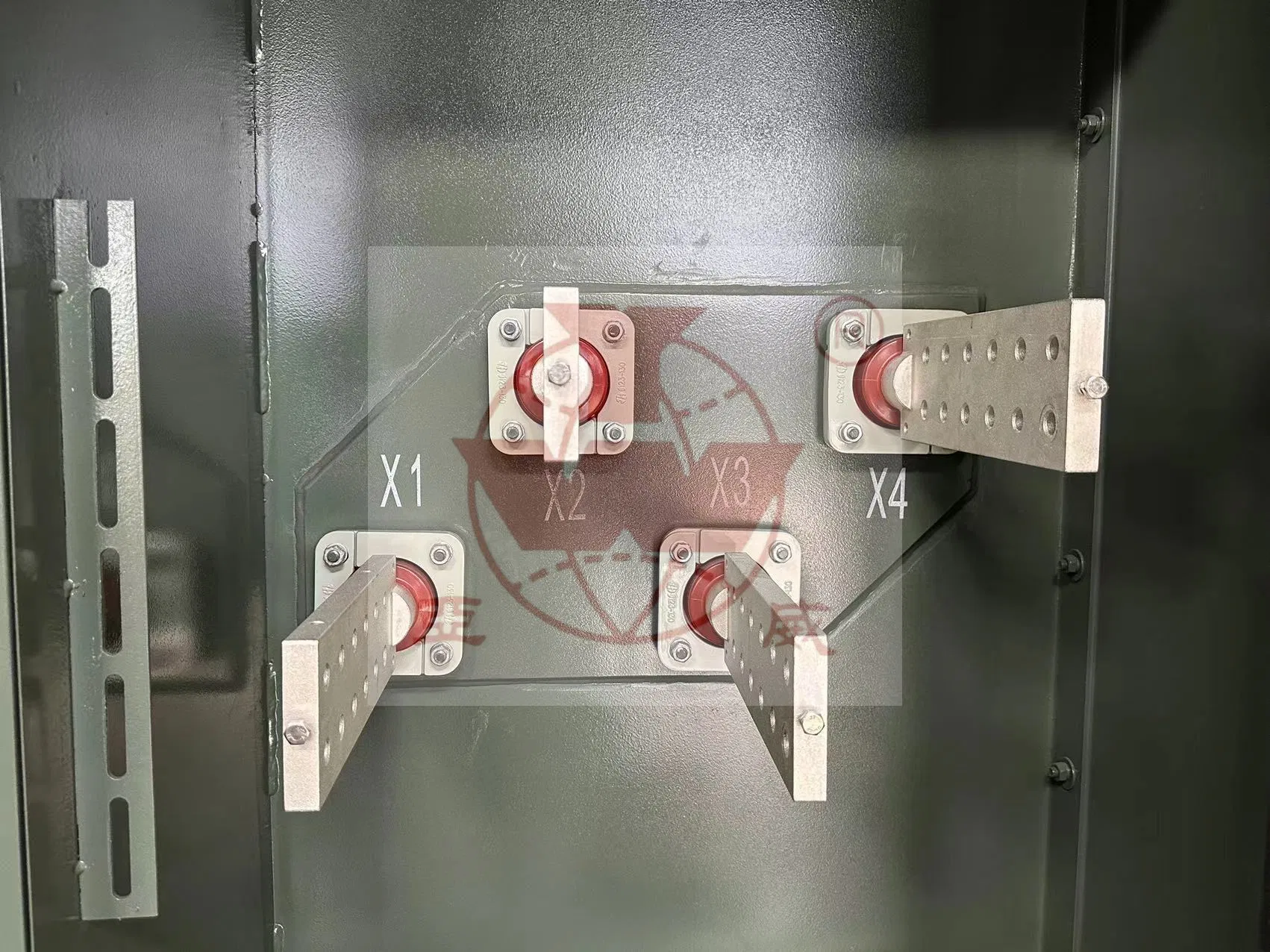

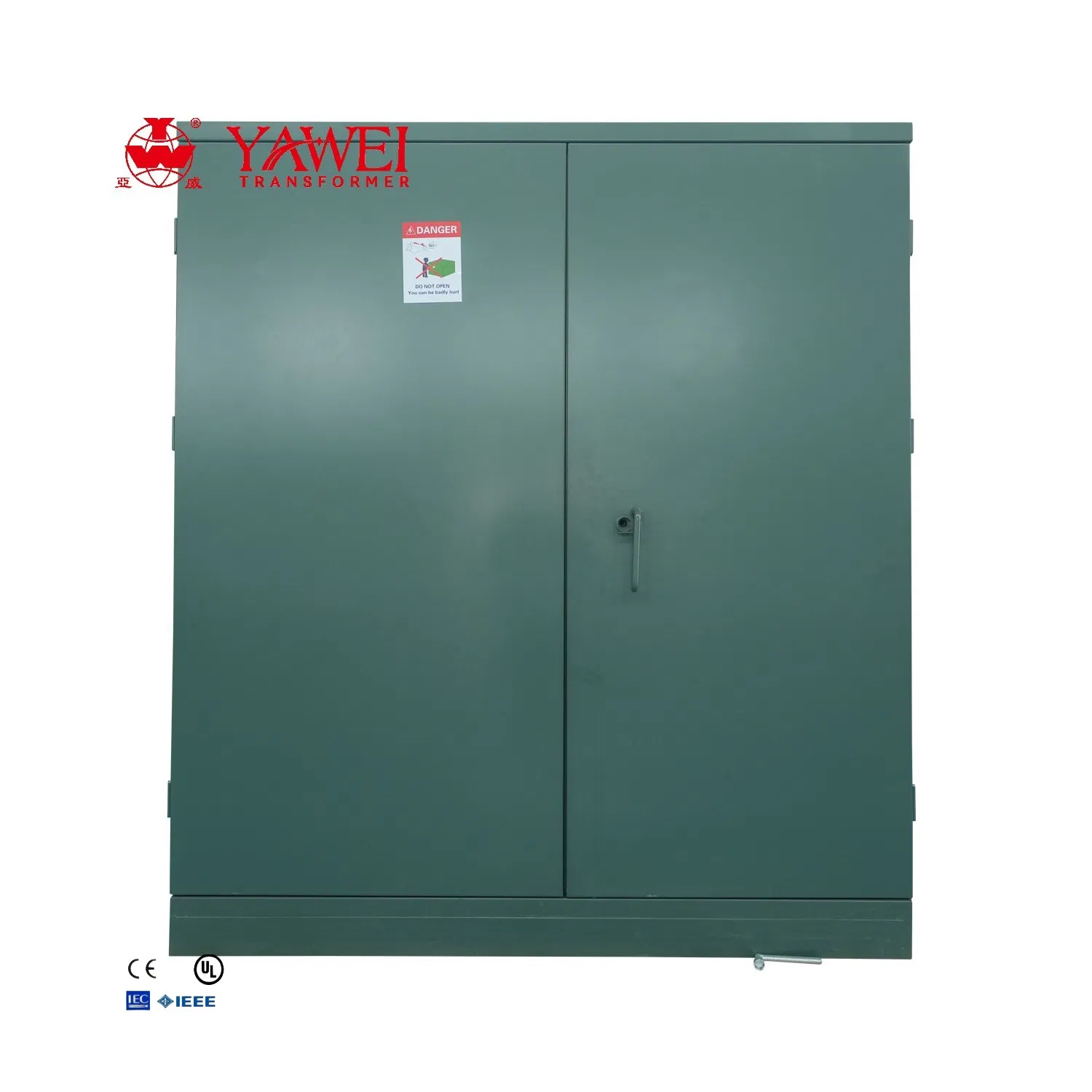

Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL
Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL
Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL
Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL
Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL
1 / 5
Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL
Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL
Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL
Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL
Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL

Yawei 2600kVA 24.94/0.415kv Three-Phase Oil-Immersed Pad Mounted Transformer with UL

Customization: Available
Application: Power
Phase: Three
Send Inquiry

Product Description

Technical Specifications

Model NO.:Z-2600-24.94/0.415(0.24)
Core:Core-type Transformer
Cooling Method:Oil-immersed Type
Winding Type:Two-winding Transformer
Certification:ISO9001, CCC
Usage:Power / Distribution Transformer
Frequency:50Hz/60Hz
Rated Capacity:2600kVA
Winding Material:Copper/Aluminum
Warranty:24 Months
Cooling:ONAN/KNAN
Origin:China

Packaging & Delivery

Package Size:2000cm * 2000cm * 2000cm
Gross Weight:1000.00kg
Packing Method:Wooden Case
Production Capacity:500 Sets Per Month

Product Description

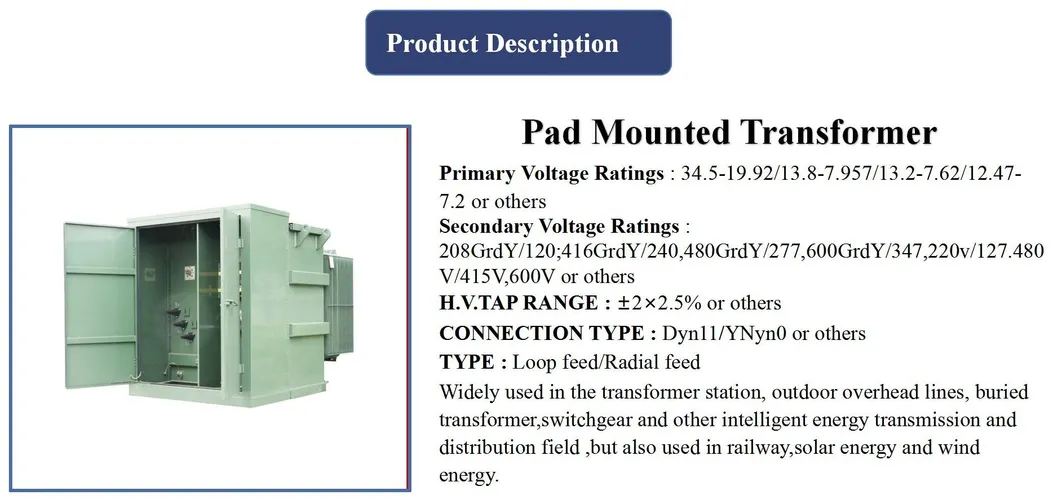

Pad Mounted Transformer

ZGS11-H(Z) Combined Transformer Overview

The ZGS11 series combined transformer is an innovative power distribution equipment designed with a compact volume and a reasonable structure. It is specifically optimized for urban load centers to reduce energy consumption and significantly enhance power supply quality. These products are widely implemented in residential communities, public facilities, and industrial mining enterprises.

Core Features

  • Safety Guaranteed: Fully sealed and insulated structure ensures maximum safety for personnel.
  • Versatile Application: Suitable for both ring network and terminal systems.
  • High Performance: Engineered for low loss, minimal noise, and superior operational stability.
  • Thermal Efficiency: Features low operating temperature and excellent overload capability.
  • Premium Build: Utilizes a special structure focused on long-term quality and reliability.

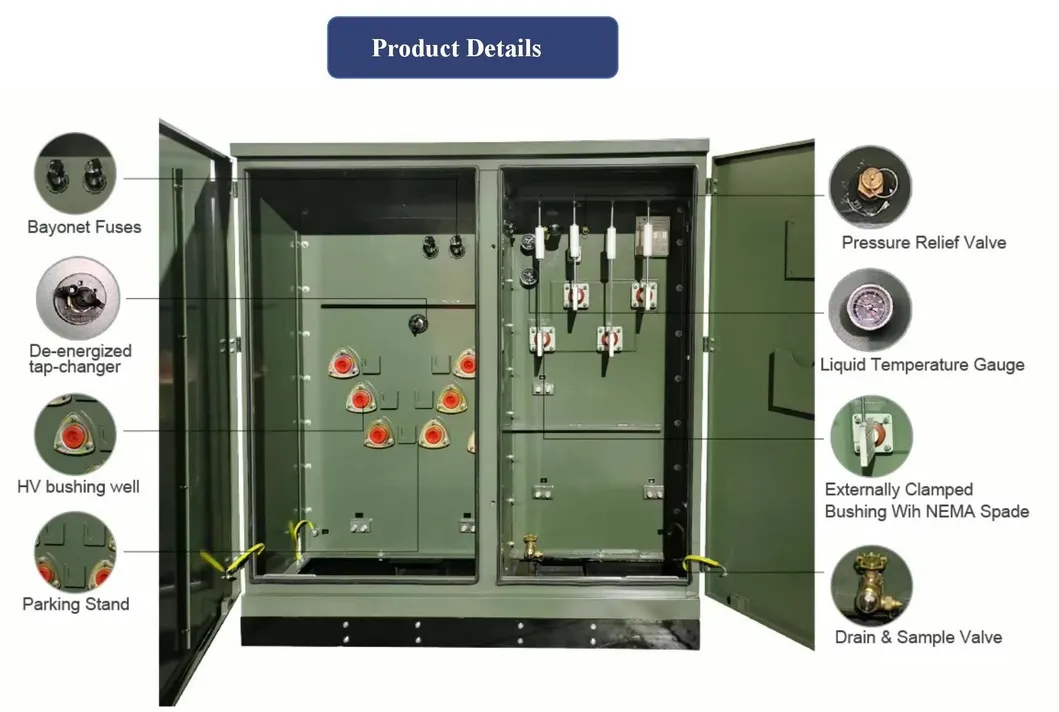

Transformer Details Transformer Side View
Rated Power (KVA) High Voltage (KV) Low Voltage (V) No-load Loss (W) On-load Loss (W)
75KVA34.5KV / 13.8KV / 12.47KV or others240V / 480V / 600V1801250
150KVA2802200
300KVA4803650
500KVA6805100
1000KVA34.5KV etc.Up to 600V115010300
2000KVA34.5KV etc.Up to 600V216020645
3000KVA34.5KV etc.Up to 600V330030300

Manufacturing & Production

Manufacturing
Production Line 1 Production Line 2 Component Check
Equipment Quality Control
Testing Area Final Assembly

Frequently Asked Questions

Q1: What are the primary applications for the ZGS11 series transformer? A1: It is ideal for urban load centers, residential communities, public spaces, and industrial sites where space is limited and high power quality is required.
Q2: Is the pad-mounted transformer safe for public areas? A2: Yes, it features a fully sealed and insulated structure designed to guarantee the safety of people in public environments.
Q3: What are the main benefits of oil-immersed cooling (ONAN/KNAN)? A3: Oil-immersion provides efficient heat dissipation, ensures a low operating temperature, and enhances the transformer's ability to handle overloads.
Q4: What winding materials are available? A4: We offer both high-quality Copper and Aluminum winding options based on technical requirements and project specifications.
Q5: What is the standard warranty period for this equipment? A5: The transformer comes with a 24-month warranty, covering performance and manufacturing quality.
Q6: Can this transformer be used in ring network systems? A6: Yes, it is versatile and designed for use in both ring network and terminal power distribution configurations.
