Tanaka Electric
Tanaka Electric
Your Reliable Partner For Electrical Equipment!
Designed for environmental friendliness and operational safety.
Optimized for energy-saving performance.
Reliable operation with low noise levels.
Custom configurations (Voltage, Capacity, Connection Groups, Protection Levels) are available upon request.

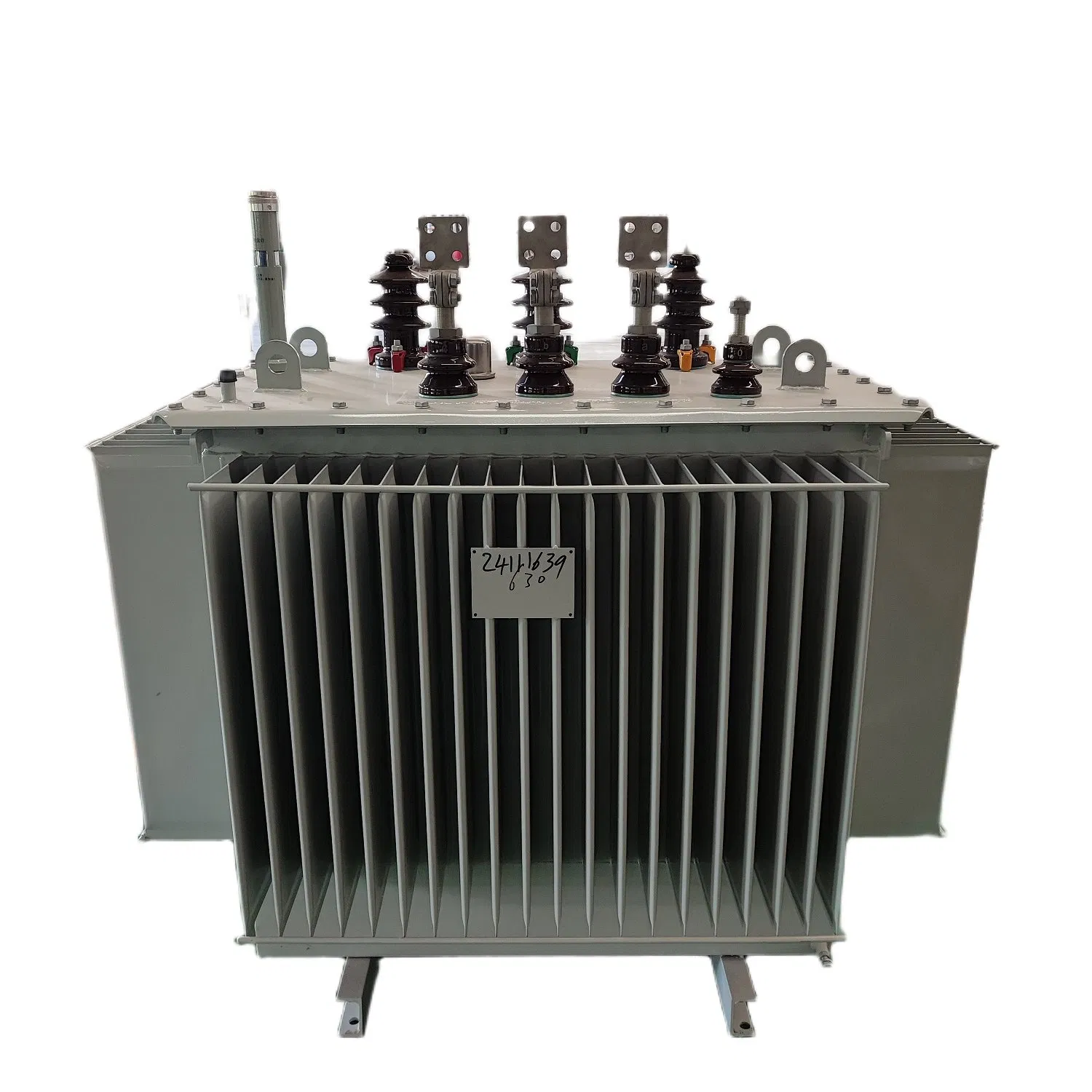

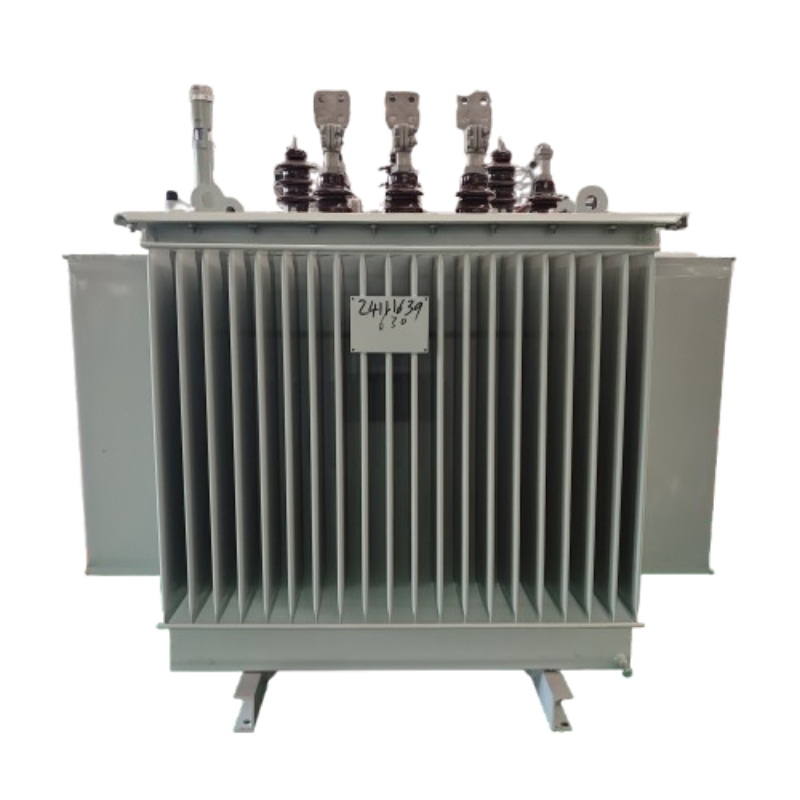

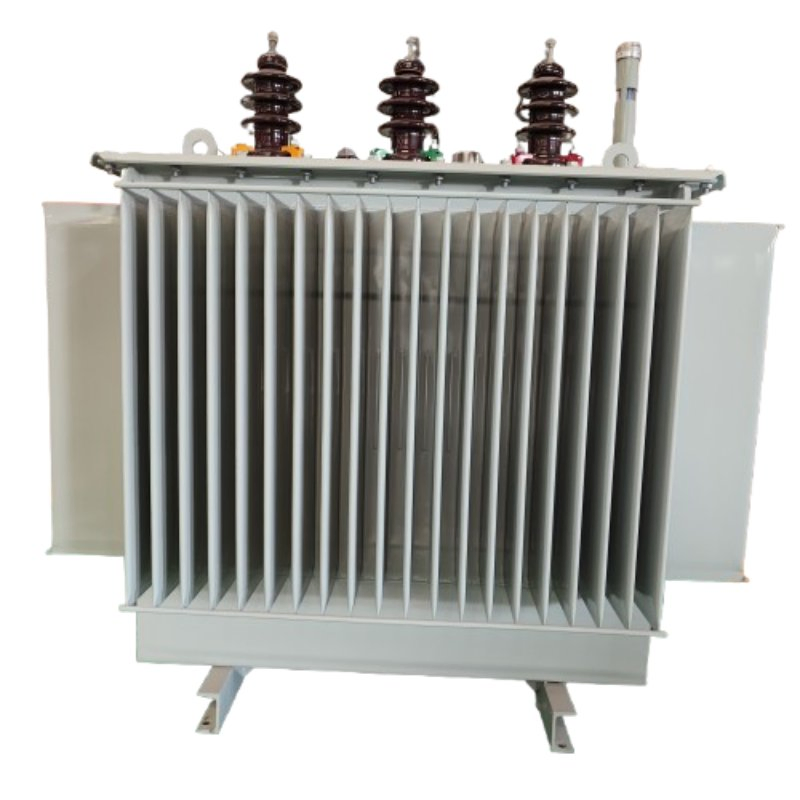

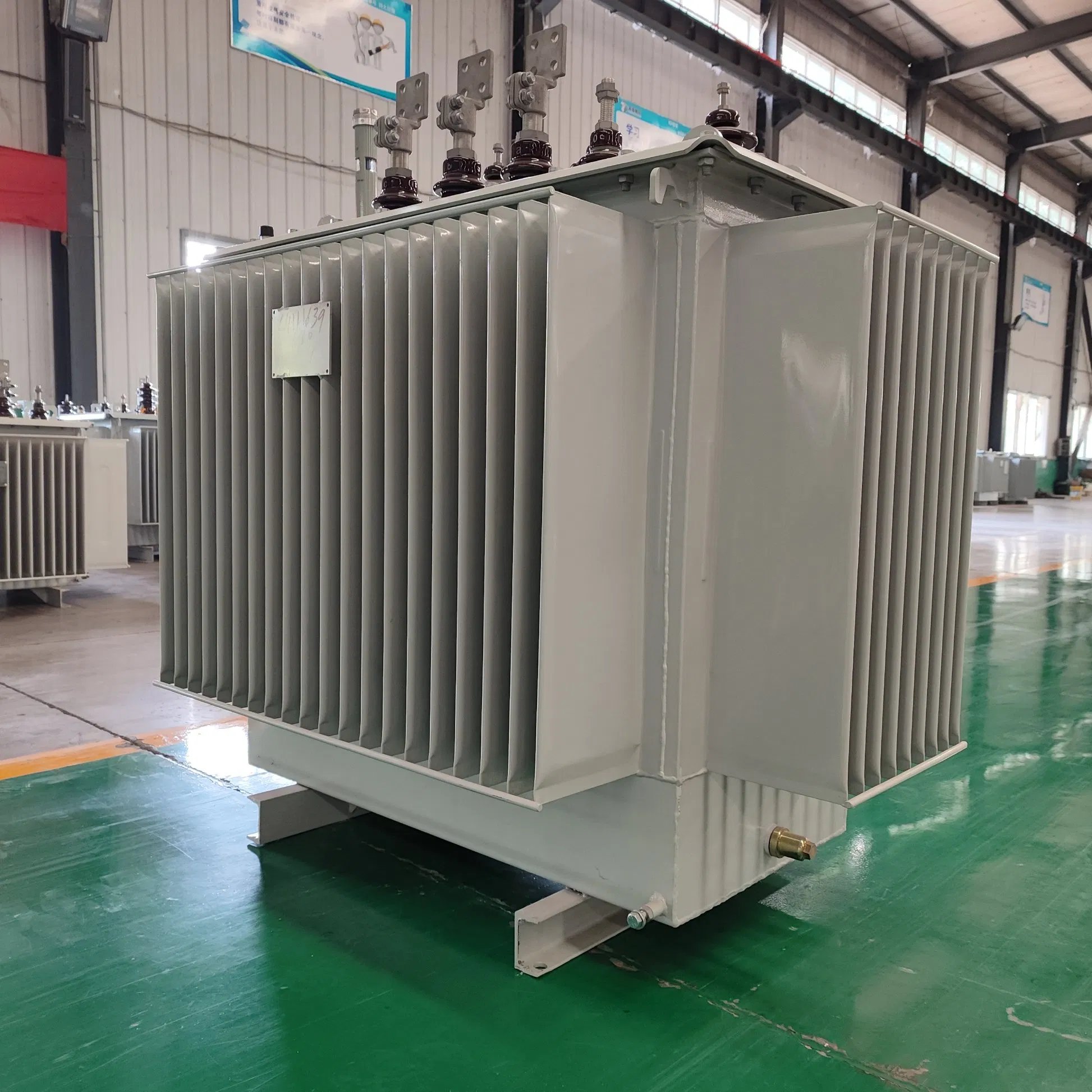

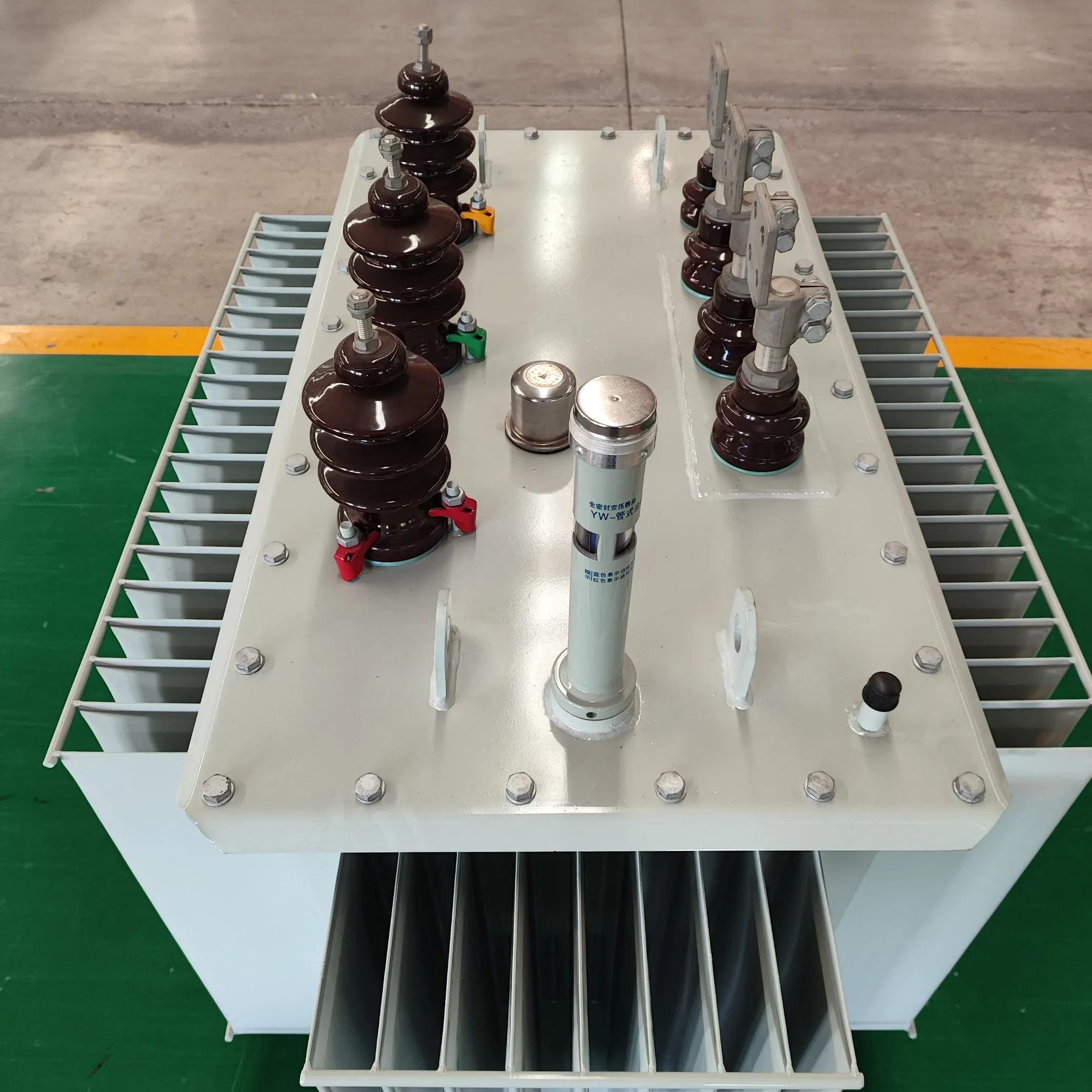

| S11 Type Oil-Immersed Distribution Transformer Parameters | |||||||
|---|---|---|---|---|---|---|---|
| Rated Power (kVA) | High Voltage (V) | Low Voltage (V) | Connection Symbol | No-load Loss (W) | On-load Loss (W) | No-load Current (%) | Impedance (%) |
| 30 | 6, 6.3, 10, 10.5, 11 | 0.4 | Yyn0 / Dyn11 | 100 | 630/600 | 2.1 | 4.0 |
| 100 | 200 | 1580/1500 | 1.6 | 4.0 | |||
| 250 | 400 | 3200/3050 | 1.2 | 4.0 | |||
| 630 | 810 | 6200 | 0.9 | 4.5 | |||
| 1250 | 1360 | 12000 | 0.6 | 4.5 | |||
| 2500 | 2500 | 21000 | 0.32 | 4.5 | |||
Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Training: Comprehensive on-site or remote maintenance training.

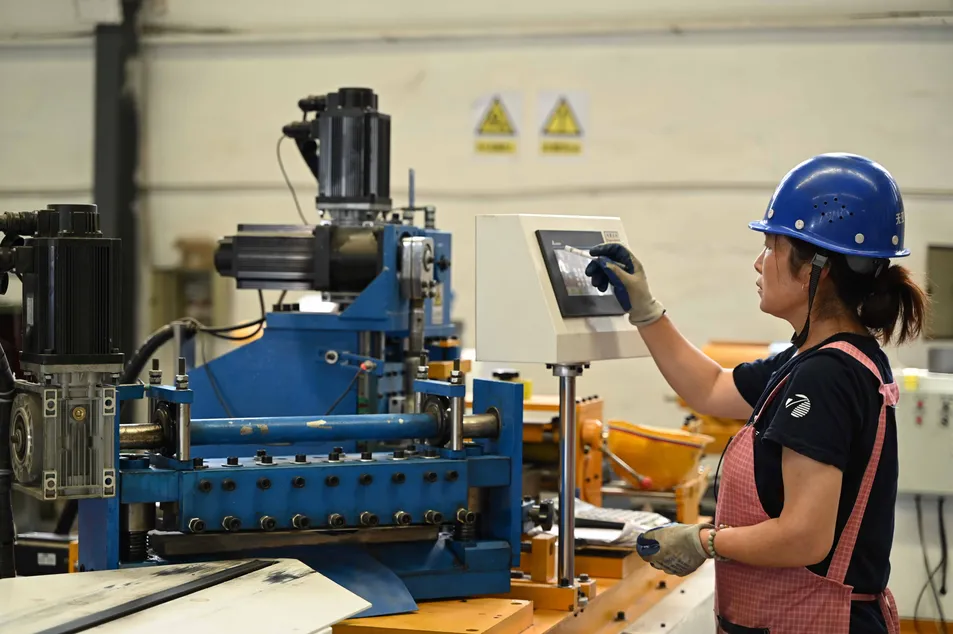

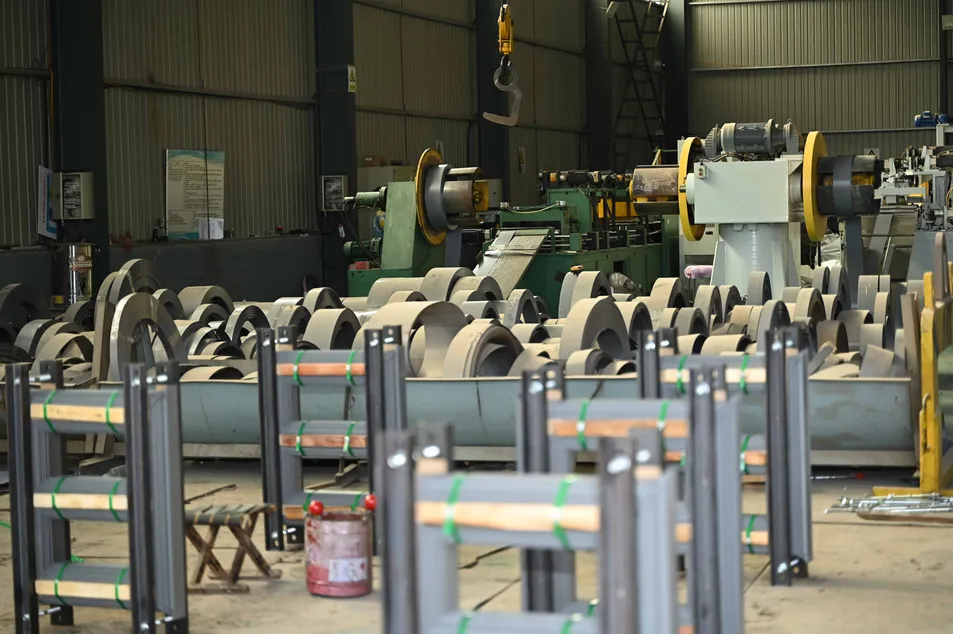

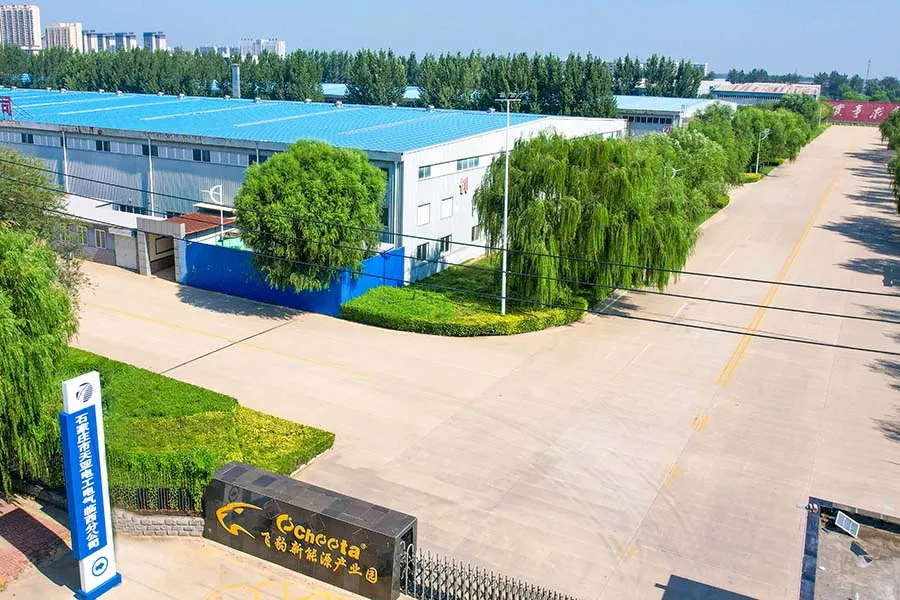

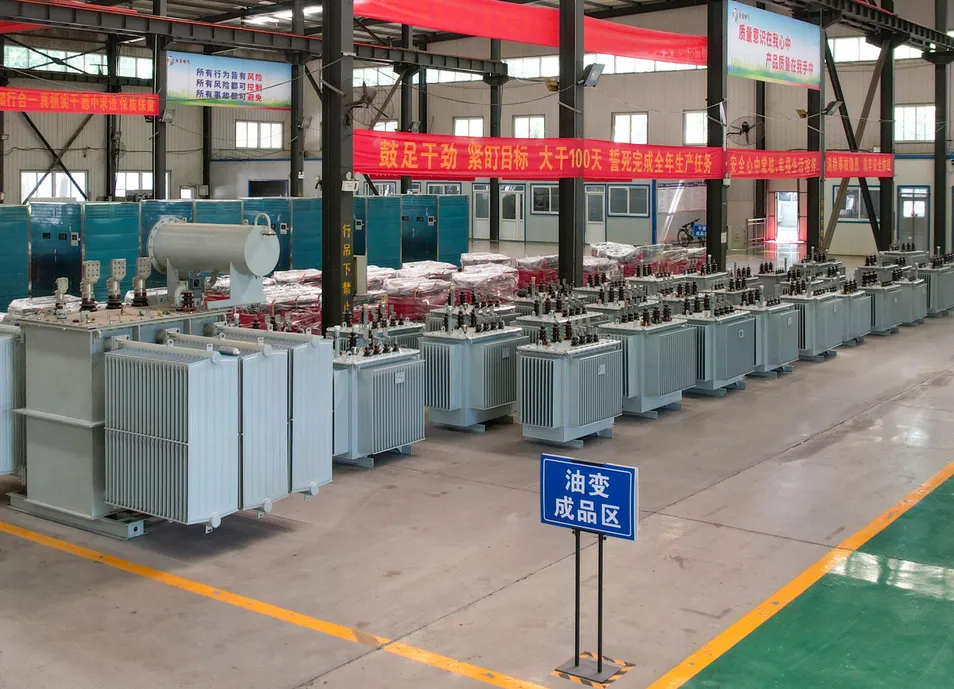

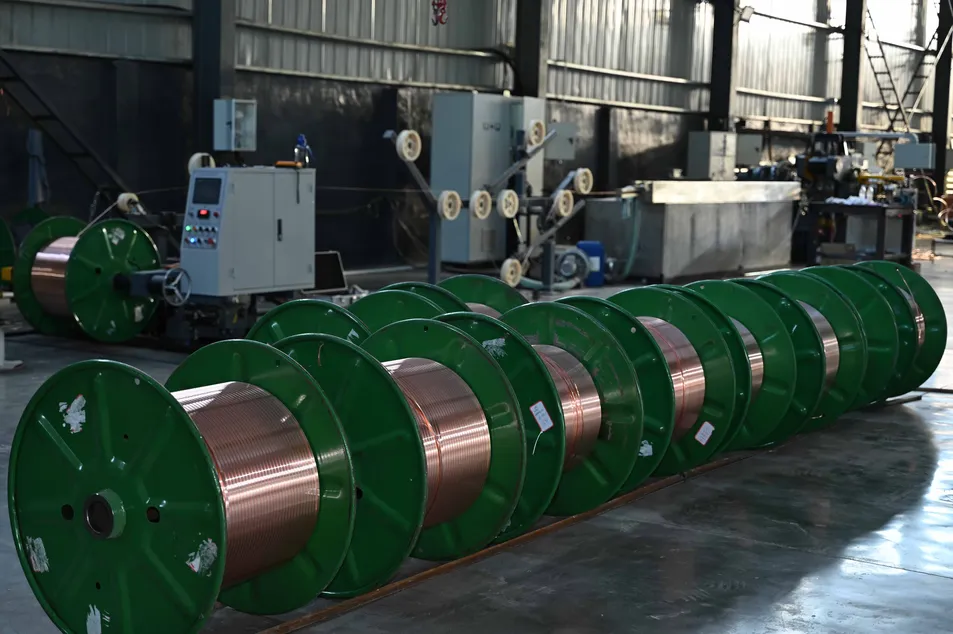

Dedicated to manufacturing transmission and distribution equipment since 2007, we operate two major production bases spanning 7,000 square meters. Our facilities are certified under ISO9001 (Quality), ISO14001 (Environment), and ISO45001 (Health & Safety) management systems.
