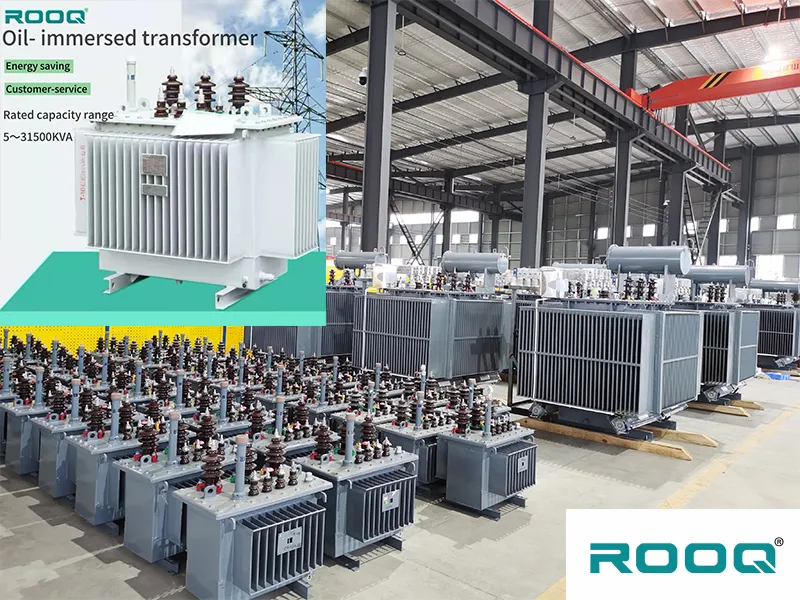

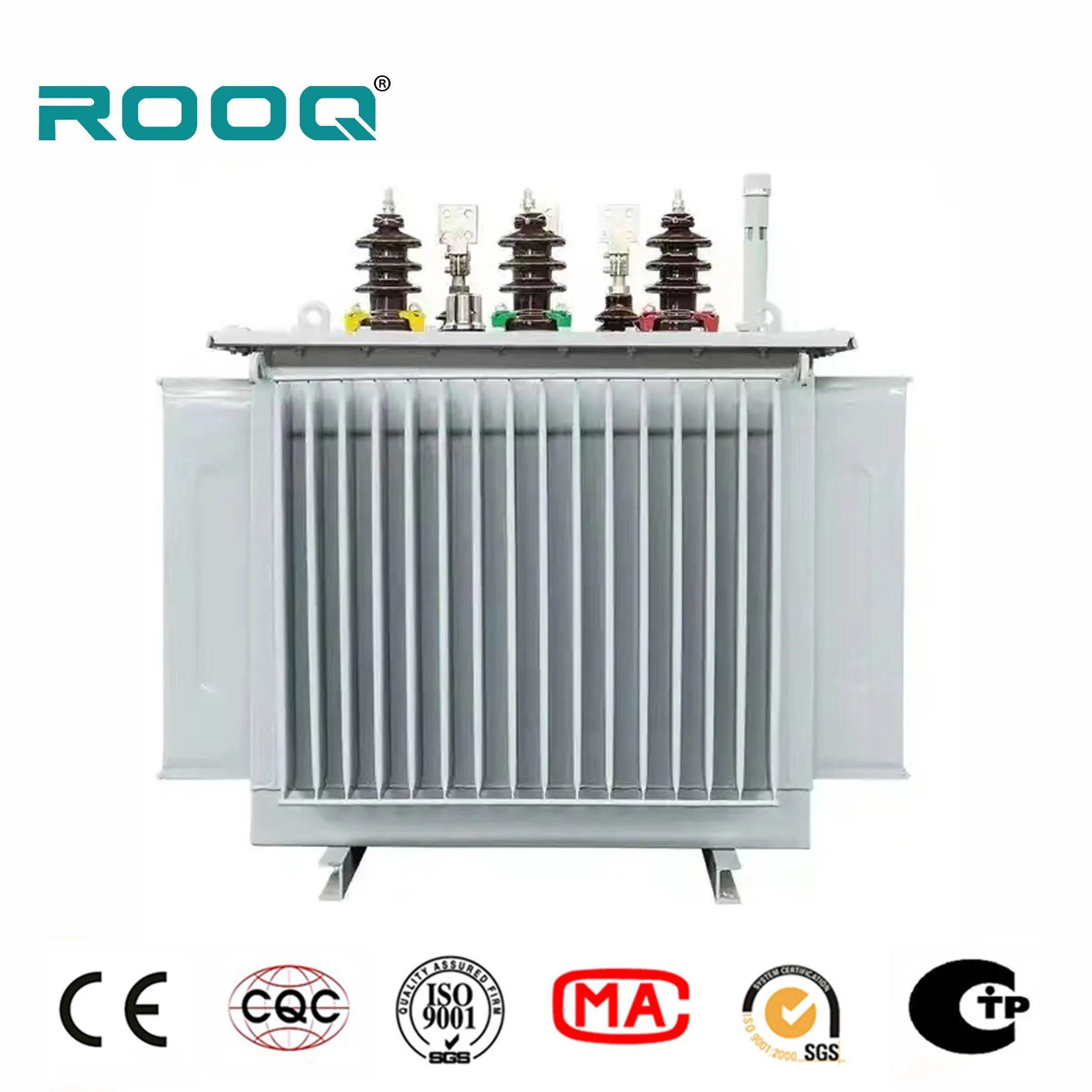

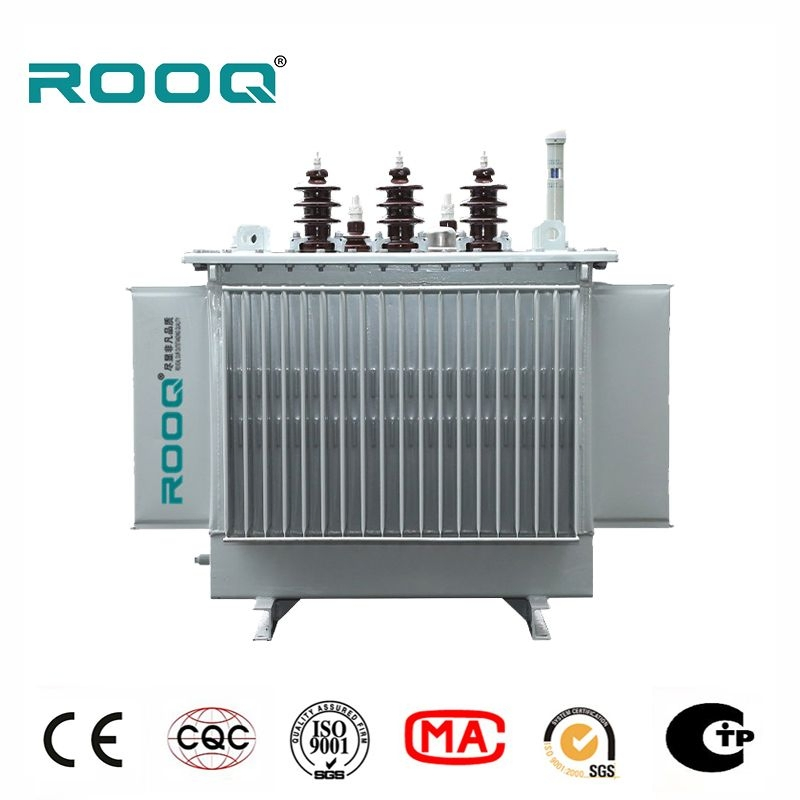

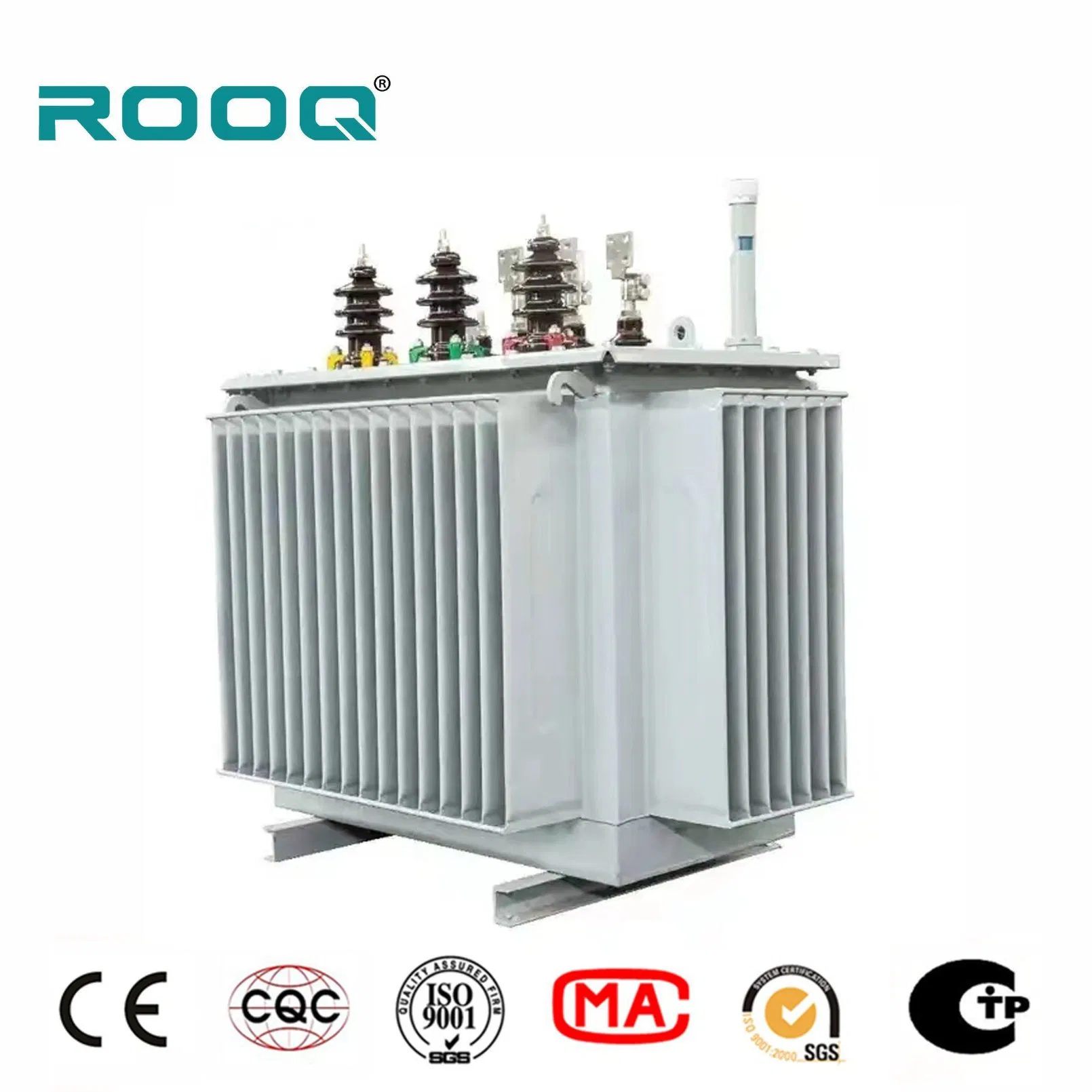

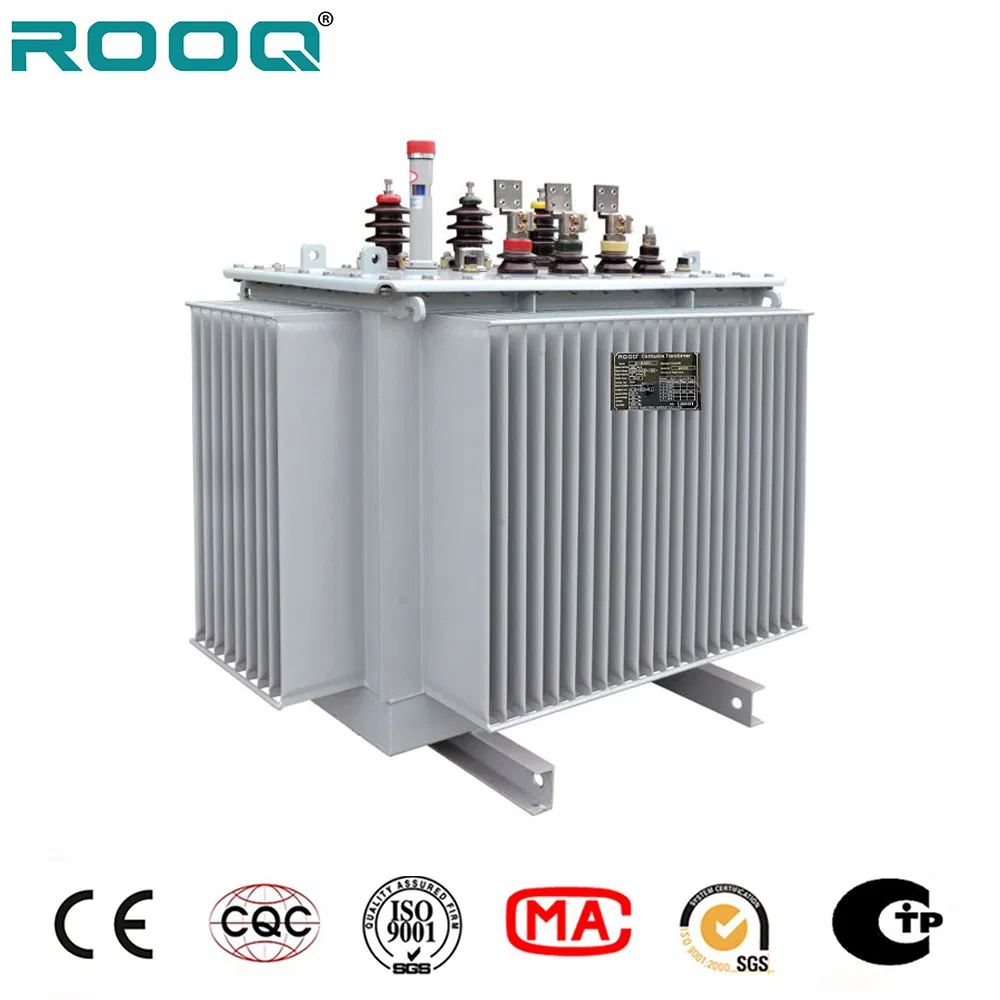

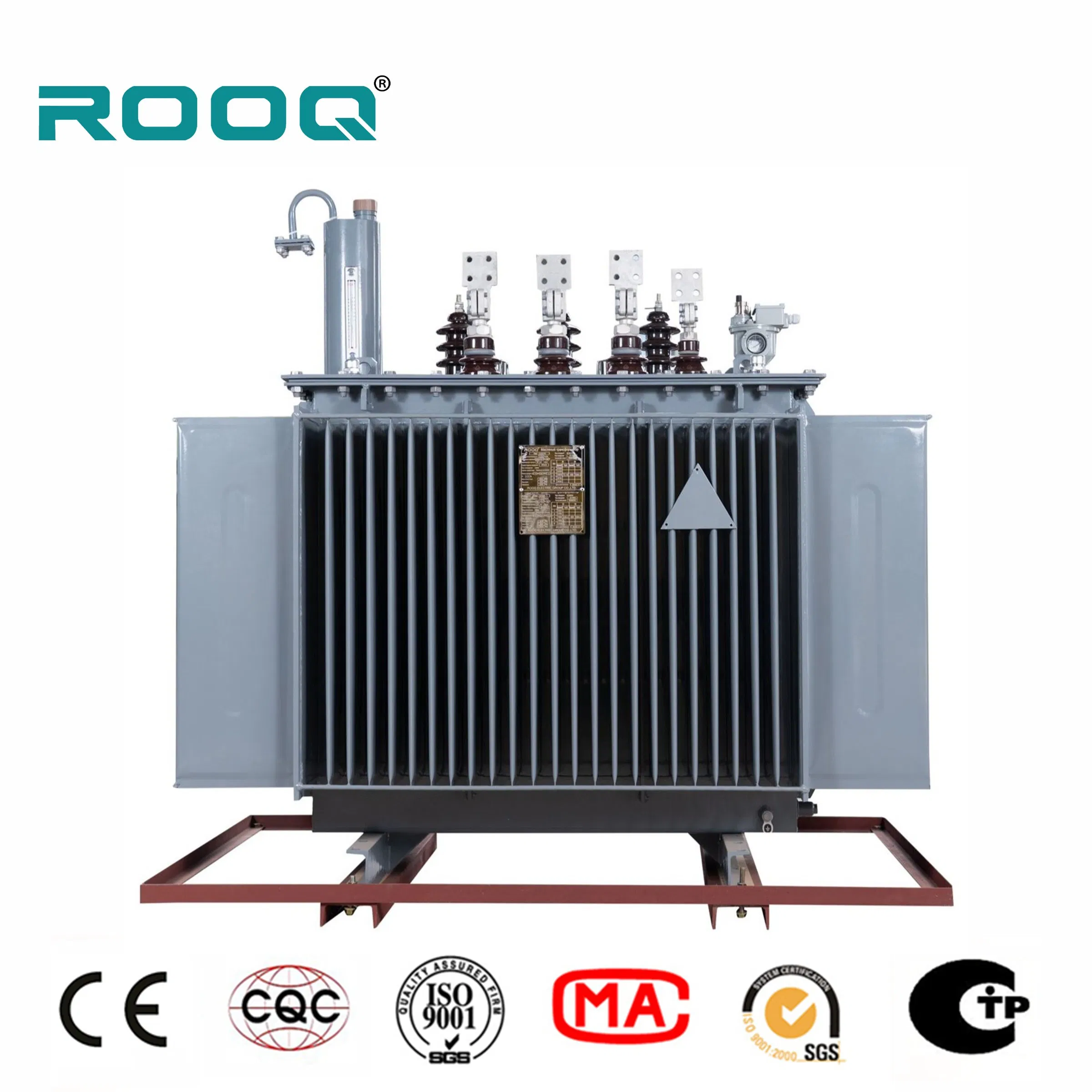

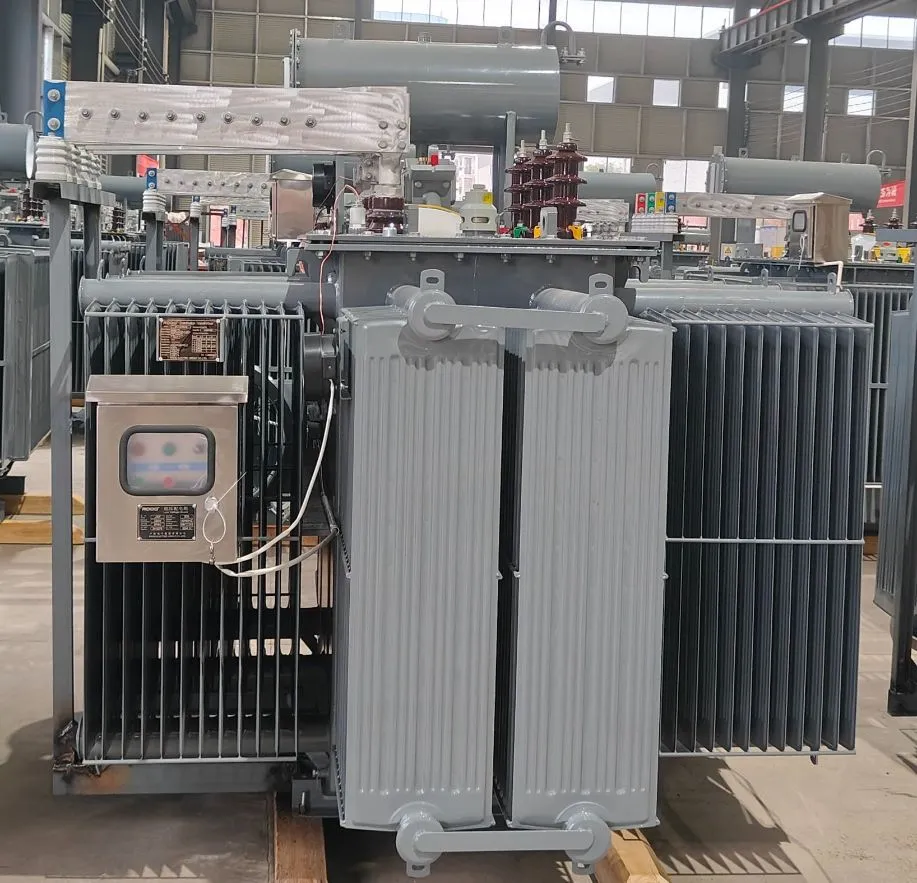

Our technology-oriented enterprise specializes in the R&D, production, and service of high-quality power distribution transformers. The 33kV series three-phase oil-filled distribution transformers are energy-saving solutions, available in S9, S11, and S13 series (with off-load tap changer OCTC) and SZ9, SZ11, and SZ13 series (with on-load tap changer OLTC).

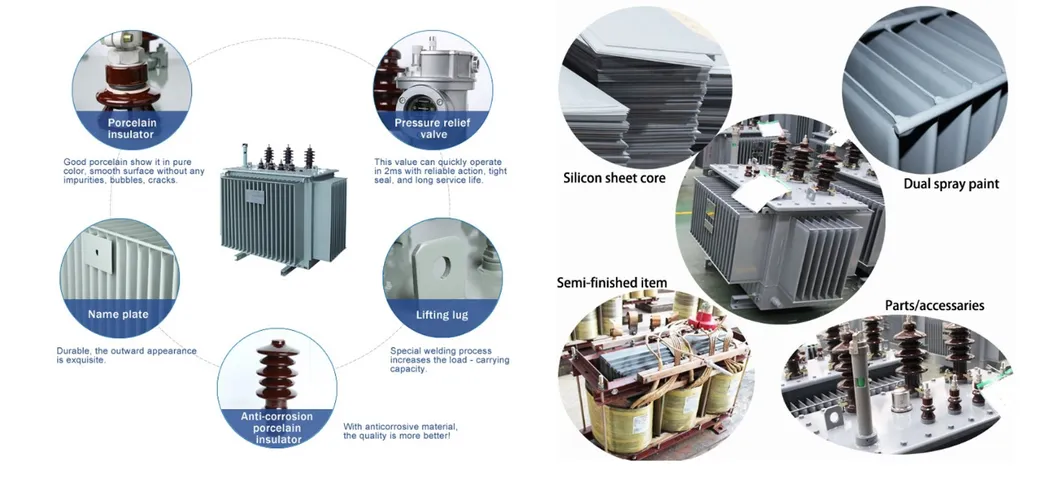

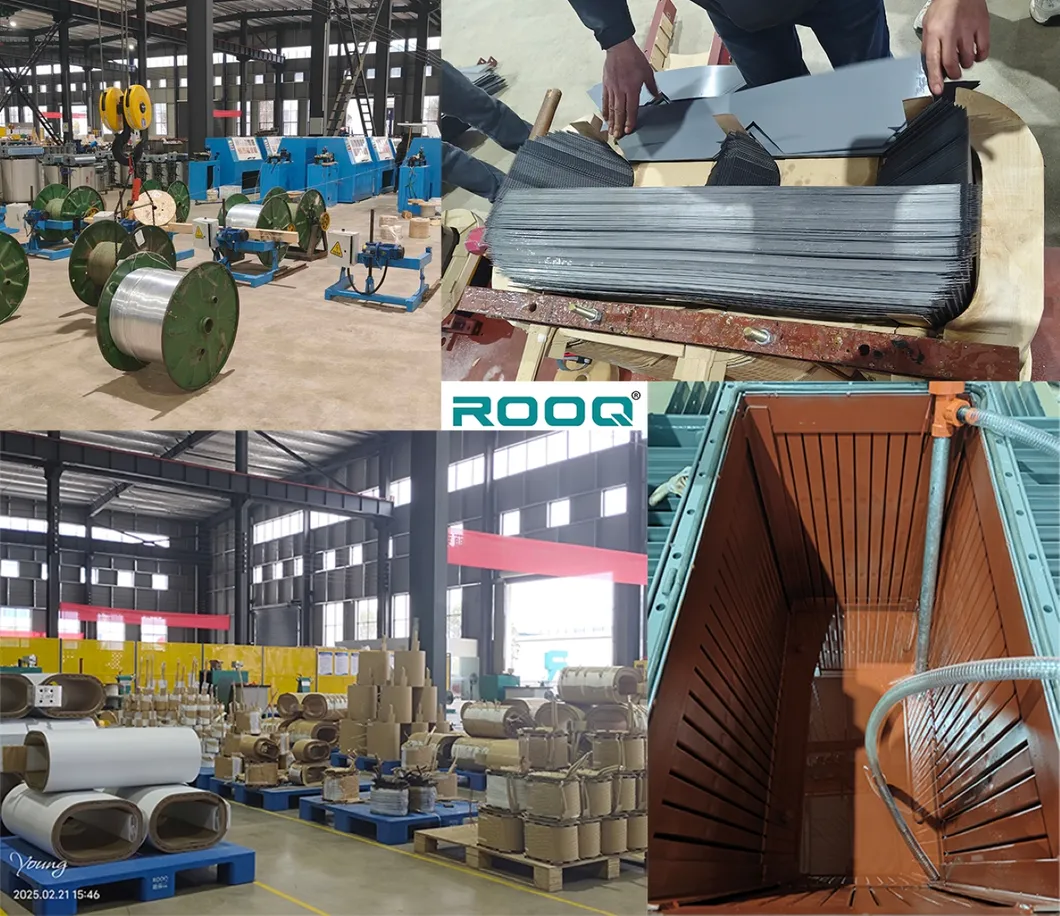

1. Oxygen-free copper wire: Lower resistivity and smoother surface treatment for reduced load loss.
2. Silicon steel sheets: High-grade sheets with lower unit loss to minimize no-load loss.
3. Wood insulation: High-quality laminated wood components that resist cracking under short-circuit stress.
4. Filtered Oil: Deep-filtered transformer oil with minimal impurities for reliable operation.
5. Sealing: High-quality rubber materials to prevent aging and eliminate leakage.
| Capacity (kVA) | H.V. (kV) | Tapping Range | L.V. (kV) | Vector Group | Load Loss (kW) | No-load Loss (kW) | Total Weight (kg) |
|---|---|---|---|---|---|---|---|
| 100 | 6/10/11 | ±5% or ±2*2.5% | 0.4 | Dyn11/Yyn0 | 1.58 | 0.29 | 490 |
| 250 | 6/10/11 | ±5% or ±2*2.5% | 0.4 | Dyn11/Yyn0 | 3.20 | 0.56 | 940 |
| 500 | 6/10/11 | ±5% or ±2*2.5% | 0.4 | Dyn11/Yyn0 | 5.41 | 0.96 | 1460 |
| 1000 | 6/10/11 | ±5% or ±2*2.5% | 0.4 | Dyn11/Yyn0 | 10.30 | 1.70 | 2430 |
| 1250 | 6/10/11 | ±5% or ±2*2.5% | 0.4 | Dyn11/Yyn0 | 12.00 | 1.95 | 2850 |
| 2500 | 6/10/11 | ±5% or ±2*2.5% | 0.4 | Dyn11/Yyn0 | 20.26 | 2.30 | 6300 |

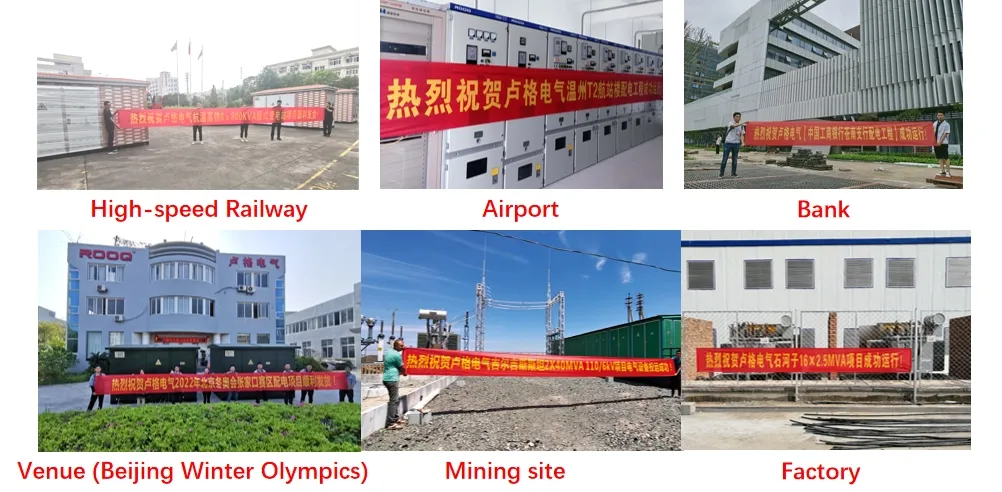

Fields of Application: Power stations, compact transformer stations, industrial factories, mines, hospitals, airports, chemical plants, and nuclear power plants.
