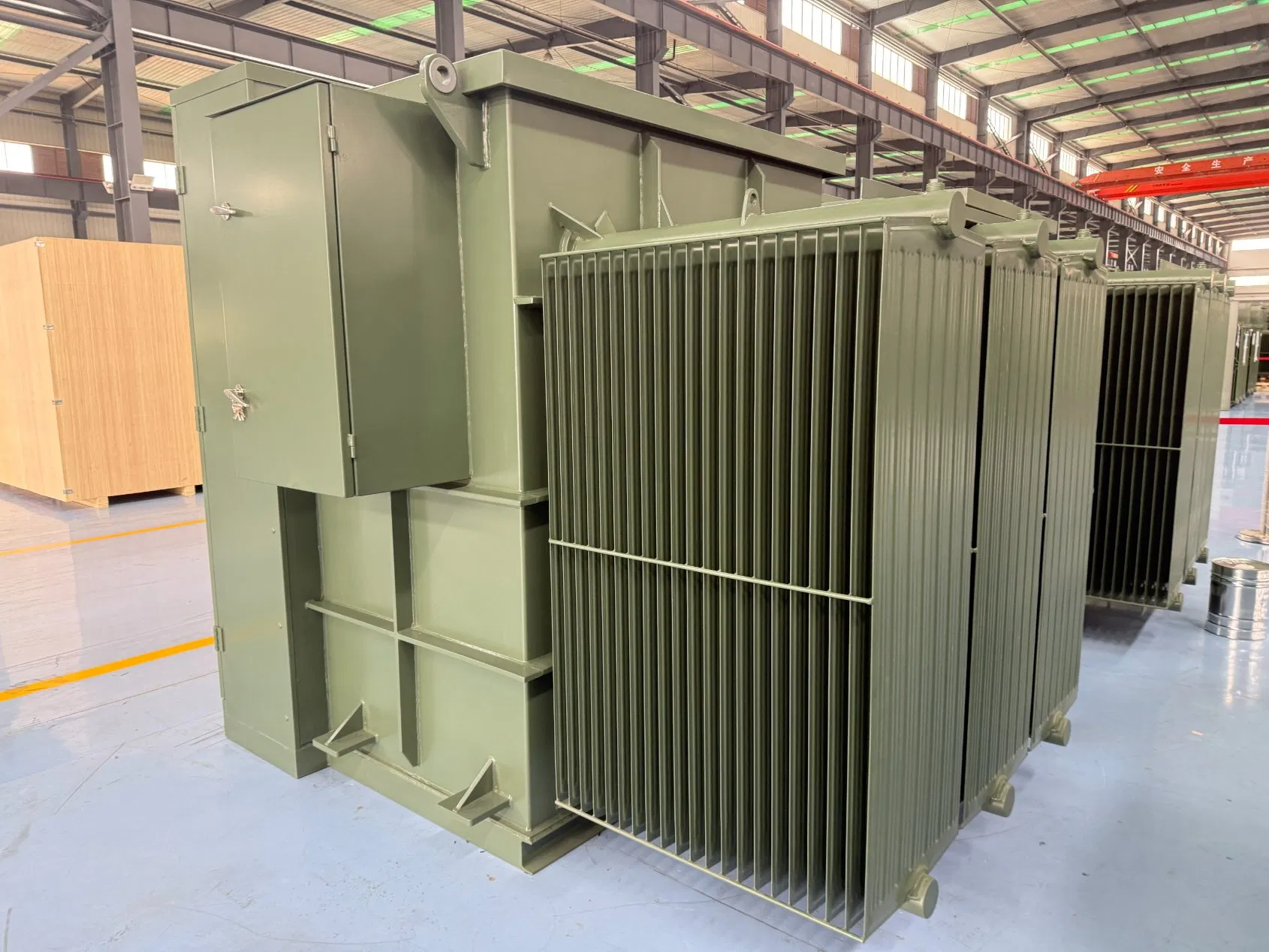

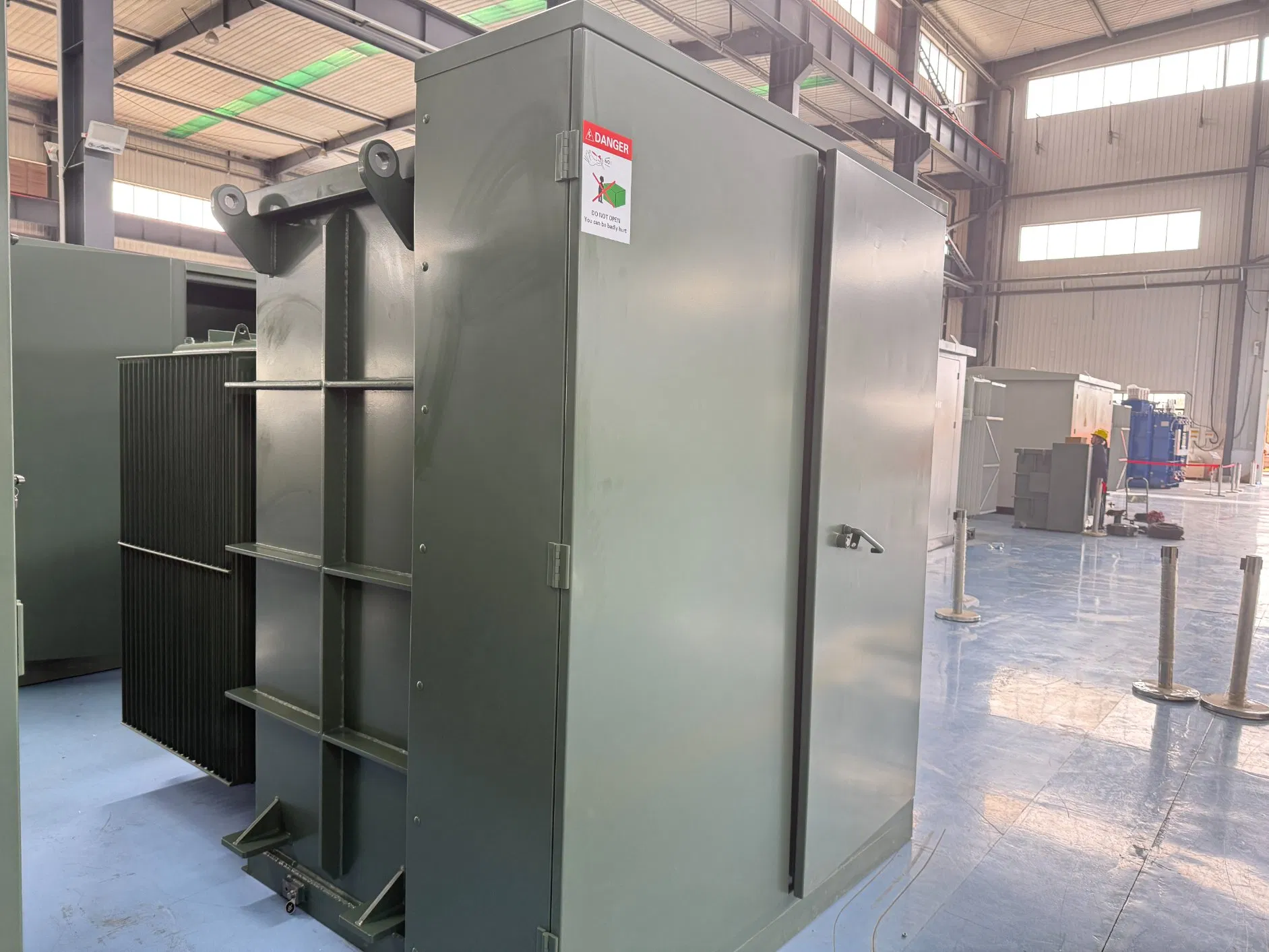

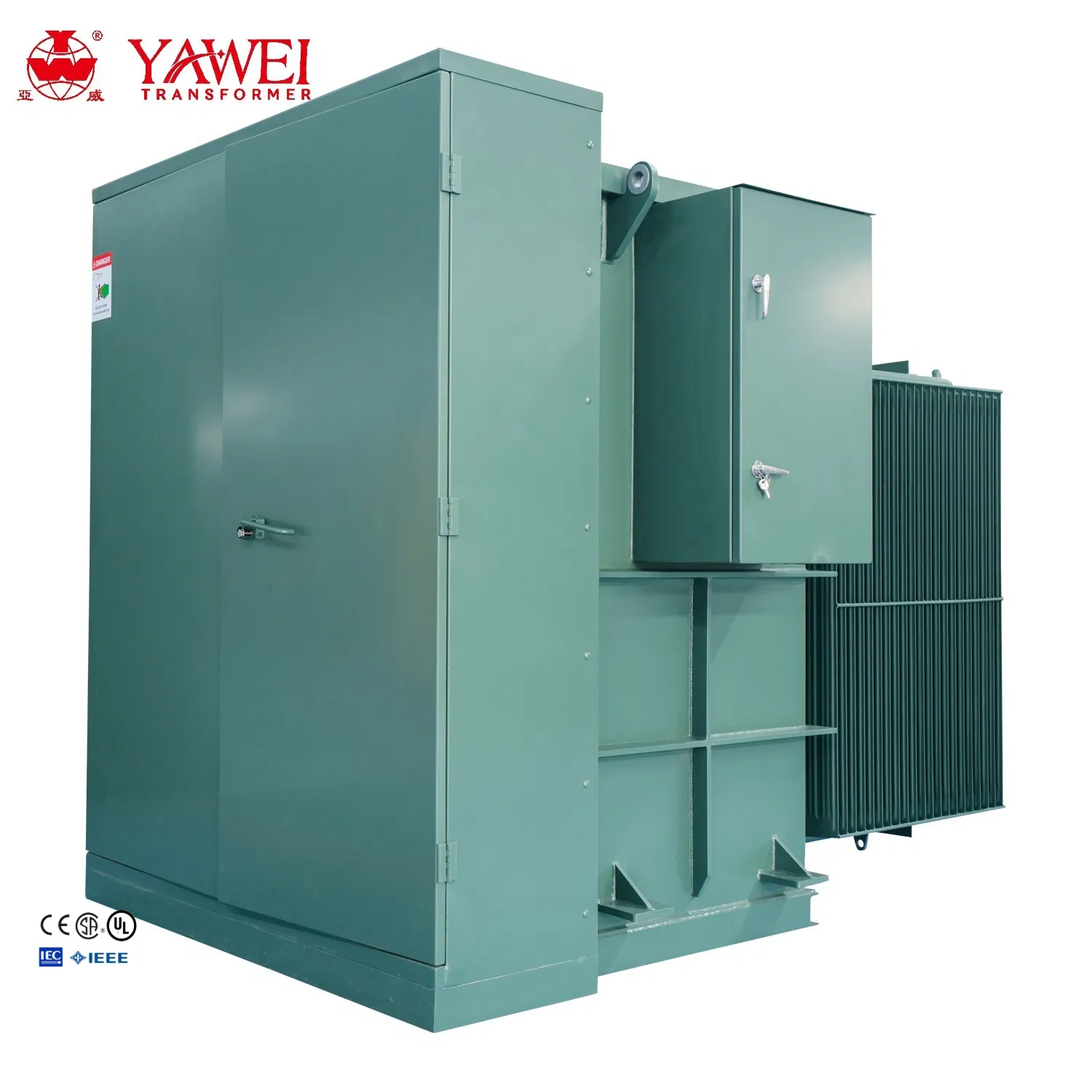

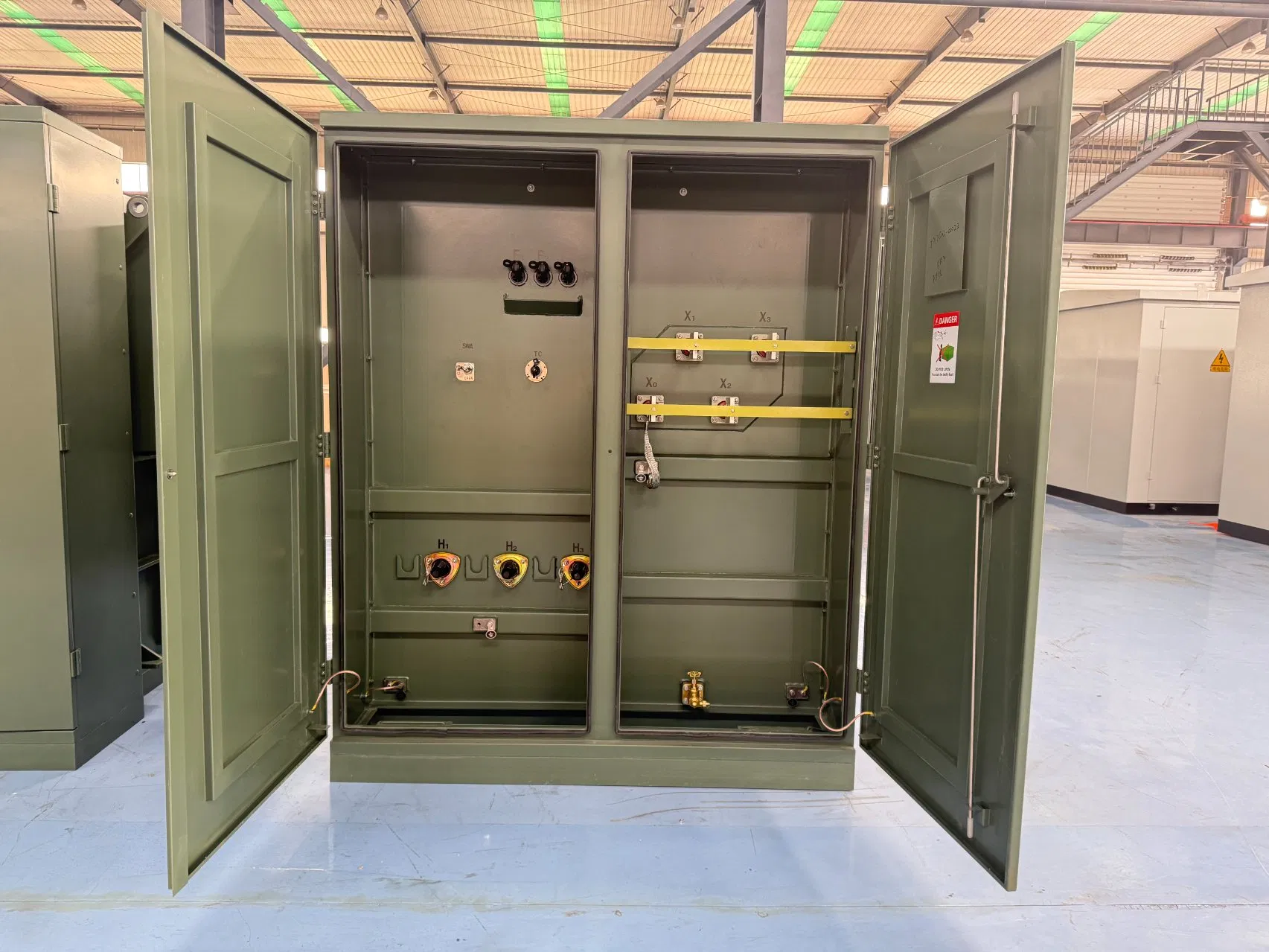

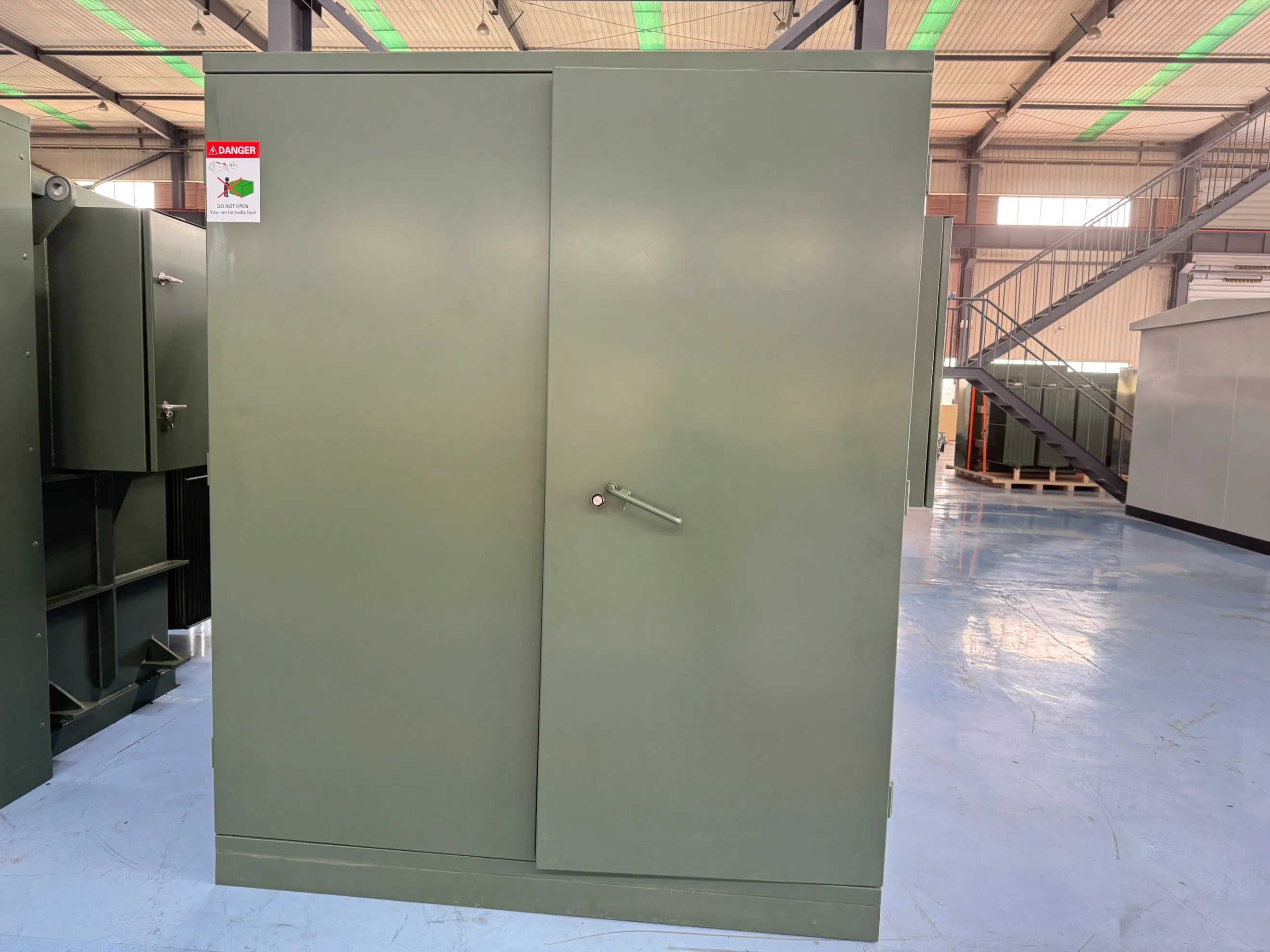

Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer
Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer
Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer
Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer
Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer
1 / 5
Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer
Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer
Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer
Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer
Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer

Yawei Electrical Equipment 1500kVA Pad Mounted American Box Type Distribution Transformer

Customization: Available
Application: Power
Phase: Three
Send Inquiry

Product Description

📋 Basic Information
Model NO.
ZGS11-13
Core
Core-type Transformer
Cooling Method
Oil-immersed Type
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC, UL CE
Usage
Power / Distribution Transformer
Frequency
50Hz/60Hz
Shape of Core
Ring
Rated Capacity
100kVA or Others
Winding Material
Copper/Aluminum
Warranty
24 Months
Production Capacity
500 Sets Per Month
📦 Packaging & Delivery
Package Size
888.00cm * 888.00cm * 888.00cm
Gross Weight
888.000kg
Package Type
Wooden Case
Origin
China
⚙️ Product Description

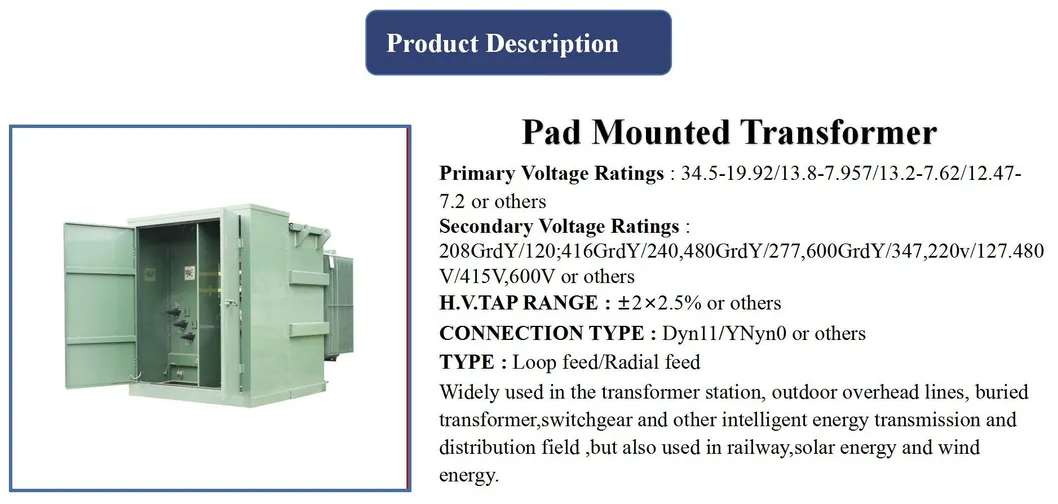

Combined Transformer

ZGS11-H(Z) Combined Transformer

The ZGS11 series combined transformer is an innovative power distribution equipment designed with a compact volume and optimized structure. It is specifically engineered for load centers in city grids, effectively reducing power consumption and enhancing supply quality. This series is widely utilized in residential communities, public spaces, and industrial mining enterprises.

Key Features

✔
Enhanced Safety: Fully sealed and insulated structure ensures maximum safety for personnel.
✔
Versatile Application: Suitable for both ring networks and terminal applications.
✔
High Efficiency: Features low loss, low noise, and superior operational performance.
✔
Thermal Stability: Low operating temperature with excellent overload capability.
✔
Premium Quality: Utilizes a specialized structure for high-quality power distribution.

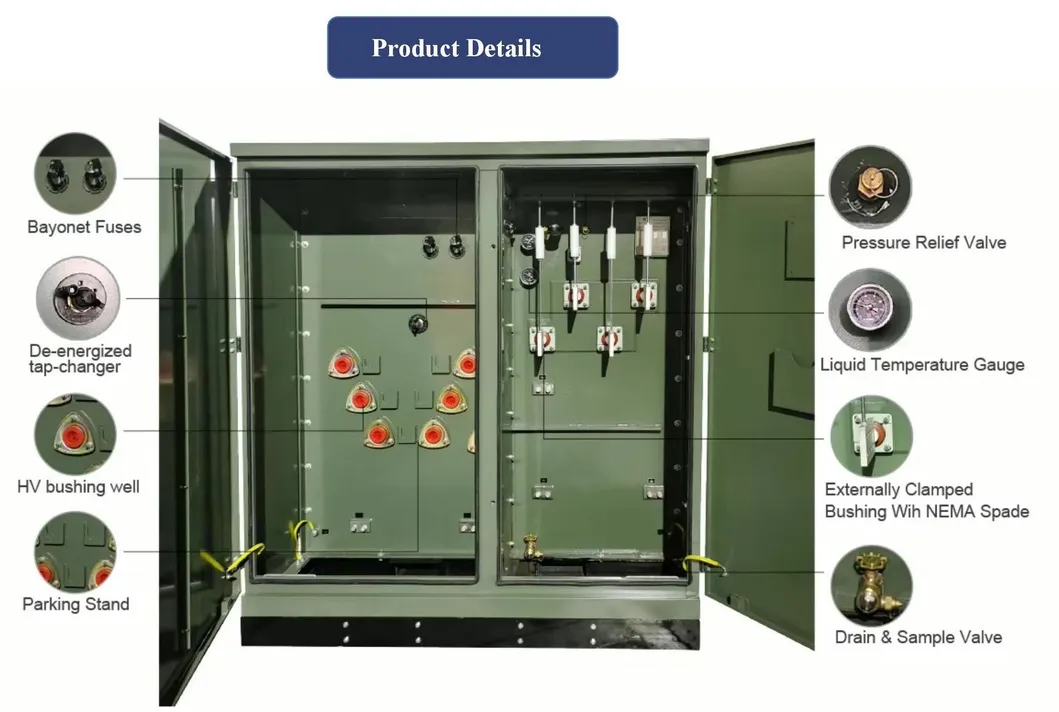

Product Layout
📊 Pad Mounted Transformer Specifications
Rated Power (KVA) High Voltage (KV) Low Voltage (V) No-load Loss (W) On-load Loss (W)
75KVA34.5KV / 19.92KV / 13.8KV / 13.2KV / 12.47KV / 7.2KV or others240V / 480V / 277V / 600V / 347V1801250
112.5KVA2001500
150KVA2802200
225KVA4003050
300KVA4803650
500KVA6805100
750KVA9807500
1000KVACustomizable HV RangeCustomizable LV Range115010300
1200KVA132012120
1500KVA164014500
2000KVA216020645
2500KVA268027786
3000KVA330030300
3750KVA412537875
🖼️ Product & Factory Showcase
Gallery 1
Gallery 2

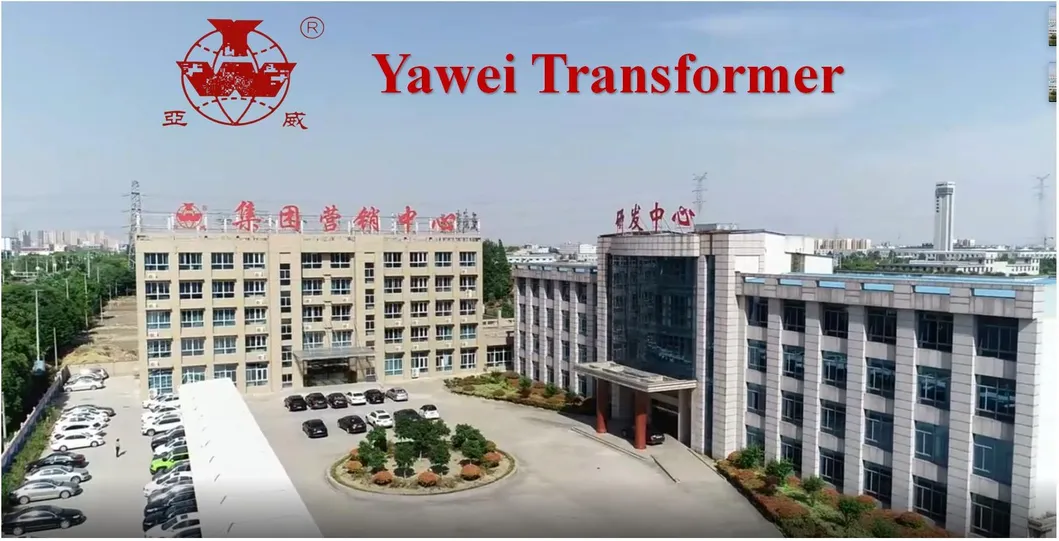

Production Line
Gallery 3
Gallery 4

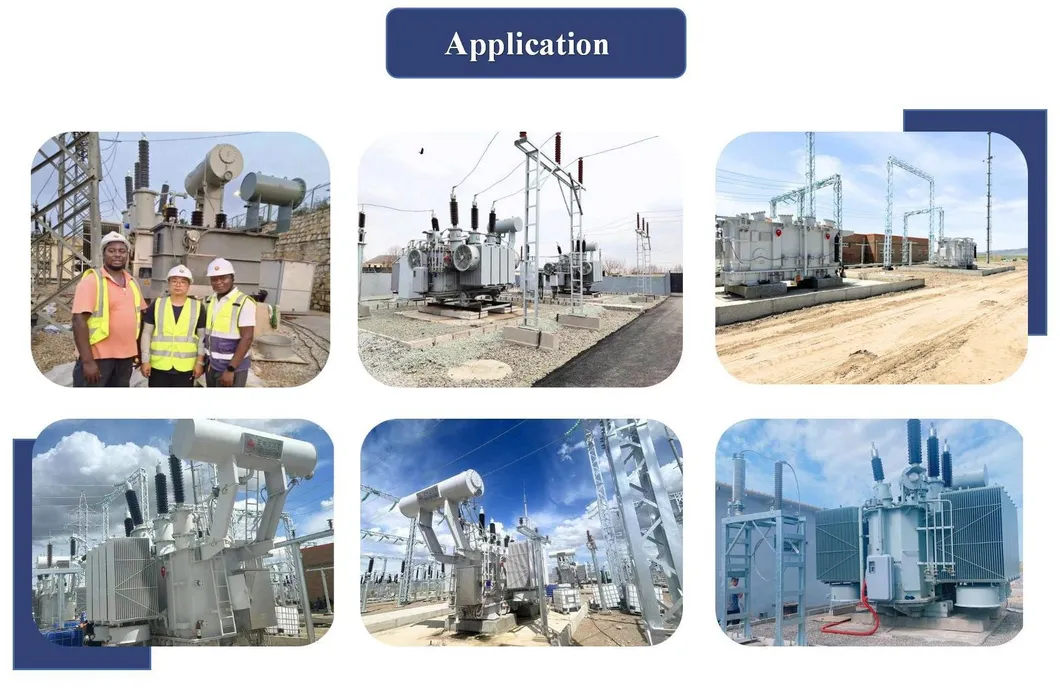

Gallery 5
Gallery 6
Gallery 7
Gallery 8
Frequently Asked Questions
What are the primary applications for the ZGS11 series transformer?
It is ideal for urban grid load centers, residential communities, public spaces, and industrial sites to improve power supply quality.
Is the combined transformer safe for use in public areas?
Yes, the transformer features a fully sealed and insulated structure designed specifically to ensure the safety of people in public environments.
What cooling method is used for this equipment?
The system utilizes an oil-immersed cooling method (ONAN/KNAN) for efficient temperature management and performance.
Can this transformer be used in a ring network?
Absolutely. It is designed to be versatile enough for use in both ring networks and terminal power distribution systems.
What materials are used for the transformer windings?
Windings can be manufactured using either high-quality copper or aluminum, depending on the specific requirements of the application.
What is the standard warranty period for these units?
The product comes with a comprehensive 24-month warranty to ensure reliable operation and peace of mind.
