Customization: Available
Type: Box Transformer
Structure: Protection
Send Inquiry

Product Description

Basic Information
Model NO.
ZGS11-500KVA
Certification
ISO9001:2000, CCC
Form
Partly-Welded Type
Operation Voltage
High Voltage
Shell Material
Steel Plate
Protection Grade
IP55
Rated Voltage
up to 35kv
Rated Capacity
75 to 2500kVA
Connection Group
Y, Yn0/D, Yn11
Winding Material
Copper / Aluminium
HS Code
8537209000
Production Capacity
100pieces/Month
Product Description
Compact Transformer Substation

75kv to 2500kVA Compact Transformer Substation Pad Mounted Transformer

Product Features
  • 🛡️
    The shell is designed according to advanced technology, featuring firmness, heat insulation, ventilation, and corrosion prevention. Multiple material options available: aluminum alloy, steel plate, composite plate, and stainless steel.
  • ⚡
    High voltage switchgear options include XGN15, HXGN17, or KYN28A. Supports various power supply modes like loop network, terminal, or dual power supply.
  • 🔌
    Low voltage switchgear utilizes GGD, GCS, or MNS structures. Perfectly suited for power distribution, lighting, reactive power compensation, and energy measurement.
Technical Parameters
Name Unit Technical Parameters
Rated voltagekV10/0.4(High/Low)
Maximum operatingkV12(High/Low)
Rated frequencyHz50
Rated capacitykVA75-2500
1 min power frequency withstand voltagekV35
Lightning impulse voltagekV75
Cooling method-ONAN
High-voltage fuse breaking current reservekA50
Plug-in fuse breaking currentkA2.5
Ambient temperatureºC-35~+40
Coil allowable temperature riseºC65
Noise leveldb50
Protection class-IP43
Working Conditions
📍1. Altitude: No more than 2000M.
🌡️2. Ambient temperature: High: +40ºC; Low: -45ºC; Monthly average: +30ºC.
🛠️3. Installation environment: No explosive or corrosive liquid/gas/dust. Can run submerged in water for specific periods.
📉4. Ground acceleration: Horizontal < 3m/s; Vertical < 1.5m/s.
〰️5. Power supply voltage waveform: Approximately sine wave.
Production Details

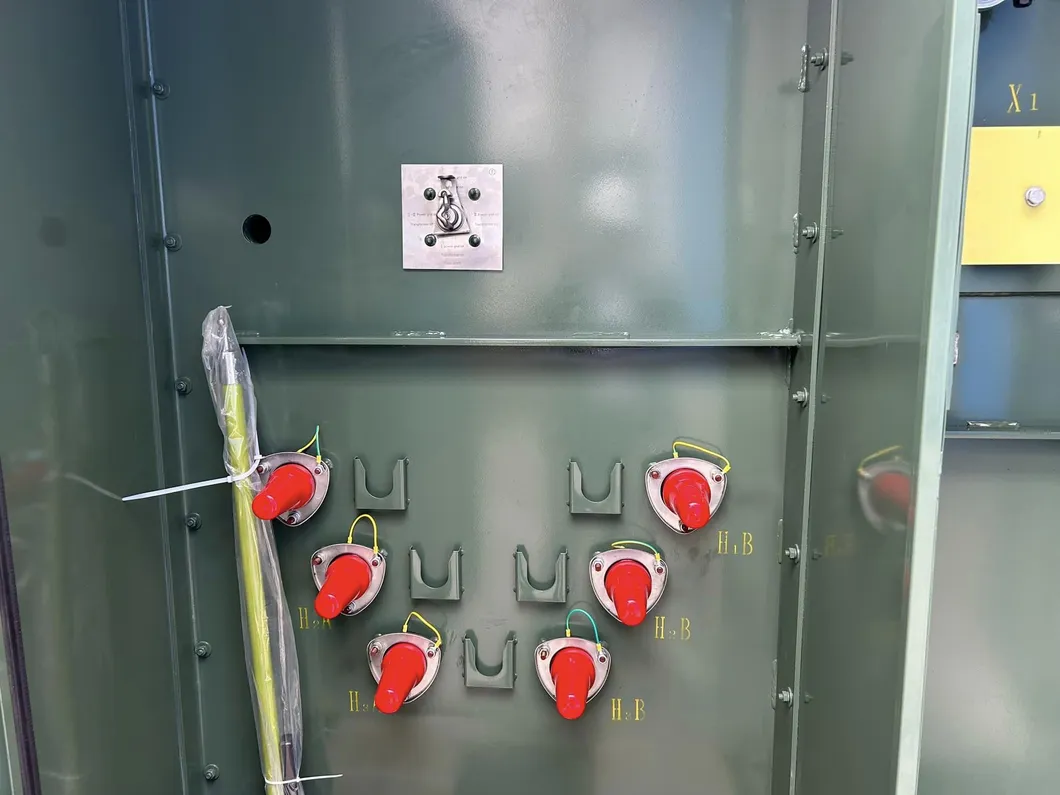

Production Detail 1
Production Detail 2

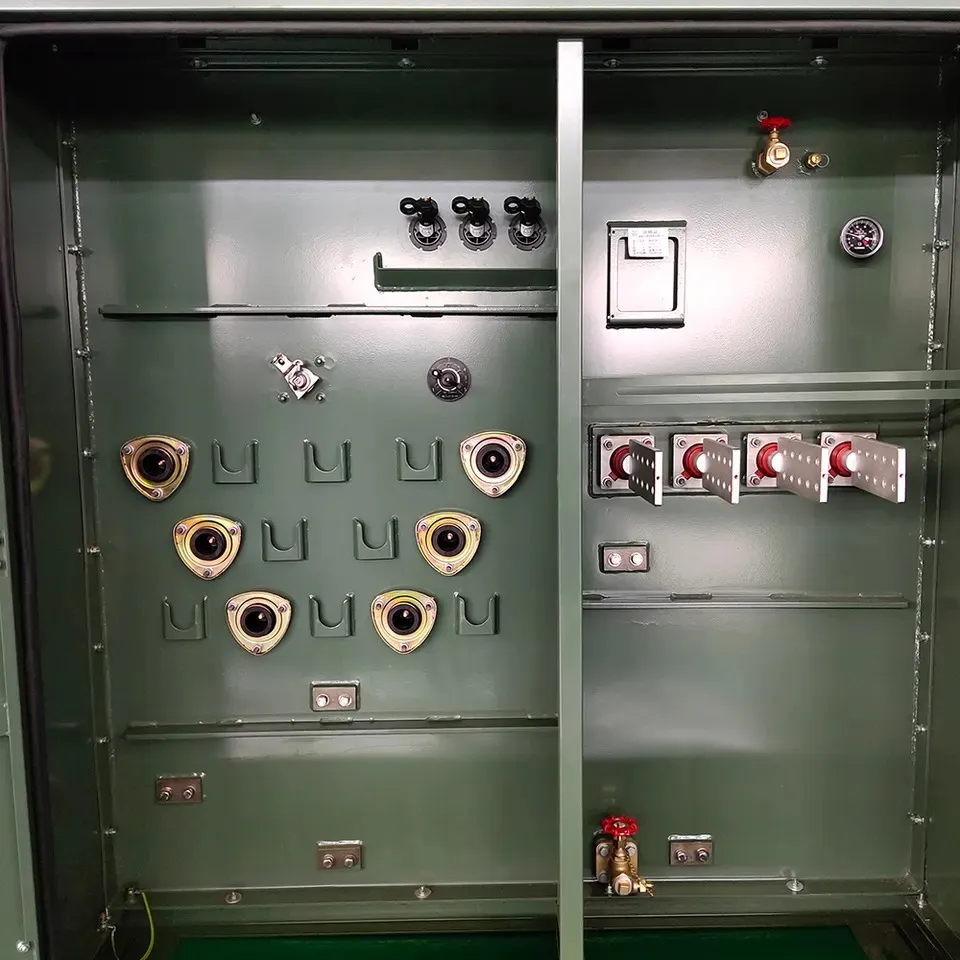

Production Detail 3

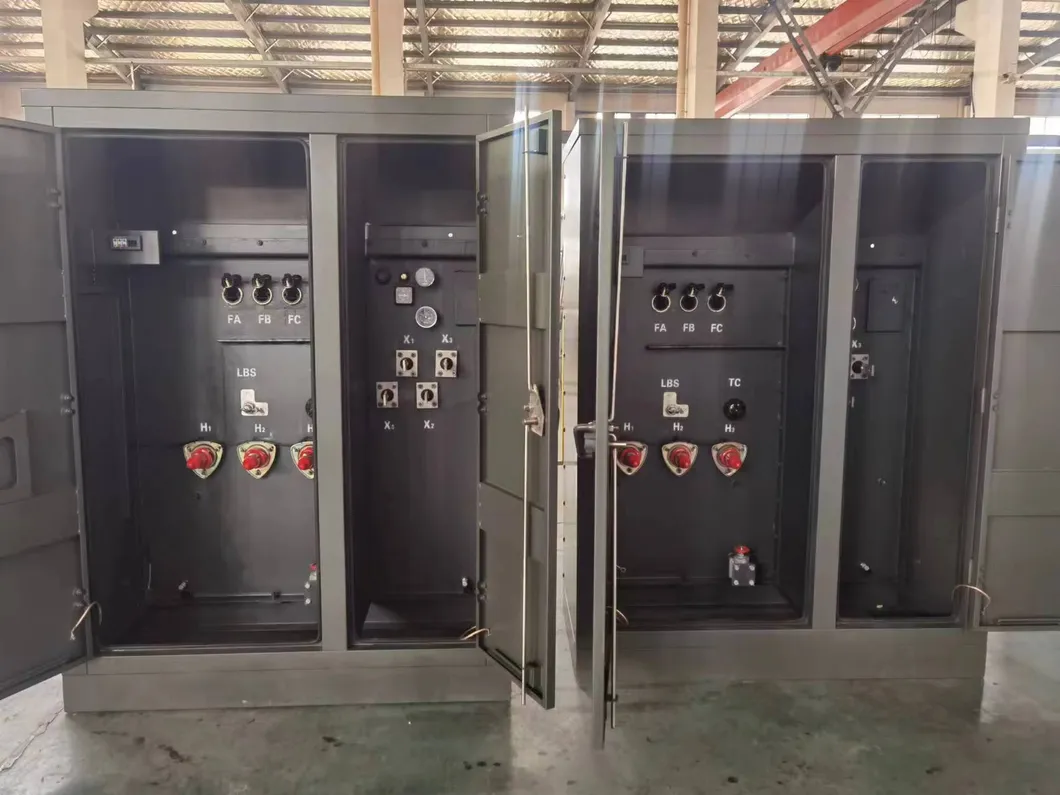

Production Detail 4
Enterprise Profile & Workshop

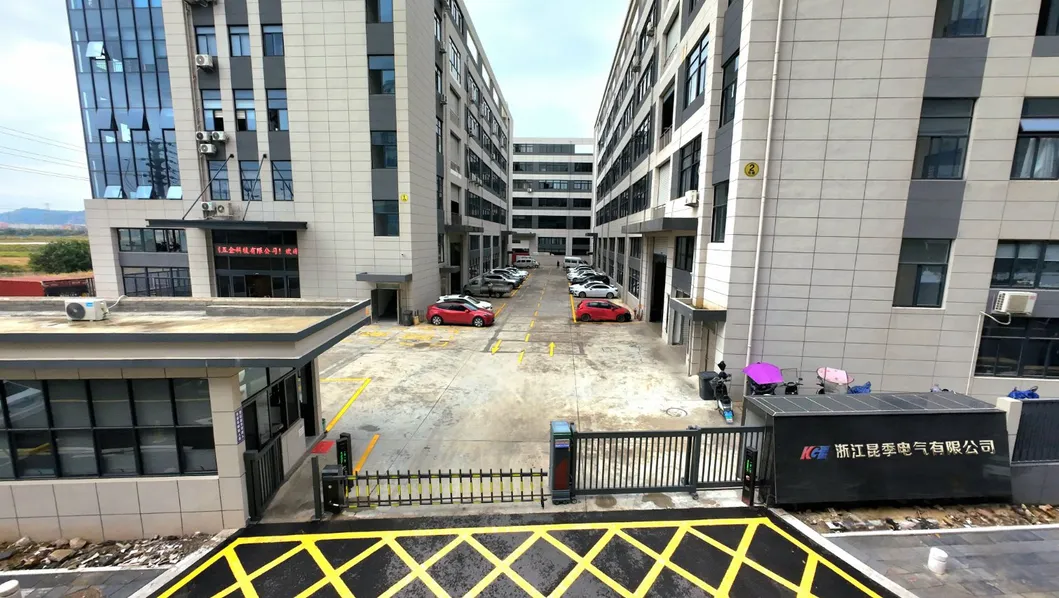

Professional Facility

Our company is specialized in producing, developing and marketing power transmission and distribution products. Established in 2015, we provide high-quality switchgear, ring main units, transformers, and substations.

Our products have passed ISO9001 and CE certificates. With a professional technical team, we offer full design solutions and technical support for global power projects.

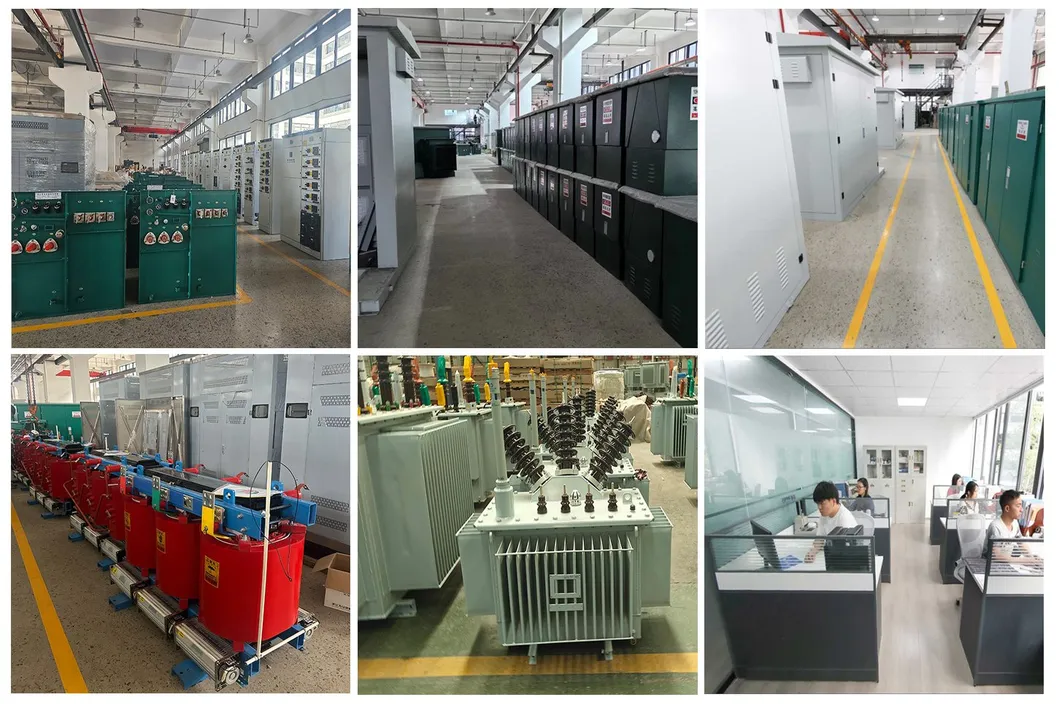

Workshop
Certificates & Packaging
Certificates

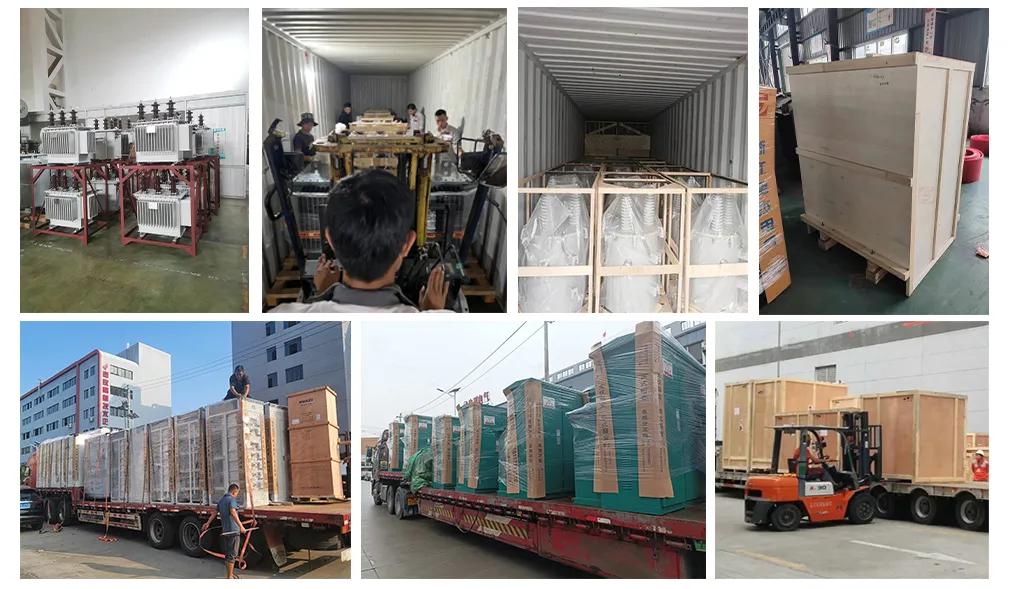

Packaging 1
Packaging 2
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a professional factory with over 10 years of experience in high and low voltage switchgears, substations, and transformers.
Do you accept customized services?
Yes, we offer OEM/ODM services. Our technical team can provide customized project designs based on your specific drawings and parameters.
What is your minimum order quantity (MOQ)?
Our MOQ is 1 piece.
How long is the delivery lead time?
Lead time depends on product requirements and quantity. Generally, standard orders are fulfilled within 5 to 10 working days.
How do you ensure product quality?
Our quality testing department analyzes every unit. For any issues, we provide detailed technical analysis and a solution within 2 days.
What are your payment terms?
We accept 30% T/T in advance and 70% before shipment. West Union and L/C are also acceptable.
