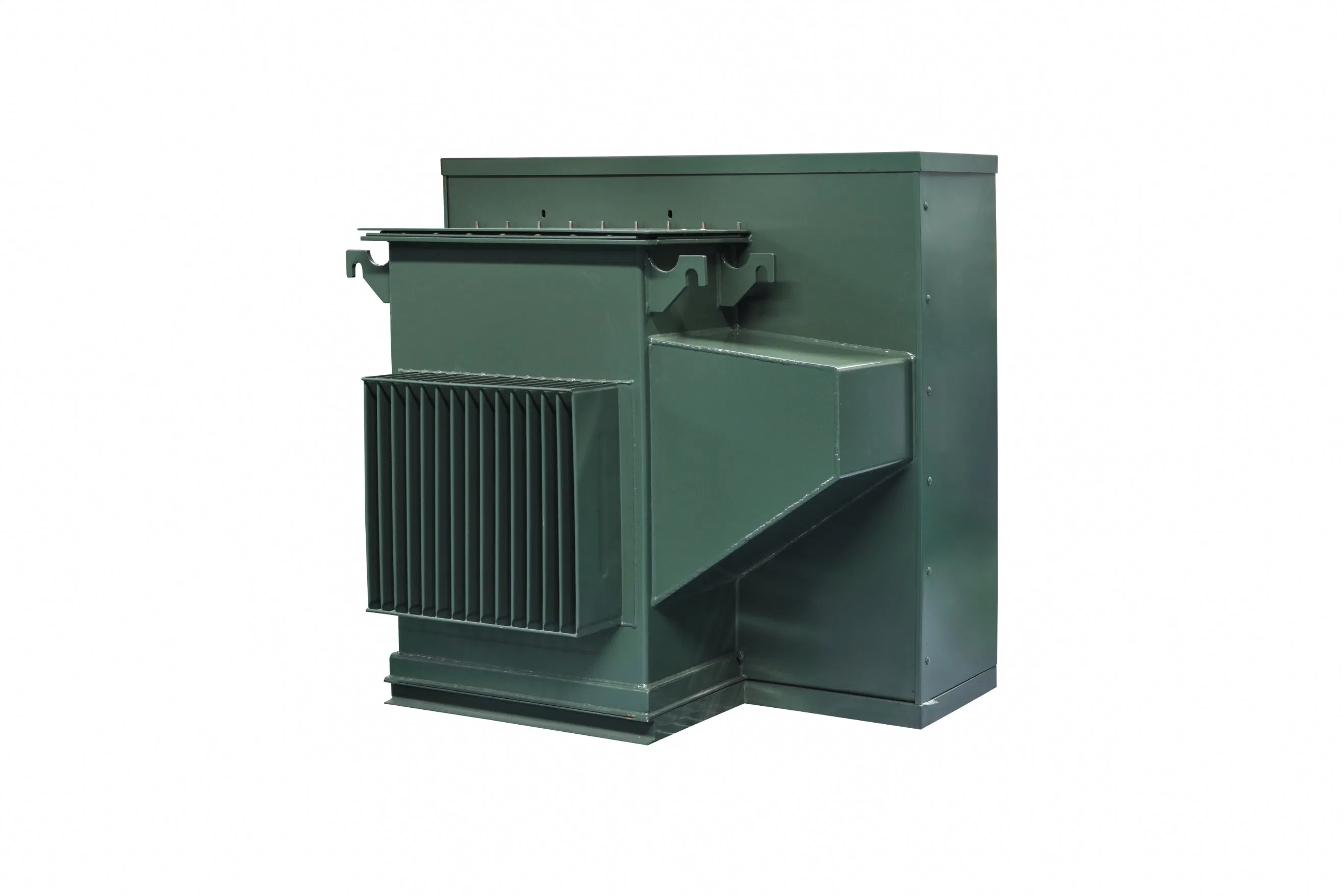

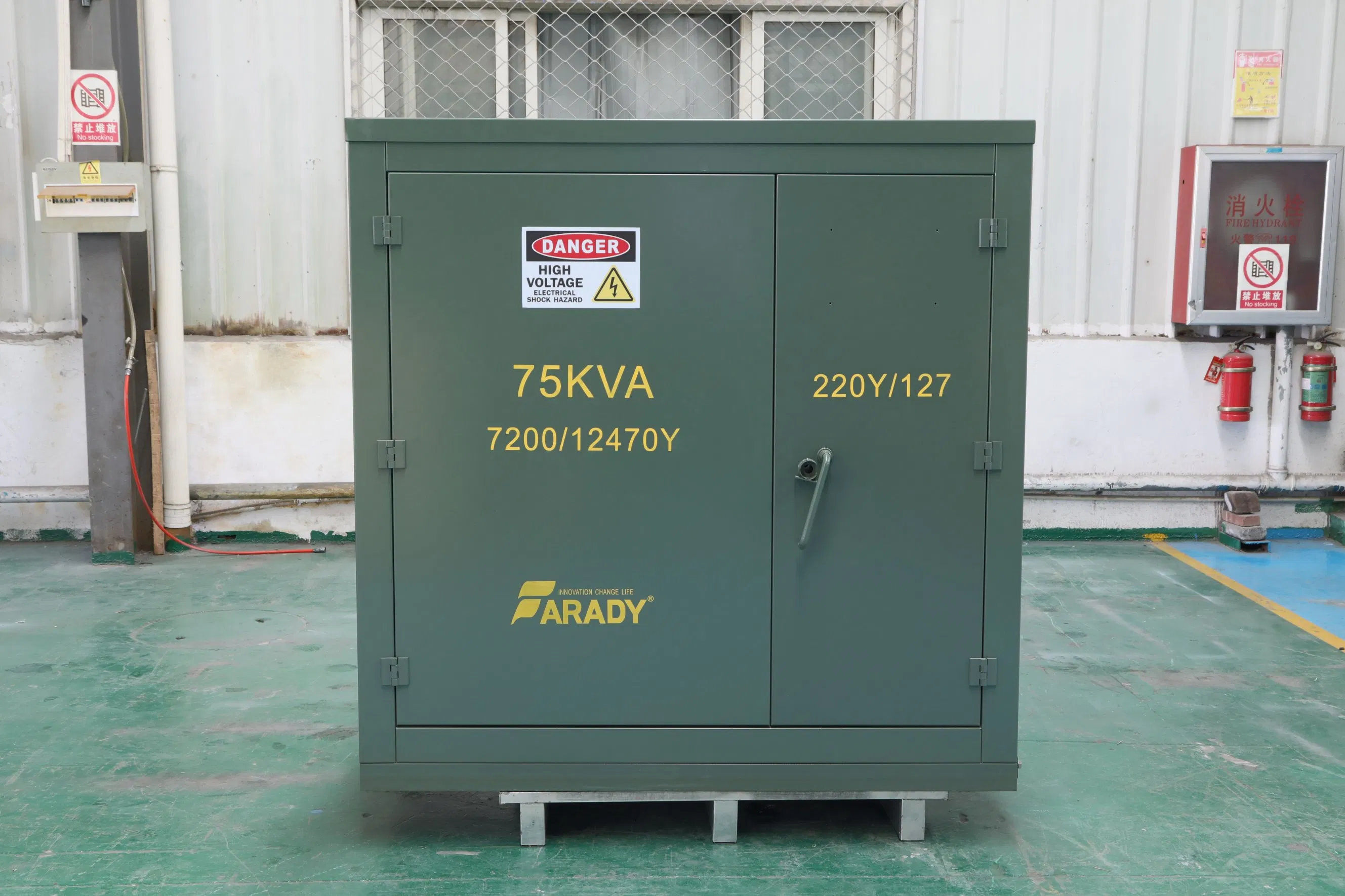

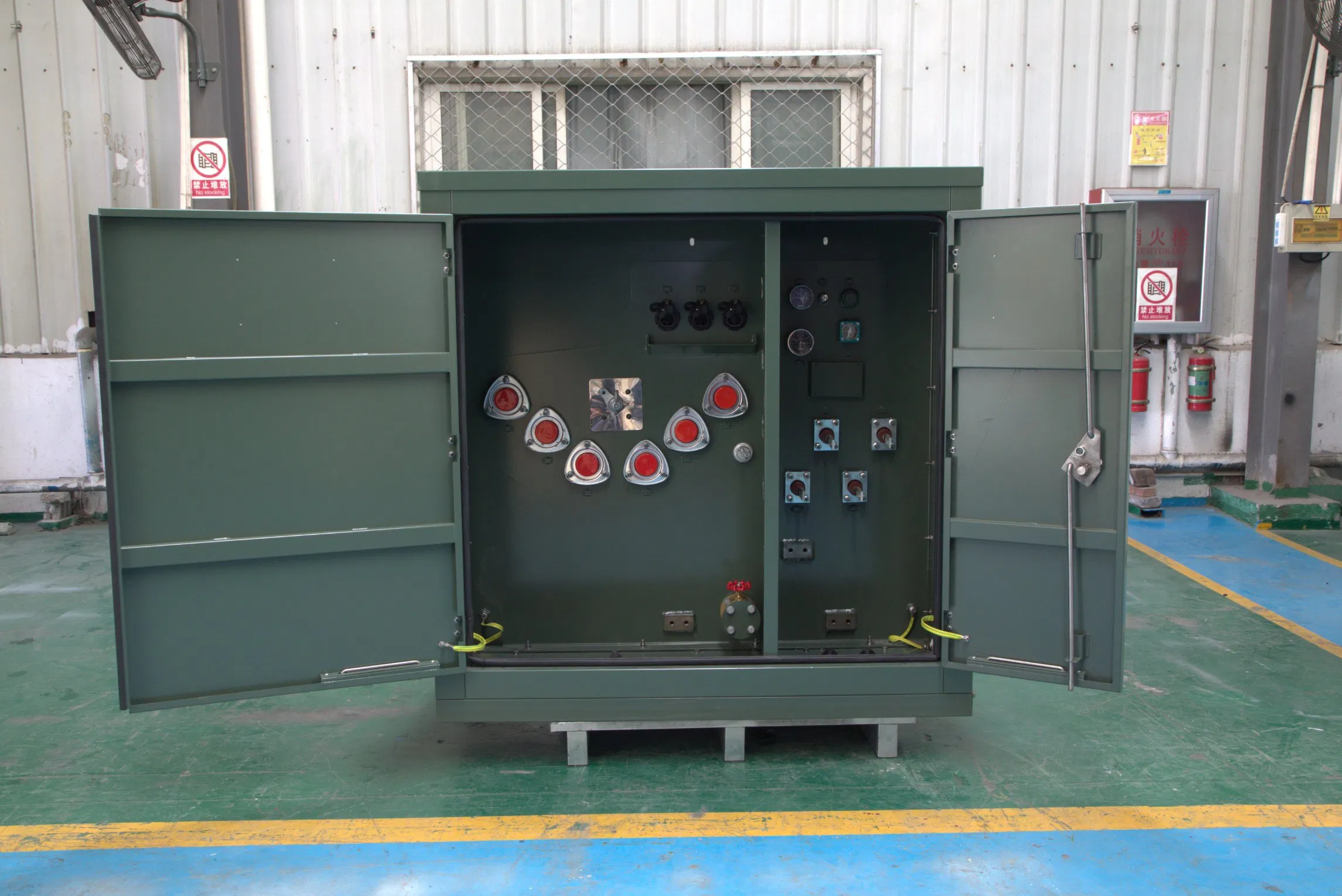

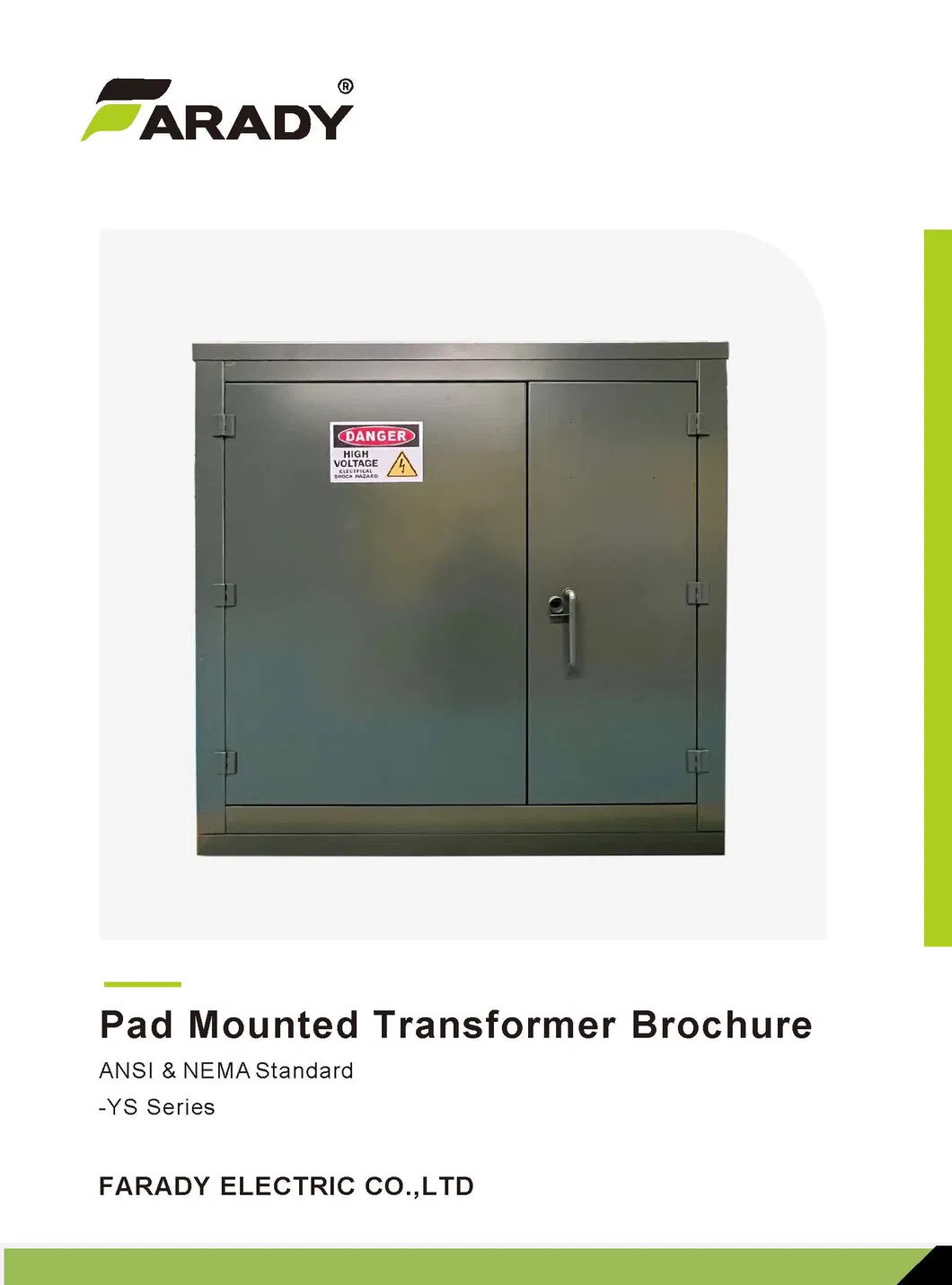

Our single phase and three phase pad-mounted distribution transformer is commonly used in various places including rural areas, remote regions and scattered villages to provide high quality power supply for daily lighting, agricultural production and industrial plants. Aside from these, it is also suitable for the energy saving projects for railway and urban grid.
| Rated Power | Load losses | No-load losses | No load current% | Impedance% |
| S11-30 | 630 | 100 | 2.1 | 4 |
| S11-50 | 910 | 130 | 2 | 4 |
| S11-100 | 1580 | 200 | 1.6 | 4 |
| S11-250 | 3200 | 400 | 1.2 | 4 |
| S11-500 | 5410 | 680 | 1 | 4 |
| S11-1000 | 10300 | 1150 | 0.7 | 4.5 |
| S11-1600 | 14500 | 1640 | 0.6 | 4.5 |
They are ideal for providing reliable power to rural areas, industrial plants, and urban energy-saving grid projects.
The transformers are designed and tested according to UL, IEC60076, ANSI, and GB standards.
Yes, the radiator design and cooling configurations can be fully customized based on specific environmental requirements.
We provide a comprehensive warranty of 24 months (12+12 months) from the date of manufacture.
Units are packed in seaworthy wooden cases, with options for single or double units per box to optimize costs.
We offer various configurations including 6.3kV, 15kV, and up to 35kV to suit different regional grid requirements.
