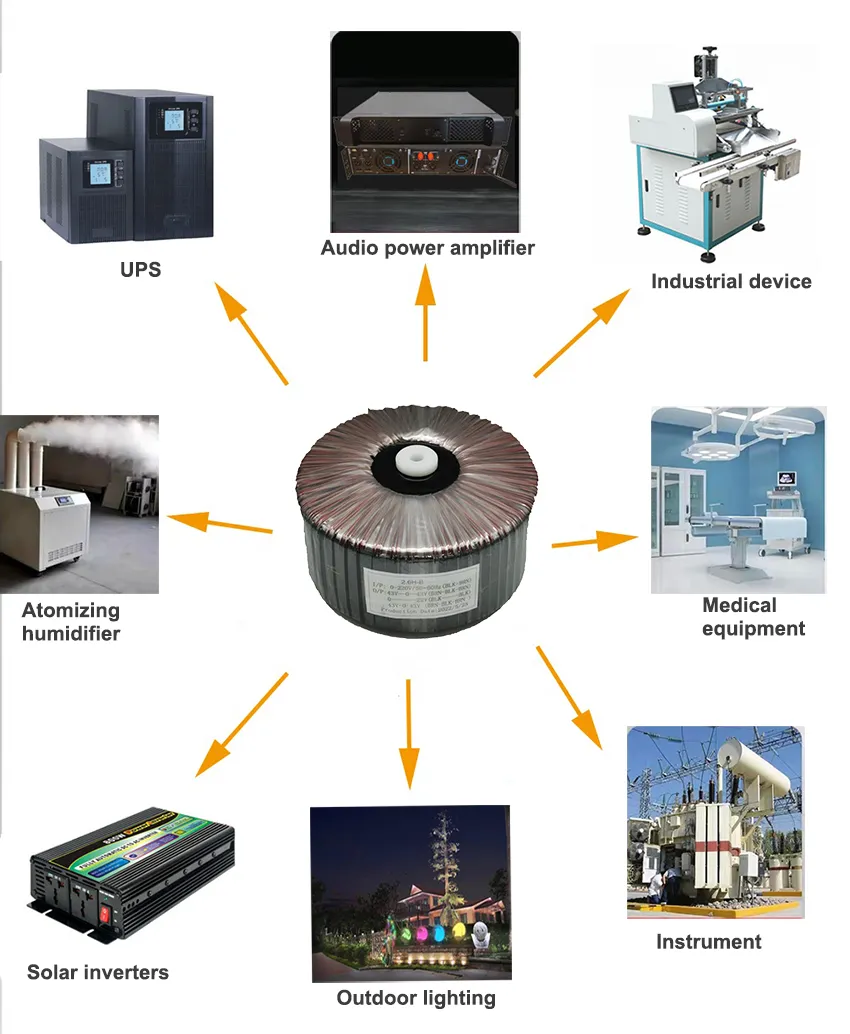

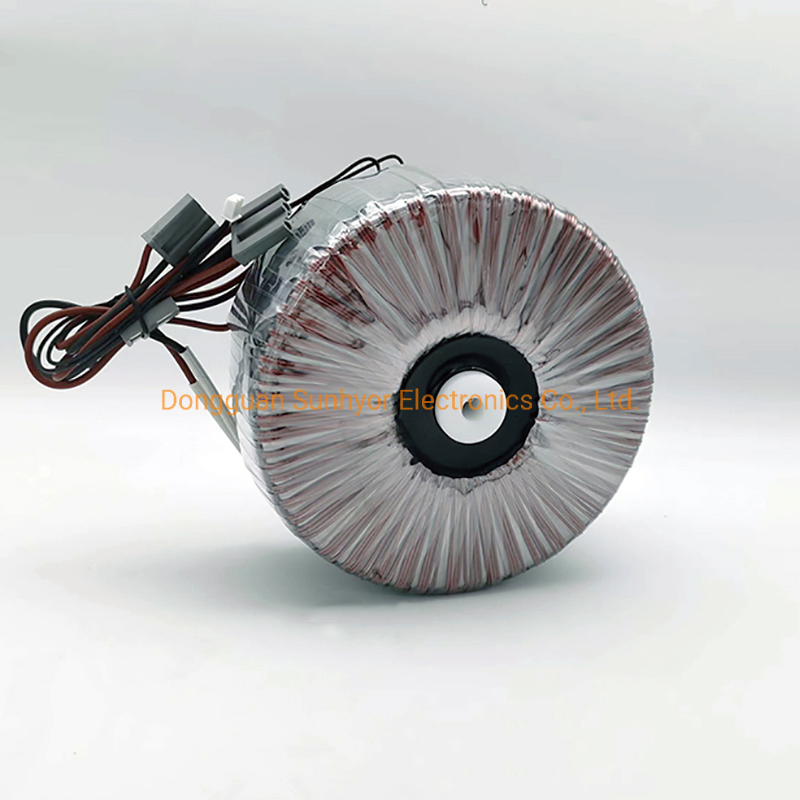

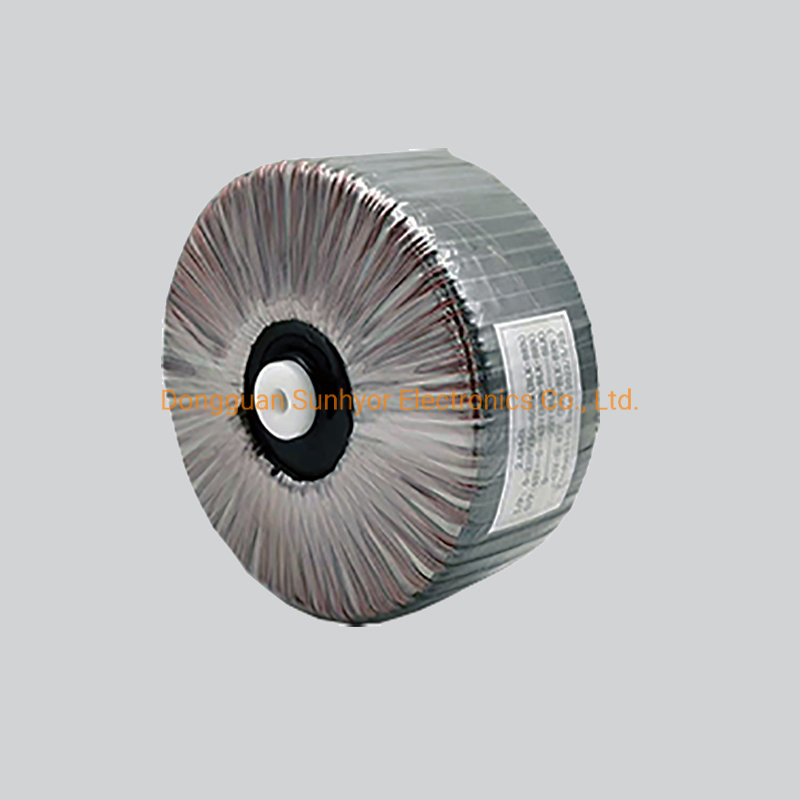

Toroidal transformers are professionally manufactured from 25VA to 5000VA capacity. They are widely utilized in audio power amplifiers, household applications, voltage regulators, solar inverters, medical equipment, voltage stabilizers, UPS systems, atomizing humidifiers, industrial devices, and various electronic instruments.
| Item | Model | Rated Power | Voltage Regulation (%) | Efficiency (%) | Weight (KG) | Dimension (mm) | |
|---|---|---|---|---|---|---|---|

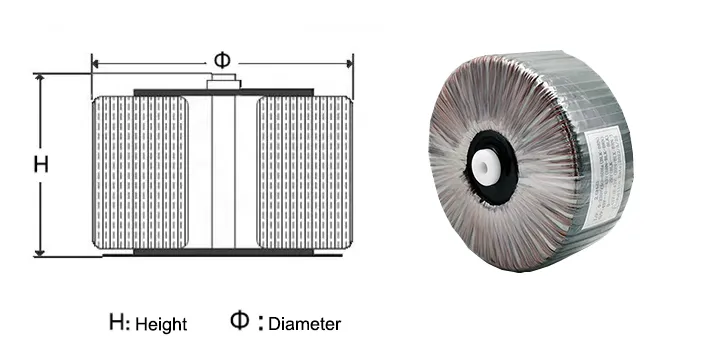

| Height | Diameter | ||||||
| 1 | HB25 | 25VA | 20 | 73 | 0.4 | 25 | 68 |
| 2 | HB30 | 30VA | 16.5 | 76.6 | 0.5 | 25 | 72 |
| 3 | HB40 | 40VA | 15.8 | 80.2 | 0.6 | 33 | 79 |
| 4 | HB50 | 50VA | 15.2 | 82.4 | 0.7 | 33 | 84 |
| 5 | HB63 | 63VA | 13.8 | 83.5 | 0.8 | 34 | 89 |
| 6 | HB80 | 80VA | 12.6 | 84.7 | 1 | 34 | 95 |
| 7 | HB100 | 100VA | 11.2 | 86.5 | 1.3 | 35 | 105 |
| 8 | HB105 | 105VA | 10.8 | 86.8 | 1.4 | 35 | 109 |
| 9 | HB125 | 125VA | 9.6 | 87.3 | 1.6 | 40 | 110 |
| 10 | HB150 | 150VA | 7.2 | 88.1 | 2 | 42 | 116 |
| 11 | HB160 | 160VA | 6.6 | 88.6 | 2.1 | 42 | 118 |
| 12 | HB200 | 200VA | 6.1 | 89.7 | 2.4 | 48 | 120 |
| 13 | HB250 | 250VA | 5.5 | 90.3 | 2.9 | 50 | 127 |
| 14 | HB300 | 300VA | 5.2 | 91.7 | 3.2 | 55 | 128 |
| 15 | HB400 | 400VA | 4.6 | 93.8 | 4.7 | 70 | 133 |
| 16 | HB500 | 500VA | 4.3 | 94.6 | 5.5 | 72 | 140 |
| 17 | HB630 | 630VA | 4.1 | 95 | 6.7 | 72 | 155 |
| 18 | HB800 | 800VA | 3.8 | 95.1 | 8.2 | 72 | 170 |
| 19 | HB1000 | 1000VA | 3.3 | 95.8 | 10 | 78 | 180 |
| 20 | HB1250 | 1250VA | 2.9 | 96.2 | 12.3 | 80 | 198 |
| 21 | HB1600 | 1600VA | 2.8 | 96.6 | 14.8 | 86 | 210 |
| 22 | HB2000 | 2000VA | 2.5 | 96.9 | 16.9 | 90 | 232 |
| 23 | HB2500 | 2500VA | 2.3 | 97.3 | 18.8 | 100 | 245 |
| 24 | HB3000 | 3000VA | 2.1 | 97.7 | 21.3 | 110 | 255 |
| 25 | HB5000 | 5000VA | 1.9 | 98.1 | 23.8 | 120 | 270 |
Remark: Above standard parameters are for reference; custom designs are available based on requirements.

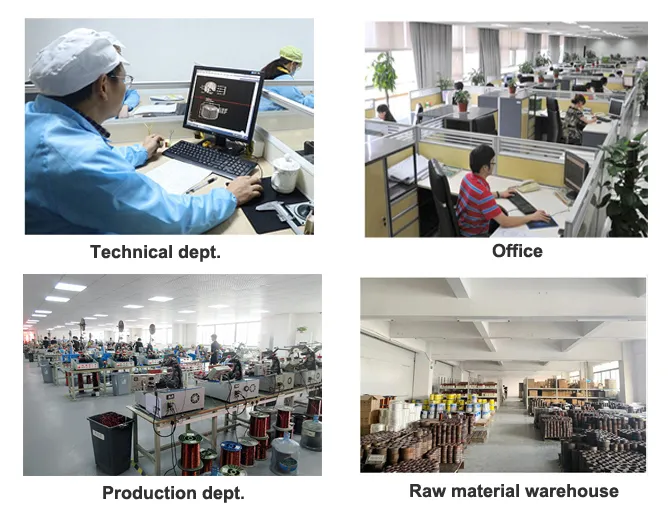

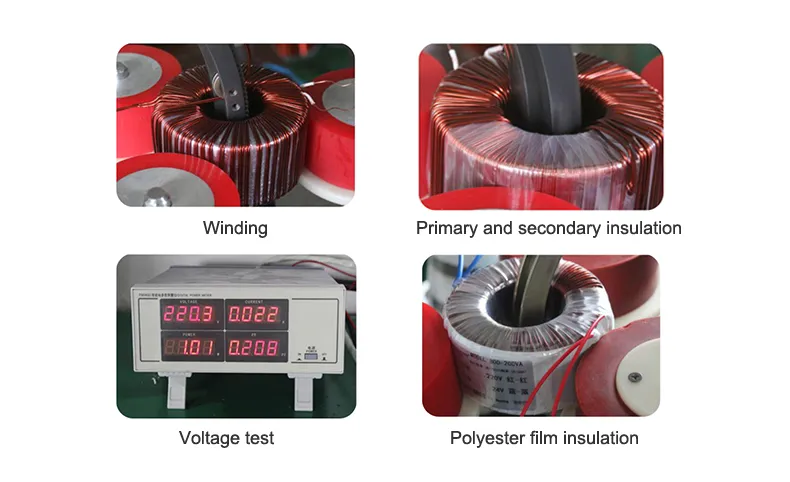

We are a comprehensive enterprise integrating production, sales, research, and development of toroidal transformers. OEM and ODM orders are fully supported to meet global standards.
