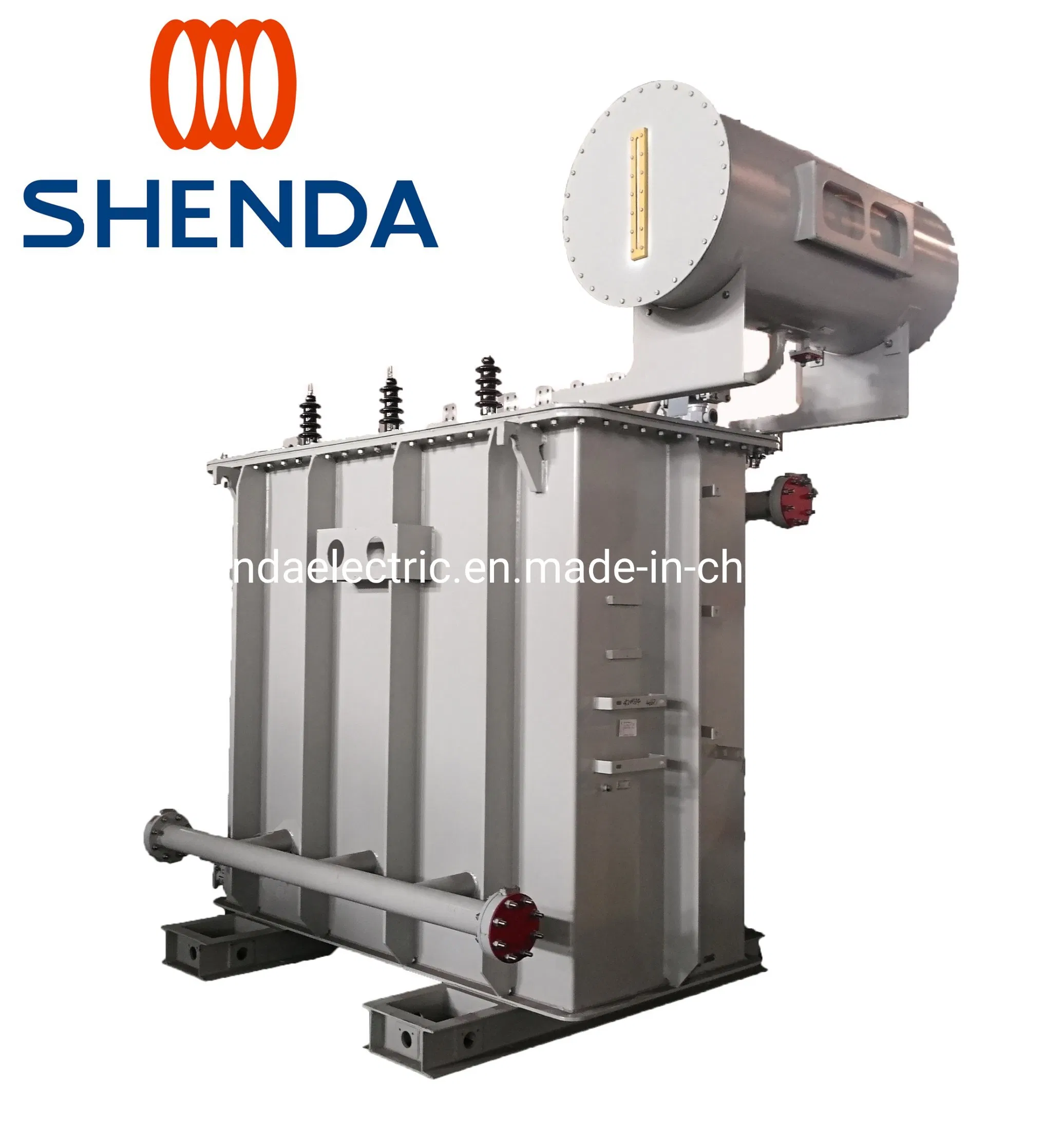

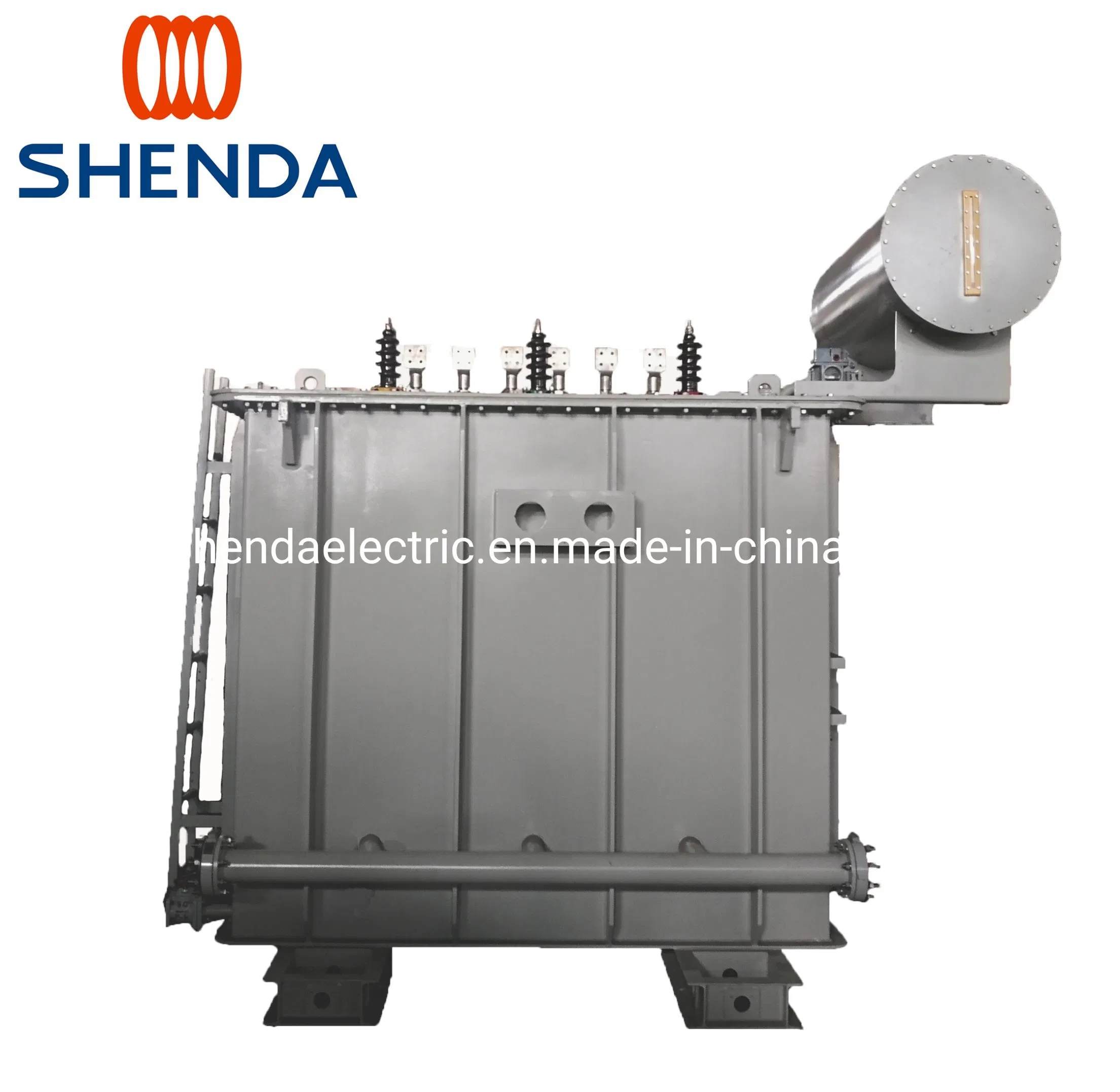

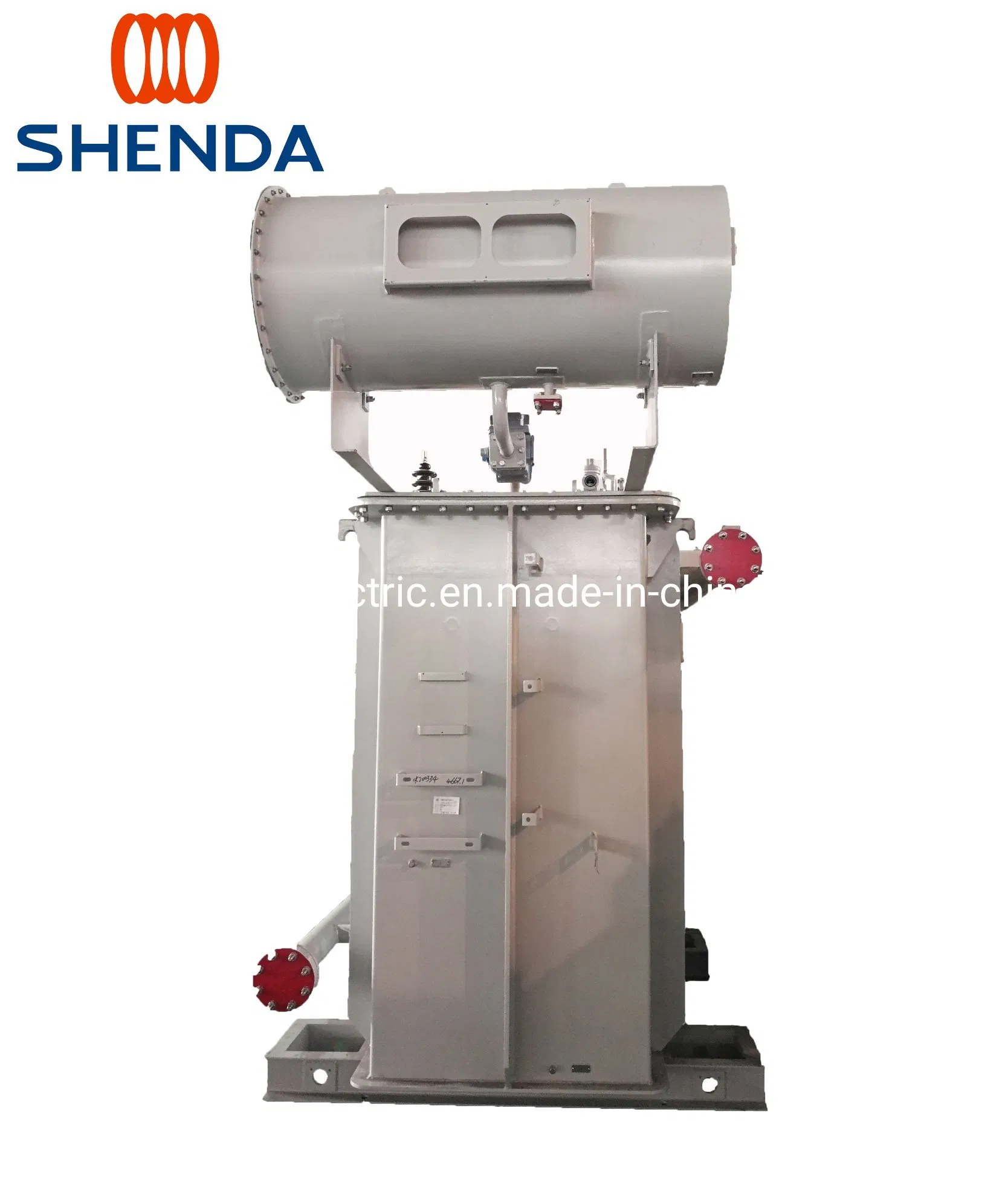

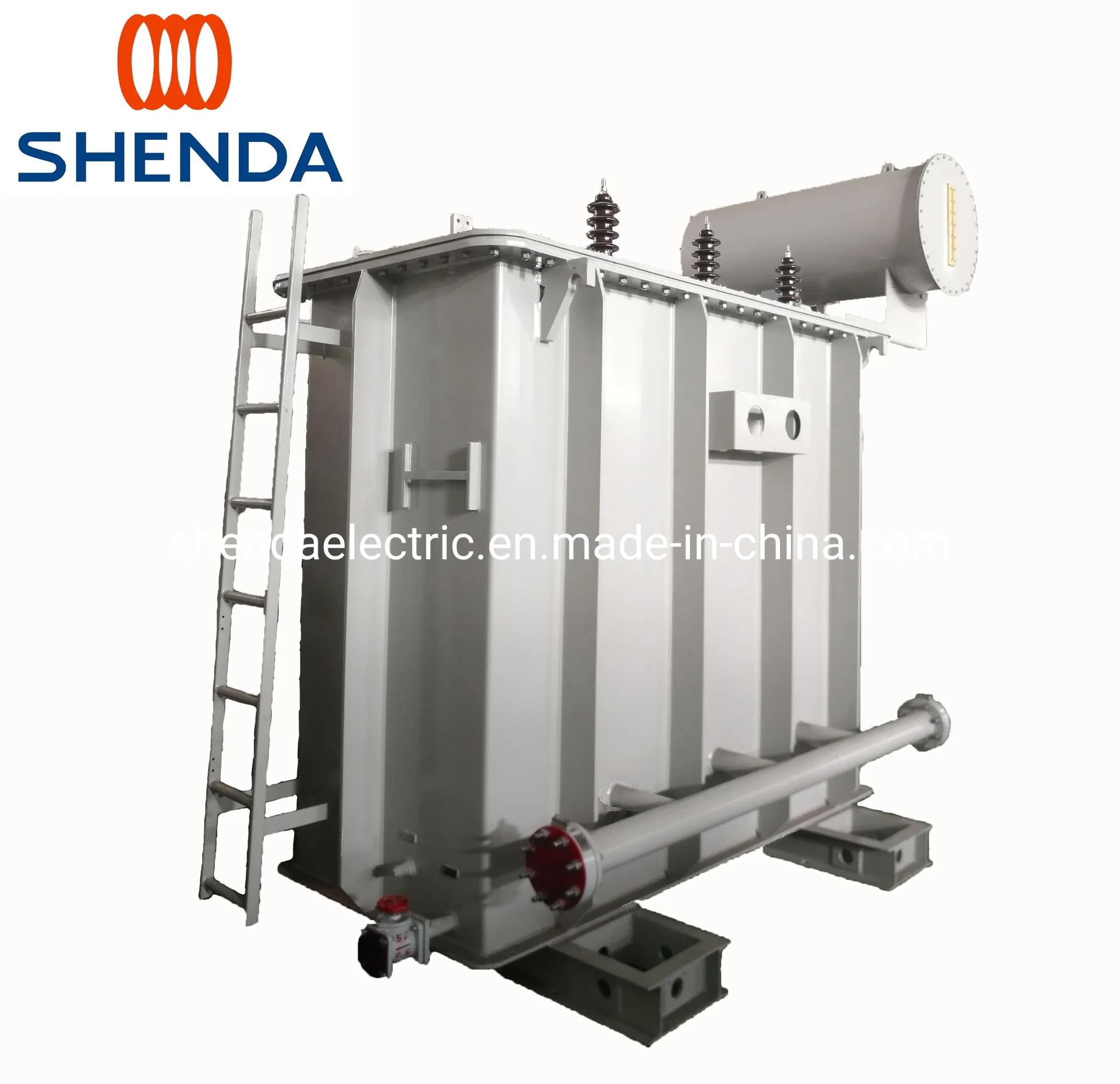

Oil Immersed Rectifier Transformer 9000kVA 35kv

1 / 4

Oil Immersed Rectifier Transformer 9000kVA 35kv

Customization:	Available
Application:	Rectifier
Phase:	Three

Send Inquiry

Product Description

Basic Specifications

Model NO.

ZSSP-9000/35

Core

Core-type Transformer

Cooling Method

Oil-immersed Type

Winding Type

Two-winding

Certification

ISO9001-2000

Usage

Rectifier Transformer

Frequency

Power Frequency

Shape of Core

Ring

Coil Structure

Toroidal

Transport Package

Sea Worthy Packing

Specification

CE, ISO, IEC, GB, ANSI

Production Capacity

6000 Sets Per Year

Product Description

We are one of the leading manufacturers in the power transmission & distribution industry. Our operations include four factories with a global workforce dedicated to high-quality electrical solutions. The annual gross sales reached USD$250 million in 2015.

Our annual total production capacity is approximately 18,000,000 KVA. Key products include oil-immersed power transformers (up to 250MVA/330kV), dry-type transformers (up to 20MVA/35kV), combined transformer substations, amorphous alloy transformers, rectifier transformers (100MVA/220kV), and specialized furnace transformers (180MVA/220kV). All products measure up to International Electric Committee (IEC) standards.

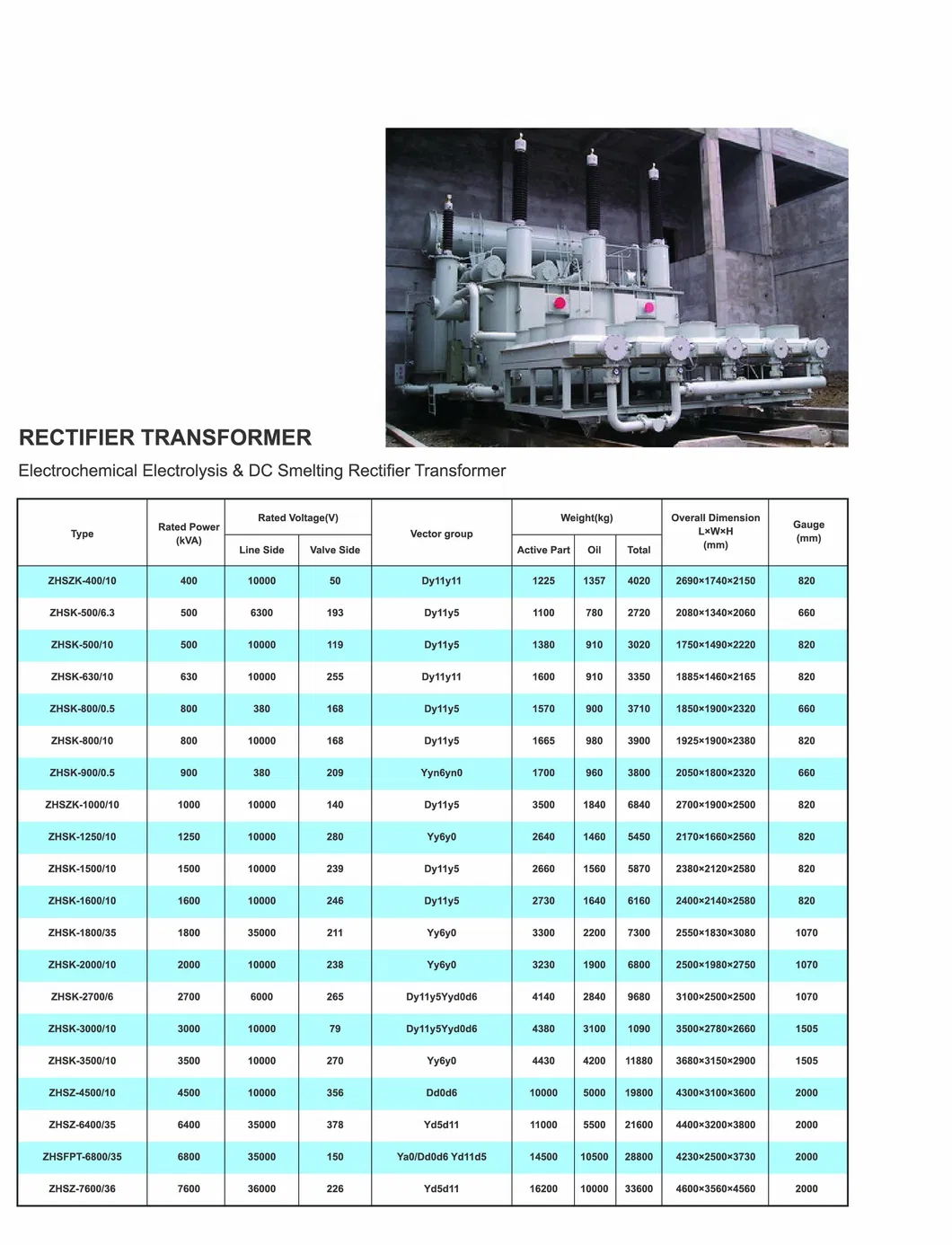

Product Series & Certifications

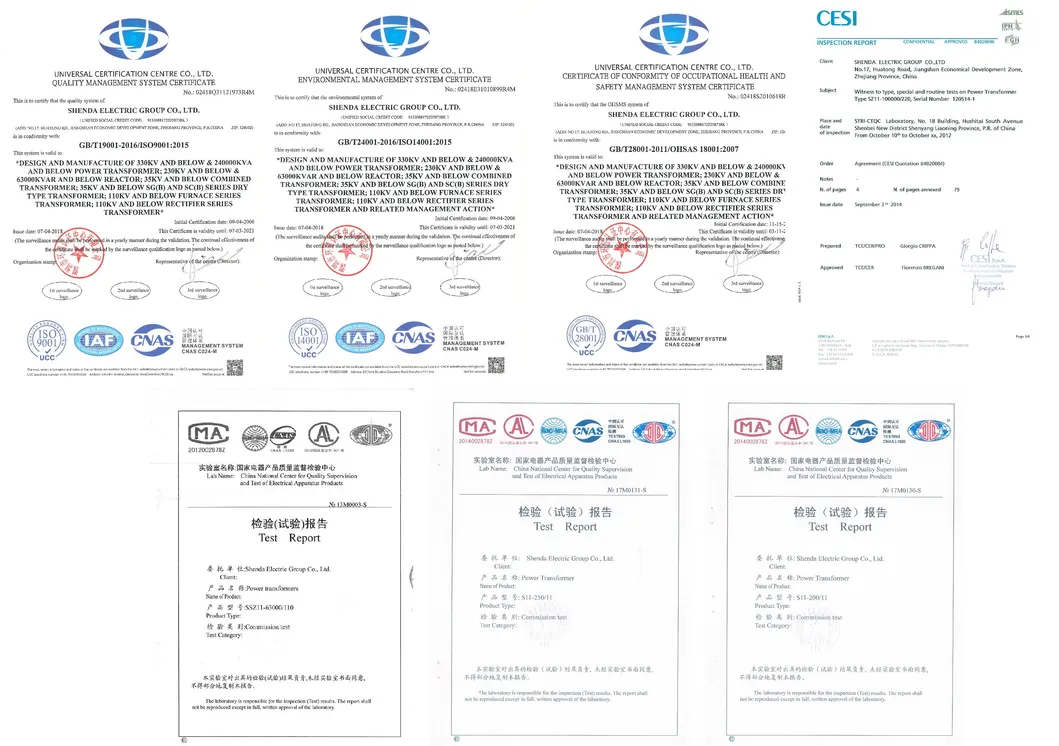

Key Certifications & Test Reports:

100MVA/220kv power transformer short circuit test report (CESI Italy & CTQC China)
120MVA/33KV oil EAF transformer & 50MVA/69KV oil power transformer reports
10MVA/33kv dry-type transformer type test report (KEMA Netherlands)
63MVA/110KV Power transformer short circuit test report (CTQC China)
ISO 9001, ISO 14001, and OHSAS 18001 compliance
CE marking for Power, Furnace, Dry-type Transformers, and Reactors

Quality Control & Testing Lab

Comprehensive testing is conducted for every transformer before delivery, classified into Routine, Type, and Special tests according to IEC 60076 standards.

A - Routine Tests:

Measurement of winding resistance
Measurement of voltage ratio and check of phase displacement
Measurement of short circuit impedance and load losses
Measurement of no-load losses and current
Dielectric routine tests (Separate source AC and short duration induced overvoltage)

B - Type Tests:

Temperature rise test
Lightning impulse test

C - Special Tests:

Noise level determination (IEC 60551)
Oil leakage test
Overload test (150% rated current)
Short Circuit Dynamic stability Test

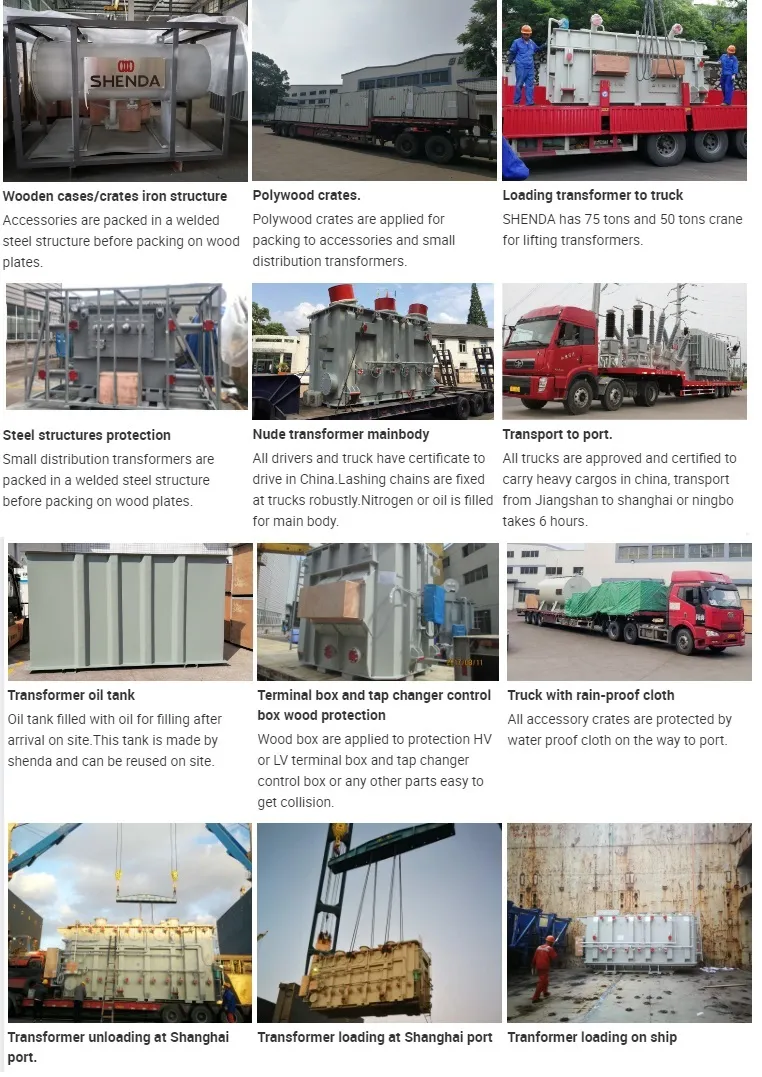

Client Inspection & Logistics

Factory Documentation

1	Technical parameters
2	Outline drawing
3	Lifting diagram
4	Nameplate drawing
5	Control box drawing
6	Transportation diagram
7	Transformer install manual
8	Transformer operation / Maintenance instruction
9	Principles parts / components certification
10	Recommended spare part list (2-5 years)
11	Complete test reports (Routine / Type / Special)

Engineering & Support Services

Design phase supervision and guidance for clients at our factory
Pre-commissioning, commissioning, and installation support
On-site technician training and operation consultation
Dedicated after-sales service team
12-month warranty covering quality and performance

Frequently Asked Questions

What types of transformers do you produce?

We specialize in oil-immersed power transformers (up to 330kV), dry-type transformers, rectifier transformers, furnace transformers, and combined substations.

Which international standards do your products follow?

Our products are designed and manufactured in full compliance with IEC, CE, ISO, GB, and ANSI standards.

What testing is performed before the product leaves the factory?

Every unit undergoes mandatory routine tests (resistance, ratio, losses). We also conduct type tests like lightning impulse and special tests like noise level and short circuit stability upon request.

Do you offer on-site technical support?

Yes, we provide comprehensive engineering services including installation guidance, commissioning, and on-site training for your technical staff.

What is your standard warranty period?

We provide a 12-month quality and performance warranty starting from the date of operation or delivery as per the contract terms.

Can clients inspect the manufacturing process?

Absolutely. Clients are permitted and encouraged to visit our factory for supervision, guidance, and to witness acceptance testing during the manufacturing process.
