1

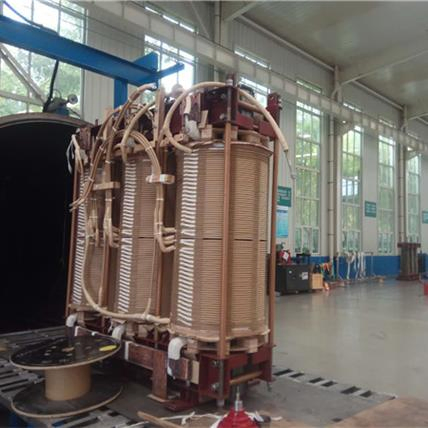

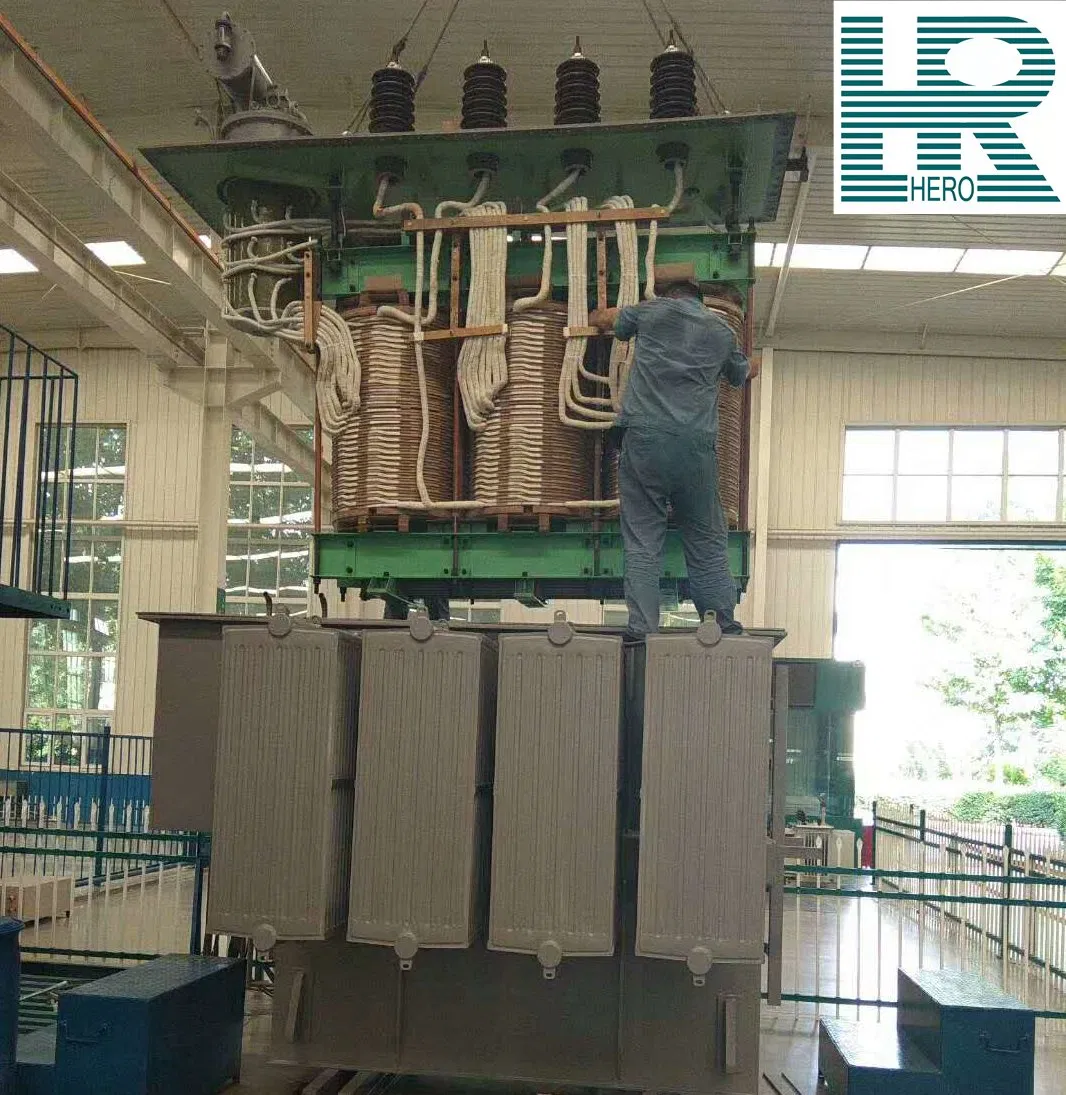

The transformer core is made of high-quality cold-rolled silicon steel sheets, which is tensioned by steel tension belt, forms a solid frame structure with the clamp. The layers gap is small, reducing no-load loss and noise.
2
The transformer coil adopts high-purity oxygen free copper, effectively reducing copper loss. Inner winding support is strengthened to improve short-circuit resistance and stability.
3

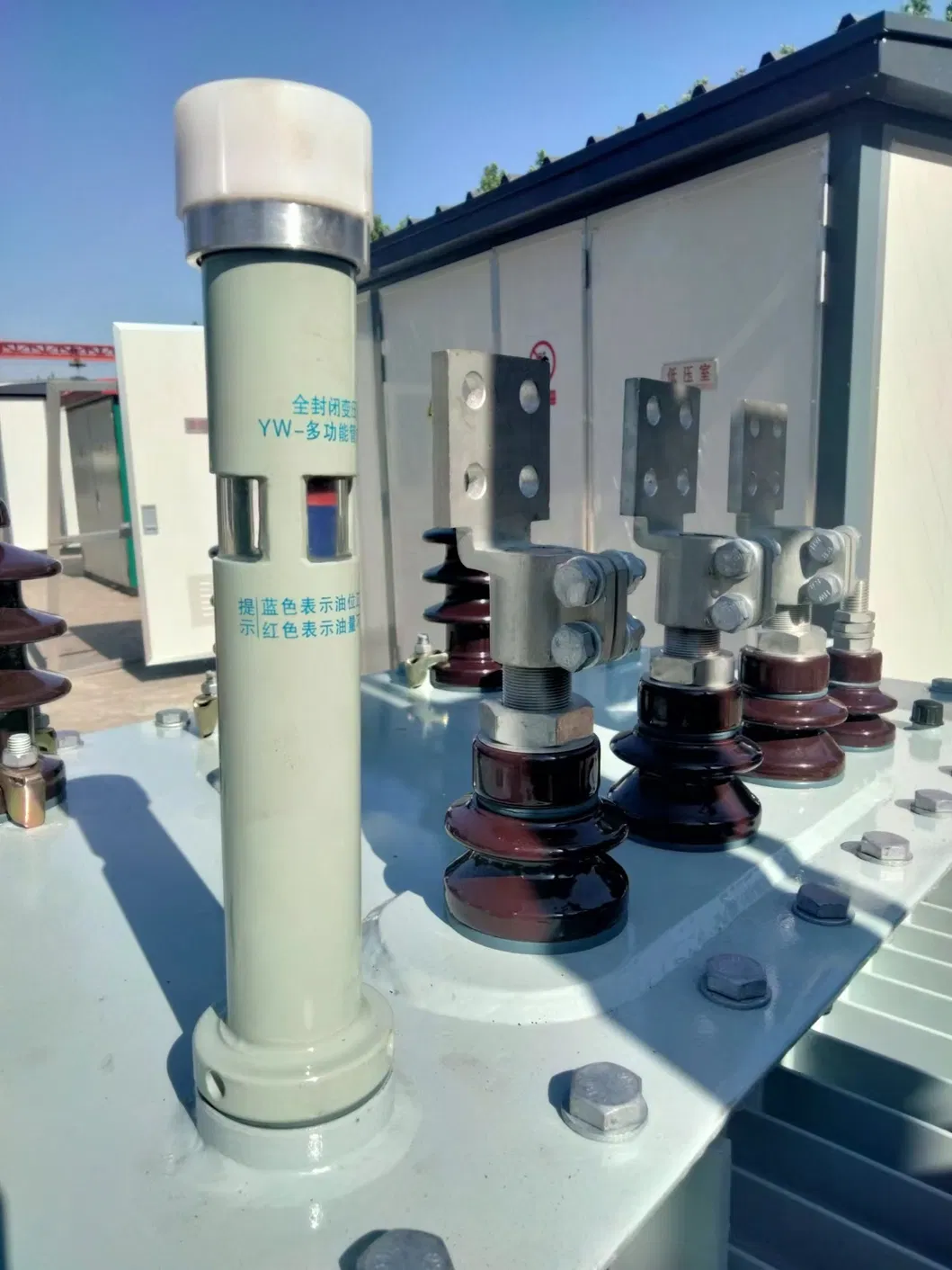

Equipped with perfect secondary signal control and protection. It can realize on-line monitoring of oil level, temperature, and gas in oil parameters.
4
The transformer is fully sealed and maintenance-free, designed to prolong usage life to more than 30 years.
5
Features an on-load tap changer for continuous voltage regulation and stable running of secondary side voltage.
Technical Specifications:
Rated Capacity: 8000KVA | Rated voltage ratio: 35kV / 10.5kV
Impedance voltage: 7.55% | No load loss: 7880W | Load loss: 40620W
Oil weight: 3300kg | Total weight: 15200kg | Dimensions: 4180*3220*3400

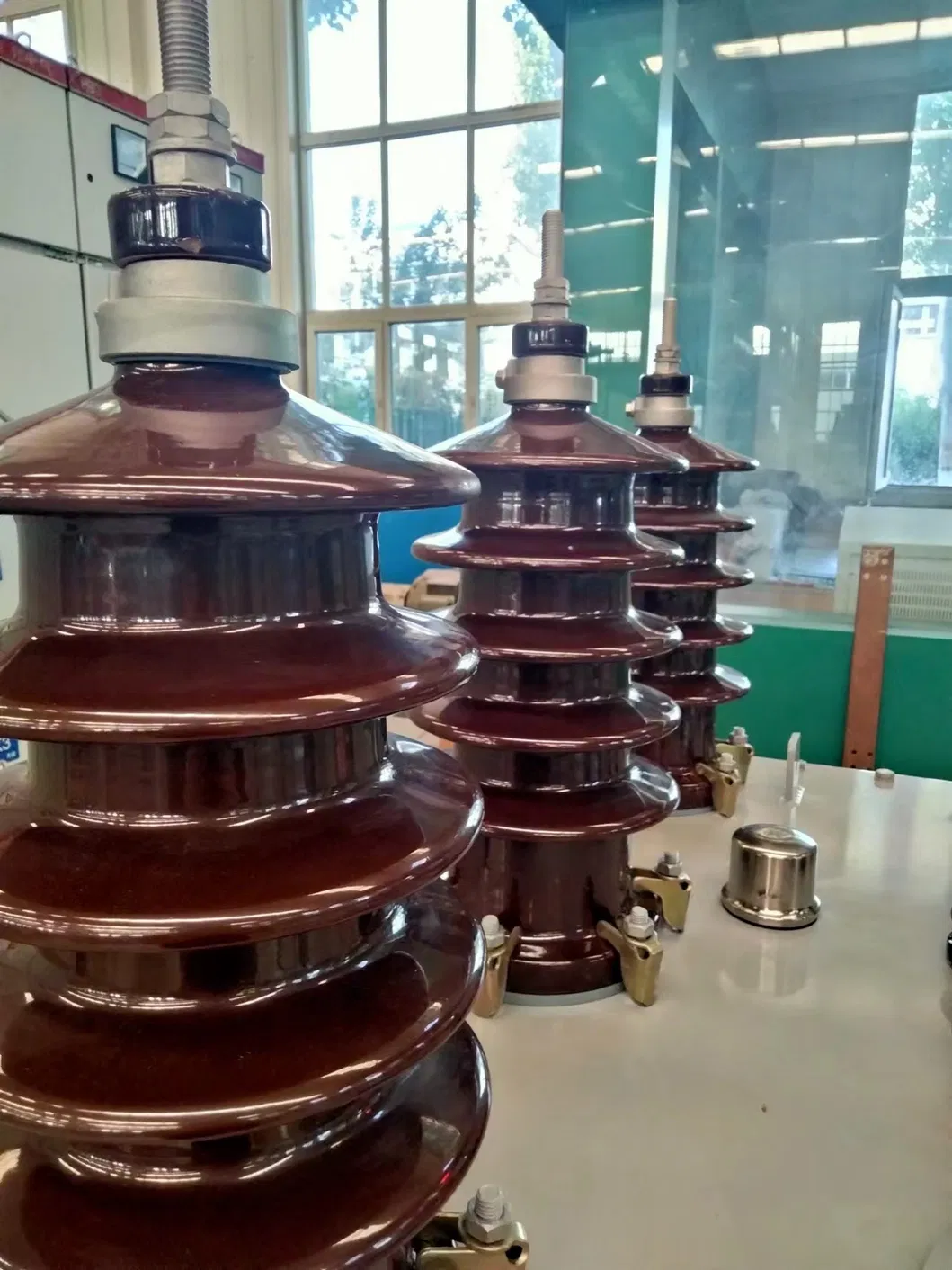

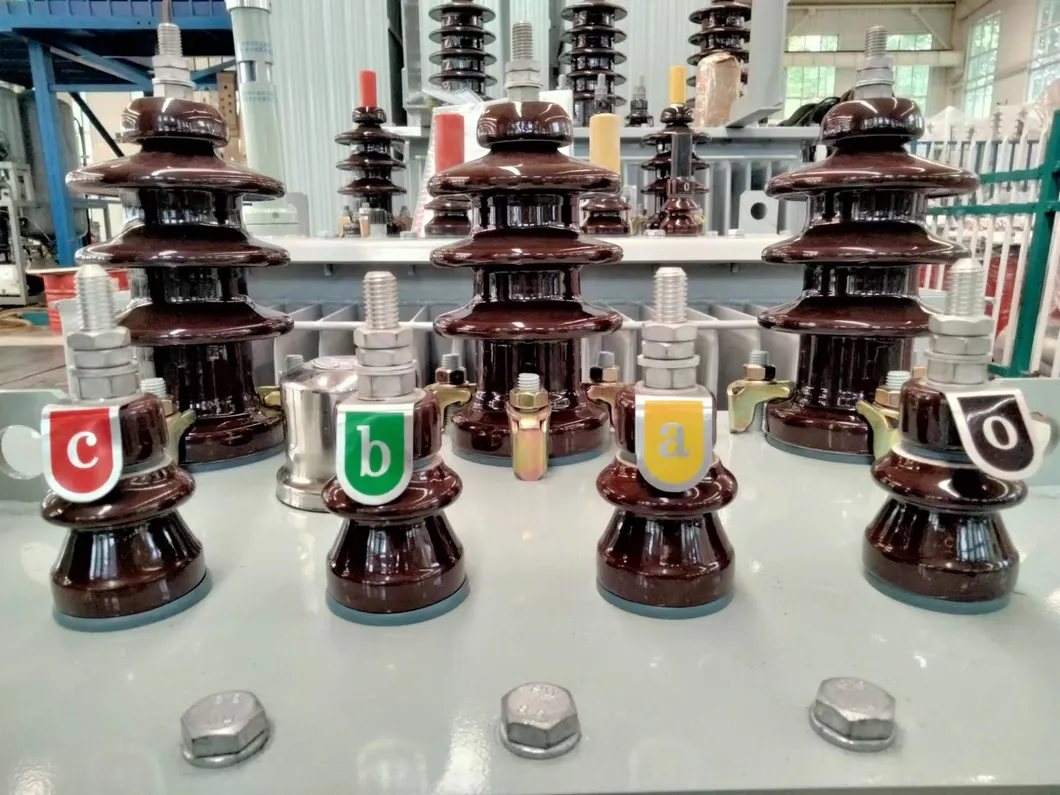

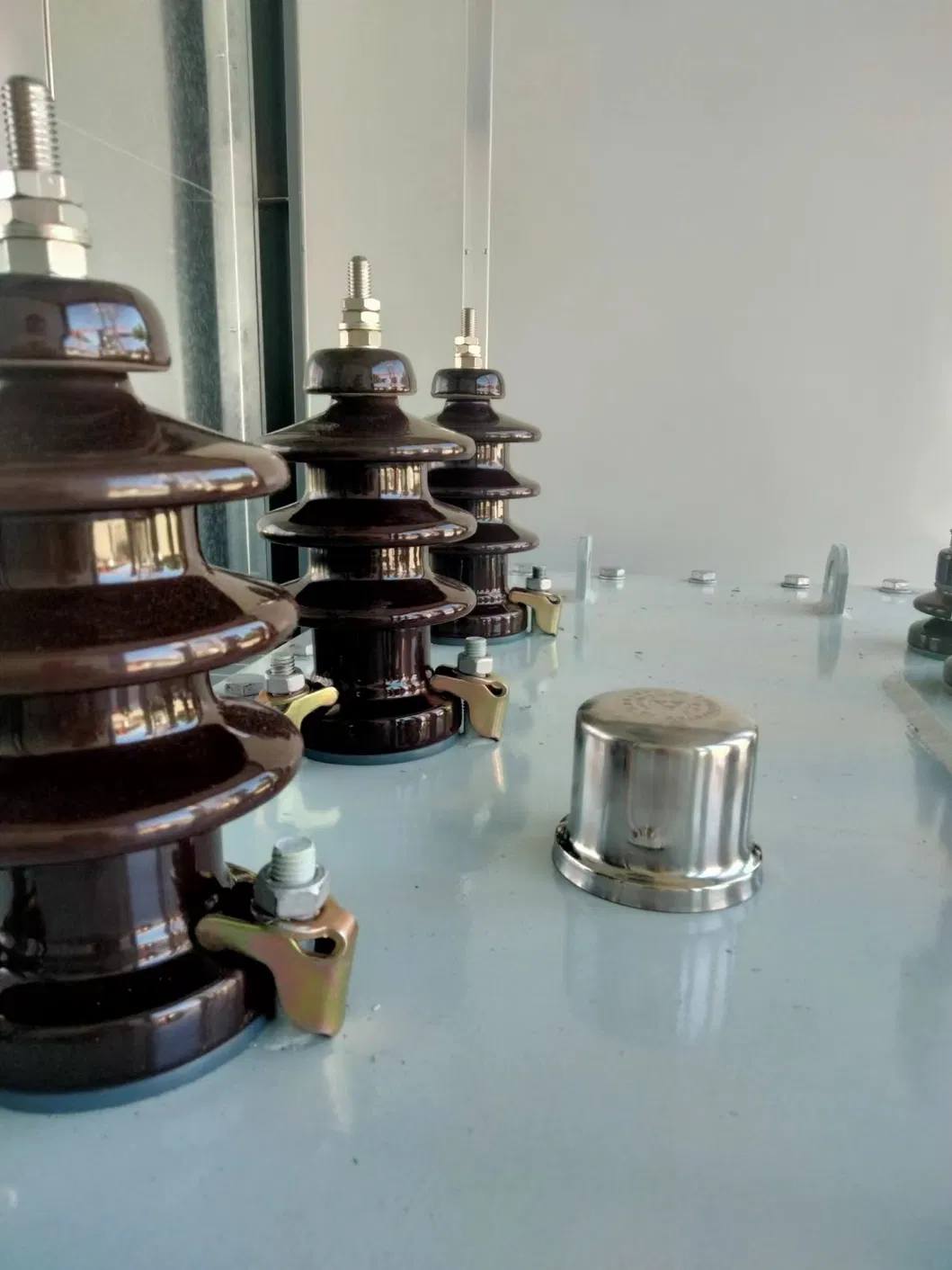

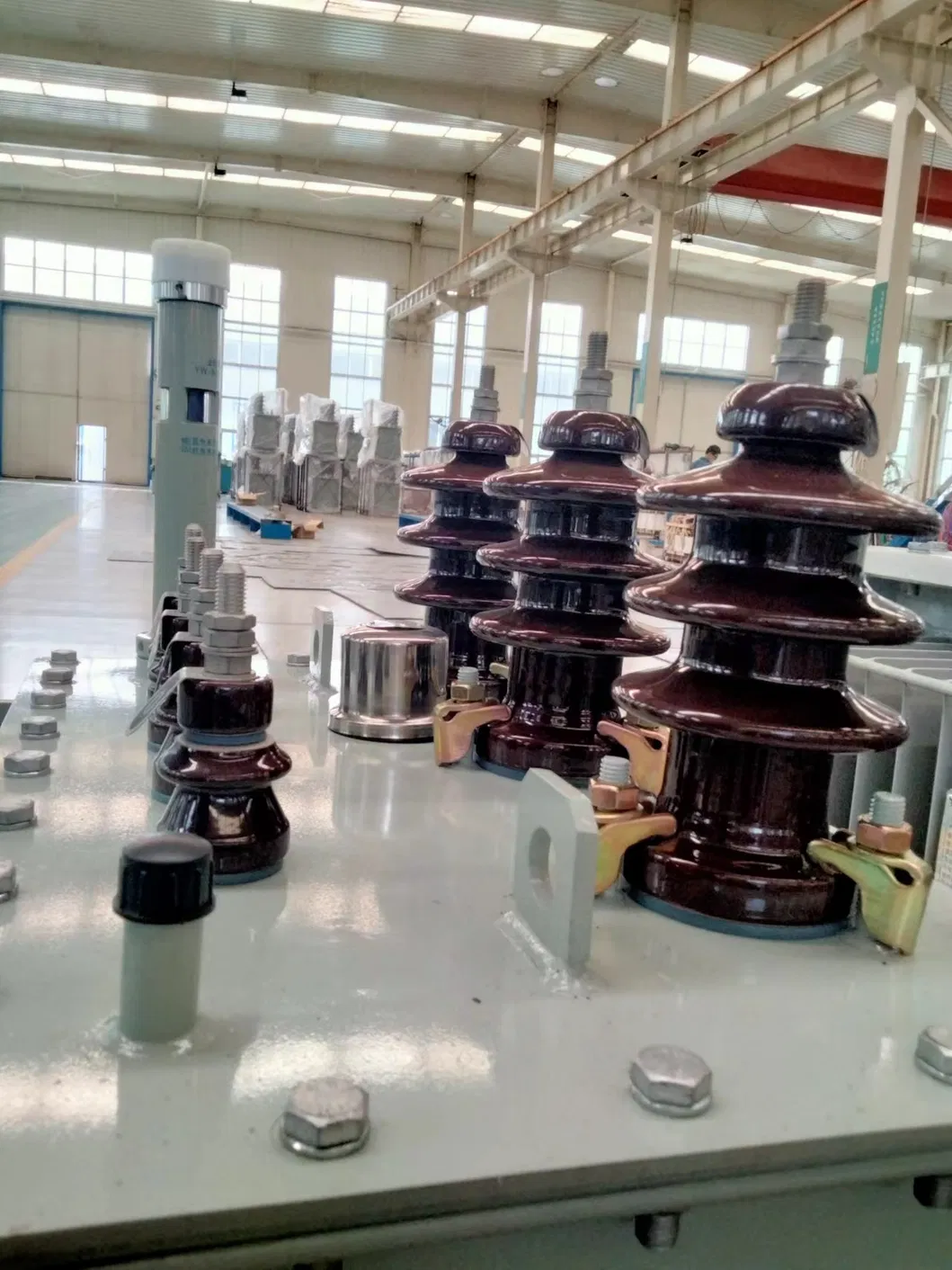

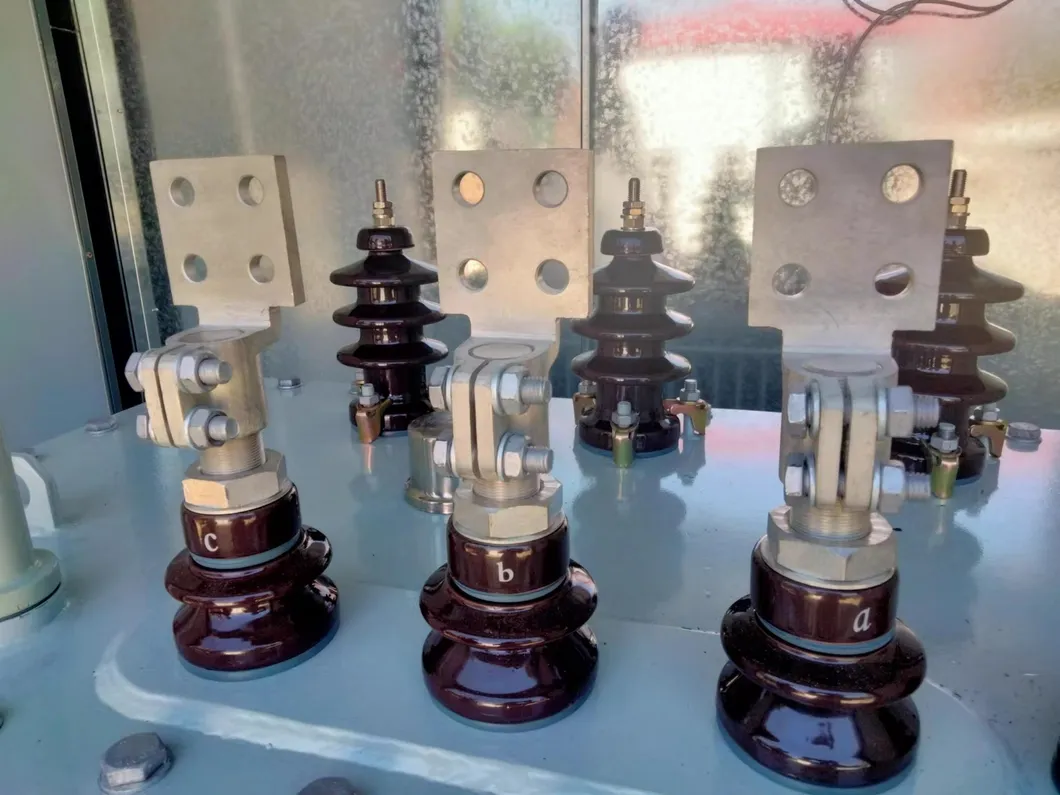

Product Detail Views
