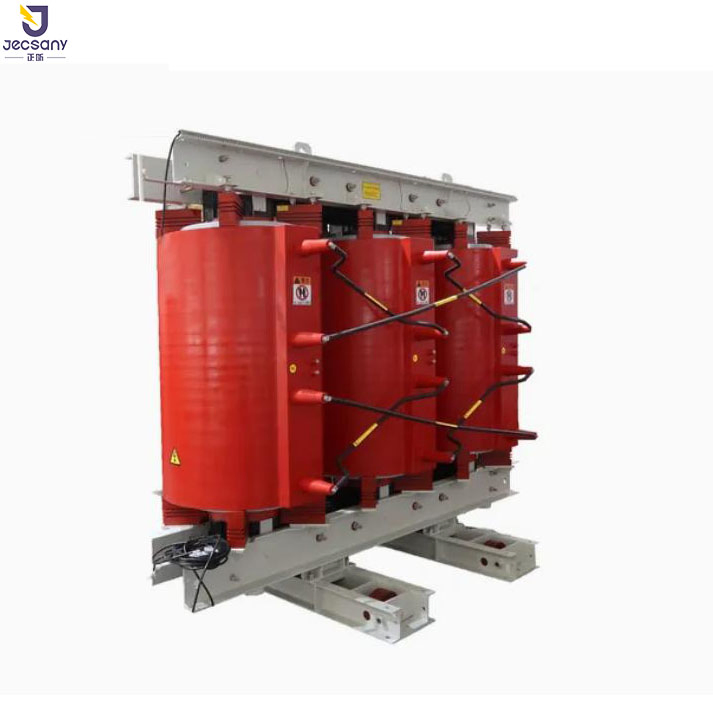

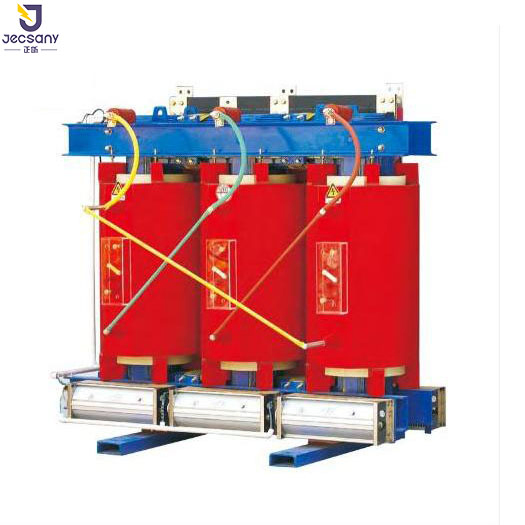

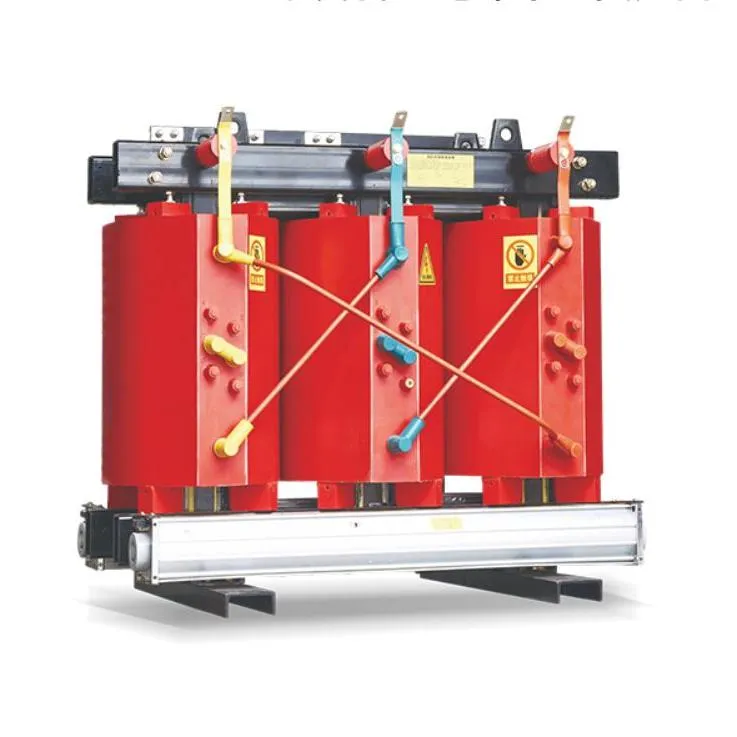

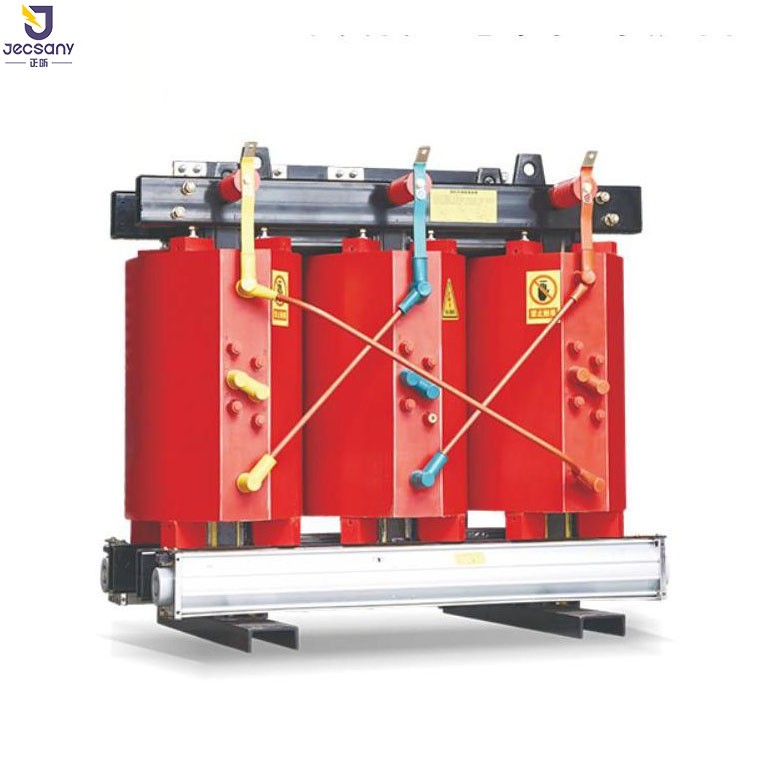

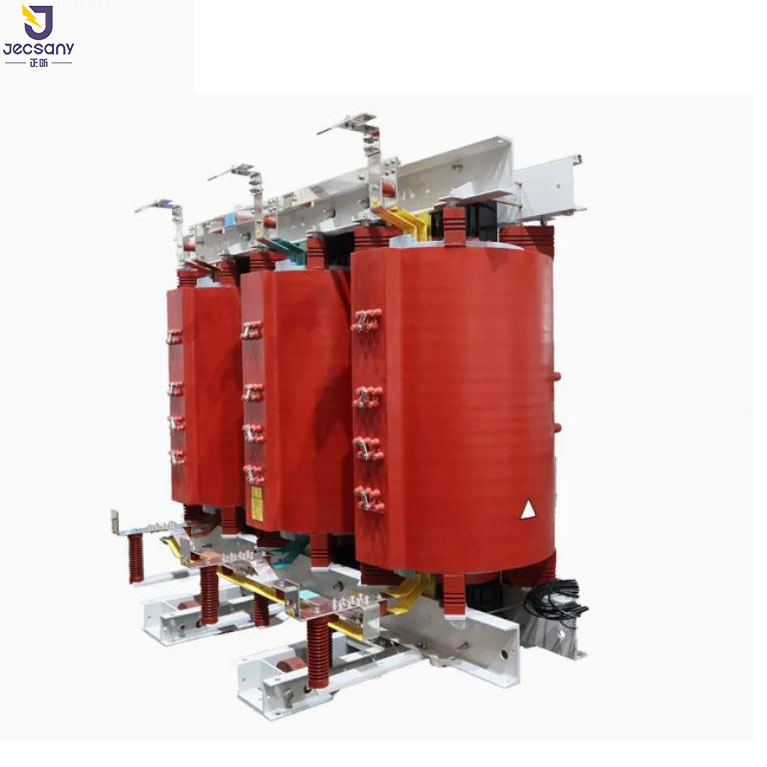

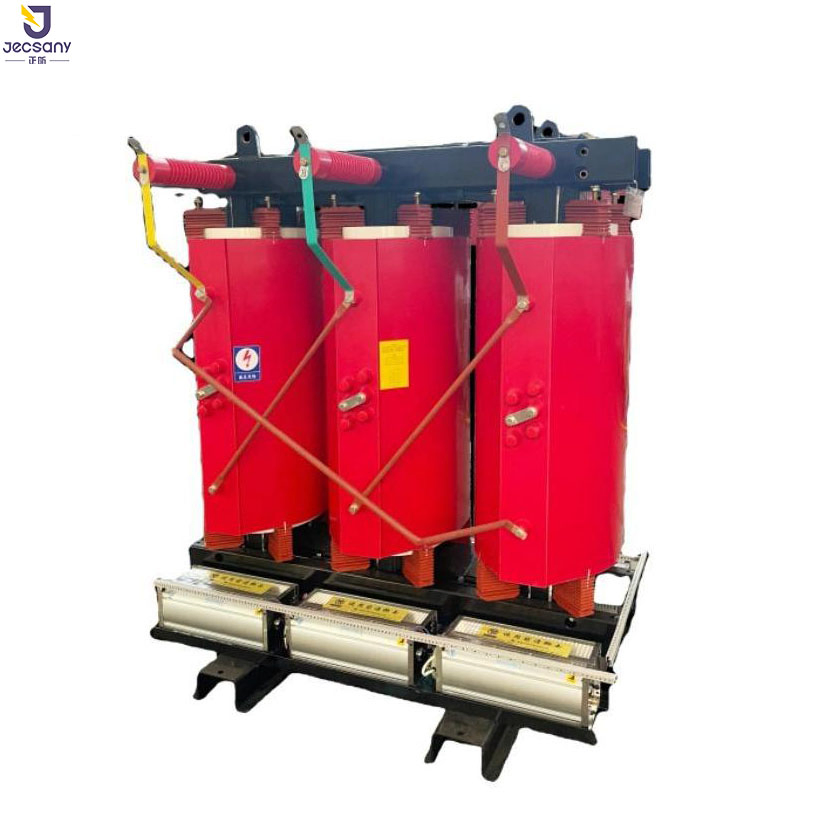

Three-Phase Step Down Resin Dry Type Transformer
Three-Phase Step Down Resin Dry Type Transformer
Three-Phase Step Down Resin Dry Type Transformer
Three-Phase Step Down Resin Dry Type Transformer
Three-Phase Step Down Resin Dry Type Transformer
1 / 5
Three-Phase Step Down Resin Dry Type Transformer
Three-Phase Step Down Resin Dry Type Transformer
Three-Phase Step Down Resin Dry Type Transformer
Three-Phase Step Down Resin Dry Type Transformer
Three-Phase Step Down Resin Dry Type Transformer

Three-Phase Step Down Resin Dry Type Transformer

Customization: Available
Application: Power, Electronic, Instrument
Phase: Three
Send Inquiry

Product Description

📦 Basic Information
Model NO.
SCB13
Core
Amorphous Alloy Transformer
Cooling Method
Dry-type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001
Usage
Distribution Transformer
Frequency
Power Frequency
Shape of Core
Circle
Production Capacity
50,000 pieces/Year
HS Code
8504349000
📝 Product Description

Three-Phase Step Down Resin Dry Type Transformer

The Three-Phase Step Down Resin Dry Type Transformer is a highly efficient and reliable power distribution solution designed to step down higher voltage levels to lower, usable voltages in industrial, commercial, and residential applications. Encapsulated in high-quality epoxy resin, this transformer offers exceptional thermal and electrical insulation, ensuring long-term durability and safety in demanding environments.

Three-Phase Step Down Resin Dry Type Transformer
⭐ Key Product Features
⚡
High Efficiency: Designed to minimize energy losses, ensuring optimal performance and reduced operational costs.
🛡️
Dry-Type Construction: Oil-free and non-flammable, making it environmentally friendly and safe for indoor use.
💧
Resin Encapsulation: Excellent protection against moisture, dust, and corrosive substances.
🔇
Low Noise Levels: Engineered for quiet performance, ideal for hospitals, schools, and offices.
🔥
Fire-Resistant: Self-extinguishing materials enhance safety by reducing fire hazards.
🛠️
Low Maintenance: Robust construction eliminates the need for frequent maintenance.
🔍 Product Details

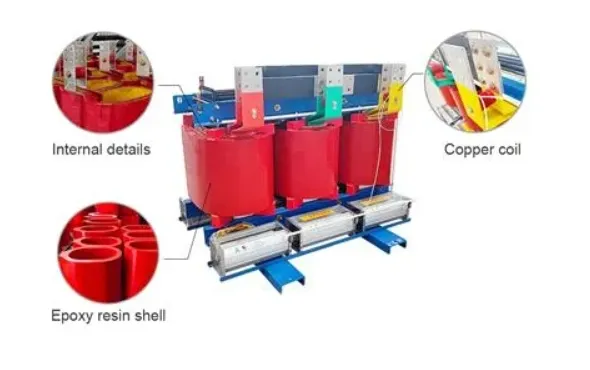

Product Detail 1

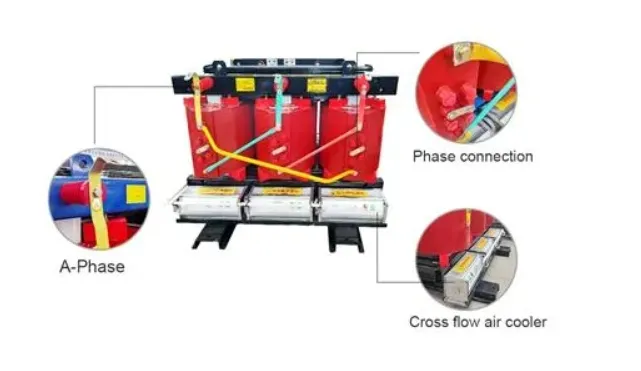

Product Detail 2
📊 Technical Parameters
Rated Capacity (KVA) Voltage Combination & Tap Range Connection Type No-load Loss (W) Load Loss (W) No-load Current (%) Impedance (%)
High Voltage (KV) Tap Range (%) Low Voltage (KV)
30 - 2006 / 10 / 11±5% / ±2x2.5%0.4Dyn11130 - 435710 - 25302.6 - 1.64
250 - 5006 / 10 / 11±5% / ±2x2.5%0.4Dyn11505 - 8102760 - 48801.6 - 1.44
630 - 25006 / 10 / 11±5% / ±2x2.5%0.4Dyn11940 - 25205880 - 171701.2 - 1.06
🚚 Packaging & Delivery
Package Size
150.00cm * 120.00cm * 180.00cm
Gross Weight
300.000kg
Package Type
Wooden Carton / Pallet / Crate
Shipping Port
Major Sea Ports

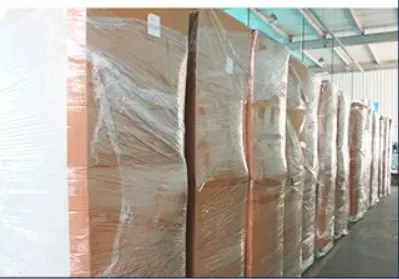

Packaging
Shipping Preparation
Frequently Asked Questions
What are the advantages of a Resin Dry Type Transformer?
It is oil-free, non-flammable, and highly resistant to moisture and dust. This makes it safe for indoor installations and environmentally friendly compared to oil-immersed transformers.
Is the SCB13 model energy efficient?
Yes, the SCB13 series utilizes amorphous alloy or high-quality silicon steel cores designed specifically to minimize no-load losses and optimize overall energy performance.
Can this transformer be used in high-humidity environments?
Absolutely. The epoxy resin encapsulation provides a hermetic seal that protects the windings from moisture, salt spray, and other corrosive elements.
Does it require frequent maintenance?
No, dry-type resin transformers are virtually maintenance-free because they do not have oil levels to check or gaskets that leak. Regular visual inspections and dusting are usually sufficient.
Is it suitable for noise-sensitive areas like hospitals?
Yes, these units are engineered for low noise levels, making them ideal for installations in residential buildings, hospitals, and office complexes.
What international standards does this product comply with?
Our transformers meet international quality and safety standards, including ISO9001, and are designed according to IEC and CE specifications.
