Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks
Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks
Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks
Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks
Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks
1 / 5
Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks
Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks
Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks
Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks
Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks

Electric Pole-Mounted Step-Down Transformers Handle 10kv or 11kv Inputs, Delivering Single-Phase Power Between 15kVA and 333kVA for Distribution Networks

Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase: Single
Send Inquiry

Product Description

📋 Basic Information
Core
Core-type Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC
Usage
Single-phase Transformer
Frequency
50/60Hz
Material
Copper or Aluminum
Rated Capacity
10kVA
High Voltage
6kv/10/Kv/11kv
Low Voltage
220/240V
⚙️ Product Description
Single Phase Transformer Header

The single-phase distribution transformer is specially designed for the distributed network serving the overhead distribution load of urban and rural residents. They are also suitable for lightweight and diverse power applications. These transformers are designed for the application conditions often encountered in power distribution systems.

Available in two basic transformer types and two metal core types: Conventional and fully self-protected. The transformer core is available in two materials: C.R.G.O wound core and amorphous metal core.

Key Features
  • Meets or exceeds ANSL, IEC, GB, and SANS Standards
  • Safe Handling, Installation, and Operation
  • Attractive, modern appearance with a reasonable structure
  • Fully-sealed design for higher system reliability
  • High security and reliability in operation
  • High capacity for overload and efficiency
  • Robust construction with excellent short circuit and thermal withstand capabilities
  • Reduced no-load losses and load losses for higher efficiency
Service Environment
  • Device type: Outdoor type
  • Normal elevation: Not more than 1000 m
  • Environmental temperature range: -25°C to +40°C
  • Special conditions: Available for elevations above 1000m and temperatures down to -45°C
  • Mounting environment: No corrosive gas, no obvious dirt environment
📊 Technical Parameters
Rated Capacity (kVA) H.V. (kV) L.V. (kV) Vector Group Impedance Voltage (%) Loss (kW) No-load current (%) Weight (kg)
Load Loss No-load Loss Oil Total
511 / 10.5 / 10 / 6.3 / 60.22 / 0.24Ii0 / Ii63.514535440130
103.5260553.540150
163.5365653.240180
203.5430803.050205
303.56251002.550225
503.59501502.370310
10011 / 10.50.22 / 0.24Ii03.516502401.9100490
16011 / 10.50.22 / 0.24Ii03.523653651.7130650
📸 Product Display

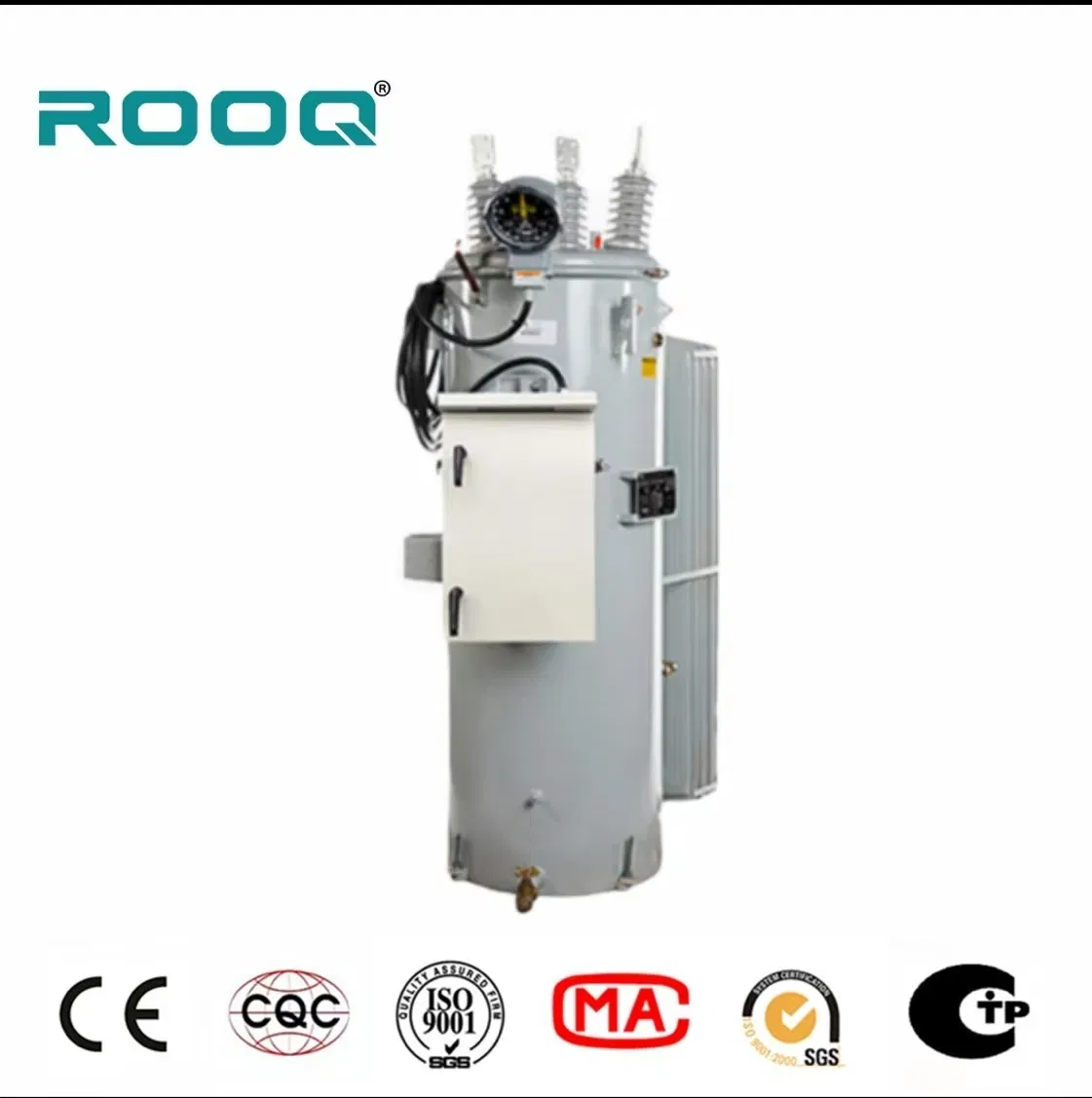

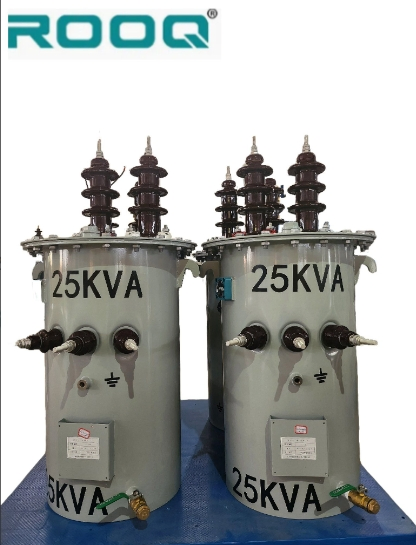

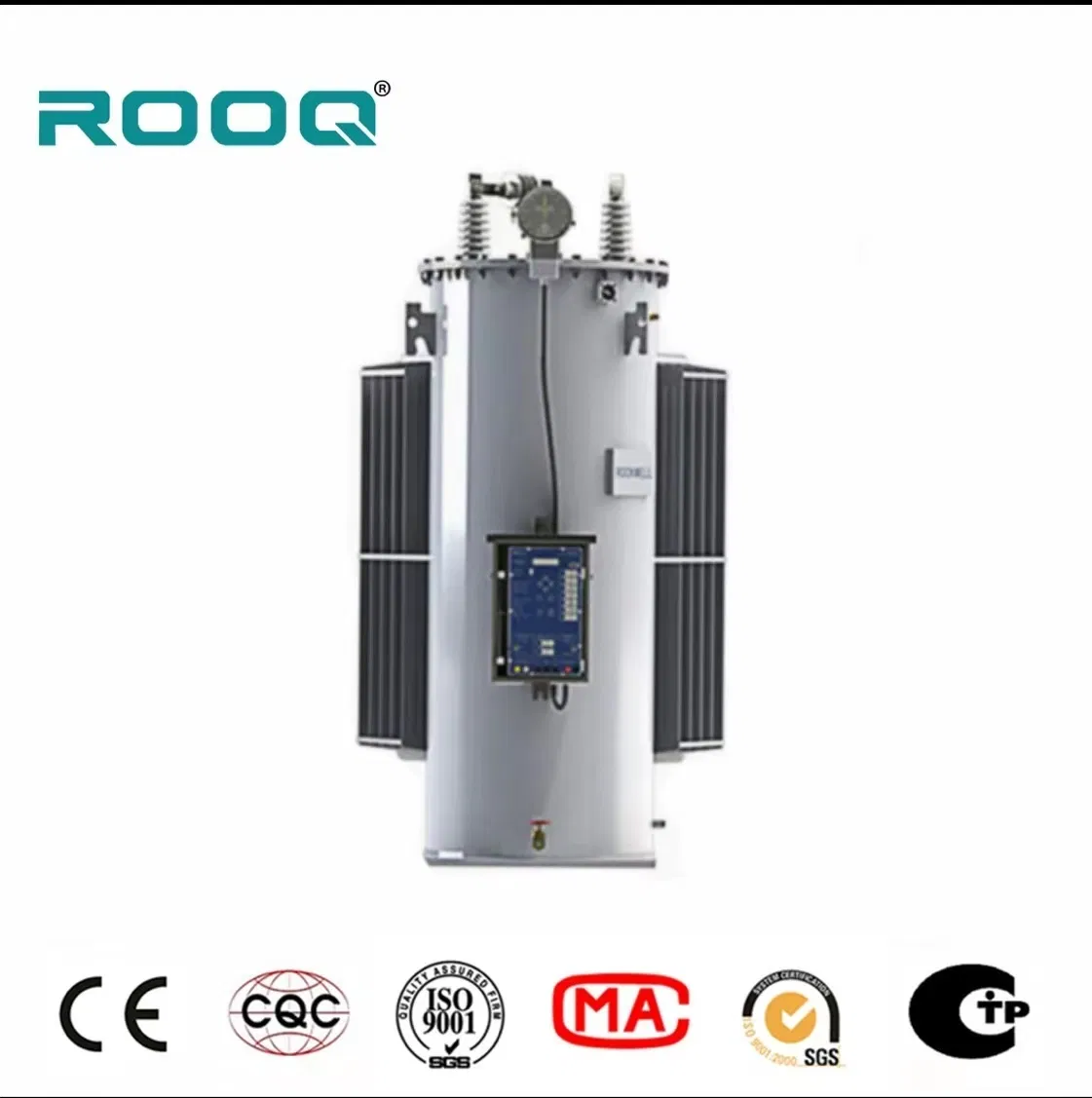

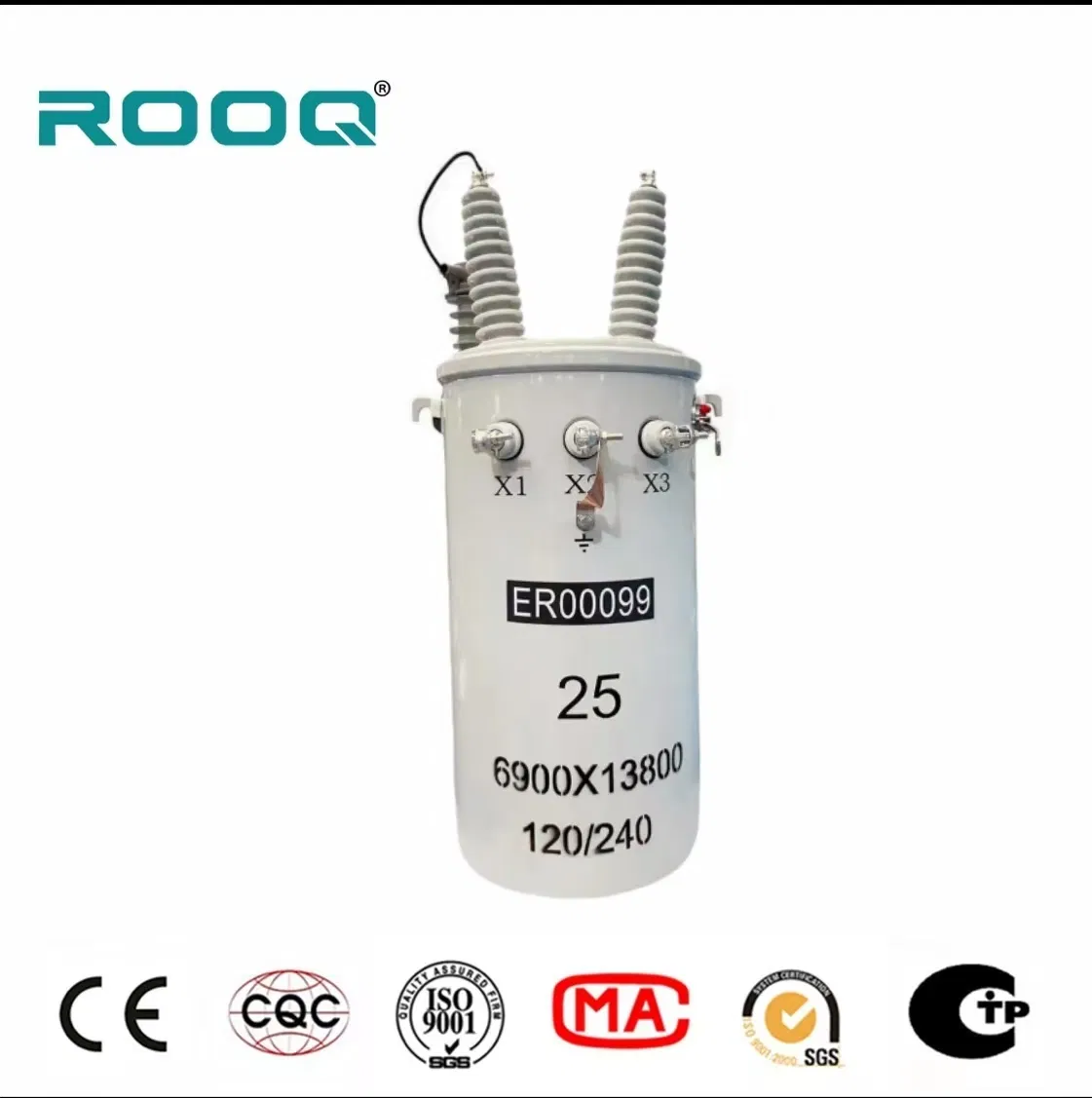

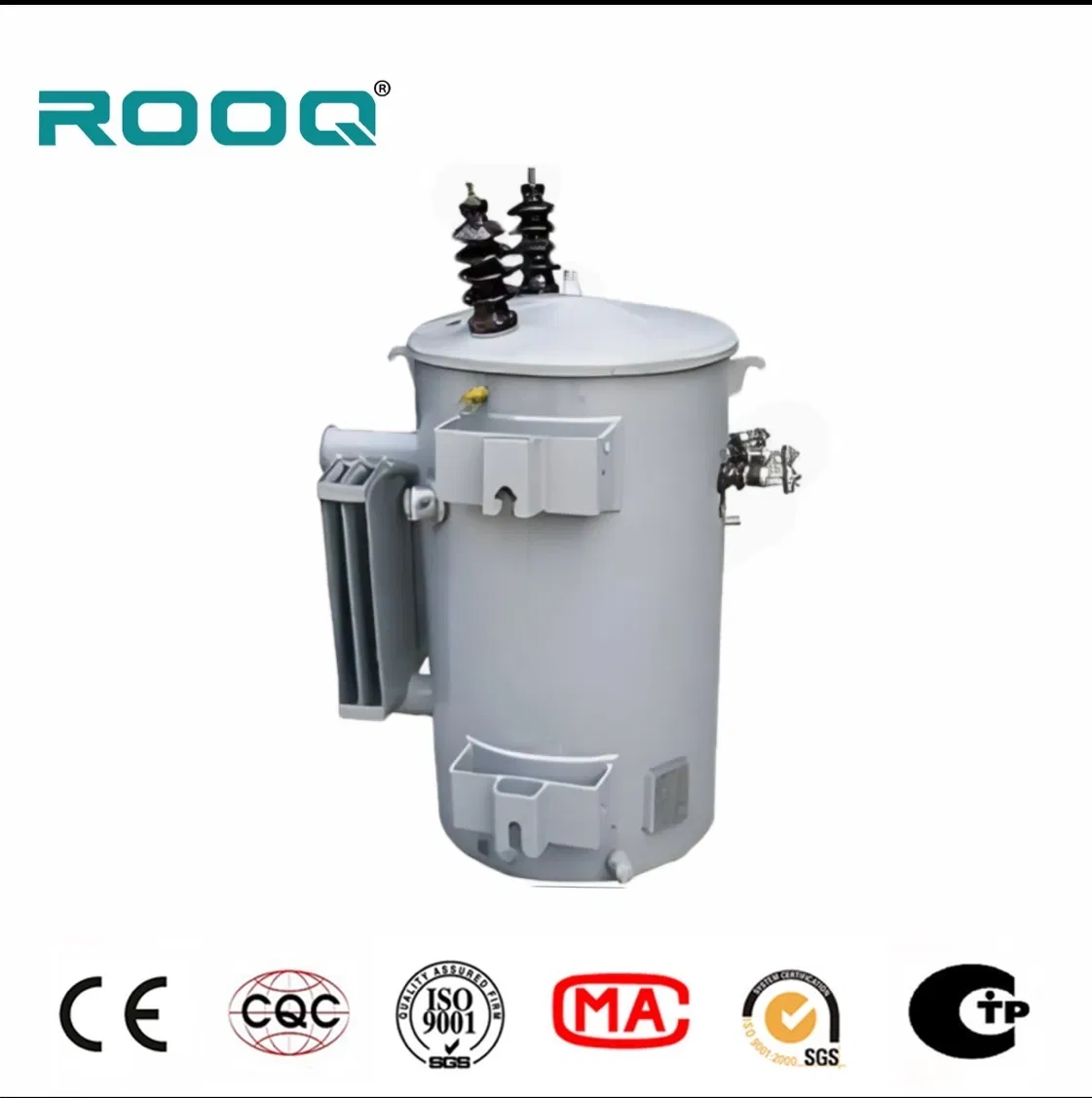

Main Product View

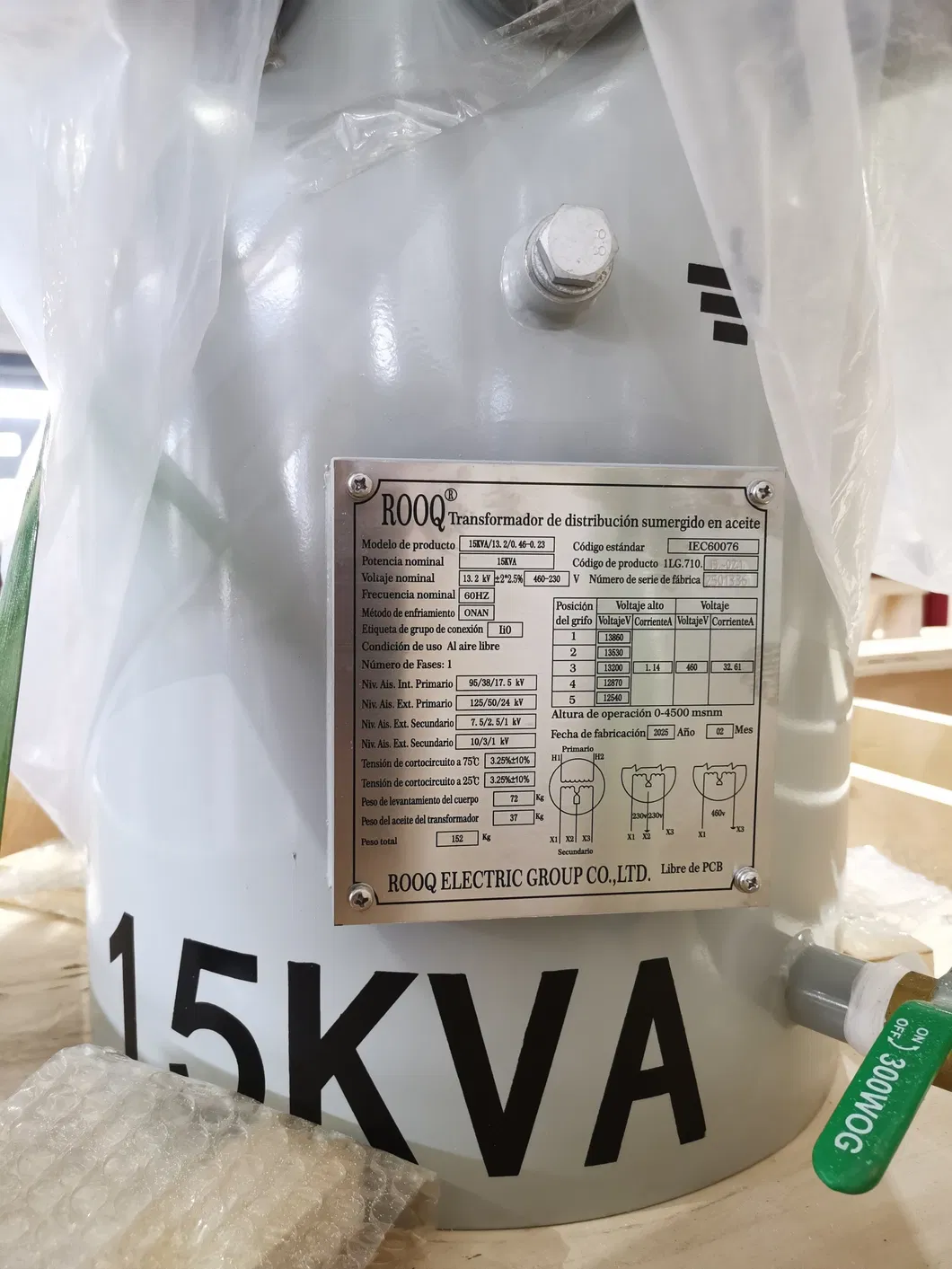

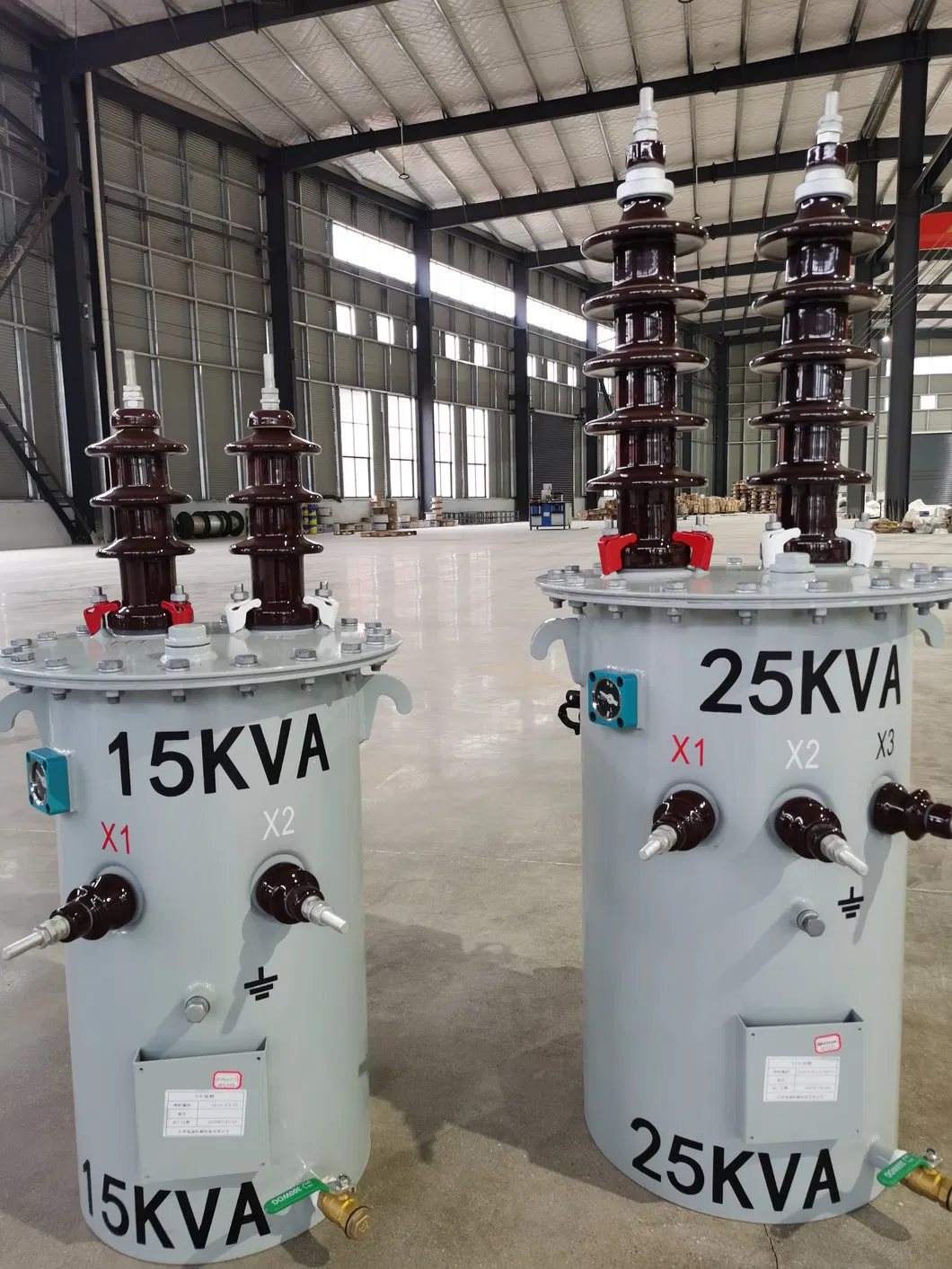

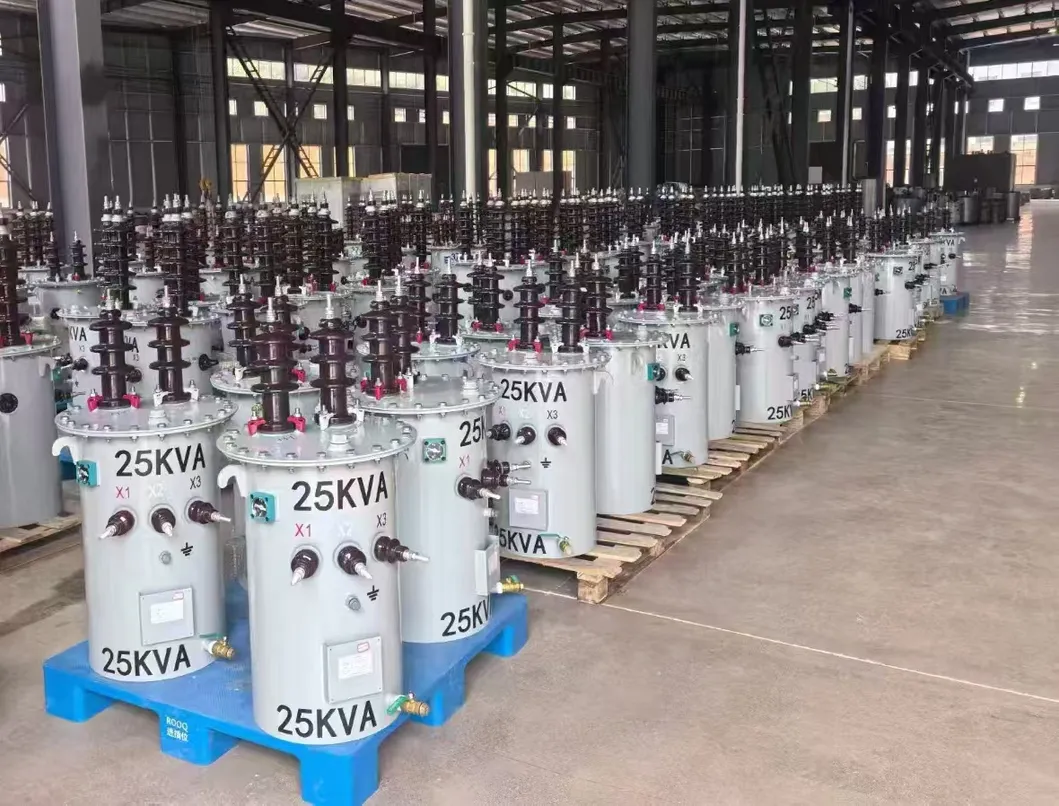

Transformer Detail 1 Transformer Detail 2 Transformer Detail 3
🏭 Production Process

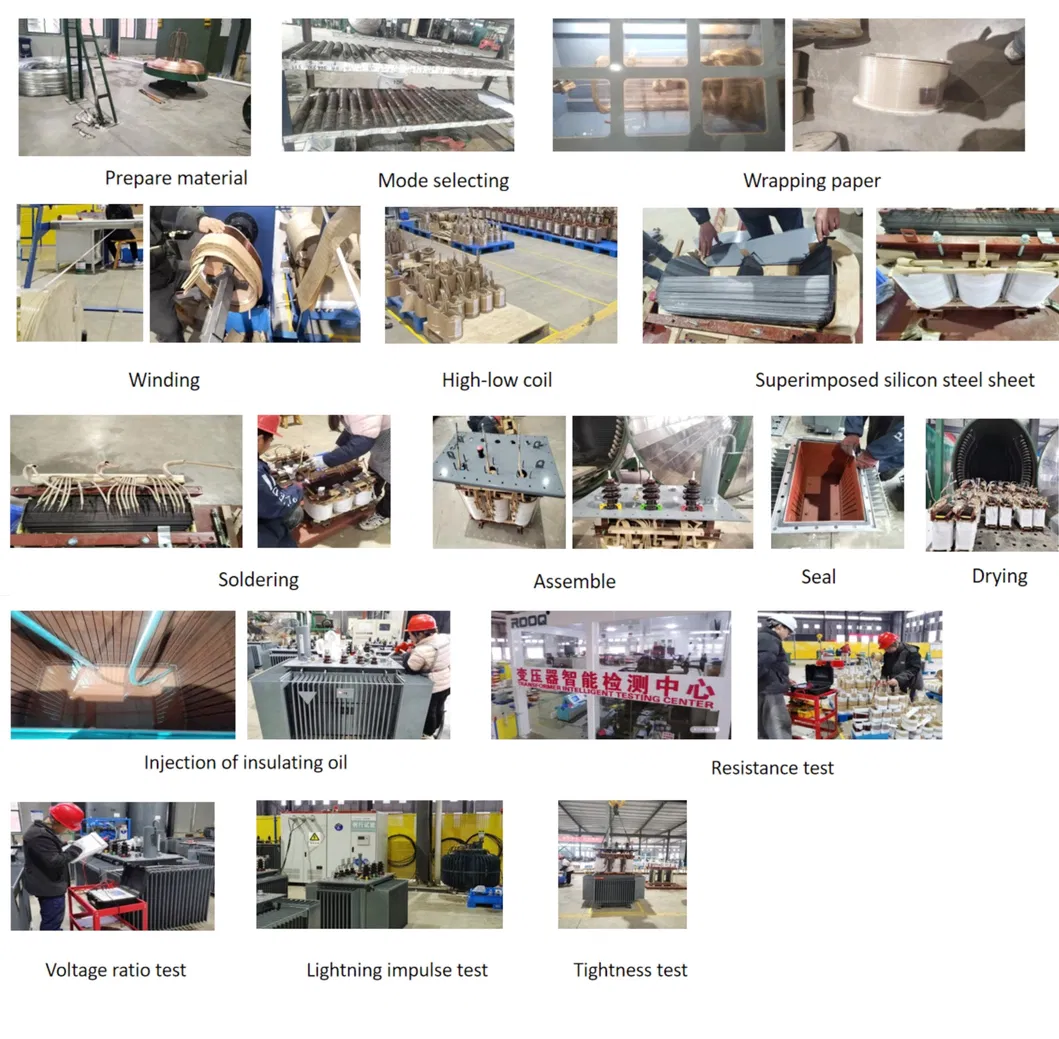

Manufacturing Process
📦 Packaging & Shipping

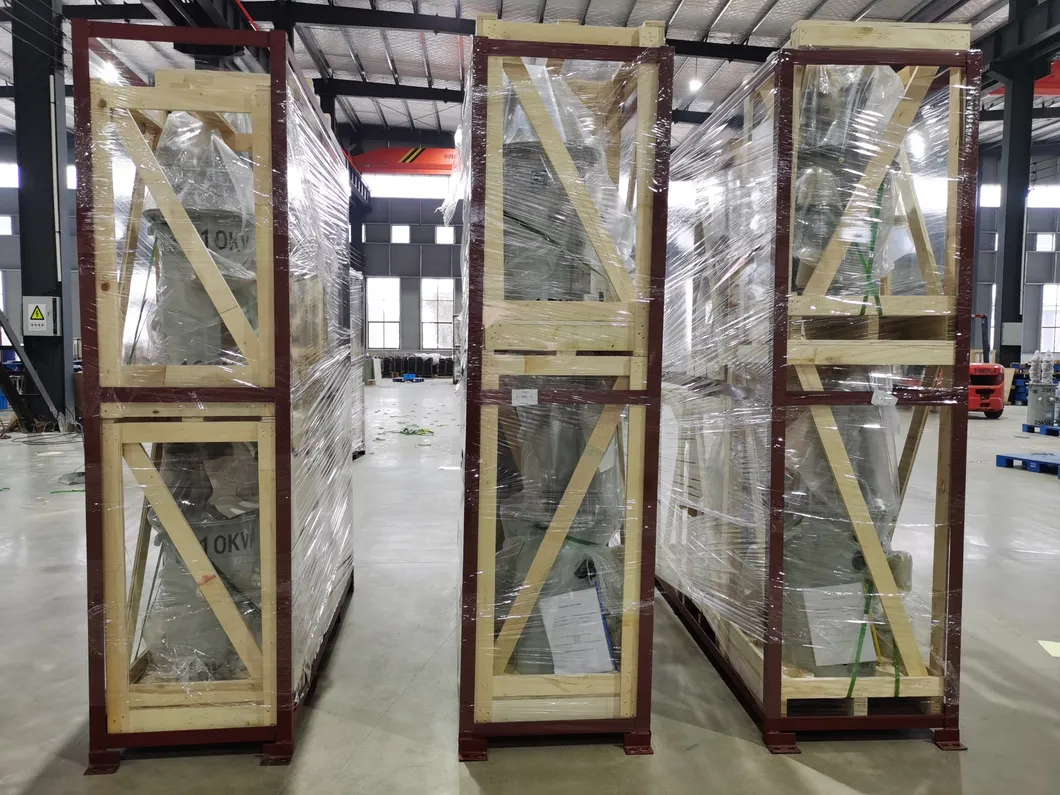

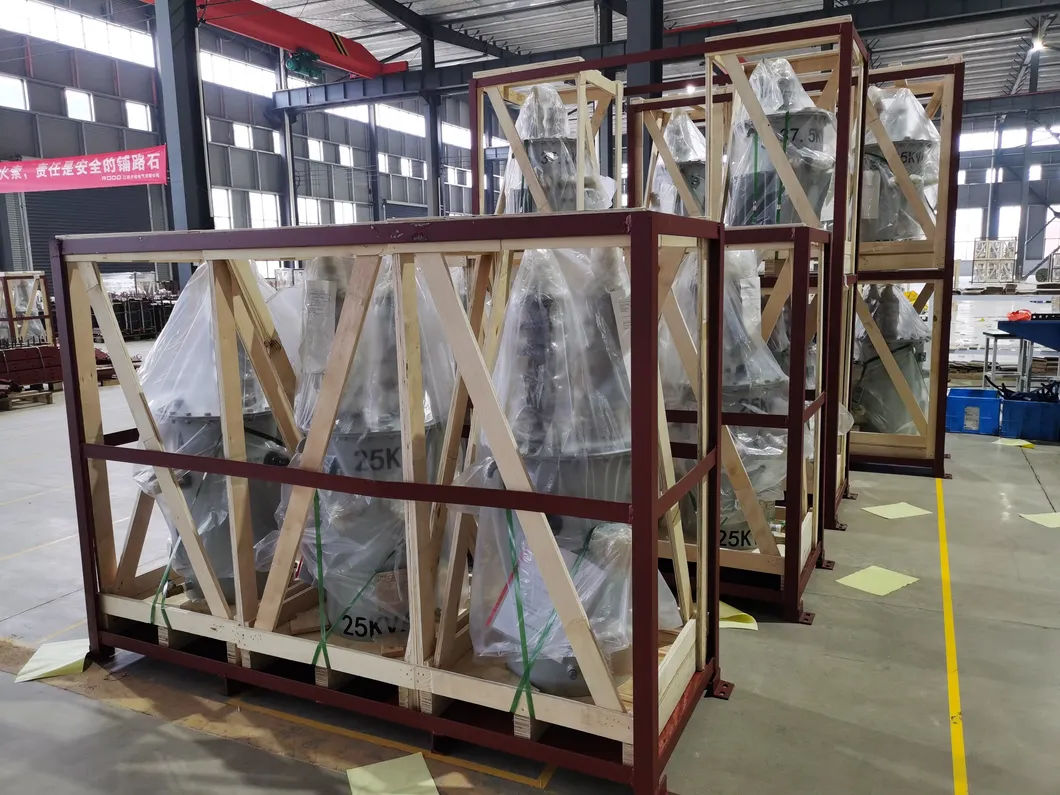

Packaging 1 Packaging 2 Shipping
🏢 Manufacturing Excellence
Factory Overview

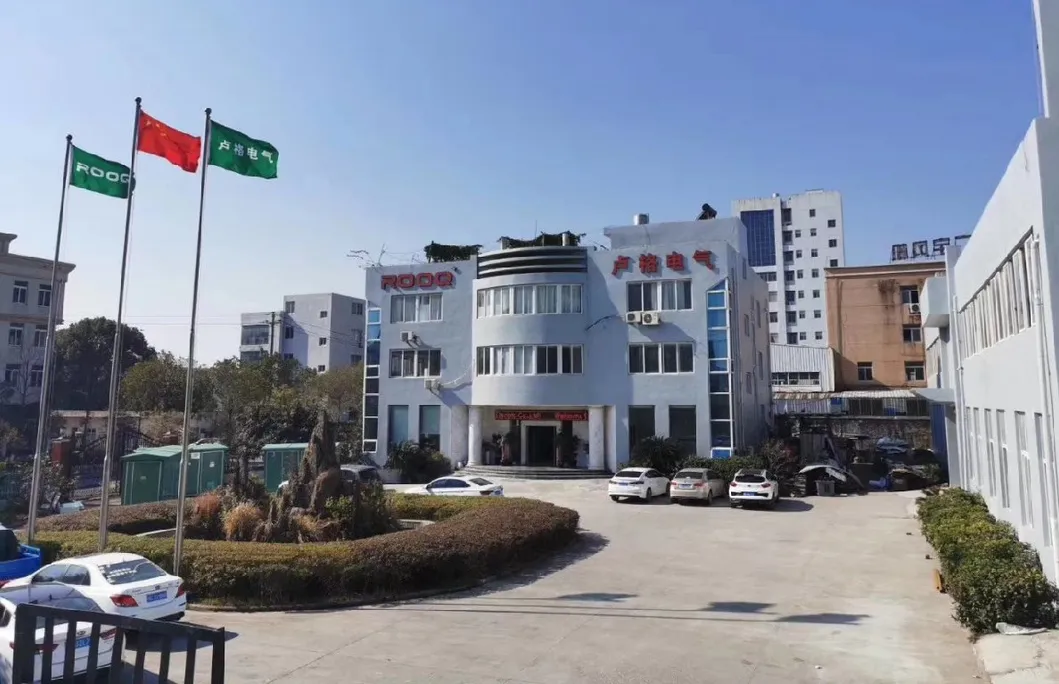

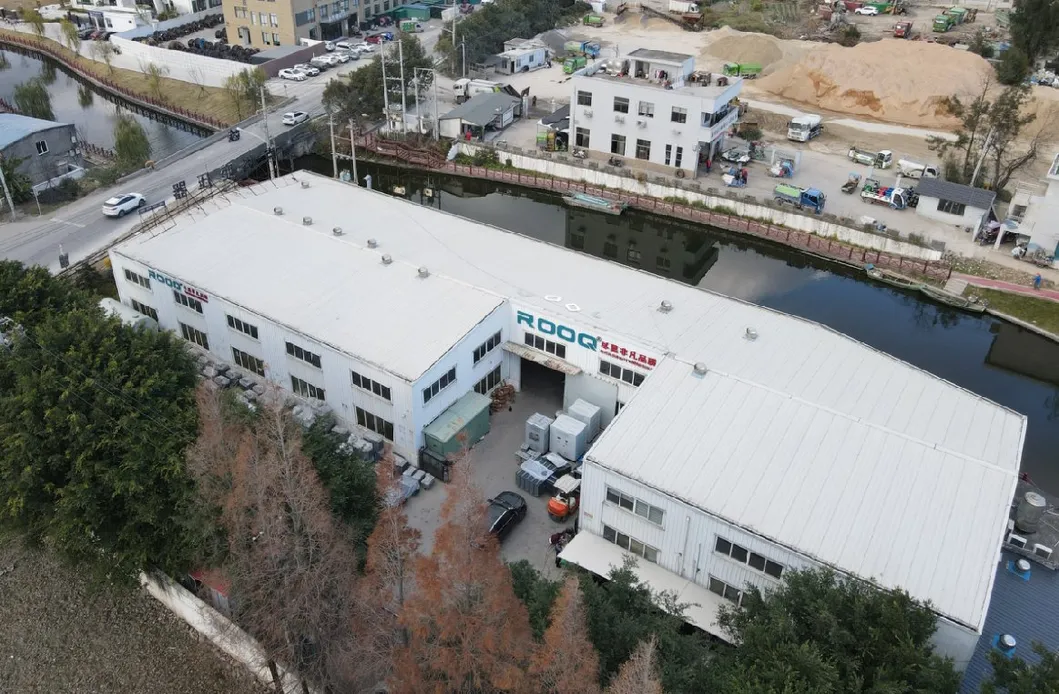

Production Line 1 Production Line 2 Quality Control
Since establishment, the company has always insisted on product quality first and guided by customer demand. With years of innovation and professional manufacturing experience, we have more than 20 independent intellectual property rights, and have strong advantages in special product customization and EPC power engineering general contracting. Stable quality assurance and timely delivery capabilities have won the wide trust of users around the world.
Certification
Our Service
We implement a "7*24 service" and an after-service policy with life-long warranty to actively provide its customers with timely, warm and comprehensive service. Our team can provide you with installation, commissioning operation and project acceptance or maintenance to enhance the product utilization value and ensure premium services.

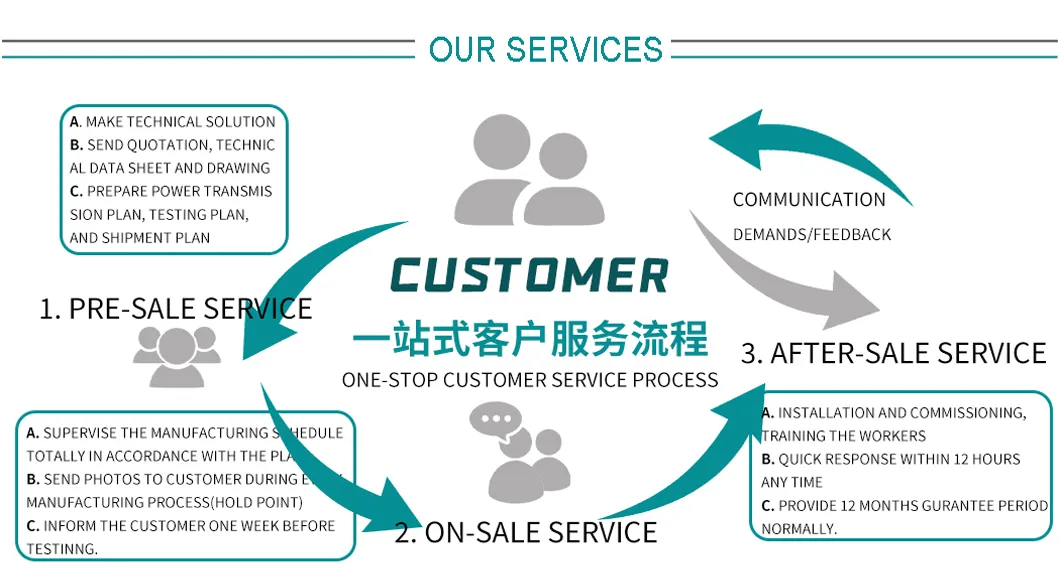

Service Team
Frequently Asked Questions
What is the primary application of this single-phase transformer?
It is specifically designed for distributed networks serving overhead distribution loads for urban and rural residential areas, as well as lightweight diverse power applications.
What core materials are available?
The transformer cores are available in two materials: C.R.G.O wound core and Amorphous metal core, allowing for different efficiency and cost requirements.
Can this transformer operate in extreme cold environments?
Yes, while the normal minimum temperature is -25°C, we offer special configurations that can operate reliably in environments as low as -45°C.
What international standards do these transformers comply with?
Our transformers meet or exceed ANSL, IEC, GB, and SANS standards, ensuring global compatibility and safety.
Is the transformer protected against weather elements?
Yes, the units are designed as outdoor, fully-sealed types, providing high system reliability and protection against environmental factors.
What kind of after-sales support do you provide?
We offer "7*24 service" which includes a life-long warranty policy, along with support for installation, commissioning, and maintenance.
