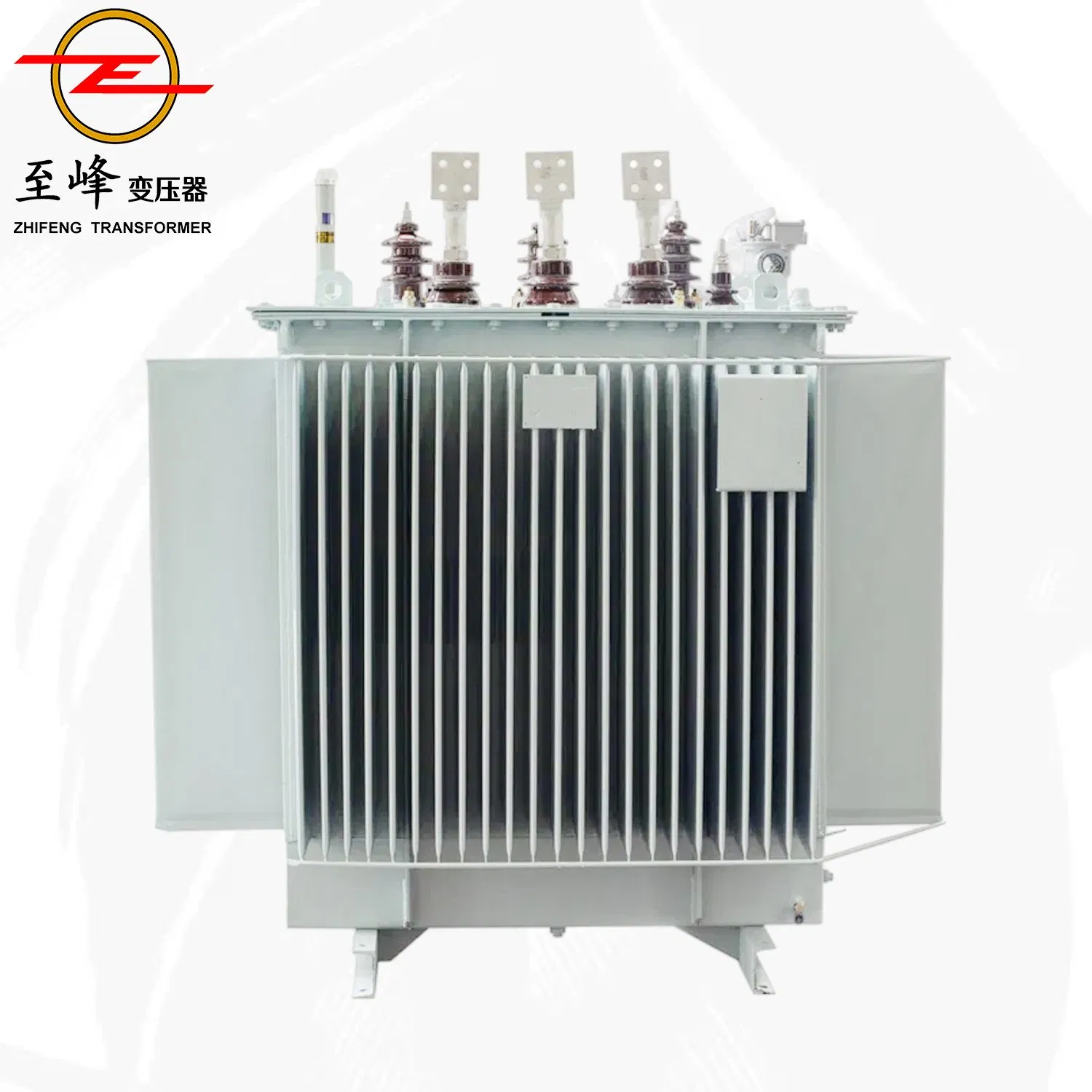

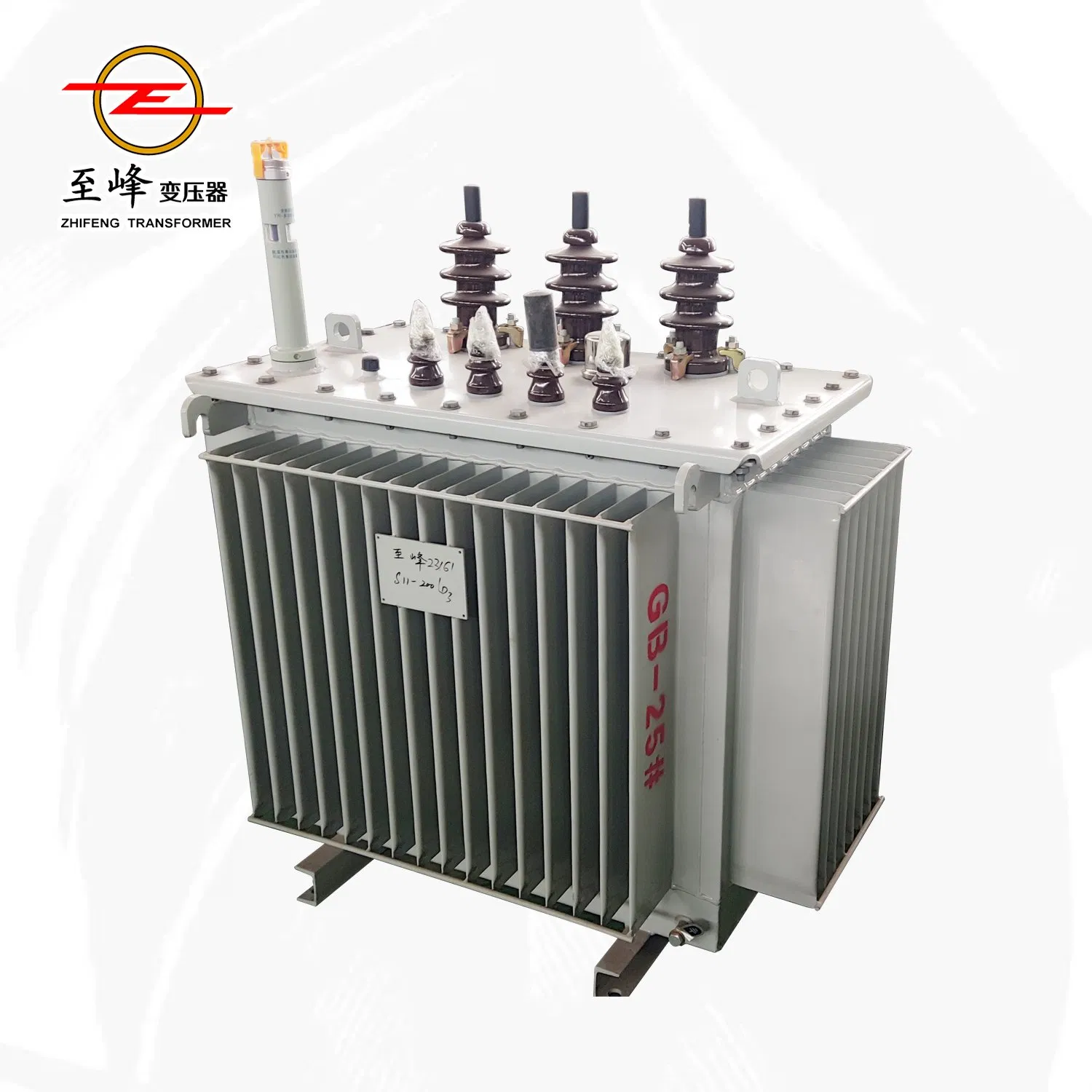

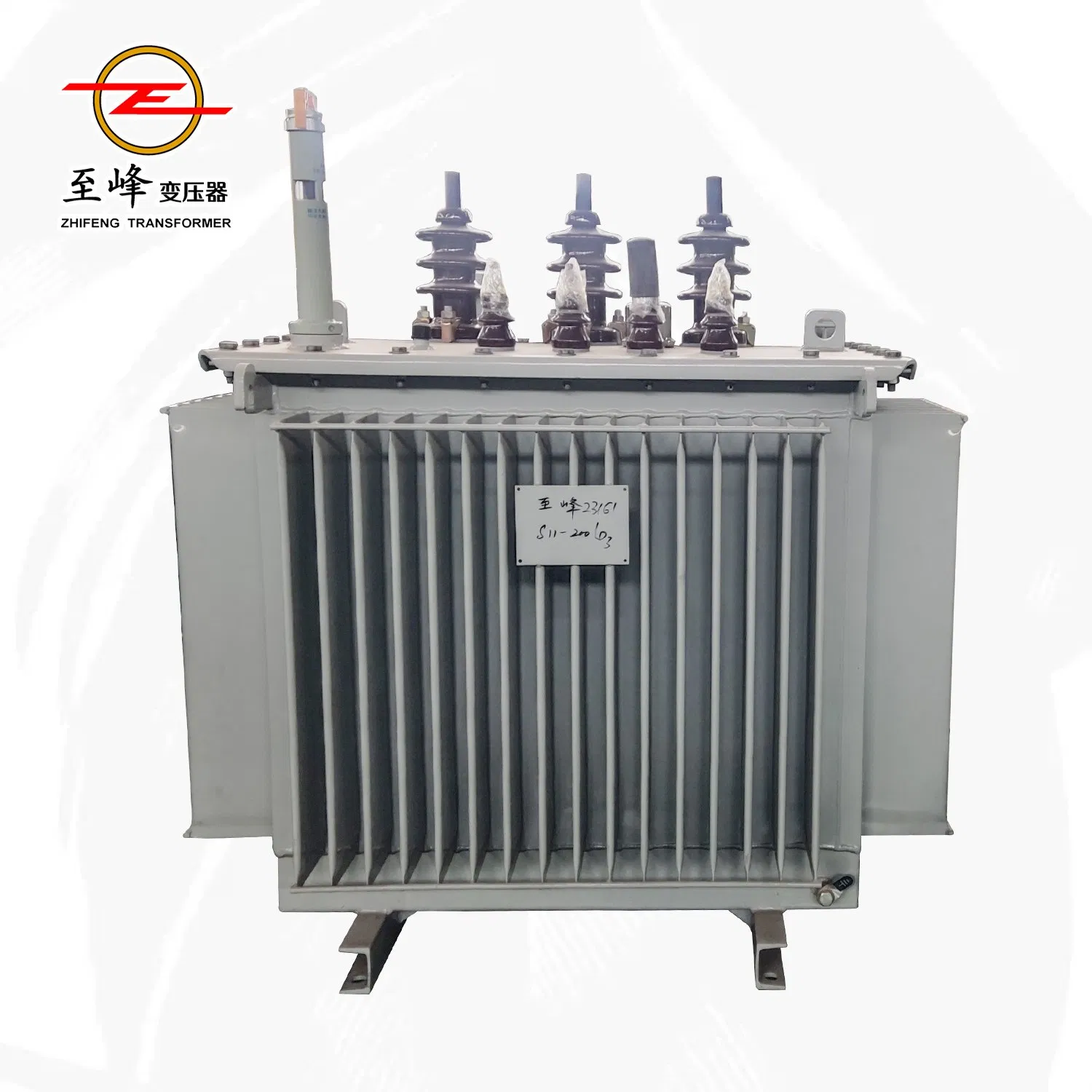

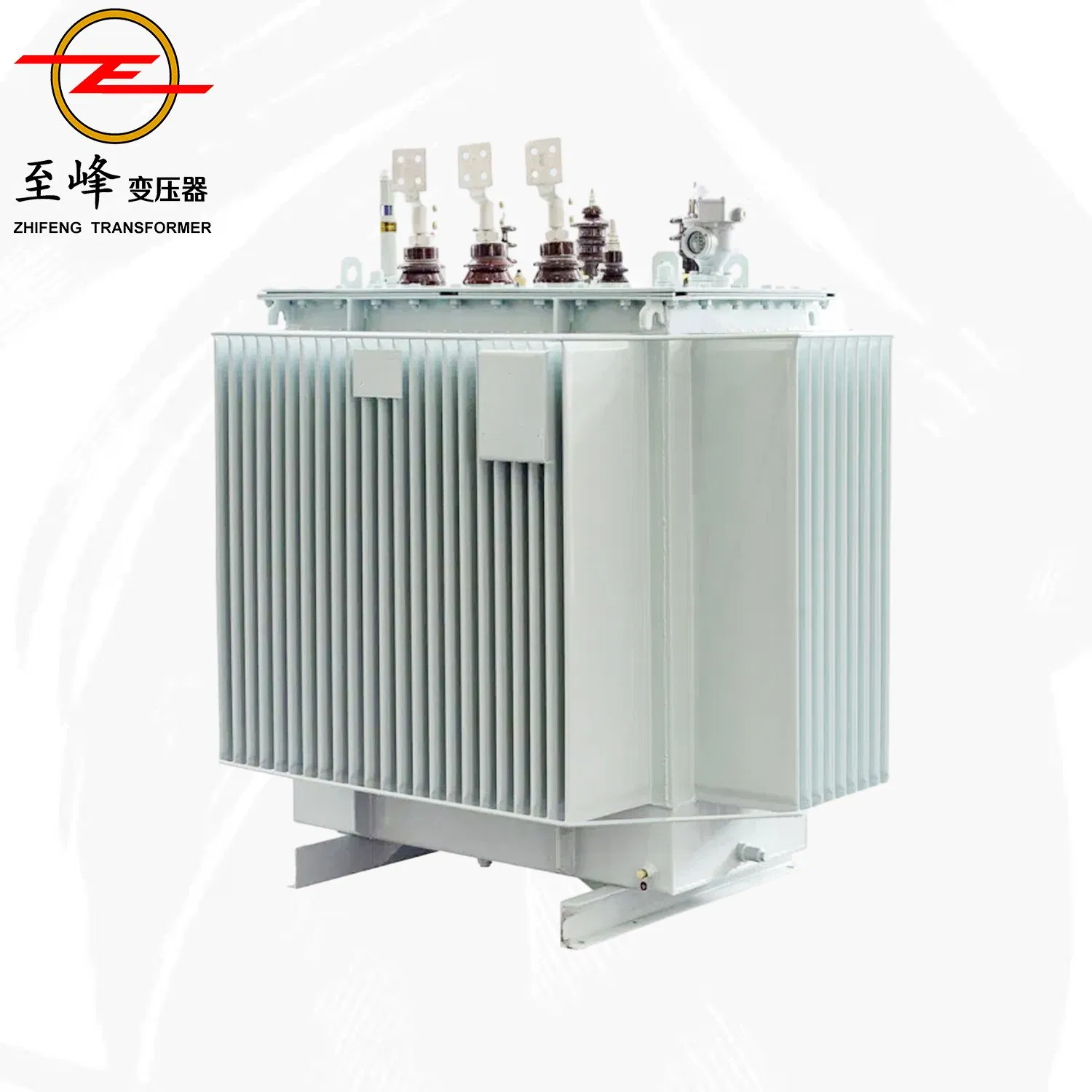

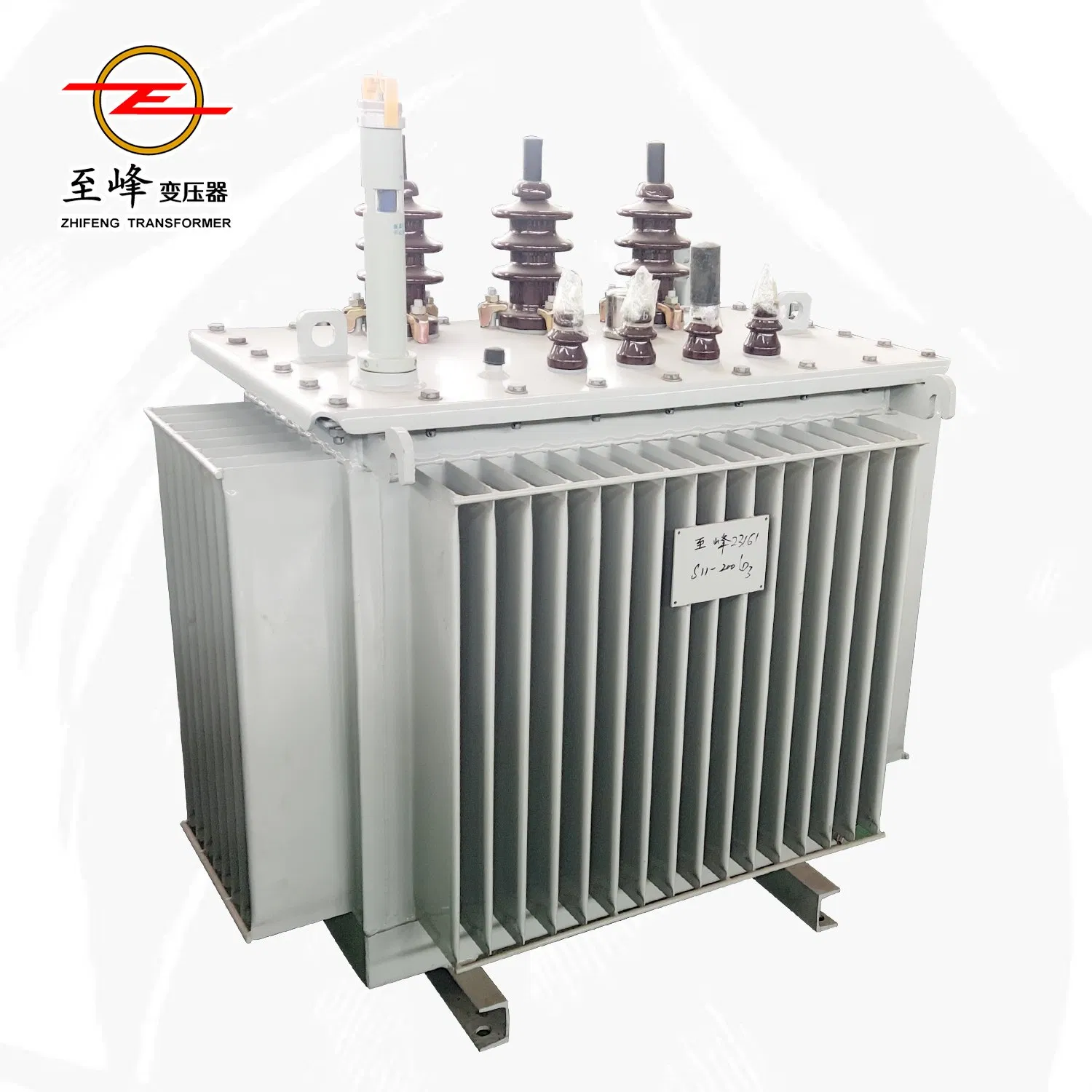

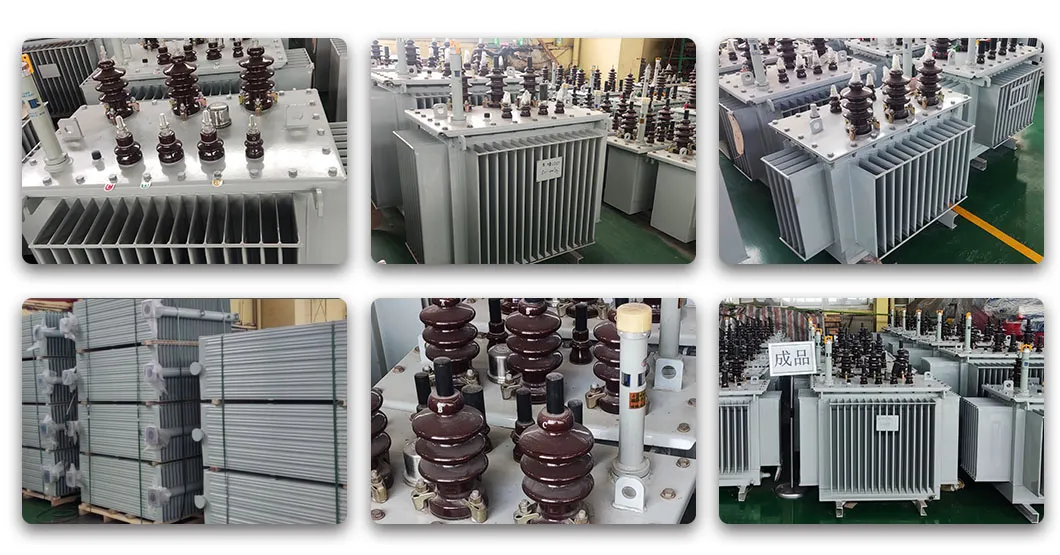

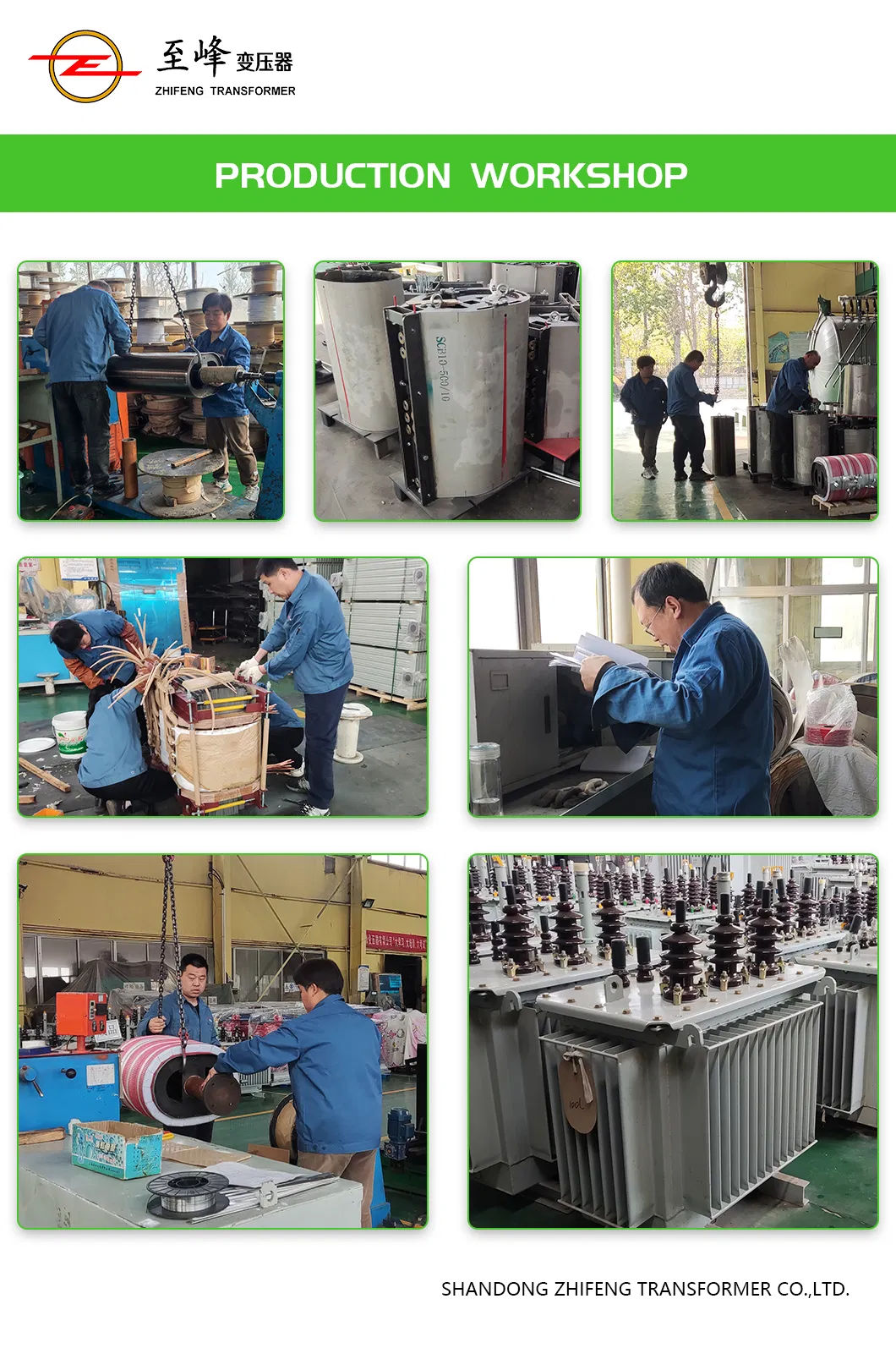

S11, S13 series of fully sealed oil-immersed transformers are suitable for AC 50Hz, working voltage 20kV and below. They are ideal for petroleum, metallurgy, chemical, textile, light industry enterprises, and large dust environments as distribution transformers.
This new generation of low-noise, low-loss transformer features a core without joints, significantly reducing no-load loss and current (by 60%~80%). The high and low voltage coils are continuously wound for tight concentricity and enhanced anti-theft performance. Noise is reduced by over 10 decibels, and temperature rise is lowered by 16-20K.
| Rated Capacity (kVA) | Voltage Combination & Tap Range | Vector Group | No-load Loss (W) | Load Loss (W) | Short Circuit Impedance (%) | ||
|---|---|---|---|---|---|---|---|
| High Pressure (kV) | Tap Range (%) | Low Pressure (kV) | |||||
| 30 | 11 / 10.5 / 10 | ±5% / ±2×2.5% | 0.4 / 0.69 | Yyn0 | 100 | 630/600 | 4 |
| 100 | Yyn0 | 200 | 1580/1500 | 4 | |||
| 500 | Dyn11 | 680 | 5410/5150 | 4 | |||
| 1000 | Dyn11 | 1150 | 10300 | 4.5 | |||
| 2500 | Dyn11 | 2310 | 23000 | 5 | |||
The S11 series 10-3150KVA/10KV distribution transformers utilize new core materials for remarkable energy saving. The magnetic circuit is evenly distributed, improving power factor and supply quality. Its all-inclined three-joint structure ensures reliable operation, small size, light weight, and low noise. It is widely used in residential areas, commercial streets, industrial enterprises, and rural power systems.
