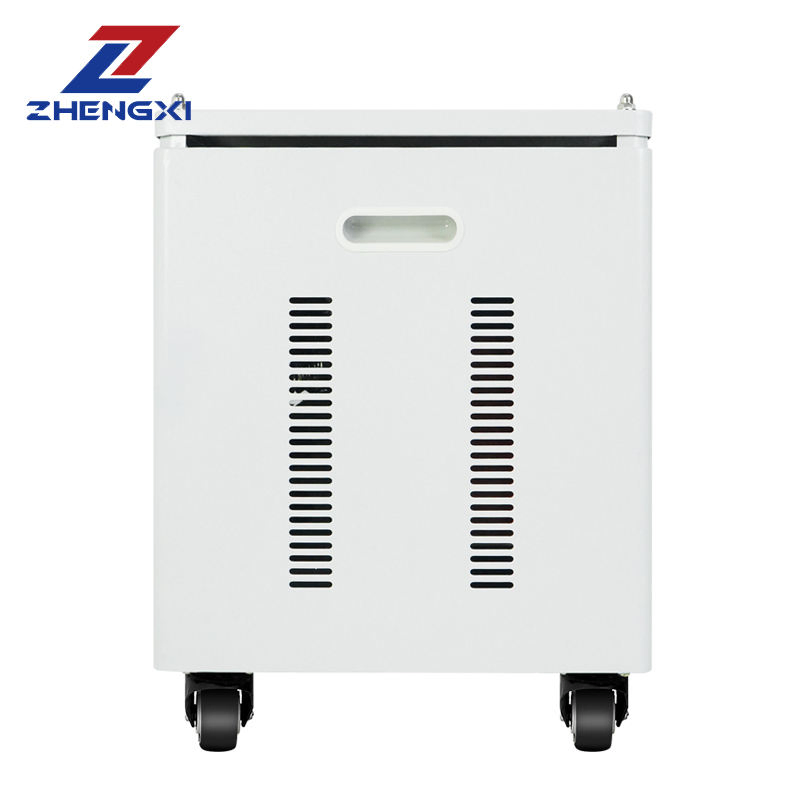

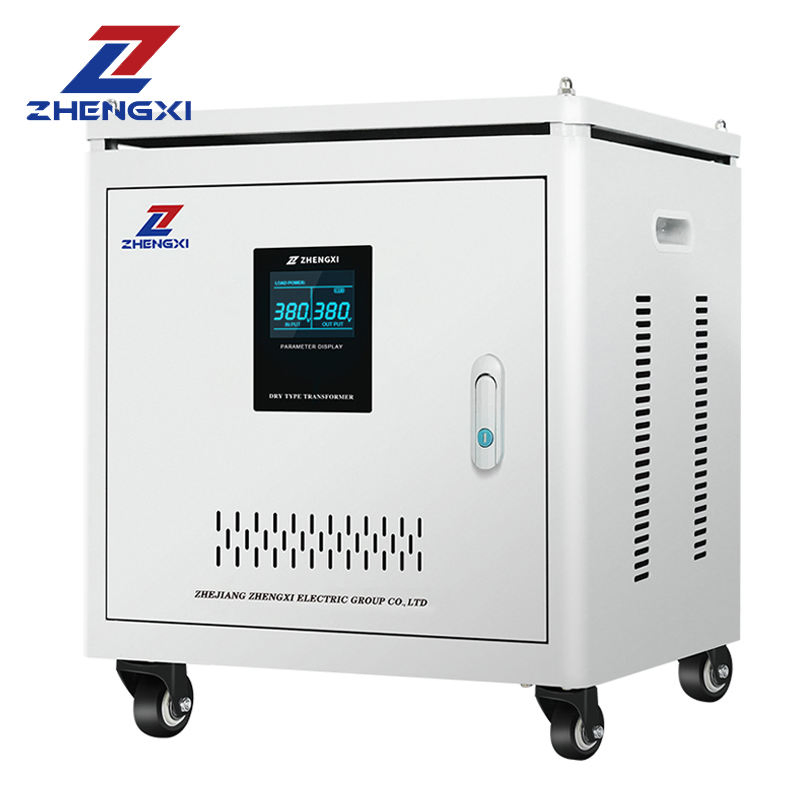

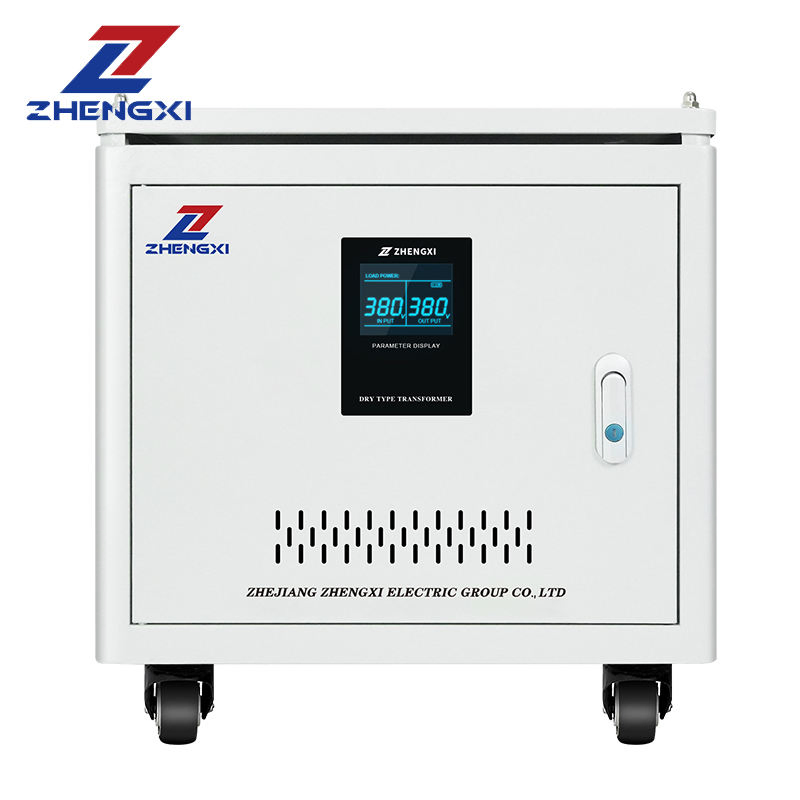

AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter
AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter
AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter
AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter
AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter
1 / 5
AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter
AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter
AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter
AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter
AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter

AC Set up Set Down Three Phase Dry Type Isolation Low Transformer Voltage Converter

Customization: Available
Application: Power
Phase: Three
Send Inquiry

Product Description

Overview & Basic Info
Model NO. SG Core Shell-type Transformer
Cooling Method Dry-type Transformer Winding Type Two-winding Transformer
Certification ISO9001, CE Usage Power Transformer, Distribution Transformer
Frequency 50Hz/60Hz Shape of Core Ring
Rated Capacity 0.5-100kVA Warranty 1 Year
Input Voltage 480/440/415/380/220/200V Customized Voltage Accuracy +/-1%
HS Code 8504319000 Transport Package Export Standard Packing

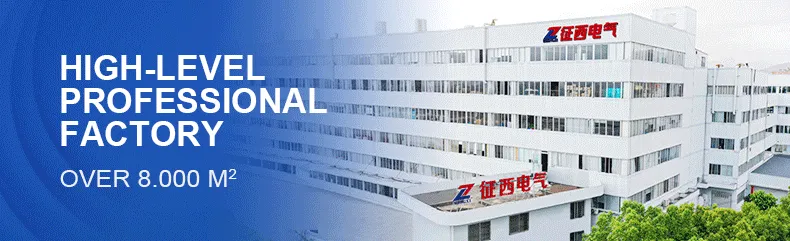

Transformer Banner
Product Specifications
QSG/SG Three-Phase Dry Type Isolation Transformer

A new generation energy-saving power transformer developed based on international standards, ranging from 300VA to 1600KVA. Compliant with international and national standards such as IEC439 and GB5226. The winding adopts advanced hole row methods and is vacuum-impregnated to reach insulation Grade F or H.

Phase Three phase
Capacity Range 0.5KVA-2000KVA
Input voltage 220V 380V 400V 415V 440V 480V 660V or Customized
Output voltage 660V 480V 440V 415V 380V 220V or Customized
Output voltage accuracy ±1%
Working efficiency ≥98%
Insulation class Class F, Class H; IP 00, IP30 etc.
Sound level ≤50dB (within 1m)
Insulation resistance ≥150MΩ
Cooling method ANAF

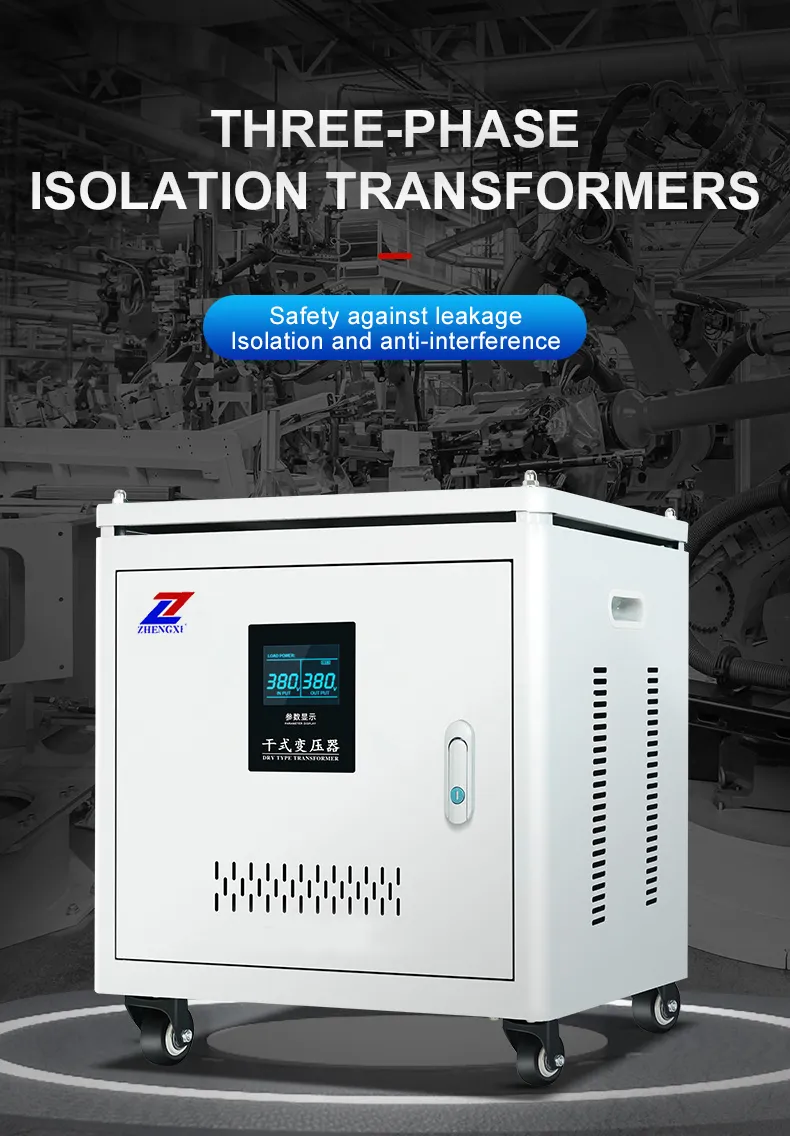

Product View 1
Product View 2
Product View 3
Detail 1

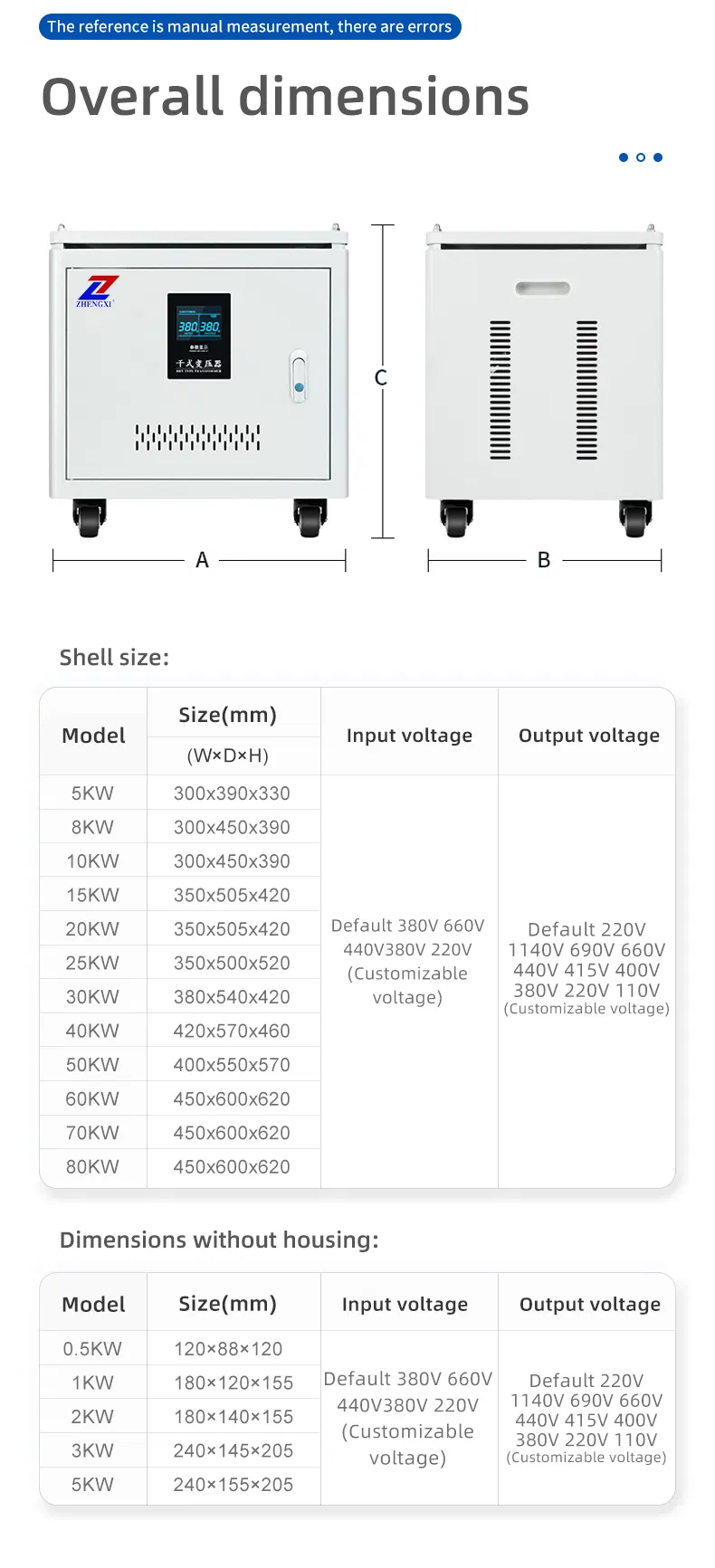

Detail 2

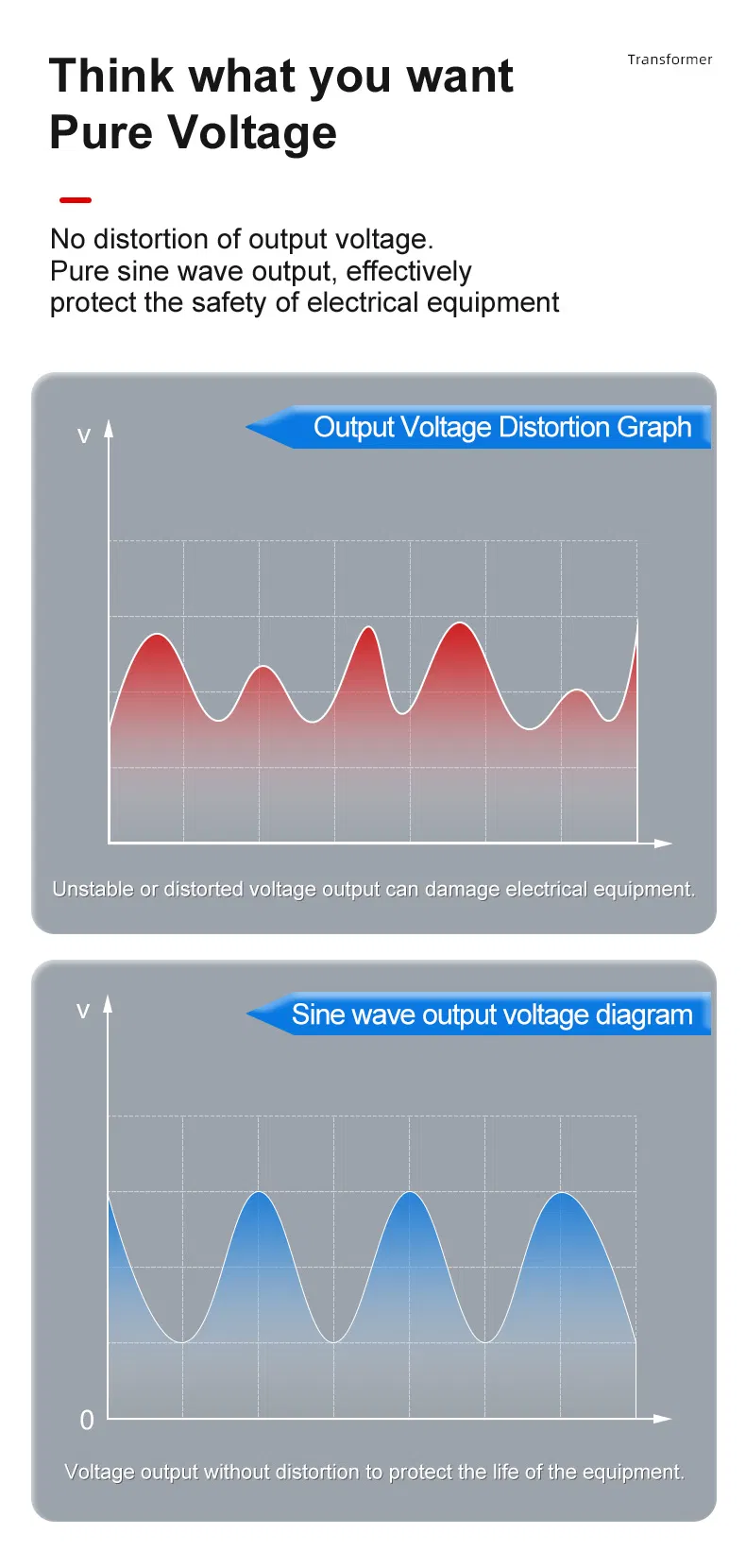

Detail 3
Technical 1
Technical 2
Quality & Manufacturing
Manufacturing 1
Manufacturing 2

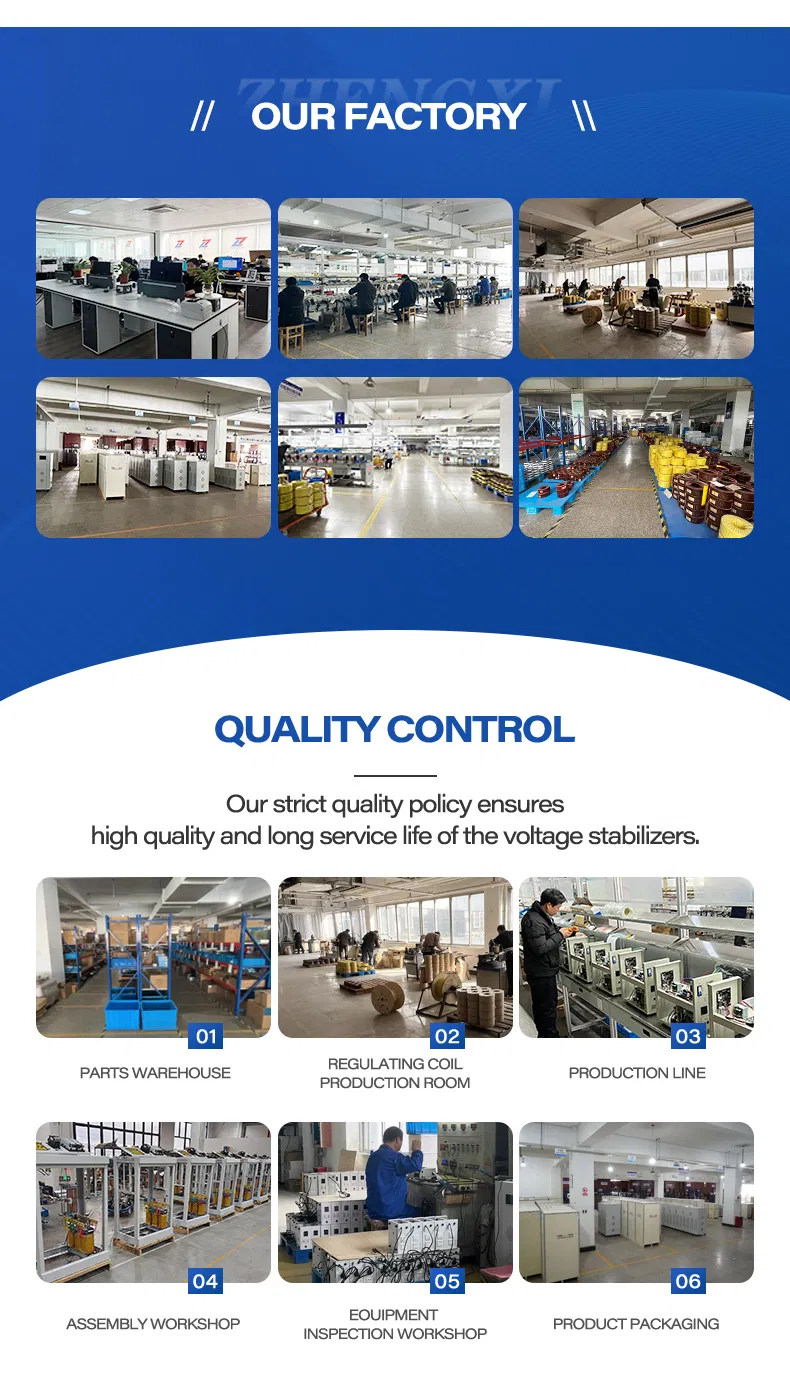

Manufacturing 3
Workshop
Equipment
Frequently Asked Questions
What is the guarantee policy?
We offer a one-year guarantee from the sale date. If any accessories are damaged, provide photos as proof, and we will replace them for free. Technical support is also available upon request.
Is OEM/ODM service available?
Absolutely! We can customize our products and design various types of automatic voltage regulators and stabilizers according to your specific technical requirements.
What is the Minimum Order Quantity (MOQ)?
The MOQ for small-capacity automatic voltage regulators with default configurations is 10 sets. For large-capacity products, the MOQ is just 1 set.
Can you provide Certificates of Origin?
Yes, we can apply for Form A, Form E, or Certificates of Origin (C/O) through the local government for your import requirements.
What certificates does the product hold?
Our products are certified with CE, ISO9001, and SGS, ensuring compliance with international quality and safety standards.
What are the accepted payment terms?
We accept various payment methods including L/C, T/T, D/P, D/A, Western Union, and MoneyGram.
