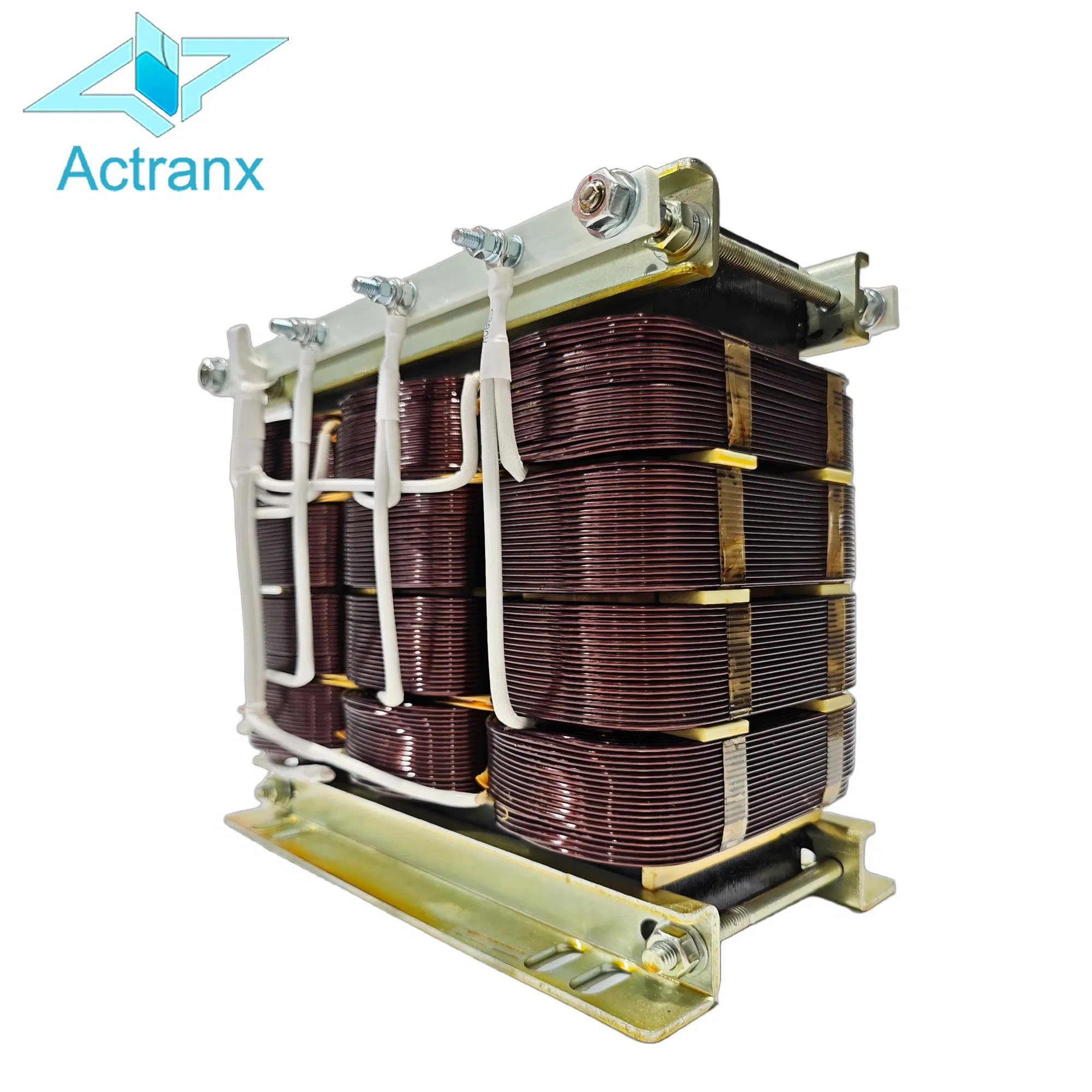

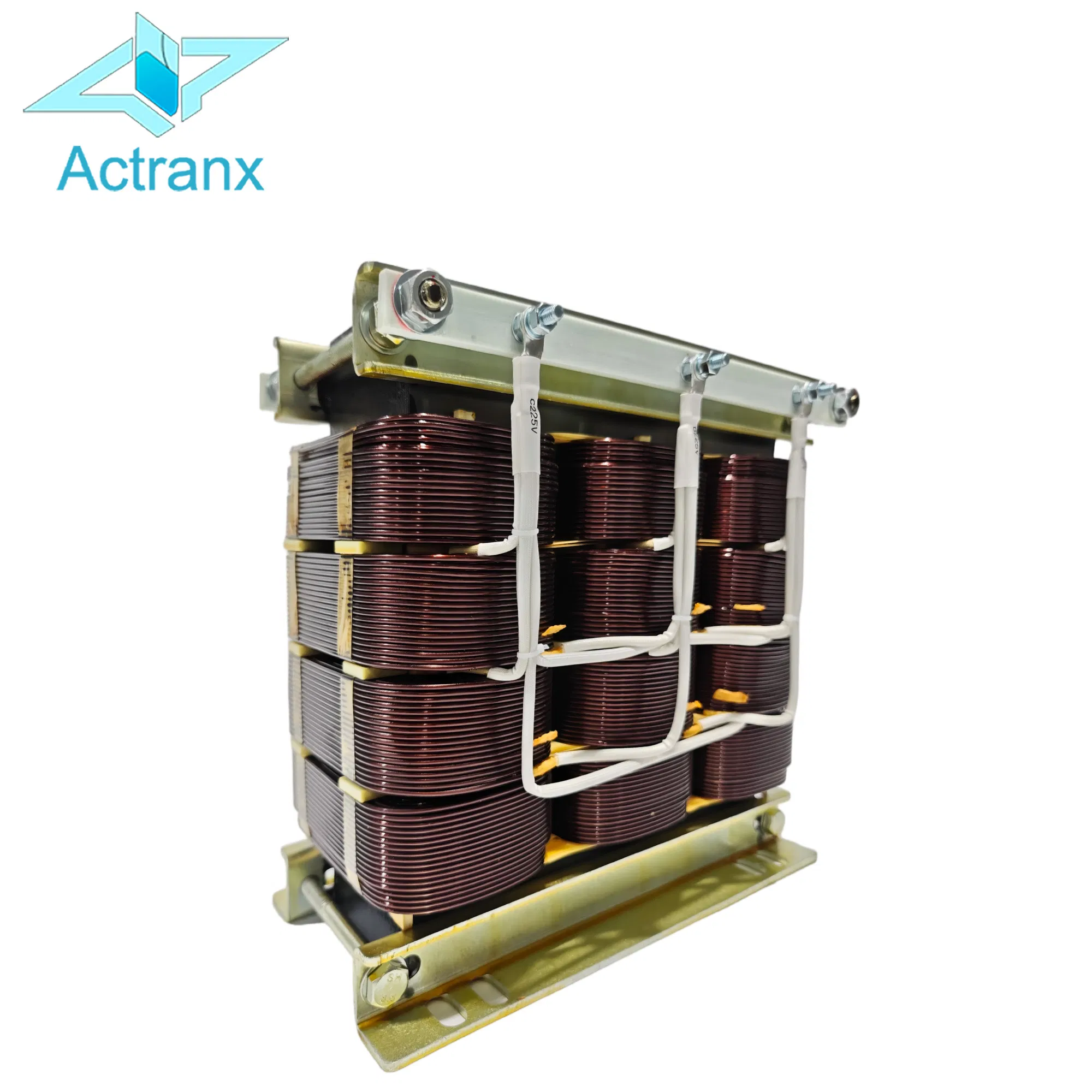

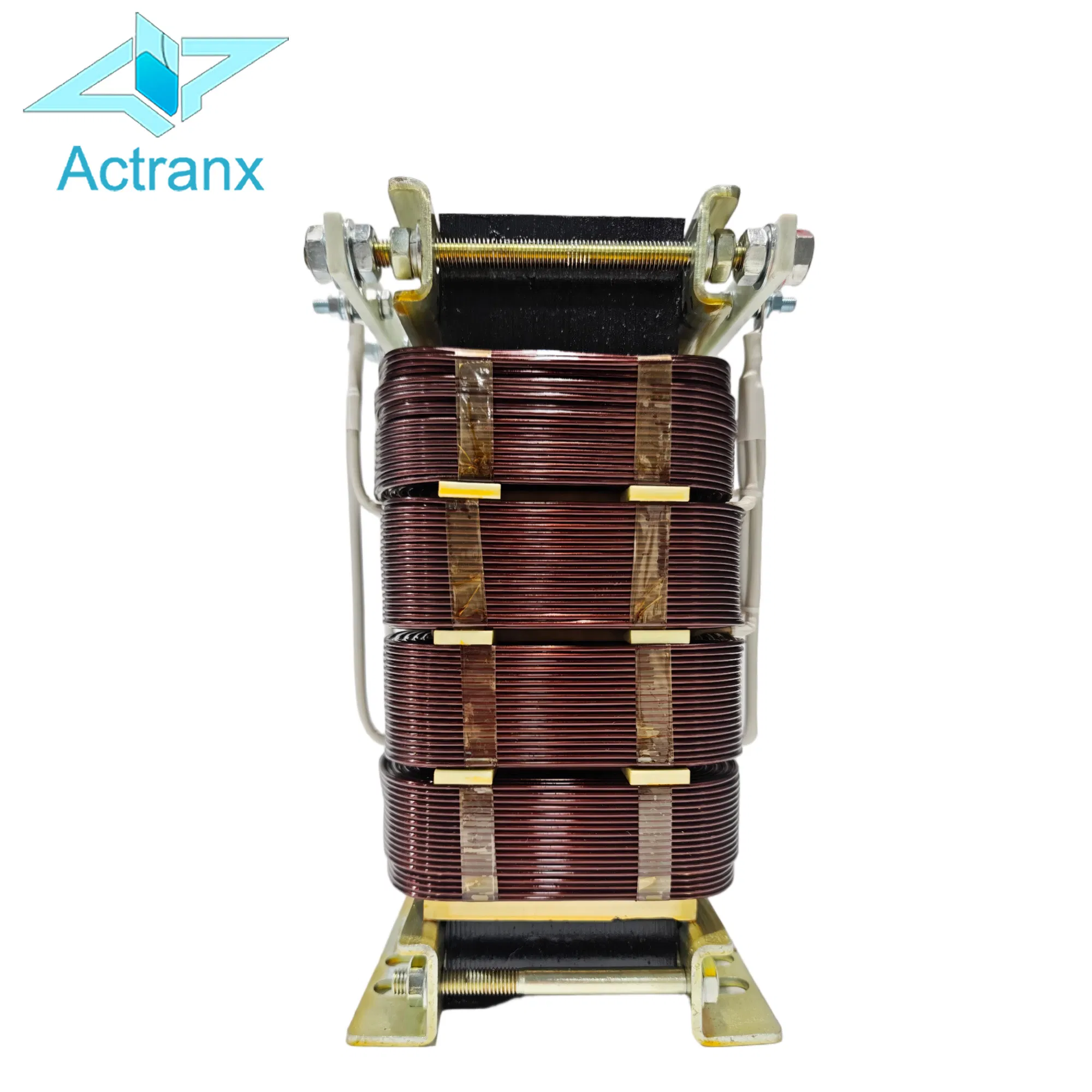

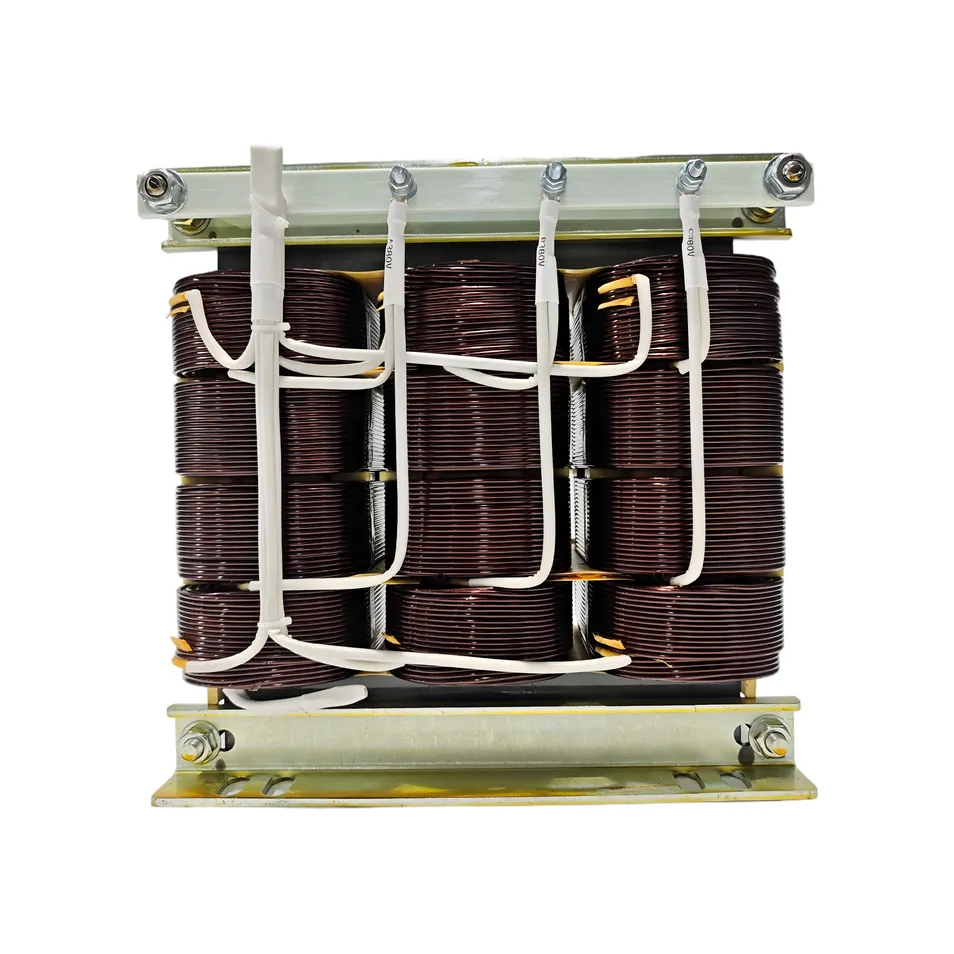

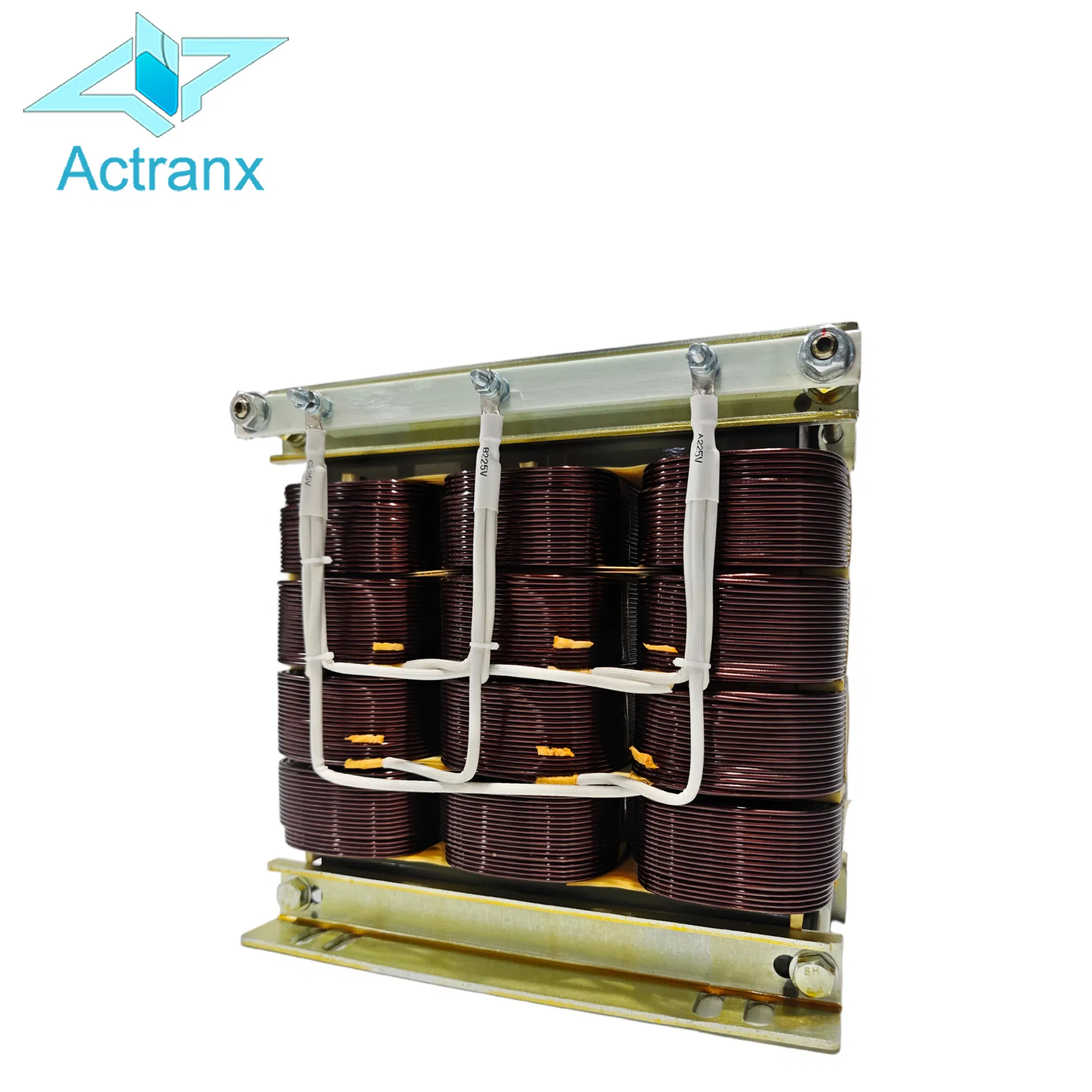

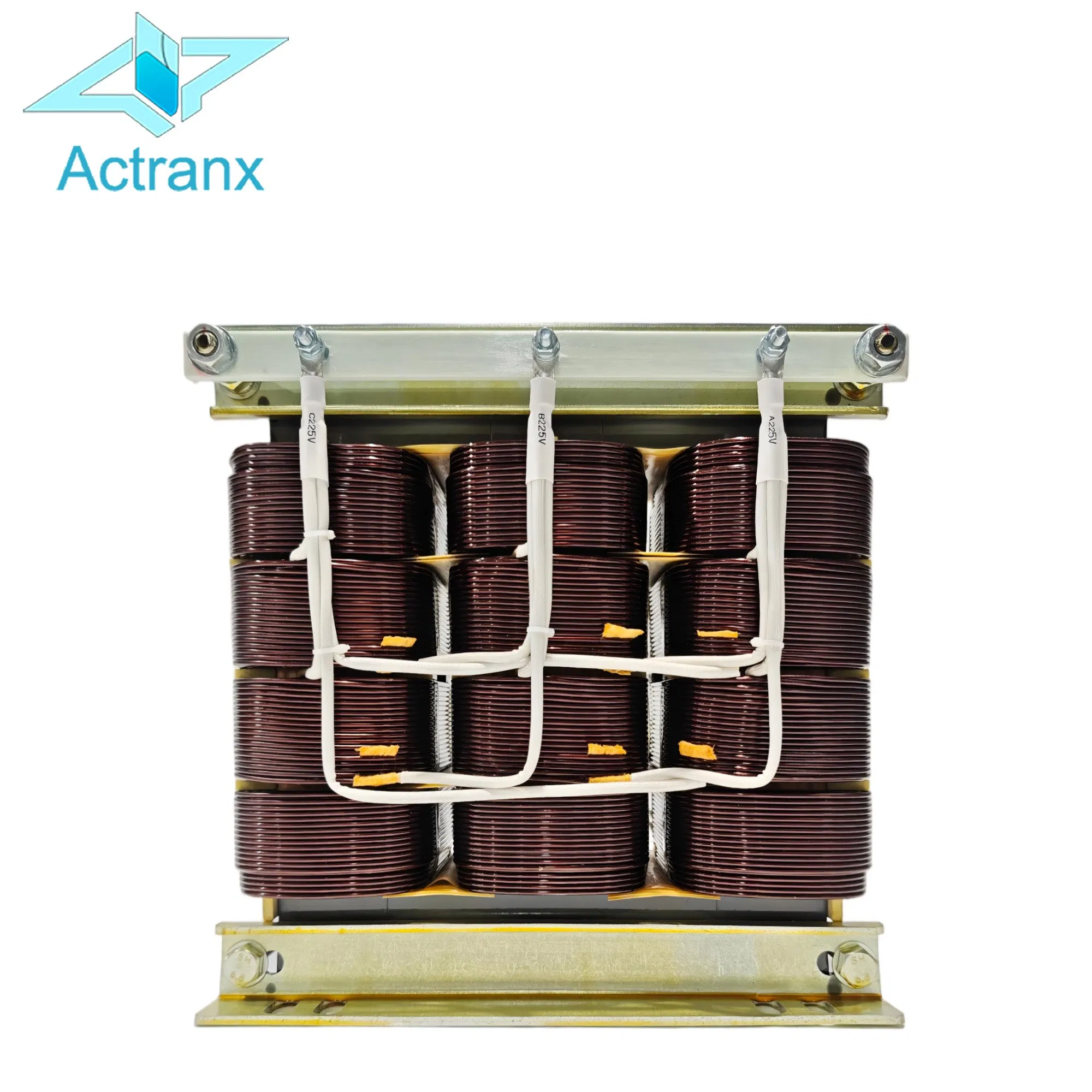

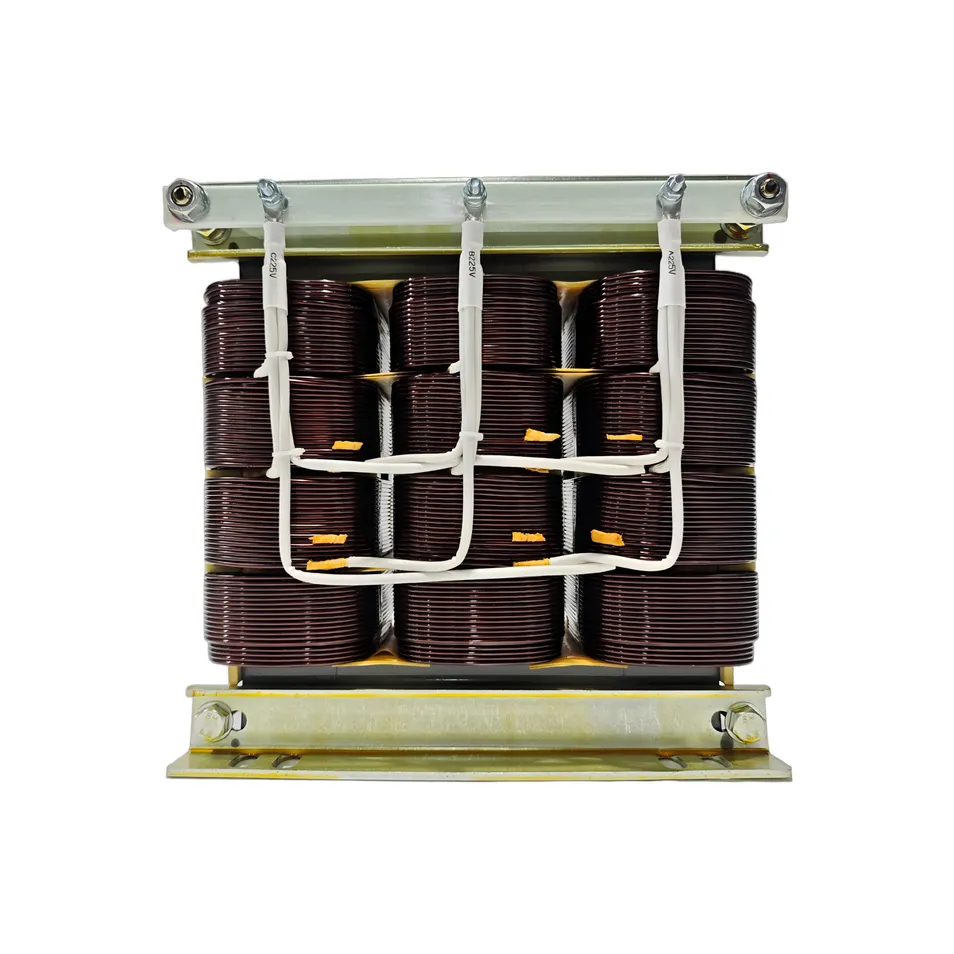

This Three-Phase Inverter Duty Transformer is engineered as a critical power conversion and isolation component for modern electrical systems. It is specifically designed to deliver stable, clean, and reliable power in demanding applications involving frequency conversion and precise motor control. Built with a high-grade silicon steel core and precision-wound copper conductors, it ensures optimal performance, minimal energy loss, and maximum durability under continuous operation.
| Model NO. | 09021280030 |
| Core | Core-type Transformer |
| Cooling Method | Dry-type Transformer |
| Winding Type | Separated Winding |
| Winding Material | Full Copper |
| Certification | ISO9001, CCC, UL, CE, RoHS, Reach |
| Usage | Power / Distribution / Inverter Transformer |
| Warranty | 25 Years |
| Frequency | Power Frequency |
| Origin | China |
Adopts high-grade silicon steel core with low loss characteristics, significantly reducing no-load losses.
Precise voltage regulation within ±1% ensures consistent output voltage even under fluctuating conditions.
Advanced design mitigates harmonic currents and reduces voltage notches, providing critical protection for inverters.
| Capacity | SG 1k~300kVA | Frequency | 50~400Hz |
| Input Voltage | 0~960V (Customizable) | Output Voltage | 0~660V (Customizable) |
| No-load Current | ≤5% | No-load Loss | ≤150W |
| Impedance Voltage | 6%~15% | Load Loss | ≤700W |
| Efficiency | ≥96% | Noise Level | ≤45dB |
| Insulation Class | F/H/A/B | Protection Class | IP00—IP54 |

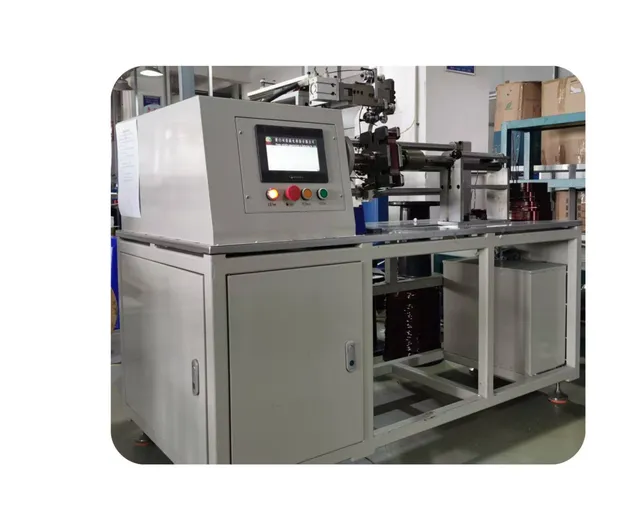

Automatic Winding Machine

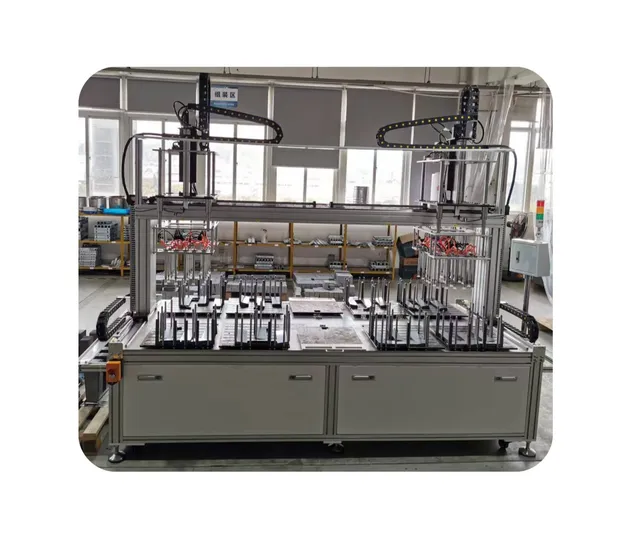

Automatic Stacking Machine

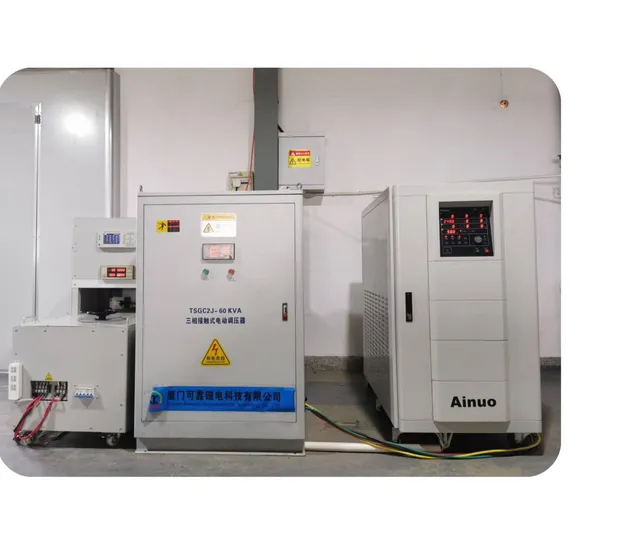

Quality Control Platform

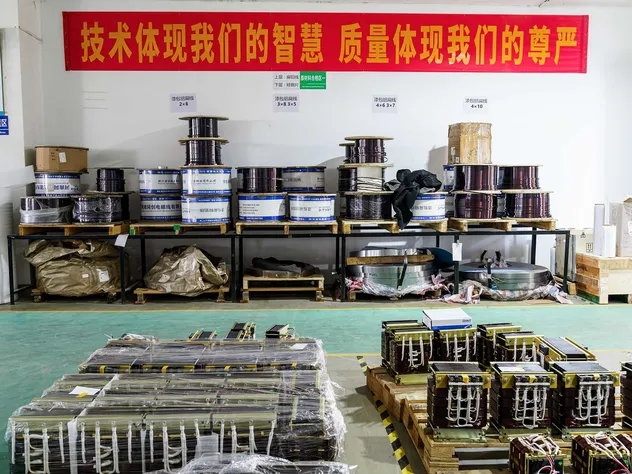

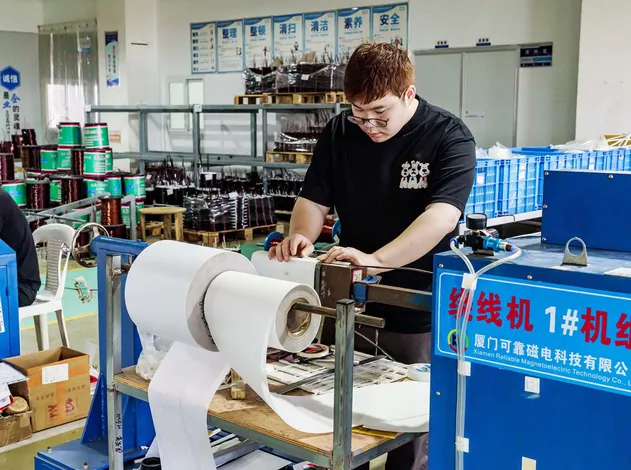

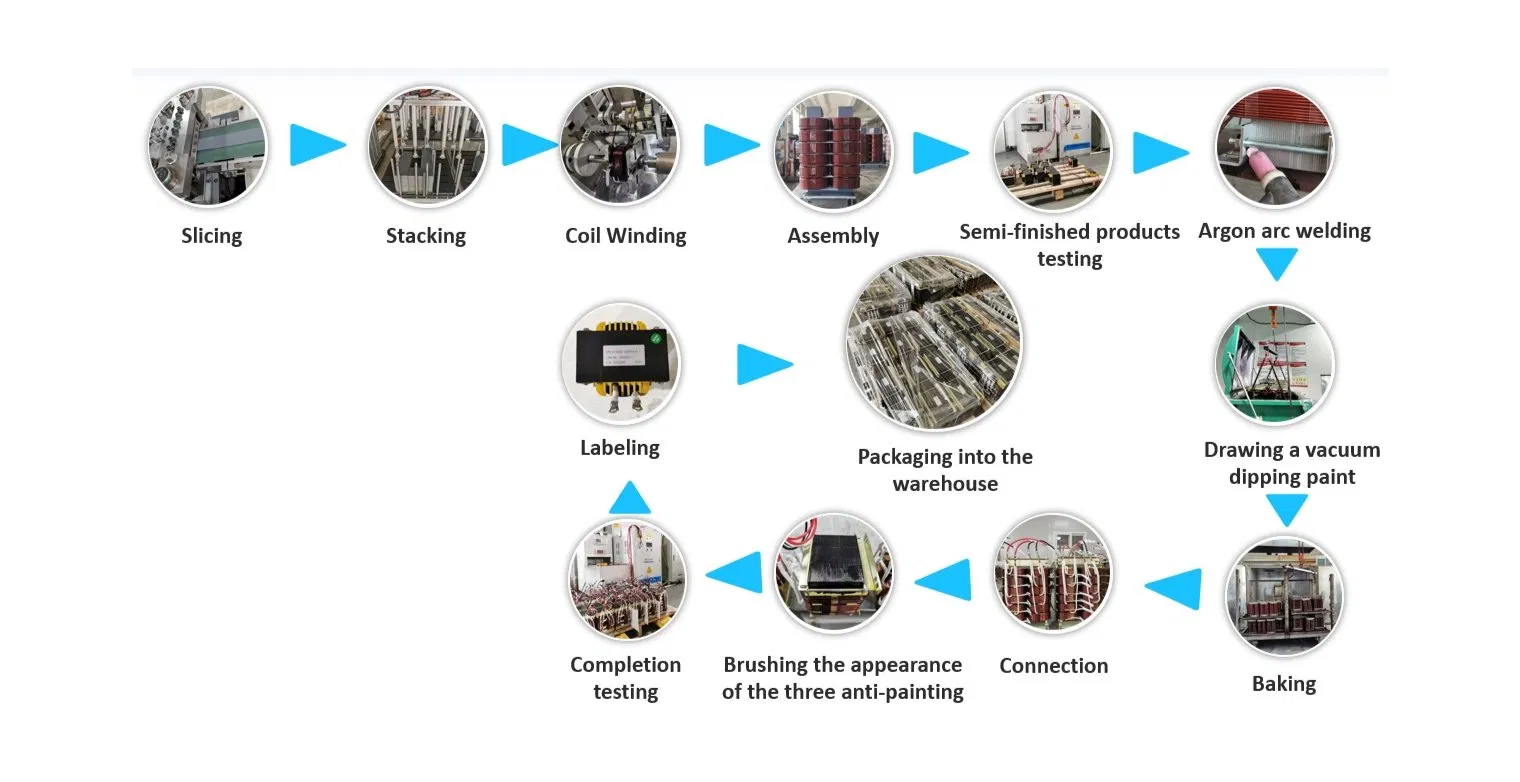

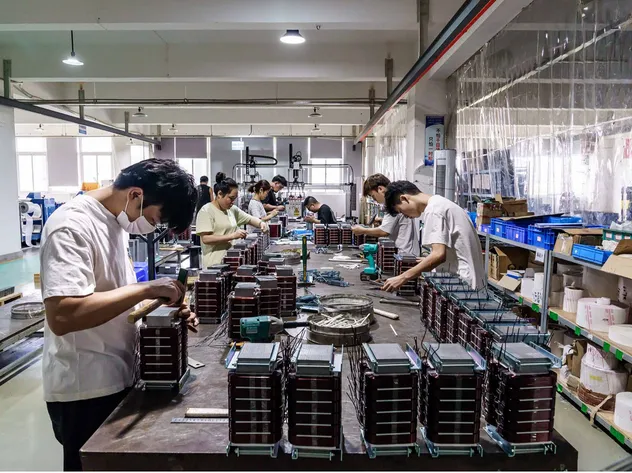

Our facility utilizes international standard raw materials and strict process control. We employ high-power automatic winding machines for tight and even coils, and precision stacking machines (accuracy of 0.01mm) for core assembly. Every unit undergoes comprehensive electrical characteristics testing to ensure 0.1 level accuracy.
Specializing in magnetic components for high and low frequency applications for over a decade, our company focuses on the new energy storage market, power frequency transformers, and reactors. Driven by evolving technology and market demands, we specialize in the R&D, production, and innovation of bespoke magnetic components, including high-frequency transformers and inductor coils.
