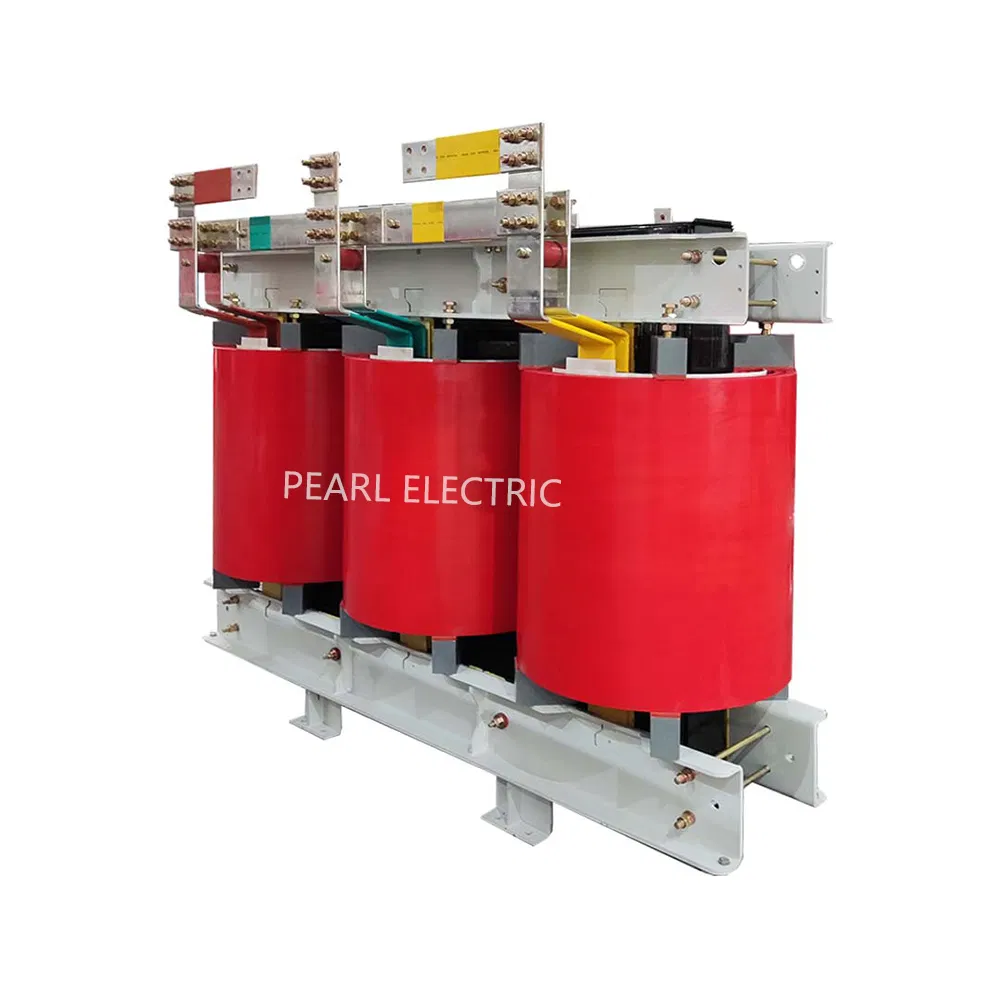

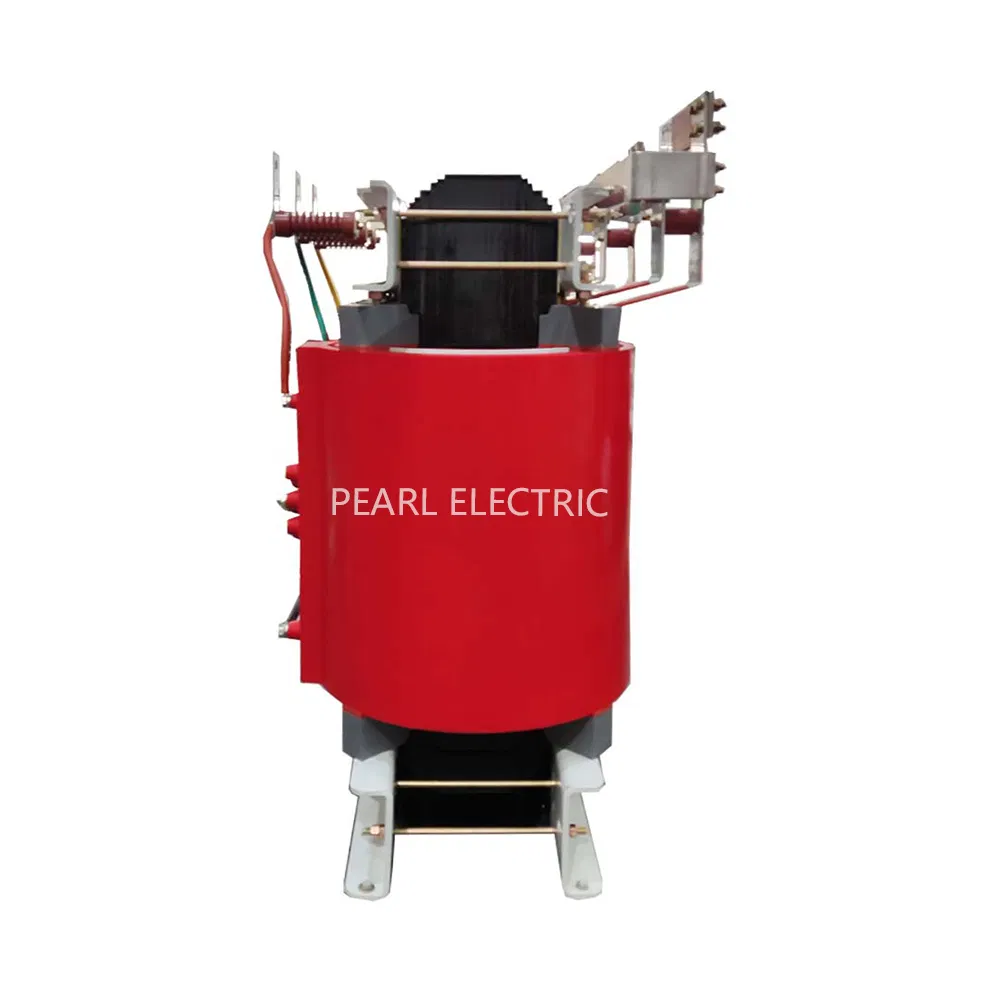

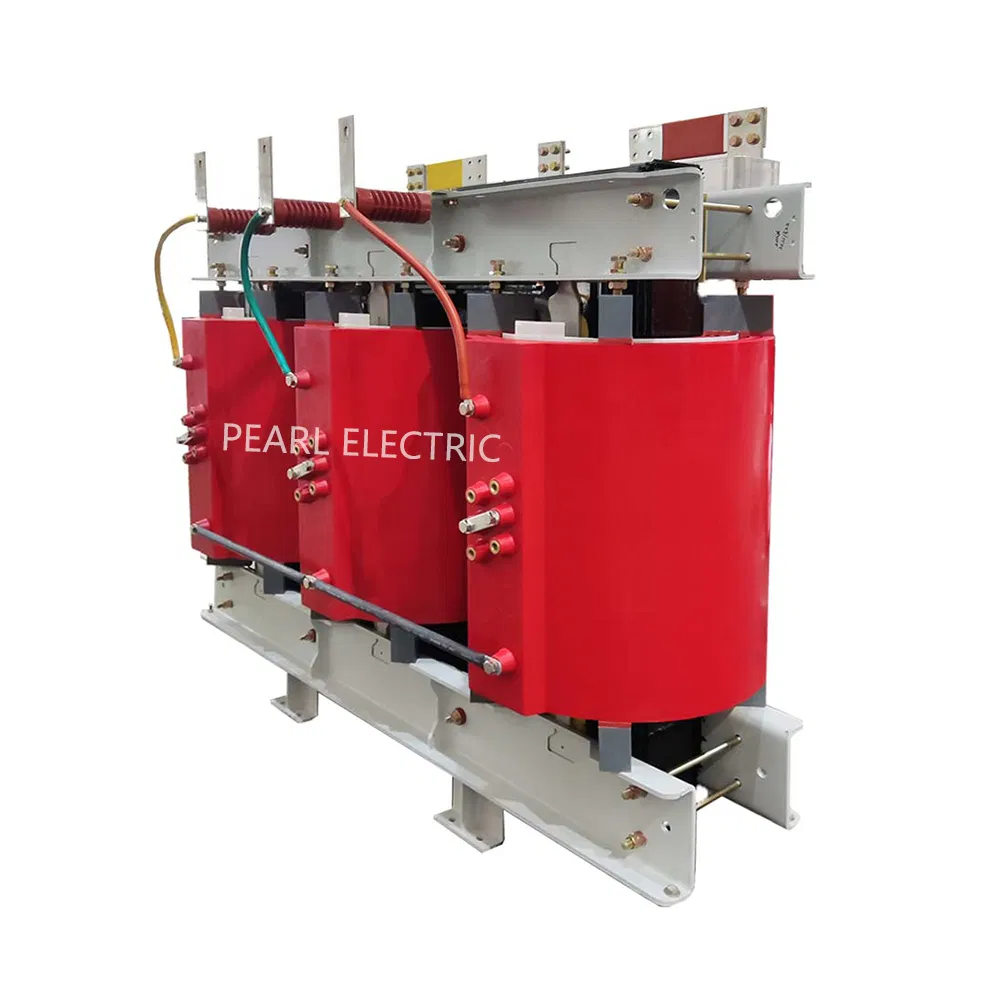

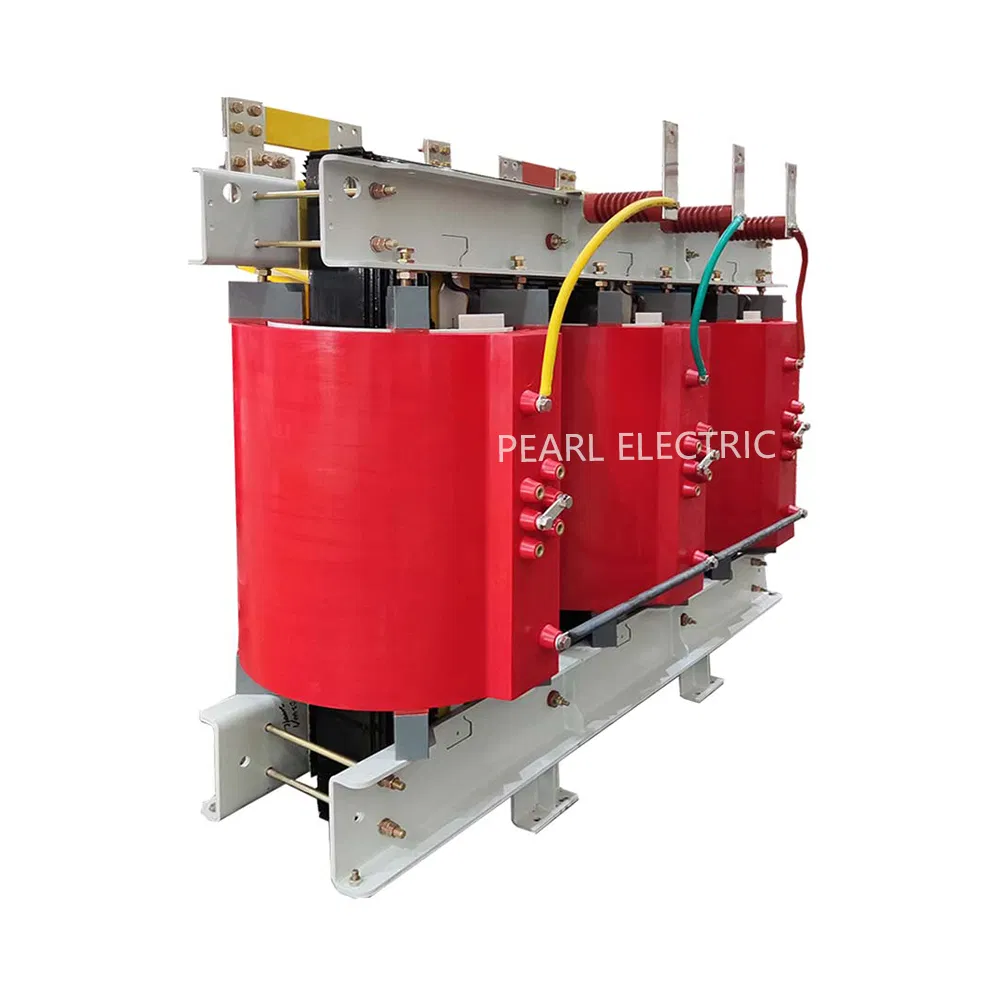

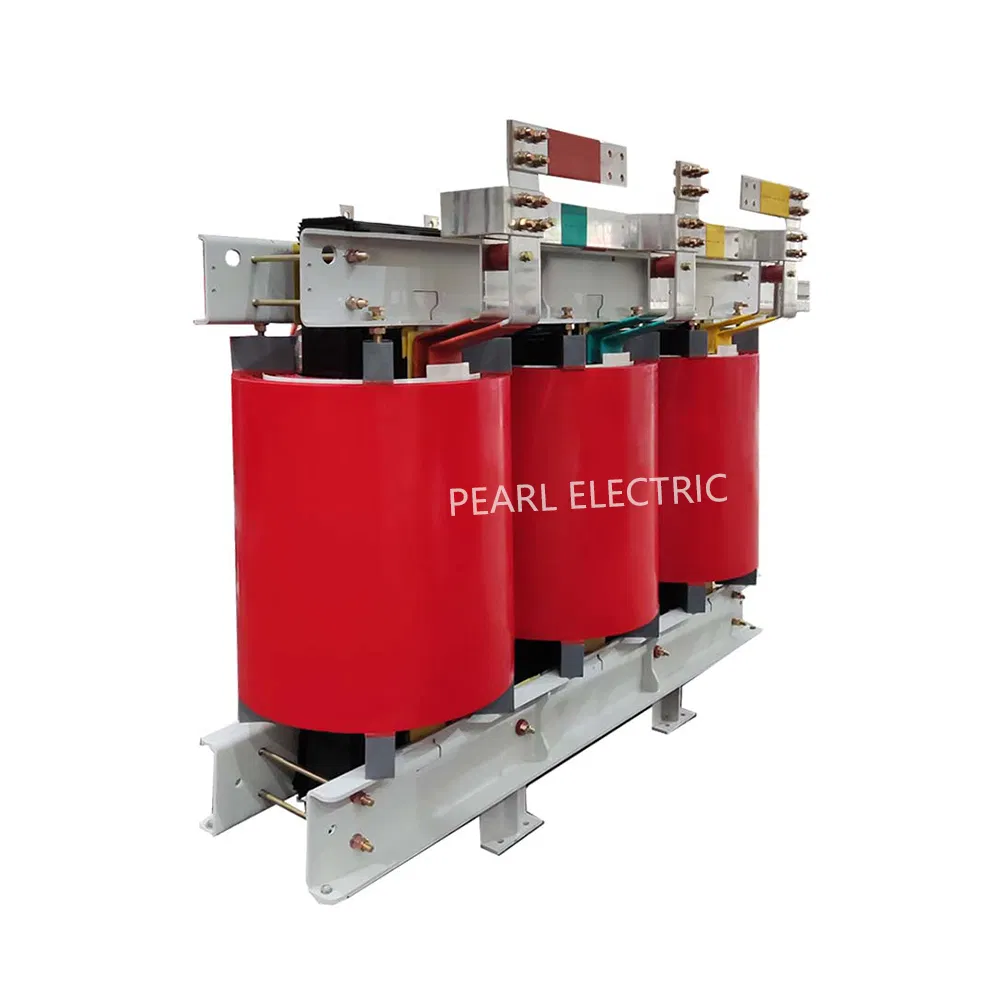

A dry type transformer, also known as an air-cooled transformer, is a type of transformer that utilizes air or gas instead of liquid (such as oil) for insulation and cooling purposes. This transformer design does not immerse its core and windings in insulating oil, making it distinct from oil-filled transformers.
| Items | Specifications |
|---|---|
| Production Descriptions | Three Phase Power Distribution Dry Type Transformer |
| Reference standards | IEC 60076-11 |
| Capacity | 2500kVA |
| Frequency | 60 / 50Hz |
| Voltage (HV) | 33KV or customized |
| Voltage (LV) | 0.4KV or customized |
| Impedance | 4%-6% |
| Vector Group | Dyn11 |
| Tapping Range | ± 2 x 2.5% |
| Core Materials | Silicon Steel |
| Winding Materials | Aluminum or Copper |
| Temperature Rise Class | H-class (125K) |
| Cooling Method | AN/AF |

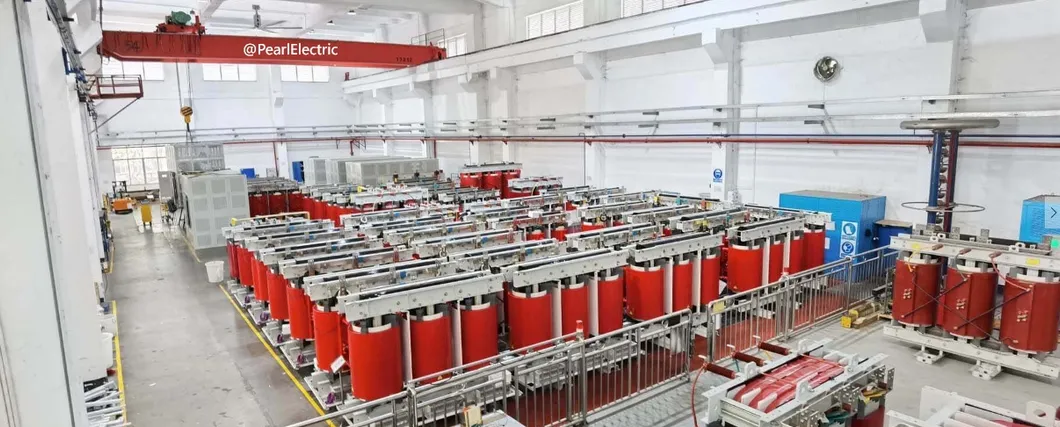

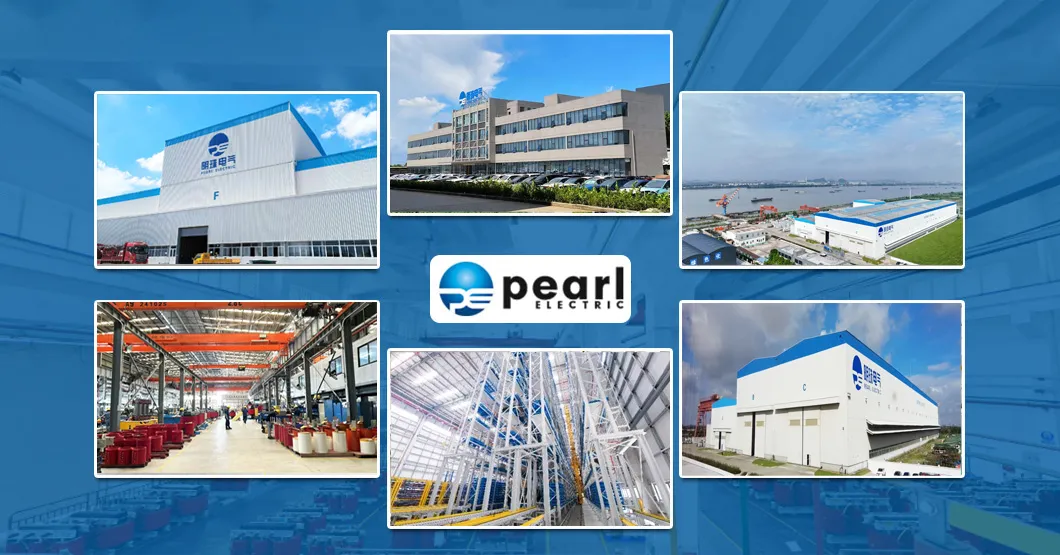

Founded in 1958, the manufacturer is an outstanding power equipment supplier in the transmission and distribution industry. With a land area of 100,000 square meters and over 600 employees, the facility produces high-quality equipment sold to Southeast Asia, Central Asia, Africa, Europe, and North America.
