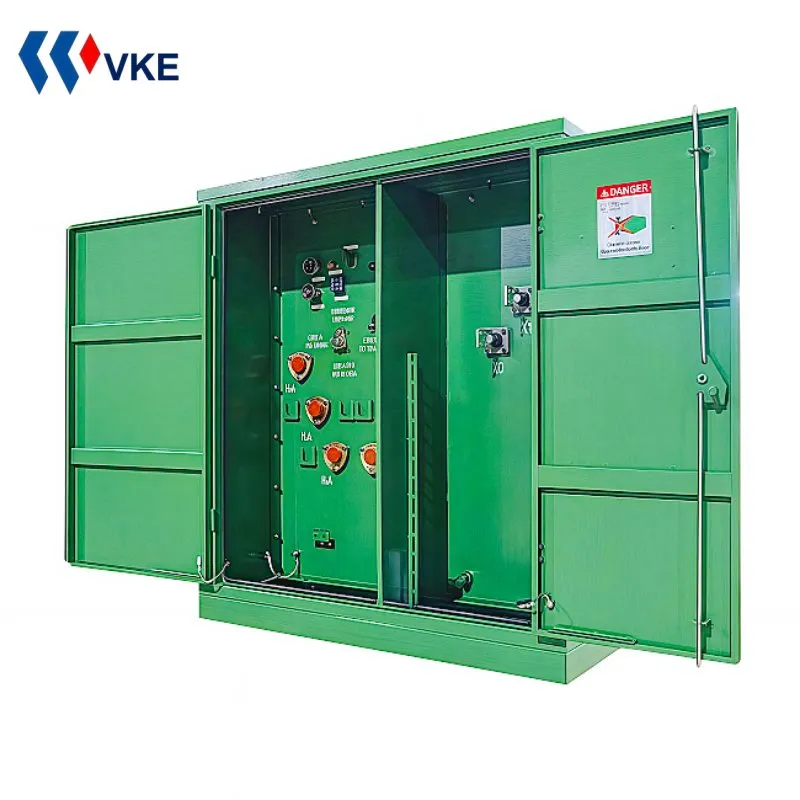

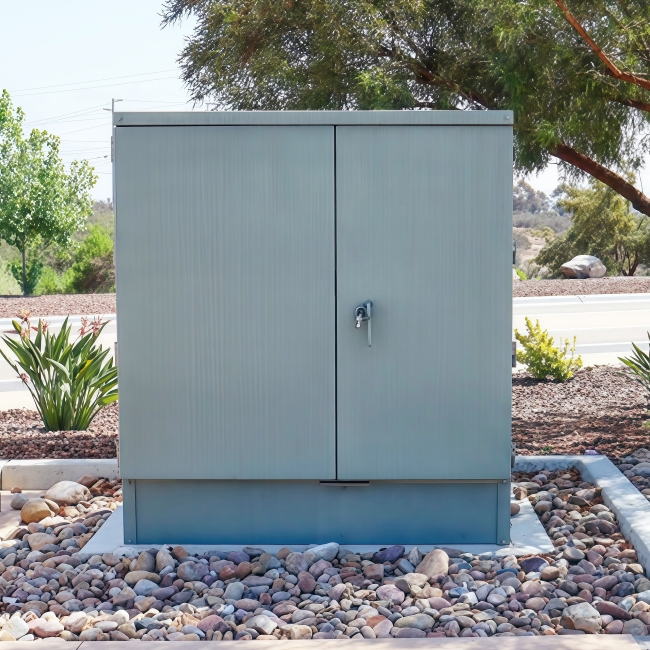

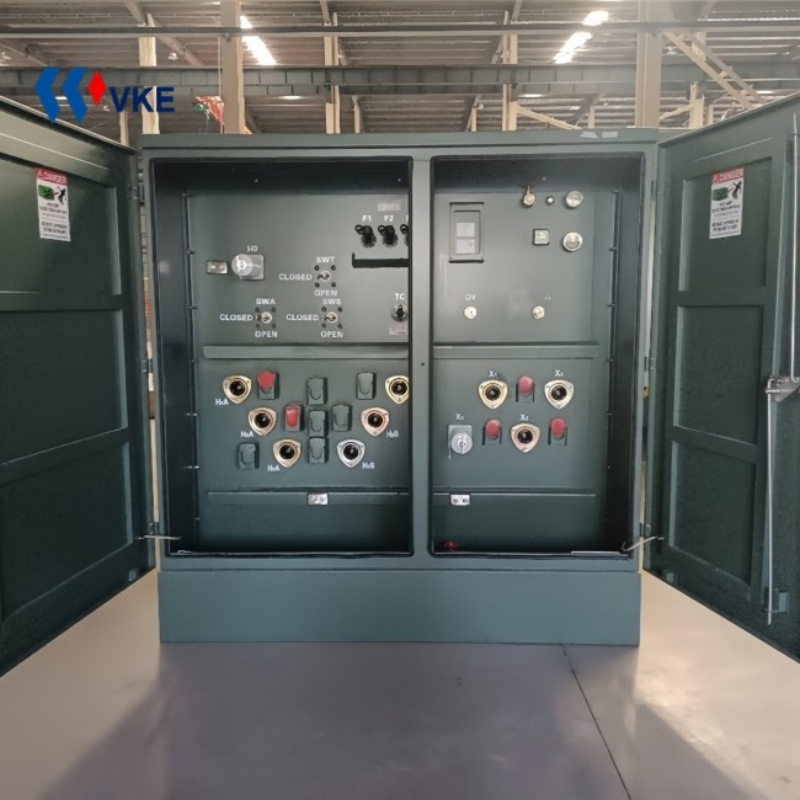

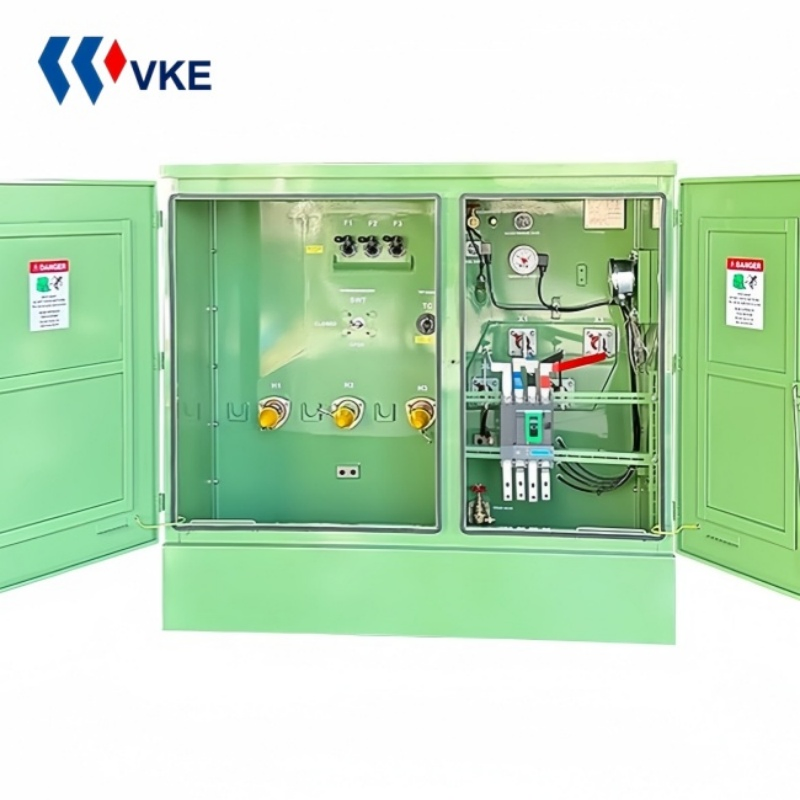

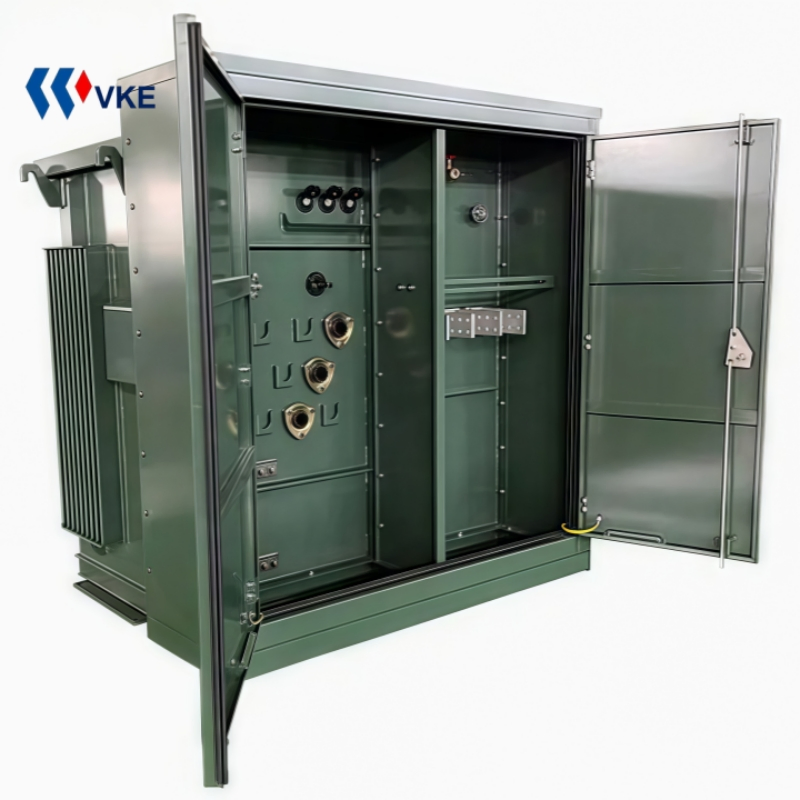

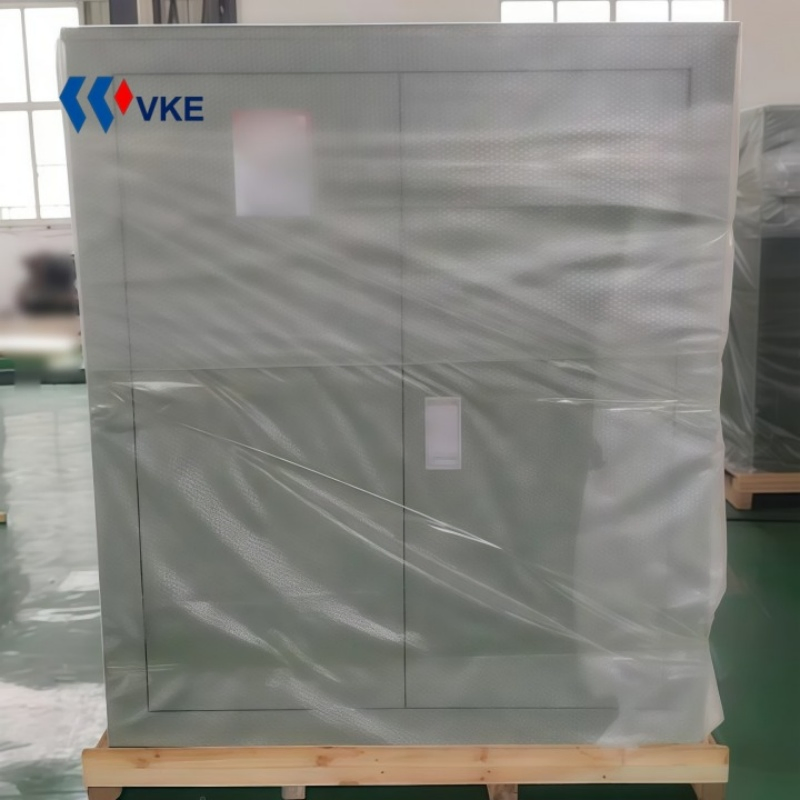

Pad mounted transformers are suitable for commercial centers, industrial parks, residential areas, streets, airports, docks, and densely populated urban areas, as well as deep load centers.
They are used for ring network and bidirectional power supply, achieving efficient power transmission in a single installation. Key features include:
| Rated Capacity (kVA) | Voltage Combination | Connection Symbol | No-load Loss (W) | Load Loss (75℃ W) | Impedance % | ||
|---|---|---|---|---|---|---|---|
| H.V. (kV) | Tapping | L.V. (V) | |||||
| 30 | 6 / 10 13.2 / 13.8 | ±2x2.5 / ±5 | 120-600 | Dyn11 | 100 | 630 | 4.0 |
| 100 | Dyn11 | 200 | 1580 | 4.0 | |||
| 250 | Dyn11 | 400 | 3200 | 4.0 | |||
| 500 | Dyn11 | 680 | 5410 | 4.0 | |||
| 1000 | Dyn11 | 1150 | 10300 | 4.5 | |||
| 2000 | Dyn11 | 1640 | 14500 | 4.5 | |||

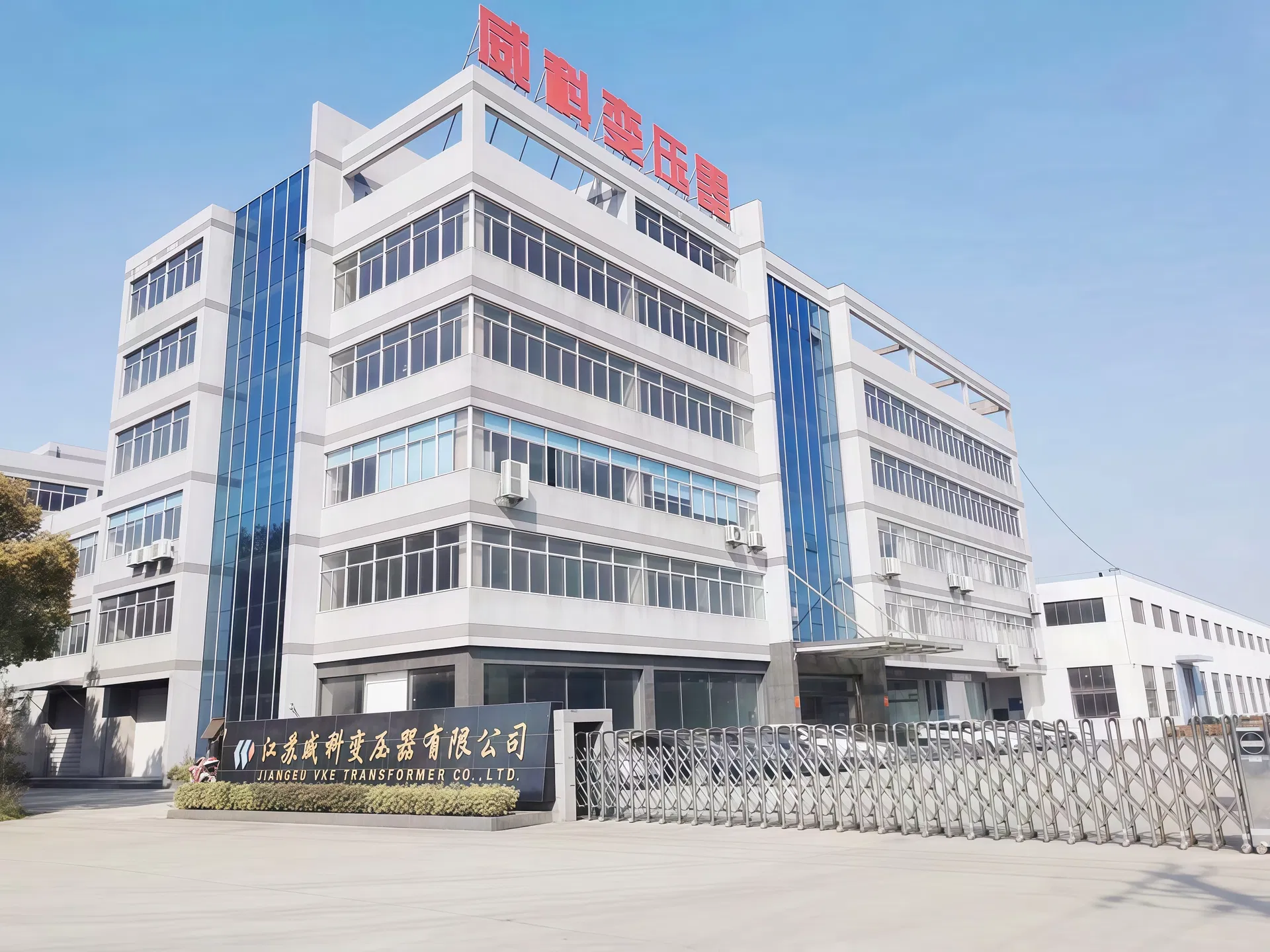

Established in 2003, the manufacturing facility operates with a registered capital of approximately US$13 million. As a leading manufacturer of distribution transformers, the company maintains two production bases covering over 30,000 m².
Equipped with three modern workshops, the production lines feature world-leading core cutting and epoxy resin cast tank technology. Main product categories include:
