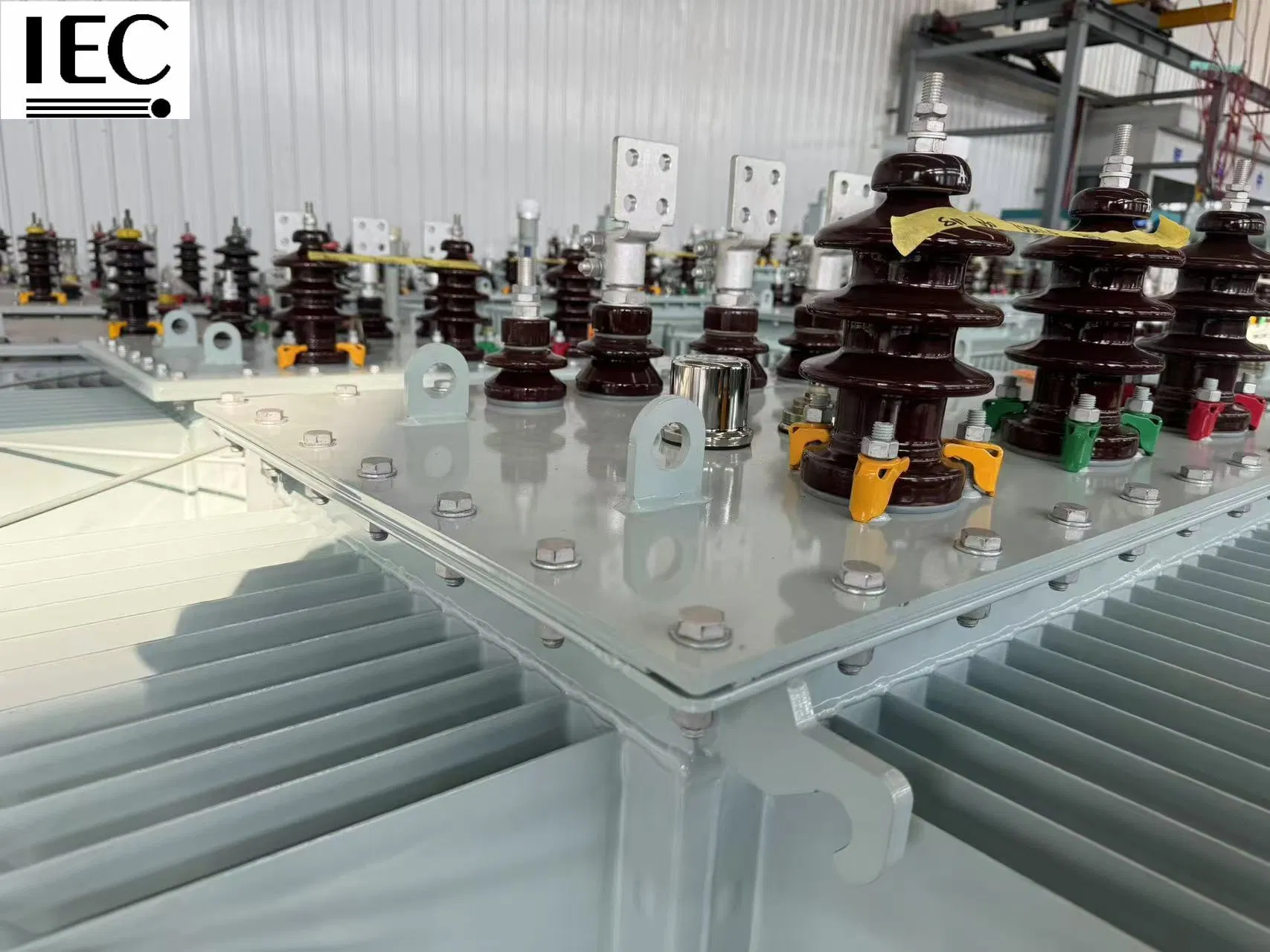

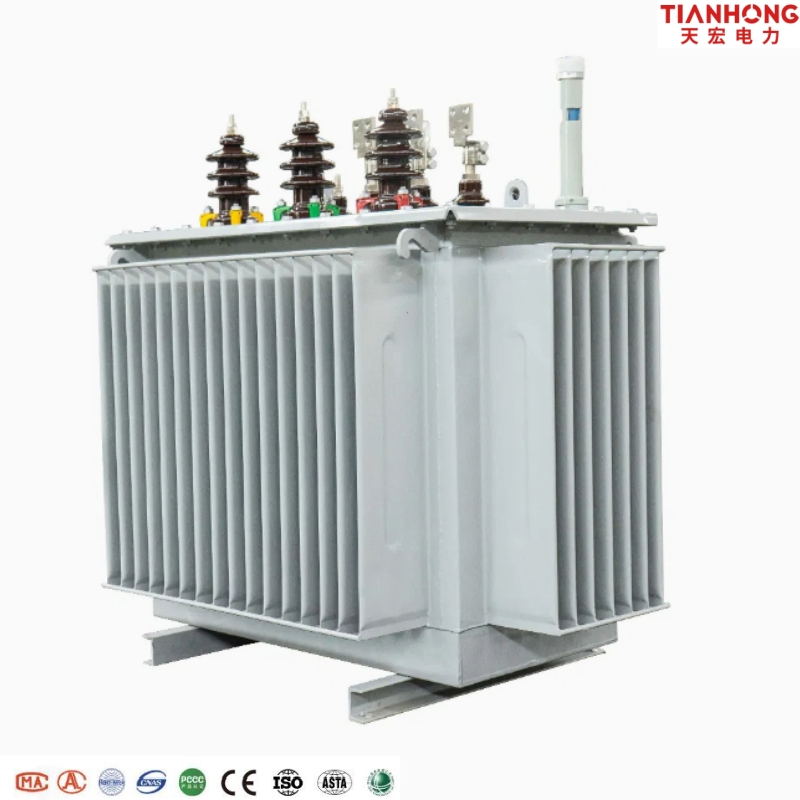

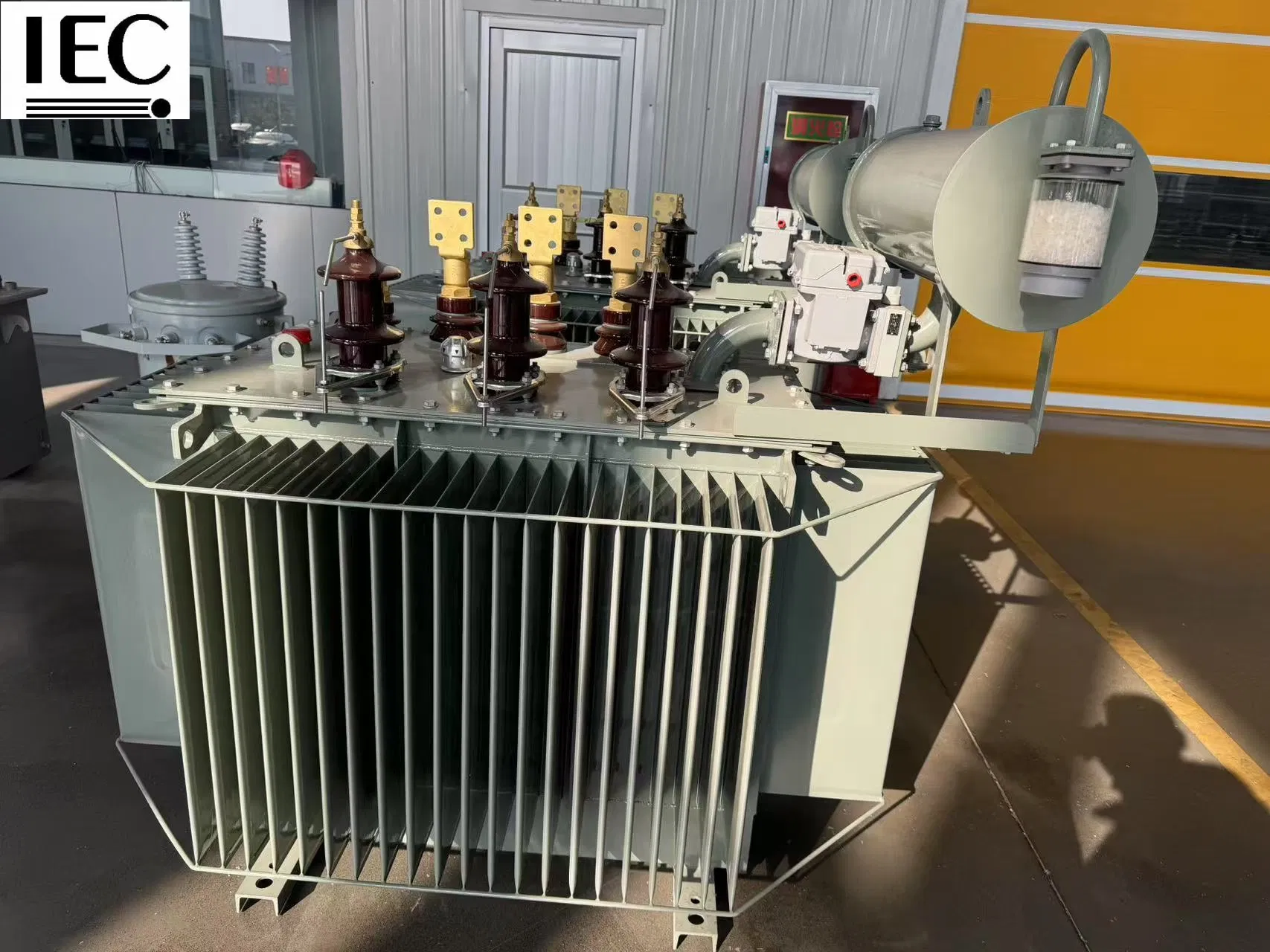

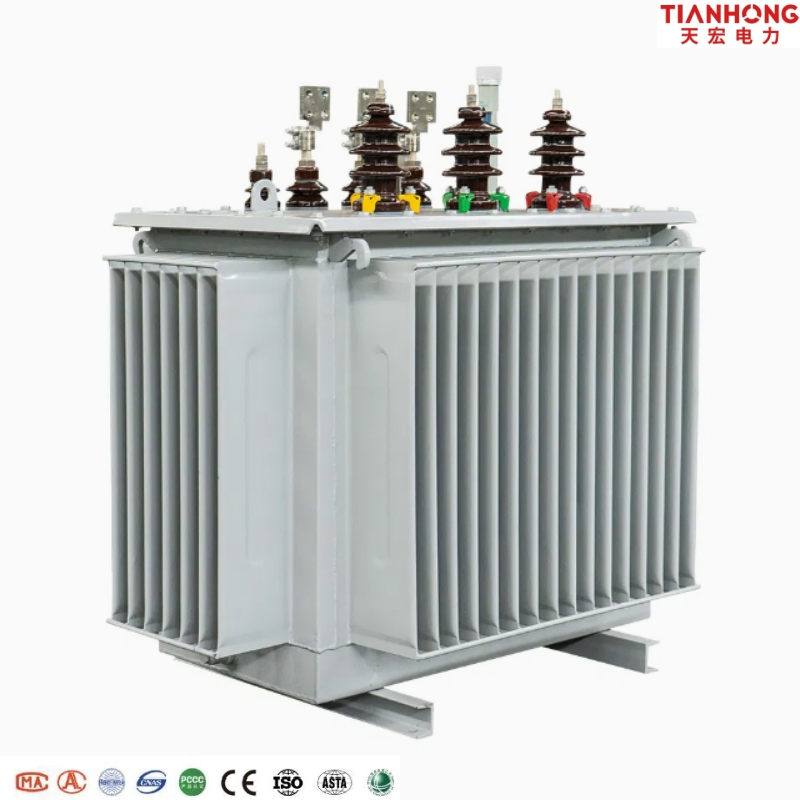

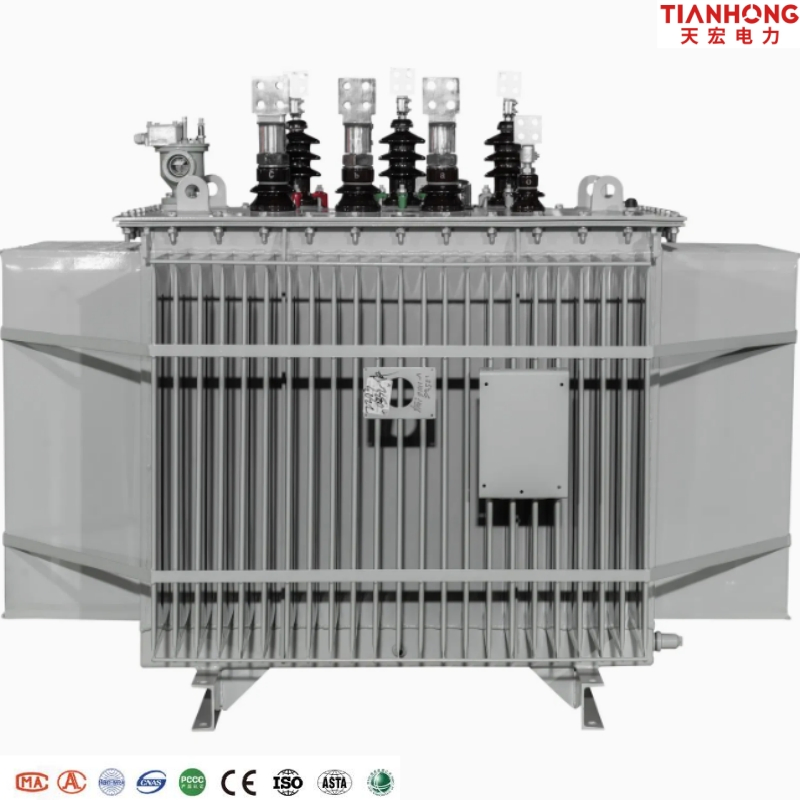

Oil Immersed Rectifier Transformer 8000kVA 22kv
Oil Immersed Rectifier Transformer 8000kVA 22kv
Oil Immersed Rectifier Transformer 8000kVA 22kv
Oil Immersed Rectifier Transformer 8000kVA 22kv
Oil Immersed Rectifier Transformer 8000kVA 22kv
1 / 5
Oil Immersed Rectifier Transformer 8000kVA 22kv
Oil Immersed Rectifier Transformer 8000kVA 22kv
Oil Immersed Rectifier Transformer 8000kVA 22kv
Oil Immersed Rectifier Transformer 8000kVA 22kv
Oil Immersed Rectifier Transformer 8000kVA 22kv

Oil Immersed Rectifier Transformer 8000kVA 22kv

Customization: Available
Application: Power, Electronic, Lighting
Phase: Three
Send Inquiry

Product Description

📊 Basic Information
Model NO.:Oil Immersed Transformer
Core:Core-type Transformer
Cooling Method:Oil-immersed Type Transformer
Winding Type:Two-winding Transformer
Certification:ISO9001
Usage:Power Transformer, Distribution Transformer
Frequency:High Frequency
Shape of Core:OD
Ambient Temp:-40c~+40c
Fuel Tank:HDPE
Iron Core:Cold Rolled Silicon Steel Sheet
Protection Level:IP44
Production Capacity:3000 Sets/Months
📦 Packaging & Delivery
Package Size:158.00cm * 165.00cm * 185.00cm
Gross Weight:1540.000kg
Package Type:Wooden Cases
🔍 Product Description

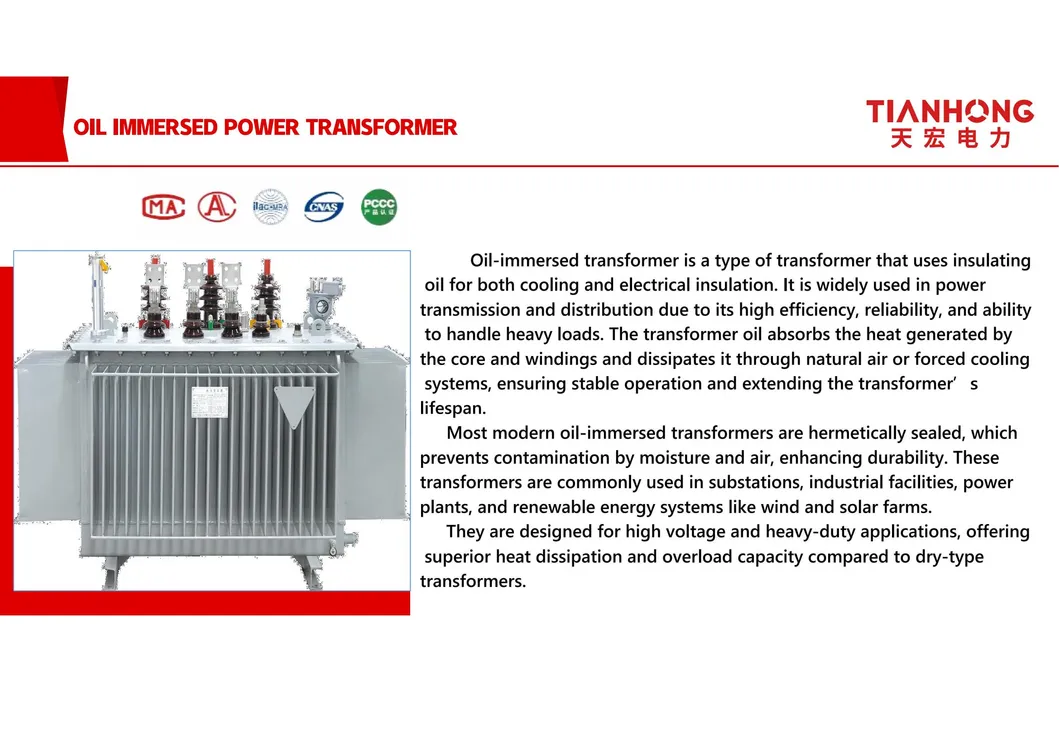

Oil Immersed Rectifier Transformer
⚙️ Technical Parameters

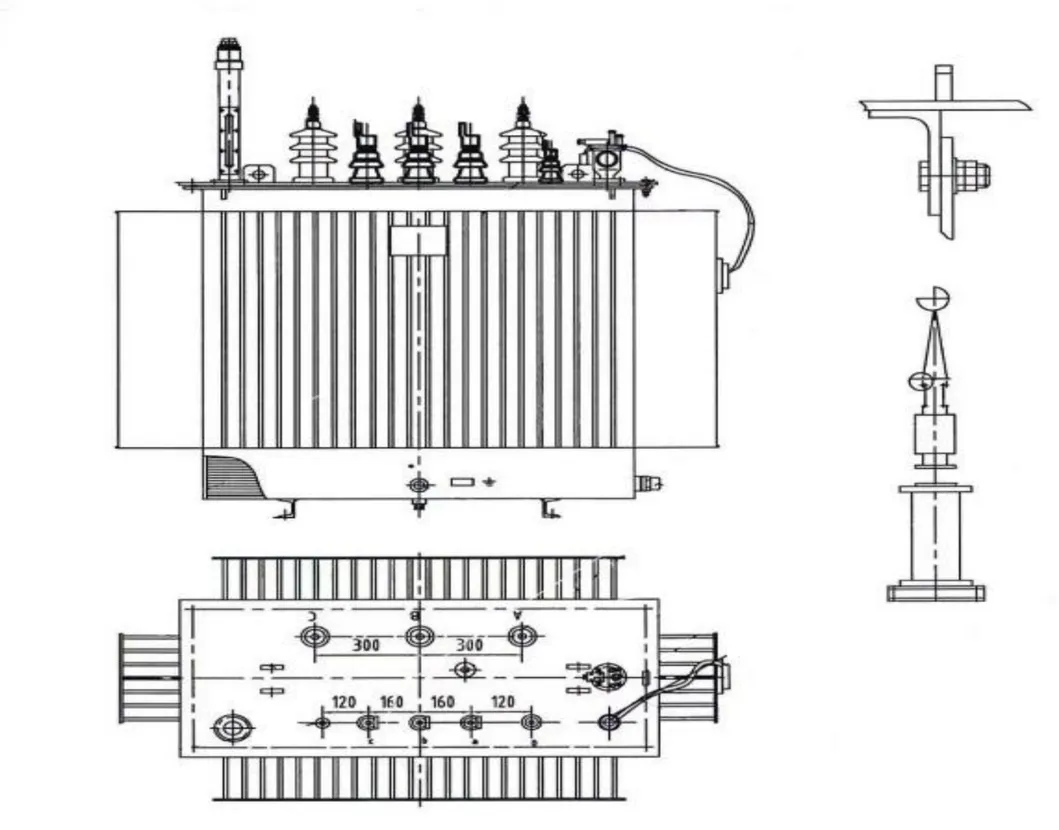

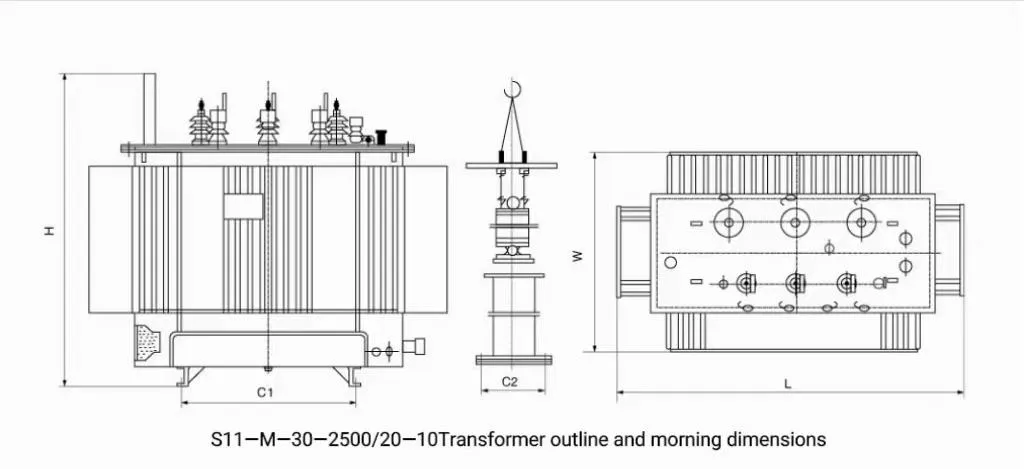

Technical Specs Technical Specs
Rated capacity (kVA) High voltage (KV) Voltage Combination Vector Group No-load loss (KW) Load loss (KW) No-load current (%) Short circuit impedance (%) Weight (KG)
Tap Range Low voltage (KV) Oil Weight Total Weight
100 20/10 ±5*2.5% / ±2*2.5% 0.4 Dyn11 0.2 1.65 1.6 5.5 215 710
250 0.4 3.35 1.2 5.5 390 1295
500 0.68 5.66 1.0 6.0 460 1995
1000 1.15 11.33 0.7 6.0 840 3650
1600 1.63 15.95 0.6 6.0 1105 4800
2500 2.34 22.22 0.5 6.0 1300 5650

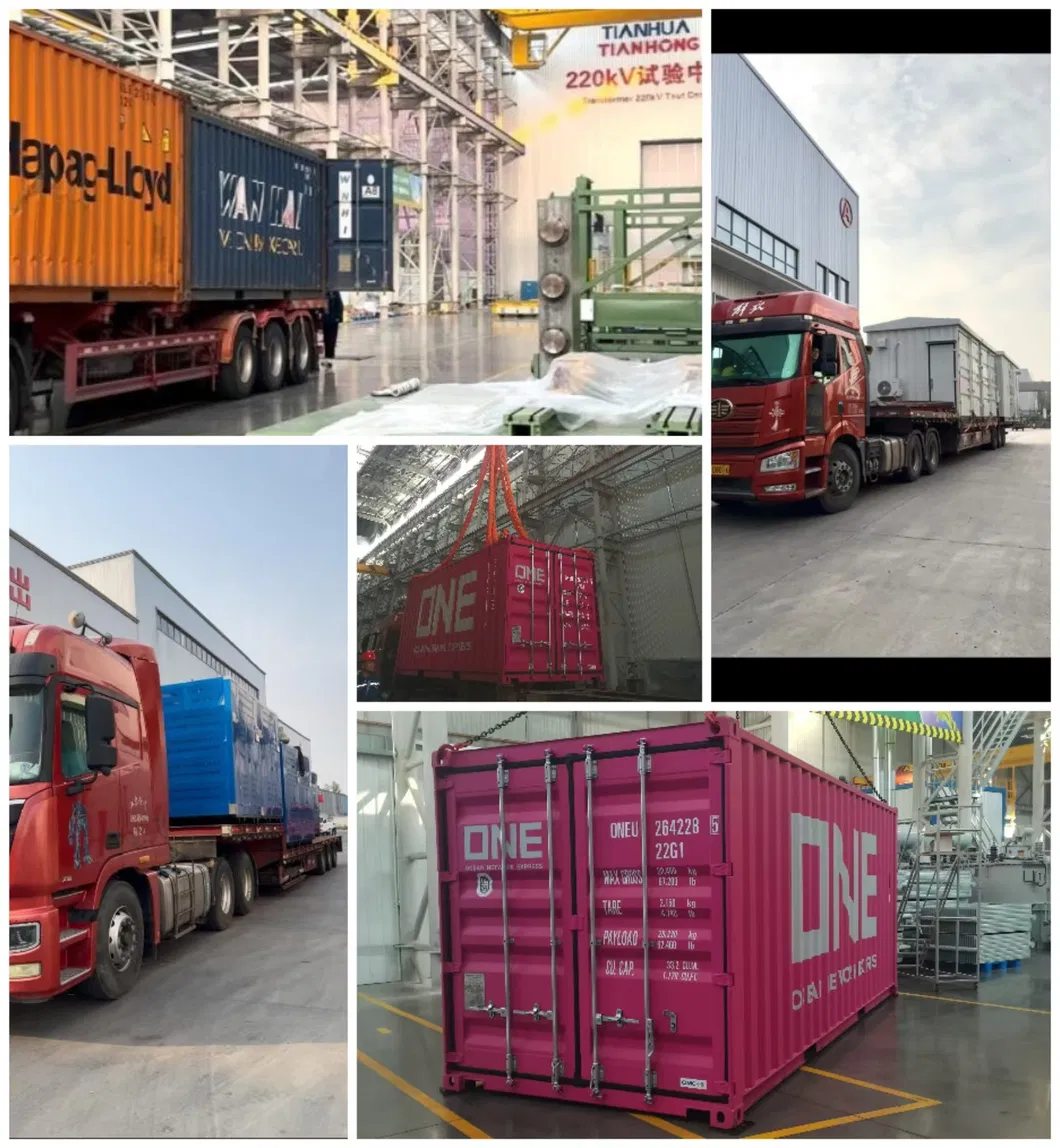

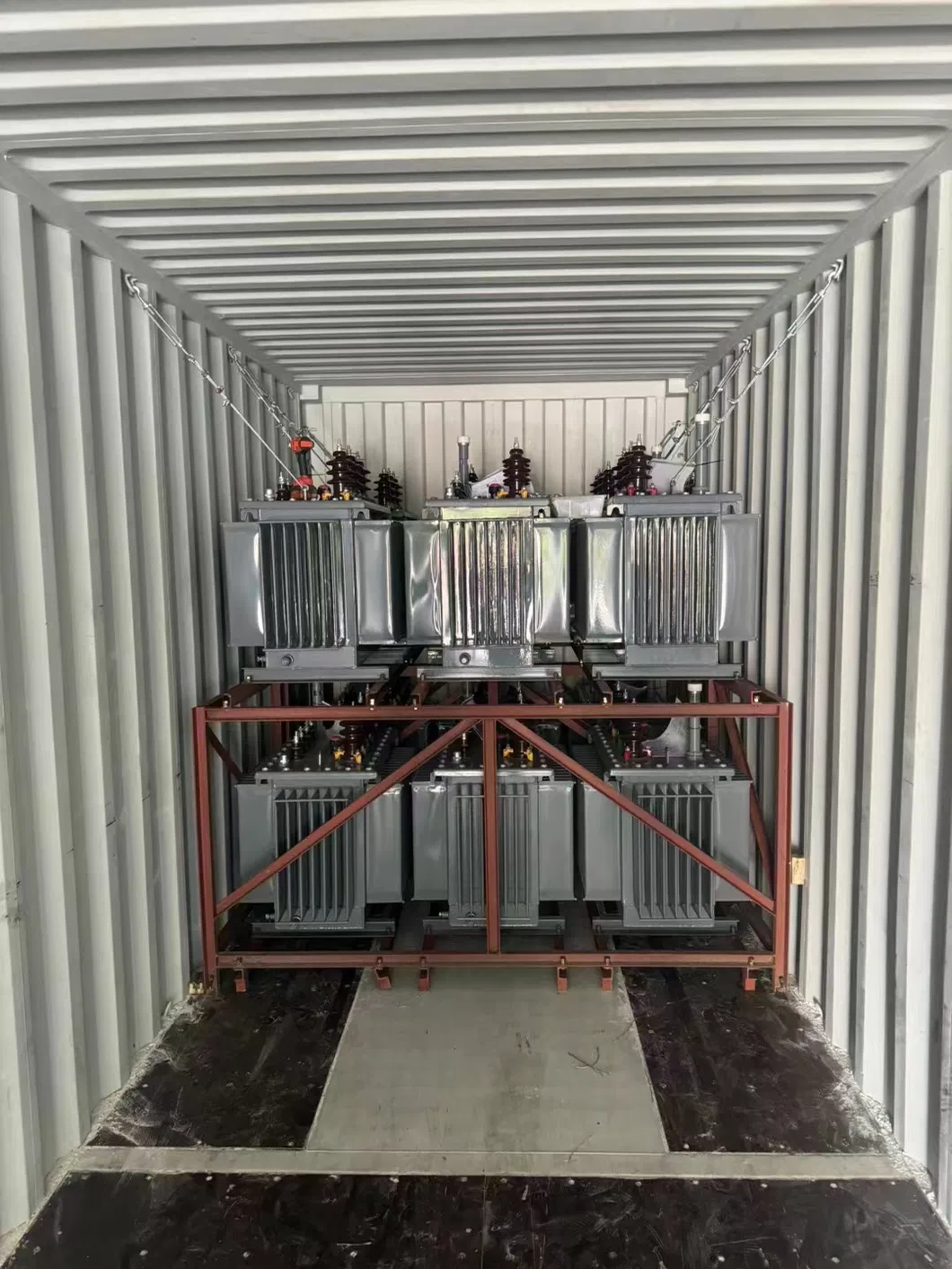

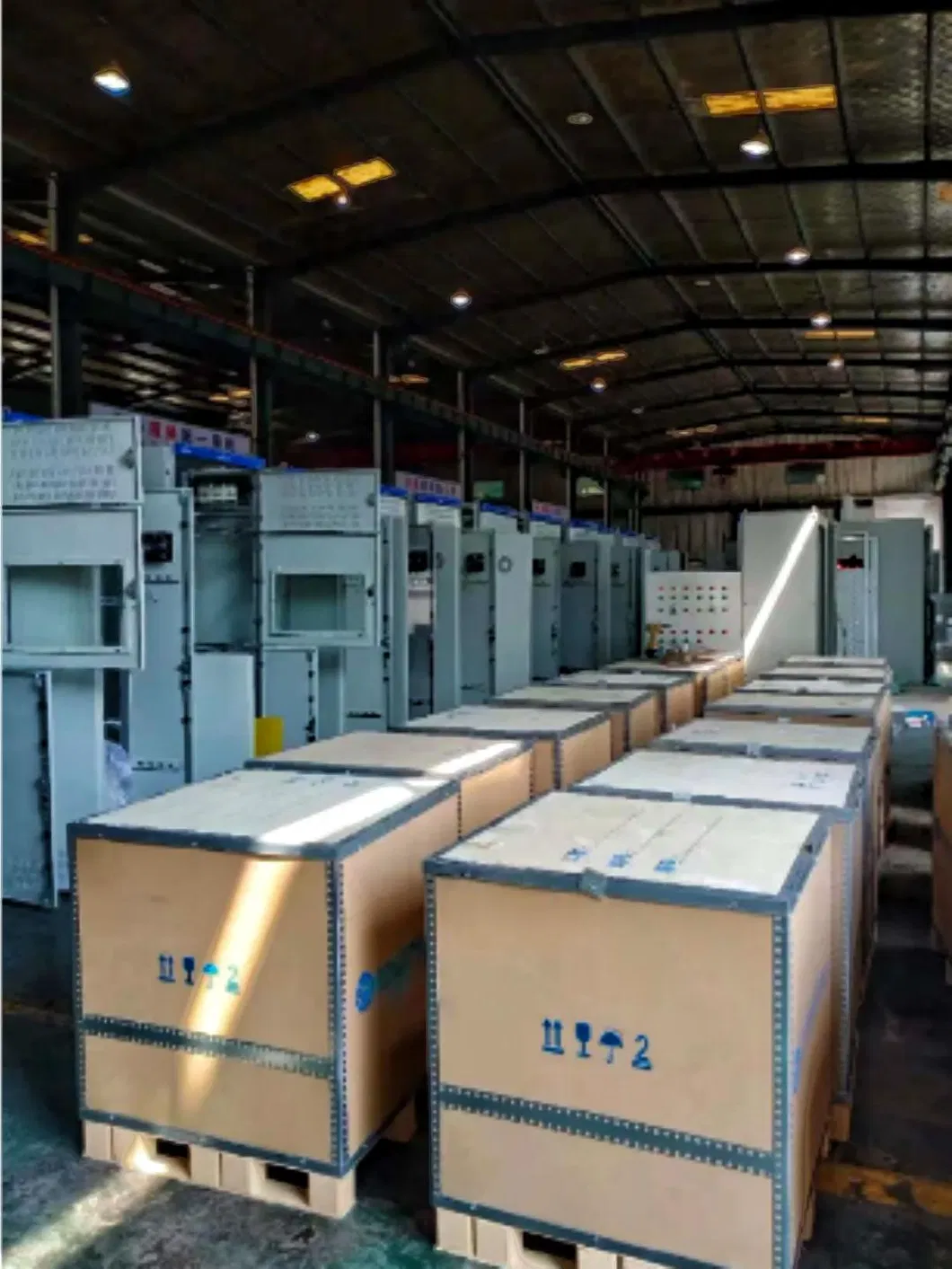

🚢 Packaging & Shipping
🏢 Company Profile

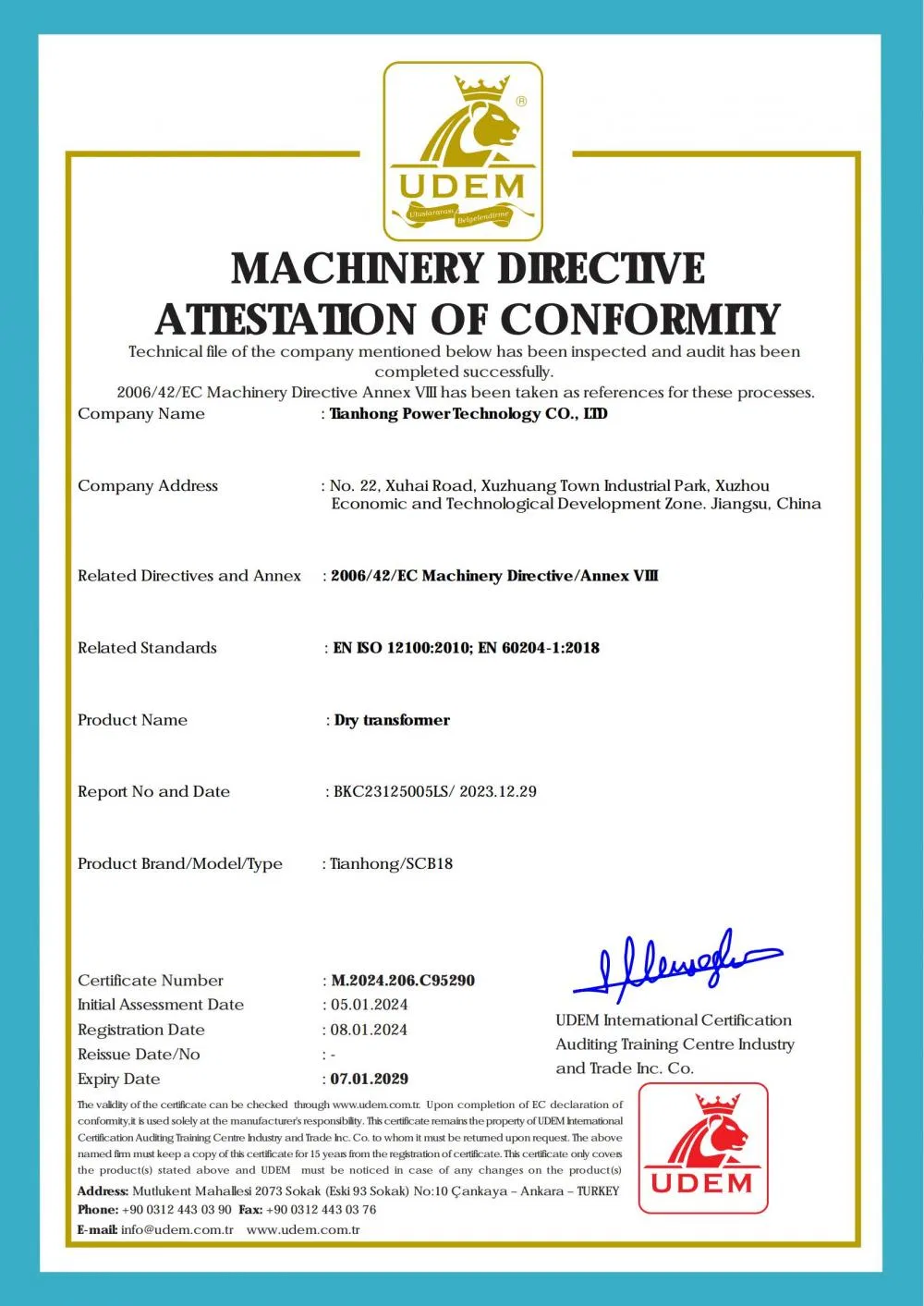

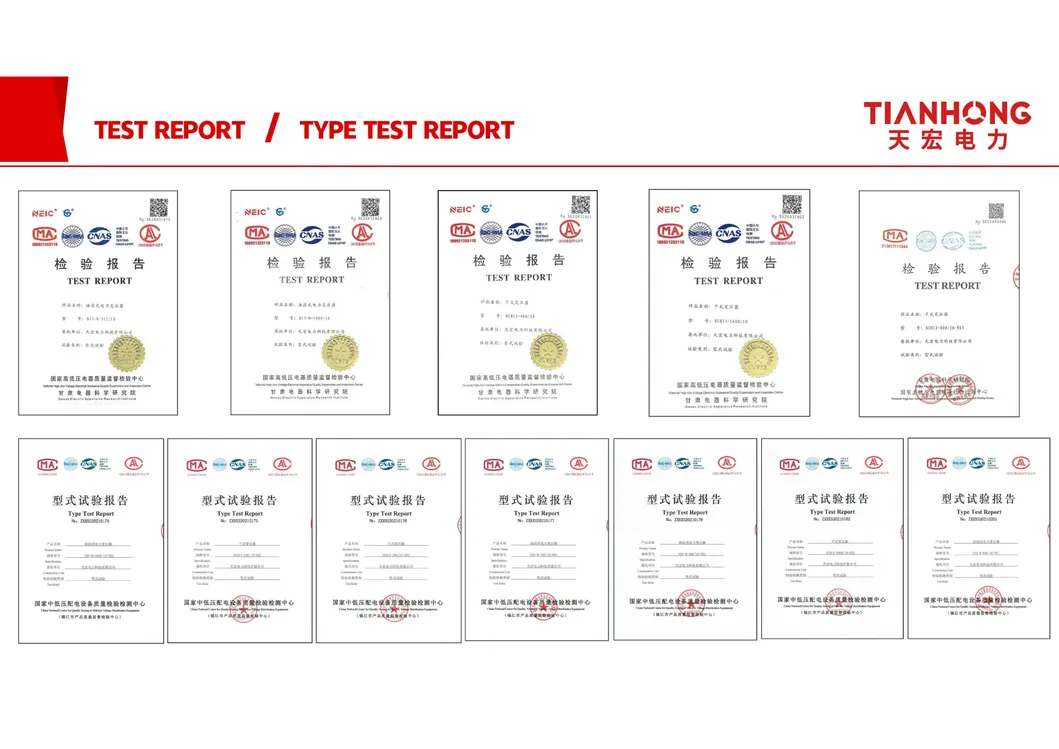

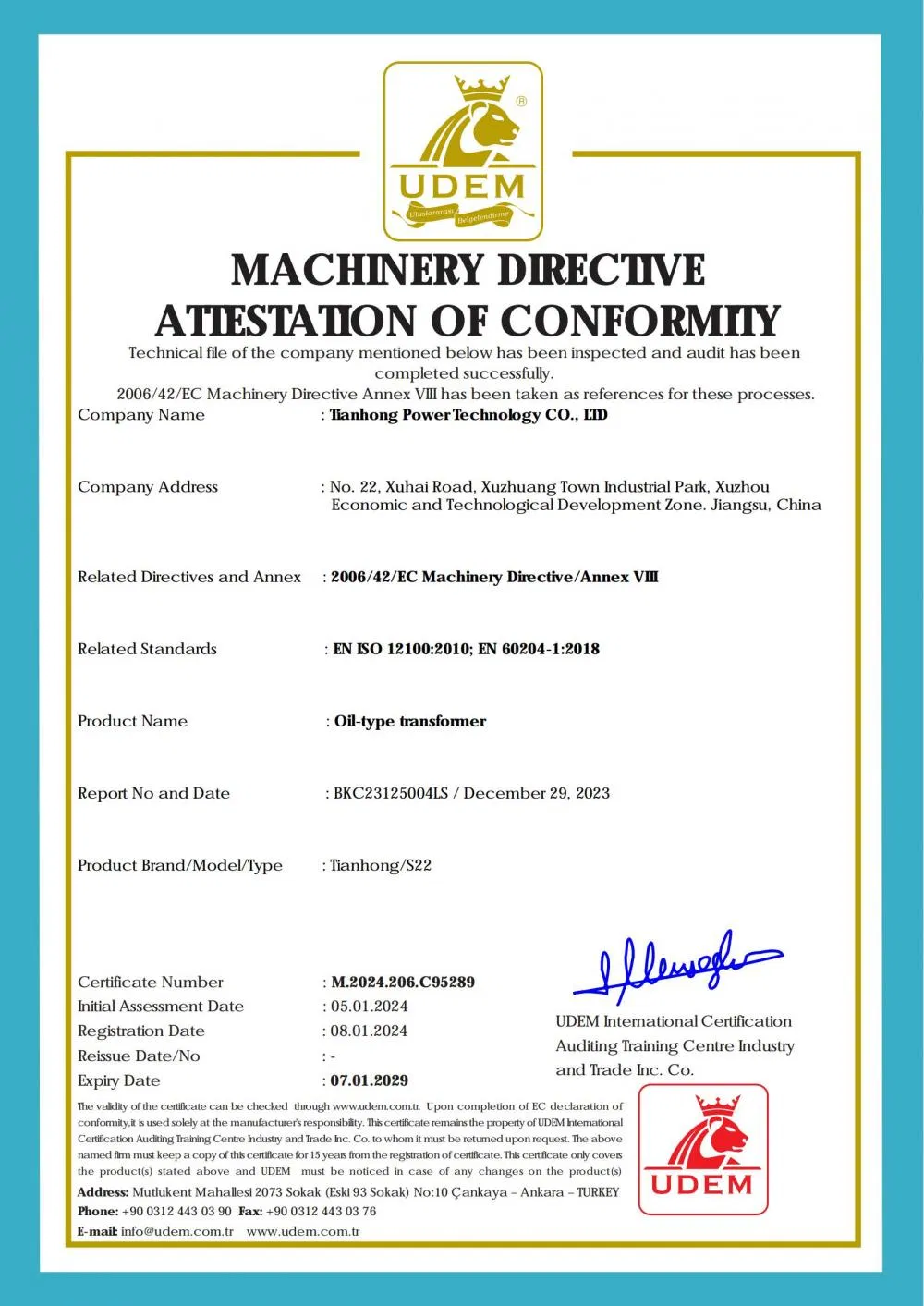

📜 Certifications

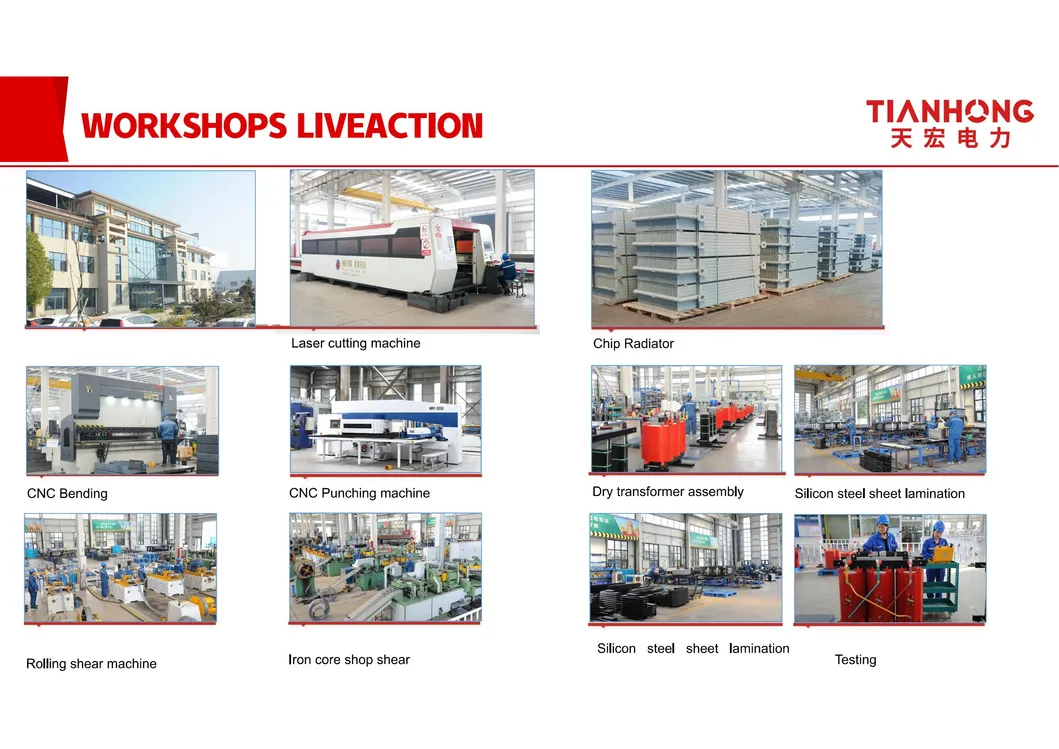

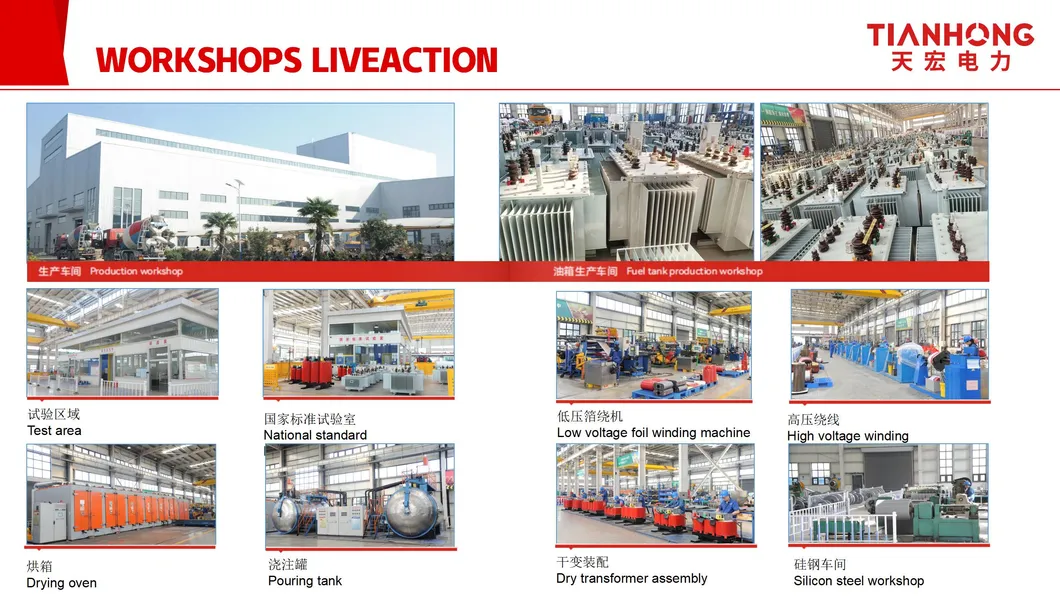

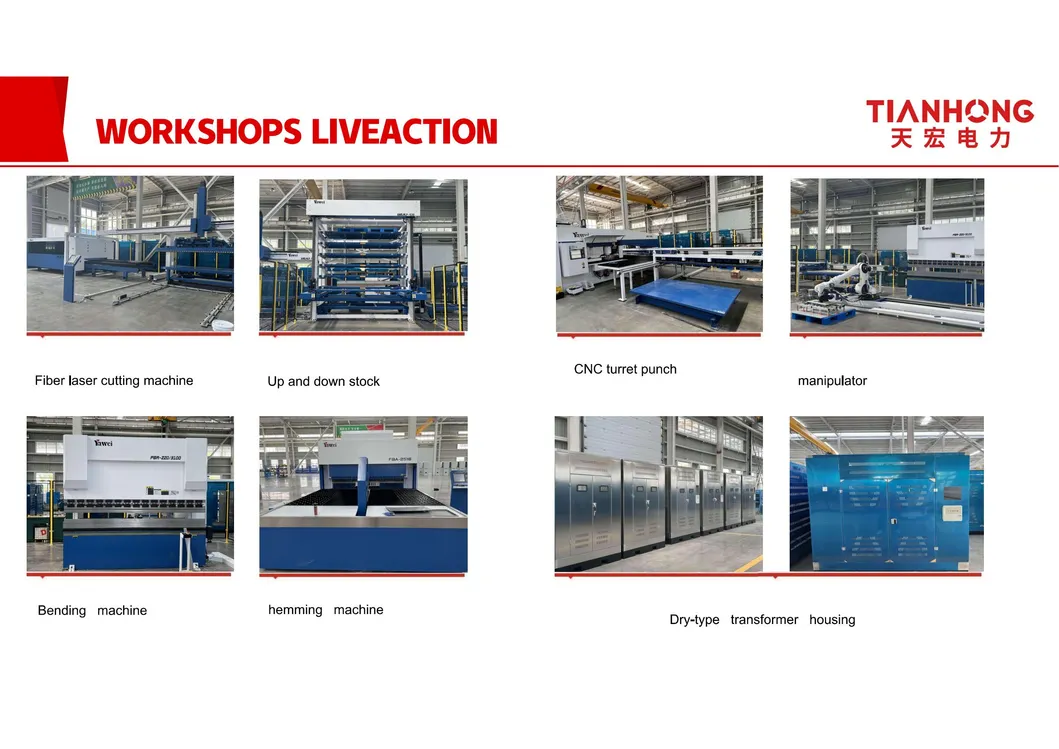

🛠️ Workshop & Exhibition
❓ Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a professional factory with 10 years of experience in the field of high and low voltage switchgear, substations, transformers, cables, distribution boxes, and various electrical equipment such as vacuum circuit breakers and load breaking switches.
2. Do you accept custom services?
Yes, we provide OEM/ODM services. Our professional technical team can provide satisfactory solutions based on your specific drawings and parameters.
3. What is your minimum order quantity?
Our minimum order quantity is 1 piece.
4. What is your lead time?
It depends on your product requirements and quantity. It usually takes 5-15 working days.
5. How do you solve quality problems?
Please provide detailed photos of the quality problem. Our technical and quality inspection departments will analyze it and provide a satisfactory solution within two days.
6. What are your terms of payment?
T/T payment is preferred. Western Union and Letters of Credit (L/C) are also acceptable.
