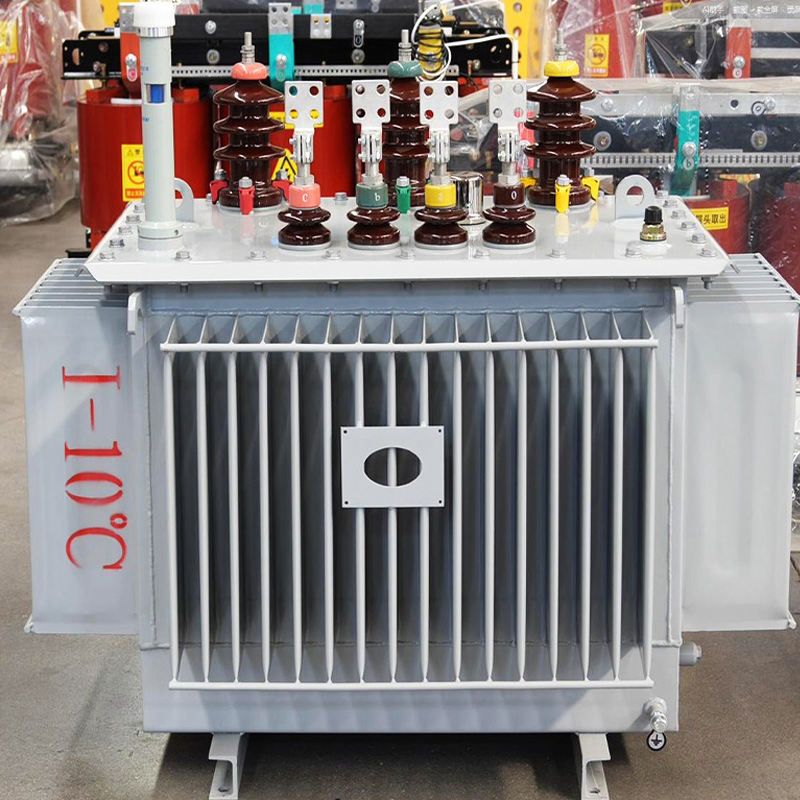

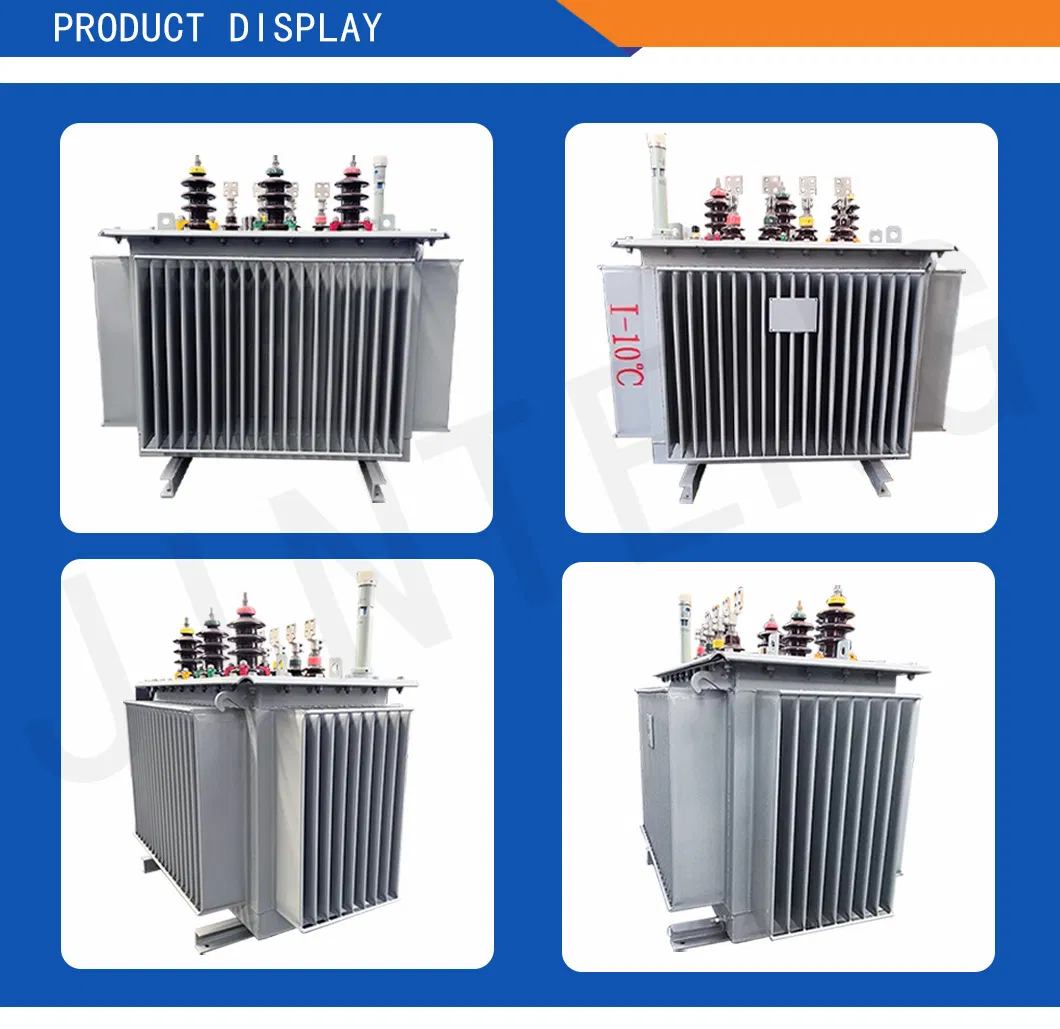

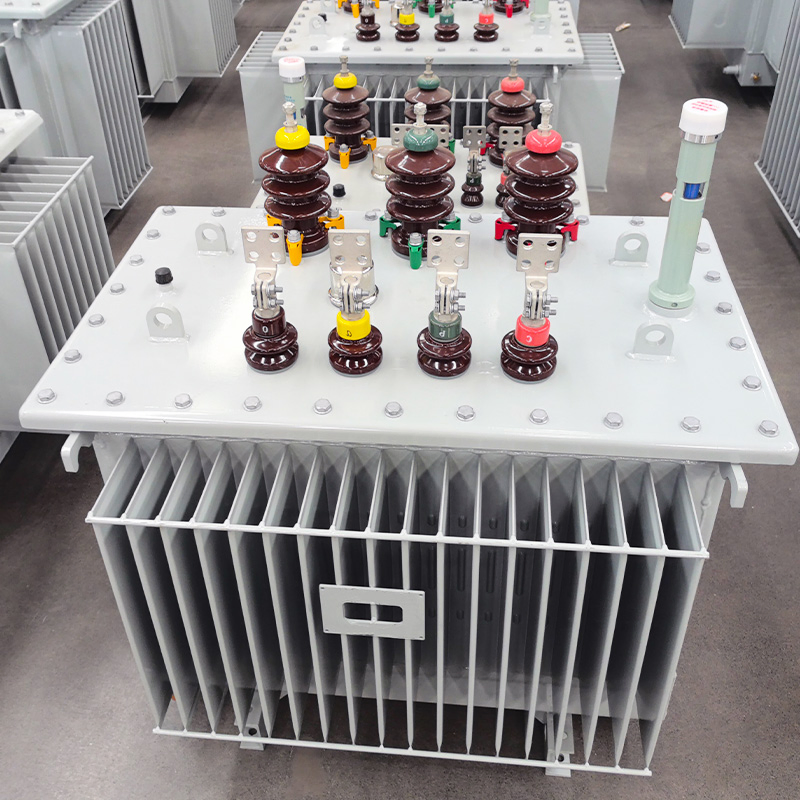

High Efficiency Oil Immersed Transformer
The fully sealed oil-immersed power transformer offers low loss, low noise, and high efficiency, ensuring energy-saving benefits and reduced pollution. The design eliminates the oil conservator, using a corrugated tank's elasticity to adjust oil volume automatically. This isolates the transformer from air, preventing oil and insulation degradation.
| Rated Capacity (KVA) | Voltage Combination (KV) | Vector Group | No-load Loss (KW) | Load Loss (KW) | No-load Current % | Impedance % | Gross Weight (KG) |
|---|---|---|---|---|---|---|---|
| 30 | 10-20 / 0.4 | Dyn11 | 0.09 | 0.66 | 2.1 | 5.5 | 420 |
| 100 | 10-20 / 0.4 | Dyn11 | 0.20 | 1.65 | 1.6 | 5.5 | 710 |
| 250 | 10-20 / 0.4 | Dyn11 | 0.40 | 3.35 | 1.2 | 5.5 | 1295 |
| 500 | 10-20 / 0.4 | Dyn11 | 0.68 | 5.66 | 1.0 | 6.0 | 1995 |
| 1000 | 10-20 / 0.4 | Dyn11 | 1.15 | 11.33 | 0.7 | 6.0 | 3650 |
| 2500 | 10-20 / 0.4 | Dyn11 | 2.34 | 22.22 | 0.5 | 6.0 | 5650 |

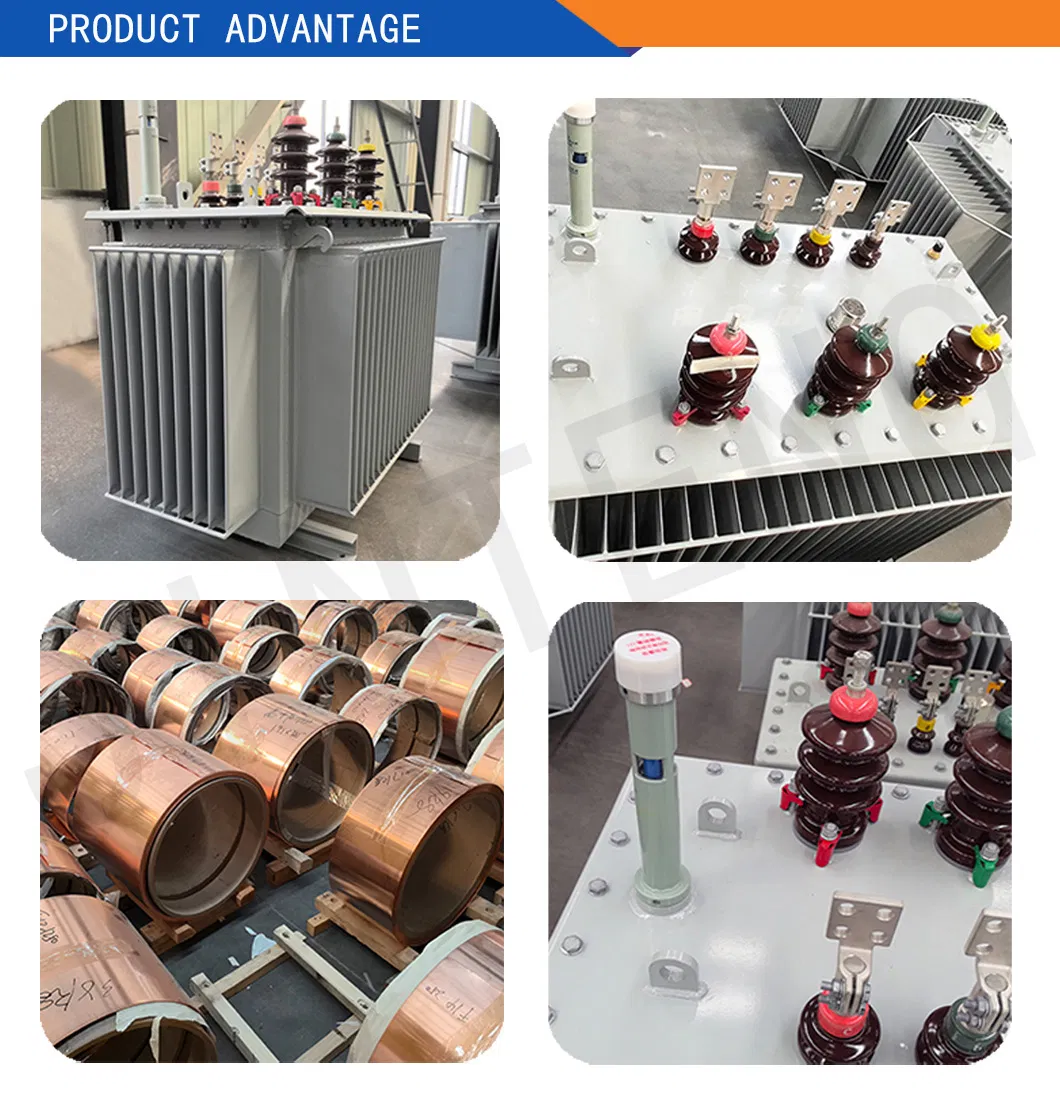

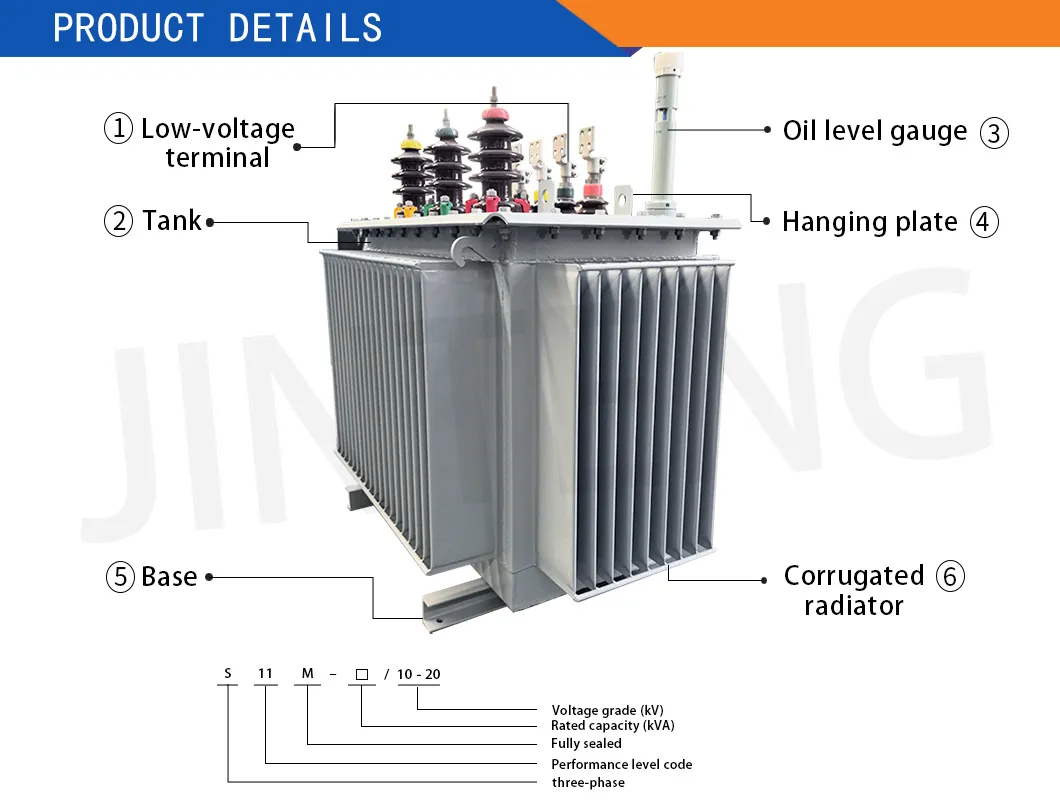

1. Transformer Body: High temperature resistance, impact resistance, and superior insulation with optimized heat sink arrangement.

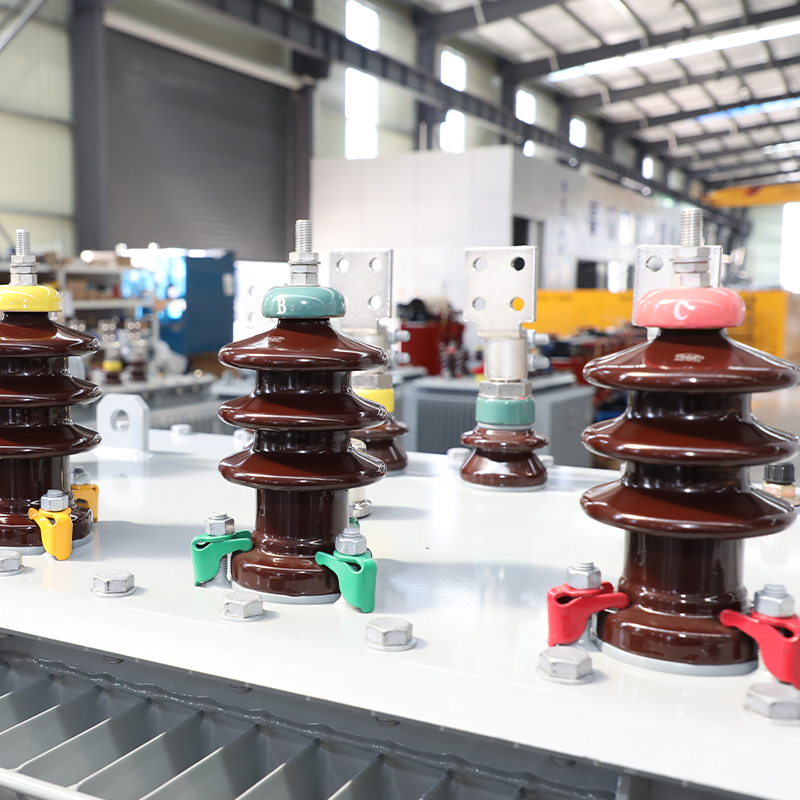

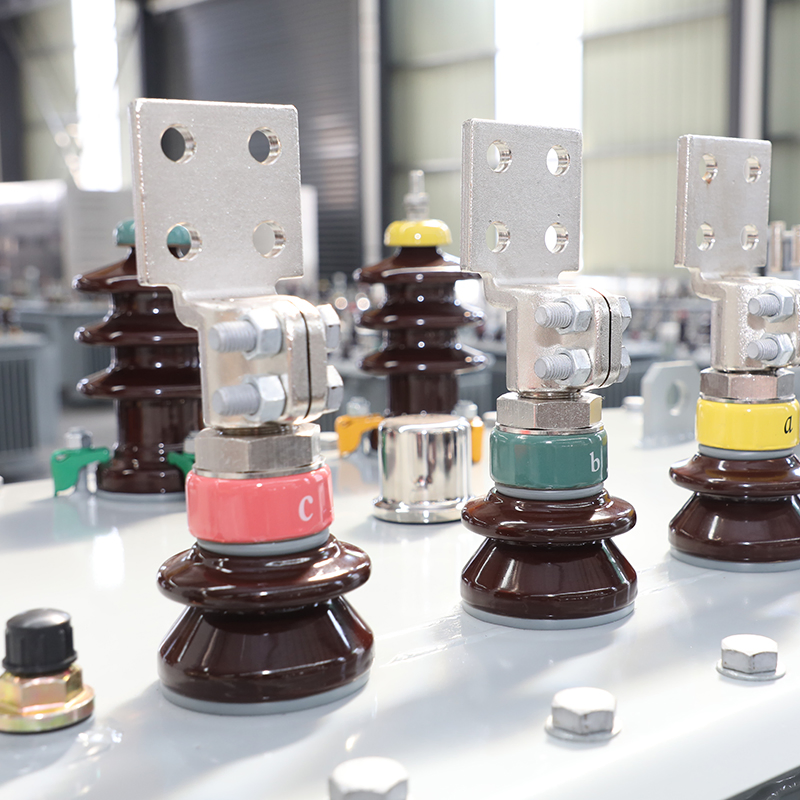

2. Terminals: High-quality terminals with clear wiring instructions for easy installation.
3. Pure Copper Material: Used to enhance mechanical strength, dynamic stability, and thermal stability.

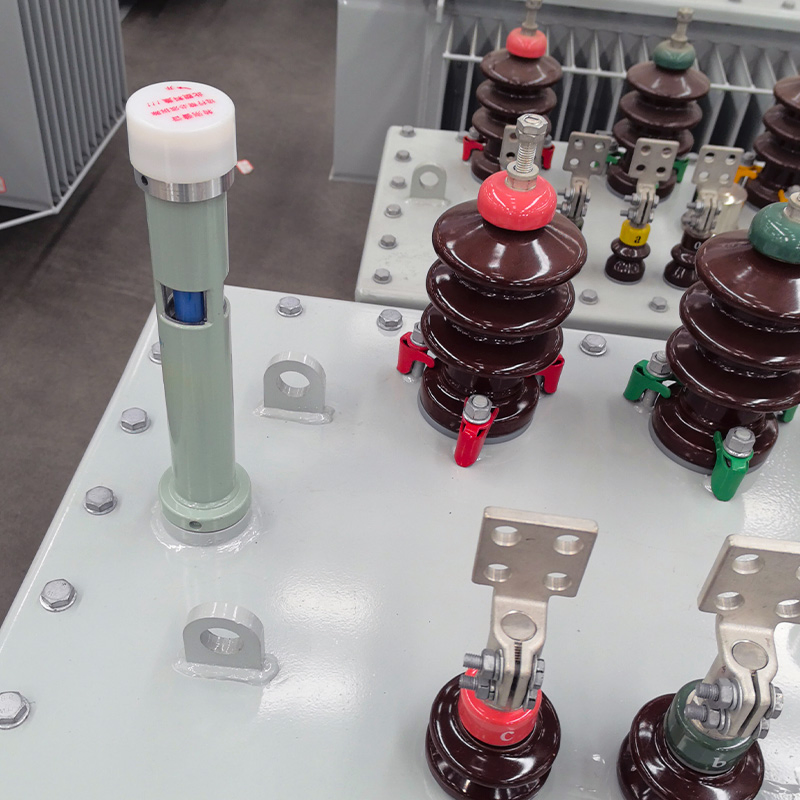

4. Oil Level Gauge: Visual indicator (Red for low, Blue for normal) for easy monitoring.
Our facility prepares professional delivery schedules for every project, utilizing robust logistics networks to provide international shipping capabilities.
