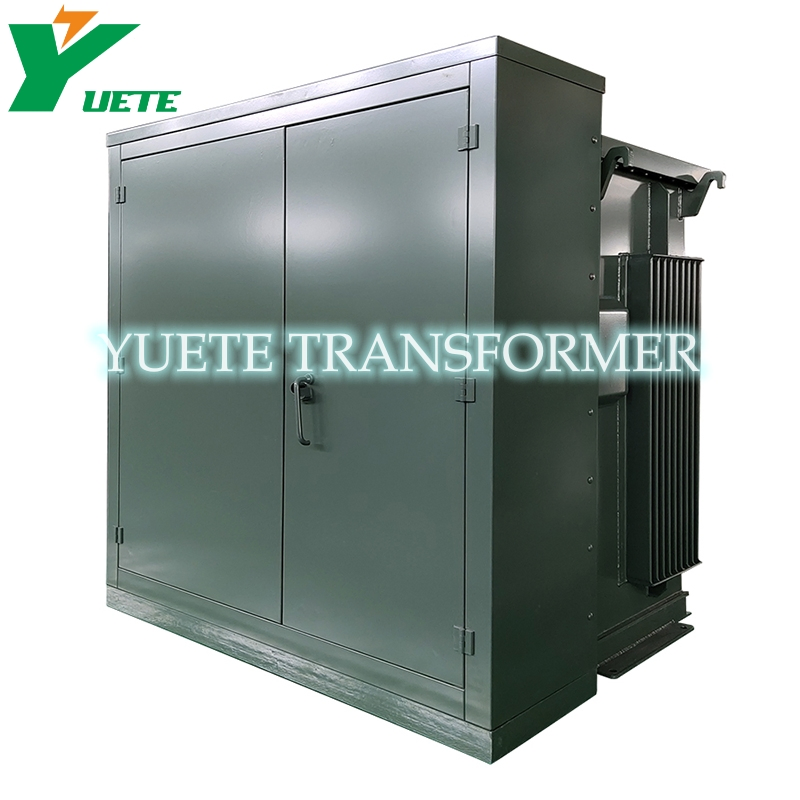

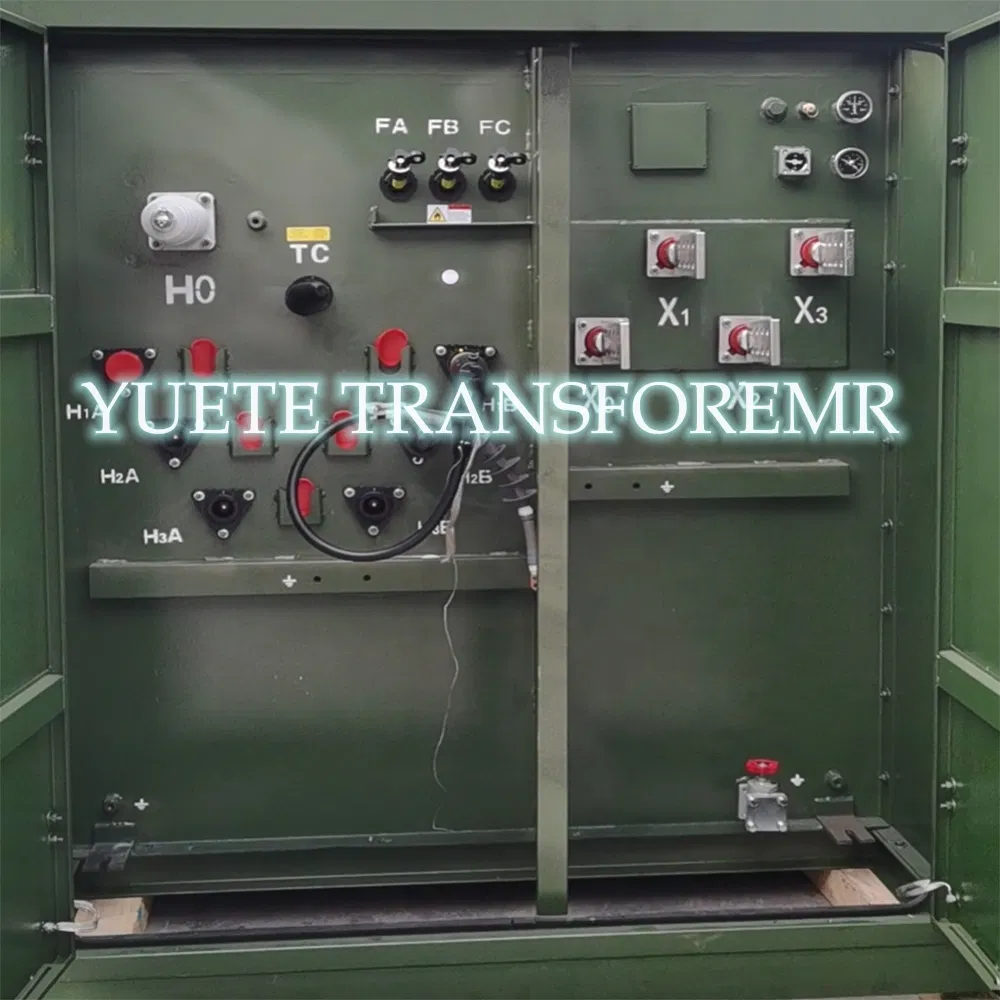

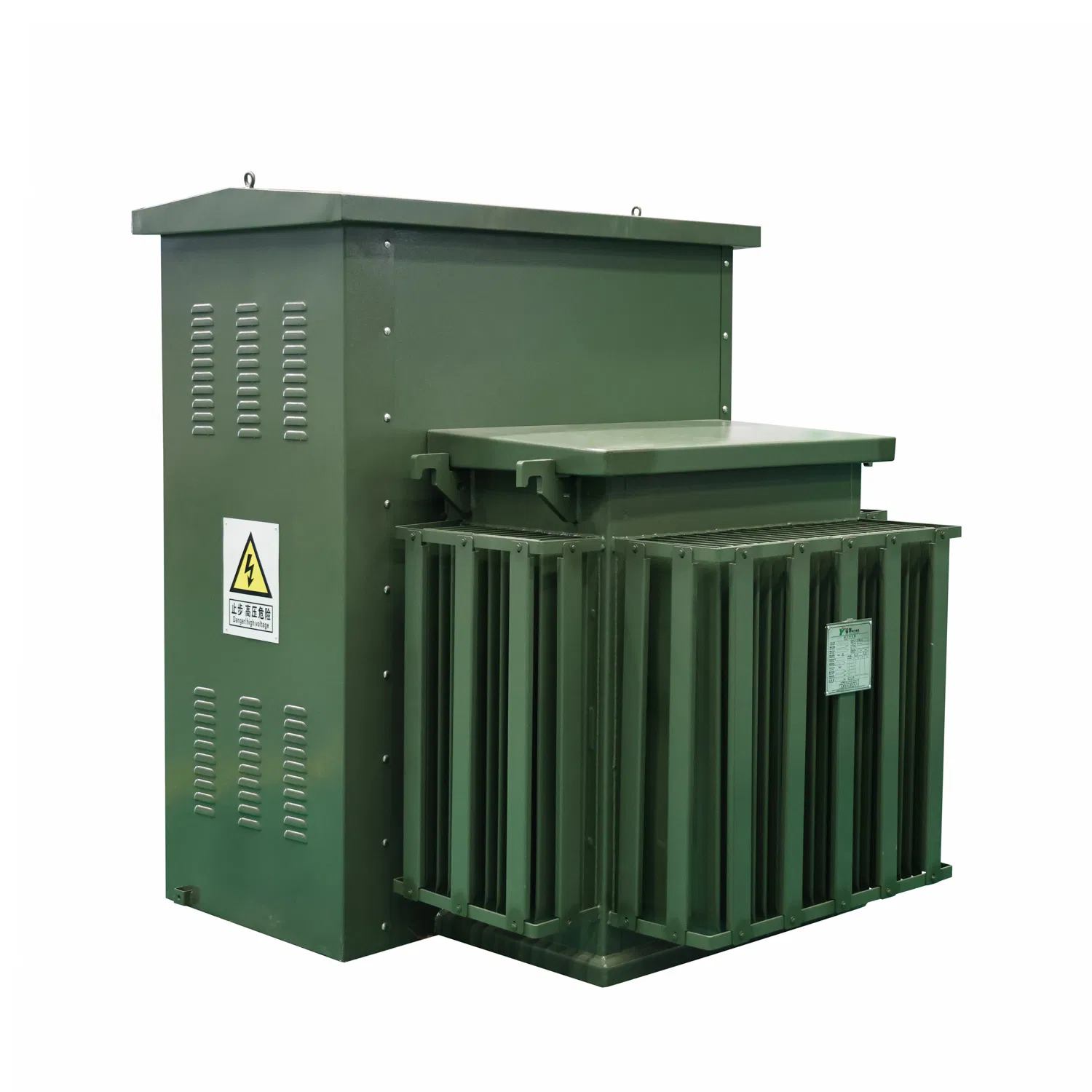

Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer
Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer
Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer
Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer
Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer
1 / 5
Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer
Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer
Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer
Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer
Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer

Zgs IEEE ANSI DOE Loop Feed 13.2kv 3 Phase Pad Mounted Transformer

Customization: Available
Application: Power
Phase: Three
Send Inquiry

Product Description

📋 Basic Information
Model NO.ZGS
CoreCore-type Transformer
Cooling MethodOil-immersed Type Transformer
Winding TypeTwo-winding Transformer
CertificationISO9001, CCC, ISO14001, ISO45001
UsageCombined Transformer, Power Transformer, Distribution Transformer
Frequency CharacteristicsPower Frequency
Shape of CoreEI
Rated H.V.13.2/13.8/15kv
Rated L.V.0.4/0.415/0.42/0.433/0.46/0.48kv
Frequency50/60Hz
Winding MaterialCopper/Aluminium
Vector GroupDyn11/Yyn0/Yzn11/Dyn5
Applied StandardIEC60076/IEEE/ANSI/DOE
Transport PackageWooden Box
OriginChina
HS Code8504220000
Production Capacity10000 Units/Year
⚡ Three Phase Pad Mounted Transformer

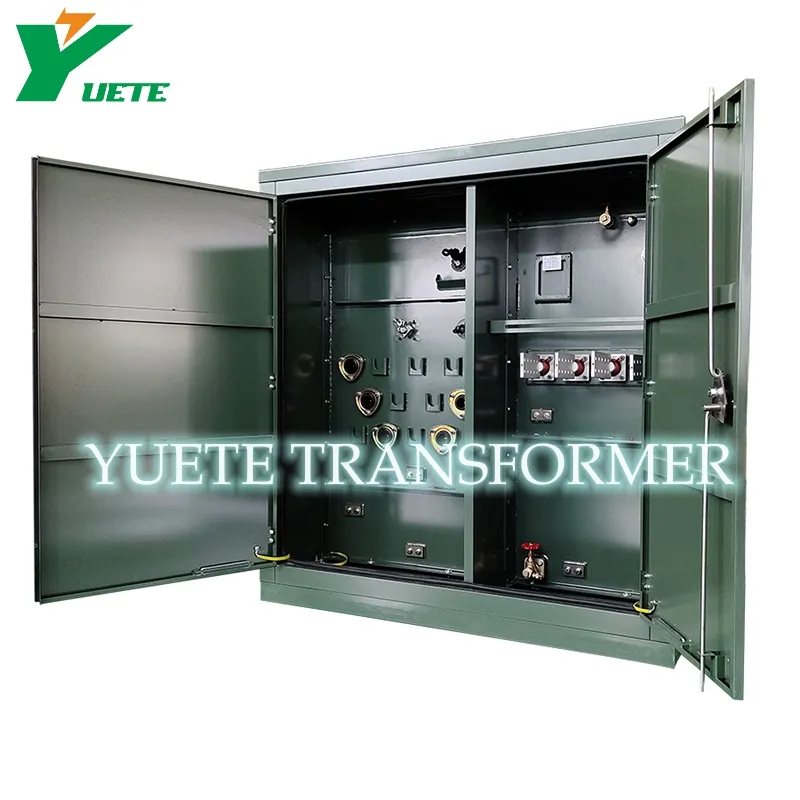

Three Phase Pad Mounted Transformer
Product Features:
  • Small with compact structure: only 1/5 to 1/3 size as the compact transformer substation of the same rated power;
  • Fully sealed and insulated; safe and reliable;
  • Low loss, low noise, strong overload capacity;
  • Equipped with load switch, bayonet fuse, current limiting fuse, oil level gauge, pressure gauge, pressure relief valve, etc;
  • LV compartment can be equipped with metering, capacitance compensation, ACB, MCCB;
  • Applies corrugated heat dissipation with strong anti-corrosion ability;
  • Optional enclosure materials: Cold rolled plate, stainless steel, or others.

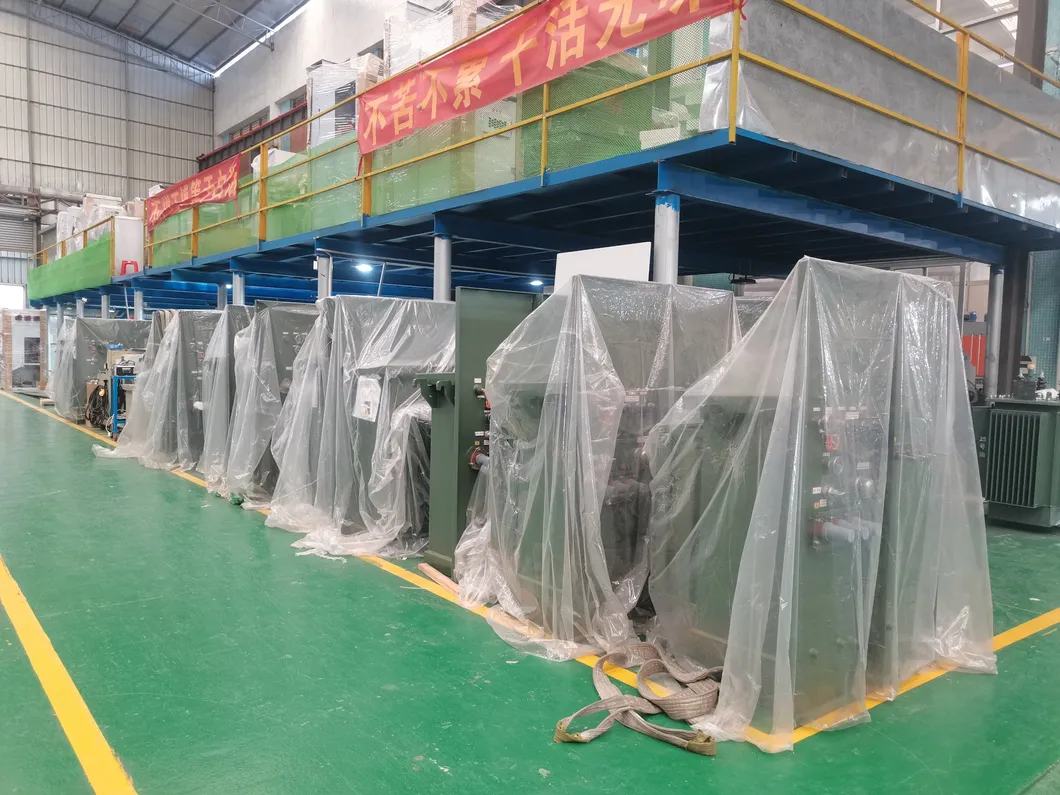

Transformer View 1

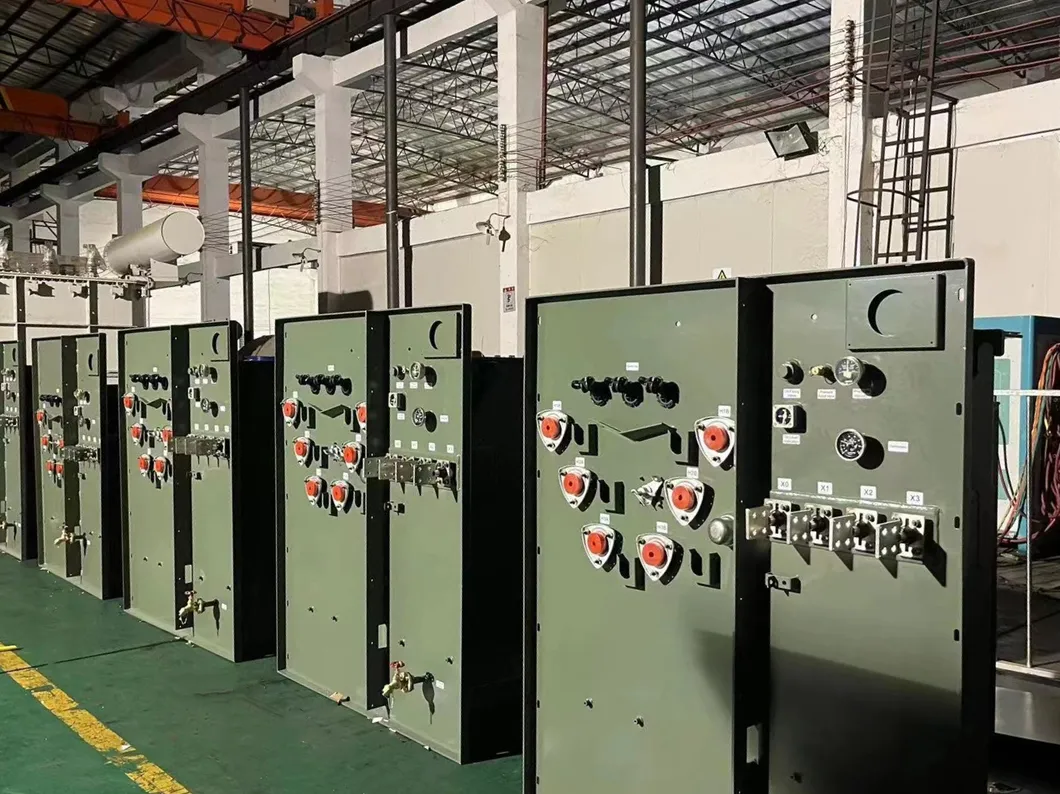

Transformer View 2
📊 Technical Specifications
ModelZGS Series
Rated capacity100~3500kVA
Rated voltage(HV)12kV - 34.5kV (Customizable)
Rated voltage(LV)208V - 480V (Customizable)
Rated frequency50Hz / 60Hz
Vector groupDyn11, Yyn0, Dy1, Dyn1
Winding materialCopper / Aluminium
Cooling methodONAN KNAN
Insulation levelas per IEC standard
🔍 Product Details

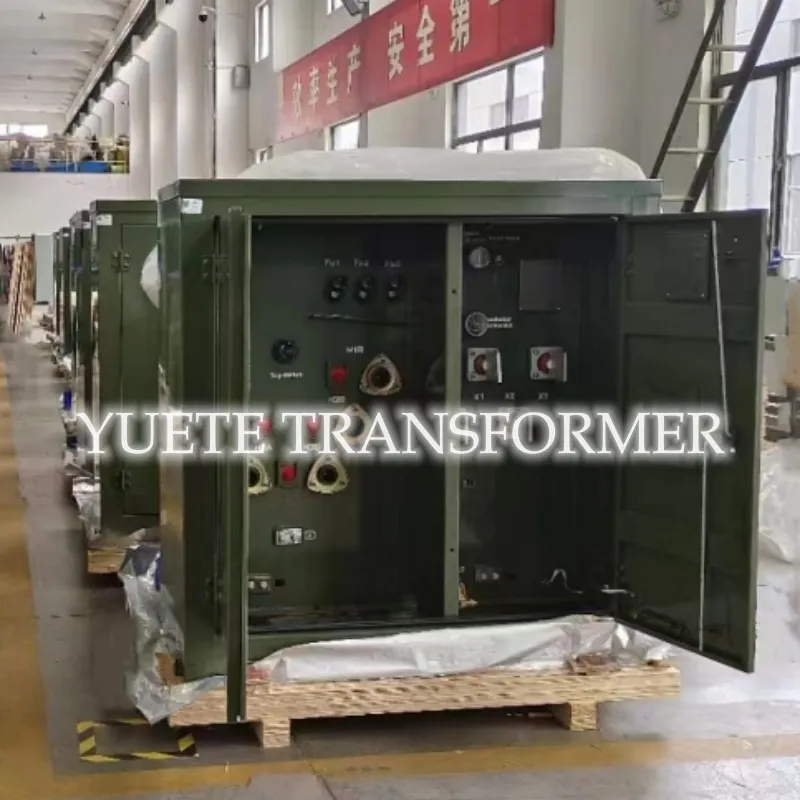

Detail 1

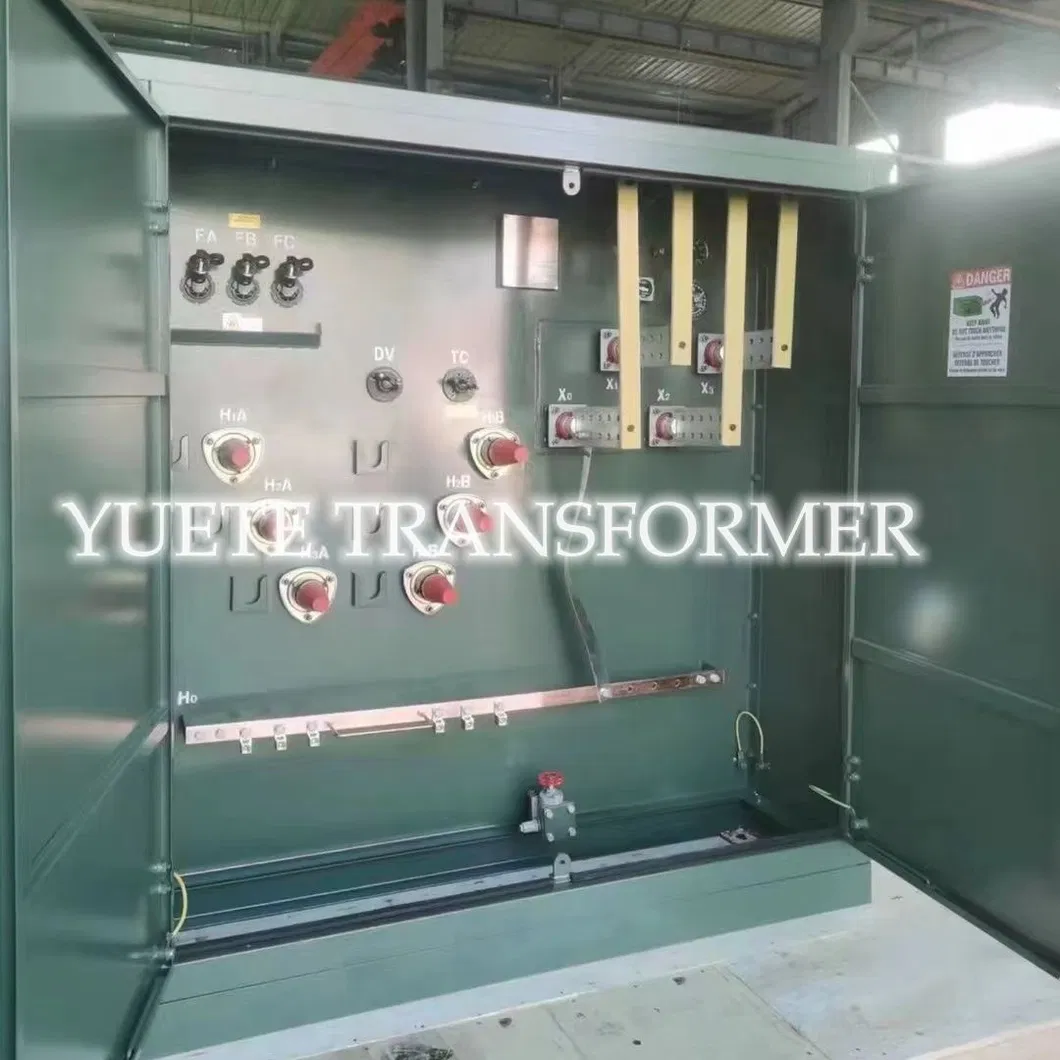

Detail 2
Detail 3

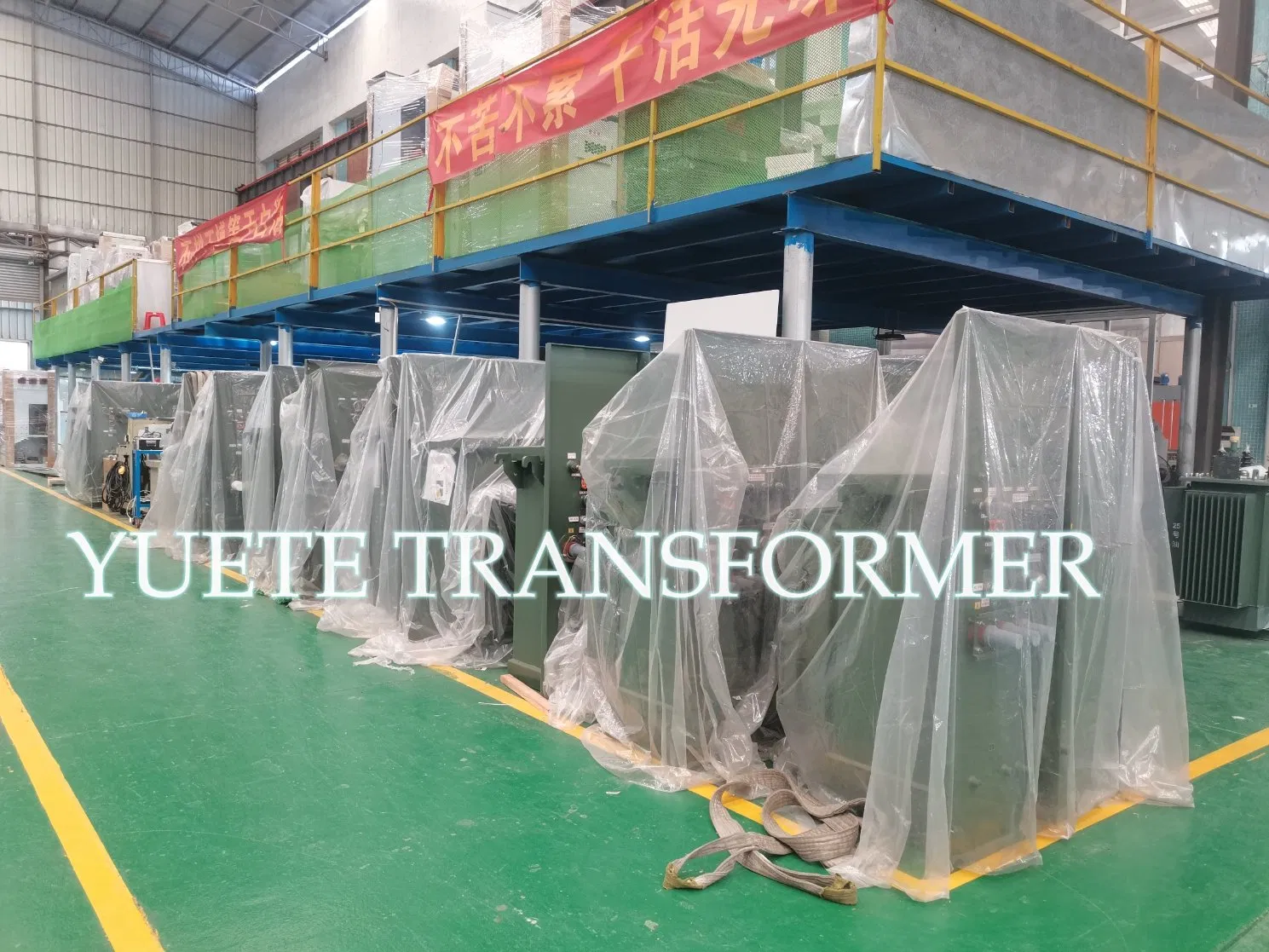

🏭 Production & Test Equipment

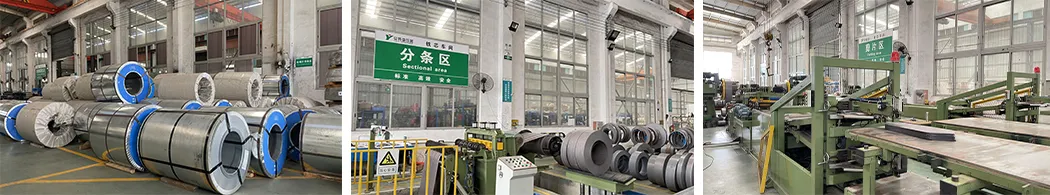

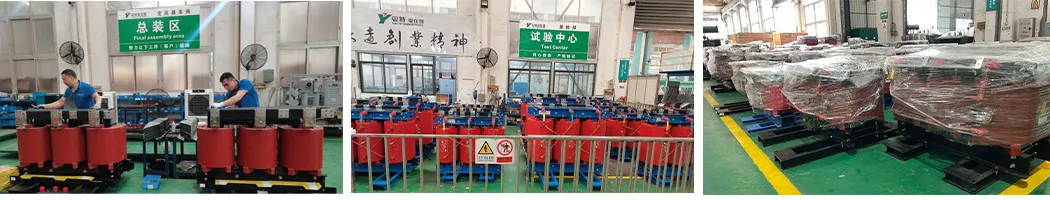

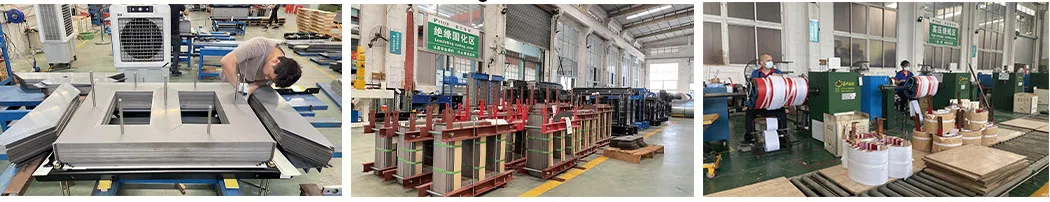

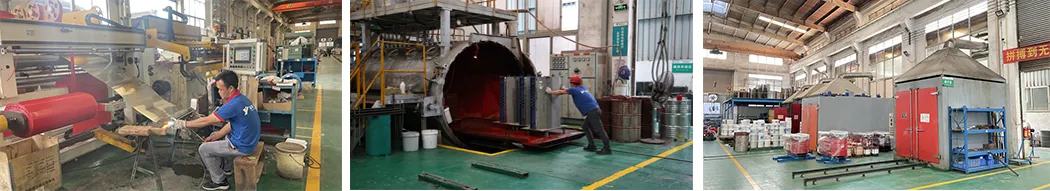

Raw Materials and Cutting Stacking and Winding Pouring and Drying Assembly and Testing

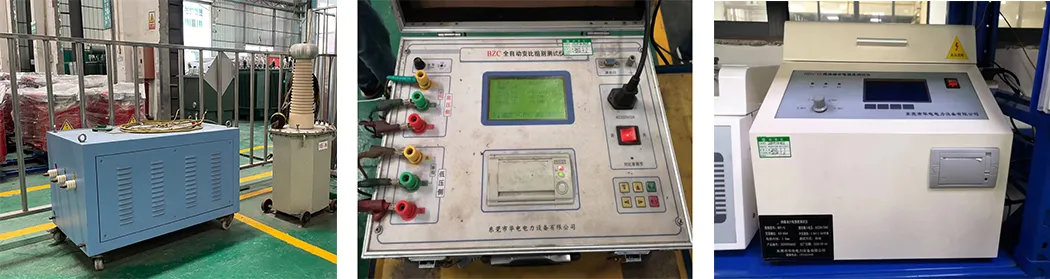

Test Equipment:

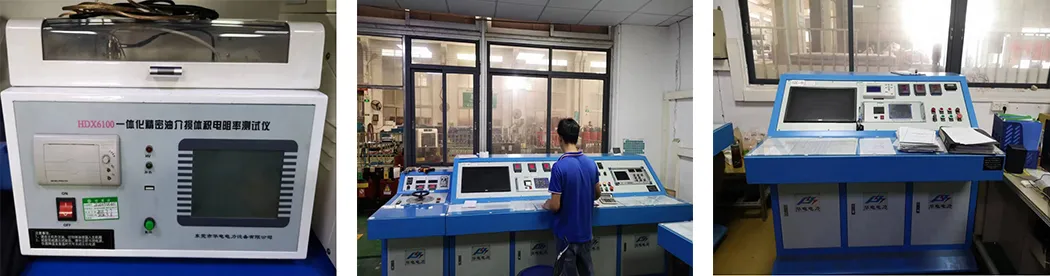

Test Bench 1 Test Bench 2
🏢 Company Overview
Established in 2009, we are a professional high-tech enterprise of manufacturing, researching, and sales. We specialize in high-quality power distribution solutions.

Main Products:
  • Power transformers: Oil immersed, Dry type, Rectifier, Furnace, Amorphous alloy, etc.
  • Box type substation: Pad mounted, Compact substation, PV substation, Energy storage substation.
  • Switchgear: High voltage and Low voltage units.
Our products are widely used in Southeast Asia, Africa, North America, South America, and the Middle East. We maintain a complete quality control system strictly based on IEC, IEEE, and ANSI standards.

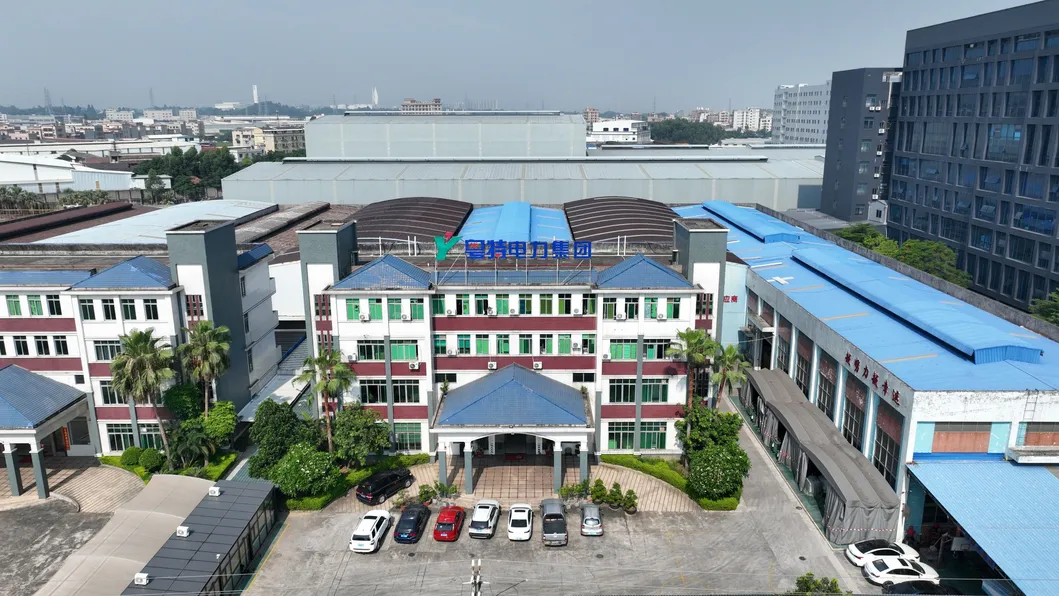

Factory View 1

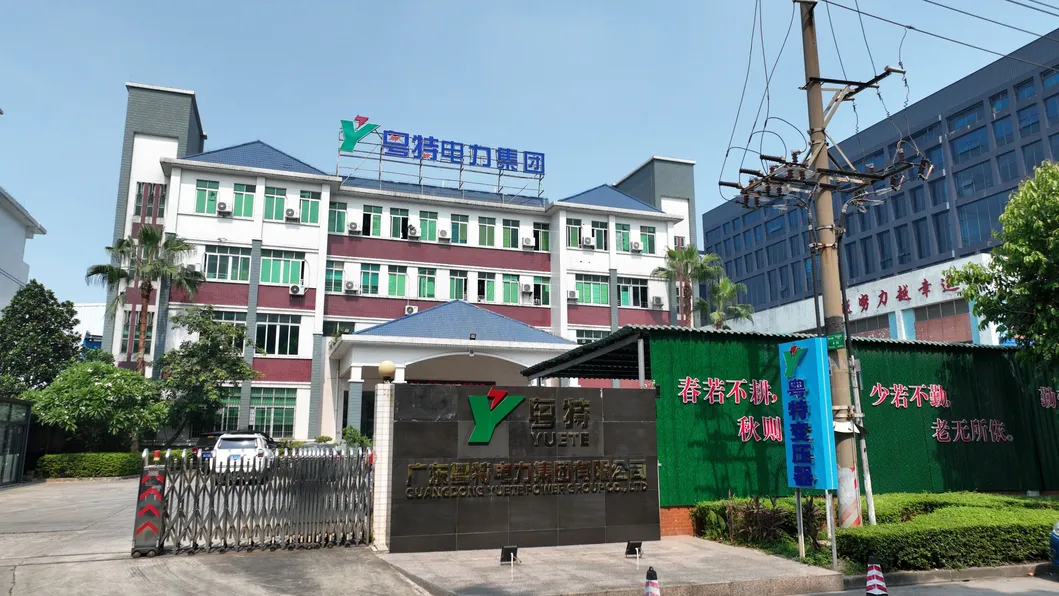

Factory View 2
Certificates
FAQ
Are you a manufacturer?
Yes, we are a professional manufacturer specializing in Oil immersed transformers, Dry type transformers, and Pad mounted transformers for over 14 years.
What is the Minimum Order Quantity (MOQ)?
We accept OEM/ODM projects with an MOQ of 1 unit. Providing technical drawings and specifications helps us serve you better.
What is the standard production time?
Production typically takes about 25-30 days depending on specific order requirements and customization.
What are your payment terms?
We accept T/T, L/C, or Cash.
What kind of guarantee do you offer?
We provide a 12-month (1 year) guarantee on our products.
How is the product quality ensured?
Our products are strictly tested based on IEC, IEEE, and ANSI standards. We hold ISO, CE, and CCC certifications along with official type test reports.
⭐ Recommended Items

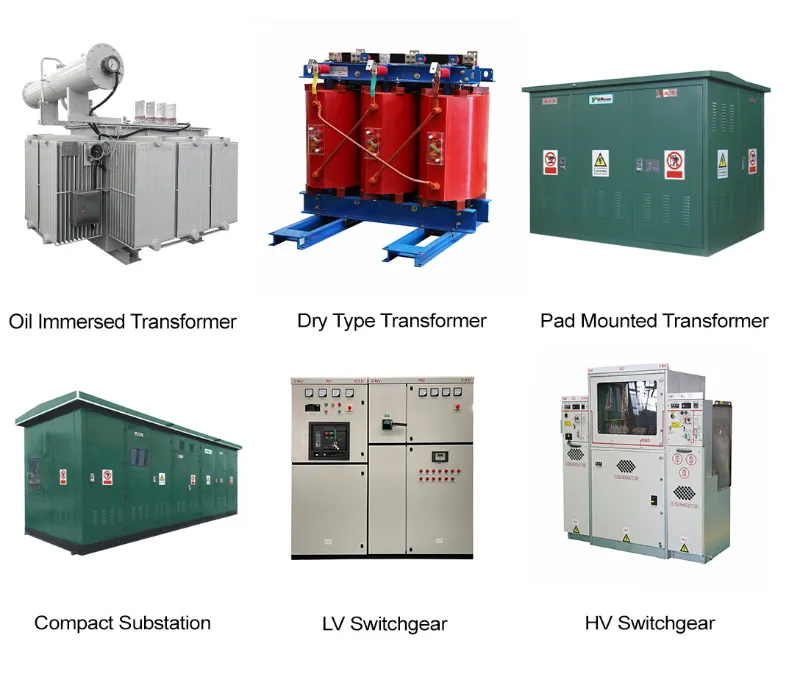

Recommend Transformer Items
