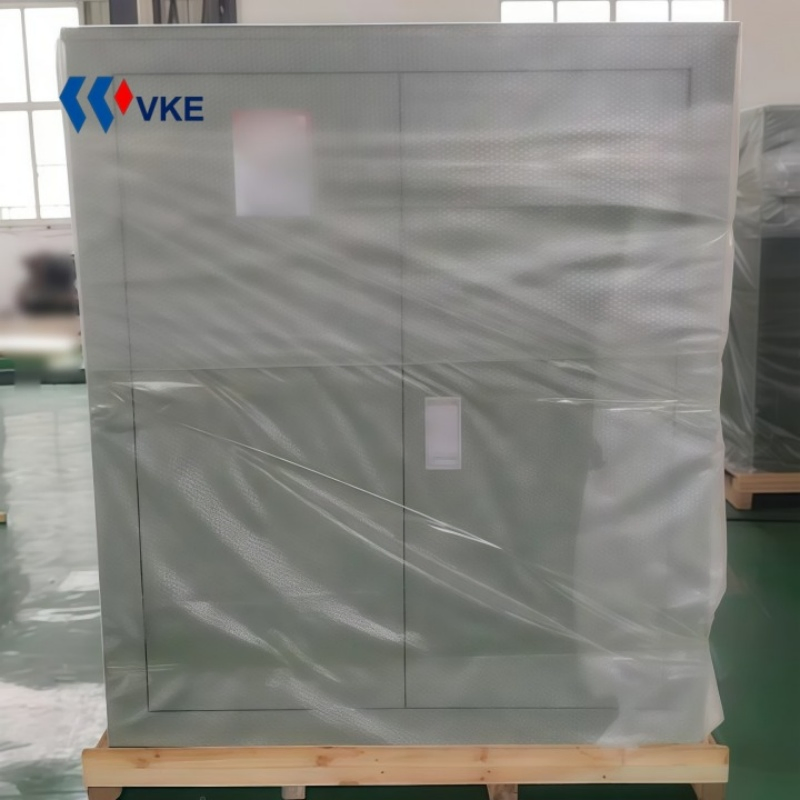

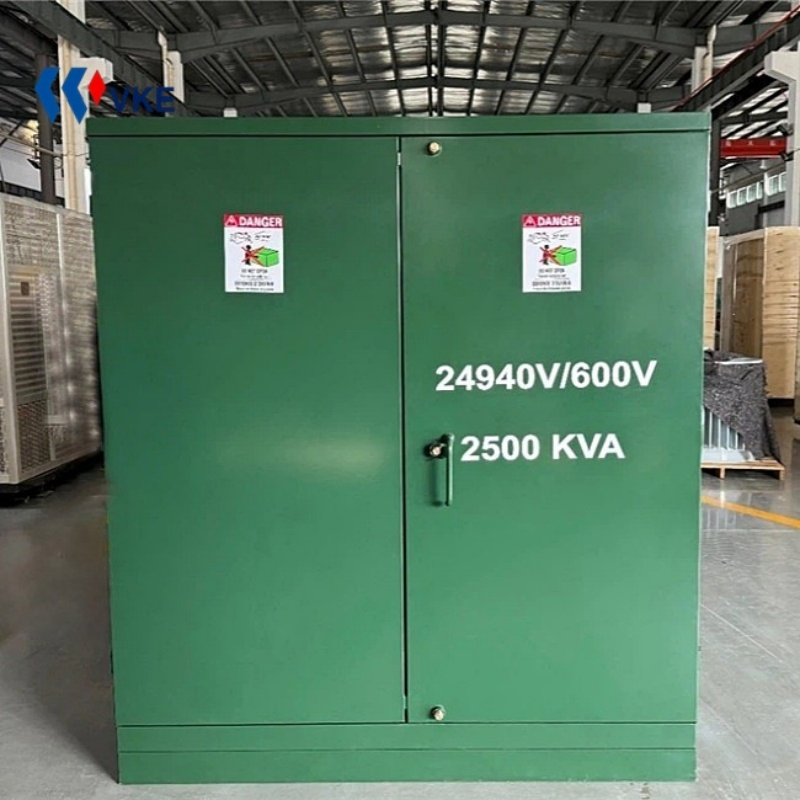

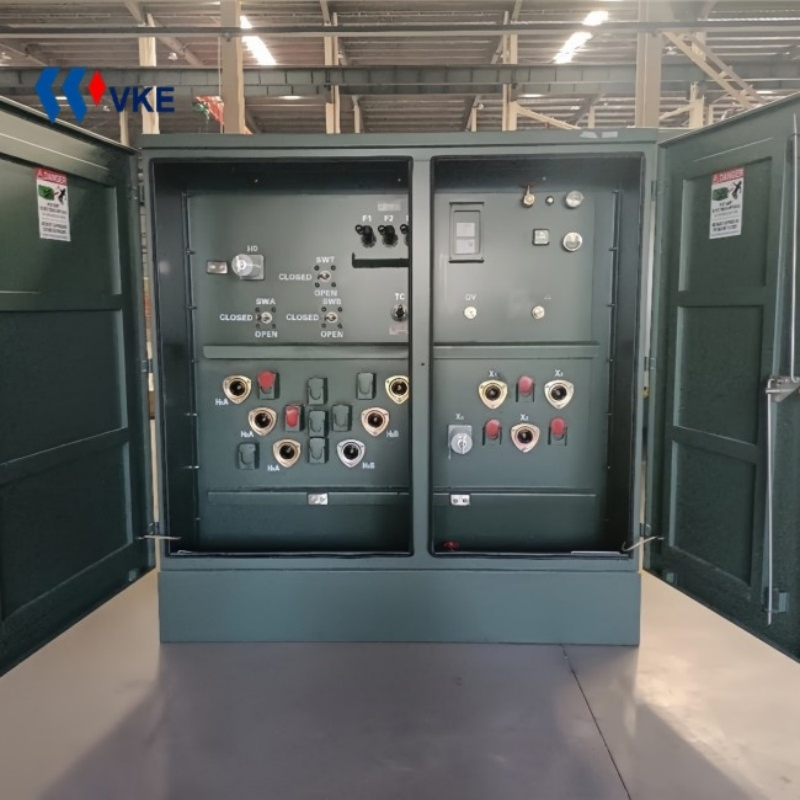

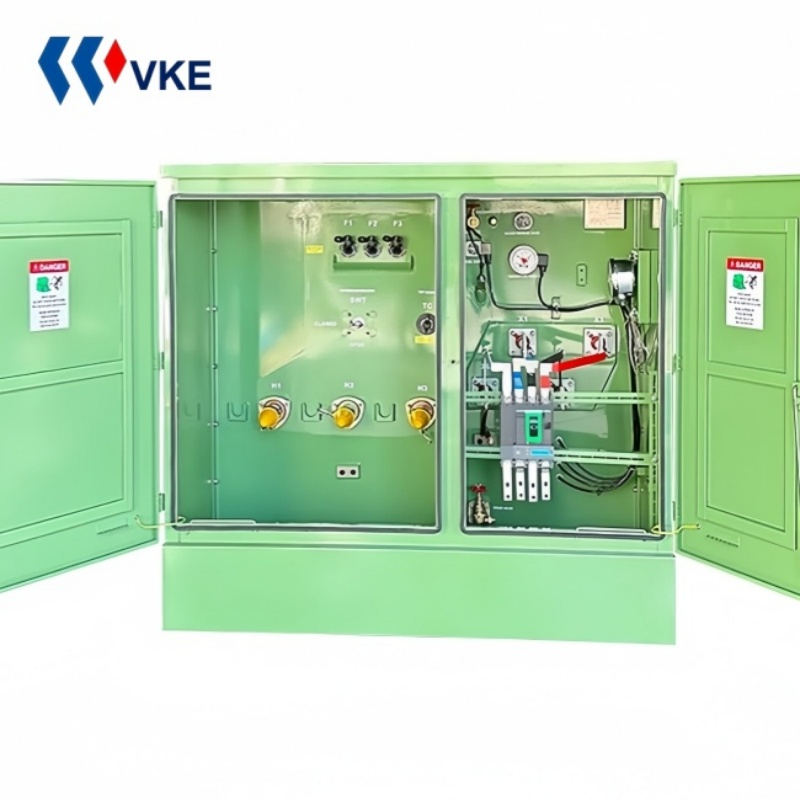

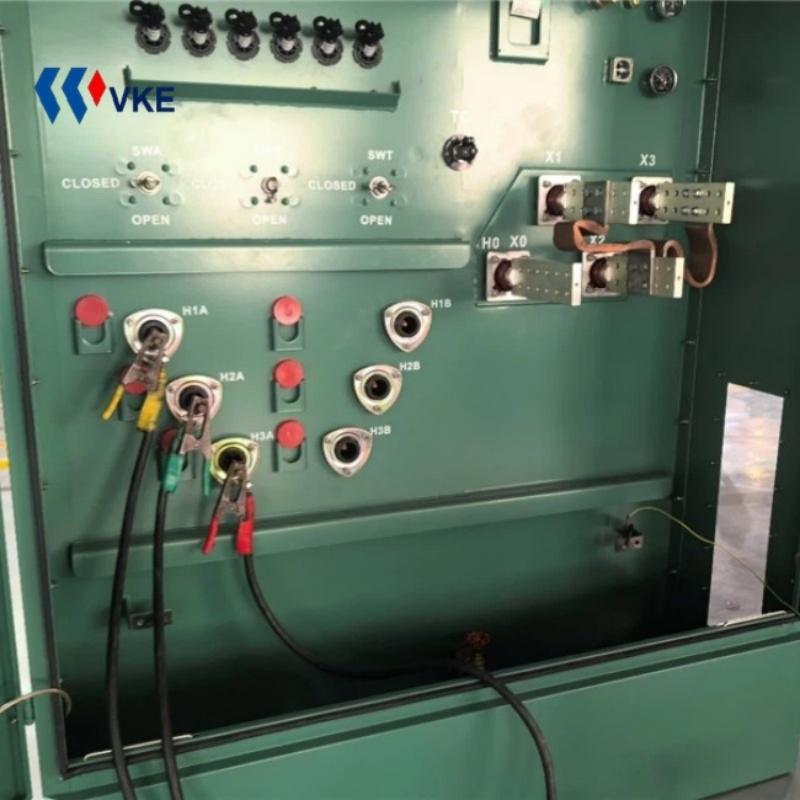

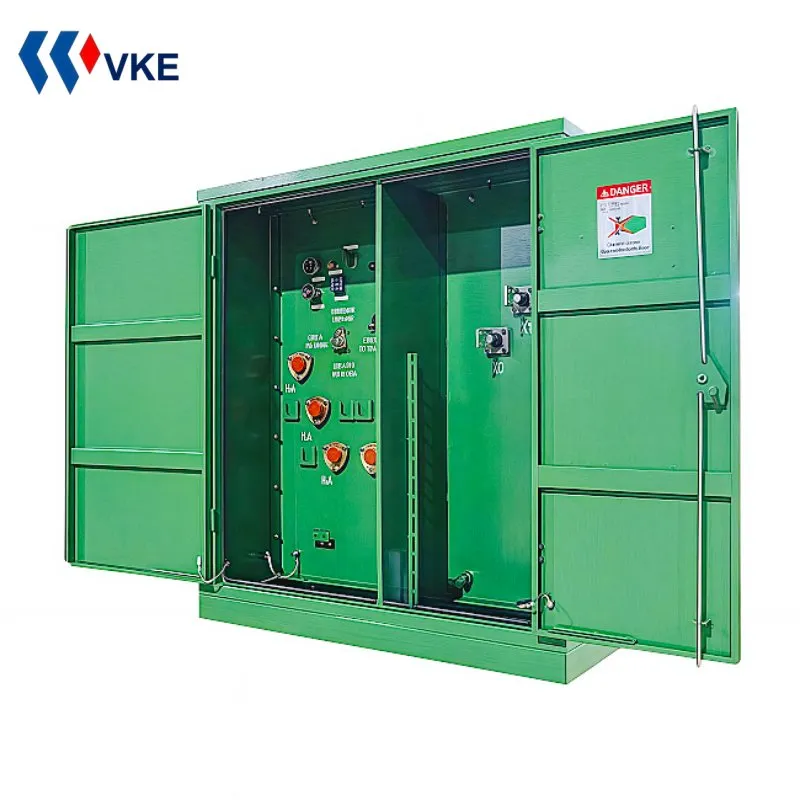

Pad mounted transformers are specifically designed for commercial centers, industrial parks, residential areas, airports, docks, and densely populated urban centers. They are ideal for deep load centers where space and safety are paramount.
Key Features:
| Rated Capacity (kVA) | Voltage Combination | Connection Symbol | No-load Loss (W) | Load Loss (75℃ W) | No-load Current % | Impedance % | ||
|---|---|---|---|---|---|---|---|---|
| H.V.(kV) | Tapping Range | L.V.(V) | ||||||
| 50 | 6 / 6.3 / 10 / 10.5 / 11 / 12.47 / 13.2 | ±2x2.5 / ±5 | 120 / 220 / 380 / 400 / 480 | Dyn11 | 130 | 910 | 2.0 | 4.0 |
| 100 | 200 | 1580 | 1.6 | 4.0 | ||||
| 250 | 400 | 3200 | 1.2 | 4.0 | ||||
| 500 | 680 | 5410 | 1.0 | 4.0 | ||||
| 1000 | 1150 | 10300 | 0.7 | 4.5 | ||||
| 1600 | 1640 | 14500 | 0.5 | 4.5 | ||||

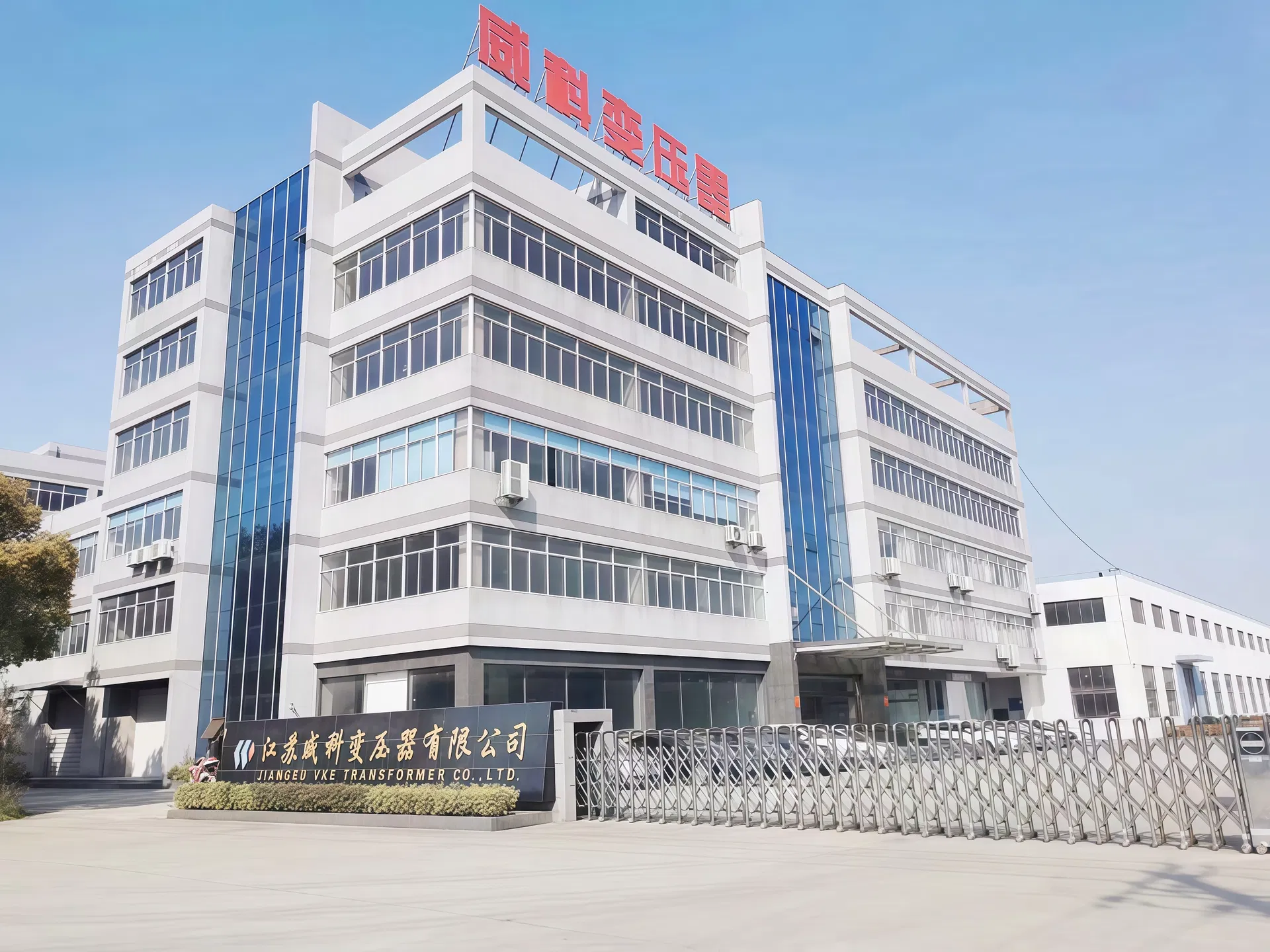

Established in 2003, we have grown into a leading manufacturer of distribution transformers. With two major manufacturing bases covering over 30,000 m², our facilities are equipped with three modern workshops designed to meet global demand.
Our core strengths include world-leading core cutting lines and epoxy resin cast tank technology. We specialize in:
All products are manufactured in compliance with international IEC standards and hold ISO9001, ISO14001, and OHSAS18001 certifications.
