Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase: Three
Core: Core-type Transformer
Send Inquiry

Product Description

Basic Info.
Model NO.
Pad Mounted Transformer
Cooling Method
Oil-immersed Type Transformer
Winding Type
Two-winding Transformer
Certification
ISO9001-2000, ISO9001, CCC
Frequency
50Hz/60Hz
Efficiency
98%
Insulation Class
F/H
Protection Class
IP20/IP54
Core Material
Silicon Steel Sheet
Winding Material
Copper/Aluminum
Product Description

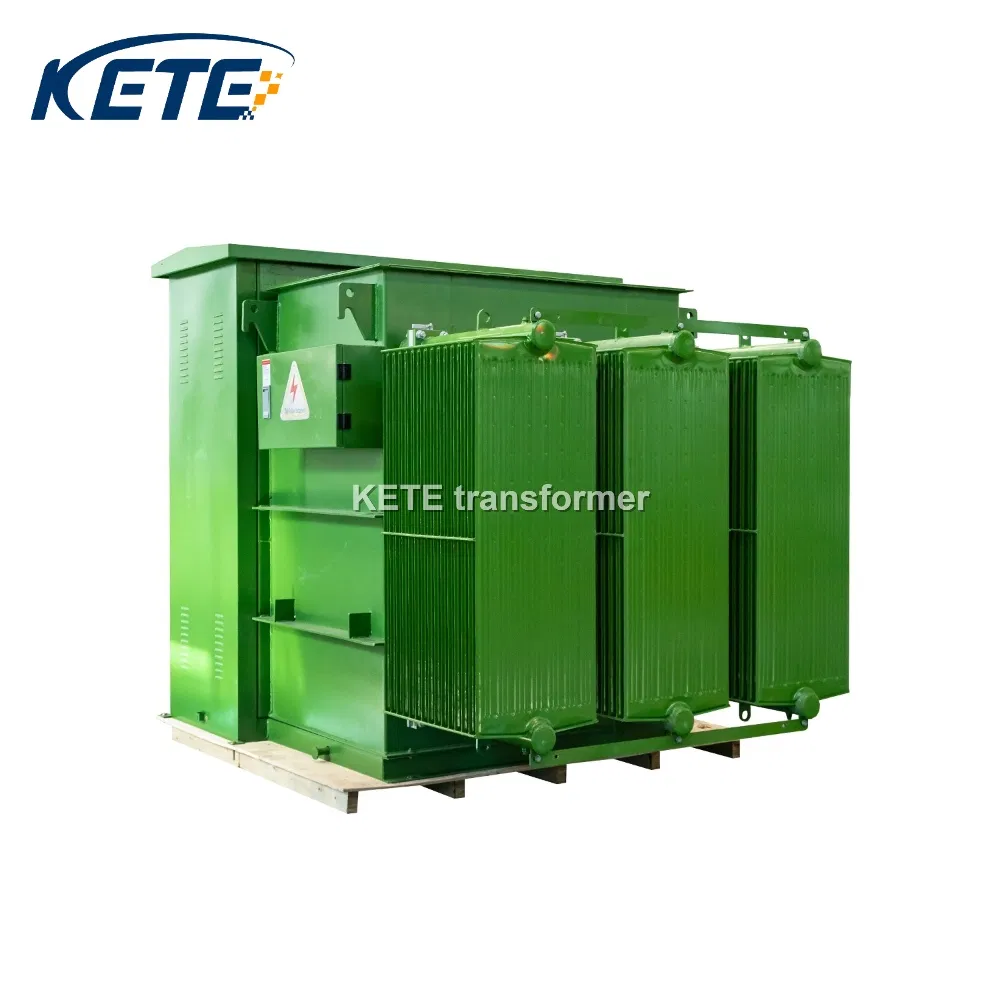

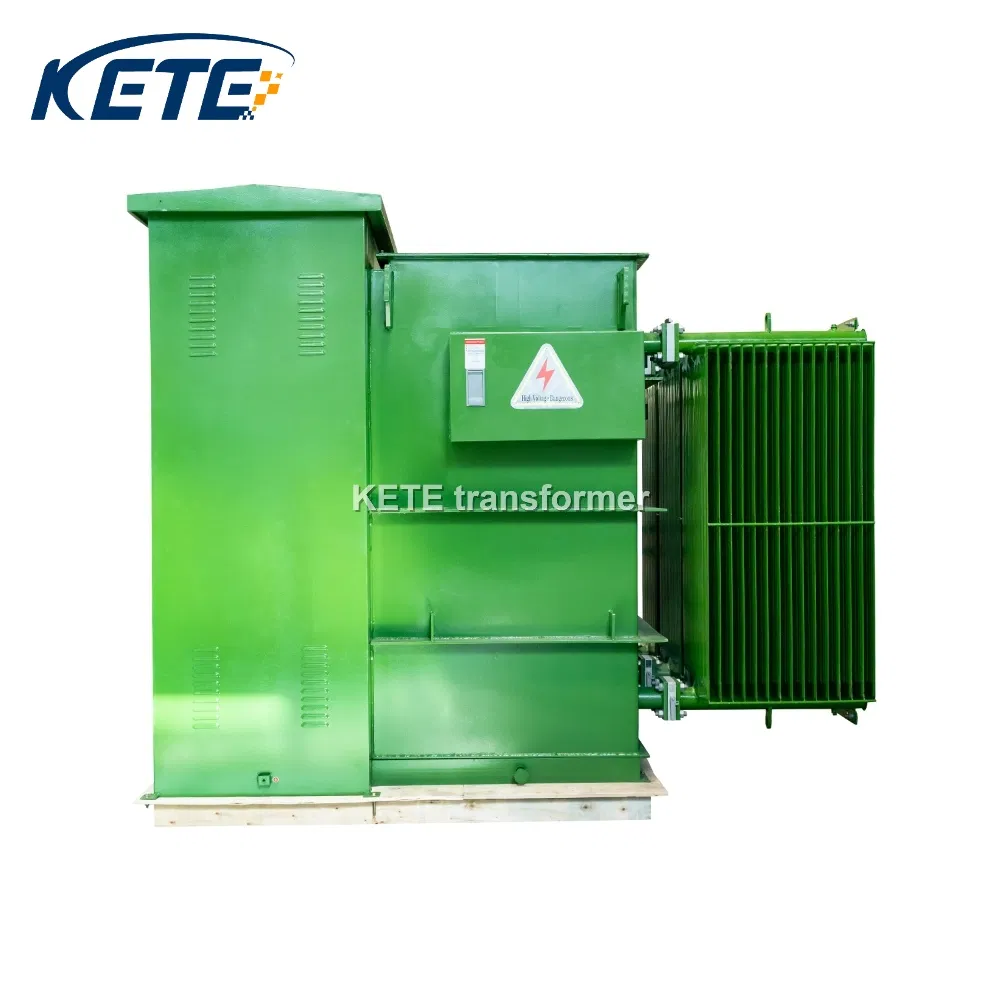

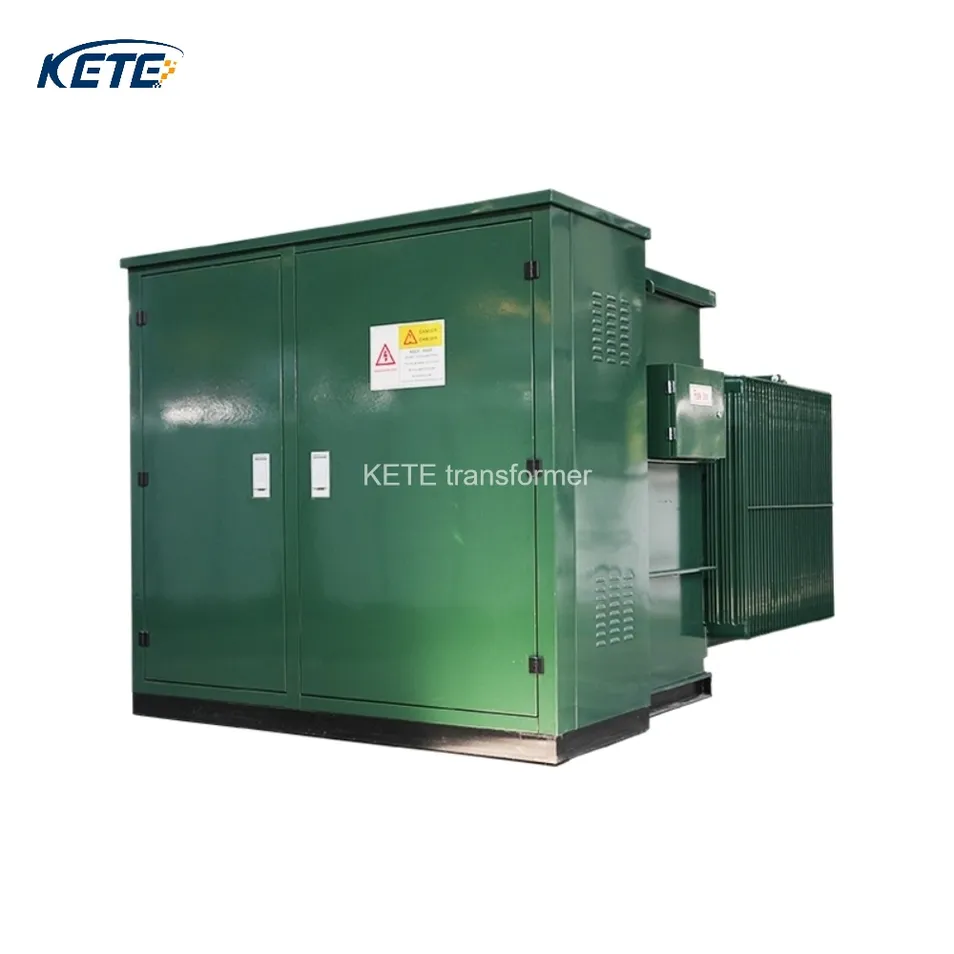

Transformer View 1

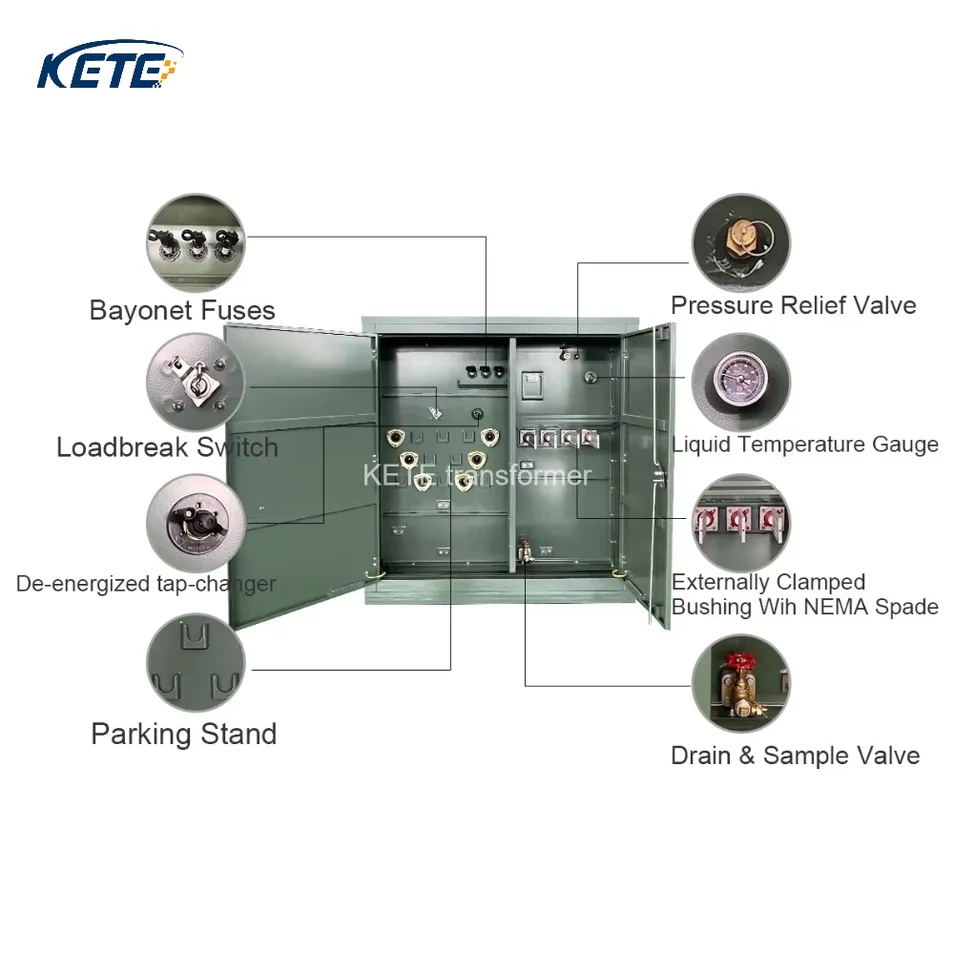

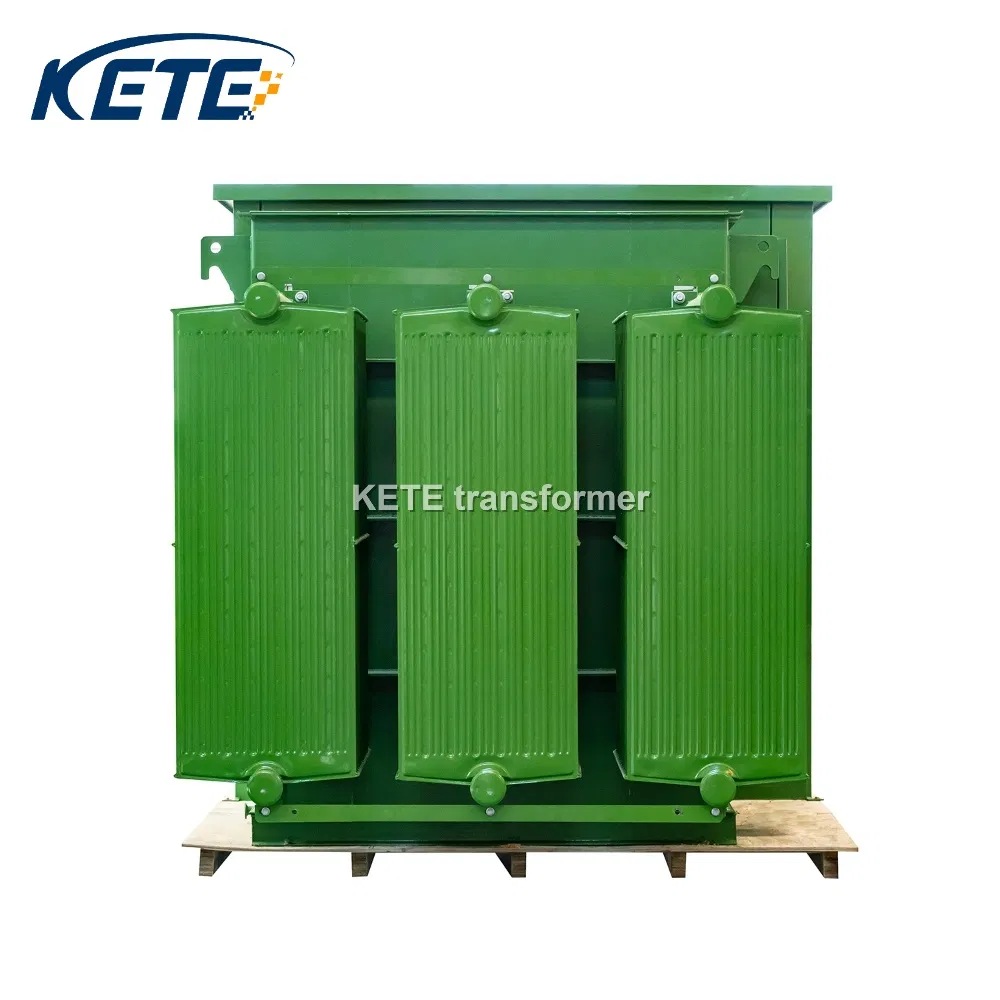

Transformer View 2

Product Introduction: The developed Pad Mounted Transformer is a compact power distribution device that integrates the transformer, high-voltage switchgear, and low-voltage outlet cable into a fully sealed metal enclosure. Designed specifically for outdoor terminal distribution scenarios, its core advantages lie in its fully sealed protection, corrosion resistance, durability, and easy installation. It is a mainstream device for terminal distribution globally.

Product Advantages:

  • Efficient Installation: Pre-installed and commissioned at the factory, reducing installation time to 1-2 days on-site.
  • High Safety Redundancy: UL-certified components with strong short-circuit breaking capacity and explosion-proof enclosure.
  • Easy Maintenance: Modular components enable quick replacement and the sealed enclosure reduces dust intrusion.
Technical Datasheet
Capacity (KVA) HV LV Connection Mode No-load loss (KW) On-load loss (KW) Impedance (%)
757.2~12.47
19.92~34.5		0.24
0.48
0.6		Dyn11
Yyn0		Loop / Radial0.181.254.0~6.0
1500.282.24.0~6.0
3000.483.654.0~6.0
5000.685.14.0~6.0
10001.1510.34.0~6.0
25002.6827.7864.0~6.0
Factory & Workshop
Company Facility
Our company is a National High-Tech Enterprise specializing in manufacturing power equipment including distribution transformers, box-type substations, and transmission line towers. We hold integrated qualifications for Electric Power Construction, Testing, and Maintenance. With ISO 9001, ISO 14001, and OHSAS 18001 certifications, our products serve urban power grids, power plants, and industrial sectors globally.

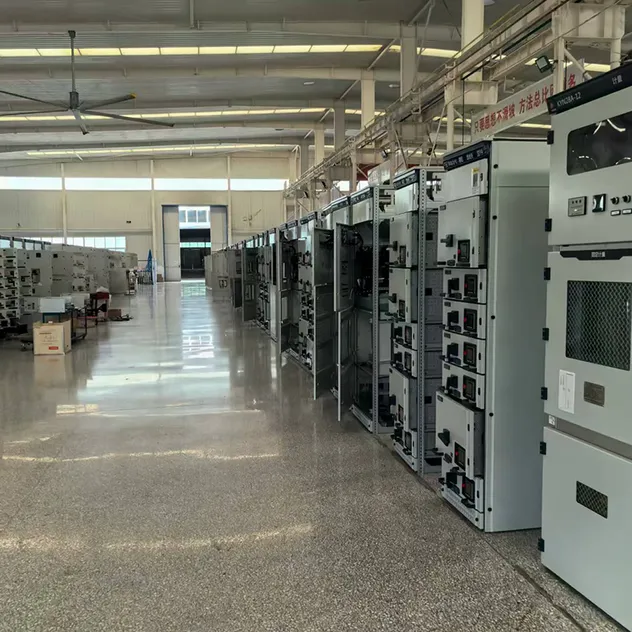

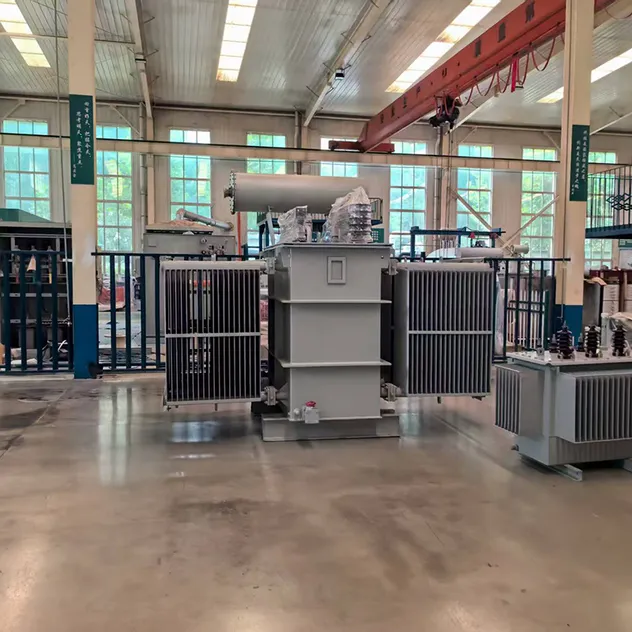

Workshop 1
Workshop 2
Workshop 3
Product Series
Dry Type
Dry type transformer
Oil Type
Oil immersed transformer
Substation
Prefabricated substation
Frequently Asked Questions
Will installation guidance documents be provided?
Yes. For large transformers that require accessory removal for shipping, we provide an installation video and an electronic version of the instructions.
What is the manufacturing lead time for oil-immersed transformers?
Transformers below 2500KVA can be completed within approximately 20 days; those above 2500KVA usually take about 30 to 40 days.
How are the transformers packaged for shipment?
We use wooden cases for bulk cargo and wooden pallets to reinforce packaging for full container shipments.
What are the available payment terms?
Our standard terms are T/T (30% deposit, 70% before delivery), LC at sight, or DP at sight.
Do your transformers meet international industry standards?
Yes, our transformers meet IEC 60076 and GB 1094 standards. We hold CCC, ISO, CE, UL, GSA, and Gost certifications.
What are the common delivery terms?
We support EXW, FOB, CFR, CIF, and other delivery terms based on customer requirements.
