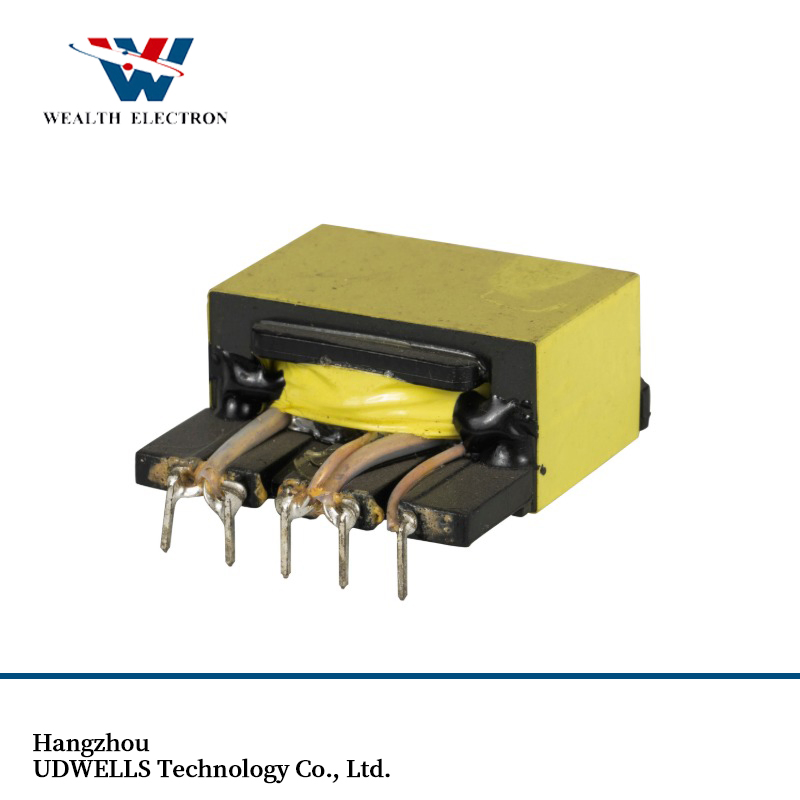

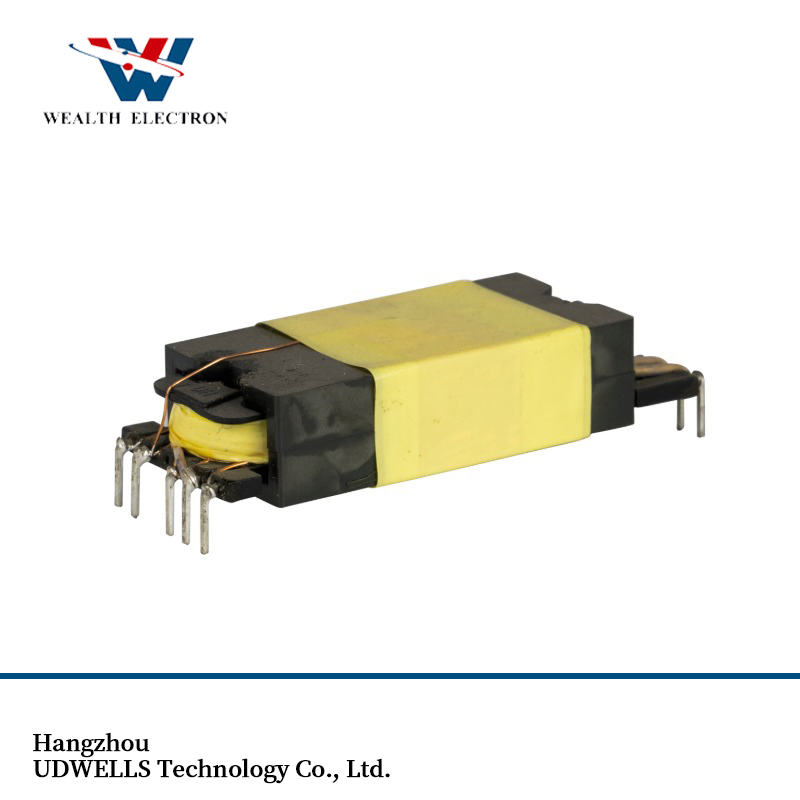

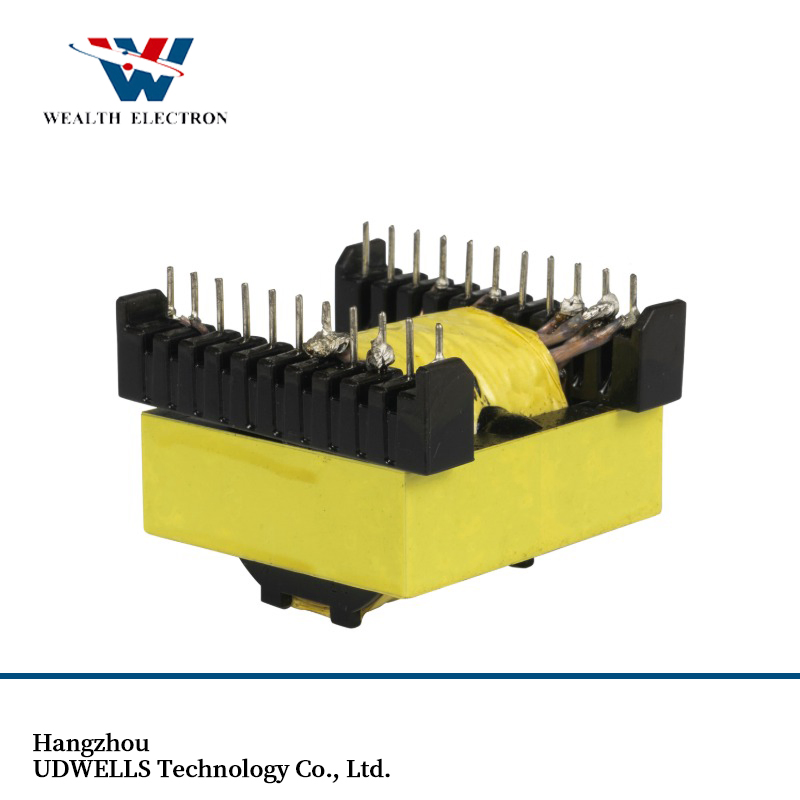

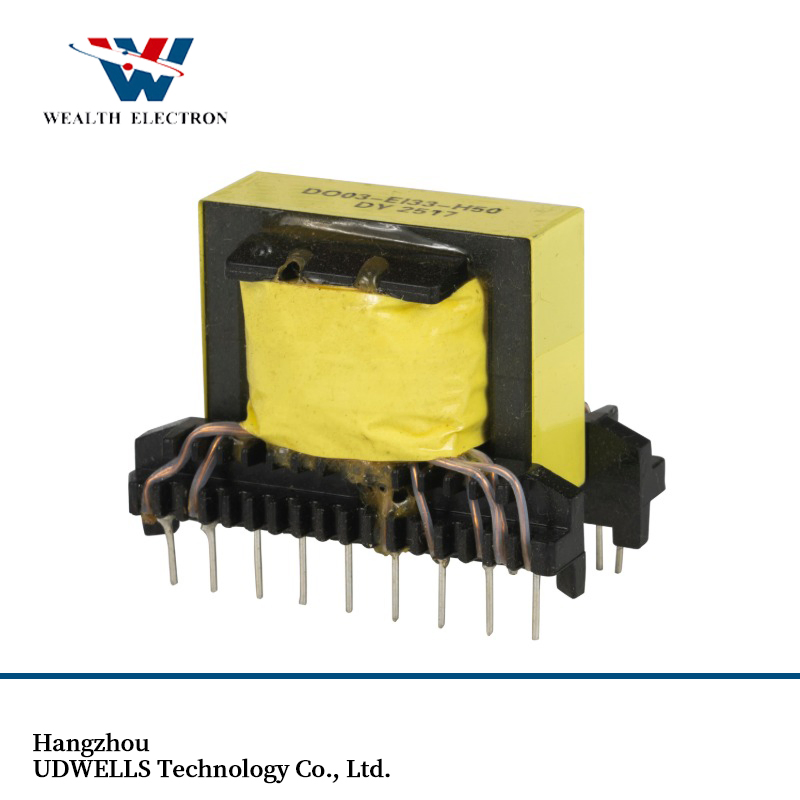

Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer
Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer
Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer
Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer
Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer
1 / 5
Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer
Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer
Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer
Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer
Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer

Free Sample Auto500kv Rectifier Pulse Power 90mva 500/230kv Single Distribution High Frequency Transformer

Customization: Available
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
Phase: Single
Send Inquiry

Product Description

■Basic Product Information
Model NO.
ER
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Multi-winding Transformer
Certification
ISO9001
Usage
Single-phase Transformer
Frequency
High Frequency
Shape of Core
ER
Op. Temperature
-40ºC to +125ºC
Storage Temp.
-25ºC to +85ºC
Item
High Frequency Transformer
Series Models
Ee/Er/Ec/Eel/Efd/RM/Ei/Uu/Pq/EDR/EPC/Ef/Pot/Etd
Capacity
200,000 PCS/Month
Package Size
12.00cm * 10.00cm * 8.00cm
■Technical Data & Dimensions
TYPE MATERIAL Dimensions (mm) Ap (cm⁴) Ae (mm²) Aw (mm²) AL (nH/N²) Le (mm) Ve (mm³) Wt (g) Pt (Watts)
A * B * C Area Product Effective Area Window Area Inductance Path Length Volume Weight 100kHz
ER9.35TP49.35*2.35*4.60.00598.207.241270.0013.70111.800.55-
ER11.5PC4410.83*2.45*40.007811.706.67870.0014.00174.000.85-
ER25.5PC4025.5*9.3*7.50.355744.8079.401920.0048.202160.0011.0087
ER28/34PC4028.55*16.9*11.41.204781.40148.002520.0075.506143.0033.00228
ER35/41PC4035*20.7*11.32.3326107.00218.002770.0090.809682.0052.00325
ER42/20PC4042.15*21.2*19.65.4960240.00229.005340.0098.6023635.00116.00509
■Key Features & Advantages
✓High efficiency of over 95%
✓High frequency range 10kHz-1MHz
✓High isolation strength & power density
✓Custom designs as per specifications
✓High-temperature resistant components
✓Rigorous testing (3 times) before shipping
■Product Gallery
Transformer Details
Transformer Performance
Technical Drawing

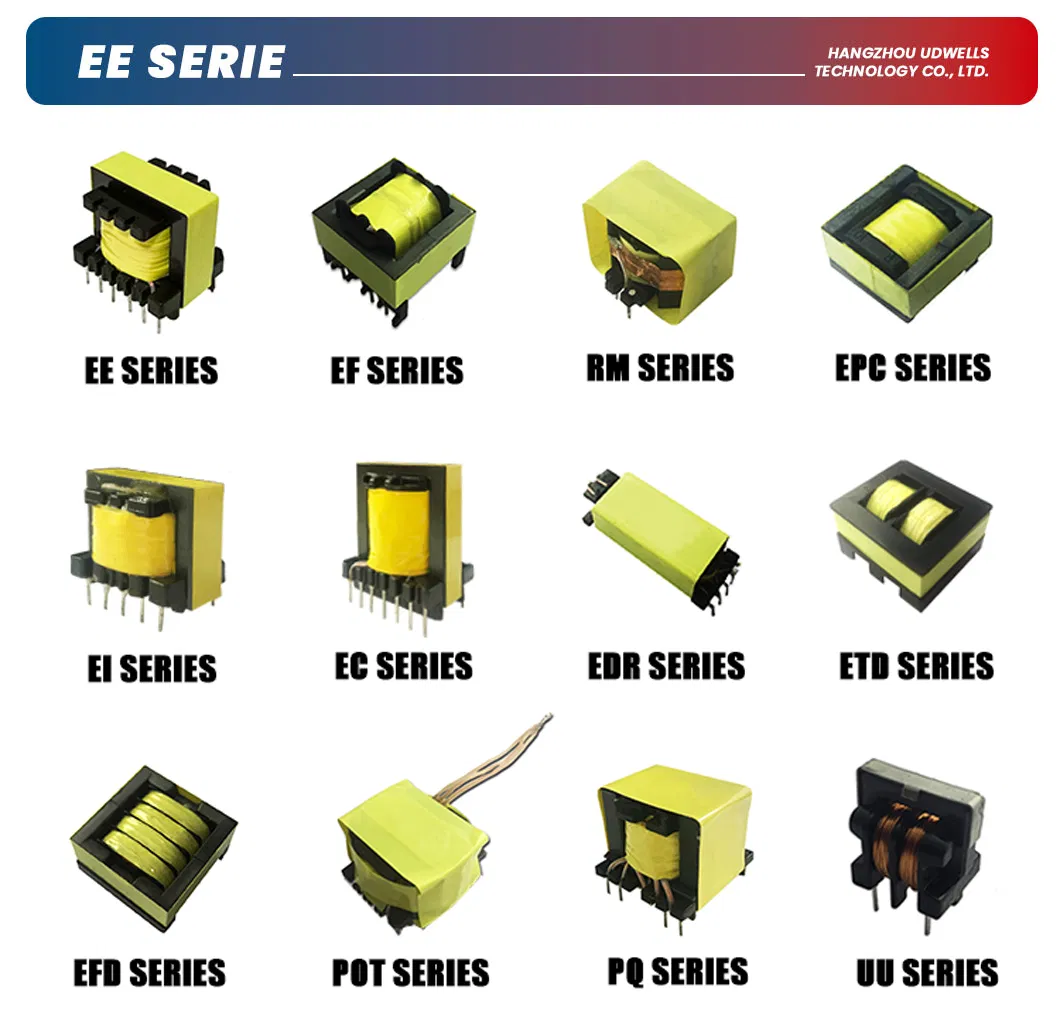

Transformer Series

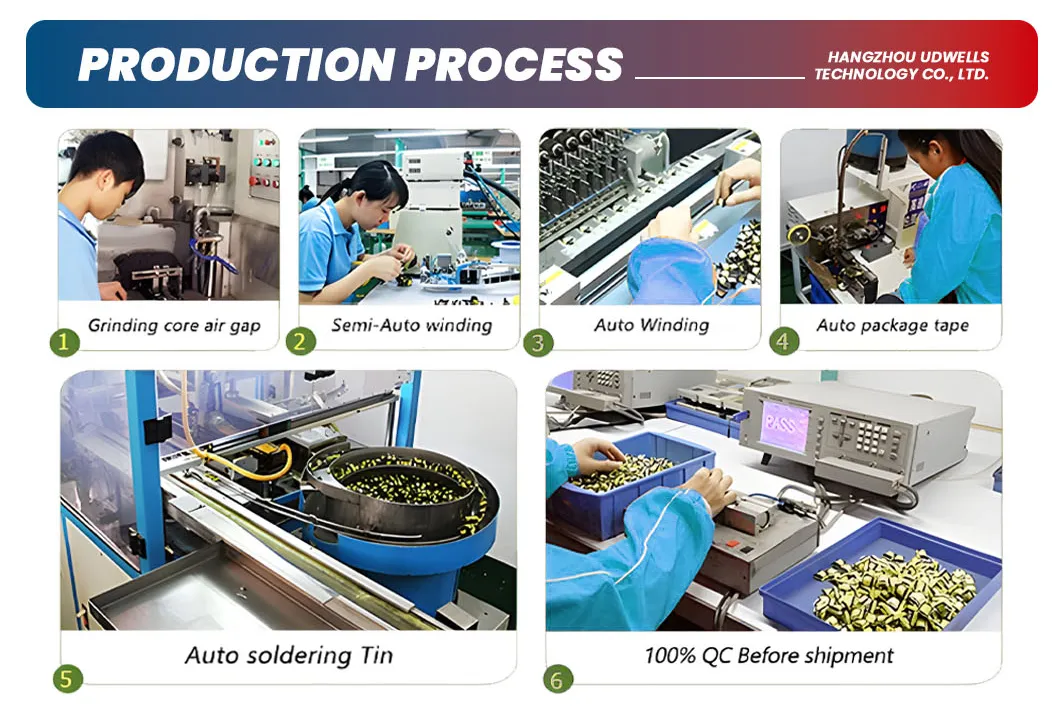

Transformer Manufacturing

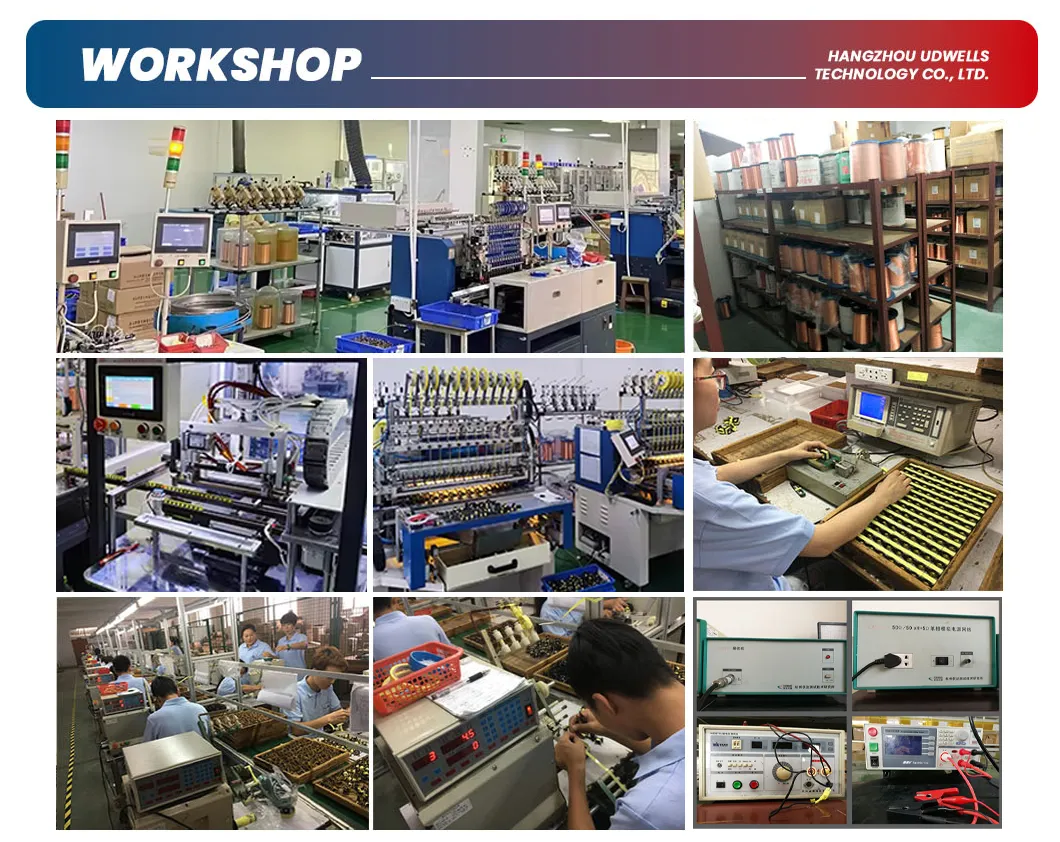

Product View
Specifications Table

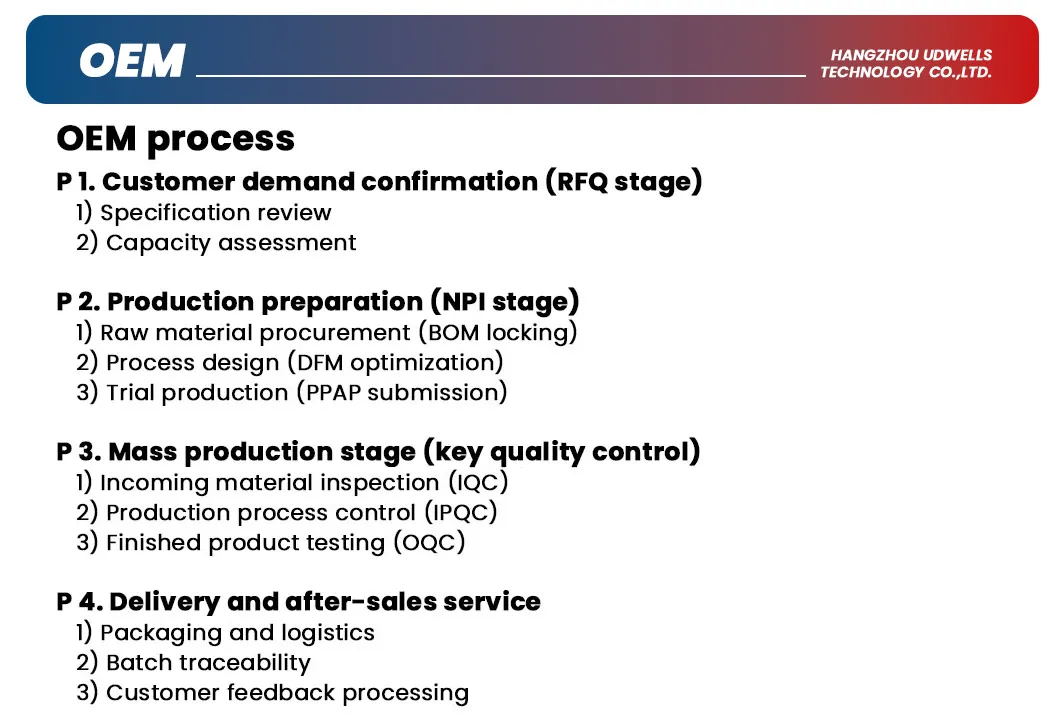

Product Quality
Final Product
■Application Scope
Electronic ballast, compact fluorescent lamps, television receivers, radio cassette players, PC power supplies, monitors, audio equipment, VCD/DVD players, UPS systems, induction cookers, and noise rejection for various electronic apparatus.
■Frequently Asked Questions
What is the output and frequency range of these transformers?
The output ranges from 0.2W to 2KW, with a high frequency range capability between 10kHz and 1MHz.
Are your transformers compliant with international standards?
Yes, our products are ISO9001 certified and RoHS compliant, ensuring high quality and environmental safety.
Can you provide custom-made transformers?
Absolutely. We specialize in custom designs and can manufacture transformers according to your specific design specifications and technical requirements.
What is the operating temperature range?
Our high-frequency transformers are designed to operate reliably in temperatures ranging from -40°C to +125°C.
How do you ensure product quality before shipping?
Each product undergoes a rigorous testing process three times before shipment to ensure zero defects and high performance.
What is the typical production capacity for the ER series?
Our current production capacity is approximately 200,000 pieces per month to meet large-scale industrial demands.
