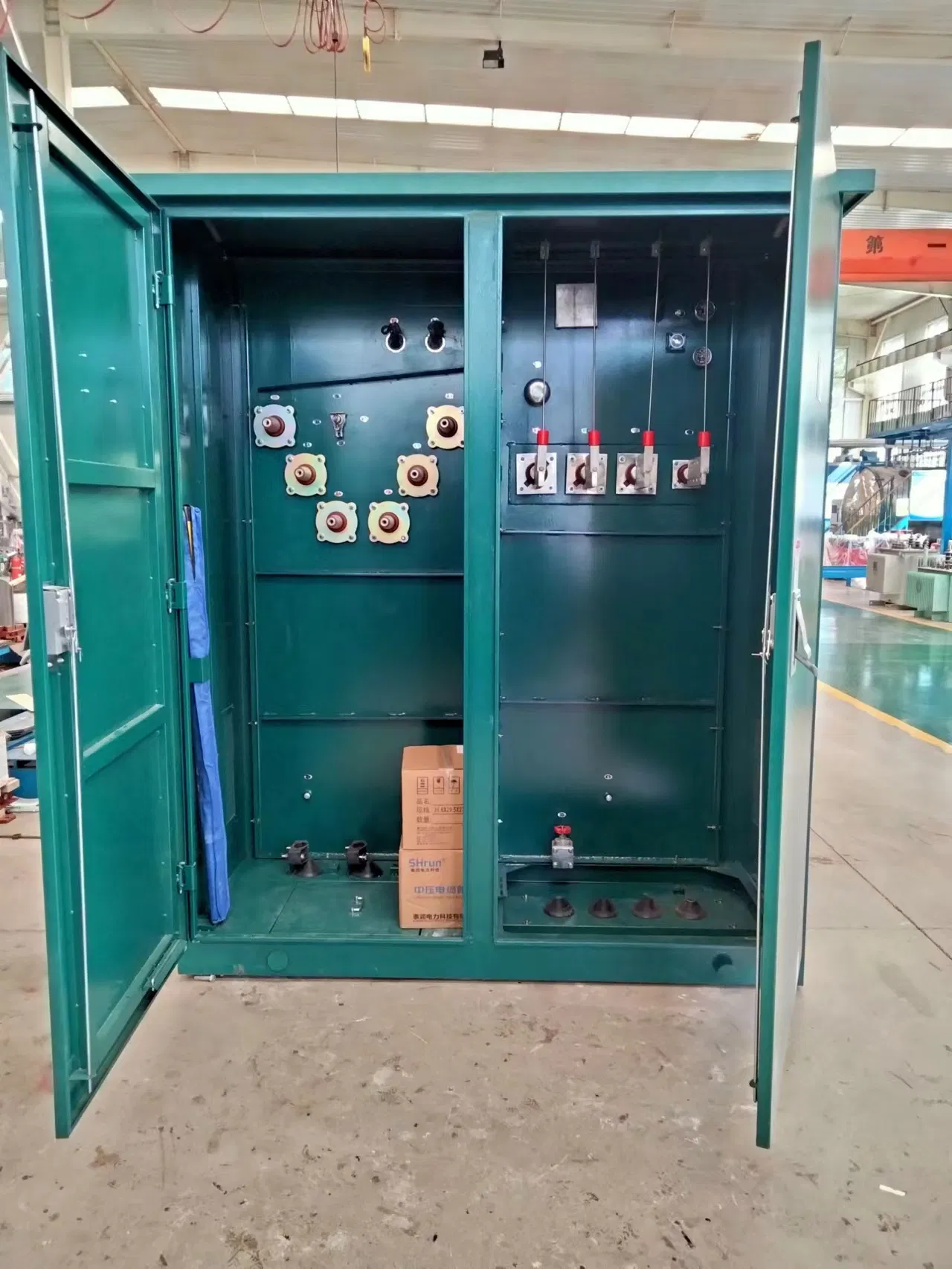

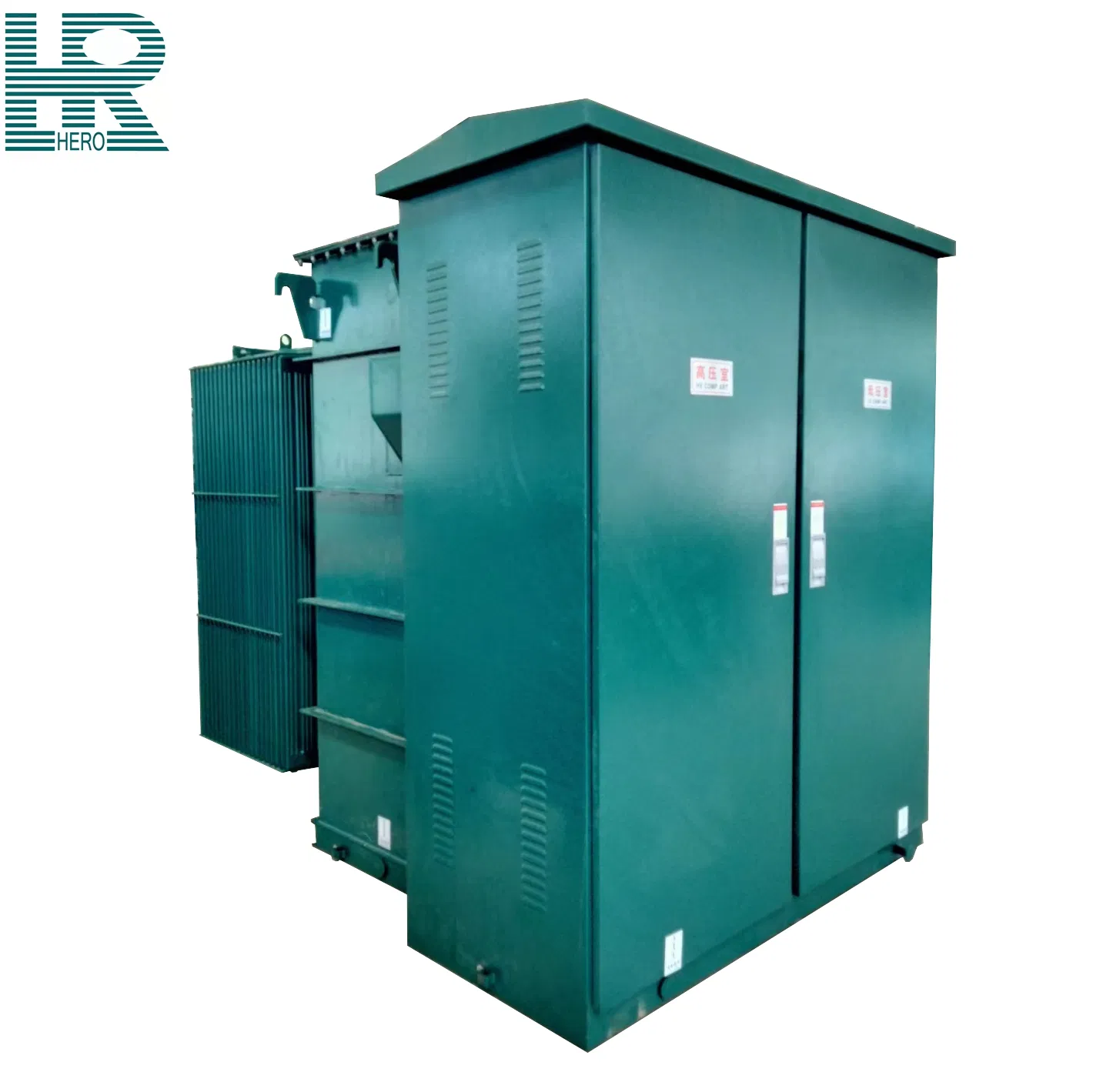

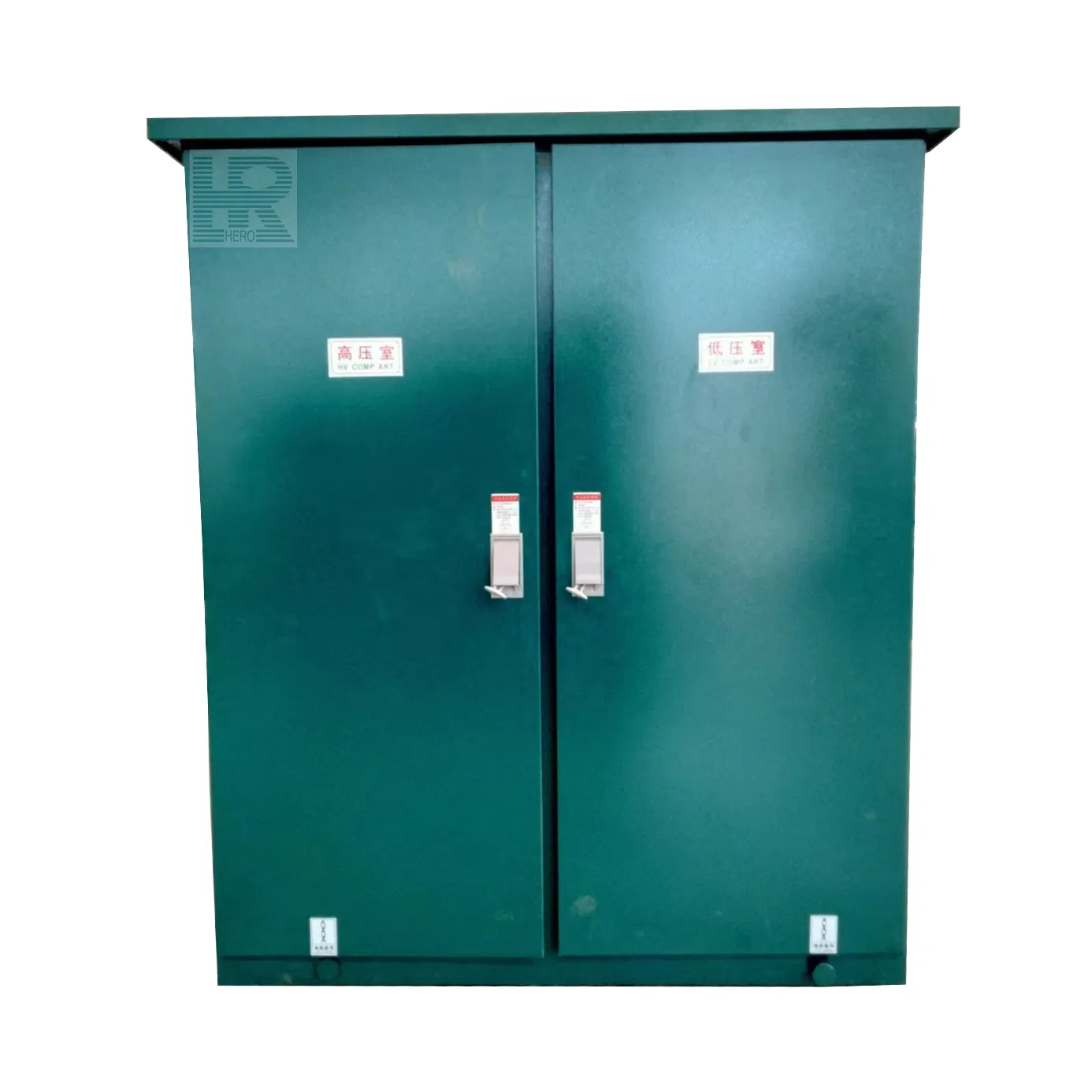

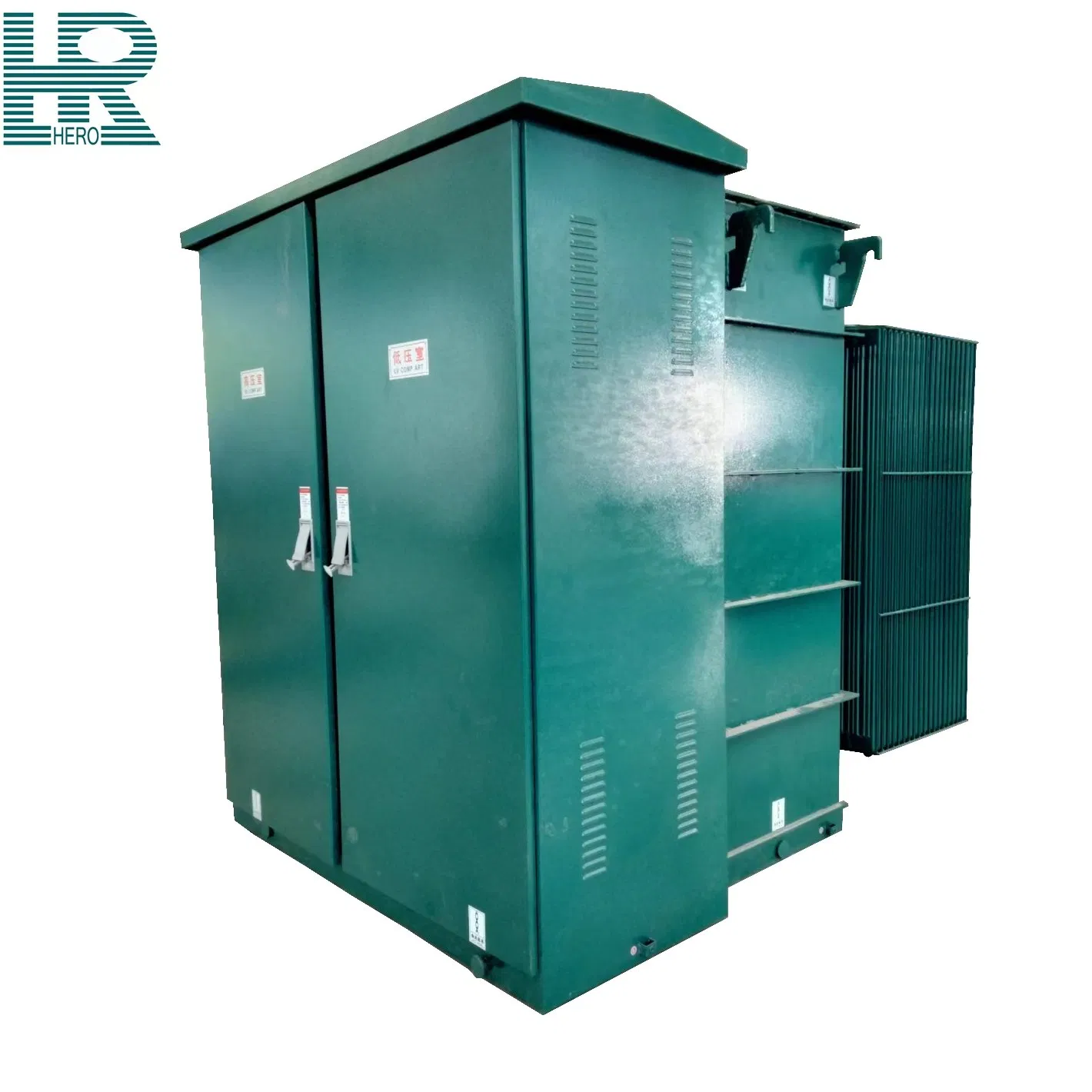

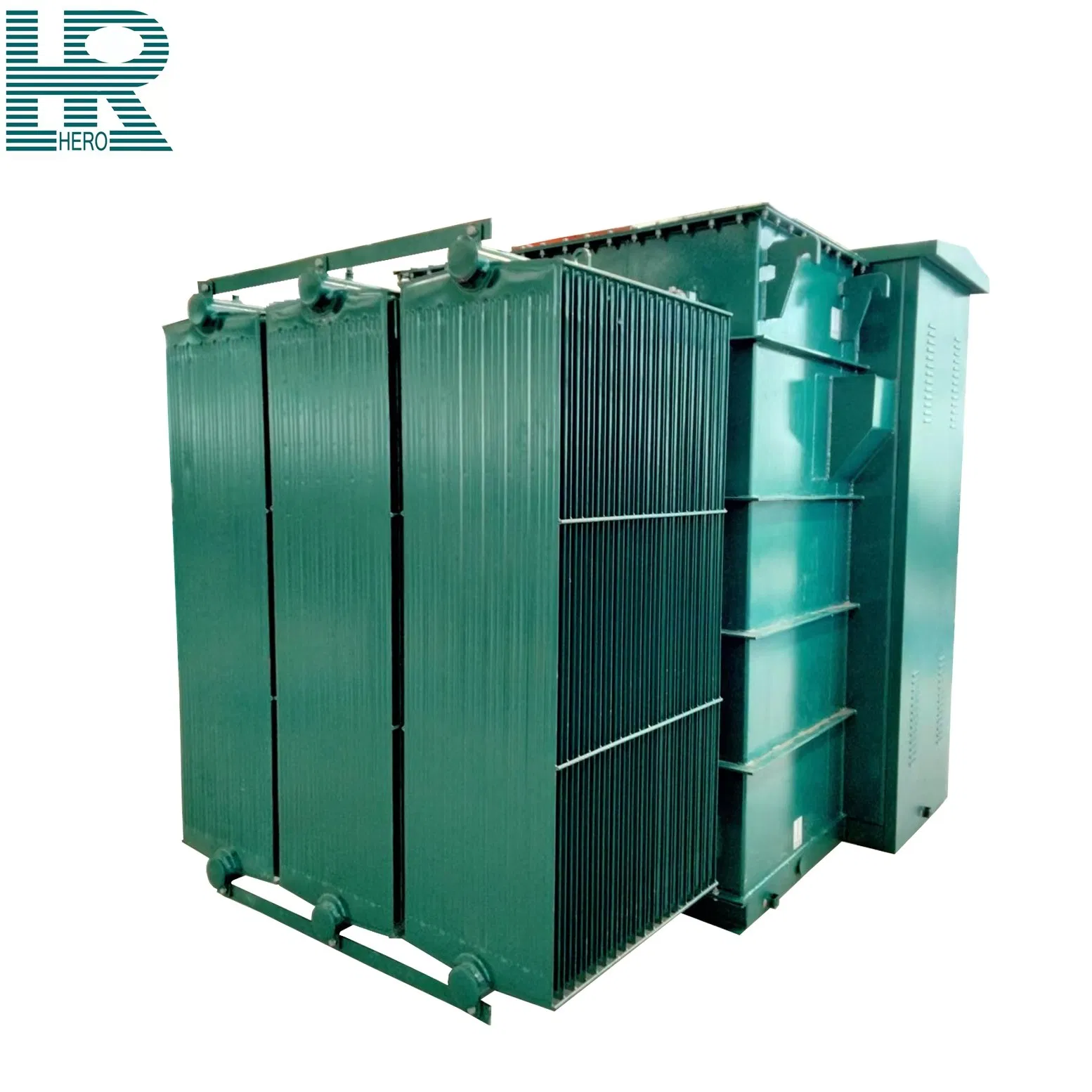

Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer
Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer
Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer
Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer
Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer
1 / 5
Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer
Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer
Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer
Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer
Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer

Factory Price IEEE/ANSI Compliance Ring Feed and Radial Feed Type Pad Mounted Compartmental Type Transformer

Customization: Available
Type: Box Transformer
Capacity: 500-20000kVA
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
Pad mounted ZGS
Primary Voltage
6-40kv
Secondary Voltage
220V/480V/600V
Frequency
50/60Hz
Impedance
4%-8%
Isulating Oil
2330L
Tank & Accessories
1650kg
Total Weight
6920kg
Cooling
Onan & Knan
Windings
2 & 3
Origin
China
HS Code
8504220000
💡

Product Description

Header Banner

Pad-mounted type substation, also known as American or European prefabricated substation, is a compact complete set of power distribution equipment. it combines high-voltage switchgear, distribution transformer, and low-voltage switchgear according to a specific wiring scheme. It is widely used in urban and rural buildings, luxury villas, square parks, residential quarters, industrial and mining enterprises, and temporary power construction sites for receiving and distributing power.

Zbw type substation offers significant advantages, including a compact structure, strong completeness, convenient operation, and easy relocation. The floor area is only 1/10 to 1/5 of a traditional substation, greatly reducing construction workload and costs.

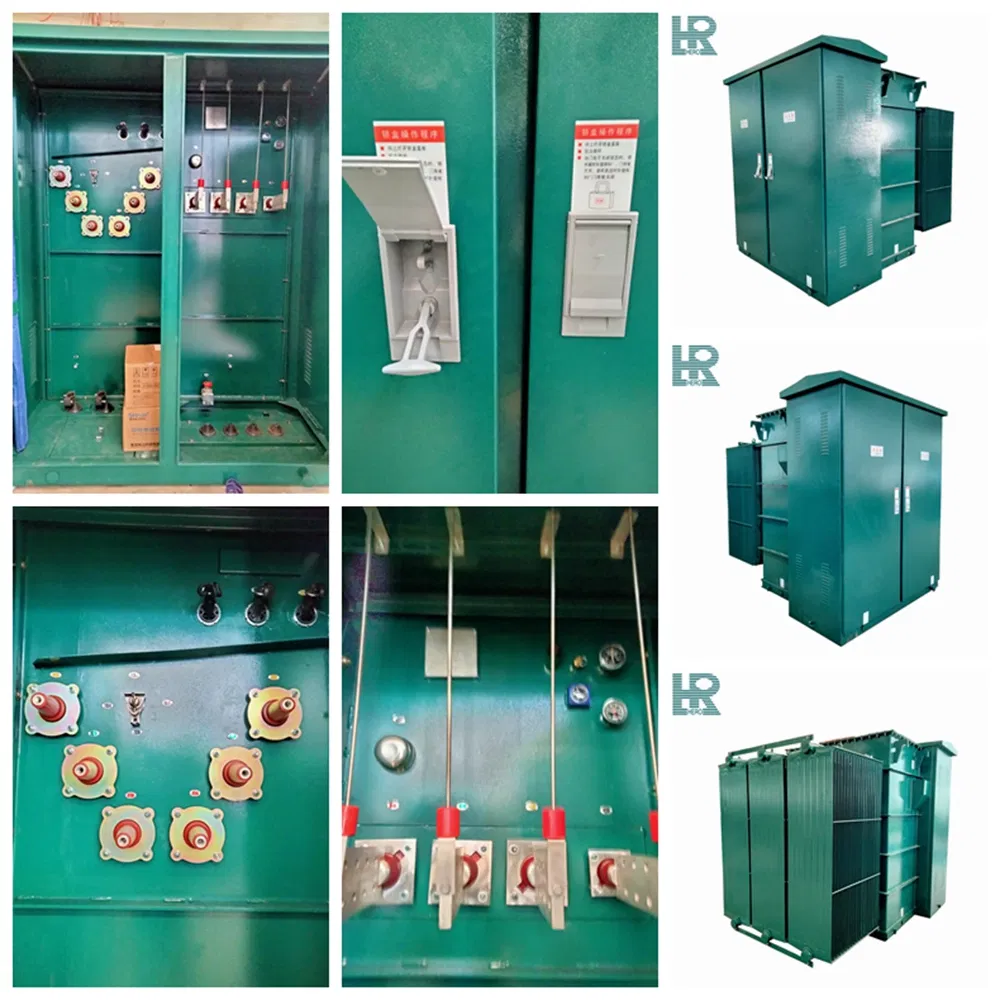

Product View 1

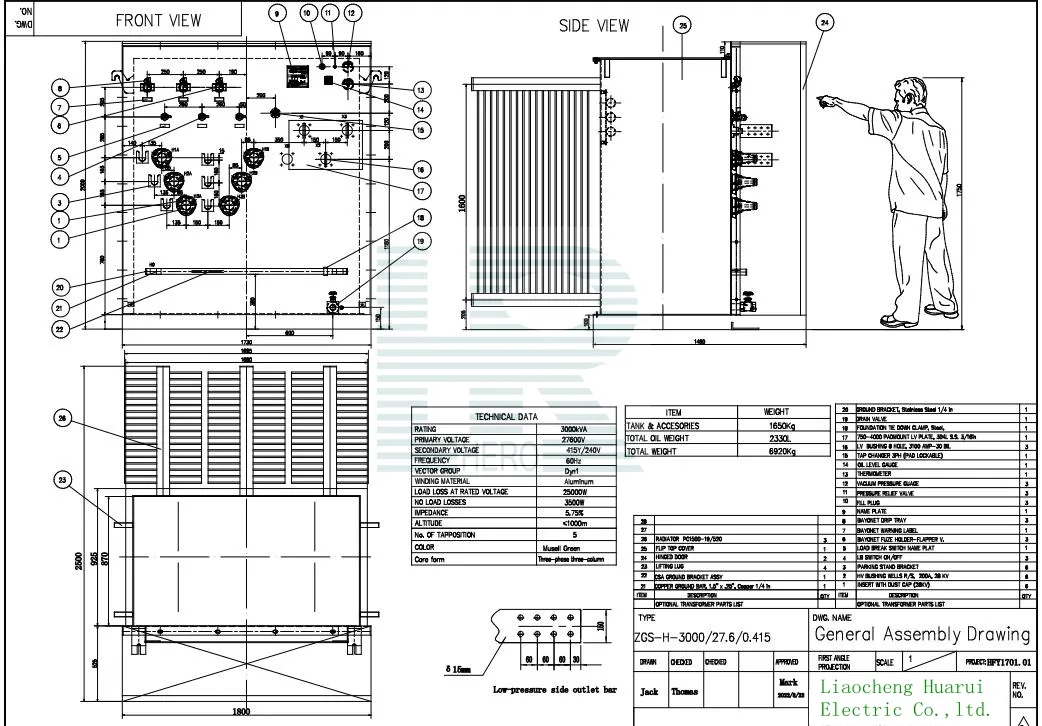

Product Drawing
🛠️

Product Features

1
The shell features a robust design with heat insulation, ventilation, and corrosion protection. Materials include aluminum alloy, steel, composite plates, or non-metallic glass fiber cement.
2
High voltage switchgear options include XGN15, HXGN17, or KYN28A. Supports various power supply modes like loop network, terminal, or dual power supply with vacuum circuit breakers.
3
Low voltage switchgear options include GGD, GCS, or MNS for reactive power compensation and distribution, using intelligent circuit breakers for simple operation.
4
Transformers can be fully sealed oil-immersed (S9, S11, S13, SH15) or dry-type (SCB11, SCB12, SCB14, SCBH15) based on customer requirements.
5
The box top cover has a double-layer structure filled with foam plastic for insulation. Includes automatic temperature control, anti-condensation monitoring, and dustproof devices.
📊

Product Parameters

Rated Power Capacity Rated Voltage Ratio (KV) Dimensions (mm) Weight (KG) Transport Dimensions (mm)
500KVA13.2/0.22kv1750*1650*190019101750*1650*1900
1000KVA13.2/0.48kv2100*1650*190035002100*1650*1900
1500KVA23/0.48kv2650*1900*200042502650*1900*2000
2000KVA12.47/0.48kv2650*1900*200055502650*1900*2000
2000KVA34.5/0.48kv2800*2200*240069602800*2200*2400
5000KVA34.5/0.48kv3500*2100*2400125002400*2100*2400
9000KVA34.5/12.47kv3700*3500*3200227002600*2100*3200
Frequently Asked Questions
Is OEM/ODM available?
Yes! Our products can be fully customized. We have professional design and engineering teams to customize products according to specific drawings or requirements.
What is your Minimum Order Quantity (MOQ)?
Our MOQ is one set.
What is the typical delivery time?
Delivery depends on order quantity but usually takes between 15-20 days.

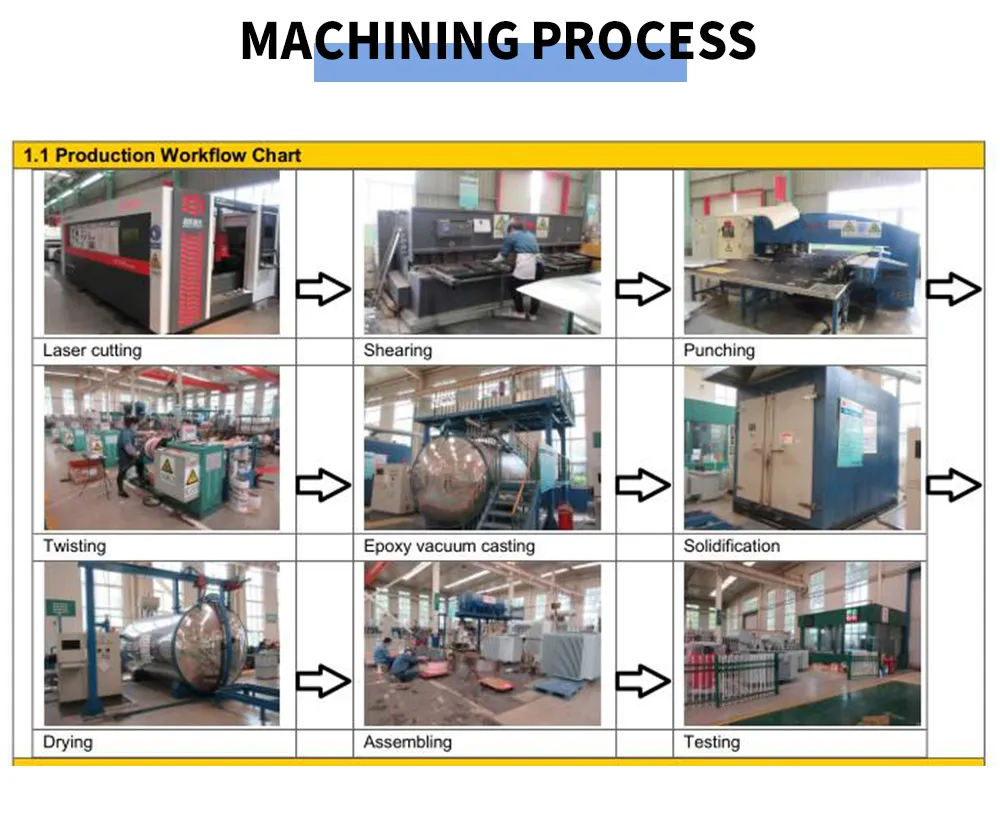

How do you ensure product quality?
We comply with TQM standards. Each step of production is monitored. Products are fully assembled and tested before packing. We can provide photos and videos of the testing process upon request.
What is the warranty period?
We provide a one-year warranty from the sale date. If accessory problems occur, we provide free replacements based on photo evidence. Technical support is always available.
Can these substations be used for industrial sites?
Yes, they are ideal for industrial and mining enterprises, as well as residential and temporary power construction sites due to their compact and durable design.
