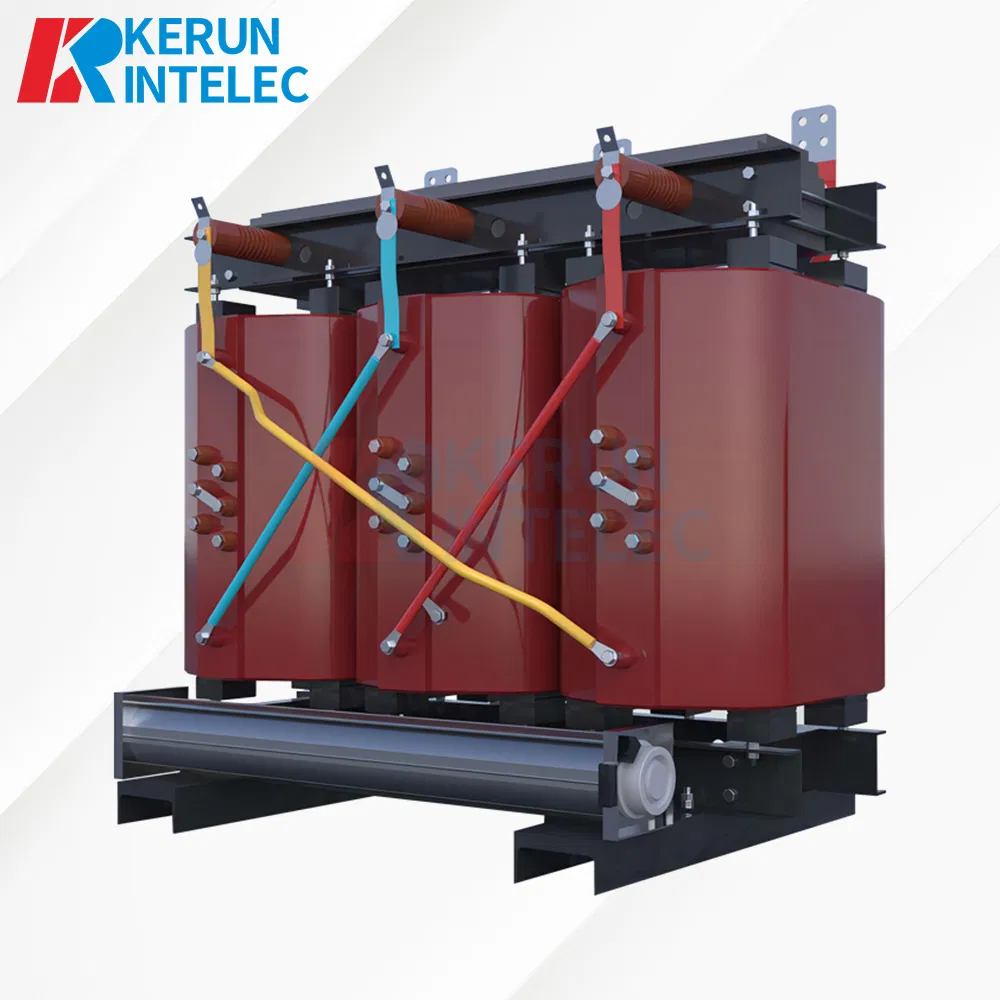

10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
1 / 5
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer
10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer

10kv-35kv/0.4kv 30kVA-10mva Amorphous Alloy Three Phase Cast Resin Isolation Dry Type Transformer

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊Basic Information
Model Type:
Dry Type
Core Type:
Core-type Transformer
Cooling:
Dry-type Transformer (AN/AF)
Winding:
Two-winding
Certification:
ISO9001, CCC, IEC, IEEE, CNAS
Usage:
Distribution, Three-Phase
HV Rating:
6/10/11/15/20/33/35kV
LV Rating:
0.4kV
Materials:
Copper/Aluminium, Silicon Steel
Rated Power:
Up to 20MVA
Origin:
China
HS Code:
8504210000
🛡️Product Description

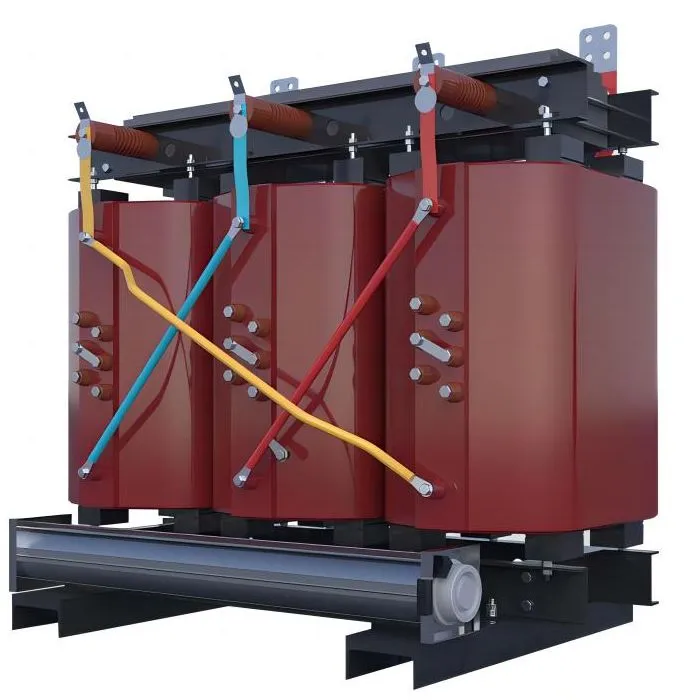

Cast Resin Dry Type Transformer

Cast Resin Dry Type Transformer

Technical Specifications:

  • Rated power: up to 20MVA
  • Primary voltage: up to 35kV
  • Secondary voltage: up to 480V
  • Cooling type: AN/AF
  • Frequencies: 50 Hz/60 Hz

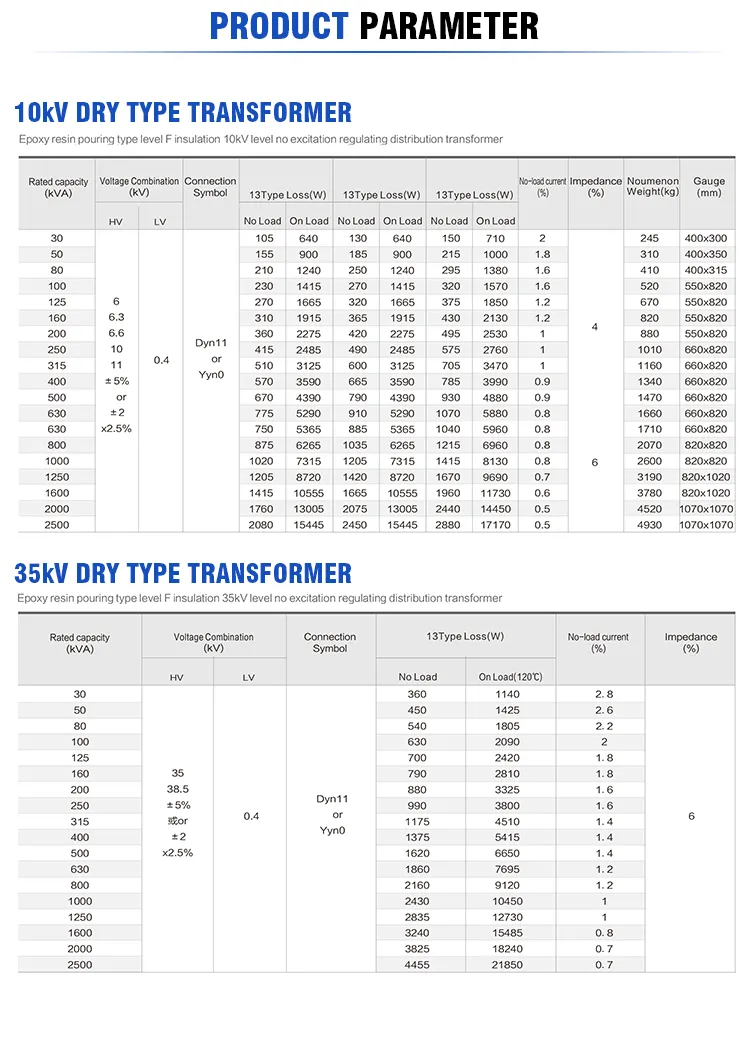

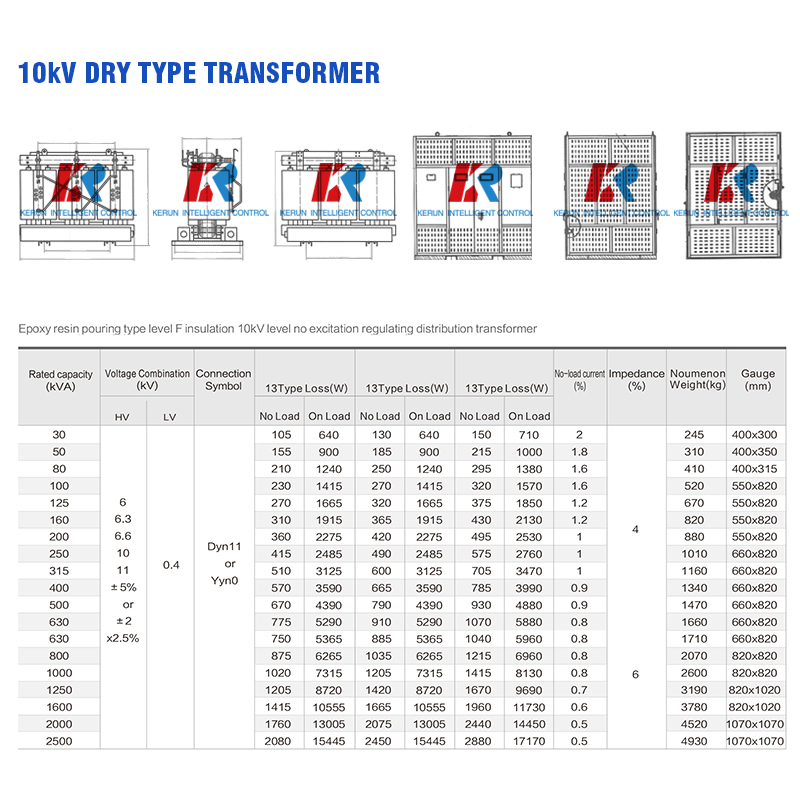

📉10kV Dry Type Transformer Parameters
Rated Capacity (kVA) Voltage (kV) Connection 13 Type Loss (W) No-load Current (%) Impedance (%) Weight (kg)
HV LV No Load On Load
3010 ± 5%0.4Dyn111056402.04.0245
1000.4Dyn1123014151.64.0520
5000.4Dyn1167043900.94.01470
10000.4Dyn11102073150.86.02600
250010 ± 5%0.4Dyn112080154450.56.04930
💎Advantages of Dry Type Transformers

Safety & Protection: No flammable or toxic liquids, eliminating leakage and fire risks.

Eco-Friendly: No harmful gases released, zero greenhouse effect impact.

Low Noise: Laminated iron core technology with multiple insulation layers significantly reduces operational noise.

High Efficiency: Uses high-grade silicon steel sheets. No-load loss is 15% lower and load loss is 10% lower than standard SCB12 models.

Low Maintenance: Liquid-free design requires almost no maintenance throughout its 30-year service life.

🏢Main Applications
  • Chemical, oil, and gas industry environments.
  • Water protection and environmentally sensitive areas.
  • High fire-risk areas like forests and inner-city substations.
  • Indoor and underground power substations.
  • Renewable energy systems (e.g., off-shore wind turbines).
🖼️Product Showcase

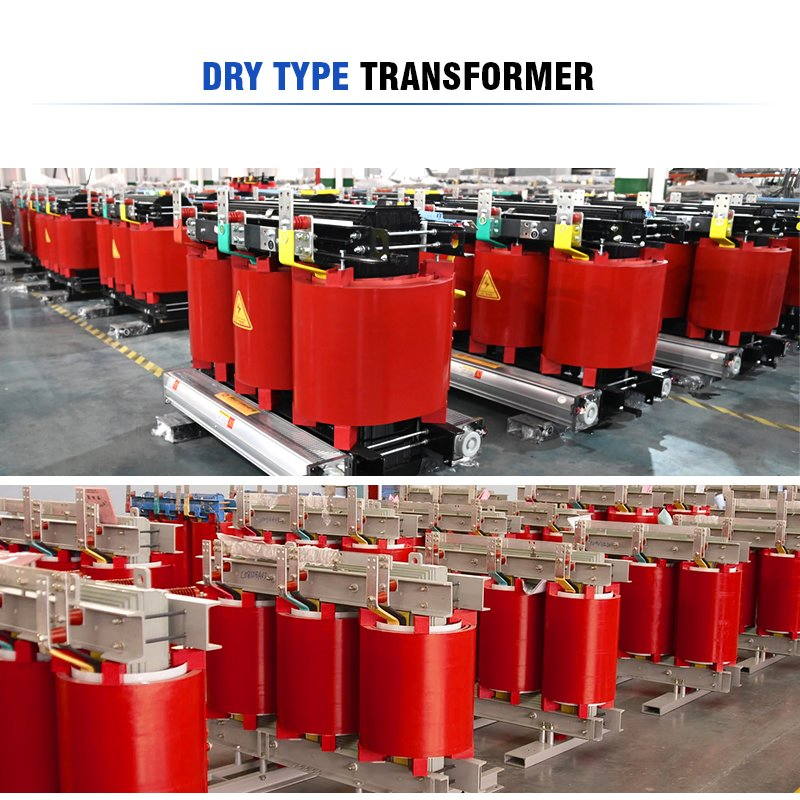

Transformer Details 1

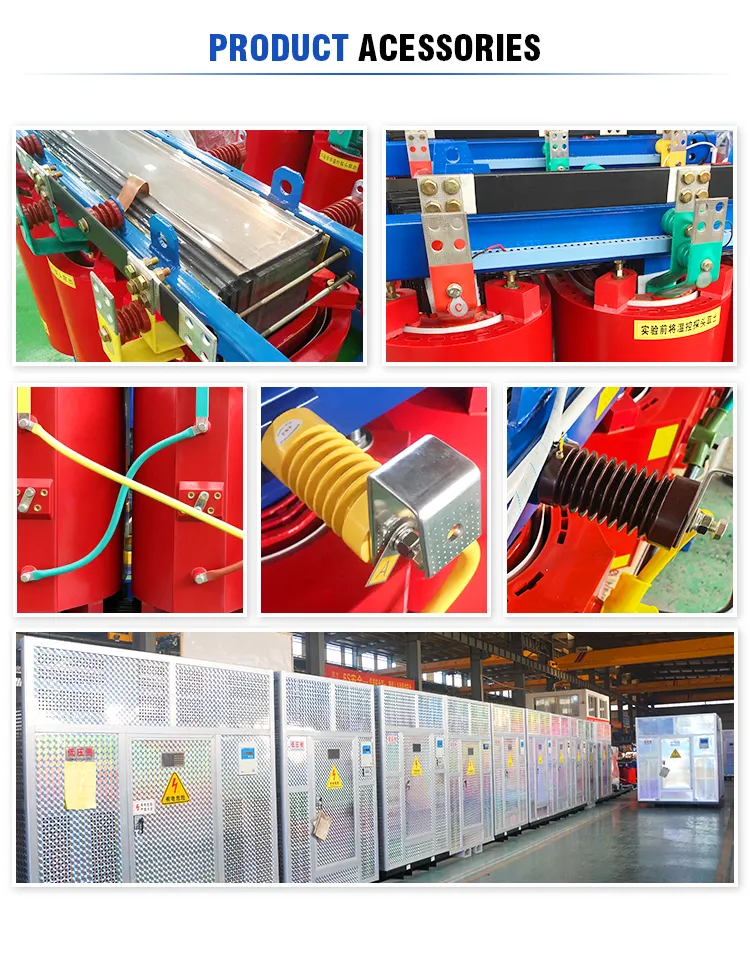

Transformer Details 2

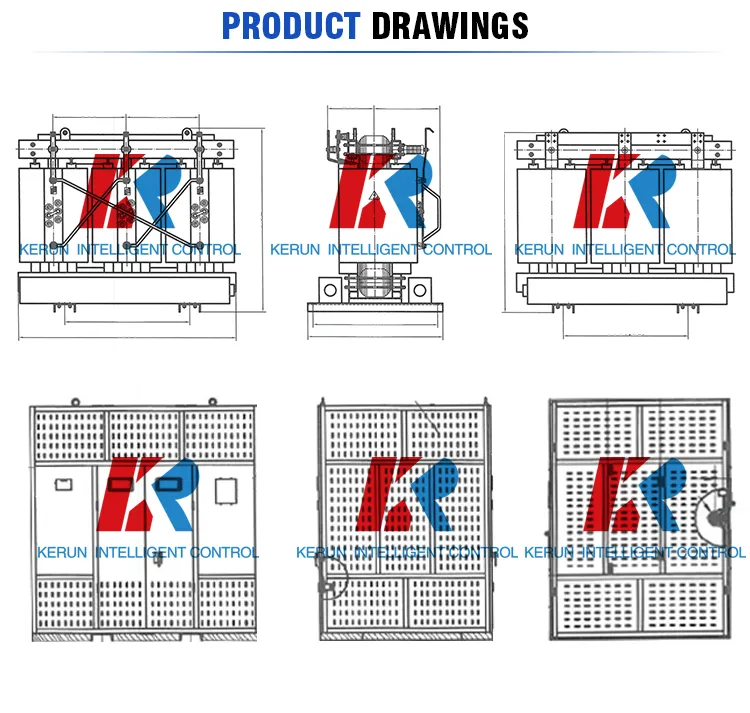

Transformer Details 3
Transformer Details 4

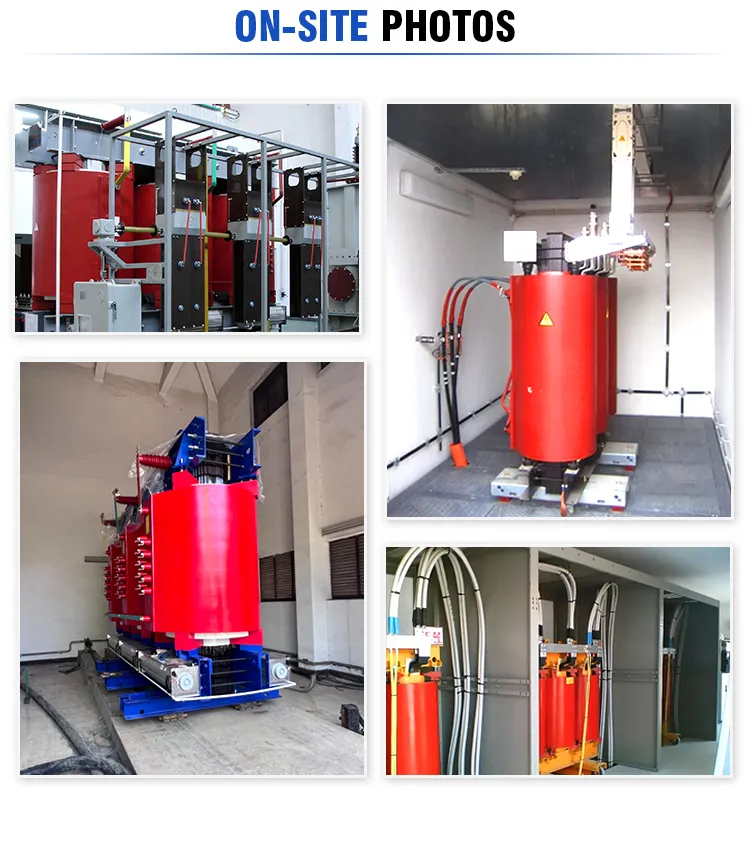

Transformer Details 5
Transformer Details 6

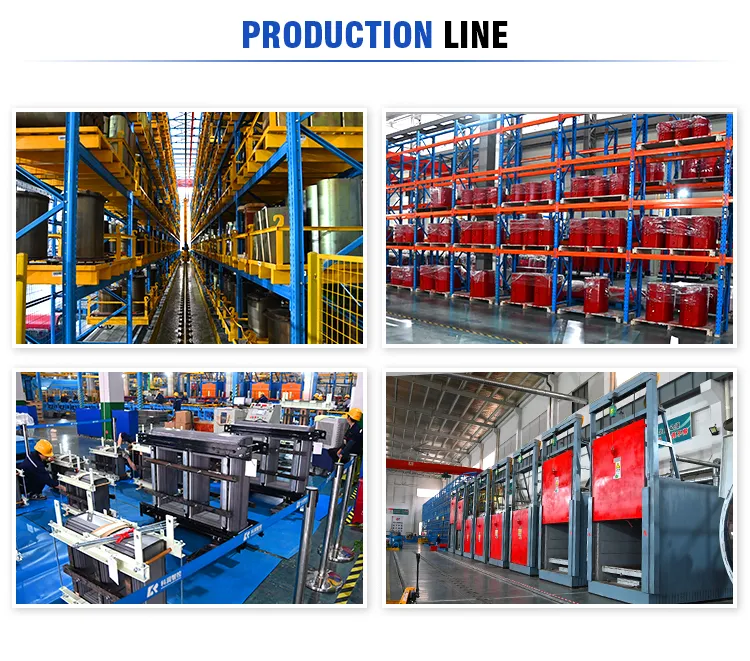

Production Line
Manufacturing

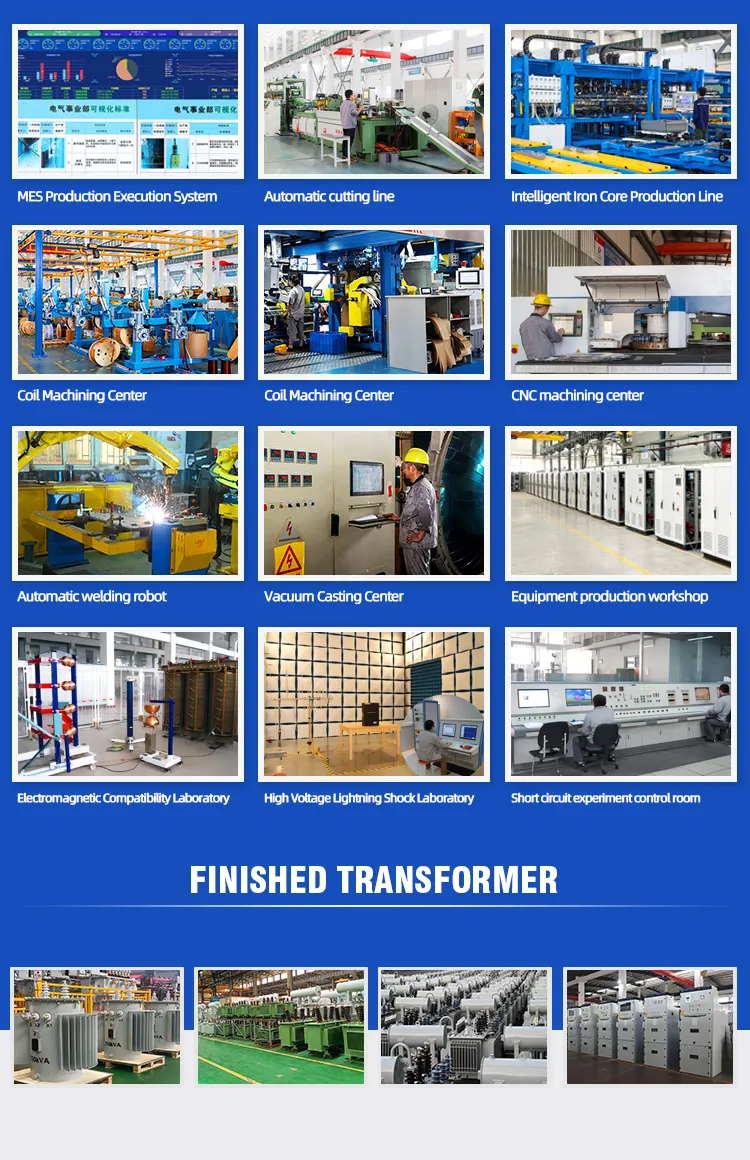

Quality Control
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a professional transformer manufacturer with more than 20 years of experience, supporting both OEM and ODM requirements.
Which markets do you mostly export to?
Our products are exported to more than 20 countries across South America, North America, Europe, the Middle East, and Africa.
What standards do your transformers comply with?
We adhere to international standards including IEC, ANSI, KEMA, and GOST, and hold ISO9001-2008 and OHSAS 18001 certifications.
How long is the typical delivery time?
Once the technical plan is finalized, production and shipping are typically completed within 20 days, depending on the order quantity.

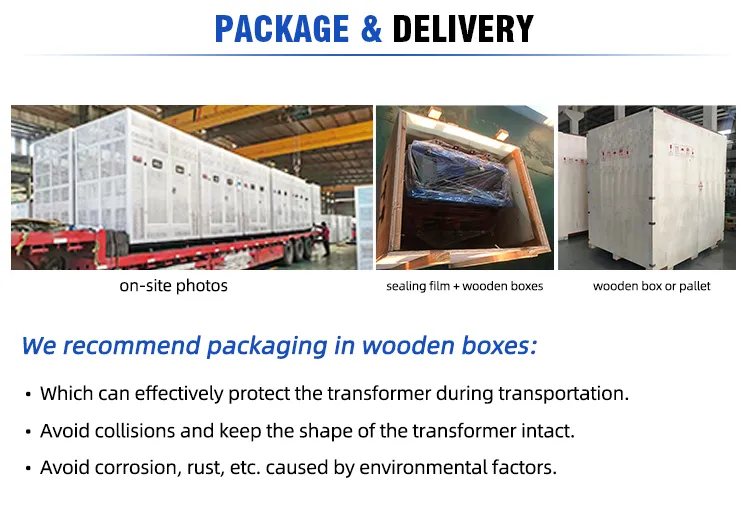

What type of packaging is used for shipping?
We offer three standard packaging types: wooden pallets, wooden frames, and wooden boxes, all of which can be customized to project needs.
What payment types and currencies are supported?
We support USD and CNY currencies, with payment methods including T/T and L/C.
