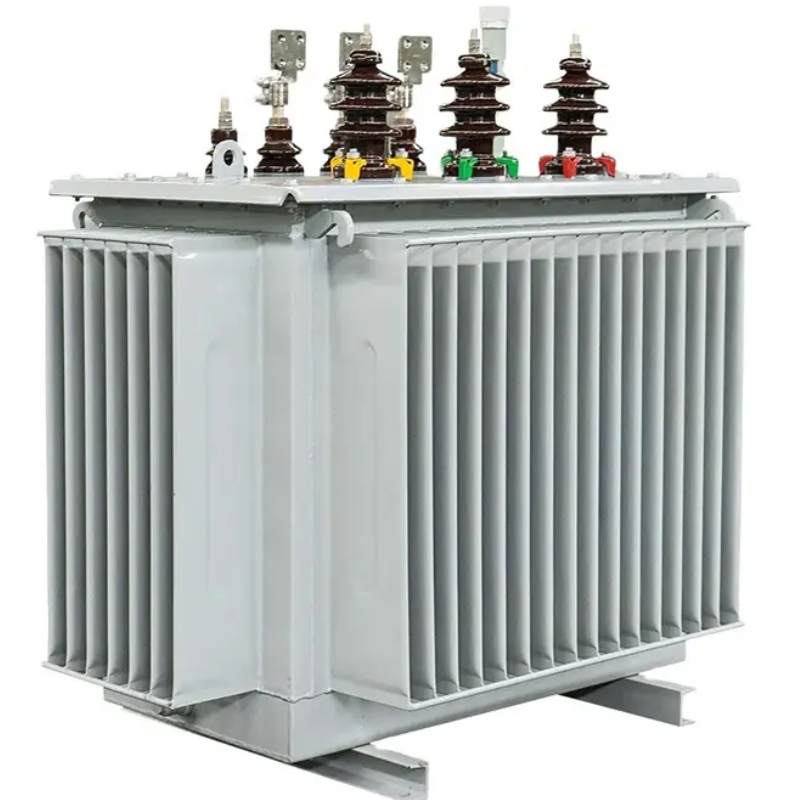

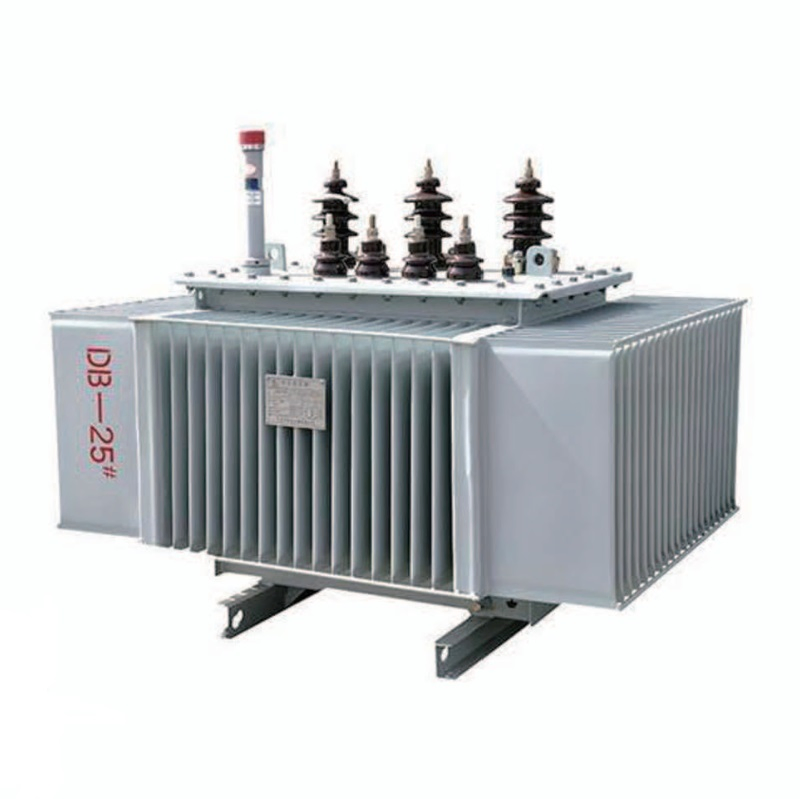

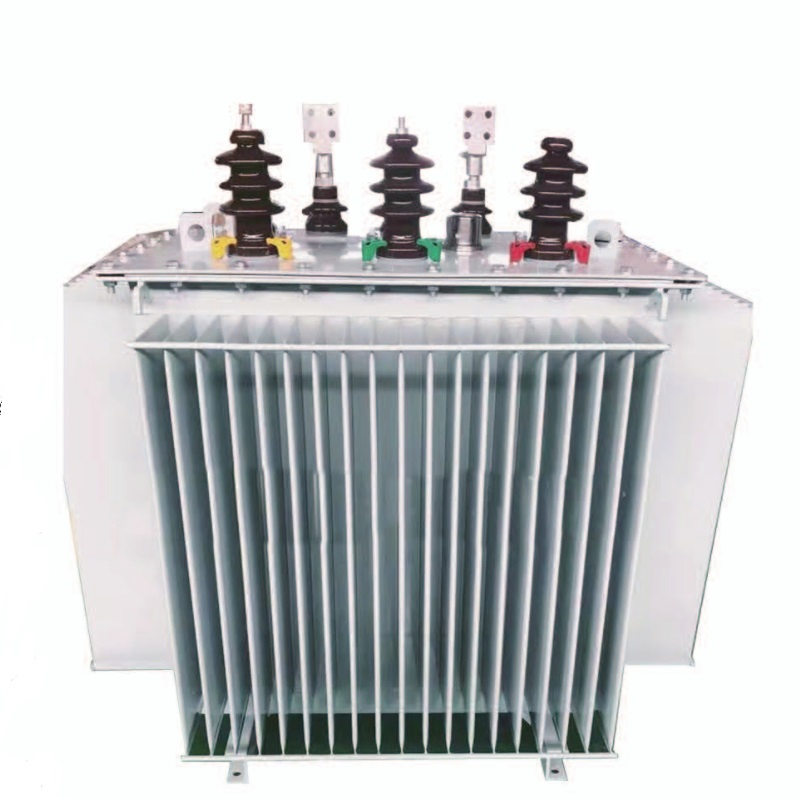

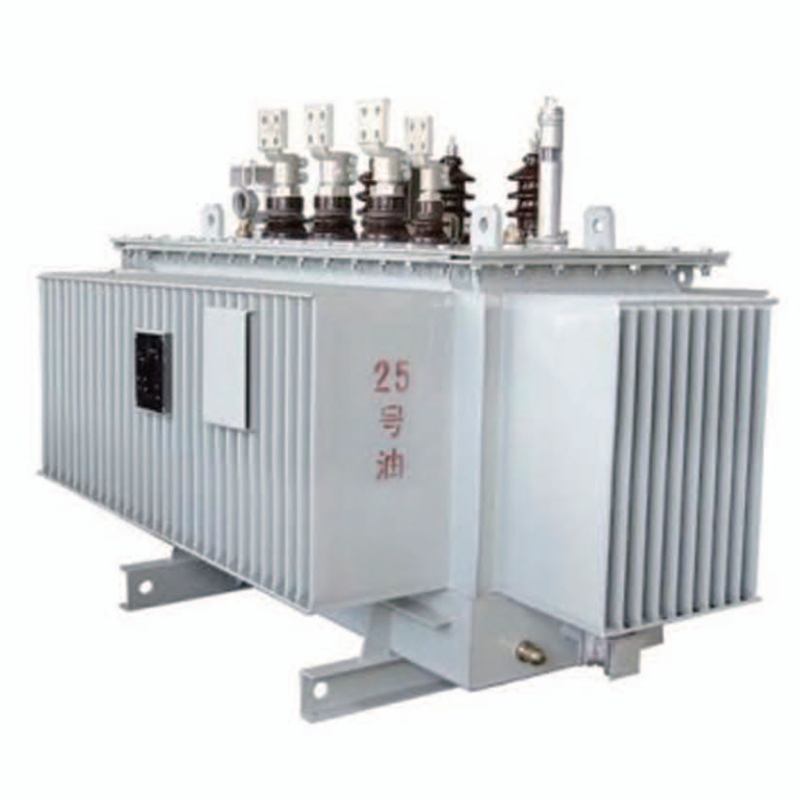

S13 type Oil-Immersed Distribution Transformer Parameters (Custom configurations available upon request).
| Rated Power (kVA) | High Voltage (V) | Low Voltage (V) | Connection | No-load Loss (W) | On-load Loss (W) | Impedance (%) |
|---|---|---|---|---|---|---|
| 30 | 6 / 6.3 / 10 / 10.5 / 11 | 0.4 | Yyn0 / Dyn11 | 70 | 505/480 | 4.0 |
| 100 | 135 | 1265/1200 | 4.0 | |||
| 250 | 260 | 2560/2440 | 4.0 | |||
| 630 | 510 | 4960 | 4.5 | |||
| 1000 | 745 | 8240 | 4.5 | |||
| 2500 | 1440 | 14840 | 5.0 |
Standard Warranty: 12 months or 2,000 operating hours (whichever comes first).
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training for your team.

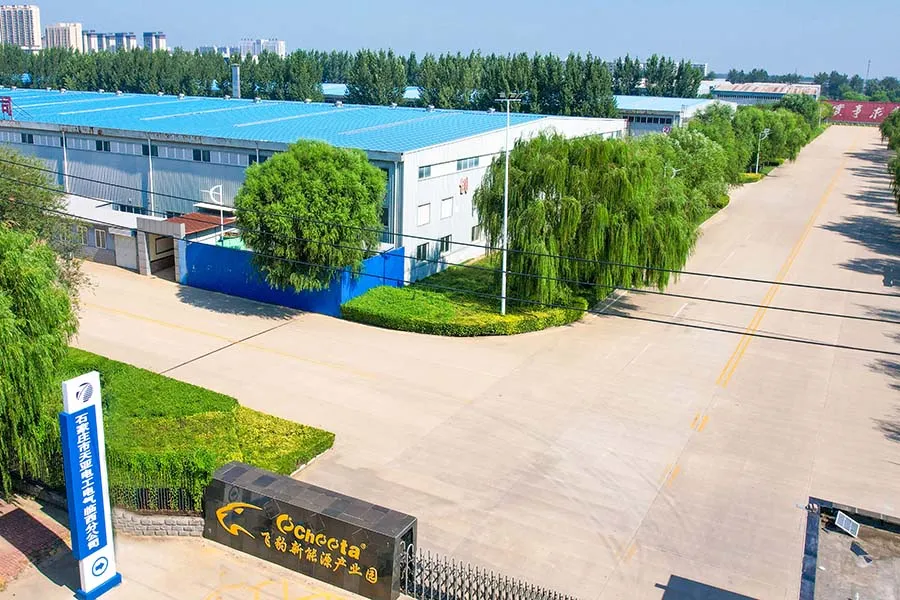

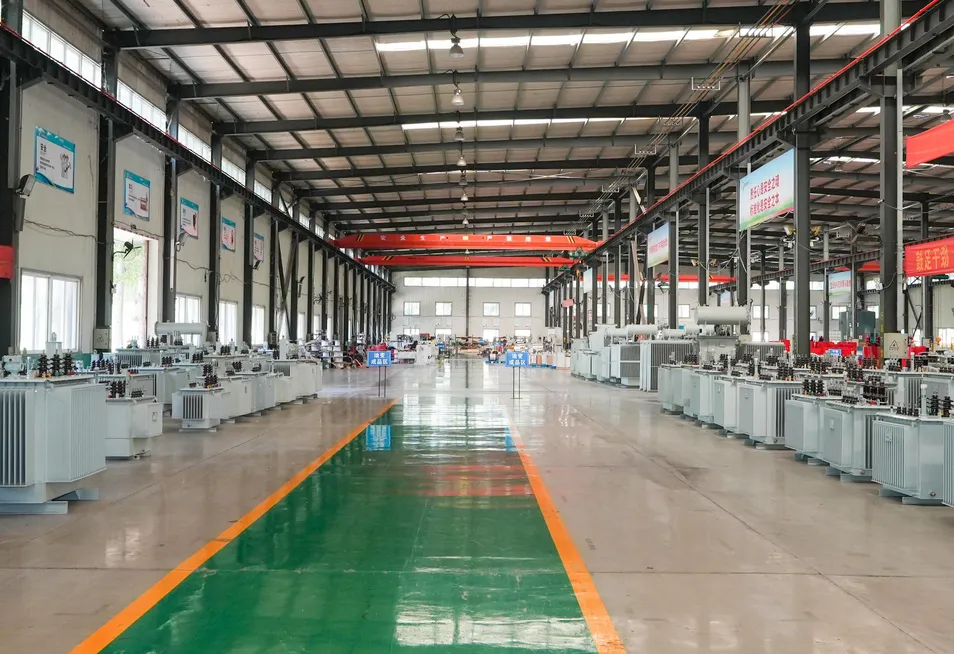

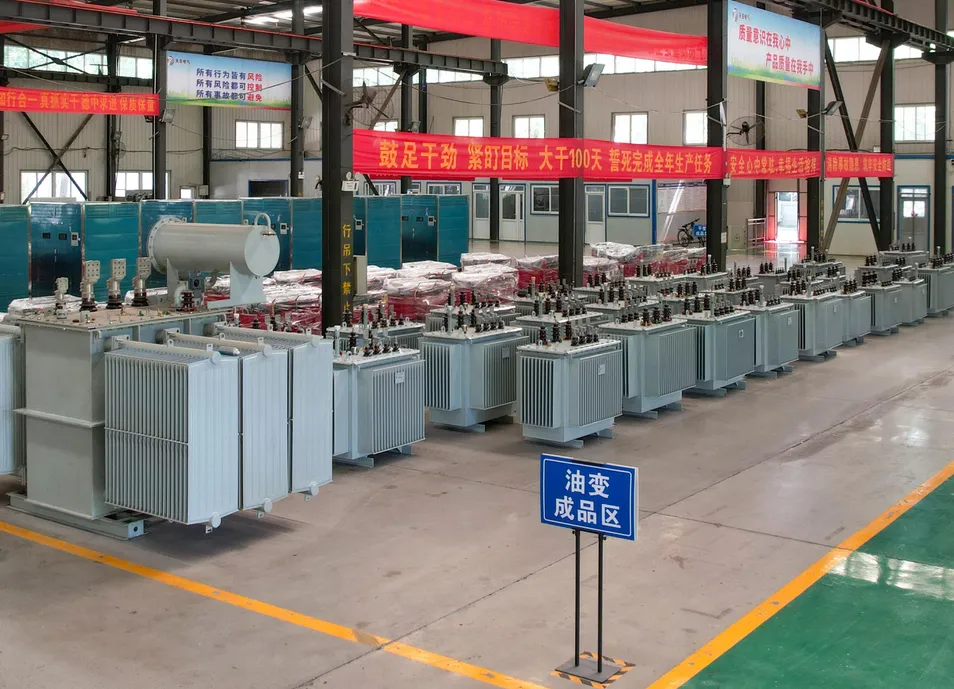

Dedicated to manufacturing transformers and transmission equipment since 2007. With two major production bases totaling 7,000 square meters, the facility operates under ISO9001, ISO14001, and ISO45001 management systems. All products are inspected and certified by authoritative institutions to ensure maximum performance and safety.
