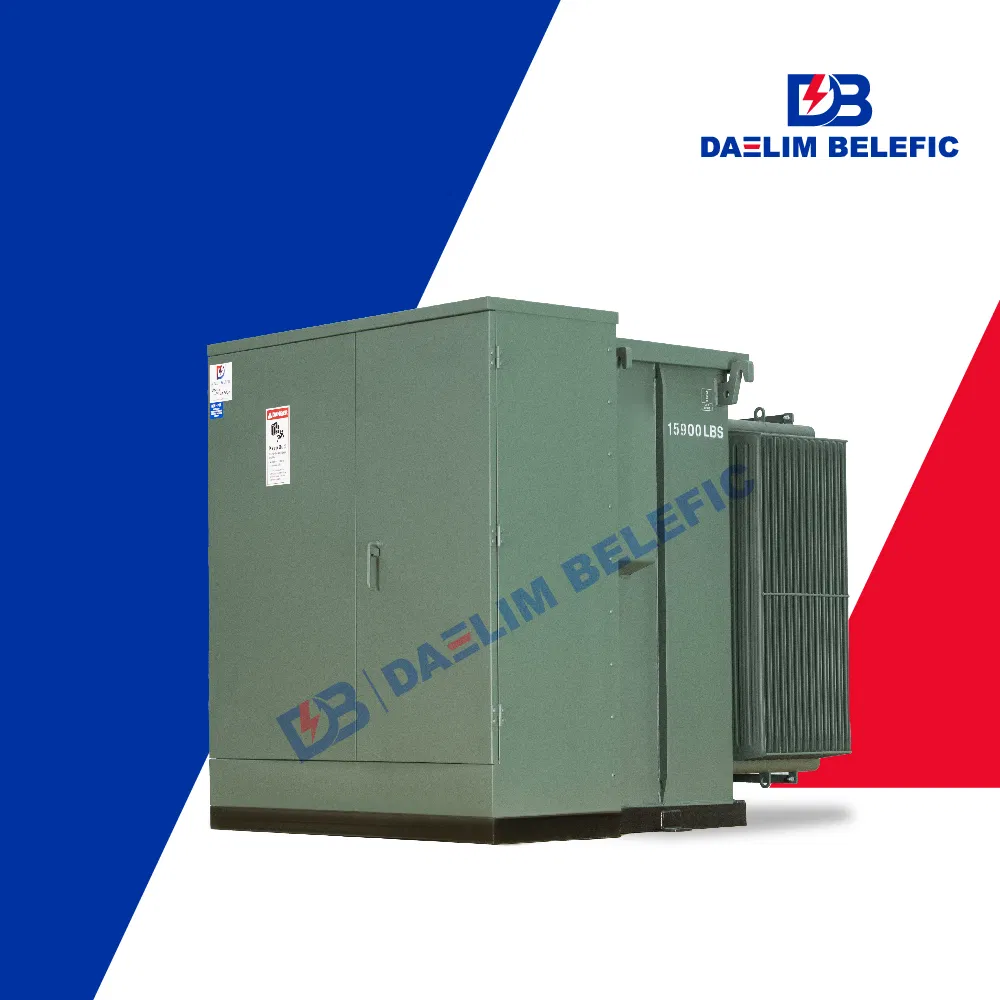

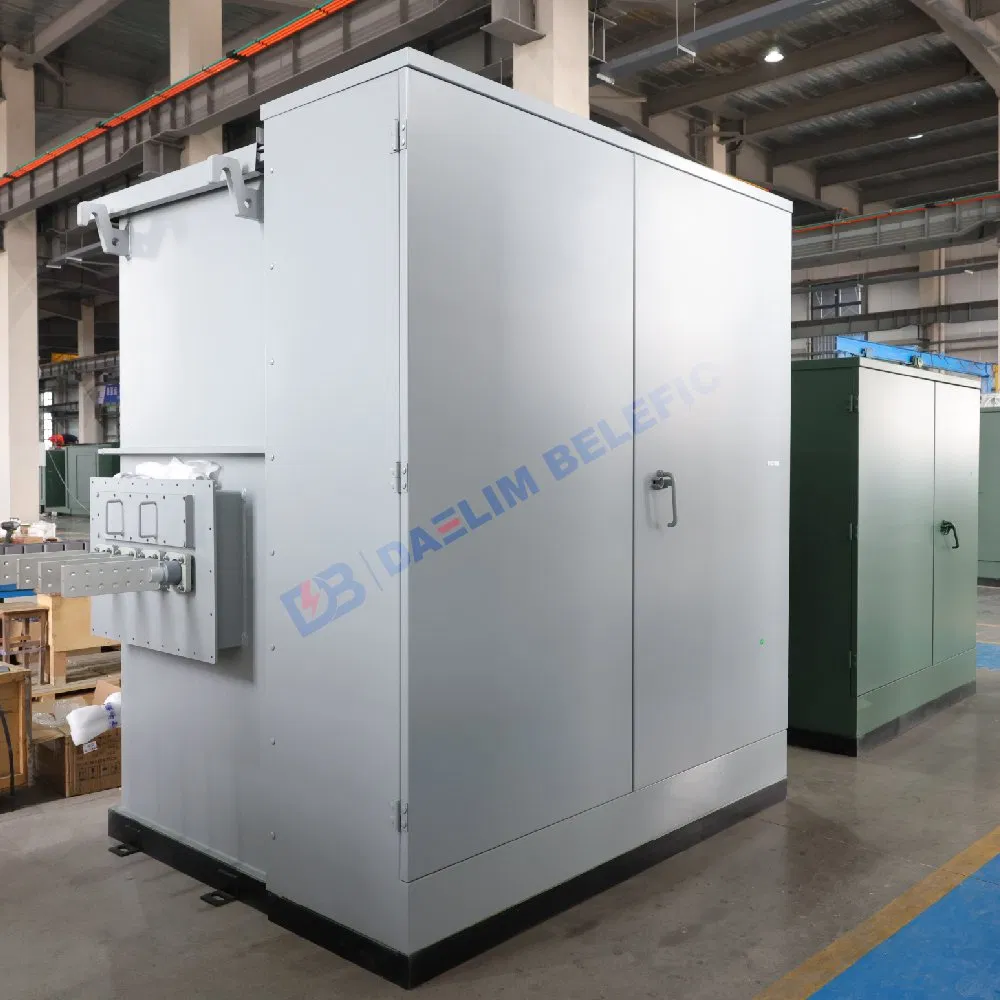

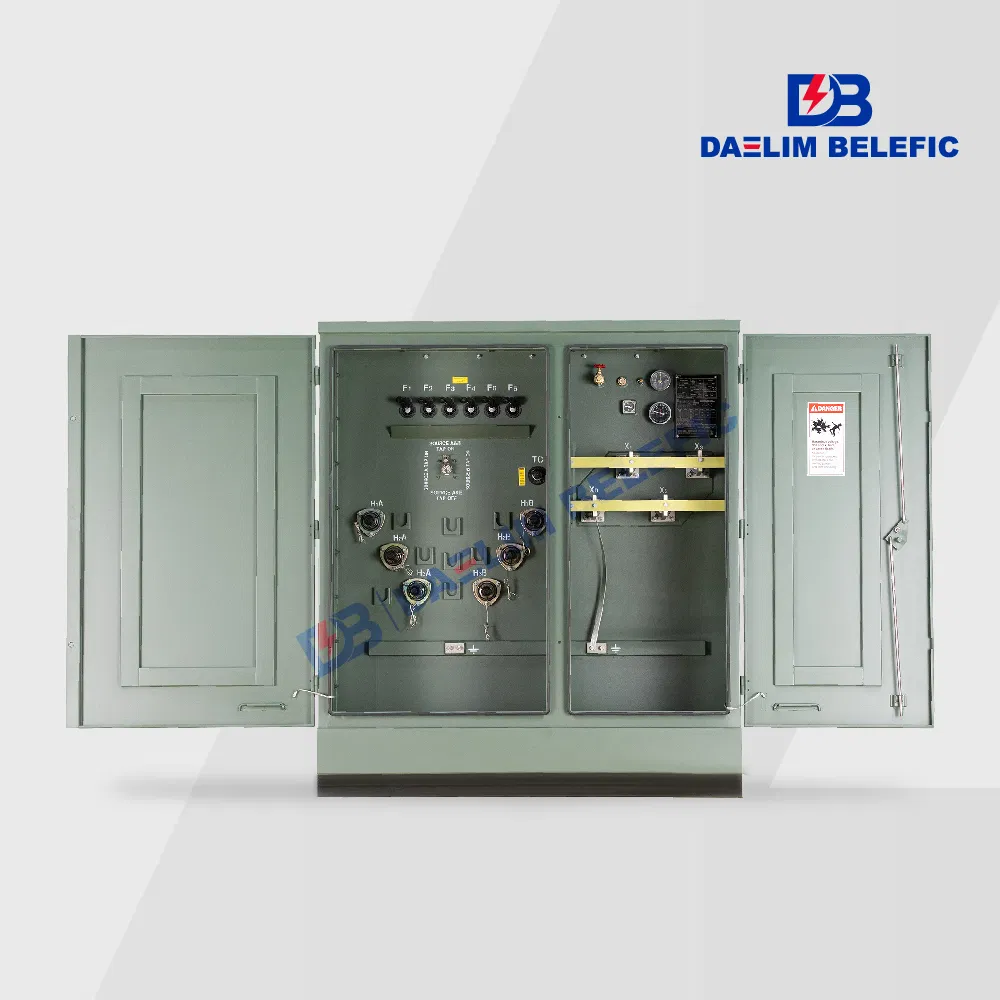

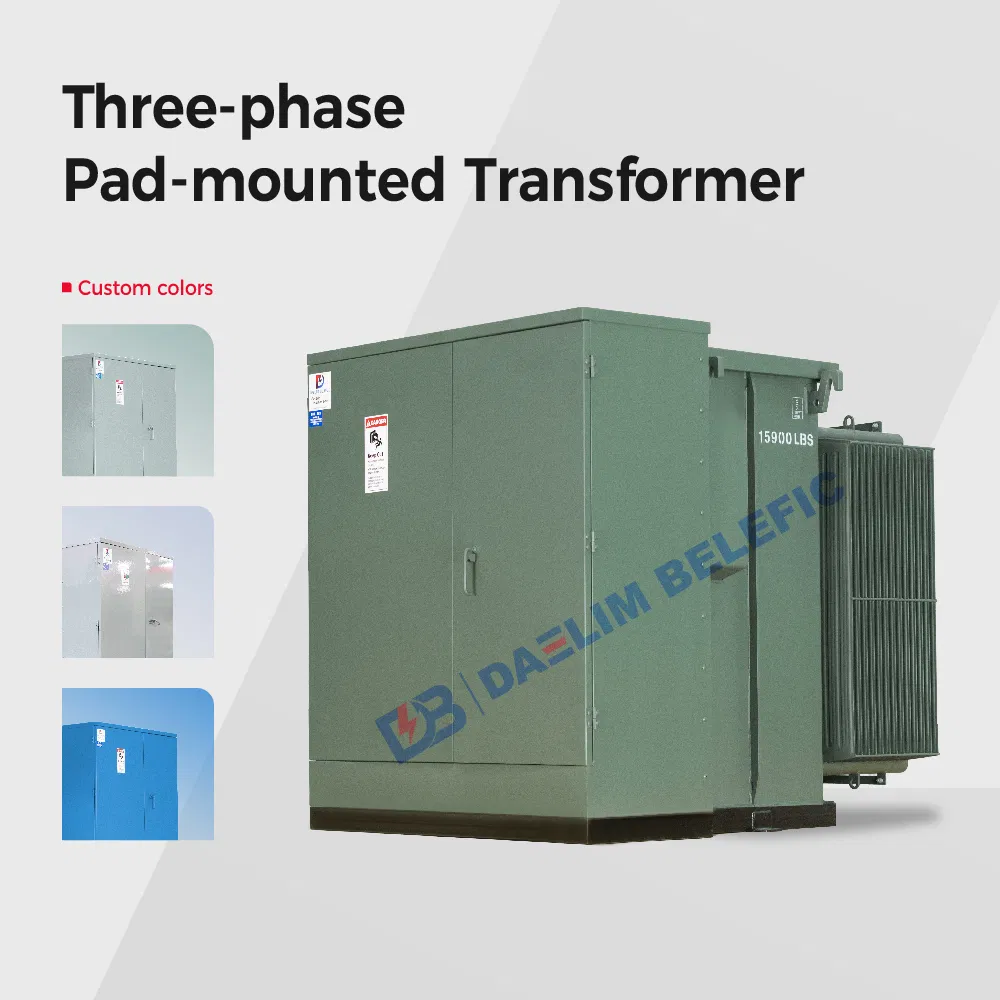

A three-phase pad-mounted transformer is an electrical device designed to convert high voltage to low voltage efficiently. It consists of three interconnected single-phase units housed in a secure, tamper-resistant enclosure. This construction typically features laminated iron cores with high magnetic permeability and precision-wound coils for optimal induction.
| Rated Power (KVA) | High Voltage (V) | Low Voltage (V) | No-Load Loss (W) | On-Load Loss (W) | Oil Weight (KG) | Total Weight (KG) |
|---|---|---|---|---|---|---|
| 75 | 34500/19920 13800/7957 13200/7620 12470/7200 | 240 / 480 480Y/277 600Y/347 | 180 | 1250 | 120 | 645 |
| 150 | 280 | 2200 | 201 | 989 | ||
| 300 | 480 | 3650 | 260 | 1415 | ||
| 500 | 680 | 5100 | 325 | 1905 | ||
| 1000 | 1150 | 10300 | 650 | 3235 | ||
| 2500 | 2680 | 27786 | 1020 | 8865 |
Maximum capacity can reach 10MVA; special requirements can be customized.

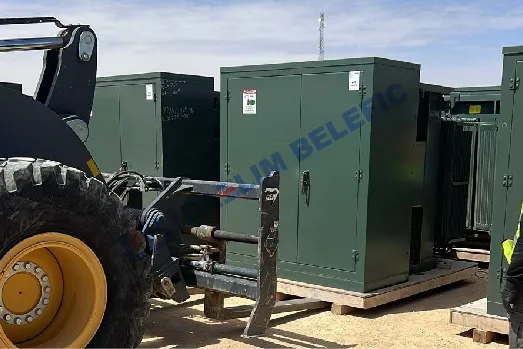

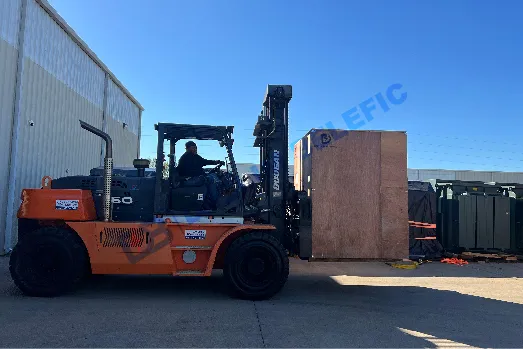

We provide two standard packaging methods: Reinforced wooden box packaging for maximum impact protection during transit, and moisture-proof wooden pallet packaging secured with protective film, ideal for full container sea freight.
Quality Control: Our system strictly monitors every stage from design to raw material procurement and final testing. Third-party agencies regularly inspect the manufacturing process to ensure compliance with UL standards.
Certifications: Compliance with IEEE/ANSI, CSA, AS/NZS, IEC, EN 60076, and GOST. Units are UL/cUL and CSA certified.
