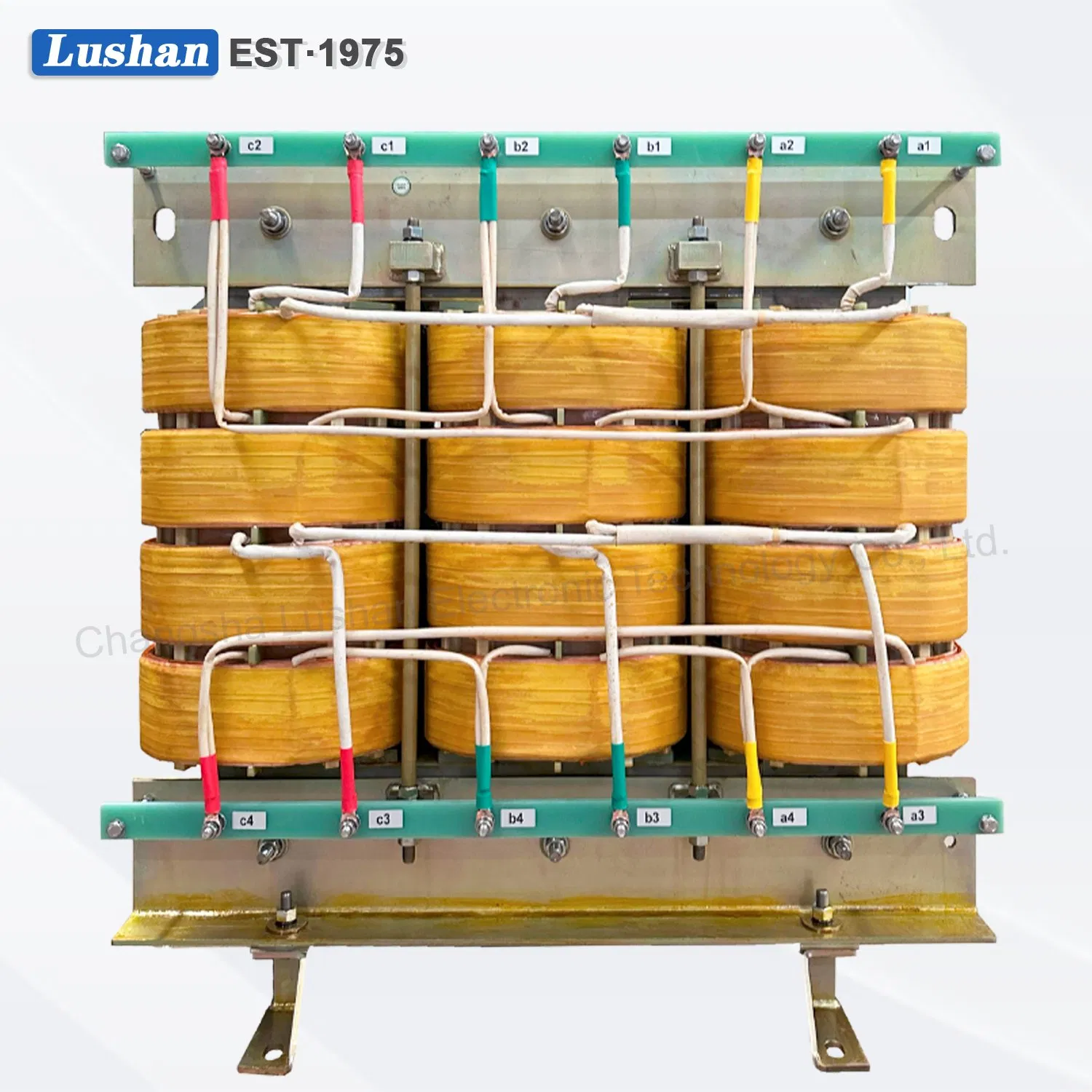

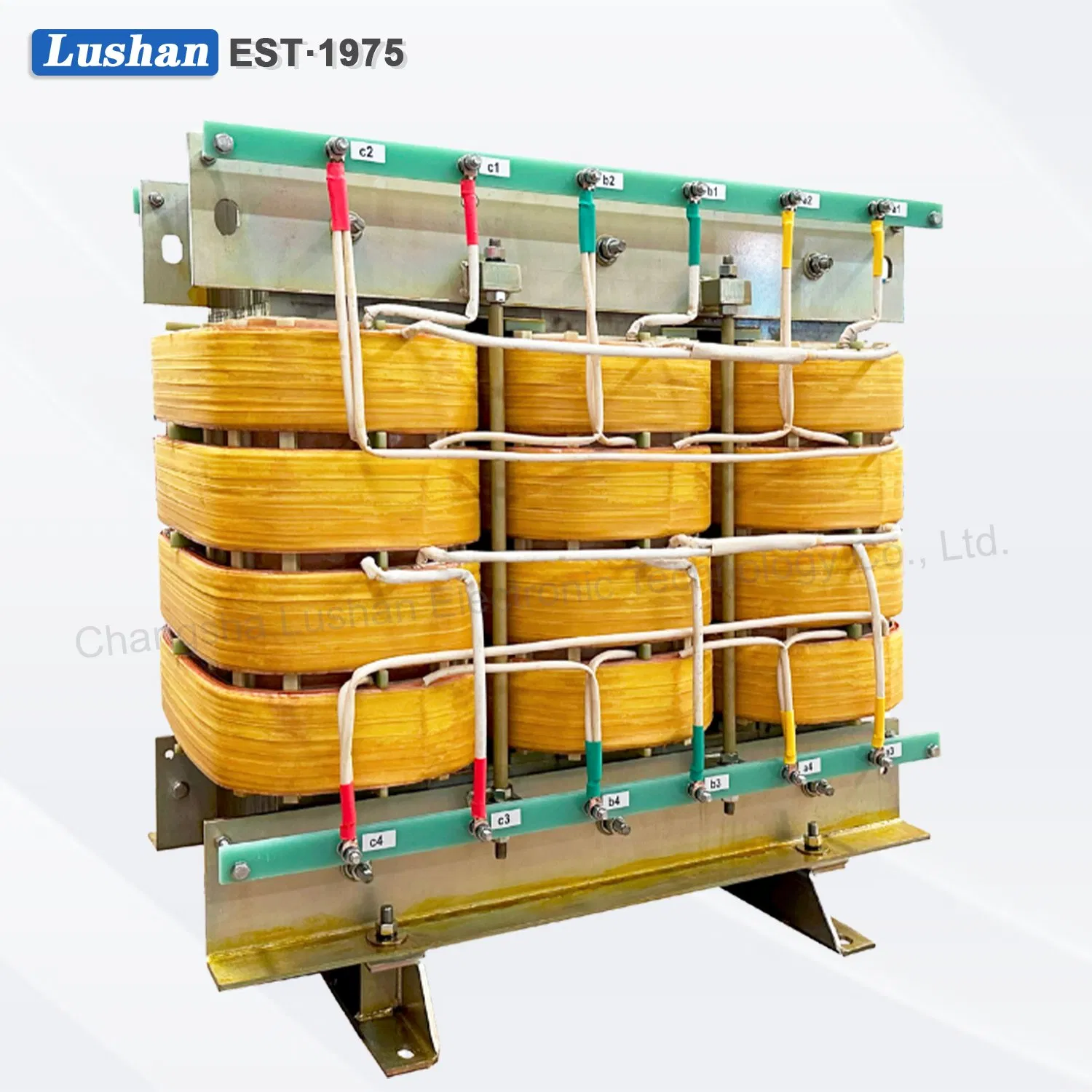

| Model NO. | ZSG-100kVA 380V-4*950V |
| Core Type | Core-type Transformer (Rectangular) |
| Cooling Method | Natural Air (AN) |
| Winding Type | Separated Winding Transformer |
| Certification | ISO9001, CE |
| Usage | Rectifier Transformer |
| Work Efficiency | ≥98% |
| Primary Voltage | 380V |
| Secondary Voltage | 4*950V |
| Winding Materials | Copper |

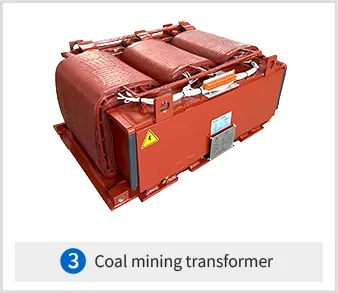

Designed for coal mine chargers, this system converts energy and stabilizes charger operations, providing robust support for equipment charging requirements. It ensures steady power delivery even in demanding industrial environments.

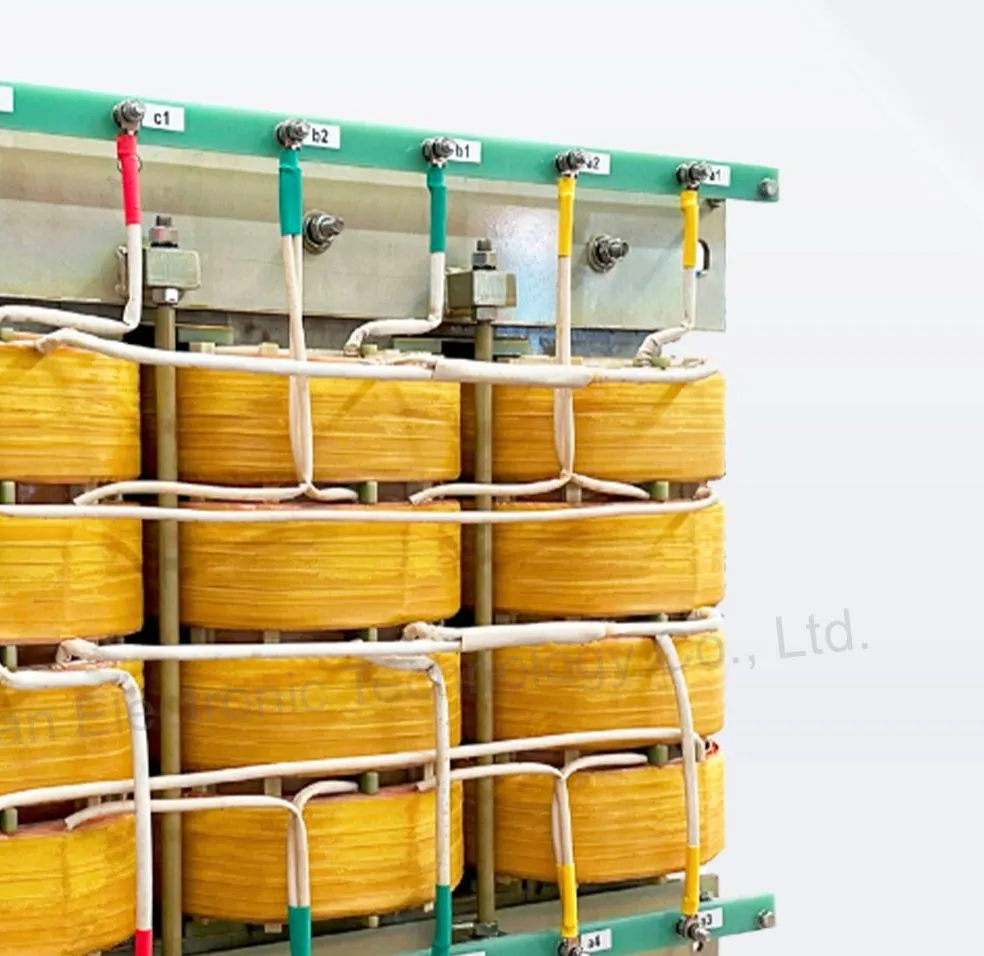

The split winding structure allows for flexible distribution of electrical energy. It improves system stability and reliability, making it ideal for large industrial plants and data centers where power distribution requirements are complex.

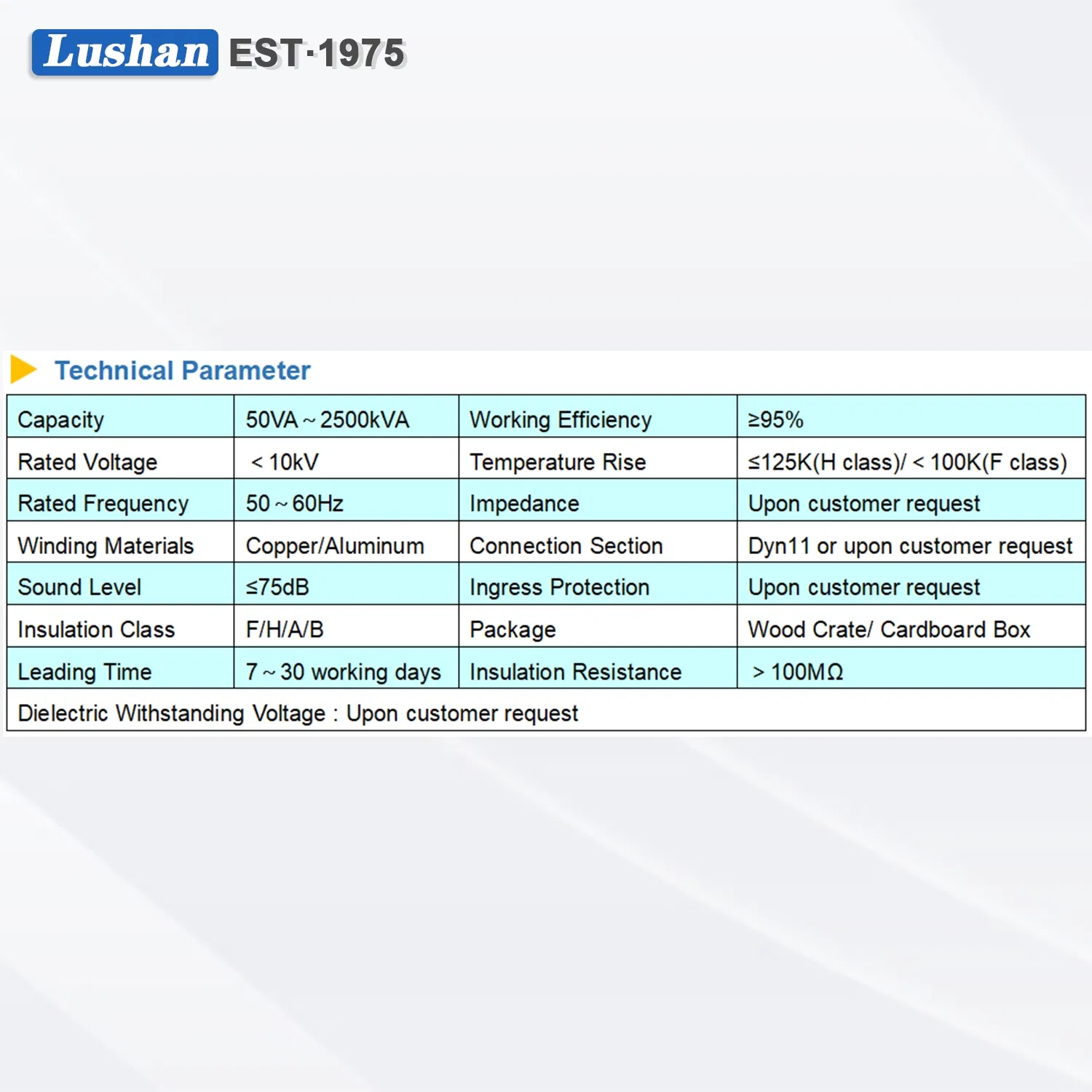

| Capacity | 50VA ~ 2500kVA | Working Efficiency | ≥95% |
| Rated Voltage | <10kV | Temperature Rise | ≤125K (H class) / <100K (F class) |
| Rated Frequency | 50 ~ 60Hz | Insulation Resistance | >100MΩ |
| Winding Materials | Copper / Aluminum | Sound Level | ≤75dB |
| Insulation Class | F / H / A / B | Leading Time | 7 ~ 30 working days |
Established in 1975, the manufacturer specializes in the production and development of transformers and reactors, integrating both domestic and international advanced technologies. The product range includes single-phase and three-phase isolation transformers, reactors, and high-frequency products designed for rail transit, wind power, photovoltaic projects, and mining.
With over fifty years of experience, the company strictly adheres to the ISO 9001:2015 system standard. Most products are certified by CE, TÜV, and PSE, ensuring reliability for global markets including Japan, Europe, and North America.
